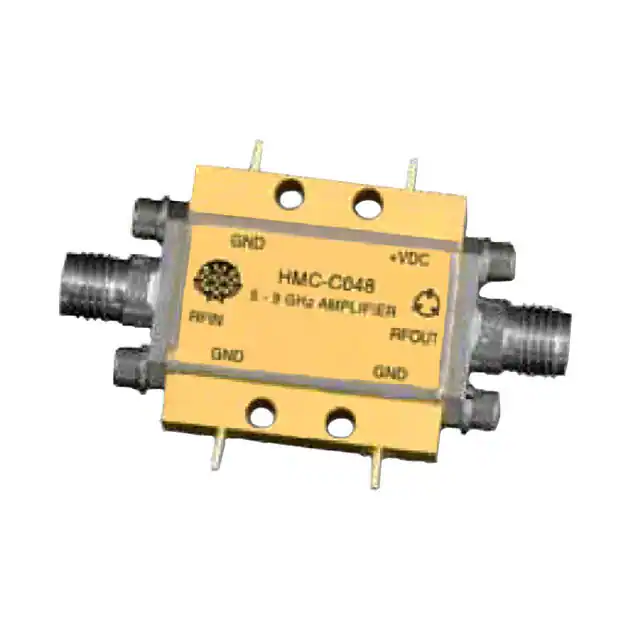

HMC-C048 v03.1211 Low Noise Amplifier module, 5 - 9 GHz Features Amplifiers Low Noise Figure: 1.75 dB @ 6 GHz High Gain: 22 dB Output IP3: +25 dBm P1dB Output Power: +14.8 dBm Typical Applications The HMC-C048 LNA is ideal for: • Telecom Infrastructure • Microwave Radio & VSAT 50 Ohm Matched & DC Blocked RF I/Os Hermetically Sealed Module Field Replaceable SMA Connectors -55 °C to +85 °C Operating Temperature • Military & Space General Description • Test Instrumentation Functional Diagram The HMC-C048 is a GaAs MMIC pHEMT Low Noise Amplifier in a miniature, hermetic module which operates between 5 and 9 GHz. This high dynamic range low noise amplifier module provides 22 dB of gain and up to +25 dBm of output IP3 while operating from a single positive supply between +8V and +16V. The amplifier I/Os are internally matched to 50 Ohms and DC blocked for robust performance. The module features removable coaxial connectors which can be detached to allow direct connection of the I/O pins to a microstrip or coplanar circuit. Electrical Specifications, TA = +25° C, Vdc = +12V Parameter Min. Frequency Range Gain Max. Units GHz 22.5 dB Gain Variation Over Temperature 0.015 Noise Figure 1.75 dB/ °C 2.3 dB Input Return Loss 14 dB Output Return Loss 15 dB Output Power for 1 dB Compression (P1dB) 14.8 dBm 16.7 dBm Output Third Order Intercept (IP3) 25 dBm Supply Current 105 Saturated Output Power (Psat) 0-1 18.5 Typ. 5-9 12 140 mA Information furnished by Analog Devices is believed to be accurate and reliable. However, no For price, 2delivery, and to placeChelmsford, orders: Analog MA Devices, Inc., For price, delivery and to place orders: Microwave Corporation, Elizabeth Drive, 01824 responsibility is assumed by Analog Devices for its use, nor for anyHittite infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 rights of third parties that may result from its use. Specifications subject to change without notice. No 978-250-3343 tel • 978-250-3373 fax • Order at www.hittite.com Phone:On-line 781-329-4700 • Order online at www.analog.com license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Application Support: Phone: 1-800-ANALOG-D Trademarks and registered trademarks are the property of their respective owners. Application Support: Phone: 978-250-3343 or apps@hittite.com HMC-C048 v03.1211 Low Noise Amplifier module, 5 - 9 GHz Gain vs. Temperature Broadband Gain & Return Loss 30 Amplifiers 28 24 S21 S11 S22 10 GAIN (dB) RESPONSE (dB) 20 0 20 -10 +25C +85C -55C 16 -20 -30 12 2 4 6 8 10 4 5 FREQUENCY (GHz) 7 9 10 Output Return Loss vs. Temperature 0 0 -5 +25C +85C -55C -5 RETURN LOSS (dB) -10 -15 -20 -25 -30 +25C +85C -55C -10 -15 -20 -25 -35 -40 4 5 6 7 8 9 -30 4 10 5 6 7 8 9 10 FREQUENCY (GHz) FREQUENCY (GHz) Reverse Isolation vs. Temperature Noise Figure vs. Temperature 5 0 -10 +25C +85C -55C NOISE FIGURE (dB) 4 -20 ISOLATION (dB) 8 FREQUENCY (GHz) Input Return Loss vs. Temperature RETURN LOSS (dB) 6 +25C +85C -55C -30 -40 -50 -60 3 2 1 -70 -80 0 4 5 6 7 8 FREQUENCY (GHz) 9 10 4 5 6 7 8 9 10 FREQUENCY (GHz) Information furnished by Analog Devices is believed to be accurate and reliable. However, no For price, 2delivery, and to placeChelmsford, orders: Analog MA Devices, Inc., For price, delivery and to place orders: Microwave Corporation, Elizabeth Drive, 01824 responsibility is assumed by Analog Devices for its use, nor for anyHittite infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 rights of third parties that may result from its use. Specifications subject to change without notice. No 978-250-3343 tel • 978-250-3373 fax • Order at www.hittite.com Phone:On-line 781-329-4700 • Order online at www.analog.com license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Application Support: Phone: 1-800-ANALOG-D Trademarks and registered trademarks are the property of their respective owners. Application Support: Phone: 978-250-3343 or apps@hittite.com 0-2 HMC-C048 v03.1211 Low Noise Amplifier module, 5 - 9 GHz Psat vs. Temperature 20 20 16 16 Psat (dBm) P1dB (dBm) Amplifiers Output P1dB vs. Temperature 12 +25C +85C -55C 8 4 12 +25C +85C -55C 8 4 0 0 4 5 6 7 8 9 10 4 5 FREQUENCY (GHz) 7 8 9 10 FREQUENCY (GHz) Absolute Maximum Ratings Output IP3 vs. Temperature 34 30 IP3 (dBm) 6 Bias Supply Voltage (Vdc) +16 Vdc RF Input Power (RFIN) +0 dBm Storage Temperature -65 to +150 °C Operating Temperature -55 to +85 °C 26 +25C +85C -55C ELECTROSTATIC SENSITIVE DEVICE OBSERVE HANDLING PRECAUTIONS 22 18 4 5 6 7 8 9 10 FREQUENCY (GHz) 0-3 Information furnished by Analog Devices is believed to be accurate and reliable. However, no For price, 2delivery, and to placeChelmsford, orders: Analog MA Devices, Inc., For price, delivery and to place orders: Microwave Corporation, Elizabeth Drive, 01824 responsibility is assumed by Analog Devices for its use, nor for anyHittite infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 rights of third parties that may result from its use. Specifications subject to change without notice. No 978-250-3343 tel • 978-250-3373 fax • Order at www.hittite.com Phone:On-line 781-329-4700 • Order online at www.analog.com license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Application Support: Phone: 1-800-ANALOG-D Trademarks and registered trademarks are the property of their respective owners. Application Support: Phone: 978-250-3343 or apps@hittite.com HMC-C048 v03.1211 Low Noise Amplifier module, 5 - 9 GHz Pin Descriptions Function Description 1 RFIN & RF Ground RF input connector, coaxial female, field replaceable. This pin is AC coupled and matched to 50 Ohms. 2, 5, 6 GND One of these pins must be connected to power supply ground. 3 Vdc Power supply voltage for the amplifier. 4 RFOUT & RF Ground RF output connector, coaxial female, field replaceable. This pin is AC coupled and matched to 50 Ohms. Interface Schematic Information furnished by Analog Devices is believed to be accurate and reliable. However, no For price, 2delivery, and to placeChelmsford, orders: Analog MA Devices, Inc., For price, delivery and to place orders: Microwave Corporation, Elizabeth Drive, 01824 responsibility is assumed by Analog Devices for its use, nor for anyHittite infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 rights of third parties that may result from its use. Specifications subject to change without notice. No 978-250-3343 tel • 978-250-3373 fax • Order at www.hittite.com Phone:On-line 781-329-4700 • Order online at www.analog.com license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Application Support: Phone: 1-800-ANALOG-D Trademarks and registered trademarks are the property of their respective owners. Application Support: Phone: 978-250-3343 or apps@hittite.com Amplifiers Pin Number 0-4 HMC-C048 v03.1211 Low Noise Amplifier module, 5 - 9 GHz Amplifiers Outline Drawing Package Information Package Type C-10 Package Weight [1] 18.7 gms [2] Spacer Weight 3.3 gms [2] [1] Includes the connectors [2] ±1 gms Tolerance 0-5 NOTES: 1. PACKAGE, LEADS, COVER MATERIAL: KOVAR™ 2. FINISH: GOLD PLATE OVER NICKEL PLATE 3. ALL DIMENSIONS ARE IN INCHES [MILLIMETERS] 4. TOLERANCES: 4.1 .XX = ±0.02 4.2 .XXX = ±0.010 5. FIELD REPLACEABLE SMA CONNECTORS Information furnished by Analog Devices is believed to be accurate and reliable. However, no For price, 2delivery, and to placeChelmsford, orders: Analog MA Devices, Inc., For price, delivery and to place orders: Microwave Corporation, Elizabeth Drive, 01824 responsibility is assumed by Analog Devices for its use, nor for anyHittite infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 rights of third parties that may result from its use. Specifications subject to change without notice. No 978-250-3343 tel • 978-250-3373 fax • Order at www.hittite.com Phone:On-line 781-329-4700 • Order online at www.analog.com license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Application Support: Phone: 1-800-ANALOG-D Trademarks and registered trademarks are the property of their respective owners. Application Support: Phone: 978-250-3343 or apps@hittite.com HMC-C048 v03.1211 Low Noise Amplifier module, 5 - 9 GHz Amplifiers Notes: Information furnished by Analog Devices is believed to be accurate and reliable. However, no For price, 2delivery, and to placeChelmsford, orders: Analog MA Devices, Inc., For price, delivery and to place orders: Microwave Corporation, Elizabeth Drive, 01824 responsibility is assumed by Analog Devices for its use, nor for anyHittite infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 rights of third parties that may result from its use. Specifications subject to change without notice. No 978-250-3343 tel • 978-250-3373 fax • Order at www.hittite.com Phone:On-line 781-329-4700 • Order online at www.analog.com license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Application Support: Phone: 1-800-ANALOG-D Trademarks and registered trademarks are the property of their respective owners. Application Support: Phone: 978-250-3343 or apps@hittite.com 0-6
