HMC-C077

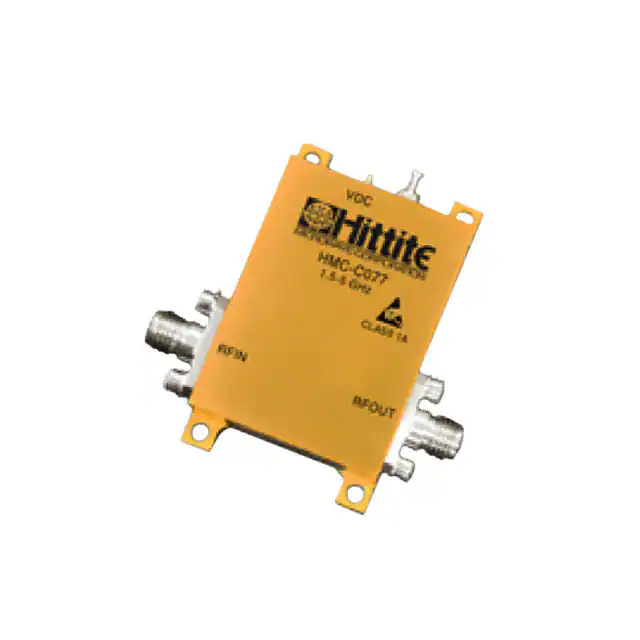

HMC-C077 v01.0711 ULTRA LOW PHASE NOISE AMPLIFIER MODULE, 1.5 - 5 GHz 1 Features amplifiers Ultra Low Phase Noise: -163 dBc/Hz @ 1 kHz Gain: 14 dB Output Power: +22 dBm Single Supply Voltage: +7V @ 170mA Hermetically Sealed Module -55 °C to +85 °C Operating Temperature Typical Applications The HMC-C077 is ideal for: • Microwave Radio • Military & Space General Description • Test Instrumentation The HMC-C077 is a GaAs HBT Ultra Low Noise Amplifier in a miniature, hermetic module designed to operate between 1.5 and 5 GHz. This high dynamic range amplifier module provides 14 dB of gain, 4.5 dB noise figure and up to +22 dBm of output power with a single supply of +7V. The ultra low phase noise contribution of -163 dBc/Hz at 1 kHz offset, enables superior modulation accuracy within transceiver architectures. The wideband distributed amplifier I/O’s are internally matched to 50 Ohms and DC blocked for robust performance. The module features removable SMA connectors which can be detached to allow direct connection of the I/O pins to a microstrip or coplanar circuit. • VSAT Functional Diagram Electrical Specifications, TA = +25 °C, Vdc = +7V Parameter Min. Frequency Range Gain Typ. Min. 9 14 11 Typ. Max. Units 2-4 GHz 14 dB Gain Flatness ±3.5 ±1.5 dB Gain Variation Over Temperature 0.01 0.01 dB/ °C Noise Figure 4.5 4 dB Input Return Loss 19 19 dB Output Return Loss 15 15 dB 17 dBm Output Power for 1 dB Compression (P1dB) 15 17 Output Power 15 22 Output Third Order Intercept (IP3) 1-1 Max. 1.5 - 5 22 dBm 27 27 dBm Phase Noise @ 1 kHz, Pout = +22 dBm -163 -163 dBc/Hz Phase Noise @ 10 kHz, Pout = +22 dBm -171 -171 dBc/Hz Phase Noise @ 100 kHz, Pout = +22 dBm -175 -175 Supply Current (all conditions) 170 240 170 dBc/Hz 240 mA For price, delivery, and to placeCorporation: orders: Analog Devices, Inc., For price, delivery, and to place orders, please contact Hittite Microwave One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 20 Alpha Road Chelmsford, MA 01824 Phone: Phone: 978-250-3343 978-250-3373 781-329-4700Fax: • Order online at www.analog.com Application Support: Phone: 1-800-ANALOG-D Order Online at www.hittite.com Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Trademarks and registered trademarks are the property of their respective owners. HMC-C077 v01.0711 ULTRA LOW PHASE NOISE AMPLIFIER MODULE, 1.5 - 5 GHz 25 S21 S11 S22 20 10 GAIN (dB) RESPONSE (dB) 20 Amplifiers 30 0 -10 15 10 -20 +25C +85C -55C 5 -30 -40 0 0 1 2 3 4 5 6 7 8 1 2 3 FREQUENCY (GHz) 4 5 6 FREQUENCY (GHz) Output Return Loss vs. Temperature Input Return Loss vs. Temperature 0 0 +25C +85C -55C -10 RETURN LOSS(dB) RETURN LOSS (dB) 1 Gain vs. Temperature Gain & Return Loss -20 -30 -40 -10 -20 +25C +85C -55C -30 -40 1 2 3 4 5 6 1 2 3 FREQUENCY (GHz) 4 5 6 FREQUENCY (GHz) Noise Figure vs. Temperature 10 +25C +85C -55C NOISE FIGURE(dB) 8 6 4 2 0 1 2 3 4 5 6 FREQUENCY (GHz) For price, delivery, and to placeCorporation: orders: Analog Devices, Inc., For price, delivery, and to place orders, please contact Hittite Microwave One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 20 Alpha Road Chelmsford, MA 01824 Phone: 978-250-3343 Fax: 978-250-3373 Phone: 781-329-4700 • Order online at www.analog.com Application Support: Phone: 1-800-ANALOG-D Order Online at www.hittite.com Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Trademarks and registered trademarks are the property of their respective owners. 1-2 HMC-C077 v01.0711 1 ULTRA LOW PHASE NOISE AMPLIFIER MODULE, 1.5 - 5 GHz Output P1dB vs. Temperature Output IP3 vs. Temperature 35 +25C +85C -55C 30 IP3 (dBm) 25 P1dB (dBm) amplifiers 30 20 15 25 +25C +85C -55C 20 15 10 10 5 1 2 3 4 5 1 6 2 4 5 6 Phase Noise at Pout = P1dB @ 3 GHz -120 -120 -130 -130 PHASE NOISE (dBc/Hz) PHASE NOISE (dBc/Hz) Phase Noise at Pout = +10 dBm @ 3 GHz -140 -150 -160 -170 -140 -150 -160 -170 -180 10 3 FREQUENCY (GHz) FREQUENCY (GHz) 2 10 3 10 4 10 -180 2 10 5 10 3 10 4 10 5 OFFSET FREQUENCY (Hz) OFFSET FREQUENCY (Hz) Pout & Icc vs. Temperature Phase Noise at Pout = +22 dBm @ 3 GHz -120 300 25 +25 C +85 C -40 C 250 Icc (mA) Pout (dBm) 20 200 15 PHASE NOISE (dBc/Hz) -130 -140 -150 -160 -170 150 10 0 2 4 6 8 10 12 Pin (dBm) 1-3 -180 10 2 10 3 10 4 10 5 OFFSET FREQUENCY (Hz) For price, delivery, and to placeCorporation: orders: Analog Devices, Inc., For price, delivery, and to place orders, please contact Hittite Microwave One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 20 Alpha Road Chelmsford, MA 01824 Phone: Phone: 978-250-3343 978-250-3373 781-329-4700Fax: • Order online at www.analog.com Application Support: Phone: 1-800-ANALOG-D Order Online at www.hittite.com Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Trademarks and registered trademarks are the property of their respective owners. HMC-C077 v01.0711 ULTRA LOW PHASE NOISE AMPLIFIER MODULE, 1.5 - 5 GHz Bias Supply Voltage (Vdc) +9V RF Output Power (RFOUT) +22 dBm RF Input Power (RFIN) +15 dBm ELECTROSTATIC SENSITIVE DEVICE OBSERVE HANDLING PRECAUTIONS Continuous Pdiss (T = 85 °C) 1.6W Storage Temperature -65 to +150 °C Operating Temperature -55 to +85 °C ESD Sensitivity (HBM) Class 1A Amplifiers 1 Absolute Maximum Ratings Pin Descriptions Pin Number Function Description 1 RFIN & RF Ground RF input connector, coaxial female, field replaceable. This pin is AC coupled and matched to 50 Ohms. 2 RFOUT & RF Ground RF output connector, coaxial female, field replaceable. This pin is AC coupled and matched to 50 Ohms. 3 Vdc Power supply voltage for the amplifier. (+7V to +9V) 4 GND Power supply ground. Interface Schematic For price, delivery, and to placeCorporation: orders: Analog Devices, Inc., For price, delivery, and to place orders, please contact Hittite Microwave One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 20 Alpha Road Chelmsford, MA 01824 Phone: 978-250-3343 Fax: 978-250-3373 Phone: 781-329-4700 • Order online at www.analog.com Application Support: Phone: 1-800-ANALOG-D Order Online at www.hittite.com Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Trademarks and registered trademarks are the property of their respective owners. 1-4 HMC-C077 v01.0711 Outline Drawing amplifiers 1 ULTRA LOW PHASE NOISE AMPLIFIER MODULE, 1.5 - 5 GHz Package Information Package Type C-16 Package Weight 107 gms [1] [1] ±1 gms Tolerance NOTES: 1. PACKAGE, LEADS, COVER MATERIAL: KOVAR™ 2. FINISH: GOLD PLATE OVER NICKEL PLATE. 3. ALL DIMENSIONS ARE IN INCHES [MILLIMETERS]. 4. TOLERANCES: 4.1 .XX = ±.02 4.2 .XXX = ±.010 5. MARK LOT NUMBER ON 0.080 X 0.250 LABEL WHERE SHOWN, WITH 0.030” MIN TEXT HEIGHT. 1-5 For price, delivery, and to placeCorporation: orders: Analog Devices, Inc., For price, delivery, and to place orders, please contact Hittite Microwave One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 20 Alpha Road Chelmsford, MA 01824 Phone: Phone: 978-250-3343 978-250-3373 781-329-4700Fax: • Order online at www.analog.com Application Support: Phone: 1-800-ANALOG-D Order Online at www.hittite.com Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Trademarks and registered trademarks are the property of their respective owners. HMC-C077 v01.0711 ULTRA LOW PHASE NOISE AMPLIFIER MODULE, 1.5 - 5 GHz 1 Amplifiers Notes: For price, delivery, and to placeCorporation: orders: Analog Devices, Inc., For price, delivery, and to place orders, please contact Hittite Microwave One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 20 Alpha Road Chelmsford, MA 01824 Phone: 978-250-3343 Fax: 978-250-3373 Phone: 781-329-4700 • Order online at www.analog.com Application Support: Phone: 1-800-ANALOG-D Order Online at www.hittite.com Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Trademarks and registered trademarks are the property of their respective owners. 1-6
