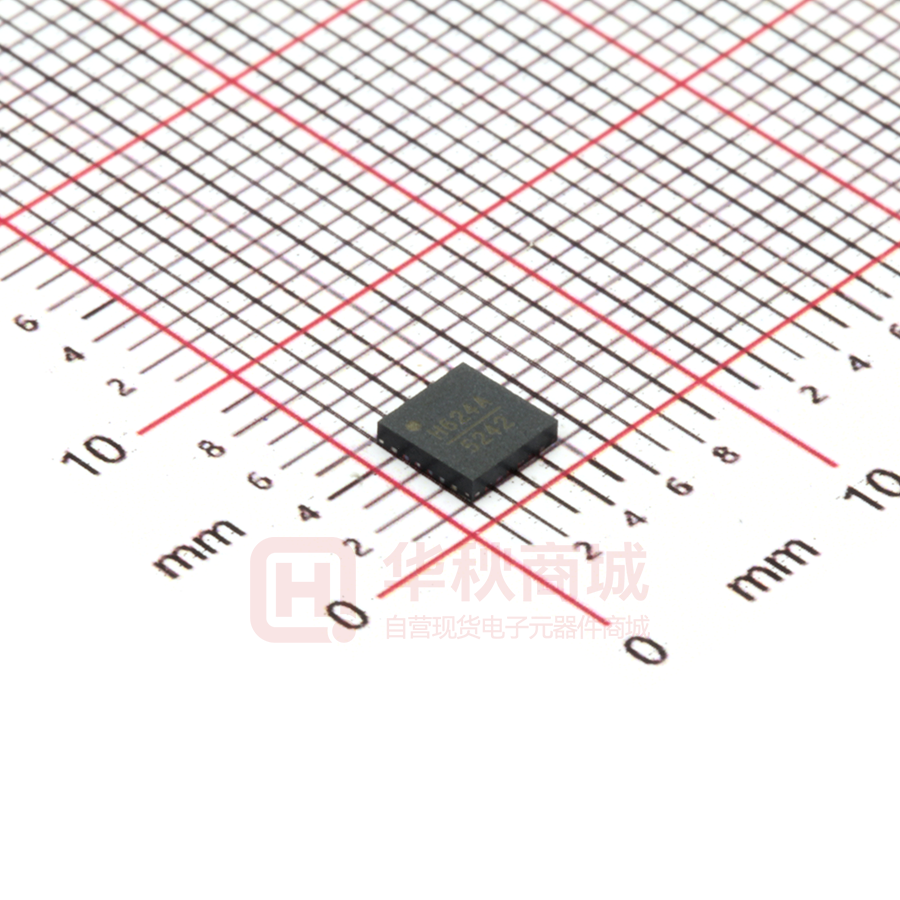

HMC624ALP4ETR

0.1 GHz to 6.0 GHz,0.5 dB LSB, 6-Bit, GaAs Digital Attenuator HMC624A Data Sheet LE 4 GND 5 ATTIN 6 D2 D3 D4 D5 19 SERIAL/ PARALLEL INTERFACE 6-BIT/ DIGITAL ATTENUATOR ACG1 7 APPLICATIONS Cellular infrastructure Microwave radios and very small aperture terminals (VSATs) Test equipment and sensors Intermediate frequency (IF) and radio frequency (RF) designs 8 9 10 11 18 VDD 17 PUP1 16 PUP2 15 SEROUT 14 GND 13 ATTOUT 12 PACKAGE BASE GND 15353-001 3 20 ACG6 SERIN 21 ACG5 2 22 ACG4 CLK 23 ACG3 1 24 ACG2 P/S D1 FUNCTIONAL BLOCK DIAGRAM Attenuation range: 0.5 dB (LSB) steps to 31.5 dB Low insertion loss: 1.6 dB at 3 GHz Excellent attenuation accuracy High linearity Input 0.1dB compression (P0.1dB): 33 dBm typical Input third-order intercept (IP3): 55 dBm typical High RF input power handling: 28 dBm Low phase shift: 25° at 3 GHz Single-supply operation: 3 V to 5 V CMOS-/TTL-compatible control 24-lead, 4 mm × 4 mm LFCSP package Pin compatible to the HMC1122 D0 FEATURES Figure 1. GENERAL DESCRIPTION The HMC624A is a 6-bit digital attenuator with a 31.5 dB attenuation control range in 0.5 dB steps. serial output port for cascading other serial controlled components. The HMC624A offers excellent attenuation accuracy and high input linearity over the specified frequency range from 100 MHz to 6.0 GHz. However, this digital attenuator features external ac grounding capacitors to extend the operation below 100 MHz. The HMC624A operates with a single positive supply voltage from 3 V to 5 V, and provides a CMOS-/TTL-compatible control interface. The HMC624A is integrated with two dies: a CMOS driver and a gallium arsenide (GaAs) RF attenuator. The CMOS driver provides both serial and parallel control of the RF attenuator. The device also features a user-selectable power-up state and a Rev. B The HMC624A comes in a RoHS compliant, compact, 4 mm × 4 mm LFCSP package, and is pin compatible to the HMC1122 except for the ACGx pins. Document Feedback Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Trademarks and registered trademarks are the property of their respective owners. One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. Tel: 781.329.4700 ©2017 Analog Devices, Inc. All rights reserved. Technical Support www.analog.com HMC624A Data Sheet TABLE OF CONTENTS Features .............................................................................................. 1 Input Power Compression and Third-Order Intercept ............9 Applications ....................................................................................... 1 Theory of Operation ...................................................................... 11 Functional Block Diagram .............................................................. 1 Power Supply............................................................................... 11 General Description ......................................................................... 1 Power-Up Interface .................................................................... 11 Revision History ............................................................................... 2 Serial or Parallel Mode Selection ............................................. 11 Specifications..................................................................................... 3 Serial Mode Interface ................................................................. 11 Timing Specifications .................................................................. 4 Parallel Mode Interface .............................................................. 12 Absolute Maximum Ratings ............................................................ 5 RF Input and Output ................................................................. 12 Thermal Resistance ...................................................................... 5 ACGx Pins ................................................................................... 12 ESD Caution .................................................................................. 5 Applications Information .............................................................. 13 Pin Configuration and Function Descriptions ............................. 6 Evaluation Board ........................................................................ 13 Interface Schematics..................................................................... 6 Outline Dimensions ....................................................................... 15 Typical Performance Characteristics ............................................. 7 Ordering Guide .......................................................................... 15 Insertion Loss, Return Loss, State Error, Step Error, and Relative Phase................................................................................ 7 REVISION HISTORY 9/2017—Rev. A to Rev. B Changed CP-24-2 to CP-24-16 .................................... Throughout Changes to Table 3 ............................................................................ 5 Updated Outline Dimensions ....................................................... 15 Changes to Ordering Guide .......................................................... 15 3/2017—Rev. 00.0912 to Rev. A This Hittite Microwave Products data sheet has been reformatted to meet the styles and standards of Analog Devices, Inc. Changes to Title, Features Section, Applications Section, and General Description Section ........................................................... 1 Changes to Table 1 ............................................................................ 3 Added Table 2; Renumbered Sequentially .................................... 4 Changes to Table 3 ............................................................................ 5 Added Figure 2 and Thermal Resistance Section; Renumbered Sequentially ....................................................................................... 5 Deleted Bias Voltage Table and Control Voltage Table; Renumbered Sequentially................................................................ 5 Added Figure 3.................................................................................. 6 Changes to Table 5 ............................................................................ 6 Added Insertion Loss, Return Loss, State Error, and Relative Phase Section..................................................................................... 7 Changes to Figure 9, Figure 10, Figure 12, and Figure 13 ...........7 Deleted Application Circuit Figure .................................................8 Added Figure 14, Figure 15, and Figure 17....................................8 Changes to Figure 16 ........................................................................8 Added Figure 20 and Figure 23 .......................................................9 Changes to Figure 21 and Figure 22 ...............................................9 Added Figure 26 and Figure 29 .................................................... 10 Added Theory of Operation Section, Serial or Parallel Mode Selection Section, Table 8, and Figure 30 .................................... 11 Changes to Table 6, Power Supply Section, Power-Up Interface Section, Table 7, Serial Mode Interface Section ......................... 11 Added RF Input and Output Section and AGCx Pins Section....... 12 Changes to Figure 31, Parallel Mode Interface Section, Direct Parallel Mode Section, Latched Parallel Mode Section, and Figure 32 .......................................................................................... 12 Added Applications Information Section ................................... 13 Changes to Evaluation Board Section.......................................... 13 Added Figure 34 ............................................................................. 14 Changes to Table 9.......................................................................... 14 Updated Outline Dimensions ....................................................... 15 Changes to Ordering Guide .......................................................... 15 Rev. B | Page 2 of 15 Data Sheet HMC624A SPECIFICATIONS VDD = 3 V to 5 V, control input voltage (VCTL) = 0 V or VDD, TCASE = 25°C, 50 Ω system, unless otherwise noted. Table 1. Parameter FREQUENCY RANGE INSERTION LOSS Symbol Test Conditions/Comments 0.1 GHz to 3 GHz 3 GHz to 6.0 GHz 0.1 GHz to 6.0 GHz Between minimum and maximum attenuation states Between any successive attenuation states Between any successive attenuation states All attenuation states, referenced to insertion loss state 0.1 GHz to 0.8 GHz ATTENUATION Range Step Size Step Error State Error 0.8 GHz to 6.0 GHz RETURN LOSS (ATTIN and ATTOUT) RELATIVE PHASE SWITCHING CHARACTERISTICS Rise and Fall Time On and Off Time INPUT LINEARITY 1 tRISE, tFALL tON, tOFF 0.1 dB Compression P0.1dB Third-Order Intercept IP3 SUPPLY CURRENT DIGITAL CONTROL INPUTS IDD Voltage Low VINL High VINH Current Low High DIGITAL CONTROL OUTPUT Voltage Low High Current Low High 1 Min 0.1 1.6 2.3 Unit GHz dB dB dB 0.5 dB
