LT3094
–20V, 500mA, Ultralow
Noise, Ultrahigh PSRR
Negative Linear Regulator
DESCRIPTION
FEATURES
Ultralow RMS Noise: 0.8µVRMS (10Hz to 100kHz)
n Ultralow Spot Noise: 2.2nV/√Hz at 10kHz
n Ultrahigh PSRR: 74dB at 1MHz
n Output Current: 500mA
n Wide Input Voltage Range: –1.8V to –20V
n Single Capacitor Improves Noise and PSRR
n 100µA SET Pin Current: ±1% Initial Accuracy
n Single Resistor Programs Output Voltage
n Programmable Current Limit
n Low Dropout Voltage: 235mV
n Output Voltage Range: 0V to –19.5V
n Programmable Power Good and Fast Start-Up
n Bipolar Precision Enable/UVLO Pin
n VIOC Pin Controls Upstream Regulator to Minimize
Power Dissipation and Optimize PSRR
n Minimum Output Capacitor: 10µF Ceramic
n 12-Lead MSOP and 3mm × 3mm DFN Packages
n
APPLICATIONS
RF and Precision Power Supplies
Very Low Noise Instrumentation
n High Speed/High Precision Data Converters
n Medical Applications: Diagnostics and Imaging
n Post-Regulator for Switching Supplies
n
n
The LT®3094 is a high performance low dropout negative
linear regulator featuring ADI’s ultralow noise and ultrahigh
PSRR architecture for powering noise sensitive applications. The device can be easily paralleled to further reduce
noise, increase output current and spread heat on a PCB.
The LT3094 supplies 500mA at a typical 235mV dropout
voltage. Operating quiescent current is nominally 2.35mA
and drops to 3µA in shutdown. The device’s wide output
voltage range (0V to –19.5V) error amplifier operates in
unity-gain and provides virtually constant output noise,
PSRR, bandwidth, and load regulation independent of
the programmed output voltage. Additional features are a
bipolar enable pin, programmable current limit, fast startup capability and programmable power good to indicate
output voltage regulation. The regulator incorporates a
tracking function to control an upstream supply to maintain
a constant voltage across the LT3094 to minimize power
dissipation and optimize PSRR.
The LT3094 is stable with a minimum 10µF ceramic output capacitor. Built-in protection includes internal current
limit with foldback and thermal limit with hysteresis. The
LT3094 is available in thermally enhanced 12-Lead MSOP
and 3mm × 3mm DFN Packages.
All registered trademarks and trademarks are the property of their respective owners.
TYPICAL APPLICATION
Power Supply Ripple Rejection
120
4.7µF
33.2k
50k
7.5k
105
3.3V
LT3094
SET
PG
+
EN/UV
10µF
VIN
–5V
GND
ILIM
PGFB
OUTS
OUT
10µF
VOUT
–3.3V
IOUT(MAX)
500mA
–
100µA
IN
PSRR (dB)
200k
90
450k
75
60
45
VIN = –5V
30 R
SET = 33.2k
COUT = 10µF
15 CSET = 4.7µF
IL = –500mA
0
10
100
1k
10k 100k
FREQUENCY (Hz)
1M
10M
3094 TA01b
3094 TA01a
PIN NOT USED IN THIS CIRCUIT: VIOC
Rev. B
Document Feedback
For more information www.analog.com
1
LT3094
TABLE OF CONTENTS
Features............................................................................................................................. 1
Applications........................................................................................................................ 1
Typical Application ................................................................................................................ 1
Description......................................................................................................................... 1
Absolute Maximum Ratings...................................................................................................... 3
Pin Configuration.................................................................................................................. 3
Order Information.................................................................................................................. 4
Electrical Characteristics......................................................................................................... 4
Typical Performance Characteristics........................................................................................... 7
Pin Functions......................................................................................................................15
Block Diagram.....................................................................................................................16
Applications Information........................................................................................................17
Typical Applications..............................................................................................................29
Package Description.............................................................................................................31
Revision History..................................................................................................................33
Typical Application...............................................................................................................34
Related Parts......................................................................................................................34
2
Rev. B
For more information www.analog.com
LT3094
ABSOLUTE MAXIMUM RATINGS
(Note 1)
IN Pin Voltage
with Respect to GND Pin............................–22V, 0.3V
EN/UV Pin Voltage
with Respect to IN Pin (Note 2)..................–0.3V, 30V
with Respect to GND Pin.....................................±22V
PG Pin Voltage
with Respect to IN Pin (Note 2)..................–0.3V, 30V
with Respect to GND Pin............................–0.3V, 22V
PGFB Pin Voltage
with Respect to IN Pin (Note 2)..................–0.3V, 30V
with Respect to GND Pin.....................................±22V
ILIM Pin Voltage
with Respect to IN Pin (Note 2)..................–0.3V, 22V
VIOC Pin Voltage
with Respect to IN Pin (Note 2)..................–0.3V, 22V
with Respect to GND Pin..............................–2V, 0.3V
SET Pin Voltage
with Respect to IN Pin (Note 2)..................–0.3V, 22V
with Respect to GND Pin.....................................±22V
SET Pin Current (Note 4)...................................... ±10mA
OUTS Pin Voltage
with Respect to IN Pin (Note 2)..................–0.3V, 22V
with Respect to GND Pin.....................................±22V
OUTS Pin Current (Note 4).................................... ±10mA
SET-to-OUTS Differential (Note 5)...........................±22V
OUT Pin Voltage
with Respect to IN Pin (Note 2)..................–0.3V, 22V
with Respect to GND Pin.....................................±22V
OUT-to-OUTS Differential (Note 6)...........................±22V
Output Short-Circuit Duration........................... Indefinite
Operating Junction Temperature Range (Note 3)
E-, I-Grades........................................ –40°C to 125°C
H-Grade.............................................. –40°C to 150°C
MP-Grade (Note 17)........................... –55°C to 150°C
Storage Temperature Range................... –65°C to 150°C
Lead Temperature (Soldering, 10 sec)
MSE Package Only............................................. 300°C
PIN CONFIGURATION
TOP VIEW
TOP VIEW
IN
1
12 OUT
IN
2
11 OUT
EN/UV
3
PG
4
PGFB
5
ILIM
6
13
IN
IN
IN
EN/UV
PG
PGFB
ILIM
10 OUTS
9 GND
8 SET
7 VIOC
1
2
3
4
5
6
13
IN
12
11
10
9
8
7
OUT
OUT
OUTS
GND
SET
VIOC
MSE PACKAGE
12-LEAD PLASTIC MSOP
DD PACKAGE
12-LEAD (3mm × 3mm) PLASTIC DFN
TJMAX = 150°C, θJA = 34°C/W, θJC = 5.5°C/W
EXPOSED PAD (PIN 13) IS IN, MUST BE SOLDERED TO PCB
TJMAX = 150°C, θJA = 33°C/W, θJC = 8°C/W
EXPOSED PAD (PIN 13) IS IN, MUST BE SOLDERED TO PCB
Rev. B
For more information www.analog.com
3
LT3094
ORDER INFORMATION
LEAD FREE FINISH
TAPE AND REEL
PART MARKING*
PACKAGE DESCRIPTION
TEMPERATURE RANGE
LT3094EDD#PBF
LT3094EDD#TRPBF
LHCC
12-Lead (3mm × 3mm) Plastic DFN
–40°C to 125°C
LT3094IDD#PBF
LT3094IDD#TRPBF
LHCC
12-Lead (3mm × 3mm) Plastic DFN
–40°C to 125°C
LT3094HDD#PBF
LT3094HDD#TRPBF
LHCC
12-Lead (3mm × 3mm) Plastic DFN
–40°C to 150°C
LT3094MPDD#PBF
LT3094MPDD#TRPBF
LHCC
12-Lead (3mm × 3mm) Plastic DFN
–55°C to 150°C

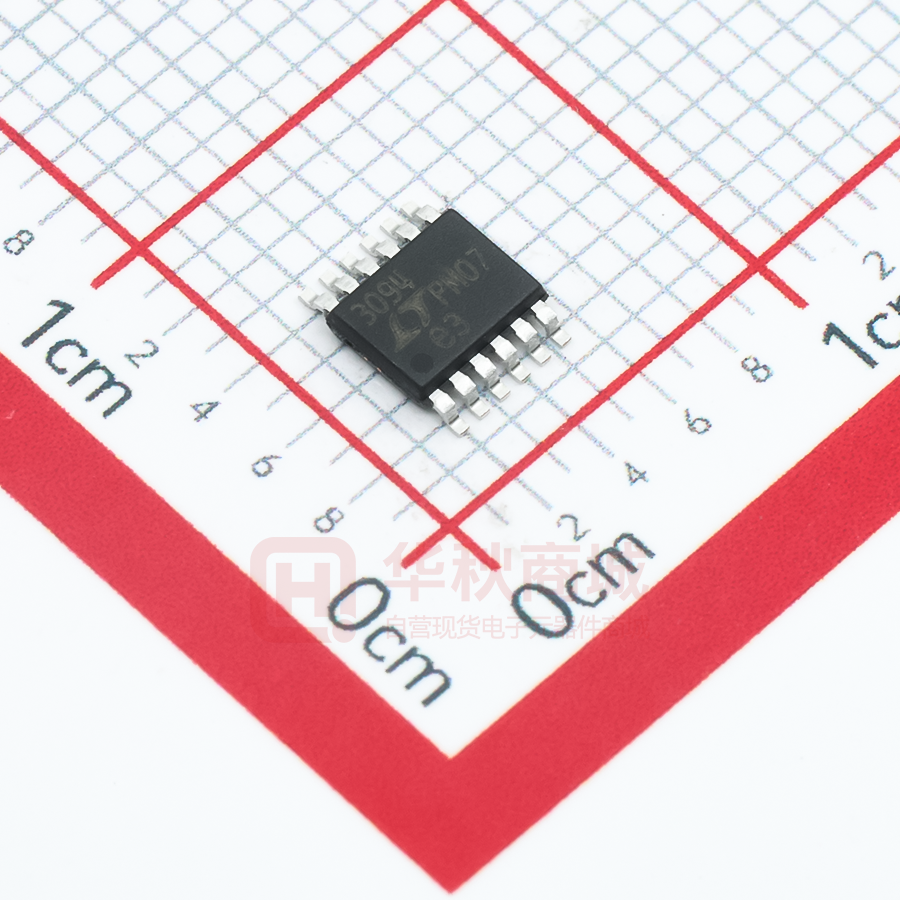

LT3094EMSE#PBF
LT3094EMSE#TRPBF
3094
12-Lead Plastic MSOP
–40°C to 125°C
LT3094IMSE#PBF
LT3094IMSE#TRPBF
3094
12-Lead Plastic MSOP
–40°C to 125°C
LT3094HMSE#PBF
LT3094HMSE#TRPBF
3094
12-Lead Plastic MSOP
–40°C to 150°C
Contact the factory for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container.
Tape and reel specifications. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix.
ELECTRICAL CHARACTERISTICS
The l denotes the specifications which apply over the full operating
temperature range, otherwise specifications are at TA = 25°C.
PARAMETER
CONDITIONS
MIN
Input Voltage Range
Minimum IN Pin Voltage
(Note 8)
SET Pin Current (ISET)
VIN = –2.3V, ILOAD = 1mA, VOUT = –1.5V
–20V < VIN < –2.3V, –19.5V < VOUT 7V. Some level of
output current is provided at all VOUT – VIN differential voltages. Consult
the Typical Performance Characteristics graph for current limit vs VIN –
VOUT.
Note 15: The VIOC amplifier outputs a voltage equal to VIN – VOUT or VIN
+ 1.5V (when VOUT is between 0V and –1.5V). See Block Diagram and
Applications Information for further information.
Note 16: For output voltages between 0V and –1.5V, the LT3094 requires
a 10µA minimum load current for stability.
Note 17: MP-Grade is only offered in the DFN package.
Rev. B
For more information www.analog.com
LT3094
TYPICAL PERFORMANCE CHARACTERISTICS
SET Pin Current
101.0
2.0
N = 5732
100.4
100.2
100.0
99.8
99.6
99.4
VIN = –2.3V
IL = –1mA
VOUT = –1.5V
1.0
0.5
0
–0.5
–1.0
–1.5
99.2
99.0
–75 –50 –25
0 25 50 75 100 125 150
TEMPERATURE (°C)
98
3094 G01
Offset Voltage
99
100
101
ISET DISTRIBUTION (µA)
–2.0
–75 –50 –25
102
3094 G02
1.0
IL = –1mA
VOUT = –1.5V
100.8
100.0
99.8
99.6
–55°C
25°C
125°C
150°C
2
100.4
100.0
99.8
99.6
99.4
–0.4
–55°C
25°C
125°C
150°C
–0.6
–0.8
–1.0
0
–2 –4 –6 –8 –10 –12 –14 –16 –18 –20
INPUT VOLTAGE (V)
Load Regulation
–55°C
25°C
125°C
150°C
0
–0.5
16
14
0.250
VIN = –2.3V
VOUT = –1.5V
∆IL = –1mA to –500mA
0.225
0.200
12
0.175
10
0.150
0.125
8
6
0.100
VOS
0.075
4
–1.0
–2.0
3094 G06
18
0.5
99.0
3094 G07
VIN = –20V
IL = –1mA
1.0
–1.5
–2 –4 –6 –8 –10 –12 –14 –16 –18 –20
OUTPUT VOLTAGE (V)
–0.2
Offset Voltage (VOUT – VSET)
1.5
99.2
0
0.0
0.050
2
0
0
–2 –4 –6 –8 –10 –12 –14 –16 –18 –20
OUTPUT VOLTAGE (V)
3094 G08
–2
–75 –50 –25
∆VOS (mV)
100.2
0.2
∆ISET (nA)
100.6
2.0
–55°C
25°C
125°C
150°C
0.4
3094 G05
OFFSET VOLTAGE (mV)
VIN = –20V
IL = –1mA
100.8
–2 –4 –6 –8 –10 –12 –14 –16 –18 –20
INPUT VOLTAGE (V)
3094 G04
SET Pin Current
101.0
0
OFFSET VOLTAGE (mV)
SET PIN CURRENT (µA)
100.2
99.2
–1
0
1
VOS DISTRIBUTION (mV)
IL = –1mA
VOUT = –1.5V
0.6
100.4
99.4
–2
Offset Voltage (VOUT – VSET)
0.8
100.6
99.0
0 25 50 75 100 125 150
TEMPERATURE (°C)
3094 G03
SET Pin Current
101.0
N = 5732
SET PIN CURRENT (µA)
Offset Voltage (VOUT – VSET)
1.5
OFFSET VOLTAGE (mV)
100.6
SET PIN CURRENT (µA)
SET Pin Current
VIN = –2.3V
IL = –1mA
VOUT = –1.5V
100.8
TA = 25°C, unless otherwise noted.
0.025
ISET
0
0 25 50 75 100 125 150
TEMPERATURE (°C)
3094 G09
Rev. B
For more information www.analog.com
7
LT3094
TYPICAL PERFORMANCE CHARACTERISTICS
Quiescent Current
VEN/UV = 0V
45
QUIESCENT CURRENT (µA)
2.5
2.0
1.5
1.0
0.5
40
35
30
25
20
15
VIN = –20V
10
0
–75 –50 –25
0 25 50 75 100 125 150
TEMPERATURE (°C)
DROPOUT VOLTAGE (mV)
QUIESCENT CURRENT (mA)
2.0
1.5
1.0
–55°C
25°C
125°C
150°C
0.5
0
–1
RSET = 33.2k
450
2.5
0
–2
–3
–4
OUTPUT VOLTAGE (V)
400
350
–55°C
25°C
125°C
150°C
250
200
150
100
12
0
–5
IL = –1mA
IL = –100mA
IL = –300mA
IL = –500mA
8
6
4
2
3094 G16
8
–2 –4 –6 –8 –10 –12 –14 –16 –18 –20
INPUT VOLTAGE (V)
500
RSET = 33.2k
450
400
350
300
250
200
150
100
IL = –1mA
IL = –400mA
IL = –500mA
50
0
–100
–200
–300
–400
OUTPUT CURRENT (mA)
0
–75 –50 –25
–500
0 25 50 75 100 125 150
TEMPERATURE (°C)
3094 G15
3094 G14
16
GND Pin Current
12
VIN = –4.3V
RSET = 33.2k
14
10
8
6
4
0
–55°C
25°C
125°C
150°C
0
RSET = 33.2k
10
12
2
0 25 50 75 100 125 150
TEMPERATURE (°C)
0
3094 G12
GND Pin Current
10
0
–75 –50 –25
0
50
GND PIN CURRENT (mA)
GND PIN CURRENT (mA)
VIN = –5V
RSET = 33.2k
0.5
300
GND Pin Current
14
1.0
Dropout Voltage
3094 G13
16
1.5
Typical Dropout Voltage
500
VIN = –6V
VEN/UV = VIN
IL = –10µA
3.0
2.0
3094 G11
Quiescent Current
3.5
2.5
0 25 50 75 100 125 150
TEMPERATURE (°C)
3094 G10
4.0
3.0
VIN = –2.3V
5
0
–75 –50 –25
VEN/UV = VIN
IL = –10µA
RSET = 15k
3.5
DROPOUT VOLTAGE (mV)
3.0
Quiescent Current
4.0
QUIESCENT CURRENT (mA)
VIN = –2.3V
VEN/UV = VIN
IL = –10µA
RSET = 15k
3.5
QUIESCENT CURRENT (mA)
Quiescent Current
50
–100
–200
–300
–400
OUTPUT CURRENT (mA)
–500
3094 G17
GND PIN CURRENT (mA)
4.0
TA = 25°C, unless otherwise noted.
RL = 6.6Ω
8
RL = 11Ω
6
RL = 33Ω
4
RL = 330Ω
2
0
RL = 3.3k
0
–1 –2 –3 –4 –5 –6 –7 –8 –9 –10
INPUT VOLTAGE (V)
3094 G18
Rev. B
For more information www.analog.com
LT3094
TYPICAL PERFORMANCE CHARACTERISTICS
Negative EN/UV Turn-On
Threshold
INPUT UVLO THRESHOLD (V)
–2.25
–2.00
–1.75
–1.50
–1.25
–1.00
–0.75
–0.50
RISING UVLO
FALLING UVLO
0
–75 –50 –25
0 25 50 75 100 125 150
TEMPERATURE (°C)
Positive EN/UV Turn-On Threshold
–1.36
1.36
POSITIVE EN/UV TURN-ON THRESHOLD (V)
–2.50
NEGATIVE EN/UV TURN-ON THRESHOLD (V)
Minimum Input Voltage
–0.25
TA = 25°C, unless otherwise noted.
–1.34
–1.32
–1.30
–1.28
–1.26
–1.24
–1.22
–1.20
VIN = –2.3V
VIN = –20V
–1.18
–1.16
–75 –50 –25
0 25 50 75 100 125 150
TEMPERATURE (°C)
EN/UV Pin Hysteresis
100
VIN = –5V (VEN/UV ≥ 0V)
VIN = –20V (VEN/UV < 0V)
POSITIVE HYSTERESIS
NEGATIVE HYSTERESIS
12
4
0
–4
–8
–55°C
25°C
125°C
150°C
–12
–16
1.18
1.16
–75 –50 –25
VIN = –20V
RILIM = 0Ω
VOUT = 0V
600
500
400
300
100
Programmable Current Limit
1000
900
700
600
500
400
300
40
200
20
100
0 25 50 75 100 125 150
TEMPERATURE (°C)
3094 G25
0
RILIM = 7.5k
VOUT = 0V
800
CURRENT LIMIT (mA)
60
0 25 50 75 100 125 150
TEMPERATURE (°C)
3094 G24
800
80
VIN = –2.3V
VIN = –8V
0
–75 –50 –25
RILIM = 0Ω
900
100
RILIM = 0Ω
VOUT = 0V
700
Internal Current Limit
120
0 25 50 75 100 125 150
TEMPERATURE (°C)
3094 G23
1000
140
VIN = –2.3V
VIN = –20V
200
–20
–20 –16 –12 –8 –4 0 4 8 12 16 20
EN/UV PIN VOLTAGE (V)
0 25 50 75 100 125 150
TEMPERATURE (°C)
CURRENT LIMIT (mA)
CURRENT LIMIT (mA)
1.20
800
8
Internal Current Limit
0
–75 –50 –25
1.22
900
3094 G22
160
1.24
Internal Current Limit
CURRENT LIMIT (mA)
EN/UV PIN CURRENT (µA)
EN/UV PIN HYSTERESIS (mV)
150
180
1.26
1000
16
200
200
1.28
EN/UV Pin Current
VIN = –2.3V
0
–75 –50 –25
1.30
3094 G21
20
250
50
1.32
3094 G20
3094 G19
300
1.34
–55°C
25°C
125°C
150°C
0
700
600
500
400
300
200
100
–2 –4 –6 –8 –10 –12 –14 –16 –18 –20
INPUT-TO-OUTPUT DIFFERENTIAL (V)
3094 G26
VIN = –2.3V
VIN = –8V
0
–75 –50 –25
0 25 50 75 100 125 150
TEMPERATURE (°C)
3094 G27
Rev. B
For more information www.analog.com
9
LT3094
TYPICAL PERFORMANCE CHARACTERISTICS
Programmable Current Limit
180
–310
RILIM = 37.5k
VOUT = 0V
–308
140
120
100
80
60
40
VIN = –2.3V
VIN = –8V
20
0
–75 –50 –25
VIN = –2.3V
0 25 50 75 100 125 150
TEMPERATURE (°C)
–300
–298
–296
180
150
120
90
60
–292
30
–290
–75 –50 –25
0
–75 –50 –25
0 25 50 75 100 125 150
TEMPERATURE (°C)
3094 G29
–1
–306
–302
–300
–298
PG Output Low Voltage
50
VIN = –2.3V
–2
40
–3
35
–4
30
–5
–6
25
20
–7
15
–294
–8
10
–292
–9
5
–296
–290
–75 –50 –25
–10
–75 –50 –25
0 25 50 75 100 125 150
TEMPERATURE (°C)
ISET During Start-Up with Fast
Start-Up Enabled
3.0
VIN = –2.3V
VPGFB = –314mV
VPG = 5V
2.5
ISET During Start-Up with Fast
Start-Up Enabled
2.50
VIN = –2.3V
VPGFB = –286mV
VSET = –1.5V
120
100
80
2.00
1.75
1.5
1.0
60
40
1.50
1.25
1.00
0.75
0.50
0.5
20
0.25
0 25 50 75 100 125 150
TEMPERATURE (°C)
0
–75 –50 –25
0 25 50 75 100 125 150
TEMPERATURE (°C)
3094 G35
3094 G34
10
VPGFB = –286mV
VOUT = –1.3V
2.25
2.0
ISET (mA)
IPG (nA)
140
0
–75 –50 –25
3094 G33
ISET (mA)
160
0 25 50 75 100 125 150
TEMPERATURE (°C)
3094 G32
PG Pin Leakage Current
180
0
–75 –50 –25
0 25 50 75 100 125 150
TEMPERATURE (°C)
3094 G31
200
VIN = –2.3V
VPGFB = –286mV
IPG = 100µA
45
VPG (mV)
VIN = –2.3V
0 25 50 75 100 125 150
TEMPERATURE (°C)
3094 G30
PGFB Hysteresis
PGFB HYSTERESIS (mV)
PGFB RISING THRESHOLD (mV)
210
–294
0
–304
VIN = –2.3V
VILIM = 0V
240
–302
PGFB Rising Threshold
–308
ILIM Pin Current
270
–304
3094 G28
–310
300
–306
ILIM PIN VOLTAGE (mV)
CURRENT LIMIT (mA)
160
ILIM Pin Voltage
ILIM PIN CURRENT (µA)
200
TA = 25°C, unless otherwise noted.
0
0
–2 –4 –6 –8 –10 –12 –14 –16 –18 –20
VIN–TO–VSET DIFFERENTIAL (V)
3094 G36
Rev. B
For more information www.analog.com
LT3094
TYPICAL PERFORMANCE CHARACTERISTICS
Output Overshoot Recovery
Source Current
5
6
–55°C
25°C
125°C
150°C
4
3
2
1
5
VIOC Voltage
–1.10
VIN = –5V
RSET = 33.2k
VOUT – VSET = –20mV
VIN = –4.3V
VOUT = –3.3V
IVIOC = –100µA
IL = –1mA
–1.08
–1.06
4
VIOC VOLTAGE (V)
VIN = –5V
RSET = 33.2k
Output Overshoot Recovery
Source Current
OUTPUT SOURCE CURRENT (mA)
OUTPUT SOURCE CURRENT (mA)
6
TA = 25°C, unless otherwise noted.
3
2
–1.04
–1.02
–1.00
–0.98
–0.96
–0.94
1
–0.92
0
–5
–10
–15
VOUT – VSET (mV)
0
–75 –50 –25
–20
3094 G37
Maximum VIOC Voltage
–1.02
–1.00
–0.98
–55°C
25°C
125°C
150°C
–0.94
–0.92
–0.90
0
–25
VIN = –5V
VOUT = –3.3V
IL = –1mA
–1.50
–1.04
–0.96
VIOC Source Current
40
–1.55
VIOC VOLTAGE (V)
VIOC VOLTAGE (V)
–1.06
–1.45
–1.40
–1.35
–1.30
–1.25
IVIOC = 0
IVIOC = –100µA
–1.15
–1.10
–75 –50 –25
20
15
10
0
0 25 50 75 100 125 150
TEMPERATURE (°C)
CSET = 4.7µF
CSET = 0.47µF
COUT = 10µF
COUT = 22µF
110
100
100
80
80
20
10
100
70
60
50
VIN = –5V
RSET = 33.2k
COUT = 10µF
IL = –500mA
30
PSRR (dB)
80
PSRR (dB)
90
40
30
1M
10M
20
10
100
60
IL = –500mA
IL = –300mA
IL = –100mA
IL = –50mA
IL = –1mA
40
30
1k
10k 100k
FREQUENCY (Hz)
1M
10M
3094 G44
3094 G43
–1.5
70
50
VIN = –5V
RSET = 33.2k
CSET = 4.7µF
IL = –500mA
40
1k
10k 100k
FREQUENCY (Hz)
–1.2
VIN = –5V
RSET = 33.2k
COUT = 10µF
CSET = 4.7µF
110
90
50
–0.6
–0.9
VIOC VOLTAGE (V)
120
90
60
–0.3
Power Supply Ripple Rejection
120
70
0
3094 G42
Power Supply Ripple Rejection
Power Supply Ripple Rejection
PSRR (dB)
25
3094 G41
120
100
30
5
3094 G40
110
VIN = –3.6V
VOUT = –3.3V
IL = –1mA
35
–1.20
–50 –75 –100 –125 –150 –175 –200
VIOC CURRENT (µA)
0 25 50 75 100 125 150
TEMPERATURE (°C)
3094 G39
–1.60
VIN = –4.3V
VOUT = –3.3V
IL = –1mA
–1.08
–0.90
–75 –50 –25
3094 G38
VIOC Voltage
–1.10
0 25 50 75 100 125 150
TEMPERATURE (°C)
VIOC SOURCE CURRENT (µA)
0
20
10
100
1k
10k 100k
FREQUENCY (Hz)
1M
10M
3094 G45
Rev. B
For more information www.analog.com
11
LT3094
TYPICAL PERFORMANCE CHARACTERISTICS
Power Supply Ripple Rejection
as a Function of Error Amplifier
Input Pair
VIN = VOUT – 2.3V
IL = –500mA
COUT = 10µF
CSET = 4.7µF
110
100
80
70
60
50
2.0
70
1.8
50
40
30
20
40
VOUT ≤ –1.5V
–0.8V > VOUT > –1.5V
VOUT ≥ –0.8V
30
20
80
60
PSRR (dB)
PSRR (dB)
90
10
100
1k
10k 100k
FREQUENCY (Hz)
100kHz
500kHz
1MHz
2MHz
10
1M
0
10M
0
IL = –500mA
RSET = 33.2k
COUT = 10µF
CSET = 0.47µF
–1
–2
–3
–4
INPUT–TO–OUTPUT DIFFERENTIAL (V)
3094 G46
VIN = –5V
RSET = 33.2k
COUT = 10µF
CSET = 4.7µF
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0
–5
0
–100
–200
–300
–400
LOAD CURRENT (mA)
3094 G47
Integrated RMS Output Noise
(10Hz to 100kHz)
–500
3094 G48
Integrated RMS Output Noise
(10Hz to 100kHz)
12
2.0
VIN = –5V
RSET = 33.2k
COUT = 10µF
ILOAD = –500mA
10
VIN = VOUT – 2.3V
COUT = 10µF
CSET = 4.7µF
ILOAD = –500mA
1.8
RMS OUTPUT NOISE (µVRMS)
RMS OUTPUT NOISE (µVRMS)
Integrated RMS Output Noise
(10Hz to 100kHz)
Power Supply Ripple Rejection
RMS OUTPUT NOISE (µVRMS)
120
TA = 25°C, unless otherwise noted.
8
6
4
2
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0
0.01
0.1
1
10
SET PIN CAPACITANCE (µF)
0
100
0
–2.5
–5
–7.5
–10 –12.5
OUTPUT VOLTAGE (V)
3094 G49
3094 G50
Noise Spectral Density
Noise Spectral Density
CSET = 0.047µF
CSET = 0.47µF
100
CSET = 1µF
CSET = 4.7µF
10
CSET = 22µF
1
0.1
1k
OUTPUT NOISE (nV/√Hz)
OUTPUT NOISE (nV/√Hz)
1k
VIN = –5V
RSET = 33.2k
10
100
NOISE FLOOR
COUT = 10µF
ILOAD = –500mA
1k
10k 100k
FREQUENCY (Hz)
1M
10M
VIN = –5V
RSET = 33.2k
CSET = 4.7µF
ILOAD = –500mA
100
COUT = 10µF
10
1
0.1
NOISE FLOOR
10
3094 G51
12
–15
100
COUT = 22µF
1k
10k 100k
FREQUENCY (Hz)
1M
10M
3094 G52
Rev. B
For more information www.analog.com
LT3094
TYPICAL PERFORMANCE CHARACTERISTICS
Noise Spectral Density as a
Function of Error Amplifier Input
Pair
100
ILOAD = –300mA
ILOAD = –500mA
10
ILOAD = –1mA
1
NOISE FLOOR
0.1
ILOAD = –100mA
10
100
ILOAD = –10mA
1k
10k 100k
FREQUENCY (Hz)
1M
10M
OUTPUT NOISE (nV/√Hz)
OUTPUT NOISE (nV/√Hz)
1k
VIN = –5V
RSET = 33.2k
COUT = 10µF
CSET = 4.7µF
Noise Spectral Density (0.1Hz to
10Hz)
VIN = VOUT – 2.3V
COUT = 10µF
CSET = 4.7µF
ILOAD = –500mA
100
VOUT ≥ –0.5V
–0.5V > VOUT > –1.5V
10
VOUT ≤ –1.5V
1
0.1
10k
NOISE SPECTRAL DENSITY (nV/√Hz)
Noise Spectral Density
1k
TA = 25°C, unless otherwise noted.
NOISE FLOOR
10
100
1k
10k 100k
FREQUENCY (Hz)
1M
10M
VIN = –5V
RSET = 33.2k
COUT = 10µF
IL = –500mA
1k
100
10
0.1
CSET = 4.7µF
CSET = 22µF
1
FREQUENCY (Hz)
3094 G54
3094 G53
10
3094 G55
Output Voltage Noise (0.1Hz to
10Hz)
Output Noise (10Hz to 100kHz)
5µV/DIV
2µV/DIV
VIN = –5V
RSET = 33.2k
COUT = 10µF
CSET = 4.7µF
ILOAD = –500mA
1ms/DIV
3094 G56
VIN = – 5V
RSET = 33.2k
COUT = 10µF
CSET = 4.7µF
ILOAD = –500mA
Output Voltage Noise (0.1Hz to
10Hz)
3094 G57
1s/DIV
Load Transient Response
tr = tf = 50ns
OUTPUT
CURRENT
500mA/DIV
2µV/DIV
OUTPUT
VOLTAGE
10mV/DIV
VIN = – 5V
RSET = 33.2k
COUT = 10µF
CSET = 22µF
ILOAD = –500mA
1s/DIV
3094 G58
5µs/DIV
VIN = –5V
RSET = 33.2k
COUT = 10µF
CSET = 4.7µF
∆IL = –10mA to –500mA
3094 G59
Rev. B
For more information www.analog.com
13
LT3094
TYPICAL PERFORMANCE CHARACTERISTICS
TA = 25°C, unless otherwise noted.
Start-Up Time with and without
Fast Start-Up Circuitry for Large
CSET
Line Transient Response
tr = tf = 1µs
OUTPUT WITHOUT
FAST START–UP
OUTPUT
VOLTAGE
1mV/DIV
1V/DIV
PULSE EN/UV
OUTPUT WITH
FAST START–UP
(SET TO 90%)
INPUT
VOLTAGE
1V/DIV
Input Supply Ramp-Up and
Ramp-Down
OUTPUT VOLTAGE
2V/DIV
INPUT VOLTAGE
500mV/DIV
5µs/DIV
RSET = 33.2k
COUT = 10µF
CSET = 4.7µF
∆VIN = –4.5V to –5.5V
IL = –500mA
14
3094 G60
VIN = –5V
RSET = 33.2k
COUT = 10µF
CSET = 4.7µF
RL = 6.6Ω
100ms/DIV
3094 G61
VIN = 0 TO –5V
VEN/UV = VIN
RSET = 33.2k
COUT = 10µF
CSET = 4.7µF
RL = 6.6Ω
50ms/DIV
3094 G62
Rev. B
For more information www.analog.com
LT3094
PIN FUNCTIONS
IN (Pins 1, 2, Exposed Pad Pin 13): Input. These pins
supply power to the regulator. The LT3094 requires a
bypass capacitor at the IN pin. In general, a battery’s output impedance rises with frequency, so include a bypass
capacitor in battery-powered applications. While a 10µF
input bypass capacitor generally suffices, applications with
large load transients may require higher input capacitance
to prevent input supply droop. Consult the Applications
Information section on the proper use of an input capacitor
and its effect on circuit performance.
EN/UV (Pin 3): Enable/UVLO. Pulling the LT3094’s EN/UV
pin low places the part in shutdown. Quiescent current
in shutdown drops to 3µA and the output voltage turns
off. Alternatively, the EN/UV pin can set an input supply
undervoltage lockout (UVLO) threshold using a resistor
divider between IN, EN/UV and GND. The EN/UV pin is
bidirectional and can be switched with either a positive
or negative voltage. The LT3094 typically turns on when
the EN/UV voltage exceeds 1.26V above ground (with
a 200mV hysteresis on its falling edge) or 1.26V below
ground (with a 215mV hysteresis). If unused, tie EN/UV
to IN. Do not float the EN/UV pin.
PG (Pin 4): Power Good. PG is an open-collector flag that
indicates output voltage regulation. PG pulls low if PGFB
is between OV and –300mV. If the power good functionality is not needed, float the PG pin. The PG flag status is
valid even if the LT3094 is in shutdown, with the PG pin
being pulled low.
PGFB (Pin 5): Power Good Feedback. The PG pin pulls
high if PGFB is below –300mV on its rising edge, with
7mV hysteresis on its falling edge. Connecting an external
resistor divider between OUT, PGFB, and GND sets the
programmable power good threshold with the following
transfer function: –0.3V • (1 + RPG1/RPG2) – IPGFB • RPG1.
As discussed in the Applications Information section, PGFB
also activates the fast start-up circuitry. If power good and
fast start-up functionality are not needed, tie PGFB to IN.
ILIM (Pin 6): Current Limit Programming Pin. Connecting a
resistor between ILIM and GND programs the current limit.
For best accuracy, Kelvin connect this resistor directly to
the LT3094’s GND pin. The programming scale factor is
nominally 3.75A • kΩ. If the programmable current limit
functionality is not needed, tie ILIM to GND. Do not float
the ILIM pin.
VIOC (Pin 7): Voltage for Input-to-Output Control. The
LT3094 incorporates a tracking feature to control a circuit
supplying power to the LT3094 to maintain the differential
voltage across the LT3094. This function maximizes efficiency and PSRR performance while minimizing power
dissipation. See the Applications Information section for
further information. If unused, float the VIOC pin.
SET (Pin 8): Set. This pin is the inverting input of the error
amplifier and the regulation setpoint for the LT3094. The
SET pin sinks a precision 100µA current that flows through
an external resistor connected between SET and GND. The
LT3094’s output voltage is determined by VSET = ISET •
RSET. Output voltage range is from zero to –19.5V. Adding
a capacitor from SET to GND improves noise, PSRR, and
transient response at the expense of increased start-up
time unless the fast start-up capability is used via the
PGFB pin. For optimum load regulation, Kelvin connect
the ground side of the SET pin directly to the load.
GND (Pin 9): Ground.
OUTS (Pin 10): Output Sense. This pin is the noninverting input to the error amplifier. For optimal transient
performance and load regulation, Kelvin connect OUTS
directly to the output capacitor and the load. Also, tie the
GND connections of the output capacitor and the SET pin
capacitor directly together. Exercise care with regards to
placement of input capacitors relative to output capacitors due to potential PSRR degradation from magnetic
coupling effects; see the Applications Information section
for further information on capacitor placement and board
layout. A parasitic substrate diode exists between OUTS
and IN pins of the LT3094; do not drive OUTS more than
0.3V below IN during normal operation or a fault condition.
OUT (Pins 11, 12): Output. This pin supplies power to the
load. For stability, use a minimum 10µF output capacitor
with an ESR below 30mΩ and an ESL below 1.5nH. Large
load transients require larger output capacitance to limit
peak voltage transients. Refer to the Applications Information section for more information on output capacitance. A
parasitic substrate diode exists between OUT and IN pins
of the LT3094; do not drive OUT more than 0.3V below
IN during normal operation or during a fault condition.
Rev. B
For more information www.analog.com
15
For more information www.analog.com
RPG2
RPG1
RPG
V+
5
4
3
PGFB
–300mV
PG
–1.26V
EN/UV
PROGRAMMABLE
POWER GOOD
+
–
1.26V
9
IDEAL
DIODE
BIDIRECTIONAL
ENABLE
COMPARATOR
GND
VIOC
AV = 1
BIAS
IN
–1.5V
CURRENT
REFERENCE
INPUT UVLO
CURRENT LIMIT
THERMAL SHUTDOWN
DROPOUT
1.8mA
FAST
START-UP
–
–
+
FAST START-UP
DISABLE LOGIC
INPUT-TO-OUTPUT
CONTROL
7
8
90mV
INPUT
UVLO
THERMAL
SHUTDOWN
SET-TO-OUTS
PROTECTION
CLAMP
100µA
SET
10
ERROR
AMPLIFIER
INTERNAL
CURRENT LIMIT
–
+
OUTS
–300mV
PROGRAMMABLE
CURRENT LIMIT
DRIVER
+
–
+
RSET
+
–
+
–
+
–
16
–
CSET
6
1.5K
ILIM
RILIM
CIN
VIN
3090 BD
IN 1, 2, 13
0.12Ω
OUT 11, 12
COUT
RL
VOUT
LT3094
BLOCK DIAGRAM
Rev. B
LT3094
APPLICATIONS INFORMATION
The LT3094 is a high performance low dropout negative
linear regulator featuring ADI’s ultralow noise (2.2nV/√Hz
at 10kHz) and ultrahigh PSRR (74dB at 1MHz) architecture
for powering noise sensitive applications. Designed as a
precision current reference followed by a high performance
rail-to-rail voltage buffer, the LT3094 can be easily paralleled to further reduce noise, increase output current and
spread heat on the PCB. The device additionally features
programmable current limit, fast start-up capability and
programmable power good.
The LT3094 is easy to use and incorporates all of the
protection features expected in high performance regulators. Included are short-circuit protection, safe operating
area protection, and thermal shutdown with hysteresis.
Output Voltage
The LT3094 incorporates a precision 100µA current
reference flowing into the SET pin, which also ties to the
error amplifier’s inverting input. Figure 1 illustrates that
connecting a resistor from SET to ground generates a
reference voltage for the error amplifier. This reference
voltage is simply the product of the SET pin current
and the SET pin resistor. The error amplifier’s unity-gain
configuration produces a low impedance version of this
voltage on its noninverting input, i.e. the OUTS pin, which
is externally tied to the OUT pin. The LT3094's output
voltage is determined by VSET = ISET • RSET.
4.7µF
RSET
33.2k
10µF
LT3094
PGFB
EN/UV
SET
GND
+
ILIM
OUTS
OUT
–
100µA
VIN
–5V
IN
3094 F01
PINS NOT USED IN THIS CIRCUIT: PG, VIOC
Figure 1. Basic Adjustable Regulator
VOUT
–3.3V
IOUT(MAX)
500mA
The LT3094’s rail-to-rail error amplifier and current reference architecture allows for a wide output voltage range
from 0V (using a 0Ω resistor) to VIN minus dropout. An
NPN-based input pair is active for a 0V to –0.8V output
and a PNP-based input pair is active for output voltages
beyond –1.5V, with a smooth transition between the two
input pairs from –0.8V to –1.5V output. The PNP-based
input pair offers the best overall performance; refer to the
Electrical Characteristics table for details on offset voltage,
SET pin current, output noise and PSRR variation depending on the output voltage and corresponding active input
pair(s). Table 1 lists common output voltages and their
corresponding 1% RSET resistors.
Table 1. 1% Resistor for Common Output Voltages
VOUT (V)
RSET (kΩ)
–2.5
24.9
–3.3
33.2
–5
49.9
–12
121
–15
150
The benefit of using a current reference compared with a
voltage reference as used in conventional regulators is that
the regulator always operates in a unity-gain configuration, independent of the programmed output voltage. This
allows the LT3094 to have loop gain, frequency response
and bandwidth independent of the output voltage. As a
result, noise, PSRR and transient performance do not
change with output voltage. Moreover, since error amplifier gain is not needed to amplify the SET pin voltage to
a higher output voltage, output load regulation is more
tightly specified in the hundreds of microvolts range and
not as a fixed percentage of the output voltage.
Since the zero TC current reference is highly accurate,
the SET pin resistor can become the limiting factor in
achieving high accuracy. Hence, it should be a precision
resistor. Additionally, any leakage paths to or from the
SET pin create errors in the output voltage. If necessary,
use high quality insulation (e.g. Teflon, Kel-F); moreover,
cleaning of all insulating surfaces to remove fluxes and
other residues may be required. High humidity environments may require a surface coating at the SET pin to
provide a moisture barrier.
Rev. B
For more information www.analog.com
17
LT3094
APPLICATIONS INFORMATION
Minimize board leakage by encircling the SET pin with a
guard ring operated at a similar potential—ideally tied to
the OUT pin. Guarding both sides of the circuit board is
recommended. Bulk leakage reduction depends on the
guard ring width. Leakage of 100nA into or out of the SET
pin creates a 0.1% error in the reference voltage. Leakages
of this magnitude, coupled with other sources of leakage,
can cause significant errors in the output voltage, especially
over wide operating temperature range. Figure 2 illustrates
a typical guard ring layout technique.
1
12
2
11
3
4
13
10
to avoid adding extra impedance (ESR and ESL) outside
the feedback loop. To that end, minimize the effects of
PCB trace and solder inductance by tying the OUTS pin
directly to COUT and the GND side of CSET directly to the
GND side of COUT, as well as keep the GND sides of CIN
and COUT reasonably close, as shown in Figure 3. Refer
to the LT3094 demo board manual for more information
on the recommended layout that meets these requirements. While the LT3094 is robust and will not oscillate
if the recommended layout is not followed, depending
on the actual layout, phase/gain margin, noise and PSRR
performance may degrade.
OUT
CSET
9
5
8
6
7
SET
LT3094
3094 F02
PGFB
Figure 2. DFN Guard Ring Layout
Since the SET pin is a high impedance node, unwanted
signals may couple into the SET pin and cause erratic
behavior. This is most noticeable when operating with a
minimum output capacitor at heavy load currents. Bypassing the SET pin with a small capacitance to ground
resolves this issue—10nF is sufficient.
For applications requiring higher accuracy or an adjustable output voltage, the SET pin may be actively driven
by an external voltage source capable of sourcing 100µA.
Connecting a precision voltage reference to the SET pin
eliminates any errors present in the output voltage due
to the reference current and SET pin resistor tolerances.
Output Sensing and Stability
The LT3094’s OUTS pin provides a Kelvin sense connection
to the output. The SET pin resistor’s GND side provides a
Kelvin sense connection to the load’s GND side.
Additionally, for ultrahigh PSRR, the LT3094 bandwidth
is made quite high (~1MHz), making it very close to a
typical 10µF (1206 case size) ceramic output capacitor’s
self-resonance frequency (~1.6MHz). It is very important
18
RSET
EN/UV
CIN
SET
GND
+
ILIM
OUTS
OUT
VOUT
IOUT(MAX)
500mA
DEMO BOARD
PCB LAYOUT
ILLUSTRATES
4-TERMINAL
CONNECTION
TO COUT
–
100µA
IN
VIN
COUT
3094 F03
PINS NOT USED IN THIS CIRCUIT: PG, VIOC
Figure 3. COUT and CSET Connections for Best Performance
Stability and Output Capacitance
The LT3094 requires an output capacitor for stability. Given
its high bandwidth, ADI recommends low ESR and ESL
ceramic capacitors. A minimum 10µF output capacitance
with an ESR below 30mΩ and an ESL below 1.5nH is
required for stability.
Given the high PSRR and low noise performance attained
with using a single 10µF ceramic output capacitor, larger
values of output capacitor only marginally improve the
performance because the regulator bandwidth decreases
with increasing output capacitance—hence, there is little to
be gained by using larger than the minimum 10µF output
capacitor. Nonetheless, larger values of output capacitance
do decrease peak output deviations during a load transient.
Rev. B
For more information www.analog.com
LT3094
APPLICATIONS INFORMATION
The X5R and X7R dielectrics result in more stable characteristics and are thus more suitable for use with the
LT3094. The X7R dielectric has better stability across
temperature, while the X5R is less expensive and is available
in higher values. Nonetheless, care must still be exercised
when using X5R and X7R capacitors. The X5R and X7R
codes only specify operating temperature range and the
maximum capacitance change over temperature. While
capacitance change due to DC bias for X5R and X7R is
better than Y5V and Z5U dielectrics, it can still be significant enough to drop capacitance below sufficient levels.
As shown in Figure 6, capacitor DC bias characteristics
tend to improve as component case size increases, but
verification of expected capacitance at the operating
voltage is highly recommended. Due to its good voltage
coefficient in small case sizes, ADI recommends using
Murata’s GJ8 series ceramic capacitor.
High Vibration Environments
Voltage and temperature coefficients are not the only
sources of problems. Some ceramic capacitors have a
piezoelectric response. A piezoelectric device generates
voltage across its terminals due to mechanical stress upon
it, similar to how a piezoelectric microphone works. For a
ceramic capacitor, this stress can be induced by mechanical
vibrations within the system or due to thermal transients.
LT3094 applications in high vibration environments have
three distinct piezoelectric noise generators: ceramic
BOTH CAPACITORS ARE 16V,
1210 CASE SIZE, 10µF
0
CHANGE IN VALUE (%)
X5R
–20
–40
–60
Y5V
–80
–100
0
2
4
16
14
6
12
8 10
DC BIAS VOLTAGE (V)
3094 F04
Figure 4. Ceramic Capacitor DC Bias Characteristics
40
BOTH CAPACITORS ARE 16V,
1210 CASE SIZE, 10µF
20
CHANGE IN VALUE (%)
Give extra consideration to the type of ceramic capacitors
used. They are manufactured with a variety of dielectrics,
each with different behavior across temperature and applied
voltage. The most common dielectrics used are specified
with EIA temperature characteristic codes of Z5U, Y5V,
X5R and X7R. The Z5U and Y5V dielectrics are good for
providing high capacitance in small packages, but they
tend to have stronger voltage and temperature coefficients
as shown in Figure 4 and Figure 5. When used with a 5V
regulator, a 16V 10µF Y5V capacitor can exhibit an effective
value as low as 1µF to 2µF for the DC bias voltage applied
over the operating temperature range.
20
X5R
0
–20
–40
Y5V
–60
–80
–100
–50
–25
0
25
75
50
TEMPERATURE (°C)
100
125
3094 F05
Figure 5. Ceramic Capacitor Temperature Characteristics
20
0
CHANGE IN VALUE (%)
Note that bypass capacitors used to decouple individual
components powered by the LT3094 increase the effective
output capacitance.
–20
–40
–60
–80
–100
MURATA: 25V,10%,
X7R/X5R, 10µF CERAMIC
0
5
10
15
DC BIAS (V)
25
20
3094 F06
GRM SERIES, 0805, 1.45mm THICK
GRM SERIES, 1206, 1.8mm THICK
GRM SERIES, 1210, 2.2mm THICK
GJ8 SERIES, 1206, 1.9mm THICK
Figure 6. Capacitor Voltage Coefficient for Different
Case Sizes
Rev. B
For more information www.analog.com
19
LT3094
APPLICATIONS INFORMATION
output, input, and SET pin capacitors. However, due to the
LT3094’s very low output impedance over a wide frequency
range, negligible output noise is generated using a ceramic
output capacitor. Similarly, due to the LT3094’s ultrahigh
PSRR, negligible output noise is generated using a ceramic
input capacitor. Given the high SET pin impedance, any
piezoelectric response from a ceramic SET pin capacitor
generates significant output noise; peak-to-peak excursions of hundreds of µVs are possible. However, due to
the SET pin capacitor’s high ESR and ESL tolerance, any
non-piezoelectrically responsive (tantalum, electrolytic,
or film) capacitor can be used at the SET pin; do note
that electrolytic capacitors tend to have high 1/f noise.
In any case, use of surface mount capacitors is highly
recommended.
Stability and Input Capacitance
The LT3094 is stable with a minimum 10µF IN pin capacitor.
ADI recommends using low ESR ceramic capacitors. Applications using long wires to connect the power supply to
the LT3094’s input and ground terminals together with low
ESR ceramic input capacitors are prone to voltage spikes,
reliability concerns and application-specific board oscillations. The wire inductance combined with the low ESR
ceramic input capacitor forms a high Q resonant LC tank
circuit. In some instances, this resonant frequency beats
against the output current LDO bandwidth and interferes
with stable operation. The resonant LC tank circuit formed
by the wire inductance and input capacitor is the cause
and not because of LT3094’s instability.
The self inductance, or isolated inductance, of a wire is directly proportional to its length. The wire diameter, however,
has less influence on its self inductance. For example, the
self inductance of a 2-AWG isolated wire with a diameter
of 0.26” is about half the inductance of a 30-AWG wire
with a diameter of 0.01”. One foot of 30-AWG wire has
465nH of self inductance.
Several methods exist to reduce a wire’s self inductance.
One method divides the current flowing towards the LT3094
between two parallel conductors. In this case, placing wire
further apart reduces the inductance; up to a 50% reduction when placed only a few inches apart. Splitting the
wires connects two equal inductors in parallel. However,
when placed in close proximity to each other, their mu-
20
tual inductance adds to the overall self inductance of the
wires—therefore a 50% reduction is not possible in such
cases. The second and more effective technique to reduce
the overall inductance is to place the forward and return
current conductors (the input and ground wires) in close
proximity. Two 30-AWG wires separated by 0.02” reduce
the overall inductance to about one-fifth of a single wire.
If a battery mounted in close proximity powers the LT3094,
a 10µF input capacitor suffices for stability. If a distantly
located supply powers the LT3094, use a larger value
input capacitor. Use a rough guideline of 1µF (in addition
to the 10µF minimum) per 6” of wire length. The minimum
input capacitance needed to stabilize the application also
varies with the output capacitance as well as the load
current. Placing additional capacitance on the LT3094’s
output helps. However, this requires significantly more
capacitance compared to additional input bypassing. Series
resistance between the supply and the LT3094 input also
helps stabilize the application; as little as 0.1Ω to 0.5Ω
suffices. This impedance dampens the LC tank circuit at
the expense of dropout voltage. A better alternative is to
use a higher ESR tantalum or electrolytic capacitor at the
LT3094 input in parallel with a 10µF ceramic capacitor.
PSRR and Input Capacitance
For applications utilizing the LT3094 for post-regulating
switching converters, placing a capacitor directly at the
LT3094 input results in AC current (at the switching
frequency) to flow near the LT3094. This relatively high
frequency switching current generates magnetic fields
that couple to the LT3094 output, degrading the effective
PSRR. While highly dependent on the PCB layout, the
switching preregulator, the size of the input capacitor and
other factors, the PSRR degradation can easily be over
30dB at 1MHz. This degradation is present even with the
LT3094 desoldered from the board, it is a degradation in
the PSRR of the PCB itself. While negligible for conventional
low PSRR LDOs, the LT3094’s ultrahigh PSRR requires
careful attention to higher order parasitics in order to realize
the full performance offered by the regulator.
To mitigate the flow of high frequency switching current near the LT3094, the input capacitor can be entirely
removed as long as the switching converter’s output
capacitor is located more than an inch away from the
Rev. B
For more information www.analog.com
LT3094
APPLICATIONS INFORMATION
LT3094. Magnetic coupling decreases rapidly with increasing distance. If the switching regulator is placed too far
away (conservatively more than a couple inches) from
the LT3094, the lack of an input capacitor presents a high
impedance at the input of the LT3094 and oscillation may
occur. It is generally a common (and preferred) practice
to bypass regulator inputs with some capacitance, so
this option is fairly limited in its scope and not the most
palatable solution.
To that end, ADI recommends referencing the LT3094
demo board layout for achieving the best possible PSRR
performance. Two main factors contribute to higher PSRR
with a poor layout. Parasitic trace inductance coupled
with the low ESR ceramic input capacitor can lead to
higher ripple at the input of the LDO than at the output of
the driving supply. Also, physical loops create magnetic
fields that couple from the input to the output. The LT3094
demo board utilizes layout techniques to minimize both
parasitic inductance in traces and coupling of magnetic
loops, preventing PSRR degradation while keeping the
input capacitor.
Filtering High Frequency Spikes
For applications where the LT3094 is used to post-regulate
a switching converter, its high PSRR effectively suppresses any harmonic content present at the switching
frequency (typically 100kHz to 4MHz). However, there are
very high frequency (hundreds of MHz) spikes associated
with the switcher’s power switch transition times that are
beyond the LT3094’s bandwidth and will almost directly
pass through to the output. While the output capacitor is
partly intended to absorb these spikes, its ESL will limit
its ability at these frequencies. A ferrite bead or even the
inductance associated with a short (e.g. 0.5”) PCB trace
coupled with a capacitor with a low impedance at the
transition frequency can serve as an LC-filter to suppress
these very high frequency spikes.
Output Noise
The LT3094 offers many advantages with respect to noise
performance. Traditional linear regulators have several
sources of noise. The most critical noise sources for a
traditional regulator are its voltage reference, error amplifier,
noise from the resistor divider network used for setting
output voltage and the noise gain created by this resistor
divider. Many low noise regulators pin out their voltage
reference to allow for noise reduction by bypassing the
reference voltage.
Unlike most linear regulators, the LT3094 does not use a
voltage reference; instead it uses a 100µA current reference. The current reference operates with typical noise
current level of 27pA/√Hz (8nARMS over the 10Hz to
100kHz bandwidth). The resultant voltage noise equals
the current noise multiplied by the resistor values, which
is then RMS summed with the error amplifier’s noise and
the resistor’s Johnson noise of √4kTR (k = Boltzmann’s
constant, 1.38 • 10–23 J/K, and T is absolute temperature)
to give the net output noise.
One problem faced by conventional linear regulators is
that the resistor divider setting the output voltage gains up
the reference noise. In contrast, the LT3094’s unity-gain
follower architecture presents no gain from the SET pin to
the output. Therefore, using a capacitor to bypass the SET
pin resistor allows output voltage noise to be independent
of the programmed output voltage. The resultant output
noise is then determined only by the error amplifier’s noise,
typically 2nV/√Hz from 1kHz to 1MHz and 0.8µVRMS in
the 10Hz to 100kHz bandwidth when using a 4.7µF SET
pin capacitor. Paralleling multiple LT3094s further reduces
noise by √N for N parallel regulators.
Refer to the Typical Performance Characteristics section for noise spectral density and RMS integrated noise
performance over various load currents and SET pin
capacitances.
SET Pin (Bypass) Capacitance: Noise, PSRR,
Transient Response and Soft-Start
In addition to reducing output noise, using a SET pin bypass
capacitor also improves PSRR and transient performance.
Note that any bypass capacitor leakage deteriorates the
LT3094’s DC regulation. Capacitor leakage of as little as
100nA causes a 0.1% DC error. ADI recommends the use
of a good quality low leakage ceramic capacitor.
Using a SET pin bypass capacitor also soft starts the output
and limits inrush current. The RC time constant formed by
the SET pin resistor and capacitor determines soft-start
Rev. B
For more information www.analog.com
21
LT3094
APPLICATIONS INFORMATION
time. Without the use of fast start-up, the ramp-up rate
from 0 to 90% of nominal VOUT is:
High Efficiency Linear Regulator—Input-to-Output
Voltage Control
tSS ≈ 2.3 • RSET • CSET (Fast Start-Up Disabled)
The VIOC pin is used to control an upstream switching
converter and facilitate a design solution that maximizes
system efficiency while providing good transient response,
low noise, and high power supply ripple rejection (PSRR)
by maintaining a constant voltage across the LT3094
regardless of the device’s output voltage. This works
well in applications where the output voltage is varied for
the application requirements. This regulation loop also
minimizes total power dissipation in fault conditions; if the
output is short-circuited and the LT3094 current limits,
the VIOC amplifier lowers the switching regulator output
voltage and limits the power dissipation in the LT3094.
Fast Start-Up
For ultralow noise applications that require low 1/f noise
(i.e. at frequencies below 100Hz) a larger value SET pin
capacitor is required; up to 22µF may be used. While
normally this would significantly increase the regulator’s
start-up time, the LT3094 incorporates fast start-up circuitry that increases the SET pin current to about 1.8mA
during start-up.
As shown in the Block Diagram, the 1.8mA current source
remains engaged while PGFB is less than –300mV unless
the regulator is in current limit, dropout, thermal shutdown,
or input voltage is below the minimum VIN.
If fast start-up capability is not used, tie PGFB to IN or to
OUT (for output voltages more than –300mV). Note that
doing so also disables power good functionality.
ENABLE/UVLO
The EN/UV pin is used to put the regulator into a micropower shutdown state. The LT3094 has an accurate
–1.26V turn-on threshold on the EN/UV pin with 215mV
of hysteresis. This threshold can be used in conjunction
with a resistor divider from the input supply to define an
accurate undervoltage lockout (UVLO) threshold for the
regulator. The EN/UV pin current (IEN) at the threshold
needs to be considered when calculating the resistor divider network. See the Electrical Characteristics table and
Typical Performance curves for EN/UV pin characteristics.
The EN/UV pin current can be ignored if REN1 is less than
100k. Use the following formula to determine resistor
divider values (See Programming Undervoltage Lockout
in the Typical Applications section):
VIN(UVLO) = –1.26V • (1 + REN2 / REN1) – IEN • REN2
Since the EN/UV pin is bidirectional, it can also be pulled
above 1.26V to turn on the LT3094. In bipolar supply
applications, the positive EN/UV threshold can be used
to sequence the turn-on of the LT3094 after the positive
regulator has turned on. If unused, tie the EN/UV pin to IN.
22
The VIOC pin is the output of a fast unity-gain amplifier that
measures the voltage differential between IN and OUTS
or –1.5V, whichever is lower. It typically connects to the
feedback node or into the resistor divider of most LTC®
switching regulators or LTM® power modules and sinks
at least 100µA of current. Targeting –1V differential from
input-to-output provides an optimum tradeoff in terms
of power dissipation and PSRR. If paralleling multiple
LT3094’s, tie the VIOC pin of one of the devices to the
upstream switching converter’s feedback pin and float the
remaining VIOC pins.
The VIOC amplifier is designed to sink current, and only
sources current through its internal impedance to ground.
The VIOC pin has a typical impedance to ground of 40k
±15%, this is important to consider if using a maximum
input voltage configuration or if the LT3094 is disabled.
As the VIOC buffer operates with high bandwidth, the
switching converter’s frequency compensation doesn’t
need to be adjusted while the VIOC buffer is inside the
switching converter’s feedback loop. Phase delay through
the VIOC buffer is typically less than 4° for frequencies
as high as 100kHz; within the switching converter’s
bandwidth (usually well below 100kHz) the VIOC buffer is
transparent and acts like an ideal wire. For example, with
a switching converter with less than 100kHz bandwidth
and a phase margin of 50°, using the VIOC buffer will
degrade the phase margin by at most 4°. The net phase
margin for the switching converter (using the VIOC pin)
Rev. B
For more information www.analog.com
LT3094
APPLICATIONS INFORMATION
is at least 46°. With the VIOC buffer inside the switching
converter’s feedback loop, keep the total capacitance on
the VIOC pin to below 20pF.
For 0 ≥ VOUT ≥ –1.5V, VIN = VVIOC(NOM) – 1.5V. For VOUT
≤ –1.5V, VIN = VOUT + VVIOC(NOM). The VIOC pin voltage
(and the input-to-output differential) is programmable
to anywhere between –0.41V (the dropout voltage of the
regulator) and –1.3V. As shown in Figure 7, the inputto-output differential is easily programmed using the
following equation:
VIN
LT8330
V LDOIN(MAX ) = V FBSWITCHER
R1
LT3094
VIOC
3094 F08
38.3k
Figure 8. VIOC Connection Using LT8330 Delivers –4.3V
When Operating, –5V When LT3094 is Disabled
R1+ R2
+ V VIOC(NOM)
9.53k
FBX
R1
Another inverting regulator configuration is shown in
Figure 9, this time using the LT8580. The LT8580 FBX pin
regulates at 3mV (typical) with 83.3µA flowing out of the
pin (IFBX). Because of this, only a single resistor is needed
between the FBX pin and VIOC (from Figure 7, only R2 is
•
In the event that the SET pin has an open-circuit fault
condition, the LT3094’s input voltage will increase to the
switching converter’s maximum output voltage and may
violate the LT3094’s absolute maximum rating for VIN.
To prevent this, adding an optional resistor (R3) between
the VIOC and IN pins of the regulator gives a maximum
voltage configuration based on the following equation:
R1+ R2 + R3
86.6k
SW
R3
VIN
40k
IN
•
V LDOIN – V LDOOUT = V VIOC(NOM) = V FBSWITCHER •
IN
•
•
on the VIOC pin) when the LT3094 is operating at –3.3V
output and is –5V when the LT3094 is disabled.
36.5k
SW
LT8580
VIOC
Typical VIOC Applications
12.1k
Figure 8 shows an application using the LT8330 configured
as an inverting regulator powering the LT3094 to deliver
a –3.3V output. The resistors shown drive the FBX pin of
the LT8330 to –0.8V so that its output is –4.3V (with –1V
LT3094
3094 F09
FBX
Figure 9. VIOC Connection Using LT8580
LT3094
VIN
IN
VLDOIN
SW
UPSTREAM
SWITCHING
CONVERTER
FB
R3
(OPTIONAL)
VFBSWITCHER
R2
–1.5V
OUT
EN/UV
+ – –
OUTS
PGFB
AV = 1
IN
VLDOOUT: VARIABLE
IOUT(MAX): 500mA
10µF
VIOC
40k
R1
SET
GND
3094 F07
4.7µF
Figure 7. Typical VIOC Application
Rev. B
For more information www.analog.com
23
LT3094
APPLICATIONS INFORMATION
necessary, R1 is not needed). In this case, the resistor is
calculated as follows:
VLDOIN – VLDOOUT = VVIOC(NOM) = VFBX – R2 • IFBX
For the optional maximum voltage configuration, R3 is
added and the maximum input voltage to the LT3094 is
calculated as follows:
V LDOIN(MAX ) = V VIOC(NOM) + V VIOC(NOM)
R3
40k
0mA
500mA/DIV
200mV/DIV
VLDOIN
50mV/DIV
VLDOOUT
200µs/DIV
RSET = 33.2k
IL = –10mA TO –500mA
– R3 • IFBX
Again, the resistors shown are configured to drive the output of the switcher to –4.3V when the LT3094 is operating
at –3.3V output and –5V when disabled. Using the circuit
from Figure 9, the LDO’s input and output is shown in
Figure 10 when pulsing the LT3094’s EN/UV pin. As can
be seen, when the LDO is disabled, the LDO input voltage
goes to the maximum voltage set by the resistor divider
on the VIOC pin. Figure 10 shows the load step response
of the LT8580 using the VIOC buffer. Figure 12 shows the
LDO’s input and output voltage response to stepping the
SET pin voltage from –3V to –4V. Figure 13 shows the
LDO’s input and output voltage while ramping the SET
pin from 0V to –4.5V, and as can be seen, the LT8580’s
output voltage tracks the LT3094’s output voltage when
below –1.5V and limits at the maximum voltage set by the
resistor divider set on the VIOC pin. Last, Figure 14 shows
the noise spectral density at the LT3094’s input and output.
ILOAD
3094 F11
Figure 11. Load Step Response Using the VIOC Buffer
0V
VSET AND VLDOOUT ARE OVERLAID
1V/DIV
VLDOIN
500µs/DIV
VSET = –3V TO –4V
IL = –500mA
3094 F12
Figure 12. Stepping VSET from –3V to –4V (and Back to –3V)
VSET AND VLDOOUT ARE OVERLAID
0V
1V/DIV
VLDOIN
0V
2V/DIV
VLDOOUT
5ms/DIV
IL = –500mA
3094 F13
Figure 13. Ramping VSET from 0V to –4.5V (and Back to 0V)
VLDOIN
100
VLDOIN = –4.3V
VLDOOUT = –3.3V
10 IL = –500mA
VEN/UV
RSET = 33.2k
RL = 6.6Ω
500ms/DIV
LDOIN
3094 F10
Figure 10. LT3094 EN/UV Pulse
NOISE (µV/√Hz)
0V
2V/DIV
1
0.1
LDOOUT
0.01
0.001
10
100
NOISE FLOOR
1k
10k 100k
FREQUENCY (Hz)
1M
10M
3094 F14
Figure 14. LT3094’s Input and Output Noise Spectral Density
24
Rev. B
For more information www.analog.com
LT3094
APPLICATIONS INFORMATION
Programmable Power Good
As illustrated in the Block Diagram, power good threshold is user programmable using the ratio of two external
resistors, RPG1 and RPG2:
VOUT(PG_THRESH) = –0.3V(1 + RPG1/RPG2) – IPGFB • RPG1
If the PGFB pin becomes less than –300mV, the opencollector PG pin deasserts and becomes high impedance.
The power good comparator has 7mV hysteresis and 5µs
of deglitching. The PGFB pin current (IPGFB) can be ignored
if RPG2 is less than 30k, otherwise it must be considered
when determining the resistor divider network. If power
good functionality is not used, float the PG pin. Please
note that programmable power good and fast start-up
capabilities are disabled for output voltages between OV
and –300mV.
Take care when laying out traces for PG and PGFB on a
PCB. If the PG and PGFB pins are run close to each other
for a distance (typically greater than two inches), stray
capacitance from trace-to-trace couples the PG signal into
the high impedance PGFB signal. Since PG is out of phase
relative to PGFB, this results in oscillation. To avoid this,
minimize the distance the two traces run close to each
other; lowering the impedance seen at the PGFB pin by
using lower value resistors for the PGFB divider also helps.
Externally Programmable Current Limit
The ILIM pin internally regulates to –300mV. Connecting a
resistor from ground to ILIM sets the current flowing into
the ILIM pin, which in turn programs the LT3094’s current
limit. With the 3.75kΩ • A programming scale factor, the
current limit can be calculated as follows:
Current Limit = 3.75kΩ • A / RILIM
For example, a 7.5k resistor programs the current limit to
500mA and a 15k resistor programs the current limit to
250mA. For good accuracy, Kelvin connect this resistor
to the LT3094’s GND pin.
In cases where IN-to-OUT differential is greater than 7V,
the LT3094’s foldback circuitry decreases the internal
current limit. As a result, the internal current limit may
override the externally programmed current limit to keep
the LT3094 within its safe-operating-area (SOA). See the
graph of Internal Current Limit vs Input-to-Output Differential in the Typical Performance Characteristics section.
If not used, tie ILIM to GND.
Output Overshoot Recovery
During a load step from heavy load to very light or no
load, the output voltage overshoots before the regulator
responds to turn the power transistor off. With very light
or no load, it takes a long time to discharge the output
capacitor.
The LT3094 incorporates an overshoot recovery circuit
that turns on a current source to discharge the capacitor
in the event that OUTS is higher than SET. This current is
typically 3.5mA.
If OUTS is externally held above SET, the current source
turns on in an attempt to restore OUTS to its programmed
voltage. The current source remains on until the external
circuitry releases OUTS.
Direct Paralleling for Higher Current
Higher output current is obtained by paralleling multiple
LT3094s. Tie all SET pins together and all IN pins together.
Connect the OUT pins together using small pieces of PCB
trace (used as a ballast resistor) to equalize currents in
the LT3094s. PCB trace resistance in mΩ/inch is shown
in Table 2.
Table 2. PC Board Trace Resistance
WEIGHT (oz)
10mil WIDTH
20mil WIDTH
1
54.3
27.1
2
27.1
13.6
Trace resistance is measured in mΩ/in.
The small worst-case offset of 2mV for each paralleled
LT3094 minimizes the required ballast resistor value.
Figure 15 illustrates that two LT3094s, each using a 20mΩ
PCB trace ballast resistor, provide better than 20% accurate output current sharing at full load. The two 20mΩ
external resistors only add 10mV of output regulation
drop with a 1A maximum current. With a –3.3V output,
this only adds 0.3% to the regulation accuracy. As has
been discussed previously, tie the OUTS pins directly to
the output capacitors.
Rev. B
For more information www.analog.com
25
LT3094
APPLICATIONS INFORMATION
4.7µF
LT3094
16.5k
SET
PGFB
22µF
ILIM
OUTS
OUT
+
EN/UV
VIN
–5V ±5%
GND
10µF
20mΩ
–
100µA
IN
VOUT
–3.3V
IOUT(MAX)
1A
LT3094
SET
PGFB
GND
ILIM
10µF
OUTS
OUT
+
EN/UV
20mΩ
–
100µA
IN
3094 F15
PINS NOT USED IN THESE CIRCUITS: PG, VIOC
Figure 15. Parallel Devices
More than two LT3094s can also be paralleled for even
higher output current and lower output noise. Paralleling
multiple LT3094s is also useful for distributing heat on the
PCB. For applications with high input-to-output voltage
differential, an input series resistor or a resistor in parallel
with the LT3094 can also be used to spread heat.
PCB Layout Considerations
Given the LT3094’s high bandwidth and ultrahigh PSRR,
careful PCB layout must be employed to achieve full device
performance. Figure 16 shows a recommended layout
that delivers full performance of the regulator. Refer to the
LT3094’s DC2624A demo board manual for further details.
Thermal Considerations
The LT3094 has internal power and thermal limiting circuits
that protect the device under overload conditions. The ther-
26
mal shutdown temperature is nominally 165°C with about
8°C of hysteresis. For continuous normal load conditions,
do not exceed the maximum junction temperature (125°C
for E- and I-grades, 150°C for H- and MP-grades). It is
important to consider all sources of thermal resistance
from junction to ambient. This includes junction-to-case,
case-to-heat sink interface, heat sink resistance or circuit
board-to-ambient as the application dictates. Additionally,
consider all heat sources in close proximity to the LT3094.
The undersides of the DFN and MSOP packages have
exposed metal from the lead frame to the die attachment.
Both packages allow heat to directly transfer from the die
junction to the PCB metal to limit maximum operating
junction temperature. The dual-in-line pin arrangement
allows metal to extend beyond the ends of the package
on the topside (component side) of the PCB.
Rev. B
For more information www.analog.com
LT3094
APPLICATIONS INFORMATION
For surface mount devices, heat sinking is accomplished
by using the heat spreading capabilities of the PCB and its
copper traces. Copper board stiffeners and plated throughholes can also be used to spread the heat generated by
the regulator.
Table 3 and Table 4 list thermal resistance as a function
of copper area on a fixed board size. All measurements
were taken in still air on a 4-layer FR-4 board with 1oz
solid internal planes and 2oz top/bottom planes with a total
board thickness of 1.6mm. The four layers were electrically
isolated with no thermal vias present. PCB layers, copper
weight, board layout and thermal vias affect the resultant
thermal resistance. For more information on thermal
resistance and high thermal conductivity test boards,
refer to JEDEC standard JESD51, notably JESD51-7 and
JESD51-12. Achieving low thermal resistance necessitates
attention to detail and careful PCB layout.
Table 3. Measured Thermal Resistance for DFN Package
COPPER AREA
TOP SIDE*
BOTTOM SIDE
BOARD AREA
THERMAL
RESISTANCE
2500mm2
2500mm2
2500mm2
34°C/W
1000mm2
2500mm2
2500mm2
34°C/W
225mm2
2500mm2
2500mm2
35°C/W
100mm2
2500mm2
2500mm2
36°C/W
*Device is mounted on topside
3094 F16
Figure 16. Recommended DFN Layout
Rev. B
For more information www.analog.com
27
LT3094
APPLICATIONS INFORMATION
Table 4. Measured Thermal Resistance for MSOP Package
COPPER AREA
TOP SIDE*
BOTTOM SIDE
BOARD AREA
THERMAL
RESISTANCE
2500mm2
2500mm2
2500mm2
33°C/W
1000mm2
2500mm2
2500mm2
33°C/W
225mm2
2500mm2
2500mm2
34°C/W
100mm2
2500mm2
2500mm2
35°C/W
*Device is mounted on topside
Calculating Junction Temperature
Example: Given an output voltage of –3.3V and input
voltage of –5V ±5%, output current range from 1mA to
500mA, and a maximum ambient temperature of 85°C,
what is the maximum junction temperature?
as the input-to-output differential increases and keeps
the power transistor inside a safe operating region for
all values of input-to-output voltages up to the LT3094’s
absolute maximum ratings. The LT3094 provides some
level of output current for all values of input-to-output
differential voltage. Refer to the Current Limit curves in
the Typical Performance Characteristics section. When
power is first applied and input voltage rises, the output
follows the input and keeps the input-to-output differential
low to allow the regulator to supply large output current
and start-up into high current loads.
thus:
Due to current limit foldback, however, at high input voltages a problem can occur if the output voltage is low and
the load current is high. Such situations occur after the
removal of a short-circuit or if the EN/UV pin is pulled high
after the input voltage has already turned on. The load line
in such cases intersects the output current profile at two
points. The regulator now has two stable operating points.
With this double intersection, the input power supply may
need to be cycled down to zero and brought back up again
to make the output recover. Other linear regulators with
foldback current limit protection (such as the LT3090,
LT1964 and LT1175) also exhibit this phenomenon, so it
is not unique to the LT3094.
PDISS = –0.5A • (–5.25V + 3.3V) + 9mA • 5.25V = 1.02W
Protection Features
Using a DFN package, the thermal resistance is in the
range of 34°C/W to 36°C/W depending on the copper area.
Therefore, the junction temperature rise above ambient
approximately equals:
The LT3094 incorporates several protection features for
sensitive applications. Precision current limit and thermal
overload protection safeguard the LT3094 against overload
and fault conditions at the device’s output. For normal
operation, do not allow the junction temperature to exceed
125°C (E- and I-grades) or 150°C (H- and MP-grades).
The LT3094’s power dissipation is:
IOUT(MAX) • (VIN(MAX) – VOUT) + IGND • VIN(MAX)
where:
IOUT(MAX) = –500mA
VIN(MAX) = –5.25V
IGND (at IOUT = 500mA and VIN = –5.25V) = –9mA
1.02W • 35°C/W = 35.7°C
The maximum junction temperature equals the maximum
ambient temperature plus the maximum junction temperature rise above ambient:
TJ(MAX) = 85°C + 35.8°C = 120.7°C
Overload Recovery
Like many IC power regulators, the LT3094 incorporates
safe-operating-area (SOA) protection. The SOA protection
activates at input-to-output differential voltages greater
than 7V. The SOA protection decreases the current limit
28
Pulling the LT3094’s output above ground induces no
damage to the part. If IN is left open circuit or grounded,
OUT can be pulled 20V above GND. In this condition, a
maximum current of 25mA flows into the OUT pin and out
of the GND pin. If IN is powered by a voltage source, OUT
sinks the LT3094’s (foldback) short circuit current and
protects itself by thermal limiting. In this case, however,
grounding the EN/UV pin turns off the device and stops
OUT from sinking the short-circuit current.
Rev. B
For more information www.analog.com
LT3094
TYPICAL APPLICATIONS
Programming Undervoltage Lookout
4.7µF
£
110k ¥
V IN(UVLO)RISING = –1.26 • ² 1
´
¤ 49.9k ¦
LT3094
33.2k
7.5k
SET
GND
REN1
49.9k
+
EN/UV
REN2
110k
OUTS
OUT
10µF
VOUT
–3.3V
IOUT(MAX)
500mA
–
PGFB
10µF
ILIM
100µA
VIN
–4V TURN-ON
–3.35V TURN-OFF
IN
3094 TA02
PINS NOT USED IN THIS CIRCUIT: PG, VIOC
Rev. B
For more information www.analog.com
29
LT3094
TYPICAL APPLICATIONS
Positive and Negative Variable Supply
L1A
VIN
12V
2.2µF
D1
EN/UV
PGFB
10µF
L1B
4.7µF
100k
SWA1 SWB1
FBX1
VIN1
GATE1
SHDN1
VC1
LT8582
PG1
SS1
RT1
SYNC1
187k
4.7µF
–
+
47µF
SET
0.1µF
2k
80.6k
47nF
80.6k
47nF
4.7µF
GND
VPOS: VARIABLE
IPOS(MAX): 500mA
ILIM
150k
267k
0.1µF
RT2
SS2
PG2
VC2
GATE2
SHDN2
FBX2
VIN2
SWA2 SWB2
2k
4.7µF
100pF
LT3094
14.7k
150k
SET
+
–
47µF
2.2µF
L2B
PGFB
EN/UV
IN
249k
GND
VIOC
ILIM
OUTS
OUT
10µF
VNEG: VARIABLE
INEG(MAX): –500mA
100µA
D2
L1: DRQ125-8R2
L2: DRQ125-4R7
D1, D2: DFLS230L
30
OUT
OUTS
10µF
100pF
187k
L2A
100µA
VIOC
CLKOUT1
CLKOUT2
SYNC2
100k
LT3045-1
IN
3094 TA04
Rev. B
For more information www.analog.com
LT3094
PACKAGE DESCRIPTION
DD Package
12-Lead Plastic DFN (3mm × 3mm)
(Reference LTC DWG # 05-08-1725 Rev A)
0.70 ±0.05
3.50 ±0.05
2.10 ±0.05
2.38 ±0.05
1.65 ±0.05
PACKAGE
OUTLINE
0.25 ±0.05
0.45 BSC
2.25 REF
RECOMMENDED SOLDER PAD PITCH AND DIMENSIONS
APPLY SOLDER MASK TO AREAS THAT ARE NOT SOLDERED
3.00 ±0.10
(4 SIDES)
R = 0.115
TYP
7
0.40 ±0.10
12
2.38 ±0.10
1.65 ±0.10
PIN 1 NOTCH
R = 0.20 OR
0.25 × 45°
CHAMFER
PIN 1
TOP MARK
(SEE NOTE 6)
6
0.200 REF
1
0.23 ±0.05
0.45 BSC
0.75 ±0.05
2.25 REF
0.00 – 0.05
(DD12) DFN 0106 REV A
BOTTOM VIEW—EXPOSED PAD
NOTE:
1. DRAWING IS NOT A JEDEC PACKAGE OUTLINE
2. DRAWING NOT TO SCALE
3. ALL DIMENSIONS ARE IN MILLIMETERS
4. DIMENSIONS OF EXPOSED PAD ON BOTTOM OF PACKAGE DO NOT INCLUDE
MOLD FLASH. MOLD FLASH, IF PRESENT, SHALL NOT EXCEED 0.15mm ON ANY SIDE
5. EXPOSED PAD AND TIE BARS SHALL BE SOLDER PLATED
6. SHADED AREA IS ONLY A REFERENCE FOR PIN 1 LOCATION ON THE
TOP AND BOTTOM OF PACKAGE
Rev. B
For more information www.analog.com
31
LT3094
PACKAGE DESCRIPTION
MSE Package
12-Lead Plastic MSOP, Exposed Die Pad
(Reference LTC DWG # 05-08-1666 Rev G)
BOTTOM VIEW OF
EXPOSED PAD OPTION
2.845 ±0.102
(.112 ±.004)
5.10
(.201)
MIN
2.845 ±0.102
(.112 ±.004)
0.889 ±0.127
(.035 ±.005)
6
1
1.651 ±0.102
(.065 ±.004)
1.651 ±0.102 3.20 – 3.45
(.065 ±.004) (.126 – .136)
12
0.65
0.42 ±0.038
(.0256)
(.0165 ±.0015)
BSC
TYP
RECOMMENDED SOLDER PAD LAYOUT
0.254
(.010)
0.35
REF
4.039 ±0.102
(.159 ±.004)
(NOTE 3)
0.12 REF
DETAIL “B”
CORNER TAIL IS PART OF
DETAIL “B” THE LEADFRAME FEATURE.
FOR REFERENCE ONLY
7
NO MEASUREMENT PURPOSE
0.406 ±0.076
(.016 ±.003)
REF
12 11 10 9 8 7
DETAIL “A”
0° – 6° TYP
3.00 ±0.102
(.118 ±.004)
(NOTE 4)
4.90 ±0.152
(.193 ±.006)
GAUGE PLANE
0.53 ±0.152
(.021 ±.006)
DETAIL “A”
1.10
(.043)
MAX
0.18
(.007)
SEATING
PLANE
0.22 – 0.38
(.009 – .015)
TYP
1 2 3 4 5 6
0.650
(.0256)
BSC
NOTE:
1. DIMENSIONS IN MILLIMETER/(INCH)
2. DRAWING NOT TO SCALE
3. DIMENSION DOES NOT INCLUDE MOLD FLASH, PROTRUSIONS OR GATE BURRS.
MOLD FLASH, PROTRUSIONS OR GATE BURRS SHALL NOT EXCEED 0.152mm (.006") PER SIDE
4. DIMENSION DOES NOT INCLUDE INTERLEAD FLASH OR PROTRUSIONS.
INTERLEAD FLASH OR PROTRUSIONS SHALL NOT EXCEED 0.152mm (.006") PER SIDE
5. LEAD COPLANARITY (BOTTOM OF LEADS AFTER FORMING) SHALL BE 0.102mm (.004") MAX
6. EXPOSED PAD DIMENSION DOES INCLUDE MOLD FLASH. MOLD FLASH ON E-PAD SHALL
NOT EXCEED 0.254mm (.010") PER SIDE.
32
0.86
(.034)
REF
0.1016 ±0.0508
(.004 ±.002)
MSOP (MSE12) 0213 REV G
Rev. B
For more information www.analog.com
LT3094
REVISION HISTORY
REV
DATE
DESCRIPTION
A
01/19
Added H temperature range, TJMAX increased to 150°C.
B
01/20
PAGE NUMBER
3, 4, 26, 28
Modified Note 3 for H temperature range.
6
Added Positive and Negative Supply application circuit.
30
Added MP temperature range.
Updated Noise Spectral Density (0.1Hz to 10Hz) curve.
3, 4, 6, 26, 28
13
Rev. B
Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog
Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications
moreby
information
www.analog.com
subject to change without notice. No license For
is granted
implication or
otherwise under any patent or patent rights of Analog Devices.
33
LT3094
TYPICAL APPLICATION
Parallel Devices
4.7µF
16.5k
SET
LT3094
GND
ILIM
OUT
+
PGFB
10µF
VIN
–5V ±5%
OUTS
10µF
20mΩ
–
EN/UV
100µA
IN
VOUT
–3.3V
IOUT(MAX)
1A
SET
LT3094
GND
+
PGFB
ILIM
OUTS
OUT
10µF
20mΩ
–
EN/UV
100µA
IN
3094 TA03
PINS NOT USED IN THIS CIRCUIT: PG, VIOC
RELATED PARTS
PART NUMBER
DESCRIPTION
COMMENTS
LT1185
3A, Negative Linear Regulator
750mV Dropout Voltage, VIN = –4.3V to –35V, DD-PAK and TO-220 Packages
LT1175
500mA, Negative Low Dropout
Micropower Regulator
500mV Dropout Voltage, VIN = –4.5V to –20V, N8, S8, DD-PAK, TO-220 and SOT-223
Packages
LT1964
200mA, Negative Low Noise Low Dropout
Regulator
340mV Dropout Voltage, Low Noise: 30µVRMS, VIN = –1.9V to –20V, DFN and SOT-23
Packages
LT3015
1.5A, Fast Transient Response, Negative
LDO Regulator
310mV Dropout Voltage, Low Noise: 60µVRMS, VIN = –2.3V to –30V, DFN, MSOP,
TO-220 and DD-PAK Packages
LT3080
1.1A, Parallelable, Low Noise, Low
Dropout Linear Regulator
350mV Dropout Voltage (2-Supply Operation), Low Noise: 40µVRMS, VIN: 1.2V to 36V,
Single Resistor Output, DFN, MSOP, TO-220, DD and SOT-223 Packages
LT3085
500mA, Parallelable, Low Noise, Low
Dropout Linear Regulator
275mV Dropout Voltage (2-Supply Operation), Low Noise: 40µVRMS, VIN: 1.2V to 36V,
Single Resistor Output, DFN and MSOP Packages
LT3090
–36V, 600mA Negative Linear Regulator
with Programmable Current Limit
300mV Dropout Voltage, Low Noise: 18µVRMS, VIN: –1.5V to –36V,
Single Resistor Output, DFN and MSOP Packages
LT3091
–36V, 1.5A Negative Linear Regulator
300mV Dropout Voltage, Low Noise: 18µVRMS, VIN: –1.5V to –36V, Single Resistor Output,
DFN, TSSOP, TO-220 and DD-Pak Packages
LT3045
20V, 500mA, Ultralow Noise Ultrahigh
PSRR Linear Regulator
0.8µVRMS Noise and 75dB PSRR at 1MHz, VIN = 1.8V to 20V, 260mV Dropout Voltage,
3mm × 3mm DFN and MSOP Packages
LT3042
20V, 200mA, Ultralow Noise Ultrahigh
PSRR Linear Regulator
0.8µVRMS Noise and 79dB PSRR at 1MHz, VIN = 1.8V to 20V, 350mV Dropout Voltage,
Programmable Current Limit and Power Good, 3mm × 3mm DFN and MSOP Packages
34
Rev. B
01/20
For more information www.analog.com
www.analog.com
ANALOG DEVICES, INC. 2018-2020
