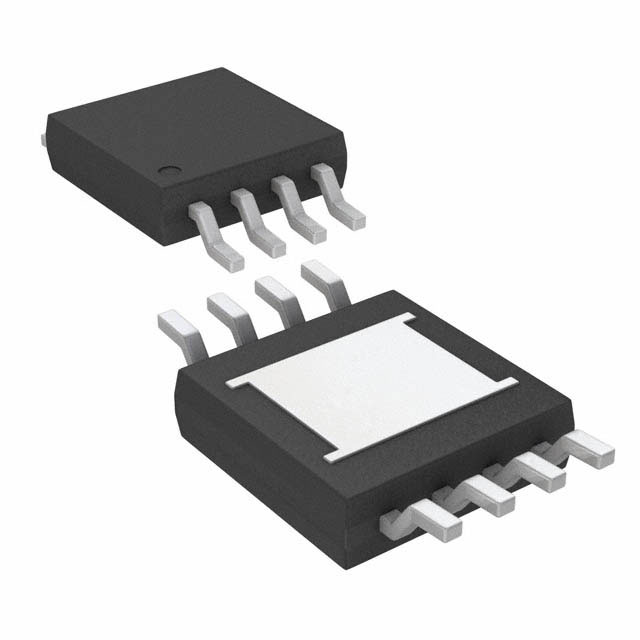

LT5400BHMS8E-8#PBF

LT5400 Quad Matched Resistor Network Features Description Excellent Matching n A-Grade: 0.01% Matching n B-Grade: 0.025% Matching n 0.2ppm/°C Matching Temperature Drift n ±75V Operating Voltage (±80V Abs Max) n 8ppm/°C Absolute Resistor Value Temperature Drift n Long-Term Stability: 80dB AT 200kHz THD < –120dB AT 1kHz, 20VP-P 4.7pF 5400 TA01a RELATIVE OCCURRENCE 25 20 15 10 5 0 –1 –0.8–0.6–0.4–0.2 0 0.2 0.4 0.6 0.8 1 ppm/°C 5400 G01 5400fc For more information www.linear.com/LT5400 1 LT5400 Absolute Maximum Ratings (Note 1) Pin Configuration Total Voltage (Across Any 2 Pins) (Note 2).……….±80V Power Dissipation (Each Resistor) (Note 3)........ 800mW Operating Temperature Range (Note 4) LT5400C............................................... –40°C to 85°C LT5400I................................................ –40°C to 85°C LT5400H............................................. –40°C to 125°C LT5400MP.......................................... –55°C to 150°C Specified Temperature Range (Note 4) LT5400C................................................... 0°C to 70°C LT5400I................................................ –40°C to 85°C LT5400H............................................. –40°C to 125°C LT5400MP.......................................... –55°C to 150°C Maximum Junction Temperature ........................... 150°C Storage Temperature Range.................... –65°C to 150°C TOP VIEW 1 2 3 4 R1 R2 R3 R4 8 7 6 5 MS8E PACKAGE 8-LEAD PLASTIC MSOP θJA = 40°C/W, θJC = 10°C/W EXPOSED PAD (PIN 9) IS FLOATING Available Options PART NUMBER R2 = R3 (Ω) R1 = R4 (Ω) RESISTOR RATIO LT5400-1 10k 10k 1:1 LT5400-2 100k 100k 1:1 LT5400-3 10k 100k 1:10 LT5400-4 1k 1k 1:1 LT5400-5 1M 1M 1:1 LT5400-6 1k 5k 1:5 LT5400-7 1.25k 5k 1:4 LT5400-8 1k 9k 1:9 Order Information LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE LT5400ACMS8E-1#PBF LT5400ACMS8E-1#TRPBF LTFVR 8-Lead Plastic MSOP 0°C to 70°C LT5400BCMS8E-1#PBF LT5400BCMS8E-1#TRPBF LTFVR 8-Lead Plastic MSOP 0°C to 70°C LT5400AIMS8E-1#PBF LT5400AIMS8E-1#TRPBF LTFVR 8-Lead Plastic MSOP –40°C to 85°C LT5400BIMS8E-1#PBF LT5400BIMS8E-1#TRPBF LTFVR 8-Lead Plastic MSOP –40°C to 85°C LT5400AHMS8E-1#PBF LT5400AHMS8E-1#TRPBF LTFVR 8-Lead Plastic MSOP –40°C to 125°C LT5400BHMS8E-1#PBF LT5400BHMS8E-1#TRPBF LTFVR 8-Lead Plastic MSOP –40°C to 125°C LT5400BMPMS8E-1#PBF LT5400BMPMS8E-1#TRPBF LTFVR 8-Lead Plastic MSOP –55°C to 150°C 2 5400fc For more information www.linear.com/LT5400 LT5400 Order Information LT5400ACMS8E-2#PBF LT5400ACMS8E-2#TRPBF LTGBG 8-Lead Plastic MSOP 0°C to 70°C LT5400BCMS8E-2#PBF LT5400BCMS8E-2#TRPBF LTGBG 8-Lead Plastic MSOP 0°C to 70°C LT5400AIMS8E-2#PBF LT5400AIMS8E-2#TRPBF LTGBG 8-Lead Plastic MSOP –40°C to 85°C LT5400BIMS8E-2#PBF LT5400BIMS8E-2#TRPBF LTGBG 8-Lead Plastic MSOP –40°C to 85°C LT5400AHMS8E-2#PBF LT5400AHMS8E-2#TRPBF LTGBG 8-Lead Plastic MSOP –40°C to 125°C LT5400BHMS8E-2#PBF LT5400BHMS8E-2#TRPBF LTGBG 8-Lead Plastic MSOP –40°C to 125°C LT5400BMPMS8E-2#PBF LT5400BMPMS8E-2#TRPBF LTGBG 8-Lead Plastic MSOP –55°C to 150°C LT5400ACMS8E-3#PBF LT5400ACMS8E-3#TRPBF LTGBH 8-Lead Plastic MSOP 0°C to 70°C LT5400BCMS8E-3#PBF LT5400BCMS8E-3#TRPBF LTGBH 8-Lead Plastic MSOP 0°C to 70°C LT5400AIMS8E-3#PBF LT5400AIMS8E-3#TRPBF LTGBH 8-Lead Plastic MSOP –40°C to 85°C LT5400BIMS8E-3#PBF LT5400BIMS8E-3#TRPBF LTGBH 8-Lead Plastic MSOP –40°C to 85°C LT5400AHMS8E-3#PBF LT5400AHMS8E-3#TRPBF LTGBH 8-Lead Plastic MSOP –40°C to 125°C LT5400BHMS8E-3#PBF LT5400BHMS8E-3#TRPBF LTGBH 8-Lead Plastic MSOP –40°C to 125°C LT5400BMPMS8E-3#PBF LT5400BMPMS8E-3#TRPBF LTGBH 8-Lead Plastic MSOP –55°C to 150°C LT5400ACMS8E-4#PBF LT5400ACMS8E-4#TRPBF LTGCF 8-Lead Plastic MSOP 0°C to 70°C LT5400BCMS8E-4#PBF LT5400BCMS8E-4#TRPBF LTGCF 8-Lead Plastic MSOP 0°C to 70°C LT5400AIMS8E-4#PBF LT5400AIMS8E-4#TRPBF LTGCF 8-Lead Plastic MSOP –40°C to 85°C LT5400BIMS8E-4#PBF LT5400BIMS8E-4#TRPBF LTGCF 8-Lead Plastic MSOP –40°C to 85°C LT5400AHMS8E-4#PBF LT5400AHMS8E-4#TRPBF LTGCF 8-Lead Plastic MSOP –40°C to 125°C LT5400BHMS8E-4#PBF LT5400BHMS8E-4#TRPBF LTGCF 8-Lead Plastic MSOP –40°C to 125°C LT5400BMPMS8E-4#PBF LT5400BMPMS8E-4#TRPBF LTGCF 8-Lead Plastic MSOP –55°C to 150°C LT5400ACMS8E-5#PBF LT5400ACMS8E-5#TRPBF LTGCG 8-Lead Plastic MSOP 0°C to 70°C LT5400BCMS8E-5#PBF LT5400BCMS8E-5#TRPBF LTGCG 8-Lead Plastic MSOP 0°C to 70°C LT5400AIMS8E-5#PBF LT5400AIMS8E-5#TRPBF LTGCG 8-Lead Plastic MSOP –40°C to 85°C LT5400BIMS8E-5#PBF LT5400BIMS8E-5#TRPBF LTGCG 8-Lead Plastic MSOP –40°C to 85°C LT5400BCMS8E-6#PBF LT5400BCMS8E-6#TRPBF LTGCK 8-Lead Plastic MSOP 0°C to 70°C LT5400BIMS8E-6#PBF LT5400BIMS8E-6#TRPBF LTGCK 8-Lead Plastic MSOP –40°C to 85°C LT5400BHMS8E-6#PBF LT5400BHMS8E-6#TRPBF LTGCK 8-Lead Plastic MSOP –40°C to 125°C LT5400BMPMS8E-6#PBF LT5400BMPMS8E-6#TRPBF LTGCK 8-Lead Plastic MSOP –55°C to 150°C LT5400BCMS8E-7#PBF LT5400BCMS8E-7#TRPBF LTGFT 8-Lead Plastic MSOP 0°C to 70°C LT5400BIMS8E-7#PBF LT5400BIMS8E-7#TRPBF LTGFT 8-Lead Plastic MSOP –40°C to 85°C LT5400BHMS8E-7#PBF LT5400BHMS8E-7#TRPBF LTGFT 8-Lead Plastic MSOP –40°C to 125°C LT5400BMPMS8E-7#PBF LT5400BMPMS8E-7#TRPBF LTGFT 8-Lead Plastic MSOP –55°C to 150°C LT5400BCMS8E-8#PBF LT5400BCMS8E-8#TRPBF LTGTB 8-Lead Plastic MSOP 0°C to 70°C LT5400BIMS8E-8#PBF LT5400BIMS8E-8#TRPBF LTGTB 8-Lead Plastic MSOP –40°C to 85°C LT5400BHMS8E-8#PBF LT5400BHMS8E-8#TRPBF LTGTB 8-Lead Plastic MSOP –40°C to 125°C LT5400BMPMS8E-8#PBF LT5400BMPMS8E-8#TRPBF LTGTB 8-Lead Plastic MSOP –55°C to 150°C Consult LTC Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. Consult LTC Marketing for information on non-standard lead based finish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/ 5400fc For more information www.linear.com/LT5400 3 LT5400 Electrical Characteristics The l denotes the specifications which apply over the full specified temperature range, otherwise specifications are at TA = 25°C. SYMBOL PARAMETER ∆R/R Resistor Matching Ratio (Any Resistor to Any Other A-Grade Resistor) TA = 0°C to 70°C TA = –40°C to 85°C TA = –40°C to 125°C CONDITIONS (∆R/R)CMRR Matching for CMRR (∆R/R)/∆T Resistor Matching Ratio Temperature Drift MIN ∆R/∆T UNITS l l l % % % % B-Grade l ±0.025 % A-Grade (Note 6) l ±0.005 % B-Grade (Note 6) l (Note 5) l ±0.2 l
