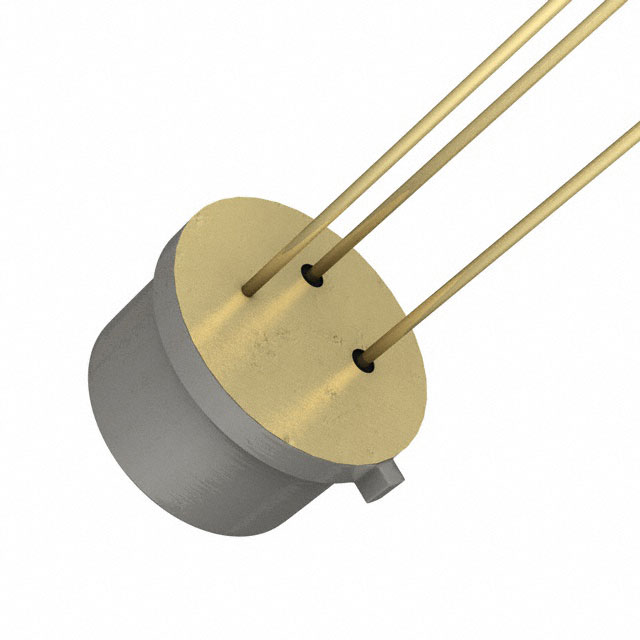

LT580XH#PBF

LT580X 200°C Voltage Reference PIN CONFIGURATION FEATURES n n n 100% Tested at 200°C Absolute Maximum Operating Temperature: 225°C Guaranteed Temperature Coefficient BOTTOM VIEW INPUT 1 3 2 OUTPUT GND H PACKAGE 3-LEAD TO-52 METAL CAN TJMAX = 225°C, θJA = 360°C/W L, LT, LTC and LTM are registered trademarks of Linear Technology Corporation. All other trademarks are the property of their respective owners. ORDER INFORMATION LEAD FREE FINISH PART MARKING PACKAGE DESCRIPTION TEMPERATURE RANGE LT580XH#PBF LT580UH 3-Lead TO-52 Metal Can –55°C to 200°C For more information on lead free part marking, go to: http://www.linear.com/leadfree/ This product is only offered in trays. For more information go to: http://www.linear.com/packaging/ ELECTRICAL CHARACTERISTICS VIN = 15V, (Note 1) SYMBOL PARAMETER VR Output Voltage TC Temperature Coefficient ΔVOUT CONDITIONS Min Max TYP 150°C TYP 175°C MIN/MAX 200°C 2.490 2.510 2.505 2.508 2.475 2.525 V V 150* ppm/°C ppm/°C ppm/°C ppm/°C UNITS –55°C ≤ TA ≤ 125°C 125°C to 150°C 150°C to 175°C 125°C to 200°C 10 Line Regulation 7V ≤ VIN ≤ 30V 4.5V ≤ VIN ≤ 7V 2 1 5 2 10 3 40 6 mV mV Load Regulation (Sourcing) 0mA ≤ IOUT ≤ 10mA 10 15 100 230* mV 1.0 1.5 1.8 2.5 mA ΔVIN ΔVOUT MIN/MAX 25°C 25 90 ΔIOUT IQ Quiescent Current *Not tested Note 1: Devices are 100% tested at 200°C ±3° to the limits shown. Since parameters change rapidly with temperature, devices are guaranteed at 190°C ±3°C and QA testing is done at 190°C ±3°. For normal operating temperature range specifications please see the LT580 data sheet. Information furnished by Linear Technology Corporation is believed to be accurate and reliable. However, no responsibility is assumed for its use. Linear Technology Corporation makes no representation that the interconnection of its circuits as described herein will not infringe on existing patent rights. 580xf Linear Technology Corporation LT 0209 • PRINTED IN USA 1630 McCarthy Blvd., Milpitas, CA 95035-7417 (408) 432-1900 ● FAX: (408) 434-0507 ● www.linear.com © LINEAR TECHNOLOGY CORPORATION 2008
