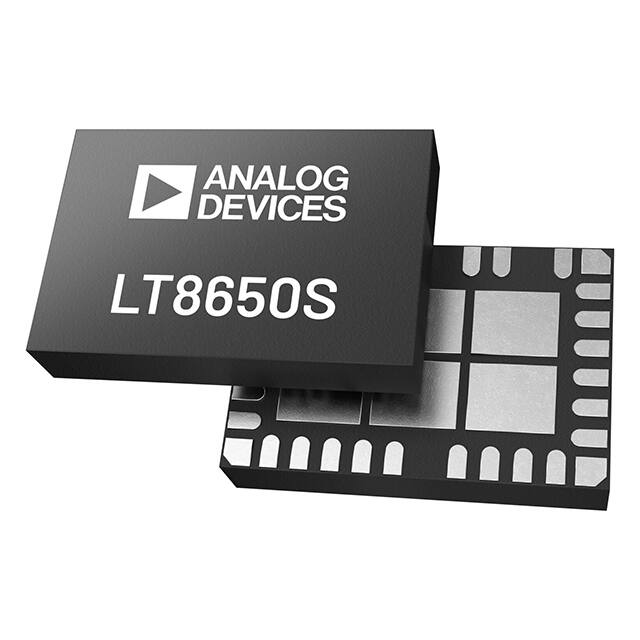

LT8650S Dual Channel 4A, 42V, Synchronous Step-Down Silent Switcher 2 with 6.2µA Quiescent Current DESCRIPTION FEATURES Silent Switcher®2 Architecture: n Ultralow EMI on Any PCB n Eliminates PCB Layout Sensitivity n Internal Bypass Capacitors Reduce Radiated EMI n Optional Spread Spectrum Modulation n 4A DC from Each Channel Simultaneously n Up to 6A on Either Channel n Ultralow Quiescent Current Burst Mode® Operation: n 6.2μA I Regulating 12V to 5V Q IN OUT1 and 3.3VOUT2 n Output Ripple 0.8V, VVC1 = VVC2 = VCC, VSYNC = 0V l VIN1 + VCC Quiescent Current in Sleep with External Compensation VEN/UV1 = VEN/UV2 = 2V, VFB1 = VFB2 >0.8V, VVC1 = VVC2 = Float, VSYNC = 0V l VIN1 + VCC Quiescent Current when Active VEN/UV1 = VEN/UV2 = 2V, VFB1 = VFB2 >0.8V, VVC1 = VVC2 = VCC, VSYNC = 3.4V l VIN Current in Regulation VIN = 12V, VOUT = 3.3V, Output Load = 100µA, VVC1 = VVC2 = VCC, VSYNC = 0V VIN = 12V, VOUT = 3.3V, Output Load = 1mA, VVC1 = VVC2 = VCC, VSYNC = 0V Feedback Reference Voltage l Feedback Voltage Line Regulation VIN = 4.0V to 36V Feedback Pin Input Current VFB = 0.8V Minimum On-Time ILOAD = 3A, SYNC ≥ 2V l Oscillator Frequency RT = 133k RT = 35.7k RT = 15k l l l 0.794 0.790 –20 270 0.94 1.85 40 60 300 1.0 2.00 330 1.06 2.15 UNITS ns kHz MHz MHz Top Power NMOS Current Limit 10 12 14 A Bottom Power NMOS Current Limit 6.5 8.5 10.5 A 2 µA 0.74 0.78 SW Leakage Current VIN = 42V, VSW = 0V,42V EN/UV Pin Threshold EN/UV Falling –2 l 0.7 EN/UV Pin Hysteresis EN/UV Pin Current 30 VEN/UV = 2V –20 V mV 20 nA PG Upper Threshold Offset from VFB VFB Falling l 5.4 7.2 9 % PG Lower Threshold Offset from VFB VFB Rising l –9.3 –7.5 –5.7 % PG Hysteresis 0.3 PG Leakage VPG = 12V PG Pull-Down Resistance VPG = 0.1V –40 SYNC Threshold SYNC DC and Clock Low Level Voltage SYNC Clock High Level Voltage SYNC DC High Level Voltage SYNC Pin Current VSYNC = 6V 0.4 1200 1.5 2.8 120 SS Source Current l SS Pull-Down Resistance Fault Condition, SS = 0.1V Error Amplifier Transconductance VC Source Current VC Sink Current 1.0 2.0 nA Ohm V V V µA 3.0 µA 200 Ω VC = 1.25V 0.9 mS VFB = 0.6V, VVC = 1.25V 185 µA VFB = 1.0V, VVC = 1.25V 185 µA 9.6 A/V 250 1200 mV mV VC Pin to Switch Current Gain TEMP Output Voltage 40 600 l % ITEMP = 0µA, Temperature = 25°C ITEMP = 0µA, Temperature = 125°C Rev. C For more information www.analog.com 3 LT8650S ELECTRICAL CHARACTERISTICS Note 1: Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. Exposure to any Absolute Maximum Rating condition for extended periods may affect device reliability and lifetime. Note 2: The LT8650SE is guaranteed to meet performance specifications from 0°C to 125°C junction temperature. Specifications over the –40°C to 125°C operating junction temperature range are assured by design, characterization, and correlation with statistical process controls. The LT8650SI is guaranteed over the full –40°C to 125°C operating junction temperature range. High junction temperatures degrade operating lifetimes. The LT8650SJ is guaranteed over the full –40°C to 150°C operating junction temperature range. Operating lifetime is derated at junction temperatures greater than 125°C. The junction temperature (TJ, in °C) is calculated from the ambient temperature (TA in °C) and power dissipation (PD, in Watts) according to the formula: TJ = TA + (PD • θJA) where θJA (in °C/W) is the package thermal impedance. Note 3: This IC includes overtemperature protection that is intended to protect the device during overload conditions. Junction temperature will exceed 150°C when overtemperature protection is active. Continuous operation above the specified maximum operating junction temperature will reduce lifetime TYPICAL PERFORMANCE CHARACTERISTICS 5VOUT Efficiency fSW = 2MHz FCM 95 100 5.5 90 5.0 85 4.5 80 4.0 3.5 75 12V 24V 36V 70 65 60 3.0 2.5 2.0 55 50 45 40 1.5 POWER LOSS 0 1 2 3 4 LOAD CURRENT (A) 5 BURST 70 60 50 FCM 40 12V 24V 36V 30 10 0.5 6 fSW = 2MHz 20 1.0 L = XFL5030, 1.0µH 5VOUT Efficiency 80 POWER LOSS (W) EFFICIENCY (%) 90 EFFICIENCY 6.0 EFFICIENCY (%) 100 0 0.1 0 L = XFL5030, 1.0µH 1 10 100 1k LOAD CURRENT (mA) 8650S G02 8650S G01 3.3VOUT Efficiency fSW = 2MHz FCM 95 100 5.5 90 5.0 85 4.5 80 4.0 75 3.5 12V 24V 36V 70 65 3.0 2.5 50 1.5 50 POWER LOSS 1.0 20 0.5 10 40 0 1 2 3 4 LOAD CURRENT (A) 5 6 12V 24V 36V 30 0 0.1 8650S G03 4 FCM 40 55 0 BURST 60 60 L = XFL5030, 1.0µH fSW = 2MHz 70 2.0 45 3.3VOUT Efficiency 80 POWER LOSS (W) EFFICIENCY (%) 90 EFFICIENCY 6.0 EFFICIENCY (%) 100 10k L = XFL5030, 1.0µH 1 10 100 1k LOAD CURRENT (mA) 10k 8650S G04 Rev. C For more information www.analog.com LT8650S TYPICAL PERFORMANCE CHARACTERISTICS 100 Efficiency at Different fSW 100 Efficiency vs fSW Reference Voltage 0.810 90 90 85 80 12VIN 3.3VOUT L = IHLP2525EZ–01 75 70 0.5 1 1.5 0.5MHz 2.2µH 1MHz 1.5µH 2MHz 1.5µH 3MHz 1.5µH 2 2.5 3 3.5 4 LOAD CURRENT (A) 4.5 85 80 12VIN 3.3VOUT 1.8A LOAD L = IHLP2525EZ–01, 1.5µH 75 70 0.5 5 REFERENCE VOLTAGE (V) 95 EFFICIENCY (%) EFFICIENCY (%) 0.808 95 1 1.5 2 2.5 SWITCHING FREQUENCY (MHz) 0.00 –0.10 –0.20 –0.30 CH1 CH2 2 3 4 OUTPUT CURRENT (A) 5 6 20 16 0.0 –0.1 –0.2 40 20 10 15 20 25 30 INPUT VOLTAGE (V) 10 8 6 2 –0.4 0 0 5 10 15 20 25 30 35 INPUT VOLTAGE (V) 40 45 35 40 5 10 15 20 25 30 INPUT VOLTAGE (V) 35 120 40 8650S G10 Top FET Current Limit VIN1 = VIN2 = 12V VOUT1 = 5V, VOUT2 = 3.3V VBIAS = VOUT1 SYNC = 0V 14 100 80 60 40 12 10 8 6 4 0 –55 –25 5 35 65 95 TEMPERATURE (°C) 125 8650S G11 BOTH CHANNELS ENABLED, BIAS = FLOAT ONLY CHANNEL 2 ENABLED, BIAS = FLOAT BOTH CHANNELS ENABLED, BIAS = VOUT2 ONLY CHANNEL 2 ENABLED, BIAS = VOUT2 BOTH CHANNELS ENABLED ONLY CHANNEL 2 ENABLED 16 20 5 12 4 CURRENT LIMIT (A) INPUT CURRENT (µA) INPUT CURRENT (µA) 60 0 14 –0.3 140 155 VIN1 = VIN2 VOUT1 = 5V, VOUT2 = 3.3V IN REGULATION SYNC = 0V, VBIAS = VOUT2 18 No Load Supply Current 80 125 No Load Supply Current with Internal Compensation 0.1 160 100 5 35 65 95 TEMPERATURE (°C) 8650S G09 VIN1 = VIN2 VOUT1 = 5V, VOUT2 = 3.3V IN REGULATION SYNC = 0V 120 –25 8650S G07 0.2 No Load Supply Current with External Compensation 140 0.794 0.790 –55 3 8650S G08 160 0.796 INPUT CURRENT (µA) 0.10 1 0.798 VIN1 = VIN2 IOUT = 0A 0.3 CHANGE IN VOUT (%) CHANGE IN VOUT (%) 0.4 VIN1 = VIN2 = 12V VOUT1 = 5V, VOUT2 = 3.3V FCM, fSW = 2MHz 0 0.800 Line Regulation 0.20 –0.40 0.802 8650s G06 Load Regulation 0.30 0.804 0.792 8650s G05 0.40 0.806 155 8650S G12 2 0 0.2 0.4 0.6 DUTY CYCLE 0.8 1 8650S G13 BOTH CHANNELS IN REGULATION INTERNAL COMP EXTERNAL COMP Rev. C For more information www.analog.com 5 LT8650S TYPICAL PERFORMANCE CHARACTERISTICS Top FET Current Limit Bottom FET Current Limit 30% DC 12 CURRENT LIMIT (A) CURRENT LIMIT (A) 14 10 8 6 4 2 –55 –25 5 35 65 95 TEMPERATURE (°C) 125 500 10 450 9 400 8 350 7 6 5 4 –25 5 35 65 95 TEMPERATURE (°C) 30 20 10 58 57 56 55 54 53 52 –25 5 35 65 95 TEMPERATURE (°C) 8650S G17 1.95 1.90 1.85 600 500 400 300 Burst Mode OPERATION 200 0 0.5 1 1.5 2 2.5 3 LOAD CURRENT (A) 1.75 1.50 3.5 4 8650s G19 Soft-Start Tracking 1.0 0.8 1.25 1.00 0.75 0.50 0.6 0.4 0.2 0.25 –25 5 35 65 95 TEMPERATURE (°C) 125 155 8650S G20 6 8650S G16 700 0 155 FB VOLTAGE (V) 2.00 1.80 –55 125 VIN1 = VIN2 = 12V VOUT = 5V SYNC = 0V RT = 15kΩ L = 1.0µH 2.00 SWITCHING FREQUENCY (MHz) SWITCHING FREQUENCY (MHz) RT = 15kΩ 5 FCM 800 Burst Frequency 2.25 2.05 4 8650S G18 Switching Frequency 2.10 3 100 50 –55 155 2 fSW = 2MHz VOUT = 3V 900 51 125 1 Dropout Voltage 1000 DROPOUT VOLTAGE (mV) MINIMUM OFF–TIME (ns) MINIMUM ON–TIME (ns) 40 0 IDS (A) FCM, 1A LOAD 59 50 2.15 0 155 Minimum Off-Time 60 60 2.20 125 TOP FET BOT FET 8650S G15 FCM, 2A LOAD 5 35 65 95 TEMPERATURE (°C) 150 50 70 –25 200 2 Minimum On-Time 0 –55 250 100 8650S G14 80 300 3 1 –55 155 Switch VDS 11 SWITCH VDS (mV) 16 0 0 0.20 0.40 0.60 0.80 LOAD CURRENT (A) 1.00 1.20 8650S G21 0 0 0.2 0.4 0.6 0.8 SS VOLTAGE (V) 1.0 1.2 8650s G22 Rev. C For more information www.analog.com LT8650S TYPICAL PERFORMANCE CHARACTERISTICS Soft-Start Current VSS = 0.4V PG High Threshold 10.0 0.77 2.2 0.76 EN THRESHOLD (V) SS PIN CURRENT (µA) 2.3 EN Pin Thresholds 0.78 2.1 2.0 1.9 0.75 0.74 0.73 1.8 0.72 1.7 0.71 1.6 –55 0.70 –55 –25 5 35 65 95 TEMPERATURE (°C) 125 155 EN RISING EN FALLING –25 5 35 65 95 TEMPERATURE (°C) 125 8650S G23 –5.5 135 –6.0 120 –6.5 –7.0 –7.5 –8.0 –8.5 FALLING 45 125 0 155 5.5 0 EN2 = 0V, SS1=0V, FCM 0.5 1 1.5 2 2.5 SWITCHING FREQUENCY (MHZ) 0.05 BELOW 5°C: 10kΩ RESISTOR FROM TEMP TO –2V ABOVE 5°C: FLOAT TEMP 2.4 125 155 8650S G29 –25 5 35 65 95 TEMPERATURE (°C) 125 155 Bias Pin Current per Channel 24 VIN = 12V LOAD = 2A 22 20 17.0 16.5 16.0 15.5 15.0 18 16 14 12 10 8 6 4 14.5 14.0 155 8650S G28 BIAS PIN CURRENT (mA) BIAS PIN CURRENT (mA) 0.35 125 2.6 2.0 –55 3 fSW = 2MHz LOAD = 1A 17.5 1.25 0.65 5 35 65 95 TEMPERATURE (°C) 8650S G25 Bias Pin Current per Channel 18.0 0.95 RISING –25 8650S G27 Temperature Monitor Pin TEMP PIN VOLTAGE (V) 6.0 2.2 8650S G26 5 35 65 95 TEMPERATURE (°C) 6.5 2.8 60 15 –25 7.0 VIN1 = VIN2 75 30 –0.55 –55 7.5 Minimum Input Voltage 90 –9.5 –0.25 8.0 3.0 105 –9.0 1.55 8.5 5.0 –55 155 INPUT VOLTAGE (V) RT PIN RESISTOR (kΩ) PG THRESHOLD OFFSET FROM VREF (%) 150 5 35 65 95 TEMPERATURE (°C) 9.0 RT Programmed Switching Frequency –5.0 –25 9.5 8650S G24 PG Low Threshold –10.0 –55 PG THRESHOLD OFFSET FROM VREF (%) 2.4 2 5 10 15 20 25 30 35 INPUT VOLTAGE (V) 40 45 8650S G30 0 0 0.5 1 1.5 2 2.5 SWITCHING FREQUENCY (MHZ) 3 8650S G31 Rev. C For more information www.analog.com 7 LT8650S TYPICAL PERFORMANCE CHARACTERISTICS Transient Response Internal Compensation Transient Response Internal Compensation ILOAD 2A/DIV Transient Response External Compensation ILOAD 2A/DIV ILOAD 2A/DIV VOUT 100mV/DIV VOUT 100mV/DIV 20µs/DIV 8650S G32 VOUT 100mV/DIV 20µs/DIV 8650S G33 2A TO 4A TRANSIENT 3.3VOUT COUT = 47µF ×2 FCM, fSW = 2MHz 40mA TO 2A TRANSIENT 3.3VOUT COUT = 47µF ×2 FCM, fSW = 2MHz 2A TO 4A TRANSIENT 3.3VOUT COUT = 47µF ×2 FCM, fSW = 2MHz CC = 220pF, RC = 14kΩ Transient Response External Compensation Forced Continuous Mode (FCM) Burst Mode Operation ILOAD 2A/DIV VOUT 100mV/DIV 20µs/DIV SW 5V/DIV SW 5V/DIV IL 1A/DIV IL 1A/DIV 8650S G35 2µs/DIV 8650S G36 2µs/DIV 8650S G34 8650S G37 40mA TO 2A TRANSIENT 3.3VOUT COUT = 47µF ×2 FCM, fSW = 2MHz CC = 220pF, RC = 14kΩ 12VIN TO 5VOUT AT 100mA SYNC = FLOAT 12VIN TO 5VOUT AT 100mA SYNC = 0V CH1, CH2, and CLKOUT Switch Rising Edge Start-Up Dropout Performance SW1 10V/DIV VIN 2V/DIV SW2 10V/DIV FCM (SYNC FLOAT) VSW 2V/DIV VOUT 2V/DIV CLKOUT 2V/DIV 500ns/DIV 8650S G38 1ns/DIV 8650S G40 VIN = 12V CH1 = 5VOUT CH2 = 3.3VOUT SYNC = FLOAT 8 20µs/DIV 100ms/DIV 8650S G40 5Ω LOAD (1A IN REGULATION) Rev. C For more information www.analog.com LT8650S TYPICAL PERFORMANCE CHARACTERISTICS Case Temperature Rise 120 Burst Mode OPERATION (SYNC = 0V) 24VIN, LOAD2 = LOAD1 12VIN, LOAD2 = LOAD1 12VIN, LOAD2 = 4A 12VIN, LOAD2 = 0A CASE TEMPERATURE RISE (°C) 110 VIN 2V/DIV VOUT 2V/DIV 100ms/DIV 8650S G41 Case Temperature Rise 100 100 90 80 70 60 50 40 30 20 0 80 70 60 50 40 30 20 10 10 5Ω LOAD (1A IN REGULATION) DC2407A DEMO BOARD VIN1,2 = 12V, fSW = 2MHz VOUT1 = 5V, VOUT2 = 3.3V 90 CASE TEMPERATURE RISE (°C) Start-Up Dropout Performance 0 1 2 3 4 LOAD1 CURRENT (A) 5 0 6 0 0.2 0.4 0.6 0.8 DUTY CYCLE OF PULSED LOAD 8650S G42 8650S G43 CH1 = 0.5A STANDBY, 6A PULSED; CH2 = 0A DC CH1 = 0.5A STANDBY, 6A PULSED; CH2 = 4A DC CH1 = CH2 = 2A STANDBY, 6A PULSED DC2407A DEMO BOARD VOUT1 = 5V, VOUT2 = 3.3V, fSW = 2MHz Radiated EMI Performance (CISPR25 Radiated Emission Test with Class 5 Peak Limits) Conducted EMI Performance 60 50 VERTICAL POLARIZATION 45 PEAK DETECTOR 40 50 AMPLITUDE (dBµV/m) AMPLITUDE (dBµV/m) 40 30 20 10 0 –10 –20 0 3 6 9 12 15 18 FREQUENCY (MHz) 21 24 27 35 30 25 20 15 10 5 SPREAD SPECTRUM MODE FIXED FREQUENCY MODE –30 –40 1 CLASS 5 PEAK LIMIT SPREAD SPECTRUM MODE FIXED FREQUENCY MODE 0 30 8650S G44 DC2407A DEMO BOARD (WITH EMI FILTER INSTALLED) 12V INPUT TO 5V OUTPUT1 AT 4A AND 3.3V OUTPUT2 AT 4A, fSW = 2MHz –5 0 100 200 300 400 500 600 FREQUENCY (MHz) 700 800 900 1000 8650S G45 DC2407A DEMO BOARD (WITH EMI FILTER INSTALLED) 12V INPUT TO 5V OUTPUT1 AT 4A AND 3.3V OUTPUT2 AT 4A, fSW = 2MHz Rev. C For more information www.analog.com 9 LT8650S PIN FUNCTIONS RT (Pin 1): A resistor is tied between RT and ground to set the switching frequency. VIN1 (Pin 4, 5): The VIN1 pin supplies current to the LT8650S internal circuitry and to the internal top side power switch of channel 1. This pin must be locally bypassed. Be sure to place the positive terminal of the input capacitor as close as possible to the VIN1 pin, and the negative capacitor terminal as close as possible to the GND pins. VIN1 must be 3V or higher for LT8650S to operate. VIN2 (Pin 7, 8): The VIN2 pin supplies current to the internal top side power switch of channel 2. This pin must be locally bypassed. Be sure to place the positive terminal of the input capacitor as close as possible to the VIN2 pin, and the negative capacitor terminal as close as possible to the GND pins. This input is capable of operating from a different supply than VIN1. VIN1 must be present to run channel 2. EN/UV1 (Pin 11): Channel 1 of the LT8650S is shut down when this pin is low and active when this pin is high. The hysteretic threshold voltage is 0.77V going up and 0.74V going down. Tie to VIN1 if the shutdown feature is not used. An external resistor divider from VIN1 can be used to program a VIN threshold below which channel 1 of the LT8650S will shut down. Do not float this pin. EN/UV2 (Pin 12): Channel 2 of the LT8650S is shut down when this pin is low and active when this pin is high. The hysteretic threshold voltage is 0.77V going up and 0.74V going down. Tie to VIN2 if shutdown feature is not used. An external resistor divider from VIN2 can be used to program a VIN threshold below which channel 2 of the LT8650S will shut down. Do not float this pin. TEMP (Pin 13): Temperature Output Pin. This pin outputs a voltage proportional to junction temperature. The pin is 250mV for 25°C and has a slope of 9.5mV/°C. The output of this pin is not valid during light output loads on both channels while in Burst Mode operation. Put the LT8650S in forced continuous mode for the TEMP output to be valid across the entire output load range. See the Applications Information section for more information. PG1 (Pin 14): The PG1 pin is the open-drain output of an internal comparator. PG1 remains low until the FB1 pin 10 is within ±7.5% of the final regulation voltage, and there are no fault conditions. PG1 is pulled low during VIN1 UVLO, VCC UVLO, Thermal Shutdown, or when the EN/ UV1 pin is low. PG2 (Pin 15): The PG2 pin is the open-drain output of an internal comparator. PG2 remains low until the FB2 pin is within ±7.5% of the final regulation voltage, and there are no fault conditions. PG2 is pulled low during VIN1 UVLO, VCC UVLO, Thermal Shutdown, or when both the EN/UV2 pin is low. SYNC (Pin 16): External Clock Synchronization Input. Ground this pin for low ripple Burst Mode operation at low output loads. Apply a DC voltage of 2.8V to 4V or tie to VCC for forced continuous mode with spread spectrum modulation. Float the SYNC pin for forced continuous mode without spread spectrum modulation. Apply a clock source to the SYNC pin for synchronization to an external frequency. The LT8650S will be in forced continuous mode when an external frequency is applied. CLKOUT (Pin 17): In forced continuous mode, the CLKOUT pin provides a 50% duty cycle square wave 90 degrees out of phase with channel 1. This allows synchronization with other regulators with up to four phases. When an external clock is applied to the SYNC pin, the CLKOUT pin will output a waveform with the same phase, duty cycle, and frequency as the SYNC waveform. In burst mode, the CLKOUT pin will be low. Float this pin if the CLKOUT function is not used. BST2 (Pin 18): This pin is used to provide a drive voltage, higher than the input voltage, to the top side power switch of channel 2. SW2 (Pin 19, 20): The SW2 pin is the output of the channel 2 internal power switches. Tie these pins together and connect them to the inductor and boost capacitor. This node should be kept small on the PCB for good performance. SW1 (Pin 22, 23): The SW1 pin is the output of the channel 1 internal power switches. Tie these pins together and connect them to the inductor and boost capacitor. This node should be kept small on the PCB for good performance. Rev. C For more information www.analog.com LT8650S PIN FUNCTIONS BST1 (Pin 24): This pin is used to provide a drive voltage, higher than the input voltage, to the top side power switch of channel 1. VCC (Pin 25): Internal Regulator Bypass Pin. The internal power drivers and control circuits are powered from this voltage. VCC current will be supplied from BIAS if VBIAS > 3.1V, otherwise current will be drawn from VIN1. Voltage on VCC will vary between 2.8V and 3.3V when VBIAS is between 3.0V and 3.5V. Decouple this pin to ground with at least a 1μF low ESR ceramic capacitor. Do not load the VCC pin with external circuitry. BIAS (Pin 26): The internal regulator will draw current from BIAS instead of VIN1 when BIAS is tied to a voltage higher than 3.1V. For output voltages of 3.3V and above this pin should be tied to VOUT. If this pin is tied to a supply other than VOUT use a 1µF local bypass capacitor on this pin. VC1 (Pin 27): Channel 1 Error Amplifier Output and Switching Regulator Compensation Pin. Connect this pin to appropriate external components to compensate the regulator loop frequency response. Connect this pin to VCC to use the default internal compensation. If internal compensation is used, the burst mode quiescent current is only 2.5µA for channel 1. If external compensation is used, the burst mode quiescent current is increased to about 50µA for channel 1. FB1 (Pin 28): The LT8650S regulates the FB1 pin to 800mV. Connect the feedback resistor divider tap to this pin. SS1 (Pin 29): Channel 1 Output Tracking and Soft-Start Pin. This pin allows user control of output voltage ramp rate during startup. A SS1 voltage below 0.8V forces the LT8650S to regulate the FB1 pin to equal the SS1 pin voltage. When SS1 is above 0.8V, the tracking function is disabled and the internal reference resumes control of the error amplifier. An internal 2μA pull-up current from VCC on this pin allows a capacitor to program output voltage slew rate. This pin is pulled to ground with an internal 200Ω MOSFET during shutdown and fault conditions; use a series resistor if driving from a low impedance output. This pin may be left floating if the soft-start feature is not being used. SS2 (Pin 30): Channel 2 Output Tracking and Soft-Start Pin. This pin allows user control of output voltage ramp rate during startup. A SS2 voltage below 0.8V forces the LT8650S to regulate the FB2 pin to equal the SS2 pin voltage. When SS2 is above 0.8V, the tracking function is disabled and the internal reference resumes control of the error amplifier. An internal 2μA pull-up current from VCC on this pin allows a capacitor to program output voltage slew rate. This pin is pulled to ground with an internal 200Ω MOSFET during shutdown and fault conditions; use a series resistor if driving from a low impedance output. This pin may be left floating if the soft-start feature is not being used. FB2 (Pin 31): The LT8650S regulates the FB2 pin to 800mV. Connect the feedback resistor divider tap to this pin. VC2 (Pin 32): Channel 2 Error Amplifier Output and Switching Regulator Compensation Pin. Connect this pin to appropriate external components to compensate the regulator loop frequency response. Connect this pin to VCC to use the default internal compensation. If internal compensation is used, the burst mode quiescent current is only 2.5µA for channel 2. If external compensation is used, the burst mode quiescent current is increased to about 50µA for channel 2. GND (Pin 2, 10, Exposed Pad Pins 33–38): LT8650S System Ground. Connect these pins to the system ground and the board ground plane. Place the negative terminal of the input capacitors as close to the GND pins as possible. The exposed pad must be soldered to the PCB in order to lower the thermal resistance. Rev. C For more information www.analog.com 11 LT8650S BLOCK DIAGRAM TEMP VIN1 R5 0.74V EN/UV1 + – SHDN1 R6 VIN2 R7 EN/UV2 R8 VC1 0.74V RC1 + – SHDN2 TSD VIN1 UVLO PG1 R1 VCC – 0.2V VCC UVLO C1 10nF ×2 CIN1 CVCC + – + VC1 ERROR AMP BURST LOGIC SWITCH LOGIC AND ANTISHOOT THROUGH C3 0.1µF DRIVER SW1 L1 VOUT1 COUT1 VCC R2 VIN1 VCC BST1 0.8V ±7.5V FB1 VCC – + VOUT1 CFF1 VIN1 C5 0.1µF SHDN1 CC1 BIAS INTERNAL REFERENCE AND 3.4V REGULATOR GND 2µA SS1 SHDN1 TSD VIN1 UVLO CSS1 SLOPE COMP RT RT CLKOUT OSCILLATOR 300kHz TO 3MHz SYNC SLOPE COMP VIN2 VC2 RC2 SHDN2 TSD VIN1 UVLO CC2 PG2 VCC – 0.2V VCC UVLO R3 ±7.5V FB2 VCC + – + VC2 BURST LOGIC SWITCH LOGIC AND ANTISHOOT THROUGH VCC R4 VIN2 CIN2 BST2 0.8V VOUT2 CFF2 – + C2 10nF ×2 C4 0.1µF DRIVER SW2 L2 VOUT2 COUT2 GND 2µA SS2 CSS2 SHDN2 TSD VIN1 UVLO GND 8650s BD 12 Rev. C For more information www.analog.com LT8650S OPERATION Foreword The LT8650S is a dual monolithic step down regulator. The two channels are the same in terms of current capability and power switch size. The following sections describe the operation of channel 1 and common circuits. They will highlight channel 2 differences and interactions only when relevant. To simplify the application, both VIN1 and VIN2 are assumed to be connected to the same input supply. However, note that VIN1 must be greater than 3V for either channel to operate. Operation The LT8650S is a dual monolithic, constant frequency, peak current mode step-down DC/DC converter. An oscillator, with frequency set using a resistor on the RT pin, turns on the internal top power switch at the beginning of each clock cycle. Current in the inductor then increases until the top switch current comparator trips and turns off the top power switch. The peak inductor current at which the top switch turns off is controlled by the voltage on the VC node. The error amplifier servos the VC node by comparing the voltage on the VFB pin with an internal 0.8V reference. When the load current increases it causes a reduction in the feedback voltage relative to the reference leading the error amplifier to raise the VC voltage until the average inductor current matches the new load current. When the top power switch turns off, the synchronous power switch turns on until the next clock cycle begins or inductor current falls to zero when not in forced continuous mode (FCM). If overload conditions result in more than the bottom NMOS current limit flowing through the bottom switch, the next clock cycle will be delayed until switch current returns to a safe level. The S in LT8650S refers to the second generation Silent Switcher technology. This technology allows fast switching edges for high efficiency at high switching frequencies, while simultaneously achieving good EMI performance. This includes the integration of ceramic capacitors into the package for VIN1, VIN2, VCC, BST1, and BST2 (C1 to C5 in the Block Diagram). These caps keep all the fast AC current loops small, which improves EMI performance. If either EN/UV pin is low, the corresponding channel is shut down. If both EN/UV pins are low, the LT8650S is fully shut down and draws 1.7µA from the input supply. When the EN/UV pins are above 0.74V, corresponding switching regulators will become active. 3.7μA is supplied by VIN1 to common bias circuits for both channels. Each channel can independently enter Burst Mode operation to optimize efficiency at light load. Between bursts, all circuitry associated with controlling the output switch is shut down, reducing the channel’s contribution to input supply current. In a typical application, 6.2μA will be consumed from input supply when regulating both channels with no load. Ground the SYNC pin for Burst Mode operation, float it for forced continuous mode (FCM) or apply a DC voltage from 2.8V to 4V to use FCM with spread spectrum modulation (SSM). If a clock is applied to the SYNC pin both channels will synchronize to the external clock frequency and operate in FCM. While in FCM the oscillator operates continuously and rising SW transitions are aligned to the clock. During light loads, the inductor current is allowed to go negative to maintain the programmed switching frequency. Minimum current limits for both power switches are enforced to prevent large negative inductor current from flowing back to the input. SSM dithers the switching frequency from the programmed value set by the RT pin up to 20% higher than the programmed value to spread out the switching energy in the frequency domain. The CLKOUT pin has no output in Burst Mode, but outputs a square wave 90 degrees phase shifted from channel 1 when in FCM. If a clock is applied to the SYNC pin, the CLKOUT pin has the same phase and duty cycle as the external clock. To improve efficiency across all loads, supply current to internal circuitry can be sourced from the BIAS pin when biased at 3.3V or above. Otherwise, the internal circuitry will draw current exclusively from VIN1. The BIAS pin should be connected to the lowest VOUT programmed at 3.3V or above. The VC pin allows the loop compensation of the switching regulator to be optimized based on the programmed switching frequency. Internal compensation can be se- Rev. C For more information www.analog.com 13 LT8650S OPERATION lected by connecting the VC pin to VCC, which simplifies the application circuit. External compensation improves the transient response at the expense of about 50µA more quiescent current per channel. Comparators monitoring the FB pin voltage will pull the corresponding PG pin low if the output voltage varies more than ±7.5% (typical) from the regulation voltage or if a fault condition is present. The voltage present at the TEMP pin is proportional to the average die temperature of the LT8650S. The TEMP pin will be 250mV for a die temperature of 25°C and will have a slope of 9.5mV/°C 14 Tracking soft-start is implemented by providing constant current via the SS pin to an external soft-start capacitor to generate a voltage ramp. FB voltage is regulated to the voltage at the SS pin until it exceeds 0.8V; FB is then regulated to the reference 0.8V. When the SS pin is below 40mV, the corresponding switching regulator will stop switching. The SS capacitor is reset during shutdown, VIN1 undervoltage, or thermal shutdown. Both channels are designed for output currents up to 6A, but thermal considerations practically limit the output currents to 4A of continuous current from each channel simultaneously. Channel 1 has a minimum VIN1 requirement of 3V, channel 2 can operate with no minimum VIN2 provided the minimum VIN1 has been satisfied. Rev. C For more information www.analog.com LT8650S APPLICATIONS INFORMATION 2.25 Achieving Ultralow Quiescent Current SWITCHING FREQUENCY (MHz) To enhance efficiency at light loads, the LT8650S operates in low ripple Burst Mode operation, which keeps the output capacitor charged to the desired output voltage while minimizing the input quiescent current and minimizing output voltage ripple. 3.7μA is supplied by VIN1 to common bias circuits. In Burst Mode operation the LT8650S delivers single small pulses of current to the output capacitor followed by sleep periods where the output power is supplied by the output capacitor. While in sleep mode both channels consume a combined 6.2μA. For some applications it is desirable to select forced continuous mode (FCM) to maintain full switching frequency down to zero output load. See Forced Continuous Mode section. 1.75 1.50 1.25 1.00 0.75 0.50 0.25 0 0 0.20 0.40 0.60 0.80 LOAD CURRENT (A) 1.00 Figure 1. Burst Frequency As the output load decreases, the frequency of single current pulses decreases (see Figure 1) and the percentage of time the LT8650S is in sleep mode increases, resulting in much higher light load efficiency than for typical converters. By maximizing the time between pulses, the converter quiescent current approaches 6.2µA for a typical application when there is no output load. Therefore, to optimize the quiescent current performance at light loads, the current in the feedback resistor divider must be minimized as it appears to the output as load current. While in Burst Mode operation the current limit of the top switch is approximately 1.2A resulting in output voltage ripple shown in Figure 2. Increasing the output capacitance will decrease the output ripple proportionally. As load ramps upward from zero the switching frequency will increase but only up to the switching frequency programmed by the resistor at the RT pin as shown in Figure 1. The output load at which the LT8650S reaches the programmed frequency varies based on input voltage, output voltage, and inductor choice. VIN1 = VIN2 = 12V VOUT = 5V SYNC = 0V RT = 15kΩ L = 1.0µH 2.00 1.20 LT8650S F01 SW 5V/DIV IL 1A/DIV 2µs/DIV LT8650S F02 12VIN TO 5VOUT AT 100mA SYNC = 0V Figure 2. Burst Mode Operation FB Resistor Network The output voltage is programmed with a resistor divider between the output and the FB pin (R1-2 for channel 1, R3-4 for channel 2). Choose the resistor values according to: ⎛V ⎞ R1= R2 ⎜ OUT1 – 1⎟ ⎝ 0.8V ⎠ Reference designators refer to the Block Diagram. 1% resistors are recommended to maintain output voltage accuracy. Rev. C For more information www.analog.com 15 LT8650S APPLICATIONS INFORMATION If low input quiescent current and good light-load efficiency are desired, use large resistor values for the FB resistor divider. The current flowing in the divider acts as a load current, and will increase the no-load input current to the converter, which is approximately: ⎛ V ⎞ IQ = 3.7µA + ⎜ OUT1 ⎟ ⎝ R1+R2 ⎠ ⎛ VOUT1 ⎞ ⎜⎝ V ⎟⎠ IN1 The two channels of the LT8650S operate 180° out of phase to avoid aligned switching edge noise and reduce input current ripple. Table 1. SW Frequency vs RT Value ⎛ 1⎞ ⎜⎝ ⎟⎠ n fSW (MHz) RT (kΩ) 0.3 137 0.4 100 0.5 78.7 where 3.7µA is the quiescent current of channel 1 and common circuitries, the second term is the current in the feedback divider reflected to the input of channel 1 operating at its light load efficiency n. For a 3.3V application with R1 = 1M and R2 = 316k, the feedback divider draws 2.5µA. With VIN = 12V and n = 80%, this adds 0.9µA to the 3.7µA quiescent current resulting in 4.6µA no-load current from the 12V supply. Note that this equation implies that the no-load current is a function of VIN; this is plotted in the Typical Performance Characteristics section. 0.6 63.4 0.8 46.4 1.0 35.7 1.2 28.7 1.4 23.7 1.6 20 1.8 17.4 2.0 15 2.2 13 2.5 11 A similar calculation can be done to determine the input current contribution from the channel 2 feedback resistors. For a 5V application with R3 = 1M, R4 = 191k, VIN = 12V, and h = 80%, this adds 2.2µA to the input current resulting in a total of 6.8µA with both channels on. 3.0 8.06 For a typical FB resistor of 1M, a 4.7pF to 10pF phase-lead capacitor should be connected from VOUT to FB. Setting the Switching Frequency The LT8650S uses a constant frequency PWM architecture that can be programmed to switch from 300kHz to 3MHz by using a resistor tied from the RT pin to ground. Table 1 shows the necessary RT value for a desired switching frequency. The RT resistor required for a desired switching frequency can be calculated using: RT = 41.7 fSW – 5.8 where RT is in kΩ and fSW is the desired switching frequency in MHz. 16 Operating Frequency Selection and Trade-Offs Selection of the operating frequency is a trade-off between efficiency, component size, and input voltage range. The advantage of high frequency operation is that smaller inductor and capacitor values may be used. The disadvantages are lower efficiency and a smaller input voltage range. The highest switching frequency (fSW(MAX)) for a given application can be calculated as follows: fSW(MAX) = ( VOUT + VSW(BOT) t ON(MIN) VIN – VSW(TOP) + VSW(BOT) ) where VIN is the typical input voltage, VOUT is the output voltage, VSW(TOP) and VSW(BOT) are the internal switch drops (~0.3V, ~0.12V, respectively at maximum load) and tON(MIN) is the minimum top switch on-time of 60ns (see the Electrical Characteristics). This equation shows that a slower switching frequency is necessary to accommodate a high VIN/VOUT ratio. Choose the switching frequency based on which channel has the lower frequency constraint. Rev. C For more information www.analog.com LT8650S APPLICATIONS INFORMATION For transient operation, VIN may go as high as the absolute maximum rating of 42V regardless of the RT value, however the LT8650S will reduce switching frequency on each channel independently as necessary to maintain control of inductor current to assure safe operation. In Burst Mode, the LT8650S is capable of a maximum duty cycle of greater than 99%, and the VIN to VOUT dropout is limited by the RDS(ON) of the top switch. In this mode the channel that enters dropout skips switch cycles, resulting in a lower switching frequency. In forced continuous mode, the LT8650S will not skip cycles to achieve a higher duty cycle. The part will maintain the programmed switching frequency and the dropout voltage will be larger due to the smaller maximum duty cycle. For applications that cannot allow deviation from the programmed switching frequency at low VIN/VOUT ratios use the following formula to set switching frequency: VIN(MIN) = VOUT + VSW(BOT) 1– fSW • t OFF(MIN) – VSW(BOT) + VSW(TOP) where VIN(MIN) is the minimum input voltage without skipped cycles, VOUT is the output voltage, VSW(TOP) and VSW(BOT) are the internal switch drops (~0.3V, ~0.12V, respectively at maximum load), fSW is the switching frequency (set by RT), and tOFF(MIN) is the minimum switch off-time. Note that higher switching frequency will increase the minimum input voltage below which cycles will be dropped to achieve higher duty cycle. Note there is no minimum VIN2 voltage requirement as it does not supply the internal common bias circuits, making the channel 2 uniquely capable of operating from very low input voltages as long as VIN1 has a supply of 3V or greater. Inductor Selection and Maximum Output Current The LT8650S is designed to minimize solution size by allowing the inductor to be chosen based on the output load requirements of the application. During overload or short-circuit conditions the LT8650S safely tolerates operation with a saturated inductor through the use of a high speed peak-current mode architecture. A good first choice for the inductor value is: L1,2 = VOUT1,2 + VSW(BOT) 2fSW where fSW is the switching frequency in MHz, VOUT is the output voltage, VSW(BOT) is the bottom switch drop (~0.12V) and L is the inductor value in μH. To avoid overheating and poor efficiency, an inductor must be chosen with an RMS current rating that is greater than the maximum expected output load of the application. In addition, the saturation current (typically labeled ISAT) rating of the inductor must be higher than the load current plus 1/2 of in inductor ripple current: 1 IL(PEAK) =ILOAD(MAX) + ΔIL 2 where ∆IL is the inductor ripple current as calculated in Equation 1 and ILOAD(MAX) is the maximum output load for a given application. As a quick example, an application requiring 1A output should use an inductor with an RMS rating of greater than 1A and an ISAT of greater than 1.3A. During long duration overload or short-circuit conditions, the inductor RMS rating requirement must be greater to avoid overheating of the inductor. To keep the efficiency high, the series resistance (DCR) should be less than 0.04Ω, and the core material should be intended for high frequency applications. The LT8650S limits the peak switch current in order to protect the switches and the system from overload faults. The top switch current limit (ILIM) is at least 10A at low duty cycles and decreases linearly to 7A at DC = 0.8. The inductor value must then be sufficient to supply the desired maximum output current (IOUT(MAX)), which is a function of the switch current limit (ILIM) and the ripple current. IOUT(MAX) =ILIM – ΔIL 2 The peak-to-peak ripple current in the inductor can be calculated as follows: ΔIL = VOUT L • fSW ⎛ ⎞ V • ⎜ 1– OUT ⎟ (1) ⎝ VIN(MAX) ⎠ Rev. C For more information www.analog.com 17 LT8650S APPLICATIONS INFORMATION where fSW is the switching frequency of the LT8650S, and L is the value of the inductor. Therefore, the maximum output current that the LT8650S will deliver depends on the switch current limit, the inductor value, and the input and output voltages. Each channel has a secondary bottom switch current limit. After the top switch has turned off, the bottom switch carries the inductor current. If for any reason the inductor current is too high, the bottom switch will remain on, delaying the top switch turning on until the inductor current returns to a safe level. This level is specified as the Bottom NMOS Current Limit, and is independent of duty cycle. Maximum output current in the application circuit is limited to this valley current plus one half of the inductor ripple current. In most cases current limit is enforced by the top switch. The bottom switch limit controls the inductor current when the minimum on-time condition is violated (high input voltage, high frequency or saturated inductor). The bottom switch current limit is designed to be equal to the peak current limit to avoid any contribution to maximum rated current of the LT8650S. For more information about maximum output current and discontinuous operation, see Analog Devices Application Note 44. Finally, for duty cycles greater than 50% (VOUT/VIN > 0.5), a minimum inductance is required to avoid sub-harmonic oscillation. See Application Note 19. Table 2. Inductor Manufacturers VENDOR URL Coilcraft www.coilcraft.com Sumida www.sumida.com Würth Elektronik www.we-online.com Vishay www.vishay.com Input Capacitor Bypass the input of the LT8650S circuit with a ceramic capacitor of X7R or X5R type placed as close as possible to the VIN and GND pins. Y5V types have poor performance over temperature and applied voltage, and should not be used. A 4.7μF to 10μF ceramic capacitor is adequate to bypass the LT8650S and will easily handle the ripple 18 current. Note that larger input capacitance is required when a lower switching frequency is used. If the input power source has high impedance, or there is significant inductance due to long wires or cables, additional bulk capacitance may be necessary. This can be provided with a low performance electrolytic capacitor. Step-down regulators draw current from the input supply in pulses with very fast rise and fall times. The input capacitor is required to reduce the resulting voltage ripple at the LT8650S and to force this very high frequency switching current into a tight local loop, minimizing EMI. Typically a 0.1µF capacitor in a small 0402 case size is placed as close as possible to the LT8650S and a larger bulk ceramic is added for more capacitance (see the PCB Layout section). A second precaution regarding the ceramic input capacitor concerns the maximum input voltage rating of the LT8650S. A ceramic input capacitor combined with trace or cable inductance forms a high quality (under damped) tank circuit. If the LT8650S circuit is plugged into a live supply, the input voltage can ring to twice its nominal value, possibly exceeding the LT8650S’s voltage rating. This situation is easily avoided (see Analog Devices Application Note 88). Output Capacitor and Output Ripple The output capacitor has two essential functions. Along with the inductor, it filters the square wave generated by the LT8650S to produce the DC output. In this role it determines the output ripple, thus low impedance at the switching frequency is important. The second function is to store energy in order to satisfy transient loads and stabilize the LT8650S’s control loop. Ceramic capacitors have very low equivalent series resistance (ESR) and provide the best ripple performance. For good starting values, see the Typical Applications section. Use X5R or X7R types. This choice will provide low output ripple and good transient response. Transient performance can be improved with a higher value output capacitor and the addition of a feed forward capacitor placed between VOUT and FB. Increasing the output capacitance will also decrease the output voltage ripple. A lower value of output capacitor can be used to save space and cost but transient Rev. C For more information www.analog.com LT8650S APPLICATIONS INFORMATION performance will suffer and may cause loop instability. See the Typical Applications in this data sheet for suggested capacitor values. When choosing a capacitor, special attention should be given to the data sheet to calculate the effective capacitance under the relevant operating conditions of voltage bias and temperature. A physically larger capacitor or one with a higher voltage rating may be required. switching regulator draws constant power from the source, so source current increases as source voltage drops. This looks like a negative resistance load to the source and can cause the source to current limit or latch low under low source voltage conditions. The VIN(EN) threshold prevents the regulator from operating at source voltages where the problems might occur. This threshold can be adjusted by setting the values R5 and R6 (R7 and R8 for channel 2) such that they satisfy the following equation: Ceramic Capacitors ⎛ R5 ⎞ VIN(EN) = ⎜ +1⎟ • 0.74V ⎝ R6 ⎠ Ceramic capacitors are small, robust and have very low ESR. However, ceramic capacitors can cause problems when used with the LT8650S due to their piezoelectric nature. When in Burst Mode operation, the LT8650S’s switching frequency depends on the load current, and at very light loads the LT8650S can excite the ceramic capacitor at audio frequencies, generating audible noise. Since the LT8650S operates at a lower current limit during Burst Mode operation, the noise is typically very quiet to a casual ear. If this is unacceptable, use a high performance tantalum or electrolytic capacitor at the output. Low noise ceramic capacitors are also available. Table 3. Ceramic Capacitor Manufacturers An internal low dropout (LDO) regulator produces the 3.4V supply from VIN1 that powers the drivers and the internal bias circuitry. For this reason, VIN1 must be present and valid to use either channel. The VCC can supply enough current for the LT8650S’s circuitry and must be bypassed to ground with a 1μF ceramic capacitor. Good bypassing is necessary to supply the high transient currents required by the power MOSFET gate drivers. To improve efficiency the internal LDO can also draw current from the BIAS pin when the BIAS pin is at 3.1V or higher. Typically the BIAS pin can be tied to the lowest output or external supply above 3.1V. If BIAS is connected to a supply other than VOUT, be sure to bypass with a local ceramic capacitor. If the BIAS pin is below 3V, the internal LDO will consume current from VIN1. MANUFACTURER WEB Taiyo Yuden www.t-yuden.com AVX www.avxcorp.com Murata www.murata.com TDK www.tdk.com Enable Pin The LT8650S is in shutdown when both EN/UV pins are low and active when either pin is high. The rising threshold of the EN/UV comparator is 0.74V, with 30mV of hysteresis. The EN/UV pins can be tied to VIN if the shutdown feature is not used, or tied to a logic level if shutdown control is required. Adding a resistor divider from VIN to EN/UV programs the LT8650S to operate only when VIN is above a desired voltage (see the Block Diagram). Typically, this threshold, VIN(EN), is used in situations where the input supply is current limited, or has a relatively high source resistance. A where the corresponding channel will remain off until VIN is above VIN(EN). Due to the comparator’s hysteresis, switching will not stop until the input falls slightly below VIN(EN). When operating in Burst Mode operation for light load currents, the current through the VIN(EN) resistor network can easily be greater than the supply current consumed by the LT8650S. Therefore, the VIN(EN) resistors should be large to minimize their effect on efficiency at low loads. VCC Regulator Applications with high input voltage and high switching frequency where the internal LDO pulls current from VIN1 will increase die temperature because of the higher power dissipation across the LDO. Do not connect an external load to the VCC pin. Rev. C For more information www.analog.com 19 LT8650S APPLICATIONS INFORMATION Frequency Compensation The LT8650S has VC pins which can be used to optimize the loop compensation of each channel. If the VC pins are shorted to VCC, then internal compensation is used. This simplifies the circuit design and minimizes the quiescent current, but since the internal compensation has to be stable across the 300kHz to 3MHz range of switching frequencies, the internal compensation will not be optimal, especially at high switching frequencies. If the best transient response is desired, an external compensation network can be connected to the VC pin, which usually consists of a series resistor and capacitor (see RC and CC in the Block Diagram). Designing the compensation network is a bit complicated and the best values depend on the application and in particular the type of output capacitor. A practical approach is to start with one of the circuits in the data sheet that is similar to your application and tune the compensation network to optimize the performance. LTspice® simulations can help in this process. Stability should then be checked across all operating conditions, including load current, input voltage, and temperature. Figure  3 shows an equivalent circuit for the LT8650S control loop. The error amplifier is a transconductance amplifier with finite output impedance. The power section, consisting of the modulator, power switches, and inductor, is modeled as a transconductance amplifier generating an output current proportional to the voltage at the VC pin. Note that the output capacitor integrates this current and that the capacitor on the VC pin (CC) integrates the error amplifier output current, resulting in two poles in the loop. A zero is required and comes from a resistor RC in series with CC. This simple model works well as long as the value of the inductor is not too high and the loop crossover frequency is much lower than the switching frequency. A phase lead capacitor (CPL) across the feedback divider can be used to improve the transient response and is required to cancel the parasitic pole caused by the feedback node to ground capacitance. Figure 4a shows the transient response for the front page application which uses internal compensation. Figure 4b shows the improved transient response of the same application when a 14kΩ RC and 220pF CC compensation network is used. Use of an external compensation network increases the quiescent current by about 50µA per channel. ILOAD 2A/DIV VOUT 100mV/DIV 20µs/DIV 2A TO 4A TRANSIENT 3.3VOUT COUT = 47µF ×2 FCM, fSW = 2MHz LT8650S F04a a) LT8650S CURRENT MODE POWER STAGE ILOAD 2A/DIV OUTPUT VOUT 100mV/DIV CPL gm = 9.6S R1 gm = 0.9mS RC 1.25M CF + – VC FB C1 20µs/DIV 2A TO 4A TRANSIENT 3.3VOUT COUT = 47µF ×2 FCM, fSW = 2MHz CC = 220pF, RC = 14kΩ 0.8V R2 CC 8650s F03 b) Figure 4. Transient Response Figure 3. Model for Loop Response 20 LT8650S F04b Rev. C For more information www.analog.com LT8650S APPLICATIONS INFORMATION Output Voltage Tracking and Soft-Start Output Power Good The LT8650S allows the user to program its output voltage ramp rate with the SS pin. An internal 2μA current pulls up the SS pin to VCC. Putting an external capacitor on SS enables soft starting the output to prevent current surge on the input supply. During the soft-start ramp the output voltage will proportionally track the SS pin voltage. For output tracking applications, SS can be externally driven by another voltage source. From 0V to 0.04V, the SS pin will stop the corresponding channel from switching, thus allowing the SS pin to be used as a shutdown pin. From 0.04V to 0.8V, the SS voltage will override the internal 0.8V reference input to the error amplifier, thus regulating the FB pin voltage to that of SS pin (Figure 5). When SS is above 0.8V, tracking is disabled and the feedback voltage will regulate to the internal reference voltage. The SS pin may be left floating if the function is not needed. Note that in both Burst Mode and forced continuous mode (FCM) the LT8650S will not discharge the output to regulate to a lower SS voltage. This is achieved by disabling FCM when the SS voltage is below 2V. When the LT8650S’s output voltage is within the ±7.5% window of the regulation point, which is a FB voltage in the range of 0.74V to 0.86V (typical), the output voltage is considered good and the open-drain PG pin goes high impedance and is typically pulled high with an external resistor. Otherwise, the internal pull-down device will pull the PG pin low. To prevent glitching both the upper and lower thresholds include 0.3% of hysteresis. In Burst Mode operation (SYNC low), an active pull-down circuit is connected to the SS pin which will discharge the external soft-start capacitor in the case of fault conditions and restart the ramp when the faults are cleared. Fault conditions that clear the soft-start capacitor are the corresponding EN/UV pin below 0.74V, VIN1 voltage falling too low, or thermal shutdown. 0.8 FB VOLTAGE (V) Sequencing Startup sequencing and tracking can be configured in several ways with the LT8650S. One channel can be required to be valid before enabling the other channel to sequence their startup order. This can be done by connecting the PG pin of the first channel to either the EN/UV pin or SS pin of the second channel. The SS pin of the first channel can also be connected to the EN/UV pin of the second channel (see Figure 6). The channels can also be started at the same time where the output voltages can track in a ratiometric fashion (see Figure 6). Paralleling To increase the possible output current the two channels can be connected in parallel to the same output. To do this the VC, SS, and FB pins of each channel are connected together, while each channel’s SW node is connected to the common output through its own inductor. External compensation network must be used when paralleling outputs. Figure  7 shows an application where the two channels of one LT8650S regulator are combined to get one output capable of 8A DC with 12A peak transients. 1.0 0.6 0.4 0.2 0 The PG pin is also actively pulled low during several fault conditions: corresponding EN/UV pin below 0.74V, VCC voltage falling too low, VIN1 under voltage, or thermal shutdown. 0 0.2 0.4 0.6 0.8 SS VOLTAGE (V) 1.0 1.2 8650s F05 Figure 5. SS Pin Tracking Rev. C For more information www.analog.com 21 LT8650S APPLICATIONS INFORMATION SEQUENCED START-UP SEQUENCED START-UP LT8650S EN/UV1 RATIOMETRIC START-UP LT8650S VIN1 LT8650S EN/UV1 EN/UV2 EN/UV1 VIN1 EN/UV2 VIN1 EN/UV2 VIN2 PG1 VOUT1 SS1 SS1 PG2 VOUT2 SS2 SS2 SEQUENCED START-UP: SS1 TIED TO EN2 RATIOMETRIC START-UP: SS1 TIED TO SS2 SEQUENCED START-UP: PG1 TIED TO EN2 VOUT1 2V/DIV VOUT1 2V/DIV VOUT1 2V/DIV VOUT2 2V/DIV VOUT2 2V/DIV VOUT2 2V/DIV PG1 5V/DIV PG2 5V/DIV PG1 5V/DIV PG1 5V/DIV PG2 5V/DIV PG2 5V/DIV 2ms/DIV 2ms/DIV 2ms/DIV 8650s F06 Figure 6. Sequencing and Start-Up Configurations VIN 3.8V TO 42V 1µH SW1 VIN1 4.7µF ×2 VIN2 1µH SW2 EN/UV1 4.7pF EN/UV2 1M 47µF ×2 VOUT 3.3V 8A FB1 FB2 SS1 LT8650S SS2 22nF 220pF VC2 100k PG1 CLKOUT PG2 TEMP BIAS VCC RT 15k GND 316k 15k VC1 SYNC 1µF 8650s F07 fSW = 2MHz Figure 7. Two-Phase Application 22 Rev. C For more information www.analog.com LT8650S APPLICATIONS INFORMATION Synchronization To select low ripple Burst Mode operation, tie the SYNC pin below 0.4V (this can be ground or a logic low output). To select forced continuous mode (FCM), float the SYNC pin. To select FCM with spread spectrum modulation (SSM), tie the SYNC pin above 2.8V (SYNC can be tied to VCC). To synchronize the LT8650S oscillator to an external frequency connect a square wave (with 20% to 80% duty cycle) to the SYNC pin. The square wave amplitude should have valleys that are below 0.4V and peaks above 1.5V (up to 6V). When synchronized to an external clock the LT8650S will use FCM. Channel 1 will synchronize its positive switch edge transitions to the positive edge of the SYNC signal, and channel 2 will synchronize to the negative edge of the SYNC signal. The LT8650S may be synchronized over a 300kHz to 3MHz range. The RT resistor should be chosen to set the LT8650S switching frequency equal to or below the lowest synchronization input. For example, if the synchronization signal will be 500kHz and higher, the RT should be selected for nominal 500kHz. The slope compensation is set by the RT value, while the minimum slope compensation required to avoid subharmonic oscillations is established by the inductor size, input voltage, and output voltage. Since the synchronization frequency will not change the slopes of the inductor current waveform, if the inductor is large enough to avoid subharmonic oscillations at the frequency set by RT, then the slope compensation will be sufficient for all synchronization frequencies. A synchronizing signal that incorporates spread spectrum may reduce EMI. The duty cycle of the SYNC signal can be used to set the relative phasing of the two channels for minimizing input ripple. Forced Continuous Mode Forced continuous mode (FCM) is activated by either floating the SYNC pin, tying the SYNC pin to VCC, applying a DC voltage above 2.8V to the SYNC pin, or applying an external clock to the SYNC pin. While in FCM discontinuous mode operation is disabled and the inductor current is allowed to go negative so that the regulator can switch at the programmed frequency all the way down to zero output current. This has the advantage of maintaining the programmed switching frequency across the entire load range so that the switch harmonics and EMI are consistent and predictable. The disadvantage of FCM is that the light load efficiency will be low compared to Burst Mode operation. At low input voltages when the part enters dropout, the programmed switching frequency will be maintained and off time skipping will not be allowed. This keeps the switching frequency controlled, but the dropout voltage will be higher than in burst mode, due to maximum duty cycle constraints. The negative inductor current is limited to a maximum of about –2.5A, so the LT8650S can only sink a maximum of about –1.3A. This prevents boosting an excessive amount of current back from the output to the input. FCM is disabled if the input voltage is greater than 37V to prevent overvoltaging the LT8650S if the input capacitor is charged when sinking current from the output. Additional safety features include disabling FCM when the SS pin voltage is below 1.8V to prevent discharging the output when starting up into a pre-biased output, and a bottom FET current limit to prevent over charging the output if the minimum on time is violated. Spread Spectrum Modulation Spread spectrum modulation (SSM) is activated by tying the SYNC pin to VCC or applying a DC voltage from 2.8V to 4V to the SYNC pin. SSM reduces the EMI emissions by modulating the switching frequency between the value programmed by RT to approximately 20% higher than that value. The switching frequency is modulated linearly up and then linearly down at a 5kHz rate. This is an analog function, so each switching period will be different than the previous one. For example, when the LT8650S is programmed to 2MHz and the SSM feature is enabled, the switching frequency will vary from 2MHz to 2.4MHz at a 5kHz rate. When in SSM, the part will also operate in forced continuous mode. Rev. C For more information www.analog.com 23 LT8650S APPLICATIONS INFORMATION Clock Output Shorted and Reversed Input Protection The CLKOUT pin outputs a clock which can be used to synchronous other regulators to the LT8650S. In Burst Mode (SYNC pin low), the CLKOUT pin is grounded. In forced continuous mode (SYNC pin float or DC high), the CLKOUT pin outputs a 50% duty cycle clock where the CLKOUT rising edge is approximately 90 degrees phase shifted relative to channel 1. If this CLKOUT waveform is applied to the SYNC pin of another LT8650S regulator, then four-phase operation can be achieved. If an external clock is applied to the SYNC pin of the LT8650S, then the CLKOUT pin will output a waveform with the same phasing and duty cycle as the SYNC pin clock. The low and high levels of the CLKOUT pin are ground and VCC, respectively. The drive strength of the CLKOUT pin is several hundred ohms, so the CLKOUT waveform has rise and fall times of several tens of ns. The edge rates will be slower if the CLKOUT trace has extra capacitance. The LT8650S will tolerate a shorted output. The bottom switch current is monitored such that if inductor current is beyond safe levels switching of the top switch will be delayed until such time as the inductor current falls to safe levels. Fault condition of one channel will not affect the operation of the other channel, unless the part goes into thermal shutdown. Temperature Monitor Function The TEMP pin will output a voltage proportional to die temperature. The TEMP pin typically outputs 250mV for 25°C and has a slope of 9.5mV/°C. Without the aid of an external circuitry, the TEMP pin output is valid from 20°C to 150°C (200mV to 1.5V). Do not load the TEMP pin with more than 100µA. To extend the TEMP pin output below 20°C, connect a resistor from the TEMP pin to a negative voltage. As a safeguard, the LT8650S has an additional thermal shutdown set at a typical value of 165°C. If the thermal shutdown is exceeded, both channels of the LT8650S will be shutdown until the thermal overload event expires. It should be noted that the TEMP pin voltage represents the steady-state, average die temperature and should not be used to guarantee that maximum junction temperatures are not exceeded. Instantaneous power along with thermal gradients and time constants may cause portions of the die to exceed maximum ratings. Be sure to calculate die temperature rise for steady state (>1 Min) as well as impulse conditions. There is another situation to consider in systems where the output will be held high when the input to the LT8650S is absent. This may occur in battery charging applications or in battery backup systems where a battery or some other supply is ORed with channel 1’s output. If the VIN1 pin is allowed to float and either EN/UV pin is held high (either by a logic signal or because it is tied to VIN1), then the LT8650S’s internal circuitry will pull its quiescent current through its SW1 pin. This is acceptable if the system can tolerate current draw in this state. If both EN/UV pins are grounded the SW1 pin current will drop to near 1.7µA. However, if the VIN1 pin is grounded while channel 1 output is held high, regardless of EN/UV1, parasitic body diodes inside the LT8650S can pull current from the output through the SW1 pin and the VIN1 pin, damaging the IC. VIN2 is not connected to the shared internal supply and will not draw any current if left floating. If both VIN1 and VIN2 are floating, regardless of EN/UV pins states, no load will be present at the output of channel 2. However, if the VIN2 pin is grounded while channel 2 output is held high, parasitic body diodes inside the LT8650S can pull current from the output through the SW2 pin and the VIN2 pin, damaging the IC. Figure 8 shows a connection of the VIN and EN/UV pins that will allow the LT8650S to run only when the input voltage is present and that protects against a shorted or reversed input. VIN1 VIN1 VIN2 VIN2 LT8650S EN/UV1 EN/UV2 GND 8650s F08 Figure 8. Reverse VIN Protection for Two Independent Input Voltages 24 Rev. C For more information www.analog.com LT8650S APPLICATIONS INFORMATION PCB Layout For proper operation and minimum EMI, care must be taken during printed circuit board layout. Figure 9 shows the recommended component placement with trace, ground plane and via locations. Note that large, switched currents flow in the LT8650S’s VIN pins, GND pins, and the input capacitors. The loop formed by the input capacitor should be as small as possible by placing the capacitor adjacent to the VIN and GND pins. When using a physically large input capacitor the resulting loop may become too large in which case using a small case/value capacitor placed close to the VIN and GND pins plus a larger capacitor further away is preferred. These components, along with the inductor and output capacitor, should be placed on the same side of the circuit board, and their connections should be made on that layer. Place a local, unbroken ground plane under the application circuit on the layer closest to the surface layer. The SW and BOOST nodes should be as small as possible. Finally, keep the FB and RT nodes small so that the ground traces will shield them from the SW and BOOST nodes. The exposed pad acts as a heat sink and is connected electrically to ground. To keep thermal resistance low, extend the ground plane as much as possible, and add thermal vias under and near the LT8650S to additional ground planes within the circuit board and on the bottom side. See Figure 9 for example PCB layout. High Temperature Considerations Care should be taken in the layout of the PCB to ensure good heat sinking of the LT8650S. The exposed pad on the bottom of the package must be soldered to a ground plane. This ground should be tied to large copper layers below with thermal vias; these layers will spread heat dissipated by the LT8650S. Placing additional vias can reduce thermal resistance further. The maximum load current should be derated as the ambient temperature approaches the maximum junction rating. Power dissipation within the LT8650S can be estimated by calculating the total power loss from an efficiency measurement and subtracting the inductor loss. The die temperature is calculated by multiplying the LT8650S power dissipation by the thermal resistance from junction to ambient. The internal thermal shutdown protection of LT8650S will stop switching and indicate a fault condition if junction temperature exceeds 165°C. The fault condition will clear and switching resume when the temperature drops back below 160°C. Temperature rise of the LT8650S is worst when operating at high load, high VIN, and high switching frequency. If the case temperature is too high for a given application, then either VIN, switching frequency, or load current can be decreased to reduce the temperature to an acceptable level. Figure 10 shows examples case temperature vs VIN, switching frequency, and load. The LT8650S’s internal power switches are capable of safely delivering up to 6A of peak output current. However, due to thermal limits, the package can only handle 6A loads for short periods of time. Figure 11 shows an example of how case temperature rise changes with the duty cycle of a 1kHz pulsed 6A load. Rev. C For more information www.analog.com 25 LT8650S APPLICATIONS INFORMATION RC2 RC1 CC1 CC2 R4 R2 CFF2 CFF1 COUT1 CVCC RT R3 L1 R1 CIN1 L2 CIN2 COUT2 8650s F09 Figure 9. Recommended Layout 120 100 90 80 70 60 50 40 30 20 0 1 2 3 4 LOAD1 CURRENT (A) 5 70 60 50 40 30 20 0 6 8650S F10 Figure 10. Case Temperature Rise 0 0.2 0.4 0.6 0.8 DUTY CYCLE OF PULSED LOAD 1 8650S F11 CH1 = 0.5A STANDBY, 6A PULSED; CH2 = 0A DC CH1 = 0.5A STANDBY, 6A PULSED; CH2 = 4A DC CH1 = CH2 = 2A STANDBY, 6A PULSED 24VIN, LOAD2 = LOAD1 12VIN, LOAD2 = LOAD1 12VIN, LOAD2 = 4A 12VIN, LOAD2 = 0A 26 80 10 10 0 DC2407A DEMO BOARD VIN1,2 = 12V, fSW = 2MHz VOUT1 = 5V, VOUT2 = 3.3V 90 CASE TEMPERATURE RISE (°C) CASE TEMPERATURE RISE (°C) 100 DC2407A DEMO BOARD VOUT1 = 5V, VOUT2 = 3.3V, fSW = 2MHz 110 Figure 11. Case Temperature Rise vs 6A Pulsed Load Rev. C For more information www.analog.com LT8650S TYPICAL APPLICATIONS 5V, 3.3V, 2MHz Step-Down Converter with FCM and External Compensation VIN1 6V TO 42V VOUT1 5V 4A VIN1 VIN2 EN/UV1 4.7µF EN/UV2 BST1 BST2 SW1 SW2 FB1 FB2 4.7µF 1µH 1µH 47µF ×2 1206 X5R 1M 4.7pF 4.7pF 15k 191k VIN2 4.2V TO 42V VC1 LT8650S SS1 220pF 15k VC2 VOUT2 3.3V 4A 316k SS2 10nF 10nF 100k 1M 47µF ×2 1206 X5R PG1 PG2 CLKOUT BIAS 220pF 100k TEMP RT VCC GND SYNC L: XFL5030 1µF 15k 8650s TA02 fSW = 2MHz 5V, 1.8V, 2MHz Step-Down Converter with Burst Mode and Internal Compensation VIN1 5.4V TO 42V VOUT1 5V 4A VIN1 VIN2 EN/UV1 4.7µF EN/UV2 BST1 BST2 SW1 SW2 FB1 FB2 4.7µF 1µH 1µH 47µF ×2 1206 X5R 4.7pF 1M 1M 191k VIN2 2.3V TO 42V VCC VC1 LT8650S SS1 VC2 VCC 4.7pF 47µF ×2 1206 X5R VOUT2 1.8V 4A 806k SS2 10nF 10nF PG1 PG2 CLKOUT BIAS TEMP RT VCC 15k GND SYNC 1µF L: XFL5030 8650s TA03 fSW = 2MHz Rev. C For more information www.analog.com 27 LT8650S TYPICAL APPLICATIONS Two Phase, 3.3V, 8A, 2MHz Step-Down Converter VIN 4.2V TO 42V VIN1 VIN2 EN/UV1 EN/UV2 4.7µF ×2 1.0µH BST1 SW1 BST2 SW2 1.0µH 4.7pF SS1 SS2 FB1 FB2 VC1 VC2 LT8650S 22nF RT 15k VCC 220pF 100k GND SYNC L: XFL5030 1µF 15k VOUT 3.3V 8A 316k PG1 PG2 BIAS CLKOUT TEMP 1M 47µF ×2 1206 X5R 8650s TA04 fSW = 2MHz Two Phase, 6V, 8A,400kHz Step-Down Converter VIN 7V TO 42V VIN1 VIN2 EN/UV1 EN/UV2 10µF ×2 5.6µH BST1 SW1 BST2 SW2 5.6µH 4.7pF SS1 SS2 FB1 FB2 VC1 VC2 LT8650S 10nF VCC 100k 154k 1nF 100k PG1 PG2 BIAS CLKOUT TEMP RT 5.11k 1M VOUT 6V 100µF 8A ×2 1210 X5R GND SYNC L: XAL5030 1µF 8650s TA05 fSW = 400kHz 28 Rev. C For more information www.analog.com LT8650S TYPICAL APPLICATIONS Two Phase, 3.3V, 8A, 400kHz Step-Down Converter VIN 4.2V TO 42V VIN1 VIN2 EN/UV1 EN/UV2 10µF ×2 3.3µH BST1 SW1 BST2 SW2 3.3µH 4.7pF SS1 SS2 FB1 FB2 VC1 VC2 LT8650S 10nF RT VCC 316k 680pF 100k GND SYNC L: XAL5030 1µF 100k 1M 11k PG1 PG2 BIAS CLKOUT TEMP VOUT 3.3V 100µF 8A ×2 1210 X5R 8650s TA06 fSW = 400kHz Four Phase, 5V, 16A, 2MHz Step-Down Converter VIN 6V TO 42V 1µH BST1 SW1 BST2 SW2 VIN1 VIN2 EN/UV1 EN/UV2 4.7µF ×2 1µH 4.7pF SS1 SS2 FB1 FB2 VC1 VC2 LT8650S 22nF VCC VOUT 5V 16A 191k 220pF 100k PG1 PG2 BIAS CLKOUT TEMP RT 15k 1M 47µF ×2 1206 X5R GND SYNC 1µF 15k fSW = 2MHz 4.7µF ×2 VIN1 BST1 VIN2 SW1 EN/UV1 BST2 EN/UV2 SW2 SS1 1µH 1µH 47µF ×2 1206 X5R FB1 SS2 FB2 LT8650S 22nF VC1 VC2 PG1 CLKOUT PG2 TEMP BIAS VCC RT GND SYNC L: XFL5030 1µF 15k fSW = 2MHz 8650s TA07 Rev. C For more information www.analog.com 29 For more information www.analog.com 0.25 ±0.05 PACKAGE OUTLINE 0.70 ±0.05 6.50 ±0.05 aaa Z 2× D PACKAGE TOP VIEW 4.50 ±0.05 0.20 1.10 0.20 1.33 1.2500 1.2500 SUGGESTED PCB LAYOUT TOP VIEW 0.7500 5 0.2500 0.0000 0.2500 PAD “A1” CORNER 0.7500 0.375 X aaa Z 2.2500 1.7500 1.2500 0.7500 0.2500 0.0000 0.2500 0.7500 1.2500 1.7500 2.2500 0.375 Y E 2× // bbb Z SYMBOL A A1 L b D E D1 E1 e H1 H2 aaa bbb ccc ddd eee fff 28b eee M Z X Y fff M Z H1 L NOM 0.94 0.02 0.40 0.25 4.00 6.00 2.40 4.40 0.50 0.24 0.70 DIMENSIONS e/2 e DETAIL C SUBSTRATE DETAIL A MIN 0.85 0.01 0.30 0.22 DETAIL B H2 MOLD CAP DETAIL C A1 28× 0.10 0.10 0.10 0.10 0.15 0.08 MAX 1.03 0.03 0.50 0.28 DETAIL B A NOTES (Reference LTC DWG # 05-08-1665 Rev C) ddd Z Z Z 30 17 e 20 22 b 26 16 27 0.20 D1 e 0.40 0.20 PACKAGE BOTTOM VIEW b 6 1.10 1.33 11 32 DETAIL A PIN 1 NOTCH 0.25 × 45° 10 8 4 7 SEE NOTES 5 4 2 1 7 SEE NOTES TRAY PIN 1 BEVEL COMPONENT PIN “A1” PACKAGE IN TRAY LOADING ORIENTATION LTXXXXXX LQFN 32(28) 0118 REV C THE EXPOSED HEAT FEATURE IS SEGMENTED AND ARRANGED IN A MATRIX FORMAT. IT MAY HAVE OPTIONAL CORNER RADII ON EACH SEGMENT 6 CORNER SUPPORT PAD CHAMFER IS OPTIONAL DETAILS OF PAD #1 IDENTIFIER ARE OPTIONAL, BUT MUST BE LOCATED WITHIN THE ZONE INDICATED. THE PAD #1 IDENTIFIER MAY BE EITHER A MOLD OR MARKED FEATURE 5 7 METAL FEATURES UNDER THE SOLDER MASK OPENING NOT SHOWN SO AS NOT TO OBSCURE THESE TERMINALS AND HEAT FEATURES 4 3. PRIMARY DATUM -Z- IS SEATING PLANE 2. ALL DIMENSIONS ARE IN MILLIMETERS NOTES: 1. DIMENSIONING AND TOLERANCING PER ASME Y14.5M-1994 0.375 E1 ccc M Z X Y ccc M Z X Y LQFN Package 32(28)-Lead (6mm × 4mm × 0.94mm) LT8650S PACKAGE DESCRIPTION Rev. C LT8650S REVISION HISTORY REV DATE DESCRIPTION A 5/18 Clarified Quiescent Current with External Compensation. Clarified SS Pull Down Resistance. Clarified Transient Response Graph Titles. Renamed boost pins to BST1/BST2. PAGE NUMBER 2 3 7, 8 10, 11 Clarified 3rd Paragraph in Operations. 13 Clarified Efficiency symbol. 16 Clarified quiescent current to 40µA in 4th paragraph. 20 Clarified Input and Output Capacitor values. 27 Updated Package Drawing to Rev C. 30 B 12/20 Added W automotive, H-Grade, and J-Grade versions. 2 C 04/21 Added Tape and Reel part numbers 2 Rev. C Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No license For is granted implication or otherwise under any patent or patent rights of Analog Devices. more by information www.analog.com 31 LT8650S TYPICAL APPLICATION 5V, 1.2V, 2MHz Two Stage Step-Down Converter with Output Sequencing VIN 5.4V TO 42V VIN1 4.7µF CLKOUT EN/UV1 TEMP BST1 BST2 VIN2 VOUT1 5V 3A 4.7µF L1 1µH 47µF ×2 1206 X5R L2 0.33µH SW2 SW1 4.7pF 499k 1M FB2 FB1 191k VCC VC1 LT8650S VC2 VCC 1M SS2 SS1 10nF 10nF BIAS 100k 47µF ×3 1206 X5R 4.7pF VOUT2 1.2V 4A PG1 100k PG2 EN/UV2 RT VCC 15k GND L1: XFL5030 L2: XEL4020 SYNC 1µF 8650s TA06 fSW = 2MHz RELATED PARTS PART NUMBER DESCRIPTION COMMENTS LT8640S 42V, 5A, 95% Efficiency, 2.2MHz Synchronous Silent Switcher 2 Step-Down DC/DC Converter with IQ=2.5µA VIN = 3.4V to 42V, VOUT(MIN) = 0.97V, IQ = 2.5µA, ISD
