LTC1403/LTC1403A
Serial 12-Bit/14-Bit, 2.8Msps
Sampling ADCs with Shutdown
Features
Description
2.8Msps Conversion Rate
nn Low Power Dissipation: 14mW
nn 3V Single Supply Operation
nn –40°C to 125°C Guaranteed Operation
nn 2.5V Internal Bandgap Reference can be Overdriven
nn 3-Wire Serial Interface
nn Sleep (10µW) Shutdown Mode
nn Nap (3mW) Shutdown Mode
nn 80dB Common Mode Rejection
nn 0V to 2.5V Unipolar Input Range
nn Tiny 10-Lead MS Package
The LTC®1403/LTC1403A are 12-bit/14-bit, 2.8Msps serial ADCs with differential inputs. The devices draw only
4.7mA from a single 3V supply and come in a tiny 10-lead
MS package. A Sleep shutdown feature lowers power
consumption to 10µW. The combination of speed, low
power and tiny package makes the LTC1403/LTC1403A
suitable for high speed, portable applications.
nn
The 80dB common mode rejection allows users to eliminate
ground loops and common mode noise by measuring
signals differentially from the source.
Applications
The devices convert 0V to 2.5V unipolar inputs differentially.
The absolute voltage swing for +AIN and –AIN extends from
ground to the supply voltage.
Automotive
Communications
nn Data Acquisition Systems
nn Uninterrupted Power Supplies
nn Multiphase Motor Control
nn Multiplexed Data Acquisition
The serial interface sends out the conversion results during
the 16 clock cycles following CONV↑ for compatibility with
standard serial interfaces. If two additional clock cycles
for acquisition time are allowed after the data stream in
between conversions, the full sampling rate of 2.8Msps
can be achieved with a 50.4MHz clock.
nn
nn
L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks and
LinearView and SoftSpan are trademarks of Linear Technology Corporation. All other trademarks
are the property of their respective owners.
Block Diagram
AIN+
1
+
14-BIT ADC
S&H
AIN–
2
–44
VDD
–
–50
THREESTATE
SERIAL
OUTPUT
PORT
SDO
8
14
3
VREF
2.5V
REFERENCE
10F
4
GND
5
6
10
CONV
9
SCK
TIMING
LOGIC
11
EXPOSED PAD
1403A TA01
THD, 2nd, SFDR, 3rd (dB)
7
LTC1403A
2nd, 3rd and SFDR vs
Input Frequency
3V
14-BIT LATCH
10µF
–56
–62
THD
2nd, SFDR
–68
–74
–80
3rd
–86
–92
–98
–104
0.1
1
10
FREQUENCY (MHz)
100
1403A TA02
1403fc
For more information www.linear.com/LTC1403
1
LTC1403/LTC1403A
Absolute Maximum Ratings
Pin Configuration
(Note 1, 2,)
TOP VIEW
Supply Voltage (VDD)...................................................4V
Analog Input Voltage
(Note 3).................................... –0.3V to (VDD + 0.3V)
Digital Input Voltage..................... –0.3V to (VDD + 0.3V)
Digital Output Voltage................... –0.3V to (VDD + 0.3V)
Power Dissipation................................................100mW
Operation Temperature Range
LTC1403C/LTC1403AC.............................. 0°C to 70°C
LTC1403I/LTC1403AI............................–40°C to 85°C
LTC1403H/LTC1403AH....................... –40°C to 125°C
Storage Temperature Range................... –65°C to 150°C
Lead Temperature (Soldering, 10 sec).................... 300°C
Order Information
AIN+
AIN–
VREF
GND
GND
1
2
3
4
5
11
GND
10
9
8
7
6
CONV
SCK
SDO
VDD
GND

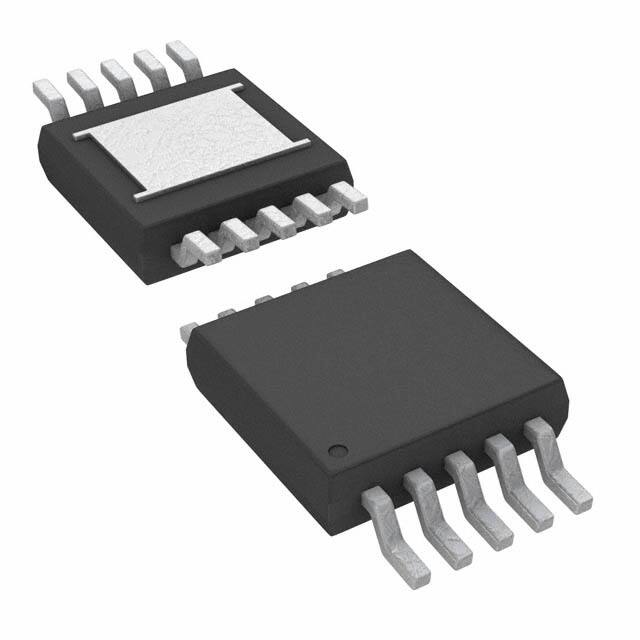

MSE PACKAGE
10-LEAD PLASTIC MSOP
TJMAX = 150°C, qJA = 40°C/W
EXPOSED PAD (PIN 11) IS GND
MUST BE SOLDERED TO PCB
http://www.linear.com/product/LTC1403#orderinfo
LEAD FREE FINISH
TAPE AND REEL
PART MARKING*
PACKAGE DESCRIPTION
TEMPERATURE RANGE
LTC1403CMSE#PBF
LTC1403CMSE#TRPBF
LTBDN
10-Lead Plastic MSOP
0°C to 70°C
LTC1403IMSE#PBF
LTC1403IMSE#TRPBF
LTBDP
10-Lead Plastic MSOP
–40°C to 85°C
LTC1403HMSE#PBF
LTC1403HMSE#TRPBF
LTBDP
10-Lead Plastic MSOP
–40°C to 125°C
LTC1403ACMSE#PBF
LTC1403ACMSE#TRPBF
LTADF
10-Lead Plastic MSOP
0°C to 70°C
LTC1403AIMSE#PBF
LTC1403AIMSE#TRPBF
LTAFD
10-Lead Plastic MSOP
–40°C to 85°C
LTC1403AHMSE#PBF
LTC1403AHMSE#TRPBF
LTAFD
10-Lead Plastic MSOP
–40°C to 125°C
Consult LTC Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container.
For more information on lead free part marking, go to: http://www.linear.com/leadfree/
For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/. Some packages are available in 500 unit reels through
designated sales channels with #TRMPBF suffix.
2
1403fc
For more information www.linear.com/LTC1403
LTC1403/LTC1403A
Converter
Characteristics l denotes the specifications which apply over the full operating
The
temperature range, otherwise specifications are at TA = 25°C. With internal reference. VDD = 3V
LTC1403
PARAMETER
CONDITIONS
MIN
LTC1403H
TYP MAX MIN
LTC1403A
TYP MAX MIN
l
12
(Notes 4, 5, 18)
l
–2
±0.25
2
–2
±0.25
2
–4
Offset Error
(Notes 4, 18)
l –10
±1
10
–20
±2
20
Gain Error
(Note 4, 18)
l –30
±5
30
–40
±5
40
Gain Tempco
Internal Reference (Note 4)
External Reference
Resolution (No Missing Codes)
Integral Linearity Error
12
LTC1403AH
TYP MAX MIN
14
±15
±1
TYP MAX
UNITS
14
±0.5
4
–4
–20
±2
20
–60
±10
60
±15
±1
Bits
±0.5
4
LSB
–30
±2
30
LSB
–80
±10
80
LSB
±15
±1
±15
±1
ppm/°C
ppm/°C
Analog
Input l denotes the specifications which apply over the full operating temperature range, otherwise
The
specifications are at TA = 25°C. VDD = 3V
SYMBOL
PARAMETER
CONDITIONS
VIN
Analog Differential Input Range (Notes 3, 9)
2.7V ≤ VDD ≤ 3.3V
VCM
Analog Common Mode + Differential Input Range (Note 10)
IIN
Analog Input Leakage Current
CIN
Analog Input Capacitance
tACQ
Sample-and-Hold Acquisition Time
MIN
TYP
MAX
UNITS
0 to 2.5
V
0 to VDD
V
l
1
l
µA
13
(Note 6)
tAP
Sample-and-Hold Aperture Delay Time
tJITTER
Sample-and-Hold Aperture Delay Time Jitter
CMRR
Analog Input Common Mode Rejection Ratio
pF
39
l
fIN = 1MHz, VIN = 0V to 3V
fIN = 100MHz, VIN = 0V to 3V
ns
1
ns
0.3
ps
–60
–15
dB
dB
Dynamic
Accuracy l denotes the specifications which apply over the full operating temperature range,
The
otherwise specifications are at TA = 25°C. VDD = 3V
LTC1403/LTC1403H
SYMBOL
PARAMETER
CONDITIONS
SINAD
Signal-to-Noise Plus
Distortion Ratio
100kHz Input Signal
1.4MHz Input Signal
1.4MHz Input Signal (H Grade)
100kHz Input Signal, External VREF = 3.3V,
VDD ≥ 3.3V
750kHz Input Signal, External VREF = 3.3V,
VDD ≥ 3.3V
THD
l
l
MIN
TYP
68
67
70.5
70.5
70.5
72
MAX
72
LTC1403A/LTC1403AH
MIN
TYP
70
69
73.5
73.5
73.0
76.3
MAX
UNITS
dB
dB
dB
dB
76.3
dB
Total Harmonic
Distortion
100kHz First 5 Harmonics
1.4MHz First 5 Harmonics
SFDR
Spurious Free
Dynamic Range
100kHz Input Signal
1.4MHz Input Signal
–87
–83
–90
–86
dB
dB
IMD
Intermodulation
Distortion
1.25V to 2.5V 1.25MHz into AIN+, 0V to 1.25V,
1.2MHz into AIN–
–82
–82
dB
Code-to-Code
Transition Noise
VREF = 2.5V (Note 18)
0.25
1
LSBRMS
Full Power Bandwidth
VIN = 2.5VP-P, SDO = 11585LSBP-P (Note 15)
50
50
MHz
Full Linear Bandwidth
S/(N + D) ≥ 68dB
5
5
MHz
l
–87
–83
–76
–90
–86
–78
dB
dB
1403fc
For more information www.linear.com/LTC1403
3
LTC1403/LTC1403A
Internal
Reference Characteristics
The
l denotes the specifications which apply over the
full operating temperature range, otherwise specifications are at TA = 25°C. VDD = 3V
PARAMETER
CONDITIONS
VREF Output Voltage
IOUT = 0
MIN
VREF Output Tempco
TYP
MAX
UNITS
2.5
V
15
ppm//°C
VREF Line Regulation
VDD = 2.7V to 3.6V, VREF = 2.5V
600
µV/V
VREF Output Resistance
Load Current = 0.5mA
0.2
Ω
2
ms
VREF Settling Time
Digital
Inputs and Digital Outputs l denotes the specifications which apply over the full
The
operating temperature range, otherwise specifications are at TA = 25°C. VDD = 3V
SYMBOL
PARAMETER
CONDITIONS
VIH
High Level Input Voltage
VDD = 3.3V
l
VIL
Low Level Input Voltage
VDD = 2.7V
l
0.6
V
IIN
Digital Input Current
VIN = 0V to VDD
l
±10
µA
CIN
Digital Input Capacitance
VOH
High Level Output Voltage
VDD = 3V, IOUT = –200µA
VOL
Low Level Output Voltage
VDD = 2.7V, IOUT = 160µA
VDD = 2.7V, IOUT = 1.6mA
l
VOUT = 0V to VDD
l
IOZ
Hi-Z Output Leakage DOUT
COZ
Hi-Z Output Capacitance DOUT
ISOURCE
Output Short-Circuit Source Current
ISINK
Output Short-Circuit Sink Current
MIN
l
TYP
MAX
2.4
2.5
UNITS
V
5
pF
2.9
V
0.05
0.10
0.4
V
V
±10
µA
1
pF
VOUT = 0V, VDD = 3V
20
mA
VOUT = VDD = 3V
15
mA
Power
Requirements l denotes the specifications which apply over the full operating temperature
The
range, otherwise specifications are at TA = 25°C. (Note 17)
SYMBOL
VDD
PARAMETER
Supply Voltage
CONDITIONS
IDD
Positive Supply Voltage
PD
Power Dissipation
Active Mode
Active Mode (LTC1403H, LTC1403AH)
Nap Mode
Nap Mode (LTC1403H, LTC1403AH)
Sleep Mode (LTC1403, LTC1403H)
Sleep Mode (LTC1403A, LTC1403AH)
Active Mode with SCK in Fixed State (Hi or Lo)
4
MIN
2.7
l
l
l
l
TYP
MAX
3.6
4.7
5.2
1.1
1.2
2
2
12
7
8
1.5
1.8
15
10
UNITS
V
mA
mA
mA
mA
µA
µA
mW
1403fc
For more information www.linear.com/LTC1403
LTC1403/LTC1403A
Timing
Characteristics l denotes the specifications which apply over the full operating temperature
The
range, otherwise specifications are at TA = 25°C. VDD = 3V
SYMBOL
PARAMETER
fSAMPLE(MAX) Maximum Sampling Frequency per Channel (Conversion Rate)
CONDITIONS
l
MIN
2.8
TYP
MAX
UNITS
MHz
357
ns
10000
ns
tTHROUGHPUT
Minimum Sampling Period (Conversion + Acquisition Period)
tSCK
Clock Period
(Notes 16)
tCONV
Conversion Time
(Note 6)
17
t1
Minimum Positive or Negative SCLK Pulse Width
(Note 6)
2
ns
t2
CONV to SCK Setup Time
(Notes 6, 10)
3
ns
t3
Nearest SCK Edge Before CONV
(Note 6)
0
ns
t4
Minimum Positive or Negative CONV Pulse Width
(Note 6)
4
ns
t5
SCK to Sample Mode
(Note 6)
4
ns
t6
CONV to Hold Mode
(Notes 6, 11)
1.2
ns
t7
16th SCK↑ to CONV↑ Interval (Affects Acquisition Period)
(Notes 6, 7, 13)
45
ns
t8
Minimum Delay from SCK to Valid Bits 0 Through 13
(Notes 6, 12)
t9
SCK to Hi-Z at SDO
(Notes 6, 12)
t10
Previous SDO Bit Remains Valid After SCK
(Notes 6, 12)
t12
VREF Settling Time After Sleep-to-Wake Transition
(Notes 6, 14)
Note 1: Stresses beyond those listed under Absolute Maximum Ratings
may cause permanent damage to the device. Exposure to any Absolute
Maximum Rating condition for extended periods may affect device
reliability and lifetime.
Note 2: All voltage values are with respect to GND.
Note 3: When these pins are taken below GND or above VDD, they will be
clamped by internal diodes. This product can handle input currents greater
than 100mA below GND or greater than VDD without latchup.
Note 4: Offset and full-scale specifications are measured for a singleended AIN+ input with AIN– grounded and using the internal 2.5V reference.
Note 5: Integral linearity is tested with an external 2.55V reference and is
defined as the deviation of a code from the straight line passing through
the actual endpoints of a transfer curve. The deviation is measured from
the center of quantization band.
Note 6: Guaranteed by design, not subject to test.
Note 7: Recommended operating conditions.
Note 8: The analog input range is defined for the voltage difference
between AIN+ and AIN–.
Note 9: The absolute voltage at AIN+ and AIN– must be within this range.
l
l
19.8
18
2
SCLK cycles
8
ns
6
ns
ns
2
ms
Note 10: If less than 3ns is allowed, the output data will appear one
clock cycle later. It is best for CONV to rise half a clock before SCK, when
running the clock at rated speed.
Note 11: Not the same as aperture delay. Aperture delay is smaller (1ns)
because the 2.2ns delay through the sample-and-hold is subtracted from
the CONV to Hold mode delay.
Note 12: The rising edge of SCK is guaranteed to catch the data coming
out into a storage latch.
Note 13: The time period for acquiring the input signal is started by the
16th rising clock and it is ended by the rising edge of convert.
Note 14: The internal reference settles in 2ms after it wakes up from Sleep
mode with one or more cycles at SCK and a 10µF capacitive load.
Note 15: The full power bandwidth is the frequency where the output code
swing drops to 3dB with a 2.5VP-P input sine wave.
Note 16: Maximum clock period guarantees analog performance during
conversion. Output data can be read without an arbitrarily long clock.
Note 17: VDD = 3V, fSAMPLE = 2.8Msps.
Note 18: The LTC1403A is measured and specified with 14-bit Resolution
(1LSB = 152µV) and the LTC1403 is measured and specified with 12-bit
Resolution (1LSB = 610µV).
1403fc
For more information www.linear.com/LTC1403
5
LTC1403/LTC1403A
Typical Performance Characteristics
THD, 2nd and 3rd vs Input
Frequency
11.5
71
11.0
68
10.5
65
10.0
62
9.5
59
9.0
56
8.5
53
8.0
0.1
104
–50
98
THD
–56
–74
3rd
–80
62
–92
56
–98
50
1
10
FREQUENCY (MHz)
0
SNR (dB)
65
62
59
56
53
1
10
FREQUENCY (MHz)
–30
–40
–40
–50
–60
–70
–80
–60
–70
–80
–90
–100
–100
–110
–110
700k
1.05M
FREQUENCY (Hz)
–120
1.4M
–50
–60
–70
–80
–90
–100
1.0
4
0.8
3
0.6
0.4
0.2
0
–0.2
–0.4
–0.6
1.4M
1403A G07
700k
1.05M
FREQUENCY (Hz)
–1.0
1.4M
2
1
0
–1
–2
–3
–0.8
–110
350k
Integral Linearity
vs Output Code
INTEGRAL LINEARITY (LSB)
DIFFERENTIAL LINEARITY (LSB)
–40
0
1403A G06
Differential Linearity
vs Output Code
–30
MAGNITUDE (dB)
–50
–90
350k
2.8Msps
1403A G05
2.8Msps
700k
1.05M
FREQUENCY (Hz)
0
–10
–20
0
100
1.3MHz Sine Wave 4096 Point
FFT Plot
–30
–120
100
–20
1
10
FREQUENCY (MHz)
1403A G03
2.8Msps
1403A G04
350k
44
0.1
–20
1.4MHz Input Summed with
1.56MHz Input IMD 4096 Point
FFT Plot
6
100
MAGNITUDE (dB)
MAGNITUDE (dB)
68
0
68
–86
–10
71
–120
74
98kHz Sine Wave 4096 Point
FFT Plot
74
0
80
1403A G02
SNR vs Input Frequency
–10
86
–68
1403A G01
50
0.1
92
2nd
–62
–104
0.1
50
100
1
10
FREQUENCY (MHz)
SFDR vs Input Frequency
–44
SFDR (dB)
74
THD, 2nd, 3rd (dB)
12.0
SINAD (dB)
ENOBs (BITS)
ENOBs and SINAD
vs Input Frequency
TA = 25°C, VDD = 3V (LTC1403A)
0
4096
8192
12288
OUTPUT CODE
16383
1403A G08
–4
0
4096
8192
12288
OUTPUT CODE
16383
1403A G09
1403fc
For more information www.linear.com/LTC1403
LTC1403/LTC1403A
Typical Performance Characteristics
Differential and Integral Linearity
vs Conversion Rate
5
4
79
MAX INL
2
EXTERNAL VREF = 3.3V fIN~fS/3
78
77
MAX DNL
1
S/(N+D)
LINEARITY (LSB)
SINAD vs Conversion Rate
80
18 CLOCKS PER CONVERSION
3
0
–1
MIN DNL
–2
–3
EXTERNAL VREF = 3.3V fIN~fS/40
76
75
74
73
72 INTERNAL V
REF = 2.5V fIN~fS/40
71
INTERNAL VREF = 2.5V fIN~fS/3
70
2.0 2.2 2.4 2.6 2.8 3.0 3.2 3.4 3.6 3.8 4.0
CONVERSION RATE (Msps)
MIN INL
–4
–5
TA = 25°C, VDD = 3V (LTC1403A)
2.0 2.2 2.4 2.6 2.8 3.0 3.2 3.4 3.6 3.8 4.0
CONVERSION RATE (Msps)
1403A G10
1403A G11
TA = 25°C, VDD = 3V (LTC1403 and LTC1403A)
12
2.5VP-P Power Bandwidth
CMRR vs Frequency
PSRR vs Frequency
–25
0
6
–30
–20
–35
–40
–12
–18
PSRR (dB)
–40
–6
CMRR (dB)
AMPLITUDE (dB)
0
–60
–55
–80
–24
–60
–100
–30
–36
1M
10M
100M
FREQUENCY (Hz)
–65
–120
100
1G
–45
–50
1k
10k
100k 1M
FREQUENCY (Hz)
1403A G12
10M
–70
100M
1
10
100
1k
10k
FREQUENCY (Hz)
VDD Supply Current vs
Conversion Rate
Reference Voltage vs VDD
2.4902
2.4902
2.4900
2.4900
2.4898
2.4898
1M
1403A G14
1403A G13
Reference Voltage vs Load
Current
100k
6.0
2.4896
VDD SUPPLY CURRENT (mA)
VREF (V)
VREF (V)
5.5
2.4896
2.4894
2.4894
2.4892
2.4892
2.4890
2.4890
5.0
4.5
4.0
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
LOAD CURRENT (mA)
1403A G15
2.6
2.8
3.0
3.2
VDD (V)
3.4
3.6
1403A G16
0
0 0.4 0.8 1.2 1.6 2.0 2.4 2.8 3.2 3.6 4.0
CONVERSION RATE (Msps)
1403A G17
1403fc
For more information www.linear.com/LTC1403
7
LTC1403/LTC1403A
Pin Functions
AIN+ (Pin 1): Noninverting Analog Input. AIN+ operates
fully differentially with respect to AIN– with a 0V to 2.5V
differential swing and a 0V to VDD common mode swing.
solid analog ground plane with a 10µF ceramic capacitor
(or 10µF tantalum in parallel with 0.1µF ceramic). Keep in
mind that internal analog currents and digital output signal
currents flow through this pin. Care should be taken to
place the 0.1µF bypass capacitor as close to Pins 6 and
7 as possible.
AIN– (Pin 2): Inverting Analog Input. AIN– operates
fully differentially with respect to AIN+ with a –2.5V to 0V
differential swing and a 0V to VDD common mode swing.
SDO (Pin 8): Three-State Serial Data Output. Each of output
data words represents the difference between AIN+ and
AIN– analog inputs at the start of the previous conversion.
VREF (Pin 3): 2.5V Internal Reference. Bypass to GND
and to a solid analog ground plane with a 10µF ceramic
capacitor (or 10µF tantalum in parallel with 0.1µF ceramic).
Can be overdriven by an external reference between 2.55V
and VDD.
SCK (Pin 9): External Clock Input. Advances the conversion process and sequences the output data on the rising
edge. Responds to TTL (≤3V) and 3V CMOS levels. One
or more pulses wake from sleep.
GND (Pins 5, 6, 11): Ground and Exposed Pad. These
ground pins and the exposed pad must be tied directly to
the solid ground plane under the part. Keep in mind that
analog signal currents and digital output signal currents
flow through these pins.
CONV (Pin 10): Convert Start. Holds the analog input signal
and starts the conversion on the rising edge. Responds
to TTL (≤3V) and 3V CMOS levels. Two pulses with SCK
in fixed high or fixed low state start Nap mode. Four or
more pulses with SCK in fixed high or fixed low state start
Sleep mode.
VDD (Pin 7): 3V Positive Supply. This single power pin
supplies 3V to the entire chip. Bypass to GND and to a
Block Diagram
7
LTC1403A
AIN+
1
+
AIN–
2
–
3V
VDD
14-BIT ADC
S&H
THREESTATE
SERIAL
OUTPUT
PORT
14-BIT LATCH
10µF
8
SDO
10
CONV
9
SCK
14
3
VREF
2.5V
REFERENCE
10µF
4
GND
5
8
6
TIMING
LOGIC
11
EXPOSED PAD
1403A BD
1403fc
For more information www.linear.com/LTC1403
LTC1403/LTC1403A
Timing Diagram
LTC1403 Timing Diagram
t2
t3
16
17
t7
t1
1
2
3
4
5
6
7
8
9
10
11
12
13
15
14
16
17
18
1
SCK
t4
t5
CONV
t6
INTERNAL
S/H STATUS
tACQ
SAMPLE
HOLD
t8
t8
t10
SDO REPRESENTS THE ANALOG INPUT FROM THE PREVIOUS CONVERSION
Hi-Z
SDO
SAMPLE
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
X
HOLD
t9
Hi-Z
X
1403A TD01
14-BIT DATA WORD
tCONV
tTHROUGHPUT
*BITS MARKED "X" AFTER D0 SHOULD BE IGNORED.
LTC1403A Timing Diagram
t2
t3
16
17
1
t7
t1
2
3
4
5
6
7
8
9
10
11
12
13
15
14
16
17
18
1
SCK
t4
t5
CONV
t6
INTERNAL
S/H STATUS
tACQ
SAMPLE
HOLD
t8
SDO
Hi-Z
SAMPLE
t8
t10
SDO REPRESENTS THE ANALOG INPUT FROM THE PREVIOUS CONVERSION
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
HOLD
t9
D0
Hi-Z
1403A TD01b
14-BIT DATA WORD
tCONV
tTHROUGHPUT
Nap Mode and Sleep Mode Waveforms
SLK
t1
t1
CONV
NAP
SLEEP
t12
VREF
1403A TD02
NOTE: NAP AND SLEEP ARE INTERNAL SIGNALS
SCK to SDO Delay
SCK
VIH
SCK
t8
t10
SDO
VIH
t9
VOH
VOL
90%
SDO
10%
1403A TD03
1403fc
For more information www.linear.com/LTC1403
9
LTC1403/LTC1403A
Applications Information
Driving the Analog Input
The differential analog inputs of the LTC1403/LTC1403A
are easy to drive. The inputs may be driven differentially or
as a single-ended input (i.e., the AIN– input is grounded).
Both differential analog inputs, AIN+ with AIN–, are sampled
at the same instant. Any unwanted signal that is common
to both inputs of each input pair will be reduced by the
common mode rejection of the sample-and-hold circuit.
The inputs draw only one small current spike while charging
the sample-and-hold capacitors at the end of conversion.
During conversion, the analog inputs draw only a small
leakage current. If the source impedance of the driving
circuit is low, then the LTC1403/LTC1403A inputs can be
driven directly. As source impedance increases, so will
acquisition time. For minimum acquisition time with high
source impedance, a buffer amplifier must be used. The
main requirement is that the amplifier driving the analog
input(s) must settle after the small current spike before
the next conversion starts (settling time must be 39ns
for full throughput rate). Also keep in mind while choosing an input amplifier, the amount of noise and harmonic
distortion added by the amplifier.
Choosing an Input Amplifier
Choosing an input amplifier is easy if a few requirements
are taken into consideration. First, to limit the magnitude
of the voltage spike seen by the amplifier from charging
the sampling capacitor, choose an amplifier that has a low
output impedance ( 1403A Sine wave collection with Serial Port interface
bvectors.asm
buffered mode to avoid standard mode bug.
s2k14ini.asm
2k buffer size.
first element at 1024, last element at 1023, two middles at 2047 and 0000
unipolar mode
negative edge BCLKR
negative BFSR pulse
-0 data shifted
1’ cable from counter to CONV at DUT
2’ cable from counter to CLK at DUT
***************************************************************************
.width
160
.length 110
.title “sineb0 BSP in auto buffer mode”
.mmregs
.setsect “.text”,
0x500,0
;Set address of executable
.setsect “vectors”, 0x180,0
;Set address of incoming 1403 data
.setsect “buffer”, 0x800,0
;Set address of BSP buffer for clearing
.setsect “result”, 0x1800,0
;Set address of result for clearing
.text
;.text marks start of code
start:
tim=#0fh
prd=#0fh
tcr = #10h
tspc = #0h
pmst = #01a0h
sp = #0700h
dp = #0
ar2 = #1800h
ar3 = #0800h
ar4 = #0h
call sineinit
sinepeek:
call sineinit
wait
;
goto
wait
;this label seems necessary
;Make sure /PWRDWN is low at J1-9
;to turn off AC01 adc
;
;
;
;
;
;
;
;
stop timer
stop TDM serial port to AC01
set up iptr. Processor Mode STatus register
init stack pointer.
data page
pointer to computed receive buffer.
pointer to Buffered Serial Port receive buffer
reset record counter
; Double clutch the initialization to insure a proper
; reset. The external frame sync must occur 2.5 clocks
; or more after the port comes out of reset.
----------------Buffered Receive Interrupt Routine ------------------
breceive:
ifr = #10h
; clear interrupt flags
TC = bitf(@BSPCE,#4000h) ; check which half (bspce(bit14)) of buffer
if (NTC) goto bufull
; if this still the first half get next half
bspce = #(2023h + 08000h); turn on halt for second half (bspce(bit15))
return _ enable
;
--------------mask and shift input data ---------------------------bufull:
b = *ar3+ 1)|((Format & 2)
工商网监
湘ICP备2023018690号
