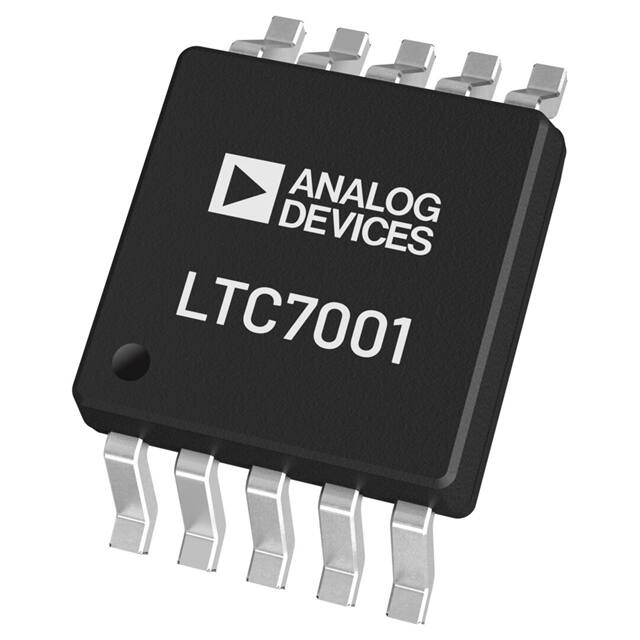

LTC7001
Fast 150V High Side
NMOS Static Switch Driver
FEATURES
DESCRIPTION
Wide Operating VIN: Up to 135V (150V Abs Max)
n 1Ω Pull-Down, 2.2Ω Pull-Up for Fast Turn-On and
Turn-Off Times with 35ns Propagation Delays
n Internal Charge Pump for 100% Duty Cycle
n Adjustable Turn-On Slew Rate
n Gate Driver Supply from 3.5V to 15V
n Adjustable V Overvoltage Lockout
IN
n Adjustable Driver Supply V
CC Undervoltage Lockout
n CMOS Compatible Input
n Thermally Enhanced, High Voltage Capable 10-Lead
MSOP Package
n AEC-Q100 Qualified for Automotive Applications
The LTC®7001 is a fast high side N-channel MOSFET gate
driver that operates from input voltages up to 135V. It
contains an internal charge pump that fully enhances an
external N-channel MOSFET switch, allowing it to remain
on indefinitely.
n
Its powerful driver can easily drive large gate capacitances
with very short transition times, making it well suited for
both high frequency switching applications or static switch
applications that require a fast turn-on and/or turn-off time.
The LTC7001 is available in the thermally enhanced 10-lead
MSOP package.
All registered trademarks and trademarks are the property of their respective owners.
APPLICATIONS
Static Switch Driver
Load and Supply Switch Driver
n Electronic Valve Driver
n High Frequency High Side Gate Driver
n
n
TYPICAL APPLICATION
High Voltage, High Side Switch with 100% Duty Cycle
VIN
0V TO 135V
VCC
3.5V TO 15V
VCC
LTC7001 Driving a 1nF Capacitive Load
VINP
2V/DIV
TGUP
LTC7001
TGDN
OFF ON
INP
BST
0.1µF
VCCUV
OVLO
GND
TS
LOAD
0V TO 135V
VTG-TS
5V/DIV
7001 TA01a
10ns/DIV
7001 TA01b
Rev. G
Document Feedback
For more information www.analog.com
1
LTC7001
ABSOLUTE MAXIMUM RATINGS
PIN CONFIGURATION
(Note 1)
Supply Voltages
BST-TS.................................................... –0.3V to 15V
VCC......................................................... –0.3V to 15V
TS Voltage................................................... –6V to 150V
BST Voltage ............................................. –0.3V to 150V
INP Voltage.................................................... –6V to 15V
Driver Outputs TGUP, TGDN................................ (Note 6)
VCCUV Voltage................................................. –0.3 to 6V
OVLO Voltage ............................................... –0.3V to 6V
Operating Junction Temperature Range (Notes 2, 3, 4)
LTC7001E, LTC7001I, ......................... –40°C to 125°C
LTC7001J, LTC7001H,......................... –40°C to 150°C
LTC7001MP........................................ –55°C to 150°C
Storage Temperature Range................... –65°C to 150°C
Lead Temperature (Soldering, 10 sec)
MSOP Package.................................................. 300°C
TOP VIEW
VCC 1
VCCUV 2
GND 3
INP 4
OVLO 5
11
GND
10
9
8
7
6
NC
BST
TS
TGUP
TGDN
MSE PACKAGE
10-LEAD PLASTIC MSOP
TJMAX = 150°C, θJA = 45°C/W, θJC = 10°C/W
EXPOSED PAD (PIN 11) IS GND, MUST BE SOLDERED TO PCB
ORDER INFORMATION
LEAD FREE FINISH
TAPE AND REEL
PART MARKING*
PACKAGE DESCRIPTION
TEMPERATURE RANGE
LTC7001EMSE#PBF
LTC7001EMSE#TRPBF
LTGXD
10-Lead Plastic MSOP
–40°C to 125°C
LTC7001IMSE#PBF
LTC7001IMSE#TRPBF
LTGXD
10-Lead Plastic MSOP
–40°C to 125°C
LTC7001JMSE#PBF
LTC7001JMSE#TRPBF
LTGXD
10-Lead Plastic MSOP
–40°C to 150°C
LTC7001HMSE#PBF
LTC7001HMSE#TRPBF
LTGXD
10-Lead Plastic MSOP
–40°C to 150°C
LTC7001MPMSE#PBF
LTC7001MPMSE#TRPBF
LTGXD
10-Lead Plastic MSOP
–55°C to 150°C
LTC7001EMSE#WPBF
LTC7001EMSE#WTRPBF
LTGXD
10-Lead Plastic MSOP
–40°C to 125°C
LTC7001IMSE#WPBF
LTC7001IMSE#WTRPBF
LTGXD
10-Lead Plastic MSOP
–40°C to 125°C
LTC7001JMSE#WPBF
LTC7001JMSE#WTRPBF
LTGXD
10-Lead Plastic MSOP
–40°C to 150°C
LTC7001HMSE#WPBF
LTC7001HMSE#WTRPBF
LTGXD
10-Lead Plastic MSOP
–40°C to 150°C
AUTOMOTIVE PRODUCTS**
Contact the factory for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container.
Tape and reel specifications. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix.
**Versions of this part are available with controlled manufacturing to support the quality and reliability requirements of automotive applications. These
models are designated with a #W suffix. Only the automotive grade products shown are available for use in automotive applications. Contact your
local Analog Devices account representative for specific product ordering information and to obtain the specific Automotive Reliability reports for
these models.
2
Rev. G
For more information www.analog.com
LTC7001
ELECTRICAL CHARACTERISTICS
The l denotes the specifications which apply over the specified operating
junction temperature range, otherwise specifications are at TA = 25°C (Note 2). VCC = VBST = 10V, VTS = GND = 0V, unless otherwise
noted.
SYMBOL
PARAMETER
CONDITIONS
MIN
TYP
MAX
UNITS
135
V
Input Supplies
TS Operating Voltage Range
0
Total Supply Current (Note 7)
ON or Sleep, Charge Pump Regulating
VBST=OPEN, VTS=12V
225
VCC Supply Current (Note 5)
ON Mode
Sleep Mode
VBST-TS = 13V
VINP = 4V
VINP = 0.4V
27
27
50
50
µA
μA
VCC UVLO VCC Undervoltage Lockout
VCCUV = OPEN
VCC Rising
VCC Falling
Hysteresis
VCCUV = 0V
VCC Rising
VCC Falling
Hysteresis
VCCUV = 1.5V
VCC Rising
VCC Falling
Hysteresis
µA
l
l
6.5
5.8
7.0
6.4
600
7.5
6.9
V
V
mV
l
l
3.1
2.8
3.5
3.2
300
3.7
3.4
V
V
mV
9.7
9.1
10.5
9.9
600
10.9
10.3
V
V
mV
14
14
14
Bootstrapped Supply (BST-TS)
VBST-TS
VTG Above VTS with INP = 3V (DC)
VCC = VTS = 7V, IBST = 0µA
VCC = VTS = 10V, IBST = 0µA
VTS = 135V, IBST = 0µA
l
l
9
10
10
11
12
12
V
V
V
Charge Pump Output Current
VTS = 20V, VBST-TS = 10V
l
–15
–30
µA
BST-TS Floating UVLO
VBST-TS Rising
VBST-TS Falling
3.1
2.8
V
V
Output Gate Driver (TG)
TG Pull-Up Resistance
VCC = VBST = 12V
l
2.2
7
Ω
TG Pull-Down Resistance
VCC = VBST = 12V
l
1
4
Ω
tr
Output Rise Time
10% to 90%, CL = 1nF
10% to 90%, CL = 10nF
13
90
ns
ns
tf
Output Fall Time
10% to 90%, CL = 1nF
10% to 90%, CL = 10nF
13
40
ns
ns
tPLH
tPHL
Input to Output Propagation Delay
VINP Rising, CL = 1nF
VINP Falling, CL = 1nF
l
l
Input Threshold Voltages
VINP Rising
VINP Falling
Hysteresis
l
l
Input Pull-Down Resistance
VINP = 1V
OVLO Pin Threshold Voltage
Rising
Falling
Hysteresis
35
35
70
70
ns
ns
2
1.6
400
2.2
1.8
V
V
mV
Operation
VIH
VIL
1.7
1.3
1
1.16
1.05
MΩ
1.21
1.10
110
1.26
1.15
V
V
mV
OVLO Pin Leakage Current
VOVLO = 1.3V
–100
0
100
nA
VVCCUV Pull-Up Current
VVCCUV = 1V
–11.3
–10
8.7
µA
Rev. G
For more information www.analog.com
3
LTC7001
ELECTRICAL CHARACTERISTICS
Note 1: Stresses beyond those listed under Absolute Maximum Ratings
may cause permanent damage to the device. Exposure to any Absolute
Maximum Rating condition for extended periods may affect device
reliability and lifetime.
Note 2: The LTC7001 is tested under pulsed load conditions such that
TJ ≈ TA. The LTC7001E is guaranteed to meet performance specifications
from 0°C to 85°C. Specifications over the –40°C to 125°C operating
junction temperature range are assured by design, characterization and
correlation with statistical process controls. The LTC7001I is guaranteed
over the –40°C to 125°C operating junction temperature range, the
LTC7001J is guaranteed over the –40°C to 150°C operating junction
temperature range, the LTC7001H is guaranteed over the –40°C to
150°C operating junction temperature range and is tested at 150°C, the
LTC7001MP is tested and guaranteed over the –55°C to 150°C operating
junction temperature range.
High junction temperatures degrade operating lifetimes; operating lifetime
is derated for junction temperatures greater than 125°C. Note that the
maximum ambient temperature consistent with these specifications is
determined by specific operating conditions in conjunction with board
layout, the rated package thermal impedance and other environmental
factors.
4
Note 3: The junction temperature (TJ, in °C) is calculated from the ambient
temperature (TA, in °C) and power dissipation (PD, in Watts) according to
the formula:
TJ = TA + (PD • θJA), where θJA is 45°C/W.
Note 4: This IC includes over temperature protection that is intended to
protect the device during momentary overload conditions. The maximum
rated junction temperature will be exceeded when this protection is active.
Operation above the specified absolute maximum operating junction
temperature may impair device reliability or permanently damage the
device.
Note 5: Dynamic supply current is higher due to the gate charge being
delivered at the switching frequency. See Applications Information.
Note 6: Do not apply a voltage or current source to these pins. They must
be connected to capacitive loads only; otherwise permanent damage may
occur.
Note 7: Total supply current is the sum of the current into the VCC and TS
pins.
Rev. G
For more information www.analog.com
LTC7001
