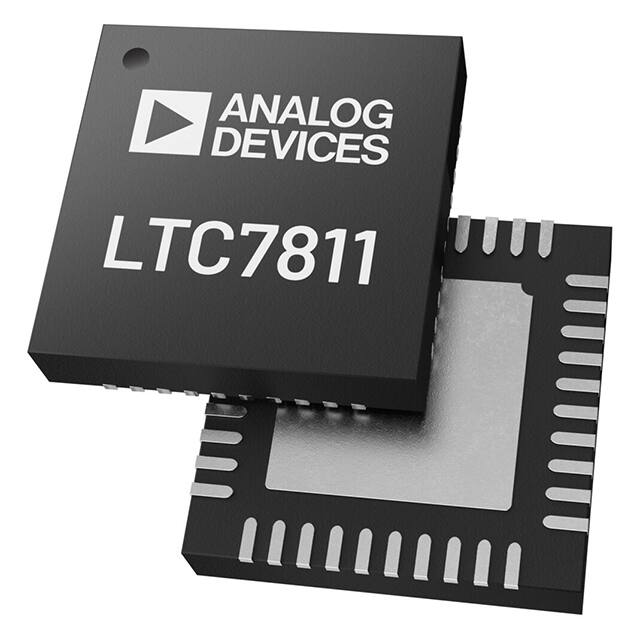

LTC7811IUJ#PBF

LTC7811 40V, Low IQ, 3MHz, Triple Output Buck/Buck/Boost Controller FEATURES DESCRIPTION Dual Synchronous Buck Plus Single Boost Controllers n Low Operating I : Q n 14μA (14V to 3.3V, Channel 1 On) n Outputs Remain in Regulation Through Cold Crank Down to 1V Input Supply Voltage n Wide Bias Input Voltage Range: 4.5V to 40V n Buck Output Voltages Up to 40V n Boost Output Voltage Limited Only by External Components n Spread Spectrum Operation n R SENSE or DCR Current Sensing n Low Battery Indicator for Automotive Applications n Programmable Fixed Frequency (100kHz to 3MHz) n Phase-Lockable Frequency (100kHz to 3MHz) n Selectable Continuous, Pulse-Skipping, or Low Ripple Burst Mode® Operation at Light Loads n Boost Channel Current Monitor Output n Low Shutdown I : 1.5μA Q n Small 40-Lead 6mm × 6mm QFN Package n AEC-Q100 Qualified for Automotive Applications The LTC®7811 is a high performance triple output (buck/ buck/boost) DC/DC switching regulator controller that drives all N-channel power MOSFET stages. Its constant frequency current mode architecture allows a phase-lockable switching frequency of up to 3MHz. The LTC7811 operates from a wide 4.5V to 40V input supply range. When biased from the output of the boost converter or another auxiliary supply, the LTC7811 can operate from an input supply as low as 1V after start-up. n The very low no-load quiescent current extends operating run time in battery powered systems. OPTI-LOOP® compensation allows the transient response to be optimized over a wide range of output capacitance and ESR values. The LTC7811 features a precision 0.8V reference for the bucks, 1.2V reference for the boost and a power good output indicator. The LTC7811 additionally features spread spectrum operation which significantly reduces the peak radiated and conducted noise on both the input and output supplies, making it easier to comply with electromagnetic interference (EMI) standards. APPLICATIONS Automotive and Transportation Industrial n Military/Avionics n All registered trademarks and trademarks are the property of their respective owners. Protected by U.S. Patents including 5481178, 5705919, 5929620, 6144194, 6177787, 6580258. n TYPICAL APPLICATION LTC7811 Response to a Cold LTC7811 Response to a Cold Crank Crank Automotive Automotive WaveformWaveform VOUT3 REGULATED TO 9.5V WHEN VIN < 9.5V FOLLOWS VIN WHEN VIN > 9.5V VIN 1V TO 38V START-UP ABOVE 5V 47µF 6mΩ 22µF VFB3 VBIAS TG1 BOOST1 2.2µH 0.1µF 2.4µH 6mΩ SW1 BG3 150µF 22µF BG1 VBATT VOUT1 3.3V 6A 100µF VOUT3 LTC7811 VOUT3 SENSE3– SENSE3+ RUN1,2,3 SENSE1+ SENSE1– VFB1 210k VOUT3 ITH1,2,3 TRACK/SS1,2,3 INTVCC 0.1µF 4.7µF VOLTAGE 2V/DIV VOUT2 68.1k VOUT1 TG2 BOOST2 VPRG3 0.1µF 4.7µH 9mΩ SW2 BG2 BOOST1,2 MODE PLLIN/SPREAD FREQ GND SENSE2+ SENSE2– VFB2 EXTVCC 10µF VOUT2 5V 4A 100µF 0V TIME (10ms/DIV) 7811 TA01b 357k VOUT2 68.1k 7811 TA01a 1 Rev. A Document Feedback For more information www.analog.com LTC7811 TABLE OF CONTENTS Features............................................................................................................................. 1 Applications........................................................................................................................ 1 Typical Application................................................................................................................ 1 Description......................................................................................................................... 1 Absolute Maximum Ratings...................................................................................................... 3 Order Information.................................................................................................................. 3 Pin Configuration.................................................................................................................. 3 Electrical Characteristics......................................................................................................... 4 Typical Performance Characteristics........................................................................................... 7 Pin Functions......................................................................................................................11 Functional Diagram..............................................................................................................13 Operation..........................................................................................................................14 Applications Information........................................................................................................18 Typical Applications..............................................................................................................38 Package Description.............................................................................................................40 Revision History..................................................................................................................41 Typical Application...............................................................................................................42 Related Parts......................................................................................................................42 2 Rev. A For more information www.analog.com LTC7811 SW1 TG1 PGOOD1 PLLIN/SPREAD TRACK/SS1 ITH1 VFB1 SENSE1+ SENSE1– TOP VIEW FREQ 40 39 38 37 36 35 34 33 32 31 MODE 1 30 BOOST1 SS3 2 29 BG1 SENSE3+ 3 28 NC SENSE3– 4 27 NC 41 GND VFB3 5 ITH3 6 26 BATTSNS 25 BG3 IMON3 7 24 VBIAS RUN1 8 23 EXTVCC RUN2 9 22 INTVCC RUN3 10 21 BG2 BOOST2 SW2 TG2 BATTGOOD VPRG3 ITH2 TRACK/SS2 11 12 13 14 15 16 17 18 19 20 VFB2 Bias Input Supply Voltage (VBIAS)............... –0.3V to 40V BOOST1, BOOST2....................................... –0.3V to 46V Switch Voltage (SW1, SW2)........................... –5V to 40V RUN1, RUN2, RUN3 Voltages...................... –0.3V to 40V SENSE1+, SENSE1– Voltages....................... –0.3V to 40V SENSE2+, SENSE2– Voltages...................... –0.3V to 40V SENSE3+, SENSE3– Voltages...................... –0.3V to 40V EXTVCC Voltage.......................................... –0.3V to 30V INTVCC, (BOOST1–SW1), (BOOST2–SW2) ....................................... –0.3V to 6V TRACK/SS1, TRACK/SS2 Voltages............... –0.3V to 6V ITH1, ITH2, ITH3 Voltages............................ –0.3V to 2V VFB3 , BATTSNS Voltages........................... –0.3V to 40V VFB1, VFB2, SS3, IMON3, PGOOD1 Voltages.... –0.3V to 6V VPRG3, MODE, BATTGOOD Voltages ........... –0.3V to 6V PLLIN/SPREAD, FREQ, Voltages................... –0.3V to 6V BG1, BG2, BG3, TG1, TG2,.................................. (Note 9) Operating Junction Temperature Range (Notes 2,8) LTC7811I............................................. –40°C to 125°C LTC7811J............................................ –40°C to 150°C Storage Temperature Range................... –65°C to 150°C PIN CONFIGURATION SENSE2+ (Note 1) SENSE2– ABSOLUTE MAXIMUM RATINGS UJ PACKAGE 40-LEAD (6mm × 6mm) PLASTIC QFN TJMAX = 150°C, θJA = 33°C/W EXPOSED PAD (PIN 41) IS GND, MUST BE SOLDERED TO PCB ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE LTC7811IUJ#PBF LTC7811IUJ#TRPBF LTC7811 40-Lead (6mm × 6mm) Plastic QFN –40°C to 125°C AUTOMOTIVE PRODUCTS** LTC7811IUJ#WPBF LTC7811IUJ#WTRPBF LTC7811 40-Lead (6mm × 6mm) Plastic QFN –40°C to 125°C LTC7811JUJ#WPBF LTC7811JUJ#WTRPBF LTC7811 40-Lead (6mm × 6mm) Plastic QFN –40°C to 150°C Contact the factory for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. Tape and reel specifications. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix. **Versions of this part are available with controlled manufacturing to support the quality and reliability requirements of automotive applications. These models are designated with a #W suffix. Only the automotive grade products shown are available for use in automotive applications. Contact your local Analog Devices account representative for specific product ordering information and to obtain the specific Automotive Reliability reports for these models. 3 Rev. A For more information www.analog.com LTC7811 ELECTRICAL CHARACTERISTICS The l indicates specifications which apply over the specified operating junction temperature range, otherwise specifications are for TA = 25°C, VBIAS = 12V, RUN1,2,3>1.25V, EXTVCC = 0V, VPRG3 = FLOAT unless otherwise noted. (Note 2) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS Input Supply (VBIAS, VIN) VBIAS Bias Input Supply Operating Voltage Range VIN Boost Converter Input Supply Operating Range VBIAS ≥ 4.5V IQ VIN Current in Regulation Front Page Circuit, 14V to 3.3V, No Load, RUN2,3 = 0V 4.5 40 V 1 40 V 14 µA Controller Operation VOUT1,2 Buck Output Voltage Operating Range VOUT3 Boost Output Voltage Operating Range VFB1,2 Buck Regulated Feedback Voltage VFB3 Boost Regulated Feedback Voltage 0.8 (Note 4) VBIAS = 4.5V to 40V, ITH1,2 Voltage = 0.6V to 1.2V 0ºC to 85ºC, All Grades (Note 4) VBIAS = 4.5V to 40V, ITH3 Voltage = 0.6V to 1.2V, VPRG3 = FLOAT VPRG3 = 0V VPRG3 = INTVCC l l l l 0.788 0.792 1.177 7.81 9.28 Buck Feedback Current Boost Feedback Current VPRG3 = FLOAT RUN3 = 0V, VPRG3 = 0V or INTVCC RUN3 = 2V, VPRG3 = 0V or INTVCC Buck Feedback Overvoltage Protection Threshold Measured at VFB1,2 Relative to Regulated VFB1,2 gm1,2,3 Transconductance Amplifier gm (Note 4) ITH1,2,3 = 1.2V, Sink/Source = 5μA VSENSE(MAX) Maximum Current Sense Threshold VFB1,2 = 0.7V, VSENSE1,2– = 3.3V VFB3 = 1.1V, VSENSE3+ = 12V Matching for Channels 1& 2 VSENSE1,2– = 3.3V, VFB2 = INTVCC ISENSE1,2+ ISENSE3– SENSE1,2+ Pin Current ISENSE1– SENSE1– Pin Current ISENSE2– SENSE2 – Pin Current ISENSE3+ SENSE3+ Pin Current VSENSE1,2+ = 3.3V VSENSE3– = 12V VSENSE1– ≤ 2.7V 3.2V ≤ VSENSE1– < INTVCC – 0.5V VSENSE1– > INTVCC + 0.5V VSENSE2– = 3.3V VSENSE2– > INTVCC + 0.5V VSENSE3+ = 3.3V VSENSE3+ > INTVCC + 0.5V SENSE3– Pin Current 7 40 V 40 V 0.800 0.800 0.812 0.808 V V 1.195 8.00 9.50 1.213 8.13 9.66 V V V ±5 ±50 nA ±5 ±5 1 ±50 ±50 nA nA µA 10 13 % 1.8 l mmho 45 50 55 mV –3.5 0 3.5 mV ±1 µA ±1 µA 2 40 660 620 660 µA µA µA ±2 µA µA ±2 µA µA µA Soft-Start Charge Current VTRACK/SS1,2 = 0V, VSS3 = 0V RUN Pin ON Threshold VRUN1,2,3 Rising RUN Pin Hysteresis VRUN1,2,3 Falling 100 mV VBIAS Shutdown Current RUN1, 2, 3 = 0V 1.5 µA VBIAS Sleep Mode Current VSENSE1– < 3.2V, EXTVCC = 0V l 10 12.5 15 1.15 1.20 1.25 V DC Supply Current (Note 5) 4 One Channel On All Channels On 15 18 24 30 µA µA Rev. A For more information www.analog.com LTC7811 ELECTRICAL CHARACTERISTICS The l indicates specifications which apply over the specified operating junction temperature range, otherwise specifications are for TA = 25°C, VBIAS = 12V, RUN1,2,3>1.25V, EXTVCC = 0V, VPRG3 = FLOAT unless otherwise noted. (Note 2) SYMBOL PARAMETER CONDITIONS TYP MAX Sleep Mode Current (Note 3) Only Channel 1 On VSENSE1– ≥ 3.2V VBIAS Current, EXTVCC = 0V VBIAS Current, EXTVCC = 4.8V EXTVCC Current, EXTVCC ≥ 4.8V SENSE1– Current MIN UNITS 5 1 5 10 9 4 10 18 µA µA µA µA Sleep Mode Current (Note 3) All Channels On VSENSE1– ≥ 3.2V, EXTVCC ≥4.8V VBIAS Current EXTVCC Current SENSE1– Current 1 8 16 4 14 26 µA µA µA Pulse-Skipping or Forced Continuous Mode VBIAS or EXTVCC Current (Note 3) One Channel On All Channels On 1.5 3 mA mA TG or BG On-Resistance Pull-up Pull-down 2.0 1.0 Ω Ω TG or BG Transition Time Rise Time Fall Time (Note 6) CLOAD = 3300pF CLOAD = 3300pF 25 15 ns ns TG Off to BG On Delay Synchronous Switch-On Delay Time CLOAD = 3300pF Each Driver Bucks (Channels 1, 2) 15 ns BG Off to TG On Delay Top Switch-On Delay Time CLOAD = 3300pF Each Driver Bucks (Channels 1, 2) 15 ns tON(MIN)1,2 Buck TG Minimum On-Time (Note 7) 40 ns tON(MIN)3 Boost BG Minimum On-Time (Note 7) 80 ns 99 % 100 93 % % Gate Drivers Maximum Duty Factor for TG Bucks (Channels 1,2), FREQ = 0V Maximum Duty Factor for BG Bucks (Channels 1,2) in Overvoltage Boost (Channel 3), FREQ = 0V IMON3 Current Monitor Output Voltage VSENSE3+ = 12V, VSENSE3+ − VSENSE3– = 50mV VSENSE3+ = 12V, VSENSE3+ − VSENSE3– = 15mV 98 1.3 0.6 1.4 0.7 1.5 0.8 V V 4.9 5.1 5.3 V 1.2 1.2 2 2 % % 4.5 4.7 4.8 V 4.10 3.75 4.20 3.85 4.35 4.00 330 380 430 kHz 2.0 2.25 2.5 MHz 450 100 500 3 550 kHz kHz MHz 3 MHz INTVCC Low Dropout (LDO) Linear Regulator INTVCC Regulation Point INTVCC Load Regulation ICC = 0mA to 100mA, VBIAS ≥ 6V ICC = 0mA to 100mA, VEXTVCC ≥ 6V EXTVCC LDO Switchover Voltage EXTVCC Rising EXTVCC Switchover Hysteresis UVLO Undervoltage Lockout 250 INTVCC Rising INTVCC Falling l l mV V V Spread Spectrum Oscillator and Phase-Locked Loop fOSC Low Fixed Frequency VFREQ = 0V, PLLIN/SPREAD = 0V High Fixed Frequency VFREQ = INTVCC, PLLIN/SPREAD = 0V Programmable Frequency RFREQ = 374kΩ, PLLIN/SPREAD = 0V RFREQ = 75kΩ, PLLIN/SPREAD = 0V RFREQ = 12kΩ, PLLIN/SPREAD = 0V Synchronizable Frequency Range PLLIN/SPREAD = External Clock l l 0.1 5 Rev. A For more information www.analog.com LTC7811 ELECTRICAL CHARACTERISTICS The l indicates specifications which apply over the specified operating junction temperature range, otherwise specifications are for TA = 25°C, VBIAS = 12V, RUN1,2,3>1.25V, EXTVCC = 0V, VPRG3 = FLOAT unless otherwise noted. (Note 2) SYMBOL PARAMETER CONDITIONS MIN PLLIN Input High Level PLLIN Input Low Level Spread Spectrum Frequency Range (Relative to fOSC) l l TYP 2.2 MAX 0.5 PLLIN/SPREAD = INTVCC Minimum Frequency Maximum Frequency –12 +15 0.2 UNITS V V % % PGOOD1 and BATTGOOD Outputs PGOOD1 Voltage Low IPGOOD1 = 2mA PGOOD1 Leakage Current VPGOOD1 = 5V PGOOD1 Trip Level VFB1 Relative to Set Regulation Point VFB1 Rising Hysteresis 7 VFB1 Falling Hysteresis –13 PGOOD1 Delay for Reporting a Fault V ±1 µA 10 2.5 13 % % –10 2.5 –7 % % 25 BATTGOOD Voltage Low IBATTGOOD = 2mA BATTGOOD Leakage Current VBATTGOOD = 5V Battery Comparator Thresholds VBATTSNS Rising VBATTSNS Falling Hysteresis BATTSNS Pin Current VBATTSNS = 16V, RUN3 = 2V VBATTSNS = 16V, RUN3 = 0V Note 1: Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. Exposure to any Absolute Maximum Rating condition for extended periods may affect device reliability and lifetime. Note 2: The LTC7811 is tested under pulsed load conditions such that TJ ≈ TA. The LTC7811I is guaranteed over the –40°C to 125°C operating junction temperature range, and the LTC7811J is guaranteed over the –40°C to 150°C operating junction temperature range. High junction temperatures degrade operating lifetimes; operating lifetime is derated for junction temperatures greater than 125°C. Note that the maximum ambient temperature consistent with these specifications is determined by specific operating conditions in conjunction with board layout, the rated package thermal impedance and other environmental factors. The junction temperature (TJ, in °C) is calculated from the ambient temperature (TA, in °C) and power dissipation (PD, in Watts) according to the formula: TJ = TA + (PD • θJA), where θJA (in °C/W) is the package thermal impedance. Note 3: When SENSE1– ≥ 3.2V or EXTVCC ≥ 4.8V, VBIAS supply current is transferred to these pins to reduce the total input supply quiescent current. SENSE1– bias current is reflected to the buck channel 1 input supply (VIN1) by the formula IVIN1 = ISENSE1– • VOUT1/(VIN1 • η), where η is the efficiency. EXTVCC bias current is similarly reflected to a buck channel input supply when biased by a buck channel output. To minimize input supply current, select channel 1 to be the lowest output voltage greater than 3.2V and connect EXTVCC to the lowest output voltage greater than 4.8V. 6 0.4 0.2 l l 9.2 9.1 9.75 9.50 250 1 ±5 µs 0.4 V ±1 µA 10.3 9.9 V V mV ±50 µA nA Note 4: The LTC7811 is tested in a feedback loop that servos VITH1,2,3 to a specified voltage and measures the resultant VFB1,2,3. The specifications at 0°C and 85°C are not tested in production and are assured by design, characterization and correlation to production testing at other temperatures (125°C for the LTC7811I, 150°C for the LTC7811J). Note 5: Dynamic supply current is higher due to the gate charge being delivered at the switching frequency. See Applications Information. Note 6: Rise and fall times are measured using 10% and 90% levels. Delay times are measured using 50% levels. Note 7: The minimum on-time condition is specified for an inductor peak-to-peak ripple current > 40% of IL(MAX) (See Minimum On-Time Considerations in the Applications Information section). Note 8: This IC includes overtemperature protection that is intended to protect the device during momentary overload conditions. The maximum rated junction temperature will be exceeded when this protection is active. Continuous operation above the specified absolute maximum operating junction temperature may impair device reliability or permanently damage the device. Note 9: Do not apply a voltage or current source to these pins. They must be connected to capacitive loads only, otherwise permanent damage may occur. Rev. A For more information www.analog.com LTC7811 TYPICAL PERFORMANCE CHARACTERISTICS BURST EFFICIENCY 90 FCM EFFICIENCY 70 80 1 60 50 10 FCM LOSS 40 PULSE–SKIPPING 30 LOSS 0.1 BURST LOSS VIN = 12V 0.01 VOUT = 5V 20 10 0 0.0001 FIGURE 10 CIRCUIT 0.001 0.01 0.1 1 OUTPUT CURRENT (A) 10 0.001 BURST 90 EFFICIENCY PULSE–SKIPPING EFFICIENCY FCM EFFICIENCY 60 1 FCM LOSS BURST LOSS 40 30 PULSE–SKIPPING LOSS 20 VIN = 12V 0.01 VOUT = 3.3V 10 0 0.0001 7811 G01 0.1 FIGURE 10 CIRCUIT 0.001 0.01 0.1 1 OUTPUT CURRENT (A) 10 90 85 80 75 70 0.001 VOUT1 = 3.3V VOUT2 = 5V 4 12 20 28 INPUT VOLTAGE (V) Load Step (Buck) Pulse-Skipping Pulse–SkippingMode Mode Load Step (Buck) Forced Continuous Mode VOUT1 500mV/DIV VOUT1 500mV/DIV VOUT1 500mV/DIV INDUCTOR CURRENT 5A/DIV INDUCTOR CURRENT 5A/DIV LOAD CURRENT 5A/DIV LOAD CURRENT 5A/DIV INDUCTOR CURRENT 5A/DIV LOAD CURRENT 5A/DIV 7811 G04 7811 G05 50µs/DIV VIN = 12V VOUT1 = 3.3V 200mA TO 4A LOAD STEP FIGURE 10 CIRCUIT Inductor Current at Light Load (Buck) 36 7811 G03 7811 G02 Load Step (Buck) Burst Mode Operation 50µs/DIV VIN = 12V VOUT1 = 3.3V 200mA TO 4A LOAD STEP FIGURE 10 CIRCUIT FIGURE 10 CIRCUIT ILOAD = 3A (EACH CHANNEL) 95 10 70 50 EfficiencyvsvsInput Input Voltage (Buck) Efficiency Voltage (Buck) 100 100 POWER LOSS (W) PULSE–SKIPPING EFFICIENCY 100 POWER LOSS (W) EFFICIENCY (%) 80 100 EFFICIENCY (%) 100 Efficiency andPower PowerLoss Loss Efficiency and vsvs Output Current(Buck (Buck3.3V 3.3VOutput) Output) Output Current EFFICIENCY (%) Efficiencyand andPower Power Loss Efficiency Loss vs vs OutputCurrent Current(Buck (Buck Output) Output 5V5V Output) 50µs/DIV VIN = 12V VOUT1 = 3.3V 200mA TO 4A LOAD STEP FIGURE 10 CIRCUIT 7811 G06 Buck Regulated Feedback Voltage Voltage vs Temperature vs Temperature Start-Up Soft Start–Up VOLTAGE RUN1,2 5V/DIV Burst Mode OPERATION 2A/DIV VOUT2 1V/DIV VOUT1 1V/DIV PULSE SKIPPING MODE 4µs/DIV VIN = 12V VOUT1 = 3.3V NO LOAD FIGURE 10 CIRCUIT 7811 G07 1ms/DIV VIN = 12V FIGURE 10 CIRCUIT 7811 G08 REGULATED FEEDBACK VOLTAGE (mV) 808 FORCED CONTINUOUS MODE 806 804 802 800 798 796 794 792 –55 –25 5 35 65 95 TEMPERATURE ( ° C) 125 155 7811 G09 7 Rev. A For more information www.analog.com LTC7811 TYPICAL PERFORMANCE CHARACTERISTICS Efficiencyand andPower Power Loss Efficiency Loss vs vs Output Current (Boost) Output Current (Boost) PULSE–SKIPPING 90 OR FCM EFFICIENCY 100 BURST EFFICIENCY 10 EFFICIENCY (%) 1 60 50 40 0.1 PULSE–SKIPPING OR FCM LOSS 30 BURST LOSS 20 10 0 0.0001 VIN = 5V 0.01 VOUT3 = 9.5V FIGURE 10 CIRCUIT 0.001 0.01 0.1 1 OUTPUT CURRENT (A) 10 0.001 100 100 95 90 80 90 POWER LOSS (W) 70 EFFICIENCY (%) 80 85 80 75 VIN = 5V VIN = 8V VIN = 12V 70 65 60 0.0001 0.001 0.01 0.1 1 OUTPUT CURRENT (A) EFFICIENCY (%) 95 90 60 50 40 VIN = 5V VIN = 8V VIN = 12V 30 VOUT3 = 9.5V FIGURE 10 CIRCUIT 10 0 0.0001 10 7811 G11 0.001 0.01 0.1 1 OUTPUT CURRENT (A) 10 7811 G12 Load Load Step Step (Boost) (Boost) Forced Continuous or Pulse–Skipping Mode Load Step Step (Boost) (Boost) Load Burst Mode Operation Efficiency InputVoltage Voltage (Boost) Efficiency vsvsInput (Boost) FIGURE 10 CIRCUIT Burst Mode OPERATION 70 20 VOUT3 = 9.5V FIGURE 10 CIRCUIT 7811 G10 100 Efficiency vsOutput OutputCurrent Current(Boost) (Boost) Efficiency vs Pulse–Skipping orForced ForcedContinuous Continuous Pulse–Skipping or EFFICIENCY (%) 100 EfficiencyvsvsOutput Output Current Efficiency Current (Boost) (Boost) Burst Mode Operation Burst Mode Operation VOUT3 500mV/DIV VOUT3 500mA/DIV INDUCTOR CURRENT 2A/DIV INDUCTOR CURRENT 2A/DIV LOAD CURRENT 2A/DIV LOAD CURRENT 2A/DIV 85 80 75 ILOAD = 4A ILOAD = 2A ILOAD = 100mA 2 4 6 8 INPUT VOLTAGE (V) 10 100µs/DIV 12 7811 G13 Inductor InductorCurrent CurrentatatLight LightLoad Load (Boost) (Boost) 7811 G14 100µs/DIV VIN = 5V VOUT = 9.5V 40mA TO 2A LOAD STEP FIGURE 10 CIRCUIT VIN = 5V VOUT = 9.5V 40mA TO 2A LOAD STEP FIGURE 10 CIRCUIT Start–Up (Boost) (Boost) Soft Start-Up Boost Regulated Feedback Voltage vs Temperature 7811 G15 RUN3 5V/DIV Burst Mode OPERATION 1A/DIV FORCED CONTINUOUS MODE OR PULSE–SKIPPING 1A/DIV VOUT3 2V/DIV 4µs/DIV VIN = 5V VOUT = 9.5V NO LOAD FIGURE 10 CIRCUIT 7811 G16 GND 2ms/DIV VIN = 5V FIGURE 10 CIRCUIT 7811 G17 REGULATED FEEDBACK VOLTAGE (V) 1.207 1.204 1.201 1.198 1.195 1.192 1.189 1.186 1.183 –55 –25 5 35 65 95 TEMPERATURE (° C) 125 155 7811 G18 8 Rev. A For more information www.analog.com LTC7811 TYPICAL PERFORMANCE CHARACTERISTICS 40 800 SENSE1– CURRENT 700 30 20 10 0 –10 600 SENSE2– OR SENSE3+ CURRENT 500 400 300 200 –20 100 0 0.2 0.4 0.6 0.8 1.0 ITH VOLTAGE (V) 1.2 0 1.4 MODE = INTVCC 0 5 10 15 20 25 30 SENSE VOLTAGE (V) 35 7811 G19 800 60 40 30 20 10 500 400 300 200 SENSE1– = INTVCC–0.5V 100 4 2 0 –2 –25 5 35 65 95 TEMPERATURE (° C) 125 155 155 SENSE = 3.3V SENSE = 12V 0.0 SENSE = 1V –0.4 SENSE = 0V –1.0 –55 –25 5 35 65 95 TEMPERATURE (° C) 125 155 7811 G24 1.4 –60 –70 –100 40 MODE = INTVCC –0.2 1.6 PLLIN/SPREAD = INTVCC –50 35 Boost Boost Current ChannelMonitor CurrentVoltage Monitor Output vsVoltage Sense Voltage vs Sense FIGURE 14 CIRCUIT, VOUT = 5V –10 DETECTOR = PEAK–HOLD RBW = 5.1kHz –20 PLLIN/SPREAD = GND –30 –40 15 20 25 30 SENSE VOLTAGE (V) –0.8 SENSE2–,SENSE3+ = INTVCC–0.5V MODE = INTVCC VSENSE3+ = 12V 1.2 1.0 0.8 0.6 0.4 0.2 –90 125 10 –0.6 –80 –4 5 0.2 0 RFREQ=374k (100kHz) RFREQ=75k (500kHz) RFREQ=12.5k (3MHz) FREQ=GND (380kHz) FREQ=INTVCC (2.25MHz) 0 0.4 Output Voltage Noise Spectrum AMPLITUDE (dBm) CHANGE IN FREQUENCY (%) 0 7811 G23 Oscillator Frequency vs Temperature 5 35 65 95 TEMPERATURE (° C) 10 0.6 600 –100 –55 100 200 300 400 500 600 700 800 FEEDBACK VOLTAGE (mV) –25 20 0.8 7811 G22 –6 –55 30 1.0 SENSE = INTVCC+0.5V 0 6 40 + − SENSE1,2 SENSE1,2+ and and SENSE3 SENSE3– Input Input Current Current vs vs Temperature Temperature SENSE CURRENT (µA) 50 8 50 7811 G21 MODE = INTVCC 700 SENSE CURRENT (μA) MAXIMUM CURRENT SENSE THRESHOLD (mV) 900 10 60 + Input SENSE1,2– and SENSE3 SENSE1,2–, SENSE3+ Input Current vs Temperature Buck Foldback Current Limit 0 70 7811 G20 70 0 40 IMON3 OUTPUT VOLTAGE (V) –30 MAXIMUM CURRENT SENSE THRESHOLD (mV) 900 PULSE–SKIPPING Burst Mode OPERATION FORCED CONTINUOUS SENSE CURRENT (μA) CURRENT SENSE THRESHOLD (mV) 50 Maximum Current Sense Maximum vs Current Threshold Threshold SENSESense Common vs SENSE Common Mode Voltage Mode Voltage andSENSE3+ SENSE3+ Current Current SENSE1,2– and vs Voltage Current Sense Threshold Maximum Current Sense vs ITH Voltage Threshold vs ITH Voltage 1 1.5 2 2.5 3 3.5 4 4.5 FREQUENCY (MHz) 5 5.5 6 7811 G26 7811 G25 0 –30 –20 –10 0 10 20 30 40 VSENSE3+ – VSENSE3– (mV) 50 60 7811 G27 9 Rev. A For more information www.analog.com LTC7811 TYPICAL PERFORMANCE CHARACTERISTICS EXTVCC = 6V 4.8 EXTVCC = 5V 4.6 4.4 4.2 4.0 0 50 100 150 200 250 INTVCC LOAD CURRENT (mA) 5.2 5.0 4.8 EXTVCC RISING 4.6 1.18 1.16 1.14 1.12 1.10 25 125 125 20 15 0 –55 155 5 35 65 95 TEMPERATURE (° C) 125 –55 °C 25 °C 125 °C 150 °C 125 155 0 5 2.0 1.5 1.0 0 10 15 20 25 30 VBIAS INPUT VOLTAGE (V) 35 40 7811 G33 13.5 13.0 12.5 12.0 11.5 0 5 10 15 20 25 30 BATTSNS VOLTAGE (V) 35 40 7811 G35 7811 G34 10 2.0 14.0 0.5 9.2 5 35 65 95 TEMPERATURE ( °C) 3.0 TRACK/SS Pull–Up Pull-Up Current TRACK/SS Current vs Temperature Temperature vs TRACK/SS CURRENT (µA) 9.4 –25 4.0 0 155 VBIAS = RUN3 = 12V 2.5 BATTSNS CURRENT (μA) BATTSNS THRESHOLD (V) 3.0 9.6 9.0 –55 5.0 BATTSNS Pin Current vs Voltage 9.8 150°C –55°C 25°C 7811 G32 VBIAS = RUN3 = 12V 155 1.0 EXTVCC = 12V, SENSE1–=3.3V –25 125 6.0 BATTSNS Pin Current vs Voltage RISING FALLING 5 35 65 95 TEMPERATURE (° C) Shutdown Current VBIAS Voltage Input Voltage vs Input 7.0 EXTVCC = 0V, SENSE1–=3.3V 10 BATTSNS BATTSNS Thresholds Thresholds vs Temperature vs Temperature 10.0 –25 7811 G30 8.0 7811 G31 10.2 INTVCC FALLING 3.9 3.7 –55 155 EXTVCC = 0V, SENSE1–=0V 5 1.08 5 35 65 95 TEMPERATURE ( ° C) 5 35 65 95 TEMPERATURE ( ° C) ALL CHANNELS ON 35 SLEEP MODE VBIAS = 12V 30 VBIAS CURRENT (μA) RUN THRESHOLD (V) –25 40 1.20 –25 4.0 VBIAS BIAS Quiescent Current vs Temperature 1.22 1.06 –55 4.1 7811 G29 RISING FALLING 1.24 INTVCC RISING 4.2 3.8 7811 G28 RUN Pin Thresholds vs Temperature 1.26 EXTVCC FALLING 4.4 4.2 –55 300 4.3 INTVCC VOLTAGE UVLO THRESHOLD (V) EXTVCC = 0V 5.0 4.4 VBIAS CURRENT (μA) INTVCC VOLTAGE (V) 5.2 INTVCC Undervoltage Lockout INTV CC Undervoltage Lockout Thresholds Thresholds vs vs Temperature Temperature 5.4 VBIAS = 12V INTVCC OR EXTVCC VOLTAGE (V) 5.4 EXTV Switchover and INTV CC EXTVCC CC Switchover and INTVCC Voltage Voltage vs vs Temperature Temperature INTV Voltage vs Current INTVCC CC Voltage vs Current 11.0 –55 –25 5 35 65 95 TEMPERATURE (oC) 125 155 7811 G36 Rev. A For more information www.analog.com LTC7811 PIN FUNCTIONS MODE (Pin 1): Mode Select Input. This input, which acts on all three channels, determines how the LTC7811 operates at light loads. Pulling this pin to ground selects Burst Mode operation. An internal 100k resistor to ground also invokes Burst Mode operation when the pin is floating. Tying this pin to INTVCC forces continuous inductor current operation. Tying this pin to INTVCC through a 100k resistor selects pulse-skipping operation. TRACK/SS3, TRACK/SS2, SS1 (Pins 2, 15, 35): External Tracking and Soft-Start Input. For the buck channels, the LTC7811 regulates the VFB1,2 voltage to the lesser of 0.8V or the voltage on the TRACK/SS1,2 pin. For the boost channel, the LTC7811 regulates VFB3 to the lesser of 1.2V or the voltage on the SS3 pin. Internal 12.5µA pull-up current sources are connected to these pins. A capacitor to ground sets the startup ramp time to the final regulated output voltage. The ramp time is equal to 0.65ms for every 10nF of capacitance for the buck channels and 1ms for every 10nF for the boost channel. Alternatively, a resistor divider on another voltage supply connected to the TRACK/SS pins of the buck channels allows the LTC7811 output to track the other supply during startup. SENSE3+, SENSE2+, SENSE1+ (Pins 3, 12, 38): The Positive (+) Input to the Differential Current Comparators. The ITH pin voltage and controlled offsets between the SENSE– and SENSE+ pins in conjunction with RSENSE set the current trip threshold. For the boost channel, the SENSE3+ pin supplies current to the current comparator when it is greater than INTVCC. SENSE3–, SENSE2–, SENSE1– (Pins 4, 11, 39): The Negative (–) Input to the Differential Current Comparators. When SENSE1– is 3.2V or greater, it supplies the majority of the sleep mode quiescent current instead of VBIAS, further reducing the input-referred quiescent current. For the buck channels, the SENSE– pins supply current to the current comparators when they are greater than INTVCC. VFB3 (Pin 5): Boost Controller Feedback Input. When VPRG3 is floating, connect an external resistor divider between the boost output voltage and the VFB3 pin to set the regulated voltage. When VPRG3 is connected to ground or INTVCC, tie VFB3 directly to the boost converter output. ITH3, ITH2, ITH1 (Pins 6, 14, 36): Error Amplifier Outputs and Regulator Compensation Points. Each associated channel’s current comparator trip point increases with this control voltage. Place compensation components between the ITH pins and ground. IMON3 (Pin 7): Boost Channel Current Monitor. This pin generates a voltage between 0.4V and 1.4V that corresponds to the boost channel inductor current between zero current and full-load. Optionally place a capacitor from this pin to ground to average the current reading. RUN1, RUN2, RUN3 (Pins 8, 9, 10): Run Control Inputs for Each Controller. Forcing any of these pins below 1.1V disables switching of the corresponding controller. Forcing all of these pins below 0.7V shuts down the entire LTC7811, reducing the quiescent current to approximately 1.5µA. These pins can be tied to VIN or VBIAS for alwayson operation. VFB2, VFB1 (Pins 13, 37): Buck Controller Feedback Inputs. Connect an external resistor divider between the output voltage and the VFB pin to set the regulated output voltage. Tie VFB2 to INTVCC to configure the bucks for a two-phase single output application, in which both buck channels share VFB1, ITH1, and TRACK/SS1. VPRG3 (Pin 16): Boost Output Voltage Programming Pin. This pin sets the boost channel to adjustable output voltage or to a fixed output voltage. Floating this pin allows the boost channel output to be programmed through the VFB3 pin using external resistors, regulating VFB3 to the 1.2V reference. Connecting this pin to GND or INTVCC programs the boost channel output to 8V or 9.5V (respectively), with VFB3 directly connected to the output. BATTGOOD (Pin 17): Battery Monitor Open-Drain Logic Output. BATTGOOD is pulled to ground when the voltage on BATTSNS is below 9.5V, and becomes high impedance when BATTSNS exceeds 9.75V. Connect to ground if the battery monitor feature is not used. TG2, TG1 (Pins 18, 32): High Current Gate Drives for Top N-Channel MOSFETs. These are the outputs of floating drivers with a voltage swing of INTVCC superimposed on the switch node voltage SW. 11 Rev. A For more information www.analog.com LTC7811 PIN FUNCTIONS SW2, SW1 (Pins 19, 31): Switch Node Connections to Inductors. NC (Pins 27, 28): No Internal Connection. Float these pins or connect to ground. BOOST2, BOOST1 (Pins 20, 30): Bootstrapped Supplies to the Top Side Floating Drivers. Connect capacitors between the corresponding BOOST and SW pins for each channel. Also connect Schottky diodes between the BOOST1 and INTVCC pins, and BOOST2 and the INTVCC pins. Voltage swing at the BOOST1,2 pins is from INTVCC to (VIN+INTVCC). PGOOD1 (Pin 33): Open-Drain Power Good Output. The VFB1 pin is monitored to ensure that VOUT1 is in regulation. When VOUT1 is not within ±10% of its regulation point, the PGOOD1 pin is pulled low. BG2, BG3, BG1 (Pins 21, 25, 29): High Current Gate Drives for Bottom N-Channel MOSFETs. Voltage swing at these pins is from ground to INTVCC. INTVCC (Pin 22): Output of the Internal 5.1V Low Dropout Regulator. The driver and control circuits are powered by this supply. Must be decoupled to ground with a minimum of 4.7μF ceramic or tantalum capacitor. EXTVCC (Pin 23): External Power Input to an Internal LDO Connected to INTVCC. This LDO supplies INTVCC power, bypassing the internal LDO powered from VBIAS whenever EXTVCC is higher than 4.7V. See INTVCC Regulators in the Applications Information section. Do not exceed 30V on this pin. Connect this pin to ground if the EXTVCC LDO is not used. VBIAS (Pin 24): Main Bias Input Supply Pin. A bypass capacitor should be tied between this pin and ground. BATTSNS (Pin 26): Battery Monitor Input. Connect to a battery or other supply to use the battery monitor feature. When the voltage on this pin is below 9.5V, BATTGOOD is pulled to ground. Connect to ground if the battery monitor feature is not used. 12 PLLIN/SPREAD (Pin 34): External Synchronization Input and Spread Spectrum Selection. When an external clock is applied to this pin, the phase-locked loop will force the rising TG1 signal to be synchronized with the rising edge of the external clock. When an external clock is present, the regulators operate in pulse-skipping mode if it is selected by the MODE pin, or in forced continuous mode otherwise. When not synchronizing to an external clock, tie this input to INTVCC to enable spread spectrum dithering of the oscillator or to ground to disable spread spectrum. FREQ (Pin 40): Frequency Control Pin for the Internal Oscillator. Connect to ground to set the switching frequency to 380kHz. Connect to INTVCC to set the switching frequency to 2.25MHz. Frequencies between 100kHz and 3MHz can be programmed using a resistor between the FREQ pin and ground. Minimize the capacitance on this pin. GND (Exposed Pad Pin 41): Ground. Connects to the sources of bottom N-channel MOSFETs and the (–) terminal(s) of decoupling capacitors. The exposed pad must be soldered to PCB ground for rated electrical and thermal performance. Rev. A For more information www.analog.com LTC7811 FUNCTIONAL DIAGRAM BUCK CHANNELS 1 AND 2 INTVCC DB RUN BOOST ALLOFF 1.2V FREQ SPREAD SPECTRUM OSCILLATOR AND PLL PLLIN/SPREAD CLK1 S INTVCC R BG BOT 0.425V CIN SW SWITCH LOGIC TOP ON Q CB TG TOP DROPOUT DETECT CLK2 VIN1,2 GND SLEEP MODE L ICMP 100k RSENSE IR VOUT1,2 COUT VBIAS 2mV SENSE+ EXTVCC SENSE– SLOPE COMP 4.7V 5.1V INTVCC PGOOD1 EN EA VBIAS LDO EXTVCC LDO RB VFB EN 5.1V 0.8V RA OV 0.88V 0.88V CC2 12.5µA ITH CLAMP 1.4V RC ITH CC1 TRACK/SS VFB1 ALLOFF CSS 0.72V BOOST CHANNEL 3 BATTGOOD + – ALLOFF 9.75V BATTSNS VIN3 IMON3 CIN3 SLOPE COMP SENSE3+ ICMP 1.2V RUN3 + – + – L3 ALLOFF D3 MODE CLK1 S Q BOT ON SWITCH LOGIC ITH3 + – BOT 1.2V R2 1.32V ITH CLAMP RB3 VFB3 VPRG3 FLOAT GND INTVCC RA3 VPRG3 VOUT3 ADJUSTABLE 8V FIXED 9.5V FIXED RC3 ITH3 12.5µA 1.4V COUT3 GND EA + – BG3 SLEEP R1 OV VOUT3 INTVCC R 0.425V RSENSE3 SENSE3- CC4 SS3 ALLOFF CC3 CSS3 7811 FD 13 Rev. A For more information www.analog.com LTC7811 OPERATION (Refer to Functional Diagram) Main Control Loop The LTC7811 is a three-channel controller utilizing a constant frequency, peak current mode architecture. The two step-down (buck) synchronous controllers, channels 1 and 2, operate 180° out of phase with each other. The step-up (boost) non-synchronous controller, channel 3, operates in phase with channel 1. During normal operation, the main switch (external top MOSFET for the buck channels or the external bottom MOSFET for the boost channel) is turned on when the clock for that channel sets the SR latch, causing the inductor current to increase. The main switch is turned off when the main current comparator, ICMP, resets the SR latch. After the main switch is turned off each cycle, the synchronous switch (bottom MOSFET for the buck channels) is turned on which causes the inductor current to decrease until either the inductor current starts to reverse, as indicated by the current comparator IR, or the beginning of the next clock cycle. The peak inductor current at which ICMP trips and resets the latch is controlled by the voltage on the ITH pin, which is the output of the error amplifier EA. The error amplifier compares the output voltage feedback signal at the VFB pin, (which is generated with an external resistor divider connected across the output voltage, VOUT, to ground) to the internal reference voltage (0.8V for the bucks or 1.2V for the boost). When the load current increases, it causes a slight decrease in VFB relative to the reference, which causes the EA to increase the ITH voltage until the average inductor current matches the new load current. Power and Bias Supplies (VBIAS, EXTVCC, and INTVCC) The INTVCC pin supplies power for the top and bottom MOSFET drivers and most of the internal circuitry. LDOs (low dropout linear regulators) are available from both the VBIAS and EXTVCC pins to provide power to INTVCC, which has a regulation point of 5.1V. When the EXTVCC pin is left open or tied to a voltage less than 4.7V, the VBIAS LDO (low dropout linear regulator) supplies power to INTVCC. If EXTVCC is taken above 4.7V, the VBIAS LDO is turned off and an EXTVCC LDO is turned on. Once enabled, the EXTVCC LDO supplies power to INTVCC. Using the EXTVCC pin allows the INTVCC power to be derived from a high 14 efficiency external source such as one of the LTC7811 switching regulator outputs. Each top MOSFET driver is biased from the floating bootstrap capacitor CB, which normally recharges during each cycle through an external diode when the switch voltage goes low. For buck channels 1 and 2, if the buck’s input voltage decreases to a voltage close to its output, the loop may enter dropout and attempt to turn on the top MOSFET continuously. The dropout detector detects this and forces the top MOSFET off for a short time every tenth cycle to allow CB to recharge, resulting in a 99% duty cycle at 380kHz operation and approximately 98% duty cycle at 2MHz operation. Shutdown and Start-Up (RUN1, RUN2, RUN3 and TRACK/SS1, TRACK/SS2, SS3 Pins) The three channels of the LTC7811 can be independently shut down using the RUN1, RUN2 and RUN3 pins. Pulling a RUN pin below 1.1V shuts down the main control loop for that channel. Pulling all three pins below 0.7V disables all controllers and most internal circuits, including the INTVCC LDOs. In this state, the LTC7811 draws only 1.5μA of quiescent current. The RUN pins may be externally pulled up or driven directly by logic. Each pin can tolerate up to 40V (absolute maximum), so it can be conveniently tied to VBIAS or to an input supply in always-on applications where one or more controllers are enabled continuously and never shut down. Additionally, a resistive divider from the input supply to a RUN pin can be used to set a precise input undervoltage lockout so that the power supply does not operate below a user-adjustable level. The start-up of each channel’s output voltage VOUT is controlled by the voltage on the TRACK/SS pin (TRACK/ SS1 for channel 1, TRACK/SS2 for channel 2, SS3 for channel  3). When the voltage on the TRACK/SS pin is less than the internal reference voltage (0.8V for the bucks or 1.2V for the boost), the LTC7811 regulates the VFB voltage to the TRACK/SS pin voltage instead of the corresponding reference voltage. This allows the TRACK/SS Rev. A For more information www.analog.com LTC7811 OPERATION pin to be used as a soft-start which smoothly ramps the output voltage on startup, thereby limiting the input supply inrush current. An external capacitor from the TRACK/ SS pin to GND is charged by an internal 12.5μA pull-up current, creating a voltage ramp on the TRACK/SS pin. As the TRACK/SS voltage rises linearly from 0V to 0.8V/1.2V (and beyond), the output voltage VOUT rises smoothly from zero to its final value. Alternatively, the TRACK/SS pins for buck channels 1 and 2 can be used to make the start-up of VOUT track that of another supply. Typically this requires connecting to the TRACK/SS pin through an external resistor divider from the other supply to ground (see the Applications Information section). Light Load Operation: Burst Mode Operation, PulseSkipping, or Forced Continuous Mode (MODE Pin) The LTC7811 can be set to enter high efficiency Burst Mode operation, constant frequency pulse-skipping mode or forced continuous conduction mode at low load currents. To select Burst Mode operation, tie the MODE pin to ground. To select forced continuous operation, tie the MODE pin to INTVCC. To select pulse-skipping mode, tie the MODE pin to a DC voltage greater than 1.2V and less than INTVCC – 1.3V. An internal 100k resistor to ground invokes Burst Mode operation when the MODE pin is floating and pulse-skipping mode when the MODE pin is tied to INTVCC through an external 100k resistor. When the controllers are enabled for Burst Mode operation, the minimum peak current in the inductor is set to approximately 25% of its maximum value even though the voltage on the ITH pin might indicate a lower value. If the average inductor current is higher than the load current, the error amplifier EA will decrease the voltage on the ITH pin. When the ITH voltage drops below 0.425V, the internal sleep signal goes high (enabling sleep mode) and both external MOSFETs are turned off. The ITH pin is then disconnected from the output of the EA and parked at 0.45V. In sleep mode, much of the internal circuitry is turned off, reducing the quiescent current that the LTC7811 draws. If one channel is in sleep mode and the other two are shut down, the LTC7811 draws only 15μA of quiescent current. If all three channels are in sleep mode, the LTC7811 draws only 18µA of quiescent current. When VOUT on channel 1 is 3.2V or higher, the majority of this quiescent current is supplied by the SENSE1– pin, which further reduces the input-referred quiescent current by the ratio of VIN/VOUT multiplied by the efficiency. In sleep mode, the load current is supplied by the output capacitor. As the output voltage decreases, the EA’s output begins to rise. When the output voltage drops enough, the ITH pin is reconnected to the output of the EA, the sleep signal goes low, and the controller resumes normal operation by turning on the main switch on the next cycle of the internal oscillator. When a controller is enabled for Burst Mode operation, the inductor current is not allowed to reverse. The reverse current comparator (IR) turns off the synchronous switch just before the inductor current reaches zero, preventing it from reversing and going negative. Thus, the controller operates in discontinuous operation. In forced continuous operation for the synchronous buck channels the inductor current is allowed to reverse at light loads or under large transient conditions. The peak inductor current is determined by the voltage on the ITH pin, just as in normal operation. In this mode, the efficiency at light loads is lower than in Burst Mode operation. However, continuous operation has the advantage of lower output voltage ripple and less interference to audio circuitry. In forced continuous mode, the output ripple is independent of load current. The boost channel does not have a synchronous switch and therefore always operates in discontinuous operation at light load. When the MODE pin is connected for pulse-skipping mode, the LTC7811 operates in PWM pulse-skipping mode at light loads. In this mode, constant frequency operation is maintained down to approximately 1% of designed maximum output current. At very light loads, the current comparator ICMP may remain tripped for several cycles and force the main switch to stay off for the same 15 Rev. A For more information www.analog.com LTC7811 OPERATION number of cycles (i.e., skipping pulses). The inductor current is not allowed to reverse (discontinuous operation). This mode, like forced continuous operation, exhibits low output ripple as well as low audio noise and reduced RF interference as compared to Burst Mode operation. It provides higher low current efficiency than forced continuous mode, but not nearly as high as Burst Mode operation. Unlike forced continuous mode and pulse-skipping mode, Burst Mode cannot be synchronized to an external clock. Therefore, if Burst Mode is selected and the switching frequency is synchronized to an external clock applied to the PLLIN/SPREAD pin, the LTC7811 switches from Burst Mode to forced continuous mode. Frequency Selection, Spread Spectrum, and PhaseLocked Loop (FREQ and PLLIN/SPREAD Pins) The free running switching frequency of the LTC7811 controllers is selected using the FREQ pin. Tying FREQ to GND selects 380kHz while tying FREQ to INTVCC selects 2.25MHz. Placing a resistor between FREQ and GND allows the frequency to be programmed between 100kHz and 3MHz. Switching regulators can be particularly troublesome for applications where electromagnetic interference (EMI) is a concern. To improve EMI, the LTC7811 can operate in spread spectrum mode, which is enabled by tying the PLLIN/SPREAD pin to INTVCC. This feature varies the switching frequency within typical boundaries of −12% to ±15% of the frequency set by the FREQ pin. A phase-locked loop (PLL) is available on the LTC7811 to synchronize the internal oscillator to an external clock source connected to the PLLIN/SPREAD pin. The LTC7811’s PLL aligns the turn-on of controller 1’s external top MOSFET to the rising edge of the synchronizing signal. Thus, the turn-on of controller 2’s external top MOSFET is 180° out-of-phase to the rising edge of the external clock source. 16 The PLL frequency is prebiased to the free running frequency set by the FREQ pin before the external clock is applied. If prebiased near the external clock frequency, the PLL only needs to make slight changes in order to synchronize the rising edge of the external clock to the rising edge of TG1. For more rapid lock-in to the external clock, use the FREQ pin to set the internal oscillator to approximately the frequency of the external clock. The LTC7811’s PLL is guaranteed to lock to an external clock source whose frequency is between 100kHz and 3MHz. The PLLIN/SPREAD pin is TTL compatible with thresholds of 1.6V (rising) and 1.1V (falling) and is guaranteed to operate with a clock signal swing of 0.5V to 2.5V. Boost Controller at Low Input Voltage The LTC7811 features a rail-to-rail current comparator for the boost channel which functions down to zero volts. The minimum boost converter input voltage is therefore determined by the practical limitations of the boost converter architecture. Since the input voltage could be lower than the 4.5V VBIAS limit, VBIAS can be connected to the output of the boost controller, as illustrated in the typical application circuit in Figure 10. This allows the boost controller to handle very low input voltage transients while maintaining output voltage regulation. Buck Controller Output Overvoltage Protection The two buck channels have an overvoltage comparator that guards against transient overshoots as well as other more serious conditions that may overvoltage their outputs. When the VFB1,2 pin rises more than 10% above its regulation point of 0.8V, the top MOSFET is turned off and the bottom MOSFET is turned on until the overvoltage condition is cleared. Rev. A For more information www.analog.com LTC7811 OPERATION Buck Foldback Current Low Battery Indicator When the buck output voltage falls to less than 50% of its nominal level, foldback current limiting is activated, progressively lowering the peak current limit in proportion to the severity of the overcurrent or short-circuit condition. Foldback current limiting is disabled during the soft-start interval (as long as the VFB voltage is keeping up with the TRACK/SS1,2 voltage). There is no foldback current limiting for the boost channel. The BATTGOOD pin is connected to an open drain of an internal N-channel MOSFET that is pulled low when the voltage on the BATTSNS pin is low. When BATTSNS is below 9.5V, the MOSFET turns on and pulls the BATTGOOD pin low. When BATTSNS is greater than 9.75V, the MOSFET is turned off and the BATTGOOD pin is allowed to be pulled up by an external resistor to a source no greater than 6V, such as INTVCC. The BATTGOOD pin is also low when RUN3 is low (when the boost channel is shutdown). Channel 1 Power Good (PGOOD1) Channel 1 has a PGOOD1 pin that is connected to an open drain of an internal N-channel MOSFET. The MOSFET turns on and pulls the PGOOD1 pin low when the VFB1 pin voltage is not within ±10% of the 0.8V reference. The PGOOD1 pin is also pulled low when the RUN1 pin is low (shut down). When the VFB1 pin voltage is within the ±10% requirement, the MOSFET is turned off and the pin is allowed to be pulled up by an external resistor to a source no greater than 6V, such as INTVCC. 17 Rev. A For more information www.analog.com LTC7811 APPLICATIONS INFORMATION The Typical Application on the first page is a basic LTC7811 application circuit. External component selection is largely driven by the load requirement and begins with the selection of the inductor, current sense components, operating frequency, and light load operating mode. The remaining power stage components, consisting of the input and output capacitors, power MOSFETs, and boost channel catch diode can then be chosen. Next, feedback resistors are selected to set the desired output voltage. Then, the remaining external components are selected, such as for soft-start, biasing, and loop compensation. Inductor Value Calculation The operating frequency and inductor selection are interrelated in that higher operating frequencies allow the use of smaller inductor and capacitor values. So why would anyone ever choose to operate at lower frequencies with larger components? The answer is efficiency. A higher frequency generally results in lower efficiency because of MOSFET switching and gate charge losses. In addition to this basic trade-off, the effect of inductor value on ripple current and low current operation must also be considered. The inductor value has a direct effect on ripple current. For a buck regulator, the maximum average inductor current IL(MAX) is equal to the maximum output current. The peak current is equal to the average inductor current plus half of the inductor ripple current, ΔIL, which for a buck regulator decreases with higher inductance or higher frequency and increases with higher VIN: ΔIL = ⎛ V ⎞ 1 VOUT ⎜1− OUT ⎟ (f)(L) VIN ⎠ ⎝ For a boost regulator, the maximum average output current in continuous conduction mode is equal to the maximum average inductor current multiplied by a factor of VIN/VOUT, or IOUT(MAX) = IL(MAX) • VIN/VOUT. Be aware that the maximum output current from a boost regulator decreases with decreasing VIN. The choice of IL(MAX) therefore depends on the maximum load current for a regulated 18 VOUT at the minimum normal operating VIN. If the load current limit for a given VIN is exceeded, VOUT will decrease until the IOUT(MAX) = IL(MAX) • VIN/VOUT equation is satisfied. Additionally, when the output is in overvoltage (VIN > VOUT), the top switch is on continuously and the maximum load current is equal to IL(MAX). The inductor ripple current ΔIL for a boost regulator increases with higher VOUT: ΔIL = ⎛ 1 V ⎞ VIN ⎜1− IN ⎟ (f)(L) ⎝ VOUT ⎠ Accepting larger values of ΔIL allows the use of low inductances, but results in higher output voltage ripple and greater core losses. A reasonable starting point for setting ripple current is ΔIL = 0.3 • IL(MAX). The maximum ΔIL occurs at the maximum input voltage for a buck and at VIN = VOUT/2 for a boost. The inductor value also has secondary effects. The transition to Burst Mode operation begins when the average inductor current required results in a peak current below 25% of the current limit determined by RSENSE. Lower inductor values (higher ΔIL) will cause this to occur at lower load currents, which can cause a dip in efficiency in the upper range of low current operation. Inductor Core Selection Once the value for L is known, the type of inductor must be selected. High efficiency regulators generally cannot afford the core loss found in low cost powdered iron cores, forcing the use of more expensive ferrite or molypermalloy cores. Actual core loss is very dependent on inductance value selected. As inductance increases, core losses go down. Unfortunately, increased inductance requires more turns of wire and therefore copper losses will increase. Ferrite designs have very low core loss and are preferred for high switching frequencies, so design goals can concentrate on copper loss and preventing saturation. Ferrite core material saturates hard, which means that inductance collapses abruptly when the peak design current is Rev. A For more information www.analog.com LTC7811 APPLICATIONS INFORMATION exceeded. This results in an abrupt increase in inductor ripple current and consequent output voltage ripple. Do not allow the core to saturate! Current Sense Selection The LTC7811 can be configured to use either DCR (inductor resistance) sensing or low value resistor sensing. The choice between the two current sensing schemes is largely a design trade-off between cost, power consumption and accuracy. DCR sensing has become popular because it saves expensive current sensing resistors and is more power efficient, particularly in higher current and lower frequency applications. However, current sensing resistors provide the most accurate current limits for the controller. Other external component selection is driven by the load requirement, and begins with the selection of RSENSE (if RSENSE is used) and inductor value. The SENSE+ and SENSE– pins are the inputs to the current comparators. The common mode voltage range on these pins is 0V to 40V (absolute maximum), enabling the LTC7811 to regulate output voltages up to a maximum of 40V. The SENSE1+, SENSE2+, and SENSE3– pins are high impedance, drawing less than ≈1μA. This high impedance allows the current comparators to be used in inductor DCR sensing. The impedance of the SENSE1–, SENSE2–, and SENSE3+ pins changes depending on the common mode voltage. When less than INTVCC – 0.5V, these pins are relatively high impedance, drawing ≈ 1μA. When above INTVCC + 0.5V, a higher current (≈620μA) flows into each pin. Between INTVCC – 0.5V and INTVCC + 0.5V, the current transitions from the smaller current to the higher current. Channel 1’s SENSE1– pin has an additional ≈ 40μA current when its voltage is above 3.2V to bias internal circuitry from VOUT1, thereby reducing the input-referred supply current. Filter components mutual to the sense lines should be placed close to the LTC7811, and the sense lines should run close together to a Kelvin connection underneath the current sense element (shown in Figure 1). Sensing current elsewhere can effectively add parasitic inductance and capacitance to the current sense element, degrading the information at the sense terminals and making the programmed current limit unpredictable. If DCR sensing is used (Figure 2b), resistor R1 should be placed close to the switching node, to prevent noise from coupling into sensitive small signal nodes. TO SENSE FILTER NEXT TO THE CONTROLLER CURRENT FLOW INDUCTOR OR RSENSE 7811 F01 Figure 1. Sense Lines Placement with Inductor or Sense Resistor Low Value Resistor Current Sensing A typical sensing circuit using a discrete resistor is shown in Figure 2a. RSENSE is chosen based on the required output current. Each controller’s current comparator has a maximum threshold VSENSE(MAX) of 50mV. The current comparator threshold voltage sets the peak inductor current. Using the maximum inductor current (IL(MAX)) and ripple current (ΔIL) from the Inductor Value Calculation section, the target sense resistor value is: VSENSE(MAX) ΔI IL(MAX) + L 2 To ensure that the application will deliver full load current over the full operating temperature range, choose the minimum value for VSENSE(MAX) in the Electrical Characteristics table. RSENSE ≤ To avoid potential jitter or instability due to PCB noise coupling into the current sense signal, the AC current sensing ripple of ΔVSENSE = ΔIL • RSENSE should also be checked to ensure a good signal-to-noise ratio. In general, for a reasonably good PCB layout, a target ΔVSENSE voltage of 10mV to 20mV at nominal input voltage for the bucks and at 50% duty cycle for the boost is recommended for both RSENSE and DRC sensing applications. The parasitic inductance (ESL) of the sense resistor introduces significant error in the current sense signal for lower inductor value (5A) 19 Rev. A For more information www.analog.com LTC7811 APPLICATIONS INFORMATION applications. For a buck converter, this error is proportional to the input voltage and may degrade line regulation or cause loop instability. An RC filter into the sense pins, as shown in Figure 2a, can be used to compensate for this error. Set the RC filter time constant RF • CF = ESL/RSENSE for optimal cancellation of the ESL. In general, select CF to be in the range of 1nF to 10nF and calculate the corresponding RF. Surface mount sense resistors in low ESL wide footprint geometries are recommended to minimize this error. If not specified on the manufacturer's data sheet, the ESL can be approximated as 0.4nH for a resistor with a 1206 footprint and 0.2nH for a 1225 footprint. VIN1,2 (VOUT3) INTVCC LTC7811 TG SENSE RESISTOR WITH PARASITIC INDUCTANCE BOOST RSENSE L SW VOUT1,2 (VIN3) RF *CF = ESL/RSENSE POLE-ZERO CANCELLATION BG RF SENSE1,2+ (SENSE3–) ESL CF SENSE1, 2– (SENSE3+) PLACE RF AND CF NEAR SENSE PINS 7811 F02a (a) Using a Resistor to Sense Current Inductor DCR Current Sensing For applications requiring the highest possible efficiency at high load currents, the LTC7811 is capable of sensing the voltage drop across the inductor DCR, as shown in Figure 2b. The DCR of the inductor represents the small amount of DC winding resistance of the copper, which can be less than 1mΩ for today’s low value, high current inductors. In a high current application requiring such an inductor, power loss through a sense resistor would cost several points of efficiency compared to inductor DCR sensing. If the external (R1||R2) • C1 time constant is chosen to be exactly equal to the L/DCR time constant, the voltage drop across the external capacitor is equal to the drop across the inductor DCR multiplied by R2/(R1+R2). R2 scales the voltage across the sense terminals for applications where the DCR is greater than the target sense resistor value. To properly dimension the external filter components, the DCR of the inductor must be known. It can be measured using a good RLC meter, but the DCR tolerance is not always the same and varies with temperature; consult the manufacturers’ data sheets for detailed information. Using the maximum inductor current (IL(MAX)) and ripple current (ΔIL) from the Inductor Value Calculation section, the target sense resistor value is: RSENSE(EQUIV) ≤ 20 VSENSE(MAX) ΔI IL(MAX)+ L 2 VIN1,2 (VOUT3) INTVCC BOOST LTC7811 INDUCTOR TG L SW BG DCR VOUT1,2 (VIN3) R1 SENSE1, 2+ (SENSE3–) C1* SENSE1, 2– (SENSE3+) R2 GND 7811 F02b *PLACE C1 NEAR SENSE PINS (R1||R2) • C1 = L/DCR RSENSE(EQ) = DCR(R2/(R1+R2)) (b) Using the Inductor DCR to Sense Current VIN L VOUT3 LTC7811 BG RF SENSE3+ CF SENSE3- RF RSENSE 7811 F02c PLACE RF AND CF NEAR SENSE PINS (c) Boost Channel Low-Side Current Sensing Figure 2. Current Sensing Methods Rev. A For more information www.analog.com LTC7811 APPLICATIONS INFORMATION To ensure that the application will deliver full load current over the full operating temperature range, choose the minimum value for VSENSE(MAX) in the Electrical Characteristics table. R1. However, DCR sensing eliminates a sense resistor, reduces conduction losses and provides higher efficiency at heavy loads. Peak efficiency is about the same with either method. Next, determine the DCR of the inductor. When provided, use the manufacturer’s maximum value, usually given at 20°C. Increase this value to account for the temperature coefficient of copper resistance, which is approximately 0.4%/°C. A conservative value for TL(MAX) is 100°C. To scale the maximum inductor DCR to the desired sense resistor value, use the divider ratio: Boost Channel Low-Side Current Sensing RSENSE(EQUIV) RD = DCR at T MAX L(MAX) C1 is usually selected to be in the range of 0.1μF to 0.47μF. This forces R1||R2 to around 2k, reducing error that might have been caused by the SENSE+ pin’s ≈1μA current. The target equivalent resistance R1||R2 is calculated from the nominal inductance, C1 value, and DCR: R1! R2 = L (DCR at 20°C) • C1 Setting the Operating Frequency The sense resistor values are: R1= R1! R2 R1• RD ; R2 = RD 1−RD The maximum power loss in R1 is related to duty cycle. For the buck controllers, the maximum power loss occurs in continuous mode at the maximum input voltage: (VIN(MAX) − VOUT ) • VOUT PLOSS R1= R1 For the boost controller, the maximum power loss occurs in continuous mode at VIN = VOUT/2: PLOSS R1= The boost channel current sense resistor can alternatively be connected in series with the source of the bottom switch as shown in Figure 2c. In this configuration, the boost channel input voltage and output voltage are both limited only by external components. Be aware that the regulator may exhibit a slower transient response since the inductor current cannot be monitored when the bottom switch is off. Additionally, the SENSE3+ and SENSE3- pins must be differentially filtered to keep switching noise from corrupting the current sense signal. Typically, resistors in the range of 50Ω to 500Ω should be placed series with the SENSE pins, and a 1nF capacitor should be placed between SENSE3+ and SENSE3-, as close as possible to the LTC7811. The IMON3 boost channel current monitor feature is not compatible with low-side current sensing. (VOUT(MAX) − VIN ) • VIN R1 Ensure that R1 has a power rating higher than this value. If high efficiency is necessary at light loads, consider this power loss when deciding whether to use DCR sensing or sense resistors. Light load power loss can be modestly higher with a DCR network than with a sense resistor, due to the extra switching losses incurred through Selection of the operating frequency is a trade-off between efficiency and component size. High frequency operation allows the use of smaller inductor and capacitor values. Operation at lower frequencies improves efficiency by reducing gate charge and transition losses, but requires larger inductance values and/or more output capacitance to maintain low output ripple voltage. In higher voltage applications transition losses contribute more significantly to power loss, and a good balance between size and efficiency is generally achieved with a switching frequency between 300kHz and 900kHz. Lower voltage applications benefit from lower switching losses and can therefore more readily operate at higher switching frequencies up to 3MHz if desired. A further constraint on the operating frequency is due to the maximum duty cycle of the boost channel. The maximum duty cycle, which can be approximated as DCMAX≈(1-VIN(MIN)/VOUT3)*100%, is limited as shown in Figure 3a. At low frequencies, the output will dropout if the required duty cycle is higher than 93%. At high frequencies, the maximum duty cycle available to 21 Rev. A For more information www.analog.com LTC7811 APPLICATIONS INFORMATION 100 BOOST MAXIMUM DUTY CYCLE (%) maintain constant frequency operation is reduced further. In this region, if a higher duty cycle is required to keep the output voltage in regulation, the controller will keep the bottom MOSFET (BG3) on for more than one clock cycle to achieve the higher duty cycle at an effectively lower frequency. Choose a frequency that limits the maximum duty cycle to a value lower than the curve shown in Figure 3a. The switching frequency is set using the FREQ and PLLIN/ SPREAD pins as shown in Table 1. PLLIN/SPREAD PIN FREQUENCY 0V 0V 380kHz 85 80 75 INTVCC 0V 2.25MHz Resistor to GND 0V 100kHz to 3MHz Any of the Above External Clock 100kHz to 3MHz Phase-Locked to External Clock Any of the Above INTVCC Spread Spectrum Modulated Tying the FREQ pin to ground selects 380kHz while tying FREQ to INTVCC selects 2.25MHz. Placing a resistor between FREQ and ground allows the frequency to be programmed anywhere between 100kHz and 3MHz. Choose a FREQ pin resistor from Figure 3b or the following equation: 70 1M FREQUENCY (Hz) 3M (a) Relationship Between Oscillator Frequency and Boost Channel Maximum Duty Cycle 10M 1M 100k 10k 37MHz RFREQ (in kΩ)= fOSC 77.5% at 2.25MHz 7811 F03a FREQUENCY (Hz) FREQ PIN 100k FREQ PIN RESISTOR (Ω) 500k 7811 F03b To improve electromagnetic interference (EMI) performance, spread spectrum mode can optionally be selected by tying the PLLIN/SPREAD pin to INTVCC. When spread spectrum is enabled, the switching frequency modulates −12% to +15% of the frequency selected by the FREQ pin. Spread spectrum may be used in any operating mode selected by the MODE pin (Burst Mode, pulse-skipping, or forced continuous mode). A phase-locked loop (PLL) is also available on the LTC7811 to synchronize the internal oscillator to an external clock source connected to the PLLIN/SPREAD pin. After the PLL locks, TG1 is synchronized to the rising edge of the external clock signal, and TG2 is 180° out of phase from TG1. See the Phase-Locked Loop and Frequency Synchronization section for details. 22 90 65 100k Table 1. 95 (b) Relationship Between Oscillator Frequency and Resistor Value at the FREQ Pin Figure 3. Setting the Operating Frequency Selecting the Light-Load Operating Mode The LTC7811 can be set to enter high efficiency Burst Mode operation, constant frequency pulse-skipping mode or forced continuous conduction mode at light load currents. To select Burst Mode operation, tie the MODE to ground. To select forced continuous operation, tie the MODE pin to INTVCC. To select pulse-skipping mode, tie the MODE pin to INTVCC through a 100k resistor. An internal 100k resistor from the MODE pin to ground selects Burst Mode if the pin is floating. When synchronized to Rev. A For more information www.analog.com LTC7811 APPLICATIONS INFORMATION an external clock through the PLLIN/SPREAD pin, the LTC7811 operates in pulse skipping mode if it is selected, or in forced continuous mode otherwise. Table 2 summarizes the use of the MODE pin to select the light load operating mode. Table 2. MODE PIN LIGHT-LOAD OPERATING MODE MODE WHEN SYNCHRONIZED 0V or Floating Burst Mode Forced Continuous 100k to INTVCC Pulse-Skipping Pulse-Skipping INTVCC Forced Continuous Forced Continuous In general, the requirements of each application will dictate the appropriate choice for light-load operating mode. In Burst Mode operation, the inductor current is not allowed to reverse. The reverse current comparator turns off the bottom MOSFET just before the inductor current reaches zero, preventing it from reversing and going negative. Thus, the regulator operates in discontinuous operation. In addition, when the load current is very light, the inductor current will begin bursting at frequencies lower than the switching frequency, and enter a low current sleep mode when not switching. As a result, Burst Mode operation has the highest possible efficiency at light load. In forced continuous mode, the inductor current is allowed to reverse on the buck channels at light loads and switches at the same frequency regardless of load. In this mode, the efficiency at light loads is considerably lower than in Burst Mode operation. However, continuous operation has the advantage of lower output voltage ripple and less interference to audio circuitry. In forced continuous mode, the output ripple is independent of load current for the buck channels. The inductor current for the boost channel cannot reverse since it does not have a synchronous switch and therefore always operates in discontinuous operation at light load. In pulse-skipping mode, constant frequency operation is maintained down to approximately 1% of designed maximum output current. At very light loads, the PWM comparator may remain tripped for several cycles and force the main switch (top MOSFET for the bucks, bottom MOSFET for the boost) to stay off for the same number of cycles (i.e., skipping pulses). The inductor current is not allowed to reverse (discontinuous operation). This mode, like forced continuous operation, exhibits low output ripple as well as low audio noise and reduced RF interference as compared to Burst Mode operation. It provides higher light load efficiency than forced continuous mode, but not nearly as high as Burst Mode operation. Consequently, pulse-skipping mode represents a compromise between light load efficiency, output ripple and EMI. In some applications, it may be desirable to change light load operating mode based on the conditions present in the system. For example, if a system is inactive, one might select high efficiency Burst Mode operation by keeping the MODE pin set to 0V. When the system wakes, one might send an external clock to PLLIN/SPREAD, or tie MODE to INTVCC to switch to low noise forced continuous mode. Such on-the-fly mode changes can allow an individual application to benefit from the advantages of each light load operating mode. Power MOSFET Selection External power MOSFETs must be selected for each controller in the LTC7811: N-channel MOSFETs for the buck top main switches, and N-channel MOSFETs for the bottom switches (main switch for the boost, synchronous for the buck). The peak-to-peak gate drive levels are set by the INTVCC regulation point of 5.1V. Consequently, logic level threshold MOSFETs must be used in most applications. Pay close attention to the BVDSS specification for the MOSFETs as well; many of the logic level MOSFETs are limited to 30V or less. Selection criteria for the power MOSFETs include the on resistance RDS(ON), Miller capacitance CMILLER, input voltage and maximum output current. Miller capacitance, CMILLER, can be approximated from the gate charge curve usually provided on the MOSFET manufacturers’ data sheet. CMILLER is equal to the increase in gate charge along the horizontal axis while the curve is approximately flat divided by the specified change in VDS. This result is then multiplied by the ratio of the application applied VDS to the gate charge curve specified VDS. When the IC is 23 Rev. A For more information www.analog.com LTC7811 APPLICATIONS INFORMATION operating in continuous mode the duty cycles for the top and bottom MOSFETs are given by: Buck Main Switch Duty Cycle = VOUT VIN Buck Sync Switch Duty Cycle = VIN − VOUT VIN Boost Main Switch Duty Cycle = VOUT − VIN VOUT For a buck converter, the MOSFET power dissipations at maximum output current are given by: PMAIN_BUCK = ( VOUT I VIN OUT(MAX) ) (1+ δ )RDS(ON) + 2 ⎛ IOUT(MAX) ⎞ (VIN )2 ⎜ ⎟⎠ (RDR )(CMILLER ) • 2 ⎝ ⎡ 1 1 ⎤ + ⎢ ⎥ (f) ⎣ VINTVCC − VTHMIN VTHMIN ⎦ V −V PSYNC_BUCK = IN OUT IOUT(MAX) VIN ( ) (1+ δ )RDS(ON) 2 Similarly, for a boost converter: PMAIN_BOOST = ( VOUT − VIN ) VOUT VIN 2 (IOUT(MAX) ) 2 • ⎛ VOUT3 ⎞ ⎛ IOUT(MAX) ⎞ (1+ δ )RDS(ON) + ⎜ ⎟⎜ ⎟⎠ • 2 ⎝ VIN ⎠ ⎝ ⎡ 1 1 ⎤ + (RDR )(CMILLER ) • ⎢ V ⎥ (f) ⎣ INTVCC − VTHMIN VTHMIN ⎦ where δ is the temperature dependency of RDS(ON) (δ ≈ 0.005/°C) and RDR is the effective driver resistance at the MOSFET’s Miller threshold voltage (RDR≈2Ω). VTHMIN is the typical MOSFET minimum threshold voltage. Both MOSFETs have I2R losses while the main N channel equations for the buck and boost controllers include an additional term for transition losses, which are highest at high input voltages for the bucks and high output 24 voltages for the boost. For VIN < 20V for the bucks (or VOUT  20V for the bucks (VOUT > 20V for the boost) the transition losses rapidly increase to the point that the use of a higher RDS(ON) device with lower CMILLER actually provides higher efficiency. The synchronous MOSFET losses for the buck controllers are greatest at high input voltage when the top switch duty factor is low or during a short-circuit when the synchronous switch is on close to 100% of the period. Boost Output Diode Selection The output diode in a boost converter conducts current during the switch off-time. To maximize efficiency, select a fast switching diode with low forward drop and low reverse leakage. The peak reverse voltage that the diode must withstand is equal to the maximum output voltage. When the boost converter is switching, the peak current in the diode is VSENSE(MAX)/RSENSE, with VSENSE(MAX) equal to the upper limit of 55mV. Maximum power dissipation occurs in the diode when the input voltage is greater than the output voltage regulation set point. In this case, the main switch does not turn on and the maximum average current through the diode is equal to the maximum output current. The maximum power dissipation is therefore PD = IOUT3(MAX)•VF where VF is the forward voltage drop of the diode. When the boost channel output is connected as the input for the buck channels, the power dissipation in the output diode is: PD = VF ⎛ VOUT1•IOUT1 VOUT2 •IOUT2 ⎞ + ⎜ ⎟ VOUT3 ⎝ η1 η2 ⎠ where η1 and η2 are the efficiencies of channel 1 and channel 2, respectively. The power dissipation is greatest when both channels 1 and 2 are operating at maximum load current and VOUT3 is just above its regulation point. Boost CIN and COUT Selection The input ripple current in a boost converter is relatively low (compared to the output ripple current) because this current is continuous. The boost input capacitor CIN voltage rating should comfortably exceed the maximum input Rev. A For more information www.analog.com LTC7811 APPLICATIONS INFORMATION voltage. Although ceramic capacitors can be relatively tolerant of overvoltage conditions, aluminum electrolytic capacitors are not. Be sure to characterize the input voltage for any possible overvoltage transients that could apply excess stress to the input capacitors. The value of CIN is a function of the source impedance, and in general, the higher the source impedance, the higher the required input capacitance. The required amount of input capacitance is also greatly affected by the duty cycle. High output current applications that also experience high duty cycles can place great demands on the input supply, both in terms of DC current and ripple current. The output current in a boost converter is discontinuous, so COUT should be selected to meet output voltage ripple requirements. The effects of ESR (equivalent series resistance) and the bulk capacitance must be considered when choosing the right capacitor for a given output ripple voltage. The ripple due to charging and discharging the bulk capacitance of COUT is given by: Ripple = ( IOUT(MAX) • VOUT − VIN(MIN) COUT • VOUT • f )V The ripple due to the voltage drop across the ESR is given by: ⎛ 1 ⎞ ΔVESR = ⎜IL(MAX) + ΔIL ⎟•ESR ⎝ ⎠ 2 Multiple capacitors placed in parallel may be needed to meet the ESR and RMS current handling requirements. Dry tantalum, special polymer, aluminum electrolytic and ceramic capacitors are all available in surface mount packages. Ceramic capacitors have excellent low ESR characteristics but can have a high voltage coefficient. Capacitors are now available with low ESR and high ripple current ratings such as OS-CON and POSCAP. Buck CIN and COUT Selection The selection of CIN for the two buck controllers is simplified by the two-phase architecture and its impact on the worst-case RMS current drawn through the input network (battery/fuse/capacitor). It can be shown that the worst-case capacitor RMS current occurs when only one controller is operating. The controller with the highest VOUT  •  IOUT product needs to be used in the formula shown in Equation 1 to determine the maximum RMS capacitor current requirement. Increasing the output current drawn from the other controller will actually decrease the input RMS ripple current from its maximum value. The out-of-phase technique typically reduces the input capacitor’s RMS ripple current by a factor of 30% to 70% when compared to a single phase power supply solution. In continuous mode, the source current of the top MOSFET is a square wave of duty cycle VOUT/VIN. To prevent large voltage transients, a low ESR capacitor sized for the maximum RMS current of one channel must be used. At maximum load current IMAX, the maximum RMS capacitor current is given by: IMAX C Required I ⎡⎣( VOUT ) ( VIN − VOUT )⎤⎦1/2 IN RMS ≈ VIN This formula has a maximum at VIN = 2VOUT, where IRMS = IOUT/2. This simple worst-case condition is commonly used for design because even significant deviations do not offer much relief. Note that capacitor manufacturers’ ripple current ratings are often based on only 2000 hours of life. This makes it advisable to further derate the capacitor, or to choose a capacitor rated at a higher temperature than required. Several capacitors may be paralleled to meet size or height requirements in the design. Due to the high operating frequency of the LTC7811, ceramic capacitors can also be used for CIN. Always consult the manufacturer if there is any question. The benefit of the LTC7811 two-phase operation can be calculated by using this equation for the higher power controller and then calculating the loss that would have resulted if both controller channels switched on at the same time. The total RMS power lost is lower when both controllers are operating due to the reduced overlap of current pulses required through the input capacitor’s ESR. This is why the input capacitor’s requirement calculated above for the worst-case controller is adequate for the dual controller design. Also, the input protection fuse resistance, battery resistance, and PC board trace resistance losses are also reduced due to the reduced peak currents in a two-phase system. The overall benefit 25 Rev. A For more information www.analog.com LTC7811 APPLICATIONS INFORMATION of a multiphase design will only be fully realized when the source impedance of the power supply/battery is included in the efficiency testing. The drains of the top MOSFETs should be placed within 1cm of each other and share a common CIN(s). Separating the drains and CIN may produce undesirable resonances at VIN. A small (0.1μF to 1μF) bypass capacitor between the chip VBIAS pin and ground, placed close to the LTC7811, is also suggested. An optional 1Ω to 10Ω resistor placed between CIN and the VBIAS pin provides further isolation from a noisy input supply. The selection of COUT is driven by the effective series resistance (ESR). Typically, once the ESR requirement is satisfied, the capacitance is adequate for filtering. The output ripple (ΔVOUT) is approximated by: ⎛ 1 ⎞ ΔVOUT ≈ ΔIL ⎜ESR + ⎟ 8fCOUT ⎠ ⎝ Place resistors RA and RB very close to the VFB pin to minimize PCB trace length and noise on the sensitive VFB node. Great care should be taken to route the VFB trace away from noise sources, such as the inductor or the SW trace. To improve frequency response, a feedforward capacitor (CFF) may be used. For applications with multiple output voltage levels, select channel 1 to be the lowest output voltage that is greater than 3.2V. When the SENSE1– pin (connected to VOUT1) is above 3.2V, it biases some internal circuitry instead of VBIAS, thereby increasing light load Burst Mode efficiency. Similarly, connect EXTVCC to the lowest output voltage that is greater than the 4.8V maximum EXTVCC rising switch-over threshold. EXTVCC then supplies the high current gate drivers and relieves additional quiescent current from VBIAS, further reducing the VBIAS pin current to ≈1μA in sleep. Setting Boost Output Voltage (VPRG3 Pin) where f is the operating frequency, COUT is the output capacitance and ΔIL is the ripple current in the inductor. The output ripple is highest at maximum input voltage since ΔIL increases with input voltage. Setting the Buck Output Voltage The LTC7811 output voltages for the buck channels are each set by an external feedback resistor divider carefully placed across the output, as shown in Figure 4 The regulated output voltage is determined by: ⎛ R ⎞ VOUT, BUCK = 0.8V ⎜1+ B ⎟ ⎝ RA ⎠ The VPRG3 pin selects whether the boost controller output voltage is set by an external feedback resistor divider or programmed to a fixed 8V or 9.5V output. Floating VPRG3 allows the boost output voltage to be set by an external feedback resistor divider as shown in Figure 5a. The regulated output voltage is then determined by: ⎛ R ⎞ VOUT, BOOST = 1.195V ⎜1+ B ⎟ ⎝ RA ⎠ Tying the VPRG3 to GND or INTVCC configures the boost controller for a fixed output voltage of 8V or 9.5V, respectively. As shown in Figure 5b, directly connect VFB3 to the output when configured for a fixed output voltage. RUN Pins and Undervoltage Lockout VOUT 1/3 LTC7811 RB CFF VFB RA 7811 F04 Figure 4. Setting Buck Output Voltage 26 The three channels of the LTC7811 are enabled using the RUN1, RUN2, and RUN3 pins. The RUN pins have a rising threshold of 1.2V with 100mV of hysteresis. Pulling a RUN pin below 1.1V shuts down the main control loop and resets the soft-start for that channel. Pulling all three RUN pins below 0.7V disables the controllers and most internal circuits, including the INTVCC LDOs. In this state, the LTC7811 draws only ≈1.5μA of quiescent current. Rev. A For more information www.analog.com LTC7811 APPLICATIONS INFORMATION VOUT3 LTC7811 (FLOAT) RB CFF VPRG3 VFB3 RA 7811 F05a (a) Setting Boost Output Using External Resistors Soft-Start and Tracking (TRACK/SS1, TRACK/SS2, SS3 Pins) LTC7811 GND/INTVCC VPRG3 VFB3 COUT VOUT3 8V/9.5V 7811 F05b (b) Setting Boost to Fixed 8V/9.5V Output Figure 5. Setting Boost Output Voltage The RUN pins are high impedance and must be externally pulled up/down or driven directly by logic. Each RUN pin can tolerate up to 40V (absolute maximum), so it can be conveniently tied to VBIAS in always-on applications where the controller is enabled continuously and never shut down. Do not float the RUN pins. The RUN pins can also be configured as precise undervoltage lockouts (UVLOs) on a supply such as VBIAS or VOUT3 with a resistor divider from the supply to ground. For example, a simple resistor divider can be used as shown in Figure 6 to satisfy a VBIAS UVLO requirement. VBIAS 1/3 LTC7811 The current that flows through the R1-R2 divider directly adds to the shutdown, sleep, and active current of the LTC7811, and care should be taken to minimize the impact of this current on the overall efficiency of the application circuit. Resistor values in the MΩ range may be required to keep the impact on quiescent shutdown and sleep currents low. R1 RUN R2 7811 F06 Figure 6. Using the RUN Pins as a UVLO The VBIAS UVLO thresholds can be computed as: ⎛ R1 ⎞ UVLO Rising =1.2V ⎜1+ ⎟ ⎝ R2 ⎠ ⎛ R1 ⎞ UVLO Falling =1.1V ⎜1+ ⎟ ⎝ R2 ⎠ The start-up of each VOUT is controlled by the voltage on the TRACK/SS pin (TRACK/SS1 for channel 1, TRACK/ SS2 for channel 2, SS3 for channel 3). When the voltage on the TRACK/SS pin is less than the internal 0.8V reference (1.2V reference for the boost channel), the LTC7811 regulates the VFB pin voltage to the voltage on the TRACK/ SS pin instead of the internal reference. The TRACK/SS pin can be used to program an external soft-start function or to allow VOUT to track another supply during start-up. Soft-start is enabled by simply connecting a capacitor from the TRACK/SS pin to ground. An internal 12.5μA current source charges the capacitor, providing a linear ramping voltage at the TRACK/SS pin. The LTC7811 will regulate its feedback voltage (and hence VOUT) according to the voltage on the TRACK/SS pin, allowing VOUT to rise smoothly from 0V to its final regulated value. For a desired soft-start time, tSS, select a soft-start capacitor CSS = tSS • 15μF/sec for the buck channels and CSS = tSS • 10μF/ sec for the boost channel. Alternatively, the TRACK/SS1 and TRACK/SS2 pins can be used to track two or more supplies during start-up, as shown qualitatively in Figure 7a and Figure 7b. To do this, a resistor divider should be connected from the master supply (VX) to the TRACK/SS pin of the slave supply (VOUT), as shown in Figure 8. During start-up VOUT will track VX according to the ratio set by the resistor divider: R +R VX RA = • TRACKA TRACKB VOUT R TRACKA R A +RB Set RTRACKA = RA and RTRACKB = RB for coincident tracking (VOUT = VX during start-up). 27 Rev. A For more information www.analog.com LTC7811 APPLICATIONS INFORMATION OUTPUT (VOUT) VX(MASTER) VOUT(SLAVE) TIME 7811 F07a INTVCC Regulators (a) Coincident Tracking The LTC7811 features two separate internal low dropout linear regulators (LDOs) that supply power at the INTVCC pin from either the VBIAS pin or the EXTVCC pin depending on the EXTVCC pin voltage. INTVCC powers the MOSFET gate drivers and most of the internal circuitry. The VBIAS LDO and the EXTVCC LDO each regulate INTVCC to 5.1V and can provide a peak current of at least 100mA. OUTPUT (VOUT) VX(MASTER) VOUT(SLAVE) TIME 7811 F07b (b) Ratiometric Tracking Figure 7. Two Different Modes of Output Voltage Tracking VOUT RB VFB VX RA LTC7811 RTRACKB TRACK/SS1,2 RTRACKA 7811 F08 Figure 8. Using the TRACK/SS Pin for Tracking Single Output Two-Phase Operation For high power applications, the two buck channels can be operated in a two-phase single output configuration. The buck channels switch 180° out-of-phase, which reduces the required output capacitance in addition to 28 the required input capacitance and power supply induced noise. To configure the LTC7811 for two-phase operation, tie VFB2 to INTVCC, ITH2 to ground, and RUN2 to RUN1. The RUN1, VFB1, ITH1, TRACK/SS1 pins are then used to control both buck channels, but each channel uses its own ICMP and IR comparators to monitor their respective inductor currents. Figure 11 is a typical application configured for single output two-phase operation. The INTVCC pin must be bypassed to ground with a minimum of 4.7μF ceramic capacitor, placed as close as possible to the pin. An additional 1μF ceramic capacitor placed directly adjacent to the INTVCC and GND pins is also highly recommended to supply the high frequency transient currents required by the MOSFET gate drivers. High input voltage applications in which large MOSFETs are being driven at high frequencies may cause the maximum junction temperature rating for the LTC7811 to be exceeded. The INTVCC current, which is dominated by the gate charge current, may be supplied by either the VBIAS LDO or the EXTVCC LDO. When the voltage on the EXTVCC pin is less than 4.7V, the VBIAS LDO is enabled. Power dissipation for the IC in this case is equal to VBIAS • IINTVCC. The gate charge current is dependent on operating frequency as discussed in the Efficiency Considerations section. The junction temperature can be estimated by using the equations given in Note 2 of the Electrical Characteristics. For example, the LTC7811 INTVCC current is limited to less than 46mA from a 36V supply when not using the EXTVCC supply at a 70°C ambient temperature: TJ = 70°C + (46mA)(36V)(33°C/W) = 125°C To prevent the maximum junction temperature from being exceeded, the input supply current must be Rev. A For more information www.analog.com LTC7811 APPLICATIONS INFORMATION checked while operating in continuous conduction mode (MODE = INTVCC) at maximum VBIAS. When the voltage applied to EXTVCC rises above 4.7V (typical), the VBIAS LDO is turned off and the EXTVCC LDO is enabled. The EXTVCC LDO remains on as long as the voltage applied to EXTVCC remains above 4.5V. The EXTVCC LDO attempts to regulate the INTVCC voltage to 5.1V, so while EXTVCC is less than 5.1V, the LDO is in dropout and the INTVCC voltage is approximately equal to EXTVCC. When EXTVCC is greater than 5.1V (up to an absolute maximum of 30V), INTVCC is regulated to 5.1V. Using the EXTVCC LDO allows the MOSFET driver and control power to be derived from one of the LTC7811’s switching regulator outputs (4.8V ≤ VOUT ≤ 30V) during normal operation and from the VBIAS LDO when the output is out of regulation (e.g., start-up, short-circuit). If more current is required through the EXTVCC LDO than is specified, an external Schottky diode can be added between the EXTVCC and INTVCC pins. In this case, do not apply more than 6V to the EXTVCC pin. Significant efficiency and thermal gains can be realized by powering INTVCC from a buck output, since the VIN current resulting from the driver and control currents will be scaled by a factor of VOUT/(VIN • Efficiency). For 5V to 30V regulator outputs, this means connecting the EXTVCC pin directly to VOUT. Tying the EXTVCC pin to an 8.5V supply reduces the junction temperature in the previous example from 125°C to: TJ = 70°C + (46mA)(8.5V)(33°C/W) = 83°C However, for 3.3V and other low voltage outputs, additional circuitry is required to derive INTVCC power from the output. The following list summarizes the four possible connections for EXTVCC: 1. EXTVCC grounded. This will cause INTVCC to be powered from the internal VBIAS LDO resulting in an efficiency penalty of up to 10% or more at high input voltages. 2. EXTVCC connected directly to one of the buck regulator outputs. This is the normal connection for an application with an output in the range of 5V to 30V and provides the highest efficiency. If both buck outputs are in the 5V to 30V range, connect EXTVCC to the lesser of the two outputs to maximize efficiency. 3. EXTVCC connected to an external supply. If an external supply is available, it may be used to power EXTVCC provided that it is compatible with the MOSFET gate drive requirements. This supply may be higher or lower than VBIAS; however, a lower EXTVCC voltage results in higher efficiency. 4. EXTVCC connected to an output-derived boost or charge pump. For regulators where both of the buck channel outputs are below 5V, efficiency gains can still be realized by connecting EXTVCC to an output-derived voltage that has been boosted to greater than 4.8V. Buck Topside MOSFET Driver Supply (CB, DB) External bootstrap capacitors CB connected to the BOOST pins supply the gate drive voltages for the topside MOSFETs. Capacitor CB in the Functional Diagram is charged though external diode DB from INTVCC when the SW pin is low. When one of the topside MOSFETs is to be turned on, the driver places the CB voltage across the gate-source of the desired MOSFET. This enhances the MOSFET and turns on the topside switch. The switch node voltage, SW, rises to VIN and the BOOST pin follows. With the topside MOSFET on, the boost voltage is above the input supply: VBOOST = VIN + VINTVCC. The value of the boost capacitor CB needs to be 100 times that of the total input capacitance of the topside MOSFET(s). For a typical application, a value of CB = 0.1μF is generally sufficient. The external diode DB can be a Schottky diode or silicon diode, but in either case it should have low leakage and fast recovery. The reverse breakdown of the diode must be greater than VIN(MAX). Pay close attention to the reverse leakage at high temperatures where it generally increases substantially. 29 Rev. A For more information www.analog.com LTC7811 APPLICATIONS INFORMATION A leaky diode not only increases the quiescent current of the buck converter, but it can create current path from the BOOST pin to INTVCC. This will cause INTVCC to rise if the diode leakage exceeds the current consumption on INTVCC, which is primarily a concern in Burst Mode operation where the load on INTVCC can be very small. There is an internal voltage clamp on INTVCC that prevents the INTVCC voltage from running away, but this clamp should be regarded as a failsafe only. Minimum On-Time Considerations Minimum on-time tON(MIN) is the smallest time duration that the LTC7811 is capable of turning on the top MOSFET (or bottom MOSFET for the boost controller). It is determined by internal timing delays and the gate charge required to turn on the MOSFET. Low duty cycle applications may approach this minimum on-time limit and care should be taken to ensure that: tON(MIN)_BUCK < VOUT VIN • fOSC tON(MIN)_BOOST < VOUT − VIN VOUT • fOSC represents a scaled and filtered version of the inductor current sensed through the SENSE3+ and SENSE3– pins. The DC voltage on IMON3 normally varies between 0.4V and 1.4V, corresponding to a sensed inductor current IL between 0% and 100% of the maximum designed inductor current IL(MAX): VIMON3 =1V • IL IL(MAX) +0.4V The IMON3 voltage may momentarily be less than 0.4V or greater than 1.4V, but eventually is limited to these levels by the current loop. When all three channels are in Sleep, this pin is held at 0.4V. An internal 30k resistor is in series with the IMON3 buffer to facilitate filtering of the sensed inductor current ripple. Place a capacitor from IMON3 to ground to filter the ripple and achieve an average current measurement over multiple switching cycles. Be aware that the current monitor relies on a continuous measurement of the inductor current through the sense pins. It is therefore not compatible with the low-side current sensing configuration shown in Figure 2c. Fault Conditions: Buck Current Limit and Foldback If the duty cycle falls below what can be accommodated by the minimum on-time, the controller will begin to skip cycles. The output voltage will continue to be regulated, but the ripple voltage and current will increase. The minimum on-time for the LTC7811 is approximately 40ns for the bucks and 80ns for the boost. However, as the peak sense voltage decreases the minimum on-time for the bucks gradually increases up to about 60ns. This is of particular concern in forced continuous applications with low ripple current at light loads. If the duty cycle drops below the minimum on-time limit in this situation, a significant amount of cycle skipping can occur with correspondingly larger current and voltage ripple. The LTC7811 includes current foldback for the buck channels to reduce the load current when the output is shorted to ground. If the output voltage falls below 50% of its regulation point, then the maximum sense voltage is progressively lowered from 100% to 40% of its maximum value. Under short-circuit conditions with very low duty cycles, the LTC7811 will begin cycle skipping to limit the short circuit current. In this situation the bottom MOSFET dissipates most of the power but less than in normal operation. The short-circuit ripple current is determined by the minimum on-time, tON(MIN) ≈ 40ns, the input voltage and inductor value: Boost Channel Current Monitor (IMON3) The resulting average short-circuit current is: The boost channel inductor current can be monitored at the IMON3 pin. This pin generates a voltage that 30 ΔIL(SC) = tON(MIN) • VIN/L ISC = 40% • ILIM(MAX) − ΔIL(SC)/2 Rev. A For more information www.analog.com LTC7811 APPLICATIONS INFORMATION Fault Conditions: Buck Overvoltage Protection (Crowbar) The overvoltage crowbar is designed to blow a system input fuse when the output voltage of the regulator rises much higher than nominal levels. The crowbar causes huge currents to flow that blow the fuse to protect against a shorted top MOSFET if the short occurs while the controller is operating. If a buck output voltage rises 10% above the set regulation point, the top MOSFET is turned off and the bottom MOSFET is turned on until the overvoltage condition is cleared. The bottom MOSFET remains on continuously for as long as the overvoltage condition persists; if VOUT returns to a safe level, normal operation automatically resumes. A shorted top MOSFET will result in a high current condition which will open the system fuse. The switching regulator will regulate properly with a leaky top MOSFET by altering the duty cycle to accommodate the leakage. Fault Conditions: Overtemperature Protection clock signal applied to the PLLIN/SPREAD pin. The turn on of controller 2’s top MOSFET is thus 180° out of phase with the external clock. Rapid phase-locking can be achieved by using the FREQ pin to set a free-running frequency near the desired synchronization frequency. Before synchronization, the PLL is prebiased to the frequency set by the FREQ pin. Consequently, the PLL only needs to make minor adjustments to achieve phase-lock and synchronization. Although it is not required that the free-running frequency be near the external clock frequency, doing so will prevent the oscillator from passing through a large range of frequencies as the PLL locks. When synchronized to an external clock, the LTC7811 operates in pulse skipping mode if it is selected by the MODE pin, or in forced continuous mode otherwise. The LTC7811 is guaranteed to synchronize to an external clock applied to the PLLIN/SPREAD pin that swings up to at least 2.5V and down to 0.5V or less. Note that the LTC7811 can only be synchronized to an external clock frequency within the range of 100kHz to 3MHz. At higher temperatures, or in cases where the internal power dissipation causes excessive self-heating (such as a short from INTVCC to ground) internal overtemperature shutdown circuitry will shut down the LTC7811. When the internal die temperature exceeds 180°C, the INTVCC LDO and gate drivers are disabled. When the die cools to 160°C, the LTC7811 enables the INTVCC LDO and resumes operation beginning with a soft-start startup. Long-term overstress (TJ > 125°C) should be avoided as it can degrade the performance or shorten the life of the part. Efficiency Considerations Phase-Locked Loop and Frequency Synchronization Although all dissipative elements in the circuit produce losses, four main sources usually account for most of the losses in LTC7811 circuits: 1) IC VBIAS current, 2) INTVCC regulator current, 3) I2R losses, 4) Topside MOSFET transition losses. The LTC7811 has an internal phase-locked loop (PLL) which allows the turn-on of the top MOSFET of controller 1 to be synchronized to the rising edge of an external The percent efficiency of a switching regulator is equal to the output power divided by the input power times 100%. It is often useful to analyze individual losses to determine what is limiting the efficiency and which change would produce the most improvement. Percent efficiency can be expressed as: %Efficiency = 100% – (L1 + L2 + L3 + ...) where L1, L2, etc. are the individual losses as a percentage of input power. 31 Rev. A For more information www.analog.com LTC7811 APPLICATIONS INFORMATION 1. The VBIAS current is the DC supply current given in the Electrical Characteristics table, which excludes MOSFET driver and control currents. Other than at very light loads in Burst Mode, VBIAS current typically results in a small (1μF) supply bypass capacitors. The discharged bypass capacitors are effectively put in parallel with COUT, causing a rapid drop in VOUT. No regulator can alter its delivery of current quickly enough to prevent this sudden step change in output voltage if the load switch resistance is low and it is driven quickly. If the ratio of CLOAD to COUT is greater than 1:50, the switch rise time should be controlled so that the load rise time is limited to approximately CLOAD • 25μs/μF. Thus a 10μF capacitor would require a 250μs rise time, limiting the charging current to about 200mA. Buck Design Example As a design example for one of the buck channels, assume VIN(NOMINAL) = 12V, VIN(MAX) = 22V, VOUT = 3.3V, IOUT = 20A, and fSW = 1MHz. 1. Set the operating frequency. The frequency is not one of the internal preset values, so a resistor from the FREQ pin to GND is required, with a value of: 37MHz = 37kΩ 1MHz 2. Determine the inductor value. Initially select a value based on an inductor ripple current of 30%. The inductor value can then be calculated from the following equation: ⎛ ⎞ V V L = OUT ⎜⎜1– OUT ⎟⎟ = 0.4µH fSW ( ΔIL ) ⎝ VIN(NOM) ⎠ RFREQ (in kΩ)= The highest value of ripple current occurs at the maximum input voltage. In this case the ripple at VIN = 22V is 35% 33 Rev. A For more information www.analog.com LTC7811 APPLICATIONS INFORMATION 3. Verify that the minimum on-time of 40ns is not violated. The minimum on-time occurs at VIN(MAX): tON(MIN) = VOUT = 150ns VIN(MAX)(fSW ) This is more than sufficient to satisfy the minimum on time requirement. If the minimum on time is violated, the LTC7811 skips pulses at high input voltage, resulting in lower frequency operation and higher inductor current ripple than desired. If undesirable, this behavior can be avoided by decreasing the frequency (with the inductor value accordingly adjusted) to avoid operation near the minimum on-time. 4. Select the RSENSE resistor value. The peak inductor current is the maximum DC output current plus half of the inductor ripple current. Or 20A • (1+0.30/2) = 23A in this case. The RSENSE resistor value can then be calculated based on the minimum value for the maximum current sense threshold (45mV): 45mV RSENSE ≤ ≅ 2mΩ 23A To allow for additional margin, a lower value RSENSE may be used (for example, 1.8mΩ); however, be sure that the inductor saturation current has sufficient margin above VSENSE(MAX)/RSENSE, where the maximum value of 55mV is used for VSENSE(MAX). For this low inductor value and high current application, an RC filter into the sense pins should be used to compensate for the parasitic inductance (ESL) of the sense resistor. Assuming an RSENSE geometry of 1225 with a parasitic inductance of 0.2nH, the RC filter time constant should be RC = ESL/RSENSE = 0.2nH / 2mΩ = 100ns, which may be implemented with 100Ω resistor in series with the SENSE+ pin and 1nF capacitor between SENSE+ and SENSE–. 5. Select the feedback resistors. If very light load efficiency is required, high value feedback resistors may be used to minimize the current due to the feedback divider. However, in most applications a feedback 34 divider current in the range of 10μA to 100μA or more is acceptable. For a 50μA feedback divider current, RA = 0.8V/50μA = 16kΩ. RB can then be calculated as RB = RA(3.3V/0.8V – 1) = 50kΩ. 6. Select the MOSFETs. The best way to evaluate MOSFET performance in a particular application is to build and test the circuit on the bench, facilitated by an LTC7811 demo board. However, an educated guess about the application is helpful to initially select MOSFETs. Since this is a high current, low voltage application, I2R losses will likely dominate over transition losses for the top MOSFET. Therefore, choose a MOSFET with lower RDS(ON) as opposed to lower gate charge to minimize the combined loss terms. The bottom MOSFET does not experience transition losses, and its power loss is generally dominated by I2R losses. For this reason, the bottom MOSFET is typically chosen to be of lower RDS(ON) and subsequently higher gate charge than the top MOSFET. Due to the high current in this application, two MOSFETs may be needed in parallel to more evenly balance the dissipated power and to lower the RDS(ON). Be sure to select logic-level threshold MOSFETs, since the gate drive voltage is limited to 5.1V (INTVCC). 7. Select the input and output capacitors. CIN is chosen for an RMS current rating of at least 10A (IOUT/2, with margin) at temperature assuming only this channel is on. COUT is chosen with an ESR of 3mΩ for low output ripple. Multiple capacitors connected in parallel may be required to reduce the ESR to this level. The output ripple in continuous mode will be highest at the maximum input voltage. The output voltage ripple due to ESR is approximately: VORIPPLE = ESR • ∆IL = 3mΩ • 6A = 18mVP-P On the 3.3V output, this is equal to 0.55% of peak to peak voltage ripple. 8. Determine the bias supply components. Since the regulated output is not greater than the EXTVCC switchover threshold (4.8V), it cannot be used to bias INTVCC. However, if another supply is available, for example if the other buck channel is regulating to 5V, Rev. A For more information www.analog.com LTC7811 APPLICATIONS INFORMATION connect that supply to EXTVCC to improve the efficiency. For a 6.5ms soft start, select a 0.1μF capacitor for the TRACK/SS pin. As a first pass estimate for the bias components, select CINTVCC = 4.7μF, boost supply capacitor CB = 0.1μF and low forward drop boost supply diode CMDSH-4E from Central Semiconductor. 9. Determine and set application-specific parameters. Set the MODE pin based on the trade-off of light load efficiency and constant frequency operation. Set the PLLIN/SPREAD pin based on whether a fixed, spread spectrum, or phase-locked frequency is desired. The RUN pin can be used to control the minimum input voltage for regulator operation or can be tied to VIN for always-on operation. Use ITH compensation components from the Typical Applications as a first guess, check the transient response for stability, and modify as necessary. PC Board Layout Checklist When laying out the printed circuit board, the following checklist should be used to ensure proper operation of the IC. Figure 9 illustrates the current waveforms present in the various branches of the 2-phase synchronous buck regulators operating in the continuous mode. Check the following in your layout: 1. Are the top N-channel MOSFETs located within 1cm of each other with a common drain connection at CIN? Do not attempt to split the input decoupling for the two channels as it can cause a large resonant loop. For the boost channel, the output diode should be closely connected between the output capacitor and the drain of the N-channel MOSFET. 2. Are the signal and power grounds kept separate? The combined IC ground pin and the ground return of CINTVCC must return to the combined COUT (–) terminals. The path formed by the top N-channel MOSFET and the CIN capacitor should have short leads and PC trace lengths. The output capacitor (–) terminals should be connected as close as possible to the (–) terminals of the input capacitor by placing the capacitors next to each other and away from the loop described above. 3. Do the LTC7811 VFB pins’ resistive dividers connect to the (+) terminals of COUT? The resistive divider must be connected between the (+) terminal of COUT and signal ground. Place the divider close to the VFB pin to minimize noise coupling into the sensitive VFB node. The feedback resistor connections should not be along the high current input feeds from the input capacitor(s). 4. Are the SENSE– and SENSE+ leads routed together with minimum PC trace spacing? Route these traces away from the high frequency switching nodes, on an inner layer if possible. The filter capacitor between SENSE+ and SENSE– should be as close as possible to the IC. Ensure accurate current sensing with Kelvin connections at the sense resistor. 5. Is the INTVCC decoupling capacitor connected close to the IC, between the INTVCC and the power ground pin? This capacitor carries the MOSFET drivers’ current peaks. An additional 1μF ceramic capacitor placed immediately next to the INTVCC and GND pins can help improve noise performance substantially. 6. Keep the switching nodes (SW1, SW2), top gate nodes (TG1, TG2), boost nodes (BOOST1, BOOST2) and drain of the boost N-channel MOSFET away from sensitive small-signal nodes, especially from the other channel’s voltage and current sensing feedback pins. All of these nodes have very large and fast-moving signals and therefore should be kept on the output side of the LTC7811 and occupy minimum PC trace area. Minimize the inductance of the TG and BG gate drive traces and their respective return paths to the controller IC (SW and GND) by using wide traces and multiple parallel vias. 7. Use a modified star ground technique: a low impedance, large copper area central grounding point on the same side of the PC board as the input and output capacitors with tie-ins for the bottom of the INTVCC decoupling capacitor, the bottom of the voltage feedback resistive divider and the GND pin of the IC. 35 Rev. A For more information www.analog.com LTC7811 APPLICATIONS INFORMATION PC Board Layout Debugging Start with one controller on at a time. It is helpful to use a DC-50MHz current probe to monitor the current in the inductor while testing the circuit. Monitor the output switching node (SW pin) to synchronize the oscilloscope to the internal oscillator and probe the actual output voltage as well. Check for proper performance over the operating voltage and current range expected in the application. The frequency of operation should be maintained over the input voltage range down to dropout and until the output load drops below the low current operation threshold—typically 25% of the maximum designed current level in Burst Mode operation. The duty cycle percentage should be maintained from cycle to cycle in a well-designed, low noise PCB implementation. Variation in the duty cycle at a subharmonic rate can suggest noise pickup at the current or voltage sensing inputs or inadequate loop compensation. Overcompensation of the loop can be used to tame a poor PC layout if regulator bandwidth optimization is not required. Only after each controller is checked for its individual performance should both controllers be turned on at the same time. A particularly difficult region of operation is when one controller channel is nearing its current comparator trip point when the other channel is turning on its top MOSFET. This occurs around 50% duty cycle on either channel due to the phasing of the internal clocks and may cause minor duty cycle jitter. 36 Reduce VIN from its nominal level to verify operation of the regulator in dropout. Check the operation of the undervoltage lockout circuit by further lowering VIN while monitoring the outputs to verify operation. Investigate whether any problems exist only at higher output currents or only at higher input voltages. If problems coincide with high input voltages and low output currents, look for capacitive coupling between the BOOST, SW, TG, and possibly BG connections and the sensitive voltage and current pins. The capacitor placed across the current sensing pins needs to be placed immediately adjacent to the pins of the IC. This capacitor helps to minimize the effects of differential noise injection due to high frequency capacitive coupling. If problems are encountered with high current output loading at lower input voltages, look for inductive coupling between CIN, the top MOSFET, and the bottom MOSFET components to the sensitive current and voltage sensing traces. In addition, investigate common ground path voltage pickup between these components and the GND pin of the IC. An embarrassing problem, which can be missed in an otherwise properly working switching regulator, results when the current sensing leads are hooked up backwards. The output voltage under this improper hookup will still be maintained but the advantages of current mode control will not be realized. Compensation of the voltage loop will be much more sensitive to component selection. This behavior can be investigated by temporarily shorting out the current sensing resistor—don’t worry, the regulator will still maintain control of the output voltage. Rev. A For more information www.analog.com LTC7811 APPLICATIONS INFORMATION SW1 L1 RSENSE1 VOUT1 COUT1 RL1 VIN RIN CIN SW2 L2 RSENSE2 VOUT2 COUT2 BOLD LINES INDICATE HIGH SWITCHING CURRENT. KEEP LINES TO A MINIMUM LENGTH. RL2 7811 F09 Figure 9. Branch Current Waveforms for Bucks 37 Rev. A For more information www.analog.com LTC7811 TYPICAL APPLICATIONS VBIAS VFB3 D3 VIN 2V TO 38V* (>5V START-UP) CIN 100µF RUN1 RUN2 RUN3 D1 MBOT3 1nF BG3 SENSE1+ SENSE1– VFB1 100k INTVCC 11k 3.3nF 47pF 4.87k INTVCC PLLIN/SPREAD FREQ MODE 68.1k L2 9mΩ VOUT2 5V/4A 4.9µH BG2 MBOT2 10µF 10V X7R 1nF SENSE2+ SENSE2– EXTVCC VFB2 COUT2 100µF 6.3V 357k TRACK/SS1 TRACK/SS2 SS3 220pF VOUT1 3.3V/6A MTOP2 0.1µF 10nF 1.5nF 1nF COUT1 100µF 215k SW2 ITH1 ITH2 ITH3 47pF 20Ω MBOT1 TG2 BOOST2 INTVCC VPRG3 4.7µF 22µF 6.3V X7R D2 VOUT3 IMON3 PGOOD1 BATTGOOD BATTERY GOOD INDICATOR 6mΩ 2.2µH LTC7811 SENSE3– SENSE3+ VOUT2 6.49k L1 0.1µF BG1 10µF x2 50V VOUT3 9.5V WHEN VIN9.5V MTOP1 SW1 2.2µH COUT3 47µF 63V 10µF x3 50V TG1 BOOST1 BATTSNS L3 6mΩ INTVCC GND 0.1µF 0.1µF 68.1k 0.1µF 7811 TA02 MTOP1,2: INFINEON BSZ097N04LS MBOT1,2: INFINEON BSZ097N04LS MBOT3: INFINEON BSC059N04LS L1: WURTH 744313220 L2: WURTH 744314490 L3: WURTH 744313220 fSW = 380kHz D1,2: CENTRAL SEMI CMDSH-4E CIN: SUNCON 63CE100LX COUT1,2: PANASONIC EEFCT0J101R COUT3: SUNCON 63HVPF47M D3: DIODES INC PDS1040Q * WHEN VIN < 4V, MAXIMUM LOAD CURRENT AVAILABLE IS REDUCED * OUTPUT CURRENT CAPABILITY AT HIGH INPUT VOLTAGES MAY BE LIMITED BY THE THERMAL CHARACTERISTICS OF THE OVERALL SYSTEM AND PRINTED CIRCUIT BOARD DESIGN (a) No-Load No–LoadBurst BurstMode ModeInput Input Current Current vs Input vs Input Voltage Voltage Efficiency Efficiency vs vs Load Load Current Current 100 95 70 Burst Mode OPERATION ALL THREE CHANNELS ON VIN CURRENT (µA) EFFICIENCY (%) 90 85 80 75 VOUT2 = 5V 70 65 VOUT1 = 3.3V VIN = 12V VIN = 24V 0 1 2 3 4 LOAD CURRENT (A) 6 7811 F10b (b) 50 GND 40 30 INDUCTOR CURRENT 2A/DIV 20 VIN = 12V 40µs/DIV 10 VIN = 12V VIN = 24V 5 VOUT2 2V/DIV ONLY CHANNEL 1 ON ALL CHANNELS ON 60 Short-Circuit Short–CircuitResponse Response 0 5 10 15 20 25 30 VIN VOLTAGE (V) (c) 35 7811 F10d 40 7811 F10c (d) Figure 10. High Efficiency Wide Input Range Dual 5V/3.3V Regulator 38 Rev. A For more information www.analog.com LTC7811 TYPICAL APPLICATIONS VIN 24V NOMINAL 4.5V-38V CIN 100µF 10µF x2 VBIAS L3 33µH RUN1 RUN2 RUN3 D1 TG1 BOOST1 D3 VOUT3* 80V / 1.5A INTVCC MTOP1 0.1µF MBOT3 10µF x3 COUT3 68µF 50Ω 806k LTC7811 1nF 7mΩ SENSE1+ SENSE1EXTVCC SENSE2SENSE2+ SENSE3- 50Ω VFB3 VPRG3 IMON3 BATTGOOD PGOOD1 12.1k INTVCC 4.99k 1nF 47pF 14.7k 100pF 10nF SS3 ITH2 0.1µF VOUT1 5V / 30A INTVCC VIN TG2 BOOST2 GND COUT1 220µF 100µF x2 1nF MTOP2 0.1µF SW2 L2 2mΩ 1µH BG2 ITH1 ITH3 1nF MBOT1 D2 INTVCC VFB2 BATTSNS FREQ MODE PLLIN/SPREAD 4.7µF 1µH BG1 SENSE3+ 2mΩ L1 SW1 BG3 MBOT2 VFB1 TRACK/SS1 TRACK/SS2 357k 68.1k 0.22µF 7811 TA03 MTOP1,2: INFINEON BSC059N04LS6 MBOT1,2: INFINEON BSC022N04LS6 MBOT3: INFINEON BSC159N10LSF-G D3: ON SEMI FSV10100V L1,2: COILCRAFT XAL1580-102ME L3: COILCRAFT XAL1510-333MEB D1,2:CENTRAL SEMI CMDSH-4E fSW=380kHz VOUT1 FOLLOWS VIN WHEN VIN < 5V CIN: SUNCON 63HVPF100M COUT1: PANASONIC 6TPF220M5L *WHEN VIN5V START-UP) CIN 220µF 63V 1nF L1 0.1µF 0.16µH 10µF x2 MTOP1 x2 TG1 BOOST1 L3 2mΩ SW1 MBOT3 BG3 COUT3 68µF 50V 10µF x3 D1 D3 x2 VOUT3 8V WHEN VIN8V 3mΩ 0.16µH BG1 MBOT1 4.7µF x4 100Ω COUT1 150µF 4V VOUT1 3.3V / 10A LTC7811 SENSE3– SENSE3+ SENSE1+ SENSE1– VFB1 IMON3 47pF 680pF 12.4k 2.2nF MTOP1,2: VISHAY SiR836DP MBOT1,2: VISHAY SiR836DP MBOT3: VISHAY SiR640DP D3: ON SEMI MBR1240MFS D1,2: CENTRAL SEMI CMDSH-4E 47pF 7.68k 68.1k L2 0.1µF 5mΩ VOUT2 5V/7A 0.33µH BG2 MBOT2 75Ω 10µF 1nF SENSE2+ SENSE2– EXTVCC VFB2 GND 6.8nF L1,3: COILCRAFT XAL5030-161ME L2: COILCRAFT XAL5030-331ME CIN: SUNCON 63CE220LX COUT1: KEMET T520B157M004ATE015 COUT3: PANASONIC 50SVPF68M COUT2: KEMET T520B107M006APE070 COUT2 100µF 6.3V 357k TRACK/SS1 TRACK/SS2 SS3 220pF 47pF MTOP2 SW2 ITH1 ITH2 ITH3 9.3k 215k VOUT3 TG2 BOOST2 INTVCC FREQ PLLIN/SPREAD MODE VPRG3 BATTSNS BATTGOOD 4.7µF INTVCC D2 PGOOD1 INTVCC 1nF 0.1µF fSW=2.25MHz 0.1µF 0.1µF 68.1k 7811 TA07 * WHEN VIN < 4V, MAXIMUM COMBINED LOAD CURRENT AVAILABLE IS REDUCED * OUTPUT CURRENT CAPABILITY AT HIGH INPUT VOLTAGES MAY BE LIMITED BY THE THERMAL CHARACTERISTICS OF THE OVERALL SYSTEM AND PRINTED CIRCUIT BOARD DESIGN Figure 12. High Efficiency Wide Input Range 2.25MHz Dual 3.3V/5V Regulator with Spread Spectrum RELATED PARTS PART NUMBER DESCRIPTION COMMENTS LTC7818 40V, Low IQ, 3MHz, Triple Output Buck/Buck/Boost Synchronous Controller with Spread Spectrum 4.5V ≤ VIN ≤ 40V, IQ = 14µA, 100% Duty Cycle Capable Boost Buck and Boost VOUT Up to 40V, PLL Fixed Frequency 100kHz to 3MHz LTC7817 40V Low IQ, 3MHz Triple Output Buck/Buck/Boost Synchronous Controller 4.5V(Down to 2.5V after Start-up) ≤ VIN ≤ 38V, IQ = 28µA Buck VOUT Range: 0.8V to 24V, Boost VOUT Up to 60V LTC7802 40V Low IQ, Dual, 2-Phase Synchronous Step-Down Controller 4.5V≤ VIN ≤ 40V, 0.8V ≤ VOUT ≤ 0.99VIN, IQ = 14µA PLL Fixed Operating Frequency 100kHz to 3MHz LTC7803 40V Low IQ, 3MHz 100% Duty Cycle Synchronous Step-Down Controller 4.4V≤ VIN ≤ 40V, 0.8V ≤ VOUT ≤ 40V, IQ = 12µA PLL Fixed Operating Frequency 100kHz to 3MHz LTC7804 40V Low IQ 3MHz Synchronous Boost Controller 100% Duty Cycle Capable 4.5V(Down to 1V after Start-up) ≤ VIN ≤ 40V, VOUT up to 40V, IQ = 14µA PLL Fixed Frequency 100kHz to 3MHz, 3mm x 3mm QFN-16, MSOP-16E LTC3859AL 38V Low IQ, Triple Output, Buck/Buck/Boost Synchronous 4.5V (Down to 2.5V After Start-Up) ≤ VIN ≤ 38V, IQ = 28μA Controller PLL Fixed Operating Frequency 50kHz to 900kHz Buck VOUT Range: 0.8V to 24V, Boost VOUT Up to 60V LTC3899 60V Low IQ, Triple Output, Buck/Buck/Boost Synchronous 4.5V (Down to 2.2V After Start-Up) ≤ VIN ≤ 60V, IQ = 28μA Controller PLL Fixed Operating Frequency 50kHz to 900kHz Buck & Boost VOUT Up to 60V LTC7801 150V Low IQ, Synchronous Step-Down DC/DC Controller with 100% Duty Cycle 4V ≤ VIN ≤ 150V, 0.8V ≤ VOUT ≤ 60V, IQ = 40µA PLL Fixed Frequency 50kHz to 900kHz LTC3892 60V Low IQ, Dual 2-Phase Synchronous Step-Down Controller with Adjustable Gate Drive Voltage 4.5V ≤ VIN ≤ 60V, 0.8V ≤ VOUT ≤ 0.99VIN, IQ = 50μA PLL Fixed Frequency 50kHz to 900kHz 42 Rev. A 09/21 www.analog.com For more information www.analog.com  ANALOG DEVICES, INC. 2021
