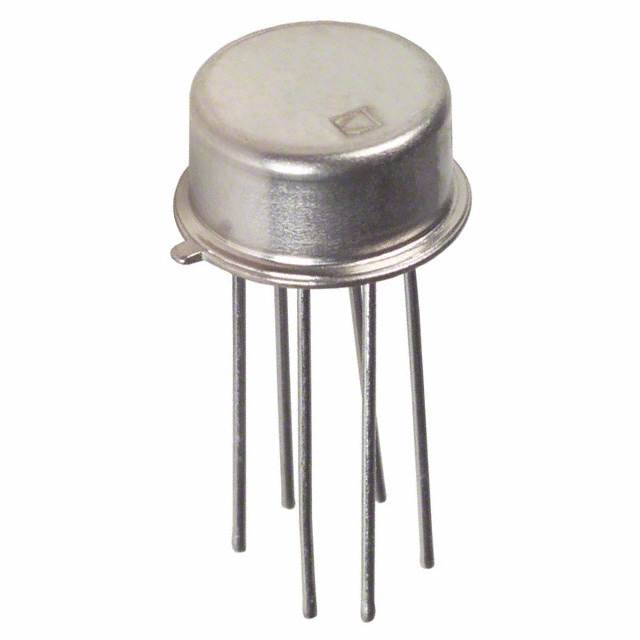

Matched Monolithic Dual Transistor MAT01 Data Sheet PIN CONNECTION DIAGRAM Low VOS (VBE match): 40 µV typical, 100 µV maximum Low TCVOS: 0.5 µV/°C maximum High hFE: 500 minimum Excellent hFE linearity from 10 nA to 10 mA Low noise voltage: 0.23 µV p-p from 0.1 Hz to 10 Hz High breakdown: 45 V min APPLICATIONS MAT01 TOP VIEW (Not to Scale) C1 1 6 5 B2 B1 2 4 E 2 E1 3 Weigh scales Low noise, op amp, front end Current mirror and current sink/source Low noise instrumentation amplifiers Voltage controlled attenuators Log amplifiers C2 NOTES 1. SUBSTRATE IS CONNECTED TO CASE. 00282-001 FEATURES Figure 1. GENERAL DESCRIPTION The MAT01 is a monolithic dual NPN transistor. An exclusive silicon nitride triple passivation process provides excellent stability of critical parameters over both temperature and time. Matching characteristics include offset voltage of 40 µV, temperature drift of 0.15 µV/°C, and hFE matching of 0.7%. Rev. D High hFE is provided over a six decade range of collector current, including an exceptional hFE of 590 at a collector current of only 10 nA. The high gain at low collector current makes the MAT01 ideal for use in low power, low level input stages. Document Feedback Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Trademarks and registered trademarks are the property of their respective owners. One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. Tel: 781.329.4700 ©1973–2014 Analog Devices, Inc. All rights reserved. Technical Support www.analog.com MAT01 Data Sheet TABLE OF CONTENTS Features .............................................................................................. 1 ESD Caution...................................................................................5 Applications ....................................................................................... 1 Typical Performance Characteristics ..............................................6 Pin Connection Diagram ................................................................ 1 Test Circuits........................................................................................8 General Description ......................................................................... 1 Applications Information .................................................................9 Revision History ............................................................................... 2 Typical Applications ....................................................................... 10 Specifications..................................................................................... 3 Outline Dimensions ....................................................................... 11 Electrical Characteristics ............................................................. 3 Ordering Guide .......................................................................... 11 Absolute Maximum Ratings ............................................................ 5 REVISION HISTORY 9/14—Rev. C to Rev. D 2/02—Rev. A to Rev. B Changes to Figure 4 and Figure 7 ................................................... 6 Edits to Features.................................................................................1 Deleted Wafer Test Limits ................................................................3 Deleted DICE Characteristics ..........................................................3 Edits to Table 5 ...................................................................................7 4/13—Rev. B to Rev. C Updated Format .................................................................. Universal Added Applications Section, Deleted Figure 2, Renumbered Sequentially................................................................ 1 Deleted Table 3, Renumbered Sequentially................................... 4 Changes to Table 3 ............................................................................ 5 Changes to Typical Performance Characteristics Section ........... 6 Updated Outline Dimensions ....................................................... 11 Changes to Ordering Guide .......................................................... 11 Rev. D | Page 2 of 12 Data Sheet MAT01 SPECIFICATIONS ELECTRICAL CHARACTERISTICS VCB = 15 V, IC = 10 µA, TA = 25°C, unless otherwise noted. Table 1. Parameter VOLTAGE Breakdown Voltage Offset Voltage Offset Voltage Stability First Month1 Long Term2 CURRENT Offset Current Bias Current Current Gain Current Gain Match NOISE Low Frequency Noise Voltage Broadband Noise Voltage Noise Voltage Density OFFSET VOLTAGE/CURRENT Offset Voltage Change Offset Current Change LEAKAGE Collector to Base Leakage Current Collector to Emitter Leakage Current Collector to Collector Leakage Current SATURATION Collector Saturation Voltage GAIN BANDWIDTH PRODUCT CAPACITANCE Output Capacitance Collector to Collector Capacitance Symbol Test Conditions/Comments Min BVCEO VOS IC = 100 µA 45 MAT01AH Typ Max 0.1 VOS/Time 2.0 0.2 IOS IB hFE 0.1 13 590 770 840 0.7 0.8 0.6 20 ∆hFE 500 MAT01GH Typ Min 45 0.04 IC = 10 nA IC = 10 µA IC = 10 mA IC = 10 µA 100 nA ≤ IC ≤ 10 mA Min 0.10 0.5 2.0 0.2 250 3.0 Unit V mV µV/Mo µV/Mo 0.2 18 430 560 610 1.0 1.2 3.2 40 nA nA 8.0 % % 0.4 9.0 7.6 7.5 µV p-p µV rms nV/√Hz nV/√Hz nV/√Hz en p-p en rms en 0.1 Hz to 10 Hz3 1 Hz to 10 kHz fO = 10 Hz3 fO = 100 Hz3 fO = 1000 Hz3 0.23 0.60 7.0 6.1 6.0 0.4 9.0 7.6 7.5 0.23 0.60 7.0 6.1 6.0 ∆VOS/∆VCB ∆IOS/∆VCB 0 ≤ VCB ≤ 30 V 0 ≤ VCB ≤ 30 V 0.5 2 3.0 15 0.8 3 8.0 70 µV/V pA/V ICBO ICES ICC VCB = 30 V, IE = 04 VCE = 30 V, VBE = 04, 5 VCC = 30 V5 15 50 20 50 200 200 25 90 30 200 400 400 pA pA pA VCE(SAT) 0.12 0.8 450 0.20 0.12 0.8 450 0.25 fT IB = 0.1 mA, IC = 1 mA IB = 1 mA, IC = 10 mA VCE = 10 V, IC = 10 mA V V MHz COB CCC VCB = 15 V, IE = 0 VCC = 0 2.8 8.5 1 2.8 8.5 pF pF Exclude first hour of operation to allow for stabilization. Parameter describes long-term average drift after first month of operation. 3 Sample tested. 4 The collector to base (ICBO) and collector to emitter (ICES) leakage currents can be reduced by a factor of 2 to 10 times by connecting the substrate (package) to a potential that is lower than either collector voltage. 5 ICC and ICES are guaranteed by measurement of ICBO. 2 Rev. D | Page 3 of 12 MAT01 Data Sheet VCB = 15 V, IC = 10 µA, −55°C ≤ TA ≤ +125°C, unless otherwise noted. Table 2. Parameter OFFSET VOLTAGE/CURRENT Offset Voltage Average Offset Voltage Drift1 Offset Current Average Offset Current Drift2 BIAS CURRENT CURRENT GAIN LEAKAGE CURRENT Collector to Base Leakage Current Collector to Emitter Leakage Current Collector to Collector Leakage Current ( Symbol Test Conditions/Comments VOS TCVOS IOS TCIOS ΙΒ hFE ICBO ICES ICC Min 167 TA = 125°C, VCB = 30 V, IE = 03 TA = 125°C, VCE = 30 V, VBE = 01, 3 TA = 125°C, VCC = 30 V1 ) MAT01AH Typ Max 0.06 0.15 0.9 10 28 400 0.15 0.50 8.0 90 60 15 50 30 80 300 200 Min 77 MAT01GH Typ Min 0.14 0.35 1.5 15 36 300 0.70 1.8 15.0 150 130 mV µV/°C nA pA/°C nA 25 90 50 200 400 400 nA nA nA V Guaranteed by VOS test TCVOS ≅ OS for VOS
