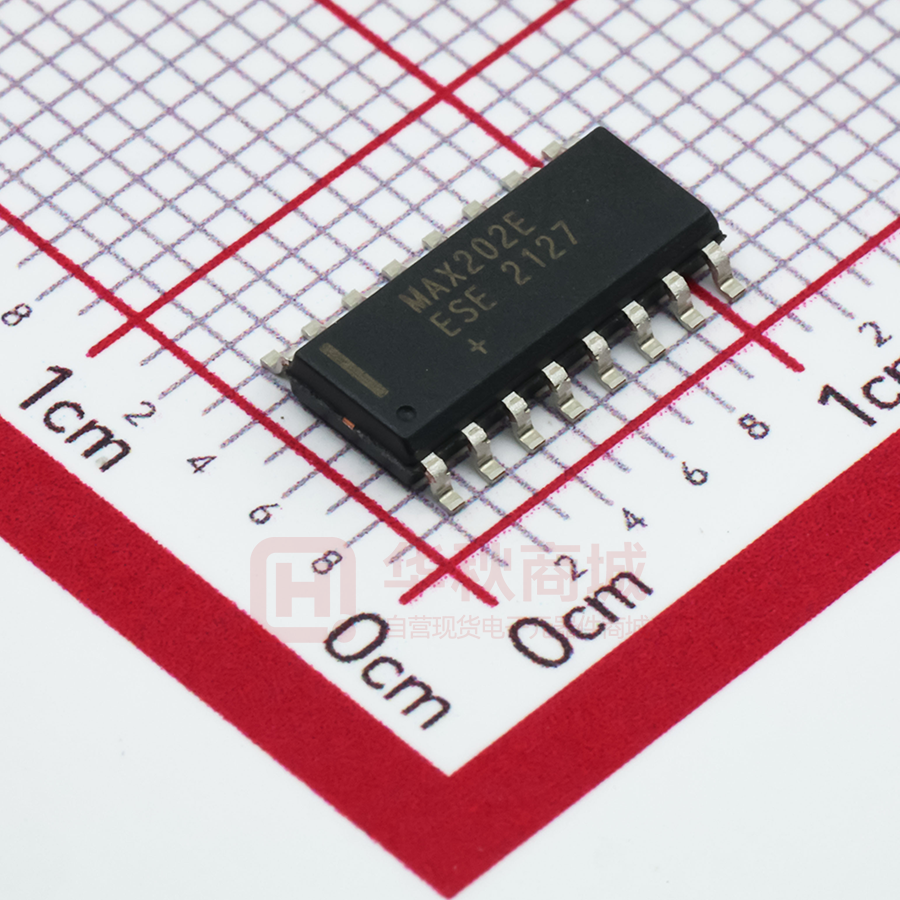

MAX202EESE+T

Evaluation Kit Available Tools and Models Design Resources Support Click here to ask an associate for production status of specific part numbers. MAX202E–MAX213E, MAX232E/MAX241E ±15kV ESD-Protected, 5V RS-232 Transceivers General Description The MAX202E-MAX213E, MAX232E, and MAX241E are a family of RS-232 and V.28 transceivers with high ±15kV ESD HBM protection and integrated charge pump circuitry for single +5V supply operation. The various combinations of features are outlined in the Selector Guide. The drivers and receivers for all ten devices meet all EIA/TIA-232E and CCITT V.28 specifications at data rates up to 120kbps when loaded. The MAX211E/MAX213E/MAX241E are available in 28-pin SO and SSOP packages. The MAX202E/MAX232E come in 16-pin TSSOP, narrow SO, wide SO, and DIP packages. The MAX203E comes in a 20-pin DIP/SO package, and needs no external charge-pump capacitors. The MAX205E comes in a 24-pin wide DIP package, and also eliminates external charge-pump capacitors. Applications ● Battery-Powered Equipment ● Hand-Held Equipment ● Portable Diagnostics Equipment Benefits and Features ● Saves Board Space • Integrated High ±15kV HBM ESD Protection • Integrated Charge Pump Circuitry - Eliminates the Need for a Bipolar ±12V Supply - Enables Single Supply Operation From +5V Supply • Integrated 0.1μF Capacitors (MAX203E, MAX205E) • 24 pin SSOP Package Saves up to 40% Versus SO Package ● Saves Power for Reduced Power Requirements • 1μA Shutdown Mode • 15μA Shutdown Mode for MAX213E Ordering Information PART TEMP RANGE PIN-PACKAGE MAX202ECPE 0°C to +70°C 16 Plastic DIP MAX202ECSE 0°C to +70°C 16 Narrow SO Ordering Information continued at end of data sheet. Pin Configurations and Typical Operating Circuits appear at end of data sheet. AutoShutdown and UCSP are trademarks of Maxim Integrated Products, Inc. Selector Guide PART NO. OF RS-232 DRIVERS NO. OF RS-232 RECEIVERS RECEIVERS ACTIVE IN SHUTDOWN NO. OF EXTERNAL CAPACITORS (μF) LOW-POWER SHUTDOWN TTL TRISTATE MAX202E 2 2 0 4 (0.1) No No MAX203E 2 2 0 None No No MAX205E 5 5 0 None Yes Yes MAX206E 4 3 0 4 (0.1) Yes Yes MAX207E 5 3 0 4 (0.1) No No MAX208E 4 4 0 4 (0.1) No No MAX211E 4 5 0 4 (0.1) Yes Yes MAX213E 4 5 2 4 (0.1) Yes Yes MAX232E 2 2 0 4 (1) No No MAX241E 4 5 0 4 (1) Yes Yes 19-0175; Rev 8; 1/21 ©  2021 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners. One Analog Way, Wilmington, MA 01887 U.S.A. | Tel: 781.329.4700 | © 2021 Analog Devices, Inc. All rights reserved. MAX202E–MAX213E, MAX232E/MAX241E ±15kV ESD-Protected, 5V RS-232 Transceivers Absolute Maximum Ratings VCC...........................................................................-0.3V to +6V V+............................................................... (VCC - 0.3V) to +14V V- ...........................................................................-14V to +0.3V Input Voltages T_IN..........................................................-0.3V to (V+ + 0.3V) R_IN.................................................................................±30V Output Voltages T_OUT..............................................(V- - 0.3V) to (V+ + 0.3V) R_OUT................................................... -0.3V to (VCC + 0.3V) Short-Circuit Duration, T_OUT...................................Continuous Continuous Power Dissipation (TA = +70°C) 16-Pin Plastic DIP (derate 10.53mW/°C above +70°C).... 842mW 16-Pin Narrow SO (derate 8.70mW/°C above +70°C)...... 696mW 16-Pin Wide SO (derate 9.52mW/°C above +70°C)....762mW 16-Pin TSSOP (derate 9.4mW/°C above +70°C).........755mW 20-Pin Plastic DIP (derate 11.11mW/°C above +70°C)......889mW 20-Pin SO (derate 10.00mW/°C above +70°C)............800mW 24-Pin Narrow Plastic DIP (derate 13.33mW/°C above +70°C)...............................1.07W 24-Pin Wide Plastic DIP (derate 14.29mW/°C above +70°C)...............................1.14W 24-Pin SO (derate 11.76mW/°C above +70°C)............941mW 24-Pin SSOP (derate 8.00mW/°C above +70°C).........640mW 28-Pin SO (derate 12.50mW/°C above +70°C)...................1W 28-Pin SSOP (derate 9.52mW/°C above +70°C).........762mW Operating Temperature Ranges MAX2_ _EC_ _....................................................0°C to +70°C MAX2_ _EE_ _................................................ -40°C to +85°C Storage Temperature Range...............................65°C to +165°C Lead Temperature (soldering, 10s).................................. +300°C Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. Electrical Characteristics (VCC = +5V ±10% for MAX202E/206E/208E/211E/213E/232E/241E; VCC = +5V ±5% for MAX203E/205E/207E; C1–C4 = 0.1μF for MAX202E/206E/207E/208E/211E/213E; C1–C4 = 1μF for MAX232E/241E; TA = TMIN to TMAX; unless otherwise noted. Typical values are at TA = +25°C.) PARAMETER SYMBOL CONDITIONS MIN TYP MAX MAX202E/203E 8 15 MAX205E–208E 11 20 MAX211E/213E 14 20 MAX232E 5 10 MAX241E 7 15 MAX205E/206E 1 10 MAX211E/241E 1 10 MAX213E 15 50 15 UNITS DC CHARACTERISTICS VCC Supply Current ICC No load, TA = +25°C TA = +25°C, Figure 1 Shutdown Supply Current mA μA LOGIC Input Pullup Current T_IN = 0V (MAX205E–208E/211E/213E/241E) 200 μA Input Leakage Current T_IN = 0V to VCC (MAX202E/203E/232E) ±10 μA T_IN; EN, SHDN (MAX213E) or EN, SHDN (MAX205E–208E/211E/241E) 0.8 V Input Threshold Low VIL T_IN 2.0 EN, SHDN (MAX213E) or EN, SHDN (MAX205E–208E/211E/241E) 2.4 Input Threshold High VIH Output-Voltage Low VOL R_OUT; IOUT = 3.2mA (MAX202E/203E/232E) or IOUT = 1.6mA (MAX205E/208E/211E/213E/241E) Output-Voltage High VOH R_OUT; IOUT = -1.0mA Output Leakage Current www.analog.com EN = VCC, EN = 0V, 0V ≤ ROUT ≤ VCC, MAX205E–208E/211E/213E/241E outputs disabled V 0.4 3.5 VCC - 0.4 ±0.05 V V ±10 μA Analog Devices │  2 MAX202E–MAX213E, MAX232E/MAX241E ±15kV ESD-Protected, 5V RS-232 Transceivers Electrical Characteristics (continued) (VCC = +5V ±10% for MAX202E/206E/208E/211E/213E/232E/241E; VCC = +5V ±5% for MAX203E/205E/207E; C1–C4 = 0.1μF for MAX202E/206E/207E/208E/211E/213E; C1–C4 = 1μF for MAX232E/241E; TA = TMIN to TMAX; unless otherwise noted. Typical values are at TA = +25°C.) PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS 30 V EIA/TIA-232E RECEIVER INPUTS Input Voltage Range -30 All parts, normal operation 0.8 1.2 MAX213E, SHDN = 0V, EN = VCC 0.6 1.5 Input Threshold Low TA = +25°C, VCC = 5V Input Threshold High TA = +25°C, VCC = 5V Input Hysteresis VCC = 5V, no hysteresis in shutdown Input Resistance TA = +25°C, VCC = 5V V All parts, normal operation 1.7 2.4 MAX213E (R4, R5), SHDN = 0V, EN = VCC 1.5 2.4 0.2 0.5 1.0 V 3 5 7 kΩ ±9 V EIA/TIA-232E TRANSMITTER OUTPUTS Output Voltage Swing All drivers loaded with 3kΩ to ground (Note 1) ±5 Output Resistance VCC = V+ = V- = 0V, VOUT = ±2V 300 Output Short-Circuit Current V Ω ±10 ±60 mA TIMING CHARACTERISTICS RL = 3kΩ to 7kΩ, CL = 50pF to 1000pF, one transmitter switching Maximum Data Rate Receiver Propagation Delay tPLHR, tPHLR 120 All parts, normal operation CL = 150pF MAX213E (R4, R5), SHDN = 0V, EN = VCC kbps 0.5 10 4 40 µs Receiver Output Enable Time MAX205E/206E/211E/213E/241E normal operation, Figure 2 600 ns Receiver Output Disable Time MAX205E/206E/211E/213E/241E normal operation, Figure 2 200 ns 2 µs Transmitter Propagation Delay Transition-Region Slew Rate tPLHT, tPHLT RL = 3kΩ, CL = 2500pF, all transmitters loaded TA = +25°C, VCC = 5V, RL = 3kΩ to 7kΩ, CL = 50pF to 1000pF, measured from -3V to +3V or +3V to -3V, Figure 3 3 6 30 V/μs ESD PERFORMANCE: TRANSMITTER OUTPUTS, RECEIVER INPUTS ESD-Protection Voltage Human Body Model ±15 IEC1000-4-2, Contact Discharge ±8 IEC1000-4-2, Air-Gap Discharge ±15 kV Note 1: MAX211EE_ _ tested with VCC = +5V ±5%. www.analog.com Analog Devices │  3 MAX202E–MAX213E, MAX232E/MAX241E ±15kV ESD-Protected, 5V RS-232 Transceivers Typical Operating Characteristics VCC = 5.0V 6.0 5.5 5.0 1000 2000 VCC = 5.5V 6.5 VCC = 5.0V 6.0 3000 4000 5.0 5000 0 2000 3000 4000 5.5 VCC = 4.5V 1000 VCC = 5.0V 2000 3000 4000 LOAD CAPACITANCE (pF) 5000 MAX202E-TOC3 VCC = 5.0V 6.0 5.0 VCC = 4.5V 0 1000 2000 3000 4000 5000 LOAD CAPACITANCE (pF) MAX211E/MAX213E/MAX241E TRANSMITTER SLEW RATE vs. LOAD CAPACITANCE ALL TRANSMITTERS LOADED DATA RATE = 120kbps RL = 3kΩ 25 20 15 10 -SLEW RATE 5 0 6.5 5000 30 SLEW RATE ( V/µs) VOH, -VOL (V) VCC = 5.5V 6.0 www.analog.com 1000 MAX202E-TOC4 ALL TRANSMITTERS LOADED DATA RATE = 120kbps RL = 3kΩ 6.5 VCC = 5.5V LOAD CAPACITANCE (pF) 7.0 5.0 7.0 5.5 MAX211E/MAX213E TRANSMITTER OUTPUT VOLTAGE vs. LOAD CAPACITANCE 7.5 ALL TRANSMITTERS LOADED DATA RATE = 120kbps RL = 3kΩ 7.5 VCC = 4.5V LOAD CAPACITANCE (pF) 8.0 8.0 5.5 VCC = 4.5V 0 7.0 MAX241E TRANSMITTER OUTPUT VOLTAGE vs. LOAD CAPACITANCE MAX202E-TOC5 VCC = 5.5V 6.5 7.5 VOH, -VOL (V) VOH, -VOL (V) 7.0 ALL TRANSMITTERS LOADED DATA RATE = 120kbps RL = 3kΩ VOH, -VOL (V) ALL TRANSMITTERS LOADED DATA RATE = 120kbps RL = 3kΩ 7.5 8.0 MAX202E-TOC1 8.0 MAX202E/MAX203E TRANSMITTER OUTPUT VOLTAGE vs. LOAD CAPACITANCE MAX202E-TOC2 MAX232E TRANSMITTER OUTPUT VOLTAGE vs. LOAD CAPACITANCE 0 +SLEW RATE 0 1000 2000 3000 4000 5000 LOAD CAPACITANCE (pF) Analog Devices │  4 MAX202E–MAX213E, MAX232E/MAX241E ±15kV ESD-Protected, 5V RS-232 Transceivers Typical Operating Characteristics (continued) 10 8 -SLEW RATE 6 2 0 1000 2000 240kbps 2.5 VCC = +4.5V, RL = 3kΩ 1 TRANSMITTER AT FULL DATA RATE 4 TRANSMITTERS AT 1/8 DATA RATE 0 -2.5 240kbps -5.0 3000 4000 -7.5 5000 0 3000 40 120kbps 35 20kbps 30 VCC = +4.5V, RL = 3kΩ 1 TRANSMITTER AT FULL DATA RATE 4 TRANSMITTERS AT 1/8 DATA RATE 1000 2000 3000 4000 LOAD CAPACITANCE (pF) MAX202E TOC-08 6 0 5000 1000 0 2000 4000 3000 5000 LOAD CAPACITANCE (pF) MAX205E–MAX208E OUTPUT VOLTAGE vs. DATA RATE V+ 7.5 5.0 VOUT+ 2.5 VCC = +4.5V, RL = 3kΩ 1 TRANSMITTER AT FULL DATA RATE 4 TRANSMITTERS AT 1/8 DATA RATE 0 -2.5 VOUT- -5.0 V- -7.5 5000 RISE FALL 8 4 10.0 MAX202E TOC-09 240kbps 0 12 10 2 4000 OUTPUT VOLTAGE (V) SUPPLY CURRENT (mA) 2000 14 LOAD CAPACITANCE (pF) 45 25 16 120kbps MAX205E–MAX208E SUPPLY CURRENT vs. LOAD CAPACITANCE 50 www.analog.com 1000 VCC = +4.5V, RL = 3kΩ 1 TRANSMITTER AT FULL DATA RATE 4 TRANSMITTERS AT 1/8 DATA RATE 18 20kbps LOAD CAPACITANCE (pF) 20 120kbps 20 MAX202E TOC-07 5.0 +SLEW RATE 4 20kbps MAX205E–MAX208E TRANSMITTER SLEW RATE vs. LOAD CAPACITANCE -10.0 MAX202E TOC-10 SLEW RATE ( V/µs) 12 7.5 OUTPUT VOLTAGE (V) ALL TRANSMITTERS LOADED DATA RATE = 120kbps RL = 3kΩ MAX202E-TOC6 14 MAX205E–MAX208E TRANSMITTER OUTPUT VOLTAGE vs. LOAD CAPACITANCE SLEW RATE (V/µs) MAX202E/MAX203E/MAX232E TRANSMITTER SLEW RATE vs. LOAD CAPACITANCE 0 30 60 90 120 150 180 210 240 DATA RATE (kbps) Analog Devices │  5 MAX202E–MAX213E, MAX232E/MAX241E ±15kV ESD-Protected, 5V RS-232 Transceivers Pin Descriptions MAX202E/MAX232E PIN NAME FUNCTION DIP/SO/TSSOP LCC 1, 3 2, 4 C1+, C1- Terminals for Positive Charge-Pump Capacitor 2 3 V+ +2VCC Voltage Generated by the Charge Pump 4, 5 5, 7 C2+, C2- Terminals for Negative Charge-Pump Capacitor -2VCC Voltage Generated by the Charge Pump 6 8 V 7, 14 9, 18 T_OUT RS-232 Driver Outputs 8, 13 10, 17 R_IN RS-232 Receiver Inputs 9, 12 12, 15 R_OUT 10, 11 13, 14 T_IN RS-232 Driver Inputs 15 19 GND Ground 16 20 VCC +4.5V to +5.5V Supply-Voltage Input — 1, 6, 11, 16 N.C. No Connection—Not Internally Connected RS-232 Receiver Outputs MAX203E PIN NAME FUNCTION DIP SO 1, 2 1, 2 T_IN 3, 20 3, 20 R_OUT 4,19 4, 19 R_IN 5,18 5, 18 T_OUT 6, 9 6, 9 GND Ground 7 7 VCC +4.5V to +5.5V Supply-Voltage Input RS-232 Driver Inputs RS-232 Receiver Outputs RS-232 Receiver Inputs RS-232 Transmitter Outputs 8 13 C1+ Make no connection to this pin. 10, 16 11, 16 C2- Connect pins together. 12, 17 10, 17 V- 13 14 C1- Make no connection to this pin. 14 8 V+ +2VCC Voltage Generated by the Charge Pump 11, 15 12, 15 C2+ -2VCC Voltage Generated by the Charge Pump. Connect pins together. Connect pins together. MAX205E PIN NAME FUNCTION 1–4, 19 T_OUT RS-232 Driver Outputs 5, 10, 13, 18, 24 R_IN RS-232 Receiver Inputs 6, 9, 14, 17, 23 R_OUT TTL/CMOS Receiver Outputs. All receivers are inactive in shutdown. 7, 8, 15, 16, 22 T_IN TTL/CMOS Driver Inputs. Internal pullups to VCC. 11 GND Ground 12 VCC +4.75V to +5.25V Supply Voltage 20 EN Receiver Enable—Active Low 21 SHDN www.analog.com Shutdown Control—Active High Analog Devices │  6 MAX202E–MAX213E, MAX232E/MAX241E ±15kV ESD-Protected, 5V RS-232 Transceivers Pin Descriptions (continued) MAX206E PIN NAME 1, 2, 3, 24 T_OUT RS-232 Driver Outputs FUNCTION 4, 16, 23 R_IN RS-232 Receiver Inputs 5, 17, 22 R_OUT 6, 7, 18, 19 T_IN TTL/CMOS Driver Inputs. Internal pullups to VCC. 8 GND Ground 9 VCC +4.5V to +5.5V Supply Voltage 10, 12 C1+, C1- 11 V+ 13, 14 C2+, C2- 15 V- -2VCC Generated by the Charge Pump 20 EN Receiver Enable—Active Low 21 SHDN TTL/CMOS Receiver Outputs. All receivers are inactive in shutdown. Terminals for Positive Charge-Pump Capacitor +2VCC Generated by the Charge Pump Terminals for Negative Charge-Pump Capacitor Shutdown Control—Active High MAX207E PIN NAME FUNCTION 1, 2, 3, 20, 24 T_OUT RS-232 Driver Outputs 4, 16, 23 R_IN RS-232 Receiver Inputs 5, 17, 22 R_OUT 6, 7, 18, 19, 21 T_IN TTL/CMOS Driver Inputs. Internal pullups to VCC. 8 GND Ground 9 VCC +4.75V to +5.25V Supply Voltage 10, 12 C1+, C1- 11 V+ 13, 14 C2+, C2- 15 V- TTL/CMOS Receiver Outputs. All receivers are inactive in shutdown. Terminals for Positive Charge-Pump Capacitor +2VCC Generated by the Charge Pump Terminals for Negative Charge-Pump Capacitor -2VCC Generated by the Charge Pump MAX208E PIN NAME 1, 2, 20, 24 T_OUT RS-232 Driver Outputs FUNCTION 3, 7, 16, 23 R_IN RS-232 Receiver Inputs 4, 6, 17, 22 R_OUT 5, 18, 19, 21 T_IN TTL/CMOS Driver Inputs. Internal pullups to VCC. 8 GND Ground 9 VCC +4.5V to +5.5V Supply Voltage 10, 12 C1+, C1- 11 V+ 13, 14 C2+, C2- 15 V- www.analog.com TTL/CMOS Receiver Outputs. All receivers are inactive in shutdown. Terminals for Positive Charge-Pump Capacitor +2VCC Generated by the Charge Pump Terminals for Negative Charge-Pump Capacitor -2VCC Generated by the Charge Pump Analog Devices │  7 MAX202E–MAX213E, MAX232E/MAX241E ±15kV ESD-Protected, 5V RS-232 Transceivers Pin Descriptions (continued) MAX211E/MAX213E/MAX241E PIN NAME 1, 2, 3, 28 VT_OUT RS-232 Driver Outputs FUNCTION 4, 9, 18, 23, 27 R_IN RS-232 Receiver Inputs 5, 8, 19, 22, 26 R_OUT TTL/CMOS Receiver Outputs. For the MAX213E, receivers R4 and R5 are active in shutdown mode when EN = 1. For the MAX211E and MAX241E, all receivers are inactive in shutdown. 6, 7, 20, 21 T_IN TTL/CMOS Driver Inputs. Only the MAX211E, MAX213E, and MAX241E have internal pullups to VCC. 10 GND Ground 11 VCC +4.5V to +5.5V Supply Voltage 12, 14 C1+, C1- Terminals for Positive Charge-Pump Capacitor 13 V+ +2VCC Voltage Generated by the Charge Pump 15, 16 C2+, C2- Terminals for Negative Charge-Pump Capacitor 17 V- -2VCC Voltage Generated by the Charge Pump EN Receiver Enable—Active Low (MAX211E, MAX241E) EN Receiver Enable—Active High (MAX213E) 24 25 SHDN Shutdown Control—Active High (MAX211E, MAX241E) SHDN Shutdown Control—Active Low (MAX213E) ISHDN +5.5V 0.1µF* 0.1µF* 0.1µF* VCC C1+ C1C2+ V CC C2T_IN 0V OR +5.5V DRIVE +5.5V (0V) 0V OUTPUT ENABLE TIME +3.5V RECEIVER OUTPUT CL = 150pF T1 TO T5 T_OUT R1 TO R5 R_OUT EN (EN) R_IN ( ) ARE FOR MAX213E +5.5V 3kΩ 5kΩ SHDN (SHDN) NOTE: POLARITY OF EN IS REVERSED FOR THE MAX213E EN INPUT 0V RECEIVER OUTPUTS OUTPUT DISABLE TIME VOH VOL VOH - 0.1V RL= 1kΩ +2.5V VOL + 0.1V CAPACITORS MAY BE POLARIZED OR UNPOLARIZED Figure 1. Shutdown-Current Test Circuit (MAX206E, MAX211E/MAX213E/MAX241E) www.analog.com +0.8V +3V GND * 1µF FOR MAX241E +3V V+ 0.1µF* MAX206E MAX211E VMAX213E MAX241E 400kΩ +5.5V EN INPUT 0.1µF* Figure 2. Receiver Output Enable and Disable Timing (MAX205E/MAX206E/MAX211E/MAX213E/MAX241E) Analog Devices │  8 MAX202E–MAX213E, MAX232E/MAX241E ±15kV ESD-Protected, 5V RS-232 Transceivers +5V +5V 0.1µF* 0.1µF* 0.1µF* VCC C1+ 0.1µF* C1- C2- V- 0V (+5V) 0V (+5V) 0.1µF* 400kΩ T_ T_IN R_OUT 0.1µF* 0.1µF* C2+ V CC 0.1µF* C1+ V+ MAX2_ _E R_ EN (EN) 0.1µF* T_OUT R_IN C2+ V CC C2- 3Ωk 2500pF 0V (+5V) SHDN (SHDN) ( ) ARE FOR MAX213E * 1µF FOR MAX232E/MAX241E 0.1µF* 400kΩ R_OUT 0V (+5V) V+ MAX2_ _E V- T_IN 5kΩ MINIMUM SLEW-RATE TEST CIRCUIT C1- VCC EN (EN) T_ R_ T_OUT 7kΩ R_IN 50pF 5kΩ SHDN (SHDN) MAXIMUM SLEW-RATE TEST CIRCUIT TRANSMITTER INPUT PULL-UP RESISTORS, ENABLE, AND SHUTDOWN ARE NOT PROVIDED ON THE MAX202E, MAX203E, AND MAX232E. ENABLE AND SHUTDOWN ARE NOT PROVIDED ON THE MAX207E AND MAX208E. Figure 3. Transition Slew-Rate Circuit Detailed Description The MAX202E–MAX213E, MAX232E/MAX241E consist of three sections: charge-pump voltage converters, drivers (transmitters), and receivers. These E versions provide extra protection against ESD. They survive ±15kV discharges to the RS-232 inputs and outputs, tested using the Human Body Model. When tested according to IEC1000-4-2, they survive ±8kV contact-discharges and ±15kV air-gap discharges. The rugged E versions are intended for use in harsh environments or applications where the RS-232 connection is frequently changed (such as notebook computers). The standard (non“E”) MAX202, MAX203, MAX205–MAX208, MAX211, MAX213, MAX232, and MAX241 are recommended for applications where cost is critical. +5V to ±10V Dual Charge-Pump Voltage Converter The +5V to ±10V conversion is performed by dual chargepump voltage converters (Figure 4). The first chargepump converter uses capacitor C1 to double the +5V into +10V, storing the +10V on the output filter capacitor, C3. www.analog.com The second uses C2 to invert the +10V into -10V, storing the -10V on the V- output filter capacitor, C4. In shutdown mode, V+ is internally connected to VCC by a 1kΩ pull-down resistor, and V- is internally connected to ground by a 1kΩ pull up resistor. RS-232 Drivers With VCC = 5V, the typical driver output voltage swing is ±8V when loaded with a nominal 5kΩ RS-232 receiver. The output swing is guaranteed to meet EIA/TIA-232E and V.28 specifications that call for ±5V minimum output levels under worst-case conditions. These include a 3kΩ load, minimum VCC, and maximum operating temperature. The open-circuit output voltage swings from (V+ 0.6V) to V-. Input thresholds are CMOS/TTL compatible. The unused drivers’ inputs on the MAX205E–MAX208E, MAX211E, MAX213E, and MAX241E can be left unconnected because 400kΩ pull up resistors to VCC are included onchip. Since all drivers invert, the pull up resistors force the unused drivers’ outputs low. The MAX202E, MAX203E, and MAX232E do not have pull up resistors on the transmitter inputs. Analog Devices │  9 MAX202E–MAX213E, MAX232E/MAX241E VCC S1 ±15kV ESD-Protected, 5V RS-232 Transceivers S2 C1+ C1 GND S3 C3 S4 C1- V+ S5 IL + VCC C2+ S6 C2 RL+ S7 GND C4 I L- R L- S8 V- C2- PART f CLK MAX202E MAX203E MAX205E–208E MAX211E/213E MAX232E MAX241E f CLK (kHz) 230 230 200 200 140 30 Figure 4. Charge-Pump Diagram When in low-power shutdown mode, the MAX205E/ MAX206E/MAX211E/MAX213E/MAX241E driver outputs are turned off and draw only leakage currents—even if they are back-driven with voltages between 0V and12V. Below -0.5V in shutdown, the transmitter output is diodeclamped to ground with a 1kΩ series impedance. RS-232 Receivers The receivers convert the RS-232 signals to CMOS-logic output levels. The guaranteed 0.8V and 2.4V receiver input thresholds are significantly tighter than the ±3V thresholds required by the EIA/TIA-232E specification. This allows the receiver inputs to respond to TTL/CMOSlogic levels, as well as RS-232 levels. The guaranteed 0.8V input low threshold ensures that receivers shorted to ground have a logic 1 output. The 5kΩ input resistance to ground ensures that a receiver with its input left open will also have a logic 1 output. Receiver inputs have approximately 0.5V hysteresis. This provides clean output transitions, even with slow rise/falltime signals with moderate amounts of noise and ringing. In shutdown, the MAX213E’s R4 and R5 receivers have no hysteresis. www.analog.com Shutdown and Enable Control (MAX205E/MAX206E/MAX211E/ MAX213E/MAX241E) In shutdown mode, the charge pumps are turned off, V+ is pulled down to VCC, V- is pulled to ground, and the transmitter outputs are disabled. This reduces supply current typically to 1μA (15μA for the MAX213E). The time required to exit shutdown is under 1ms, as shown in Figure 5. Receivers All MAX213E receivers, except R4 and R5, are put into a high-impedance state in shutdown mode (see Tables 1a and 1b). The MAX213E’s R4 and R5 receivers still function in shutdown mode. These two awake-in-shutdown receivers can monitor external activity while maintaining minimal power consumption. The enable control is used to put the receiver outputs into a high-impedance state, to allow wire-OR connection of two EIA/TIA-232E ports (or ports of different types) at the UART. It has no effect on the RS-232 drivers or the charge pumps. Note: The enable control pin is active low for the MAX211E/MAX241E (EN), but is active high for the MAX213E (EN). The shutdown control pin is active Analog Devices │  10 MAX202E–MAX213E, MAX232E/MAX241E ±15kV ESD-Protected, 5V RS-232 Transceivers high for the MAX205E/MAX206E/MAX211E/MAX241E (SHDN), but is active low for the MAX213E (SHDN). MAX211E The MAX213E’s receiver propagation delay is typically 0.5μs in normal operation. In shutdown mode, propagation delay increases to 4μs for both rising and falling transitions. The MAX213E’s receiver inputs have approximately 0.5V hysteresis, except in shutdown, when receivers R4 and R5 have no hysteresis. 3V SHDN 0V 10V V+ 5V 0V When entering shutdown with receivers active, R4 and R5 are not valid until 80μs after SHDN is driven low. When coming out of shutdown, all receiver outputs are invalid until the charge pumps reach nominal voltage levels (less than 2ms when using 0.1μF capacitors). V- -5V -10V ±15kV ESD Protection As with all Maxim devices, ESD-protection structures are incorporated on all pins to protect against electro-static discharges encountered during handling and assembly. The driver outputs and receiver inputs have extra protection against static electricity. Maxim’s engineers developed state-of-the-art structures to protect these pins against ESD of ±15kV without damage. The ESD structures withstand high ESD in all states: normal operation, shutdown, and powered down. After an ESD event, Maxim’s E versions keep working without latchup, whereas competing RS-232 products can latch and must be powered down to remove latchup. ESD protection can be tested in various ways; the transmitter outputs and receiver inputs of this product family are characterized for protection to the following limits: 1) ±15kV using the Human Body Model 2) ±8kV using the contact-discharge method specified in IEC1000-4-2 3) ±15kV using IEC1000-4-2’s air-gap method. ESD Test Conditions ESD performance depends on a variety of conditions. Contact Maxim for a reliability report that documents test set-up, test methodology, and test results. Human Body Model Figure 6a shows the Human Body Model, and Figure 6b shows the current waveform it generates when discharged into a low impedance. This model consists of a 100pF capacitor charged to the ESD voltage of interest, which is then discharged into the test device through a 1.5kΩ resistor. www.analog.com 200µs/div Figure 5. MAX211E V+ and V- when Exiting Shutdown (0.1μF capacitors) Table 1a. MAX205E/MAX206E/MAX211E/ MAX241E Control Pin Configurations OPERATION STATUS SHDN EN 0 0 Normal Operation All Active All Active 0 1 Normal Operation All Active All High-Z 1 X Shutdown All High-Z All High-Z Tx Rx X = Don’t care. Table 1b. MAX213E Control Pin Configurations OPERATION STATUS Rx SHDN EN 0 0 Shutdown All High-Z High-Z High-Z 0 1 Shutdown All High-Z High-Z Active* 1 0 Normal Operation All Active High-Z High-Z 1 1 Normal Operation All Active Active Tx 1–4 1–3 4, 5 Active *Active = active with reduced performance Analog Devices │  11 MAX202E–MAX213E, MAX232E/MAX241E CHARGE-CURRENTLIMIT RESISTOR HIGHVOLTAGE DC SOURCE Cs 100pF RD 1500Ω I P 100% 90% DISCHARGE RESISTANCE STORAGE CAPACITOR CHARGE-CURRENTLIMIT RESISTOR HIGHVOLTAGE DC SOURCE Cs 150pF 10% 0 0 TIME t RL t DL CURRENT WAVEFORM Figure 6b. Human Body Model Current Waveform I 100% DISCHARGE RESISTANCE 90% DEVICE UNDER TEST Figure 7a. IEC1000-4-2 ESD Test Model IEC1000-4-2 The IEC1000-4-2 standard covers ESD testing and performance of finished equipment; it does not specifically refer to integrated circuits. The MAX202E/MAX203E– MAX213E, MAX232E/MAX241E help you design equipment that meets level 4 (the highest level) of IEC10004-2, without the need for additional ESD-protection components. The major difference between tests done using the Human Body Model and IEC1000-4-2 is higher peak current in IEC1000-4-2, because series resistance is lower in the IEC1000-4-2 model. Hence, the ESD withstand voltage measured to IEC1000-4-2 is generally lower than that measured using the Human Body Model. Figure 7b shows the current waveform for the 8kV IEC1000-4-2 level-four ESD contact-discharge test. www.analog.com 36.8% RD 330Ω STORAGE CAPACITOR PEAK-TO-PEAK RINGING (NOT DRAWN TO SCALE) AMPERES DEVICE UNDER TEST Figure 6a. Human Body ESD Test Model RC 50MΩ to 100MΩ Ir I PEAK RC 1MΩ ±15kV ESD-Protected, 5V RS-232 Transceivers 10% t r = 0.7ns to 1ns t 30ns 60ns Figure 7b. IEC1000-4-2 ESD Generator Current Waveform The air-gap test involves approaching the device with a charged probe. The contact-discharge method connects the probe to the device before the probe is energized. Machine Model The Machine Model for ESD tests all pins using a 200pF storage capacitor and zero discharge resistance. Its objective is to emulate the stress caused by contact that occurs with handling and assembly during manufacturing. Of course, all pins require this protection during manufacturing, not just RS-232 inputs and outputs. Therefore, after PC board assembly, the Machine Model is less relevant to I/O ports. Analog Devices │  12 MAX202E–MAX213E, MAX232E/MAX241E ±15kV ESD-Protected, 5V RS-232 Transceivers Applications Information V+ and V- as Power Supplies Capacitor Selection The capacitor type used for C1–C4 is not critical for proper operation. The MAX202E, MAX206–MAX208E, MAX211E, and MAX213E require 0.1μF capacitors, and the MAX232E and MAX241E require 1μF capacitors, although in all cases capacitors up to 10μF can be used without harm. Ceramic, aluminum-electrolytic, or tantalum capacitors are suggested for the 1μF capacitors, and ceramic dielectrics are suggested for the 0.1μF capacitors. When using the minimum recommended capacitor values, make sure the capacitance value does not degrade excessively as the operating temperature varies. If in doubt, use capacitors with a larger (e.g., 2x) nominal value. The capacitors’ effective series resistance (ESR), which usually rises at low temperatures, influences the amount of ripple on V+ and V-. Use larger capacitors (up to 10μF) to reduce the output impedance at V+ and V-. This can be useful when “stealing” power from V+ or from V-. The MAX203E and MAX205E have internal charge-pump capacitors. Bypass VCC to ground with at least 0.1μF. In applications sensitive to power-supply noise generated by the charge pumps, decouple VCC to ground with a capacitor the same size as (or larger than) the charge-pump capacitors (C1–C4). A small amount of power can be drawn from V+ and V-, although this will reduce both driver output swing and noise margins. Increasing the value of the charge-pump capacitors (up to 10μF) helps maintain performance when power is drawn from V+ or V-. Driving Multiple Receivers Each transmitter is designed to drive a single receiver. Transmitters can be paralleled to drive multiple receivers. Driver Outputs when Exiting Shutdown The driver outputs display no ringing or undesirable transients as they come out of shutdown. High Data Rates These transceivers maintain the RS-232 ±5.0V minimum driver output voltages at data rates of over 120kbps. For data rates above 120kbps, refer to the Transmitter Output Voltage vs. Load Capacitance graphs in the Typical Operating Characteristics. Communication at these high rates is easier if the capacitive loads on the transmitters are small; i.e., short cables are best. Table 2. Summary of EIA/TIA-232E, V.28 Specifications PARAMETER CONDITIONS EIA/TIA-232E, V.28 SPECIFICATIONS 0 Level 3kΩ to 7kΩ load +5V to +15V 1 Level 3kΩ to 7kΩ load -5V to -15V Driver Output Level, Max No load ±25V Data Rate 3kΩ ≤ RL ≤ 7kΩ, CL ≤ 2500pF Up to 20kbps Driver Output Voltage Receiver Input Voltage 0 Level +3V to +15V 1 Level -3V to -15V Receiver Input Level Instantaneous Slew Rate, Max ±25V 3kΩ ≤ RL ≤ 7kΩ, CL ≤ 2500pF Driver Output Short-Circuit Current, Max Transition Rate on Driver Output Driver Output Resistance www.analog.com 30V/μs 100mA V.28 1ms or 3% of the period EIA/TIA-232E 4% of the period -2V < VOUT < +2V 300Ω Analog Devices │  13 MAX202E–MAX213E, MAX232E/MAX241E ±15kV ESD-Protected, 5V RS-232 Transceivers Table 3. DB9 Cable Connections Commonly Used for EIA/TIA-232E and V.24 Asynchronous Interfaces PIN EIA/TIA-232E, V.28 SPECIFICATIONS 1 Received Line Signal Detector (sometimes Handshake from DCE called Carrier Detect, DCD) 2 Receive Data (RD) Data from DCE 3 Transmit Data (TD) Data from DTE 4 Data Terminal Ready Handshake from DTE 5 Signal Ground Reference point for Signals 6 Data Set Ready (DSR) Handshake from DCE 7 Request to Send (RTS) Handshake from DTE 8 Clear to Send (CTS) Handshake from DCE 9 Ring Indicator Handshake from DCE Pin Configurations and Typical Operating Circuits (continued) +5V INPUT 0.1µF 16 TOP VIEW 0.1µF* 6.3V C1+ 1 16 VCC V+ 2 15 GND C1- 14 T1OUT 3 C2+ 4 0.1µF* 16V MAX202E MAX232E 13 R1IN 12 R1OUT C2- 5 V- 6 11 T1IN T2OUT 7 10 T2IN R2IN 8 9 3 4 5 11 TTL/CMOS INPUTS R2OUT DIP/SO/TSSOP 1 TTL/CMOS OUTPUTS 0.1µF* 6.3V VCC V+ +5V TO +10V VOLTAGE DOUBLER C1VC2+ +10V TO -10V C2- VOLTAGE INVERTER C1+ T1IN 10 T2IN 12 R1OUT 2 +10V 6 -10V T1OUT 14 T1 T2OUT T2 R1 7 R2OUT R2 RS-232 OUTPUTS R1IN 13 5kΩ 9 0.1µF* 16V R2IN 8 RS-232 INPUTS 5kΩ PIN NUMBERS ON TYPICAL OPERATING CIRCUIT REFER TO DIP/SO/TSSOP PACKAGE, NOT LCC. * 1.0µF CAPACITORS, MAX232E ONLY. www.analog.com GND 15 Analog Devices │  14 MAX202E–MAX213E, MAX232E/MAX241E ±15kV ESD-Protected, 5V RS-232 Transceivers Pin Configurations and Typical Operating Circuits (continued) +5V INPUT 0.1µF TOP VIEW T2IN 1 20 R2OUT T1IN 2 19 R2IN R1OUT 3 18 T2OUT R1IN 4 T1OUT 5 GND 14 V+ (C1-) TTL/CMOS OUTPUTS 400kΩ T1IN 1 T2IN 3 R1OUT T1OUT T1 +5V TTL/CMOS INPUTS 16 C215 C2+ 6 400kΩ T2OUT T2 R1IN R1 12 V- (C2+) 11 C2+ (C2-) C2- (V-) 10 DIP/SO PIN NUMBERS IN () ARE FOR SO PACKAGE. 5 RS-232 OUTPUTS 18 4 5kΩ 20 R2OUT R2IN R2 13 C1- (C1+) 8 GND 9 www.analog.com 2 17 V- MAX203E VCC 7 C1+ (V+) 7 VCC +5V RS-232 INPUTS 19 5kΩ DO NOT MAKE 8(13) C1+ CONNECTION TO THESE PINS 13(14) C112(10) VINTERNAL -10V 17 POWER SUPPLY VINTERNAL +10V 14(8) POWER SUPPLY V+ C2+ C2+ C2C2GND 6 11 (12) 15 16 10 (11) GND 9 Analog Devices │  15 MAX202E–MAX213E, MAX232E/MAX241E ±15kV ESD-Protected, 5V RS-232 Transceivers Pin Configurations and Typical Operating Circuits (continued) +5V INPUT 0.1µF 12 VCC +5V 400kΩ 8 T1IN T1 T1OUT 3 +5V 400kΩ TOP VIEW 7 T2IN T2 T2OUT 4 +5V 400kΩ T4OUT 1 24 R3IN T3OUT 2 23 R3OUT T1OUT 3 22 T5IN T2OUT 4 21 SHDN R2IN 5 20 EN R2OUT 6 T2IN 7 MAX205E TTL/CMOS INPUTS 8 17 R4OUT 9 16 T4IN R1IN 10 15 T3IN GND 11 14 R5OUT V CC 12 13 R5IN T3OUT 2 RS-232 OUTPUTS 400kΩ T4 T4OUT 1 +5V 400kΩ 22 T5IN 18 R4IN T1IN T3 +5V 16 T4IN 19 T5OUT R1OUT 15 T3IN 9 R1OUT T5 R1 T5OUT 19 R1IN 10 5kΩ 6 R2OUT R2 R2IN 5 5kΩ DIP TTL/CMOS OUTPUTS 23 R3OUT R3 R3IN 24 RS-232 INPUTS 5kΩ 17 R4OUT R4 R4IN 18 5kΩ 14 R5OUT R5 R5IN 13 5kΩ 20 EN GND 11 www.analog.com SHDN 21 Analog Devices │  16 MAX202E–MAX213E, MAX232E/MAX241E ±15kV ESD-Protected, 5V RS-232 Transceivers Pin Configurations and Typical Operating Circuits (continued) +5V INPUT 0.1µF 6.3V 0.1µF 10 TOP VIEW T3OUT 1 24 T4OUT T1OUT 2 23 R2IN T2OUT 3 22 R2OUT R1IN 4 21 SHDN R1OUT 5 20 EN T2IN 6 19 T4IN T1IN 7 GND 8 17 R3OUT VCC 9 16 R3IN C1+ 10 15 V- V+ 11 14 C2- C1- 12 13 C2+ MAX206E DIP/SO/SSOP 9 VCC C1+ 0.1µF 6.3V 12 C113 C2+ 0.1µF 16V 14 C2- V+ 11 +5V TO +10V VOLTAGE DOUBLER +10V TO -10V VOLTAGE INVERTER V- 15 0.1µF 16V +5V 400kΩ 7 T1IN T1 T1OUT 2 +5V 400kΩ 6 T2IN TTL/CMOS INPUTS 18 T3IN T2 T2OUT 3 +5V RS-232 OUTPUTS 400kΩ 18 T3IN T3 T3OUT 1 +5V 400kΩ 19 T4IN 5 R1OUT T4 R1 T4OUT 24 R1IN 4 5kΩ TTL/CMOS OUTPUTS 22 R2OUT R2 R2IN 23 RS-232 INPUTS 5kΩ 17 R3OUT R3 R3IN 16 5kΩ 20 EN GND 8 www.analog.com SHDN 21 Analog Devices │  17 MAX202E–MAX213E, MAX232E/MAX241E ±15kV ESD-Protected, 5V RS-232 Transceivers Pin Configurations and Typical Operating Circuits (continued) +5V INPUT 0.1µF 6.3V 0.1µF 10 9 VCC C1+ 0.1µF 6.3V 12 C113 C2+ 0.1µF 16V 14 C2- V+ 11 +5V TO +10V VOLTAGE DOUBLER +10V TO -10V VOLTAGE INVERTER V- 15 0.1µF 16V +5V 400kΩ 7 T1IN TOP VIEW T1 T1OUT 2 +5V 400kΩ T3OUT 1 24 T4OUT T1OUT 2 23 R2IN T2OUT 3 22 R2OUT R1IN 4 21 T5IN R1OUT 5 20 T5OUT T2IN 6 19 T4IN T1IN 7 GND 8 17 R3OUT VCC 9 16 R3IN C1+ 10 15 V- V+ 11 14 C2- C1- 12 13 C2+ MAX207E DIP/SO/SSOP 6 T2IN T2 T2OUT 3 +5V 400kΩ TTL/CMOS INPUTS 18 T3IN T3 T3OUT 1 +5V RS-232 OUTPUTS 400kΩ 19 T4IN 18 T3IN T4 T4OUT 24 +5V 400kΩ 21 T5IN 5 R1OUT T5 R1 T5OUT 20 R1IN 4 5kΩ TTL/CMOS OUTPUTS 22 R2OUT R2 R2IN 23 RS-232 INPUTS 5kΩ 17 R3OUT R3 R3IN 16 5kΩ GND 8 www.analog.com Analog Devices │  18 MAX202E–MAX213E, MAX232E/MAX241E ±15kV ESD-Protected, 5V RS-232 Transceivers Pin Configurations and Typical Operating Circuits (continued) +5V INPUT 0.1µF 6.3V 0.1µF 10 9 VCC C1+ 0.1µF 6.3V 12 C113 C2+ 0.1µF 16V 14 C2- V+ 11 +5V TO +10V VOLTAGE DOUBLER +10V TO -10V VOLTAGE INVERTER V- 15 0.1µF 16V +5V 400kΩ TOP VIEW 5 T1IN T2OUT 1 24 T3OUT T1OUT 2 23 R3IN R2IN 3 22 R3OUT R2OUT 4 21 T4IN T1IN 5 20 T4OUT R1OUT 6 19 T3IN R1IN 7 GND 8 17 R4OUT MAX208E 18 T2IN TTL/CMOS INPUTS VCC 9 16 R4IN 10 15 V- V+ 11 14 C2- C1- 12 13 C2+ T1OUT 2 400kΩ T2 T2OUT 1 +5V RS-232 OUTPUTS 400kΩ 19 T3IN T3 T3OUT 24 +5V 18 T2IN C1+ DIP/SO/SSOP +5V T1 400kΩ 21 T4IN 6 R1OUT T4 R1 T4OUT 20 R1IN 7 5kΩ 4 R2OUT R2 R2IN 3 5kΩ TTL/CMOS OUTPUTS 22 R3OUT R3 RS-232 INPUTS R3IN 23 5kΩ 17 R4OUT R4 R4IN 16 5kΩ GND 8 www.analog.com Analog Devices │  19 MAX202E–MAX213E, MAX232E/MAX241E ±15kV ESD-Protected, 5V RS-232 Transceivers Pin Configurations and Typical Operating Circuits (continued) +5V INPUT 0.1µF 12 0.1µF* 6.3V 0.1µF* 16V 0.1µF* 6.3V 11 VCC C1+ V+ 13 +5V TO +10V VOLTAGE DOUBLER 14 C115 C2+ +10V TO -10V VOLTAGE INVERTER 16 C2- V- 17 0.1µF* 16V +5V 400kΩ 7 T1IN TOP VIEW +5V T3OUT 1 28 T4OUT T1OUT 2 27 R3IN T2OUT 3 26 R3OUT R2IN 4 25 SHDN (SHDN) R2OUT 5 24 EN (EN) T2IN 6 T1IN 7 R1OUT 8 R1IN 9 MAX211E MAX213E MAX241E 6 T2IN TTL/CMOS INPUTS +5V 20 T3IN 21 T4IN 8 R1OUT 20 T3IN VCC 11 18 R5IN C1+ 12 17 V- V+ 13 16 C2- C1- 14 15 C2+ SO/SSOP 400kΩ T2 T2OUT 3 RS-232 OUTPUTS 400kΩ T3 T3OUT 1 400kΩ 21 T4IN 22 R4OUT 19 R5OUT T1OUT 2 +5V 23 R4IN GND 10 T1 T4 R1 T4OUT 28 R1IN 9 5kΩ 5 R2OUT R2 R2IN 4 5kΩ TTL/CMOS OUTPUTS 26 R3OUT R3 R3IN 27 RS-232 INPUTS 5kΩ 22 R4OUT R4 R4IN 23 5kΩ ( ) ARE FOR MAX213E ONLY * 1.0µF CAPACITORS, MAX241E ONLY 19 R5OUT R5 R5IN 18 5kΩ 24 EN (EN) www.analog.com SHDN (SHDN) GND 10 25 Analog Devices │  20 MAX202E–MAX213E, MAX232E/MAX241E ±15kV ESD-Protected, 5V RS-232 Transceivers Ordering Information (continued) PART TEMP RANGE PIN-PACKAGE PART TEMP RANGE PIN-PACKAGE MAX202ECUE 0°C to +70°C 16 TSSOP MAX208ECNG 0°C to +70°C 24 Narrow Plastic DIP MAX202ECWE 0°C to +70°C 16 Wide SO MAX208ECWG 0°C to +70°C 24 SO MAX202EC/D 0°C to +70°C Dice* MAX208ECAG 0°C to +70°C 24 SSOP MAX202EEPE -40°C to +85°C 16 Plastic DIP MAX208EENG -40°C to +85°C 24 Narrow Plastic DIP MAX202EESE -40°C to +85°C 16 Narrow SO MAX208EEWG -40°C to +85°C 24 SO MAX202EEUE -40°C to +85°C 16 TSSOP MAX208EEAG -40°C to +85°C 24 SSOP MAX202EEWE -40°C to +85°C 16 Wide SO MAX211ECWI 0°C to +70°C 28 SO MAX203ECPP 0°C to +70°C 20 Plastic DIP MAX211ECAI 0°C to +70°C 28 SSOP MAX203ECWP 0°C to +70°C 20 SO MAX211EEWI -40°C to +85°C 28 SO MAX203EEPP -40°C to +85°C 20 Plastic DIP MAX211EEAI -40°C to +85°C 28 SSOP MAX203EEWP -40°C to +85°C 20 SO MAX213ECWI 0°C to +70°C 28 SO MAX205ECPG 0°C to +70°C 24 Wide Plastic DIP MAX213ECAI 0°C to +70°C 28 SSOP MAX205EEPG -40°C to +85°C 24 Wide Plastic DIP MAX213EEWI -40°C to +85°C 28 SO MAX206ECNG 0°C to +70°C 24 Narrow Plastic DIP MAX213EEAI -40°C to +85°C 28 SSOP MAX206ECWG 0°C to +70°C 24 SO MAX232ECPE 0°C to +70°C 16 Plastic DIP MAX206ECAG 0°C to +70°C 24 SSOP MAX232ECSE 0°C to +70°C 16 Narrow SO MAX206EENG -40°C to +85°C 24 Narrow Plastic DIP MAX232ECWE 0°C to +70°C 16 Wide SO MAX206EEWG -40°C to +85°C 24 SO MAX232EC/D 0°C to +70°C Dice* MAX206EEAG -40°C to +85°C 24 SSOP MAX232EEPE -40°C to +85°C 16 Plastic DIP MAX207ECNG 0°C to +70°C 24 Narrow Plastic DIP MAX232EESE -40°C to +85°C 16 Narrow SO MAX207ECWG 0°C to +70°C 24 SO MAX232EEWE -40°C to +85°C 16 Wide SO MAX207ECAG 0°C to +70°C 24 SSOP MAX241ECWI 0°C to +70°C 28 SO MAX207EENG -40°C to +85°C 24 Narrow Plastic DIP MAX241ECAI 0°C to +70°C 28 SSOP MAX207EEWG -40°C to +85°C 24 SO MAX241EEWI -40°C to +85°C 28 SO MAX207EEAG -40°C to +85°C 24 SSOP MAX241EEAI -40°C to +85°C 28 SSOP *Dice are specified at TA = +25°C. www.analog.com Analog Devices │  21 MAX202E–MAX213E, MAX232E/MAX241E ±15kV ESD-Protected, 5V RS-232 Transceivers Package Information For the latest package outline information and land patterns (footprints), go to www.maximintegrated.com/packages. Note that a “+”, “#”, or “-” in the package code indicates RoHS status only. Package drawings may show a different suffix character, but the drawing pertains to the package regardless of RoHS status. www.analog.com Analog Devices │  22 MAX202E–MAX213E, MAX232E/MAX241E ±15kV ESD-Protected, 5V RS-232 Transceivers Package Information (continued) For the latest package outline information and land patterns (footprints), go to www.maximintegrated.com/packages. Note that a “+”, “#”, or “-” in the package code indicates RoHS status only. Package drawings may show a different suffix character, but the drawing pertains to the package regardless of RoHS status. www.analog.com Analog Devices │  23 MAX202E–MAX213E, MAX232E/MAX241E ±15kV ESD-Protected, 5V RS-232 Transceivers Package Information (continued) For the latest package outline information and land patterns (footprints), go to www.maximintegrated.com/packages. Note that a “+”, “#”, or “-” in the package code indicates RoHS status only. Package drawings may show a different suffix character, but the drawing pertains to the package regardless of RoHS status. www.analog.com Analog Devices │  24 MAX202E–MAX213E, MAX232E/MAX241E ±15kV ESD-Protected, 5V RS-232 Transceivers Package Information (continued) For the latest package outline information and land patterns (footprints), go to www.maximintegrated.com/packages. Note that a “+”, “#”, or “-” in the package code indicates RoHS status only. Package drawings may show a different suffix character, but the drawing pertains to the package regardless of RoHS status. α  maxim integrated www.analog.com TM Analog Devices │  25 MAX202E–MAX213E, MAX232E/MAX241E ±15kV ESD-Protected, 5V RS-232 Transceivers Revision History REVISION NUMBER REVISION DATE 8 1/21 DESCRIPTION Updated Package information PAGES CHANGED 25 Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use.Specifications subject to change without notice. No license is granted by implicationor otherwise under any patent or patent rights of Analog Devices. Trademarks andregistered trademarks are the property of their respective owners. w w w . a n a l o g . c o m Analog Devices │  26
