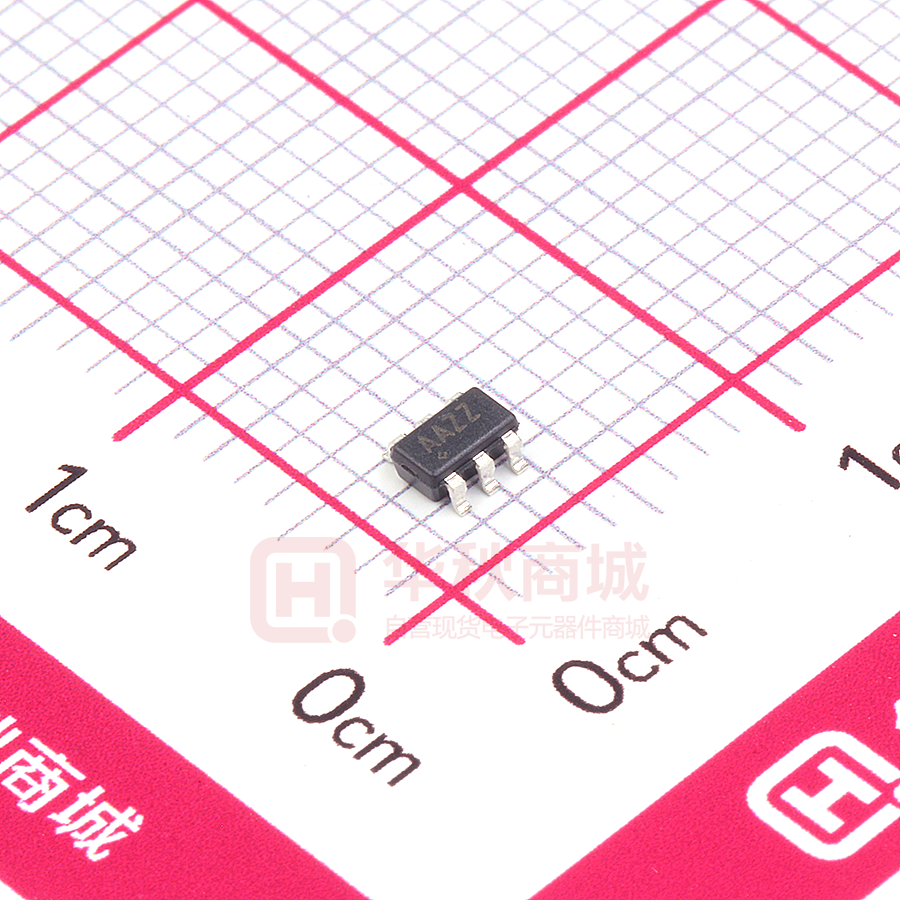

MAX4238AUT+T

Click here to ask about the production status of specific part numbers. MAX4238/MAX4239 General Description The MAX4238/MAX4239 are low-noise, low-drift, ultrahigh precision amplifiers that offer near-zero DC offset and drift through the use of patented autocorrelating zeroing techniques. This method constantly measures and compensates the input offset, eliminating drift over time and temperature and the effect of 1/f noise. Both devices feature rail-to-rail outputs, operate from a single 2.7V to 5.5V supply, and consume only 600µA. An activelow shutdown mode decreases supply current to 0.1µA. The MAX4238 is unity-gain stable with a gain-bandwidth product of 1MHz, while the decompensated MAX4239 is stable with AV ≥ 10V/V and a GBWP of 6.5MHz. The MAX4238/MAX4239 are available in 8-pin narrow SO, 6-pin TDFN and SOT23 packages. Applications ● ● ● ● ● ● Thermocouples Strain Gauges Electronic Scales Medical Instrumentation Instrumentation Amplifiers Automotive Ordering Information appears at end of data sheet. Pin Configurations appear at end of data sheet. Ultra-Low Offset/Drift, Low-Noise, Precision SOT23 Amplifiers Benefits and Features ● DC Performance Ideal for High-Precision Sensor Interface • Ultra-Low, 0.1µV Offset Voltage • 2.0µV (max) at +25°C • 2.5µV (max) at -40°C to +85°C • 3.5µV (max) at -40°C to +125°C • Low 10nV/°C Drift • Low Noise: 1.5µVP-P from DC to 10Hz • 150dB AVOL, 140dB PSRR, 140dB CMRR • High Gain-Bandwidth Product • 1MHz (MAX4238) • 6.5MHz (MAX4239) • Ground-Sensing Input • Rail-to-Rail Output (RL = 1kΩ) ● Low Power Consumption Reduces System Power • Single 2.7V to 5.5V Supply Voltage Range • 600µA Supply Current • 0.1µA Shutdown Mode ● Low Power Consumption Reduces System Power ● AEC-Q100 Qualified, Refer to Ordering Information for the List of /V Parts Typical Application Circuit 5V 18kΩ 360Ω STRAIN GAUGE AV = 100 18kΩ 19-2424; Rev 10; 12/20 MAX4238/ MAX4239 AIN ADC MAX4238/MAX4239 Ultra-Low Offset/Drift, Low-Noise, Precision SOT23 Amplifiers Absolute Maximum Ratings Power-Supply Voltage (VCC to GND)......................................6V All Other Pins.............................(VGND - 0.3V) to (VCC + 0.3V) Output Short-Circuit Duration (OUT shorted to VCC or GND)..............................Continuous Continuous Power Dissipation (TA = +70°C) 6-Pin Plastic SOT23 (derate 5.4mW/°C above +70°C)..............................431.3mW 8-Pin Plastic SO (derate 5.88mW/°C above +70°C)....471mW 6-Pin TDFN-EP (derate 18.2mW above +70°C)........1454mW Operating Temperature Range.......................... -40°C to +125°C Junction Temperature.......................................................+150°C Storage Temperature Range............................. -65°C to +150°C Lead Temperature (soldering, 10s).................................. +300°C Soldering Temperature (reflow) Lead(Pb)-Free Packages.............................................+260°C Packages Containing Lead..........................................+240°C Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. Package Information SO-8 PACKAGE CODE S8+4/S8-4 Outline Number 21-0041 Land Pattern Number 90-0096 Thermal Resistance, Single-Layer Board: Junction to Ambient (θJA) 170°C/W Junction to Case (θJC) 40°C/W Thermal Resistance, Multi-Layer Board: Junction to Ambient (θJA) 132°C/W Junction to Case (θJC) 38°C/W TDFN-6 PACKAGE CODE T633+2 Outline Number 21-0137 Land Pattern Number 90-0058 Thermal Resistance, Single-Layer Board: Junction to Ambient (θJA) 55°C/W Junction to Case (θJC) 9°C/W Thermal Resistance, Multi-Layer Board: Junction to Ambient (θJA) 42°C/W Junction to Case (θJC) 9°C/W www.maximintegrated.com Maxim Integrated │  2 MAX4238/MAX4239 Ultra-Low Offset/Drift, Low-Noise, Precision SOT23 Amplifiers Package Information (continued) SOT23-6 PACKAGE CODE U6FH+6/U6FH-6 Outline Number 21-0058 Land Pattern Number 90-0175 Thermal Resistance, Single-Layer Board: Junction to Ambient (θJA) 185.5°C/W Junction to Case (θJC) 75°C/W Thermal Resistance, Multi-Layer Board: Junction to Ambient (θJA) 134.4°C/W Junction to Case (θJC) 39°C/W For the latest package outline information and land patterns (footprints), go to www.maximintegrated.com/packages. Note that a “+”, “#”, or “-” in the package code indicates RoHS status only. Package drawings may show a different suffix character, but the drawing pertains to the package regardless of RoHS status. Package thermal resistances were obtained using the method described in JEDEC specification JESD51-7, using a four-layer board. For detailed information on package thermal considerations, refer to www.maximintegrated.com/thermal-tutorial. Electrical Characteristics (2.7V ≤ VCC ≤ 5.5V, VCM = VGND = 0V, VOUT = VCC/2, RL = 10kΩ connected to VCC/2, SHDN = VCC, TA = +25°C, unless otherwise noted.) PARAMETER Input Offset Voltage SYMBOL VOS CONDITIONS MIN (Note 1) Long-Term Offset Drift Input Bias Current Input Offset Current Peak-to-Peak Input Noise Voltage Input Voltage-Noise Density Common-Mode Input Voltage Range TYP MAX 0.1 2 UNITS µV 50 nV/1000hr IB (Note 2) 1 pA IOS (Note 2) 2 pA RS = 100W, 0.01Hz to 10Hz 1.5 µVP-P f = 1kHz 30 NV/√Hz enP-P en VCM VGND - 0.1 Inferred from CMRR test VCC 1.3 V Common-Mode Rejection Ratio CMRR -0.1V ≤ VCM ≤ VCC - 1.3V (Note 1) 120 140 dB Power-Supply Rejection Ratio PSRR 2.7V ≤ VCC ≤ 5.5V (Note 1) 120 140 dB 0.05V ≤ VOUT ≤ VCC - 0.05V RL = 10kW (Note 1) 125 150 0.1V ≤ VOUT ≤ VCC - 0.1V (Note 1) 125 Large-Signal Voltage Gain AVOL RL = 10kW Output Voltage Swing VOH/VOL RL = 1kW RL = 1kW 145 VCC - VOH 4 10 VOL 4 10 VCC - VOH 35 50 VOL 35 50 Output Short-Circuit Current To either supply Output Leakage Current 0 ≤ VOUT ≤ VCC, SHDN = GND (Note 2) www.maximintegrated.com dB 40 0.01 mV mA 1 µA Maxim Integrated │  3 MAX4238/MAX4239 Ultra-Low Offset/Drift, Low-Noise, Precision SOT23 Amplifiers Electrical Characteristics (continued) (2.7V ≤ VCC ≤ 5.5V, VCM = VGND = 0V, VOUT = VCC/2, RL = 10kΩ connected to VCC/2, SHDN = VCC, TA = +25°C, unless otherwise noted.) PARAMETER SYMBOL CONDITIONS MIN TYP VCC = 5V, CL = 100pF, VOUT = 2V step MAX4238 0.35 MAX4239 1.6 RL = 10kW, CL = 100pF, measured at f = 100kHz MAX4238 1 MAX4239 6.5 Minimum Stable Closed-Loop Gain RL = 10kW, CL = 100pF, phase margin = 60° MAX4238 1 MAX4239 10 Maximum Closed-Loop Gain RL = 10kW, CL = 100pF, phase margin = 60° Slew Rate Gain-Bandwidth Product GBWP Settling Time -1V step AV = 10 (Note 4) Overload Recovery Time Startup Time Supply Voltage Range AV = 10 VCC Supply Current ICC Shutdown Logic-High VIH Shutdown Logic-Low VIL Shutdown Input Current www.maximintegrated.com MAX4238 1000 MAX4239 6700 0.1% (10 bit) 0.5 0.025% (12 bit) 1.0 0.006% (14 bit) 1.7 0.0015% (16 bit) 2.3 0.1% (10 bit) 3.3 0.025% (12 bit) 4.1 0.006% (14 bit) 4.9 0.0015% (16 bit) 5.7 0.1% (10 bit) 1.8 0.025% (12 bit) 2.6 0.006% (14 bit) 3.4 0.0015% (16 bit) 4.3 Inferred by PSRR test 2.7 MAX V/µs MHz V/V V/V ms ms ms 5.5 SHDN = VCC, no load, VCC = 5.5V 600 850 SHDN = GND, VCC = 5.5V 0.1 1 2.2 0V ≤ V SHDN ≤ VCC UNITS V µA V 0.1 0.8 V 1 µA Maxim Integrated │  4 MAX4238/MAX4239 Ultra-Low Offset/Drift, Low-Noise, Precision SOT23 Amplifiers Electrical Characteristics (2.7V ≤ VCC ≤ 5.5V, VCM = GND = 0V, VOUT = VCC/2, RL = 10kΩ connected to VCC/2, SHDN = VCC, TA = -40°C to +125°C, unless otherwise noted.) (Note 5) PARAMETER Input Offset Voltage Input Offset Drift Common-Mode Input Voltage Range SYMBOL CONDITIONS VOS (Note 1) TCVOS (Note 1) VCM MIN 2.5 TA = -40°C to +125°C 3.5 10 Inferred from CMRR test VGND - 0.05 TA = -40°C to +85°C 115 TA = -40°C to +125°C 90 CMRR VGND - 0.05V ≤ VCM ≤ VCC – 1.4V (Note 1) Power-Supply Rejection Ratio PSRR 2.7V ≤ VCC ≤ 5.5V (Note 1) 120 RL = 10kW, 0.1V ≤ VOUT ≤ VCC - 0.1V (Note 1) TA = -40°C to +85°C 125 TA = -40°C to +125°C 95 0.1V ≤ VOUT ≤ VCC - 0.1V, TA = -40°C to +85°C 120 0.2V ≤ VOUT ≤ VCC - 0.2V, TA = -40°C to +125°C 80 AVOL RL = 1kW (Note 1) RL = 10kW Output Voltage Swing VOH/VOL RL = 1kW Supply Voltage Range VCC Supply Current ICC Shutdown Logic-High VIH Shutdown Logic-Low VIL µV nV/°C VCC - 1.4 V dB dB dB VCC - VOH 20 VOL 20 VCC - VOH 100 VOL 100 Inferred by PSRR test UNITS dB 0V ≤ VOUT ≤ VCC, SHDN = GND (Note 3) Output Leakage Current MAX TA = -40°C to +85°C Common-Mode Rejection Ratio Large-Signal Voltage Gain TYP 2.7 SHDN = VCC, no load, VCC = 5.5V 2 µA 5.5 V 900 SHDN = GND, VCC = 5.5V mV 2 2.2 µA V 0.7 V Shutdown Input Current 0V ≤ VSHDN ≤ VCC 2 µA Note 1: Guaranteed by design. Thermocouple and leakage effects preclude measurement of this parameter during production testing. Devices are screened during production testing to eliminate defective units. Note 2: IN+ and IN- are gates to CMOS transistors with typical input bias current of 1pA. CMOS leakage is so small that it is impractical to test and guarantee in production. Devices are screened during production testing to eliminate defective units. Note 3: Leakage does not include leakage through feedback resistors. Note 4: Overload recovery time is the time required for the device to recover from saturation when the output has been driven to either rail. Note 5: Specifications are 100% tested at TA = +25°C, unless otherwise noted. Limits over temperature are guaranteed by design. www.maximintegrated.com Maxim Integrated │  5 MAX4238/MAX4239 Ultra-Low Offset/Drift, Low-Noise, Precision SOT23 Amplifiers Typical Operating Characteristics (VCC = 5V, VCM = 0V, RL = 10kΩ connected to VCC/2, SHDN = VCC, TA = +25°C, unless otherwise noted.) 10 -1.5 -1.2 -0.9 -0.6 -0.3 0 0.3 0.6 0.9 1.2 1.5 0.25 0.20 VCC = 2.7V 0.15 VCC = 5V 0.10 4.8 0 5 10 15 MAX4238/39 toc03 TA = -40° C -0.2 0 0.9 1.8 2.7 SUPPLY VOLTAGE (V) COMMON-MODE VOLTAGE (V) OUTPUT LOW VOLTAGE vs. OUTPUT SINK CURRENT MAX4238 GAIN AND PHASE vs. FREQUENCY 0.25 VCC = 2.7V 0.20 VCC = 5V 0.15 0.10 0 20 TA = +25° C 0 -0.4 5.5 0.05 0 5 10 15 20 80 60 40 20 0 -20 -40 -60 -80 -100 -120 -140 -160 -180 100 1k 10k 100k 1M MAX4238 GAIN AND PHASE vs. FREQUENCY MAX4238 GAIN AND PHASE vs. FREQUENCY VCC = 5V GAIN = 60dB RL = 10kΩ CL = 100pF 100 1k 10k 100k FREQUENCY (Hz) www.maximintegrated.com 1M 10M VCC = 5V GAIN = 40dB RL = 10kΩ CL = 0pF 100 1k 10k 100k FREQUENCY (Hz) 1M 10M 80 60 40 20 0 -20 -40 -60 -80 -100 -120 -140 -160 -180 10M MAX4238/39 toc09 MAX4238 GAIN AND PHASE vs. FREQUENCY GAIN AND PHASE (dB/DEGREES) FREQUENCY (Hz) GAIN AND PHASE (dB/DEGREES) SINK CURRENT (mA) 80 60 40 20 0 -20 -40 -60 -80 -100 -120 -140 -160 -180 3.6 VCC = 5V GAIN = 60dB RL = 10kΩ CL = 0pF SOURCE CURRENT (mA) MAX4238/39 toc07 GAIN AND PHASE (dB/DEGREES) 80 60 40 20 0 -20 -40 -60 -80 -100 -120 -140 -160 -180 4.1 0.30 0.05 0 3.4 2.7 0.35 OUTPUT LOW VOLTAGE (V) OUTPUT HIGH VOLTAGE (V) MAX4238/39 toc04 OUTPUT HIGH VOLTAGE vs. OUTPUT SOURCE CURRENT VOH = VCC - VOUT -0.2 -0.4 OFFSET VOLTAGE (µV) 0.30 0 MAX4238/39 toc08 0 TA = -40°C TA = +125° C 0.2 MAX4238/39 toc06 20 TA = +25°C MAX4238/39 toc05 30 0.2 0.4 OFFSET VOLTAGE (µV) OFFSET VOLTAGE (µV) 40 TA = +125°C GAIN AND PHASE (dB/DEGREES) 0.4 MAX4238/39 toc01 PERCENTAGE OF UNITS (%) 50 OFFSET VOLTAGE vs. COMMON-MODE VOLTAGE OFFSET VOLTAGE vs. SUPPLY VOLTAGE MAX4238/39 toc02 INPUT OFFSET DISTRIBUTION VCC = 5V GAIN = 40dB RL = 10kΩ CL = 68pF 100 1k 10k 100k 1M 10M FREQUENCY (Hz) Maxim Integrated │  6 MAX4238/MAX4239 Ultra-Low Offset/Drift, Low-Noise, Precision SOT23 Amplifiers Typical Operating Characteristics (continued) (VCC = 5V, VCM = 0V, RL = 10kΩ connected to VCC/2, SHDN = VCC, TA = +25°C, unless otherwise noted.) 1E+5 1E+6 1E+7 1E+5 1E+6 COMMON-MODE REJECTION RATIO vs. FREQUENCY -40 -140 10 100 1000 0 1 2 3 4 5 MAX4238 LARGE-SIGNAL TRANSIENT RESPONSE MAX4238/39 toc15 IN 1V/div -160 0.01 0.1 1 10 100 1000 AV = 1V/V RL = 2kΩ CL = 100pF FREQUENCY (kHz) MAX4239 SMALL-SIGNAL TRANSIENT RESPONSE MAX4238/39 toc18 IN 50mV/div IN 50mV/div OUT 50mV/div 10µs/div OVERVOLTAGE RECOVERY TIME MAX4238/39 toc17 MAX4238/39 toc16 0 OUT 1V/div FREQUENCY (kHz) MAX4238 SMALL-SIGNAL TRANSIENT RESPONSE MAx4238/39 toc12 SUPPLY CURRENT (µA) 200 -80 -140 1 300 -100 -120 0.1 TA = +25°C -60 -120 0.01 TA = -40°C 400 MAX4238/39 toc14 -20 CMRR (dB) -80 -100 TA = +125°C SUPPLY VOLTAGE (V) 0 MAX4238/39 toc13 -60 SUPPLY CURRENT vs. SUPPLY VOLTAGE 500 1E+7 POWER-SUPPLY REJECTION RATIO vs. FREQUENCY -40 600 100 FREQUENCY (Hz) -20 -160 MAX4238/39 toc11 80 60 40 20 0 -20 -40 -60 -80 -100 VCC = 5V -120 GAIN = 40dB -140 RL = 10kΩ -160 CL = 100pF -180 1E+2 1E+3 1E+4 FREQUENCY (Hz) 0 PSRR (dB) GAIN AND PHASE (dB/DEGREES) 80 60 40 20 0 -20 -40 -60 -80 -100 VCC = 5V -120 GAIN = 40dB -140 RL = 10kΩ -160 CL = 0pF -180 1E+2 1E+3 1E+4 MAX4239 GAIN AND PHASE vs. FREQUENCY MAX4238/39 toc10 GAIN AND PHASE (dB/DEGREES) MAX4239 GAIN AND PHASE vs. FREQUENCY 0 IN 50mV/div OUT 1V/div OUT 500mV/div 0 AV = 1V/V RL = 2kΩ CL = 100pF 10µs/div www.maximintegrated.com AV = 10V/V RL = 2kΩ CL = 100pF 10µs/div AV = 100V/V RL = 10kΩ VCC = 2.5V VEE = -2.5V 400µs/div Maxim Integrated │  7 MAX4238/MAX4239 Ultra-Low Offset/Drift, Low-Noise, Precision SOT23 Amplifiers Typical Operating Characteristics (continued) (VCC = 5V, VCM = 0V, RL = 10kΩ connected to VCC/2, SHDN = VCC, TA = +25°C, unless otherwise noted.) MAX4238/39 toc19 EMIRR vs. FREQUENCY 140 MAX4238/39 toc21 DC TO 10Hz NOISE VCC = 5V, RFIN = 16dBm 120 EMIRR (dB) 100 0.6µV/div OUT 80 60 40 20 VCC = 2.5V VEE = -2.5V 0 1s/div 100 1000 FREQUENCY (MHz) Offset Error Sources Pin Description PIN TDFN SOT23 10 SO NAME FUNCTION 1 1 6 OUT Amplifier Output 2 2 4 GND Ground 3 3 3 IN+ Noninverting Input 4 4 2 IN- Inverting Input Shutdown Input. Active-low shutdown, connect to VCC for normal operation. 5 5 1 SHDN 6 6 7 VCC Positive Power Supply — — 5, 8 N.C. No Connection. Not internally connected. — — — EP Detailed Description Exposed Pad (TDFN only). Connect EP to GND. The MAX4238/MAX4239 are high-precision amplifiers that have less than 2.5µV of input-referred offset and low 1/f noise. These characteristics are achieved through a patented autozeroing technique that samples and cancels the input offset and noise of the amplifier. The pseudorandom clock frequency varies from 10kHz to 15kHz, reducing intermodulation distortion present in chopper-stabilized amplifiers. www.maximintegrated.com To achieve very low offset, several sources of error common to autozero-type amplifiers need to be considered. The first contributor is the settling of the sampling capacitor. This type of error is independent of input-source impedance, or the size of the external gain-setting resistors. Maxim uses a patented design technique to avoid large changes in the voltage on the sampling capacitor to reduce settling time errors. The second error contributor, which is present in both autozero and chopper-type amplifiers, is the charge injection from the switches. The charge injection appears as current spikes at the input, and combined with the impedance seen at the amplifier’s input, contributes to input offset voltage. Minimize this feedthrough by reducing the size of the gain-setting resistors and the input-source impedance. A capacitor in parallel with the feedback resistor reduces the amount of clock feedthrough to the output by limiting the closed-loop bandwidth of the device. The design of the MAX4238/MAX4239 minimizes the effects of settling and charge injection to allow specification of an input offset voltage of 0.1µV (typ) and less than 2.5µV over temperature (-40°C to +85°C). 1/f Noise 1/f noise, inherent in all semiconductor devices, is inversely proportional to frequency. 1/f noise increases 3dB/octave and dominates amplifier noise at lower frequencies. This noise appears as a constantly changing voltage in series with any signal being measured. The MAX4238/MAX4239 treat 1/f noise as a slow varying offset error, inherently canceling the 1/f noise. Maxim Integrated │  8 MAX4238/MAX4239 TOP VIEW IN- Pin Configurations SHDN Autozeroing amplifiers typically require a substantial amount of time to recover from an output overload. This is due to the time it takes for the null amplifier to correct the main amplifier to a valid output. The MAX4238/MAX4239 require only 3.3ms to recover from an output overload (see Electrical Characteristics and Typical Operating Characteristics). VCC Output Overload Recovery Ultra-Low Offset/Drift, Low-Noise, Precision SOT23 Amplifiers 6 5 4 EP* MAX4238/ MAX4239 Shutdown The MAX4238/MAX4239 feature a low-power (0.1µA) shutdown mode. When SHDN is pulled low, the clock stops and the device output enters a high-impedance state. Connect SHDN to VCC for normal operation. Applications Information ADC Buffer Amplifier The low offset, fast settling time, and 1/f noise cancellation of the MAX4238/MAX4239 make these devices ideal for ADC buffers. The MAX4238/MAX4239 are well suited for low-speed, high-accuracy applications, such as strain gauges (see Typical Application Circuit). 2 3 GND IN+ TDFN (3mm x 3mm x 0.8mm) Minimum and Maximum Gain Configurations The MAX4238 is a unity-gain stable amplifier with a gain-bandwidth product (GBWP) of 1MHz. The MAX4239 is decompensated for a GBWP of 6.5MHz and is stable with a gain of 10V/V. Unlike conventional operational amplifiers, the MAX4238/MAX4239 have a maximum gain specification. To maintain stability, set the gain of the MAX4238 between AV = 1000V/V to 1V/V, and set the gain of the MAX4239 between AV = 6700V/V and 10V/V. 1 OUT + *CONNECT EP TO GND. MAX4238/ MAX4239 SHDN 1 MAX4238/ MAX4239 8 N.C. IN- 2 7 VCC 3 6 OUT GND 4 5 N.C. IN+ SO OUT 1 6 VCC GND 2 5 SHDN IN+ 3 4 IN- SOT23 Error Budget Example When using the MAX4238/MAX4239 as an ADC buffer, the temperature drift should be taken into account when determining the maximum input signal. With a typical offset drift of 10nV/°C, the drift over a 10°C range is 100nV. Setting this equal to 1/2LSB in a 16-bit system yields a full-scale range of 13mV. With a single 2.7V supply, an acceptable closed-loop gain is AV = 200. This provides sufficient gain while maintaining headroom. www.maximintegrated.com Maxim Integrated │  9 MAX4238/MAX4239 Ultra-Low Offset/Drift, Low-Noise, Precision SOT23 Amplifiers Ordering Information PART PIN-PACKAGE Selector Guide TOP MARK MAX4238ASA+ 8 SO MAX4238ASA+T 8 SO MAX4238ATT+ 6 TDFN-EP* ANG MAX4238ATT+T 6 TDFN-EP* ANG MAX4238AUT+ 6 SOT23 AAZZ MAX4238AUT+T 6 SOT23 AAZZ MAX4238AUT/V+ 6 SOT23 ACRW MAX4238AUT/V+T 6 SOT23 ACRW MAX4239ASA+ 8 SO MAX4239ASA+T 8 SO MAX4239ATT+ 6 TDFN-EP* MAX4239ATT+T 6 TDFN-EP* ANH MAX4239AUT+ 6 SOT23 ABAA MAX4239AUT+T 6 SOT23 ABAA MAX4239AUT/V+ 6 SOT23 ACRX MAX4239AUT/V+T 6 SOT23 ACRX — — PART MINIMUM STABLE GAIN GAIN BANDWIDTH (MHz) MAX4238 1V/V 1 MAX4239 10V/V 6.5 Chip Information PROCESS: BiCMOS — — ANH Note: All devices are specified over the -40°C to +125°C operating temperature range. +Denotes a lead(Pb)-free/RoHS-compliant package. *EP = Exposed paddle. /V denotes an automotive-qualified part. T Denotes tape-and-reel. www.maximintegrated.com Maxim Integrated │  10 MAX4238/MAX4239 Ultra-Low Offset/Drift, Low-Noise, Precision SOT23 Amplifiers Revision History REVISION NUMBER REVISION DATE 2 5/06 PAGES CHANGED DESCRIPTION — — 3 8/11 Added MAX4238 and MAX4239 automotive-qualified parts 1 4 1/14 Updated the Typical Operating Characteristics 7 5 5/15 Added the Benefits and Features section 1 6 9/15 Deleted duplicate graph and updated scale 7 7 7/17 Correcting scale on TOC15–TOC18 x-axes 6 8 2/18 Added AEC qualification statement to Benefits and Features section 9 10/18 Updated Package Information and Ordering Information 10 12/20 Updated Ordering Information table 1 2, 3, 10 10 For pricing, delivery, and ordering information, please visit Maxim Integrated’s online storefront at https://www.maximintegrated.com/en/storefront/storefront.html. Maxim Integrated cannot assume responsibility for use of any circuitry other than circuitry entirely embodied in a Maxim Integrated product. No circuit patent licenses are implied. Maxim Integrated reserves the right to change the circuitry and specifications without notice at any time. The parametric values (min and max limits) shown in the Electrical Characteristics table are guaranteed. Other parametric values quoted in this data sheet are provided for guidance. Maxim Integrated and the Maxim Integrated logo are trademarks of Maxim Integrated Products, Inc. © 2020 Maxim Integrated Products, Inc. │  11
