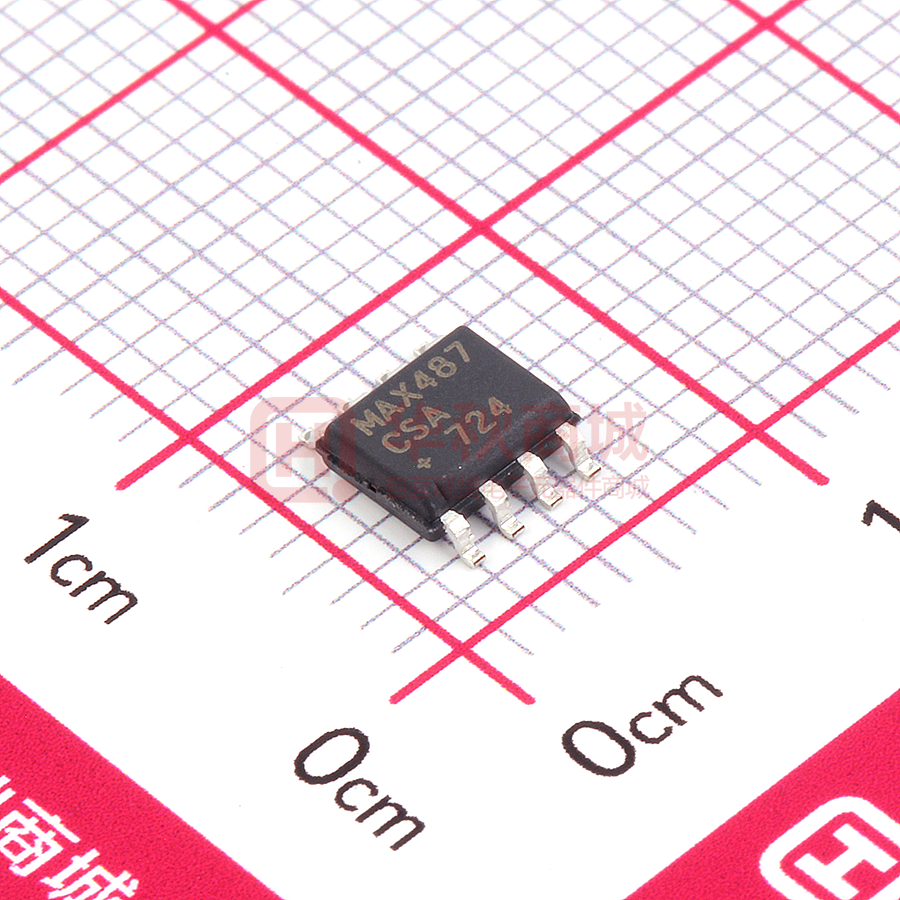

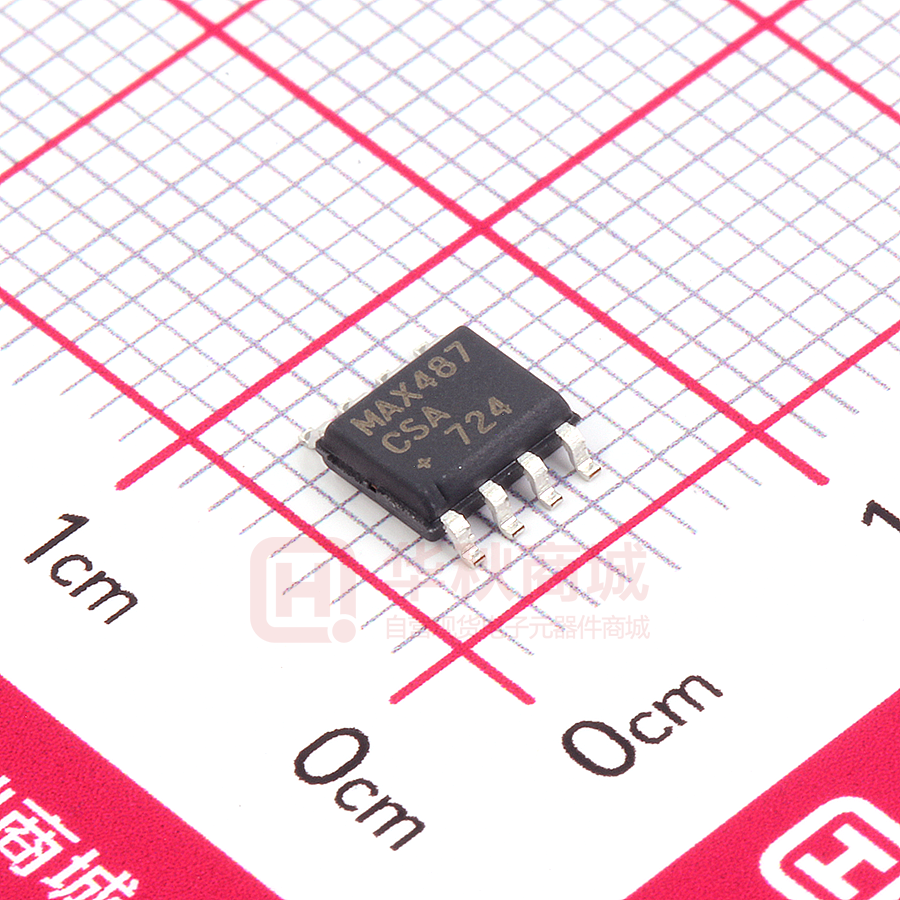

MAX487CSA+T

MAX481/MAX483/MAX485/ MAX487–MAX491/MAX1487 Low-Power, Slew-Rate-Limited RS-485/RS-422 Transceivers General Description The MAX481, MAX483, MAX485, MAX487–MAX491, and MAX1487 are low-power transceivers for RS-485 and RS422 communication. Each part contains one driver and one receiver. The MAX483, MAX487, MAX488, and MAX489 feature reduced slew-rate drivers that minimize EMI and reduce reflections caused by improperly terminated cables, thus allowing error-free data transmission up to 250kbps. The driver slew rates of the MAX481, MAX485, MAX490, MAX491, and MAX1487 are not limited, allowing them to transmit up to 2.5Mbps. These transceivers draw between 120µA and 500µA of supply current when unloaded or fully loaded with disabled drivers. Additionally, the MAX481, MAX483, and MAX487 have a low-current shutdown mode in which they consume only 0.1µA. All parts operate from a single 5V supply. Drivers are short-circuit current limited and are protected against excessive power dissipation by thermal shutdown circuitry that places the driver outputs into a high-impedance state. The receiver input has a fail-safe feature that guarantees a logic-high output if the input is open circuit. The MAX487 and MAX1487 feature quarter-unit-load receiver input impedance, allowing up to 128 MAX487/ MAX1487 transceivers on the bus. Full-duplex communications are obtained using the MAX488–MAX491, while the MAX481, MAX483, MAX485, MAX487, and MAX1487 are designed for half-duplex applications. ________________________Applications Low-Power RS-485 Transceivers Low-Power RS-422 Transceivers Level Translators __Next Generation Device Features o For Fault-Tolerant Applications MAX3430: ±80V Fault-Protected, Fail-Safe, 1/4 Unit Load, +3.3V, RS-485 Transceiver MAX3440E–MAX3444E: ±15kV ESD-Protected, ±60V Fault-Protected, 10Mbps, Fail-Safe, RS-485/J1708 Transceivers o For Space-Constrained Applications MAX3460–MAX3464: +5V, Fail-Safe, 20Mbps, Profibus RS-485/RS-422 Transceivers MAX3362: +3.3V, High-Speed, RS-485/RS-422 Transceiver in a SOT23 Package MAX3280E–MAX3284E: ±15kV ESD-Protected, 52Mbps, +3V to +5.5V, SOT23, RS-485/RS-422, True Fail-Safe Receivers MAX3293/MAX3294/MAX3295: 20Mbps, +3.3V, SOT23, RS-485/RS-422 Transmitters o For Multiple Transceiver Applications MAX3030E–MAX3033E: ±15kV ESD-Protected, +3.3V, Quad RS-422 Transmitters o For Fail-Safe Applications MAX3080–MAX3089: Fail-Safe, High-Speed (10Mbps), Slew-Rate-Limited RS-485/RS-422 Transceivers o For Low-Voltage Applications MAX3483E/MAX3485E/MAX3486E/MAX3488E/ MAX3490E/MAX3491E: +3.3V Powered, ±15kV ESD-Protected, 12Mbps, Slew-Rate-Limited, True RS-485/RS-422 Transceivers Transceivers for EMI-Sensitive Applications Industrial-Control Local Area Networks Ordering Information appears at end of data sheet. ______________________________________________________________Selection Table DATA RATE (Mbps) LOWRECEIVER/ QUIESCENT POWER DRIVER CURRENT SHUTDOWN ENABLE (μA) NUMBER OF RECEIVERS ON BUS PART NUMBER HALF/FULL DUPLEX MAX481 Half 2.5 No Yes Yes 300 32 8 MAX483 Half 0.25 Yes Yes Yes 120 32 8 MAX485 Half 2.5 No No Yes 300 32 8 MAX487 Half 0.25 Yes Yes Yes 120 128 8 MAX488 Full 0.25 Yes No No 120 32 8 MAX489 Full 0.25 Yes No Yes 120 32 14 MAX490 Full 2.5 No No No 300 32 8 MAX491 Full 2.5 No No Yes 300 32 14 MAX1487 Half 2.5 No No Yes 230 128 8 SLEW-RATE LIMITED For pricing, delivery, and ordering information, please contact Maxim Direct at 1-888-629-4642, or visit Maxim Integrated’s website at www.maximintegrated.com. PIN COUNT 19-0122; Rev 10; 9/14 MAX481/MAX483/MAX485/ MAX487–MAX491/MAX1487 Low-Power, Slew-Rate-Limited RS-485/RS-422 Transceivers ABSOLUTE MAXIMUM RATINGS Supply Voltage (VCC) .............................................................12V Control Input Voltage (RE, DE)...................-0.5V to (VCC + 0.5V) Driver Input Voltage (DI).............................-0.5V to (VCC + 0.5V) Driver Output Voltage (A, B)...................................-8V to +12.5V Receiver Input Voltage (A, B).................................-8V to +12.5V Receiver Output Voltage (RO)....................-0.5V to (VCC + 0.5V) Continuous Power Dissipation (TA = +70°C) 8-Pin Plastic DIP (derate 9.09mW/°C above +70°C) ....727mW 14-Pin Plastic DIP (derate 10.00mW/°C above +70°C) ..800mW 8-Pin SO (derate 5.88mW/°C above +70°C).................471mW 14-Pin SO (derate 8.33mW/°C above +70°C)...............667mW 8-Pin µMAX (derate 4.1mW/°C above +70°C) ..............830mW 8-Pin CERDIP (derate 8.00mW/°C above +70°C).........640mW 14-Pin CERDIP (derate 9.09mW/°C above +70°C).......727mW Operating Temperature Ranges MAX4_ _C_ _/MAX1487C_ A ...............................0°C to +70°C MAX4_ _E_ _/MAX1487E_ A .............................-40°C to +85°C MAX4_ _M_/MAX1487MJA .............................-55°C to +125°C Storage Temperature Range .............................-65°C to +160°C Lead Temperature (soldering, 10sec) .............................+300°C Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. DC ELECTRICAL CHARACTERISTICS (VCC = 5V ±5%, TA = TMIN to TMAX, unless otherwise noted.) (Notes 1, 2) PARAMETER SYMBOL Differential Driver Output (no load) VOD1 Differential Driver Output (with load) Change in Magnitude of Driver Differential Output Voltage for Complementary Output States Driver Common-Mode Output Voltage Change in Magnitude of Driver Common-Mode Output Voltage for Complementary Output States VOD2 CONDITIONS MIN R = 50Ω (RS-422) TYP MAX UNITS 5 V 2 R = 27Ω (RS-485), Figure 4 1.5 5 V ΔVOD R = 27Ω or 50Ω, Figure 4 0.2 V VOC R = 27Ω or 50Ω, Figure 4 3 V ΔVOD R = 27Ω or 50Ω, Figure 4 0.2 V Input High Voltage VIH DE, DI, RE Input Low Voltage VIL DE, DI, RE 0.8 V Input Current IIN1 DE, DI, RE ±2 µA IIN2 DE = 0V; VCC = 0V or 5.25V, all devices except MAX487/MAX1487 Input Current (A, B) MAX487/MAX1487, DE = 0V, VCC = 0V or 5.25V Receiver Differential Threshold Voltage VTH 2.0 V VIN = 12V 1.0 VIN = -7V -0.8 VIN = 12V 0.25 VIN = -7V -0.2 mA -7V ≤ VCM ≤ 12V -0.2 0.2 mA V Receiver Input Hysteresis ΔVTH VCM = 0V Receiver Output High Voltage VOH IO = -4mA, VID = 200mV Receiver Output Low Voltage VOL IO = 4mA, VID = -200mV 0.4 V Three-State (high impedance) Output Current at Receiver IOZR 0.4V ≤ VO ≤ 2.4V ±1 µA Receiver Input Resistance 2 70 mV 3.5 V -7V ≤ VCM ≤ 12V, all devices except MAX487/MAX1487 12 kΩ -7V ≤ VCM ≤ 12V, MAX487/MAX1487 48 kΩ RIN Maxim Integrated MAX481/MAX483/MAX485/ MAX487–MAX491/MAX1487 Low-Power, Slew-Rate-Limited RS-485/RS-422 Transceivers DC ELECTRICAL CHARACTERISTICS (continued) (VCC = 5V ±5%, TA = TMIN to TMAX, unless otherwise noted.) (Notes 1, 2) PARAMETER No-Load Supply Current (Note 3) SYMBOL ICC TYP MAX MAX488/MAX489, DE, DI, RE = 0V or VCC CONDITIONS MIN 120 250 MAX490/MAX491, DE, DI, RE = 0V or VCC 300 500 UNITS MAX481/MAX485, RE = 0V or VCC DE = VCC 500 900 DE = 0V 300 500 MAX1487, RE = 0V or VCC DE = VCC 300 500 DE = 0V 230 400 MAX483 350 650 MAX487 250 120 0.1 400 250 10 µA MAX483/MAX487, RE = 0V or VCC DE = 5V µA Supply Current in Shutdown ISHDN DE = 0V MAX481/483/487, DE = 0V, RE = VCC Driver Short-Circuit Current, VO = High IOSD1 -7V ≤ VO ≤12V (Note 4) 35 250 mA Driver Short-Circuit Current, VO = Low IOSD2 -7V ≤ VO ≤12V (Note 4) 35 250 mA Receiver Short-Circuit Current IOSR 0V ≤ VO ≤ VCC 7 95 mA MAX 60 60 10 40 25 40 70 70 70 70 200 150 200 UNITS SWITCHING CHARACTERISTICS—MAX481/MAX485, MAX490/MAX491, MAX1487 (VCC = 5V ±5%, TA = TMIN to TMAX, unless otherwise noted.) (Notes 1, 2) PARAMETER Driver Input to Output Driver Output Skew to Output Driver Rise or Fall Time Driver Enable to Output High Driver Enable to Output Low Driver Disable Time from Low Driver Disable Time from High Receiver Input to Output | tPLH - tPHL | Differential Receiver Skew Receiver Enable to Output Low Receiver Enable to Output High Receiver Disable Time from Low Receiver Disable Time from High Maximum Data Rate Time to Shutdown Maxim Integrated SYMBOL CONDITIONS tPLH Figures 6 and 8, RDIFF = 54Ω, CL1 = CL2 = 100pF tPHL tSKEW Figures 6 and 8, RDIFF = 54Ω, CL1 = CL2 = 100pF MIN 10 10 MAX481, MAX485, MAX1487 Figures 6 and 8, tR, tF RDIFF = 54Ω, MAX490C/E, MAX491C/E CL1 = CL2 = 100pF MAX490M, MAX491M tZH Figures 7 and 9, CL = 100pF, S2 closed tZL Figures 7 and 9, CL = 100pF, S1 closed tLZ Figures 7 and 9, CL = 15pF, S1 closed tHZ Figures 7 and 9, CL = 15pF, S2 closed Figures 6 and 10, MAX481, MAX485, MAX1487 MAX490C/E, MAX491C/E tPLH, tPHL RDIFF = 54Ω, CL1 = CL2 = 100pF MAX490M, MAX491M 3 5 3 20 20 20 TYP 30 30 5 15 15 15 40 40 40 40 90 90 90 tSKD Figures 6 and 10, RDIFF = 54Ω, CL1 = CL2 = 100pF 13 tZL tZH tLZ tHZ Figures 5 and 11, CRL = 15pF, S1 closed Figures 5 and 11, CRL = 15pF, S2 closed Figures 5 and 11, CRL = 15pF, S1 closed Figures 5 and 11, CRL = 15pF, S2 closed 20 20 20 20 50 50 50 50 200 600 fMAX tSHDN MAX481 (Note 5) 2.5 50 ns ns ns ns ns ns ns ns ns ns ns ns ns Mbps ns 3 MAX481/MAX483/MAX485/ MAX487–MAX491/MAX1487 Low-Power, Slew-Rate-Limited RS-485/RS-422 Transceivers SWITCHING CHARACTERISTICS—MAX481/MAX485, MAX490/MAX491, MAX1487 (continued) (VCC = 5V ±5%, TA = TMIN to TMAX, unless otherwise noted.) (Notes 1, 2) PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS Driver Enable from Shutdown to tZH(SHDN) Output High (MAX481) Figures 7 and 9, CL = 100pF, S2 closed 40 100 ns Driver Enable from Shutdown to tZL(SHDN) Output Low (MAX481) Figures 7 and 9, CL = 100pF, S1 closed 40 100 ns Receiver Enable from Shutdown tZH(SHDN) to Output High (MAX481) Figures 5 and 11, CL = 15pF, S2 closed, A - B = 2V 300 1000 ns Receiver Enable from Shutdown tZL(SHDN) to Output Low (MAX481) Figures 5 and 11, CL = 15pF, S1 closed, B - A = 2V 300 1000 ns MIN 250 TYP 800 MAX 2000 UNITS 250 800 2000 100 800 ns SWITCHING CHARACTERISTICS—MAX483, MAX487/MAX488/MAX489 (VCC = 5V ±5%, TA = TMIN to TMAX, unless otherwise noted.) (Notes 1, 2) PARAMETER Driver Input to Output SYMBOL tPLH tPHL CONDITIONS Figures 6 and 8, RDIFF = 54Ω, CL1 = CL2 = 100pF ns Driver Output Skew to Output tSKEW Figures 6 and 8, RDIFF = 54Ω, CL1 = CL2 = 100pF Driver Rise or Fall Time tR, tF Figures 6 and 8, RDIFF = 54Ω, CL1 = CL2 = 100pF 250 2000 ns Driver Enable to Output High tZH Figures 7 and 9, CL = 100pF, S2 closed 250 2000 ns Driver Enable to Output Low tZL Figures 7 and 9, CL = 100pF, S1 closed 250 2000 ns Driver Disable Time from Low tLZ Figures 7 and 9, CL = 15pF, S1 closed 300 3000 ns tHZ Figures 7 and 9, CL = 15pF, S2 closed 300 3000 ns tPLH Figures 6 and 10, RDIFF = 54Ω, CL1 = CL2 = 100pF 250 2000 250 2000 Driver Disable Time from High Receiver Input to Output I tPLH - tPHL I Differential Receiver Skew tPHL tSKD Figures 6 and 10, RDIFF = 54Ω, CL1 = CL2 = 100pF 100 ns ns Receiver Enable to Output Low tZL Figures 5 and 11, CRL = 15pF, S1 closed 20 50 ns Receiver Enable to Output High tZH Figures 5 and 11, CRL = 15pF, S2 closed 20 50 ns Receiver Disable Time from Low tLZ Figures 5 and 11, CRL = 15pF, S1 closed 20 50 ns tHZ Figures 5 and 11, CRL = 15pF, S2 closed 20 50 Receiver Disable Time from High Maximum Data Rate fMAX tPLH, tPHL < 50% of data period 250 Time to Shutdown tSHDN MAX483/MAX487 (Note 5) 50 Driver Enable from Shutdown to Output High Driver Enable from Shutdown to Output Low Receiver Enable from Shutdown to Output High Receiver Enable from Shutdown to Output Low 4 tZH(SHDN) tZL(SHDN) tZH(SHDN) tZL(SHDN) MAX483/MAX487, Figures 7 and 9, CL = 100pF, S2 closed MAX483/MAX487, Figures 7 and 9, CL = 100pF, S1 closed MAX483/MAX487, Figures 5 and 11, CL = 15pF, S2 closed MAX483/MAX487, Figures 5 and 11, CL = 15pF, S1 closed ns kbps 200 600 ns 2000 ns 2000 ns 2500 ns 2500 ns Maxim Integrated MAX481/MAX483/MAX485/ MAX487–MAX491/MAX1487 Low-Power, Slew-Rate-Limited RS-485/RS-422 Transceivers Note 1: All currents into device pins are positive; all currents out of device pins are negative. All voltages are referenced to device ground unless otherwise specified. Note 2: All typical specifications are given for VCC = 5V and TA = +25°C. Note 3: Supply current specification is valid for loaded transmitters when DE = 0V. Note 4: Applies to peak current. See Typical Operating Characteristics. Note 5: The MAX481/MAX483/MAX487 are put into shutdown by bringing RE high and DE low. If the inputs are in this state for less than 50ns, the parts are guaranteed not to enter shutdown. If the inputs are in this state for at least 600ns, the parts are guaranteed to have entered shutdown. See Low-Power Shutdown Mode (MAX481/MAX483/MAX487) section. __________________________________________Typical Operating Characteristics (VCC = 5V, TA = +25°C, unless otherwise noted.) -18 OUTPUT CURRENT (mA) 30 25 20 15 -14 -12 -10 -8 -6 4.4 4.2 4.0 3.8 3.6 10 -4 3.4 5 -2 3.2 0 3.0 0 0 0.5 1.0 2.0 1.5 2.5 IRO = 8mA 4.6 OUTPUT HIGH VOLTAGE (V) -16 35 4.8 MAX481-02 40 1.5 2.0 2.5 3.0 3.5 4.0 4.5 -50 5.0 -25 0 25 50 75 100 125 OUTPUT HIGH VOLTAGE (V) TEMPERATURE (°C) RECEIVER OUTPUT LOW VOLTAGE vs. TEMPERATURE DRIVER OUTPUT CURRENT vs. DIFFERENTIAL OUTPUT VOLTAGE DRIVER DIFFERENTIAL OUTPUT VOLTAGE vs. TEMPERATURE OUTPUT CURRENT (mA) 0.7 80 0.6 0.5 0.4 0.3 70 60 50 40 30 0.2 20 0.1 10 0 0 -50 -25 0 25 50 75 TEMPERATURE (°C) Maxim Integrated 100 125 2.4 DIFFERENTIAL OUTPUT VOLTAGE (V) IRO = 8mA 0.8 90 MAX481-04 0.9 R = 54Ω 2.3 MAX481-06 OUTPUT LOW VOLTAGE (V) MAX481-05 OUTPUT CURRENT (mA) -20 MAX481-01 45 OUTPUT LOW VOLTAGE (V) RECEIVER OUTPUT HIGH VOLTAGE vs. TEMPERATURE OUTPUT CURRENT vs. RECEIVER OUTPUT HIGH VOLTAGE MAX481-03 OUTPUT CURRENT vs. RECEIVER OUTPUT LOW VOLTAGE 2.2 2.1 2.0 1.9 1.8 1.7 1.6 1.5 0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 DIFFERENTIAL OUTPUT VOLTAGE (V) -50 -25 0 25 50 75 100 125 TEMPERATURE (°C) 5 MAX481/MAX483/MAX485/MAX487–MAX491/MAX1487 NOTES FOR ELECTRICAL/SWITCHING CHARACTERISTICS MAX481/MAX483/MAX485/ MAX487–MAX491/MAX1487 ____________________________Typical Operating Characteristics (continued) (VCC = 5V, TA = +25°C, unless otherwise noted.) OUTPUT CURRENT vs. DRIVER OUTPUT HIGH VOLTAGE 120 600 MAX481-08 -120 MAX481-07 140 MAX481/MAX485/MAX490/MAX491 SUPPLY CURRENT vs. TEMPERATURE MAX481/MAX485; DE = VCC, RE = X 80 60 40 20 500 SUPPLY CURRENT (μA) OUTPUT CURRENT (mA) -100 100 MAX481-11 OUTPUT CURRENT vs. DRIVER OUTPUT LOW VOLTAGE OUTPUT CURRENT (mA) -80 -60 -40 400 300 MAX485; DE = 0, RE = X, MAX481; DE = RE = 0 MAX490/MAX491; DE = RE = X 200 -20 100 0 0 MAX481; DE = 0, RE = VCC 0 2 4 6 8 12 10 -7 -6 -5 -4 -3 -2 -1 0 OUTPUT LOW VOLTAGE (V) 1 3 2 4 5 -50 -25 OUTPUT HIGH VOLTAGE (V) 50 25 75 100 125 TEMPERATURE (°C) MAX1487 SUPPLY CURRENT vs. TEMPERATURE MAX483/MAX487–MAX489 SUPPLY CURRENT vs. TEMPERATURE 600 MAX481-12 600 0 MAX481-13 0 500 400 SUPPLY CURRENT (μA) 500 SUPPLY CURRENT (μA) MAX481/MAX483/MAX485/MAX487–MAX491/MAX1487 Low-Power, Slew-Rate-Limited RS-485/RS-422 Transceivers MAX483; DE = VCC, RE = X 300 MAX487; DE = VCC, RE = X 200 MAX483/MAX487; DE = RE = 0, MAX488/MAX489; DE = RE = X 400 300 MAX1487; DE = VCC, RE = X 200 MAX1487; DE = 0V, RE = X 100 100 MAX483/MAX487; DE = 0, RE = VCC 0 0 -50 -25 0 25 50 75 TEMPERATURE (°C) 6 100 125 -60 -40 -20 0 20 40 60 80 100 120 140 TEMPERATURE (°C) Maxim Integrated MAX481/MAX483/MAX485/ MAX487–MAX491/MAX1487 Low-Power, Slew-Rate-Limited RS-485/RS-422 Transceivers ______________________________________________________________Pin Description PIN MAX481/MAX483/ MAX485/MAX487/ MAX1487 MAX488/ MAX490 MAX489/ MAX491 NAME NAME FUNCTION FUNCTION DIP/SO µMAX DIP/SO µMAX DIP/SO 1 3 2 4 2 RO Receiver Output: If A > B by 200mV, RO will be high; If A < B by 200mV, RO will be low. 2 4 — — 3 RE Receiver Output Enable. RO is enabled when RE is low; RO is high impedance when RE is high. 3 5 — — 4 DE Driver Output Enable. The driver outputs, Y and Z, are enabled by bringing DE high. They are high impedance when DE is low. If the driver outputs are enabled, the parts function as line drivers. While they are high impedance, they function as line receivers if RE is low. 4 6 3 5 5 DI Driver Input. A low on DI forces output Y low and output Z high. Similarly, a high on DI forces output Y high and output Z low. 5 7 4 6 6, 7 GND — — 5 7 9 Y Noninverting Driver Output — — 6 8 10 Z Inverting Driver Output 6 8 — — — A Noninverting Receiver Input and Noninverting Driver Output — — 8 2 12 A Noninverting Receiver Input 7 1 — — — B Inverting Receiver Input and Inverting Driver Output — — 7 1 11 B Inverting Receiver Input 8 2 1 3 14 VCC Positive Supply: 4.75V ≤ VCC ≤ 5.25V — — — — 1, 8, 13 N.C. No Connect—not internally connected Ground TOP VIEW RO 1 R 8 VCC RE 2 7 B DE 3 6 A 5 GND DI 4 D 1 VCC 2 RO 3 RE 4 MAX481 MAX483 MAX485 MAX487 MAX1487 μMAX RO 1 R RE 2 DIP/SO B MAX481 MAX483 MAX485 MAX487 MAX1487 DE 3 8 A 7 GND 6 DI 5 DE DI 4 D 8 VCC 7 B Rt 6 A 5 GND DE D DI B Rt A RO R RE NOTE: PIN LABELS Y AND Z ON TIMING, TEST, AND WAVEFORM DIAGRAMS REFER TO PINS A AND B WHEN DE IS HIGH. TYPICAL OPERATING CIRCUIT SHOWN WITH DIP/SO PACKAGE. Figure 1. MAX481/MAX483/MAX485/MAX487/MAX1487 Pin Configuration and Typical Operating Circuit Maxim Integrated 7 MAX481/MAX483/MAX485/ MAX487–MAX491/MAX1487 Low-Power, Slew-Rate-Limited RS-485/RS-422 Transceivers TOP VIEW VCC VCC 8 A RO 2 7 B DI 3 6 Z 5 Y VCC 1 GND 4 R D MAX488 MAX490 1 5 Y DI 3 Rt D 6 Z R RO DIP/SO 8 A B 1 A 2 VCC 3 RO 4 8 MAX488 MAX490 RO Z 7 Y 6 GND 5 DI 2 Rt R D 7 DI B 4 GND μMAX GND NOTE: TYPICAL OPERATING CIRCUIT SHOWN WITH DIP/SO PACKAGE. Figure 2. MAX488/MAX490 Pin Configuration and Typical Operating Circuit TOP VIEW DE 4 N.C. 1 RO 2 14 V CC R 13 N.C. RE 3 12 A DE 4 11 B DI 5 10 Z GND 6 D GND 7 9 Y 8 N.C. VCC RE VCC 14 MAX489 MAX491 9 DI 5 Y Rt D 10 RO R Z 12 RO 2 A Rt R D 11 DI B NC 1, 8, 13 3 DIP/SO 6, 7 RE GND GND DE Figure 3. MAX489/MAX491 Pin Configuration and Typical Operating Circuit __________Applications Information The MAX481/MAX483/MAX485/MAX487–MAX491 and MAX1487 are low-power transceivers for RS-485 and RS422 communications. The MAX481, MAX485, MAX490, MAX491, and MAX1487 can transmit and receive at data rates up to 2.5Mbps, while the MAX483, MAX487, MAX488, and MAX489 are specified for data rates up to 250kbps. The MAX488–MAX491 are full-duplex transceivers while the MAX481, MAX483, MAX485, MAX487, and MAX1487 are half-duplex. In addition, Driver Enable (DE) and Receiver Enable (RE) pins are included on the MAX481, MAX483, MAX485, MAX487, MAX489, MAX491, and MAX1487. When disabled, the driver and receiver outputs are high impedance. 8 MAX487/MAX1487: 128 Transceivers on the Bus The 48kΩ, 1/4-unit-load receiver input impedance of the MAX487 and MAX1487 allows up to 128 transceivers on a bus, compared to the 1-unit load (12kΩ input impedance) of standard RS-485 drivers (32 transceivers maximum). Any combination of MAX487/ MAX1487 and other RS-485 transceivers with a total of 32 unit loads or less can be put on the bus. The MAX481/MAX483/MAX485 and MAX488–MAX491 have standard 12kΩ Receiver Input impedance. Maxim Integrated MAX481/MAX483/MAX485/ MAX487–MAX491/MAX1487 Low-Power, Slew-Rate-Limited RS-485/RS-422 Transceivers _________________________________________________________________Test Circuits Y R TEST POINT RECEIVER OUTPUT CRL 15pF VOD R 1kΩ VCC S1 1kΩ VOC S2 Z Figure 4. Driver DC Test Load 3V DE CL1 Y DI Figure 5. Receiver Timing Test Load 500Ω A RDIFF VID RO B Z S1 VCC OUTPUT UNDER TEST CL S2 RE CL2 Figure 6. Driver/Receiver Timing Test Circuit MAX483/MAX487/MAX488/MAX489: Reduced EMI and Reflections The MAX483 and MAX487–MAX489 are slew-rate limited, minimizing EMI and reducing reflections caused by improperly terminated cables. Figure 12 shows the driver output waveform and its Fourier analysis of a 150kHz signal transmitted by a MAX481, MAX485, MAX490, MAX491, or MAX1487. High-frequency har- Maxim Integrated Figure 7. Driver Timing Test Load monics with large amplitudes are evident. Figure 13 shows the same information displayed for a MAX483, MAX487, MAX488, or MAX489 transmitting under the same conditions. Figure 13’s high-frequency harmonics have much lower amplitudes, and the potential for EMI is significantly reduced. 9 MAX481/MAX483/MAX485/ MAX487–MAX491/MAX1487 Low-Power, Slew-Rate-Limited RS-485/RS-422 Transceivers _______________________________________________________Switching Waveforms 3V 3V DI 1.5V DE 1.5V 0V 1.5V 1.5V 0V tPHL tPLH 1/2 VO tLZ tZL(SHDN), tZL Y, Z Z VO 1/2 VO VO VDIFF 0V -VO 2.3V OUTPUT NORMALLY LOW VOL Y VDIFF = V (Y) - V (Z) VOH - 0.5V 2.3V 90% tR OUTPUT NORMALLY HIGH Y, Z 90% 10% VOL + 0.5V 0V 10% tZH(SHDN), tZH tF tHZ tSKEW = | tPLH - tPHL | Figure 8. Driver Propagation Delays Figure 9. Driver Enable and Disable Times (except MAX488 and MAX490) 3V RE 1.5V 1.5V 0V RO A-B VOH 1.5V VOL tPHL VID -VID 0V VCC RO tPLH 1.5V OUTPUT NORMALLY LOW 0V INPUT tLZ tZL(SHDN), tZL 1.5V OUTPUT VOL + 0.5V OUTPUT NORMALLY HIGH RO VOH - 0.5V 1.5V 0V tZH(SHDN), tZH tHZ Figure 11. Receiver Enable and Disable Times (except MAX488 and MAX490) Figure 10. Receiver Propagation Delays _________________Function Tables (MAX481/MAX483/MAX485/MAX487/MAX1487) Table 1. Transmitting Table 2. Receiving INPUTS OUTPUTS OUTPUT RE DE DI Z Y RE DE A-B RO X 1 1 0 1 0 0 > +0.2V 1 X 1 0 1 0 0 0 < -0.2V 0 0 0 X High-Z High-Z 0 0 Inputs open 1 1 0 X High-Z* High-Z* 1 0 X High-Z* X = Don’t care High-Z = High impedance *Shutdown mode for MAX481/MAX483/MAX487 10 INPUTS X = Don’t care High-Z = High impedance *Shutdown mode for MAX481/MAX483/MAX487 Maxim Integrated MAX481/MAX483/MAX485/ MAX487–MAX491/MAX1487 Low-Power, Slew-Rate-Limited RS-485/RS-422 Transceivers 10dB/div 10dB/div 0Hz 5MHz 500kHz/div Figure 12. Driver Output Waveform and FFT Plot of MAX481/ MAX485/MAX490/MAX491/MAX1487 Transmitting a 150kHz Signal Low-Power Shutdown Mode (MAX481/MAX483/MAX487) A low-power shutdown mode is initiated by bringing both RE high and DE low. The devices will not shut down unless both the driver and receiver are disabled. In shutdown, the devices typically draw only 0.1µA of supply current. RE and DE may be driven simultaneously; the parts are guaranteed not to enter shutdown if RE is high and DE is low for less than 50ns. If the inputs are in this state for at least 600ns, the parts are guaranteed to enter shutdown. For the MAX481, MAX483, and MAX487, the tZH and tZL enable times assume the part was not in the lowpower shutdown state (the MAX485/MAX488–MAX491 and MAX1487 can not be shut down). The tZH(SHDN) and tZL(SHDN) enable times assume the parts were shut down (see Electrical Characteristics). It takes the drivers and receivers longer to become enabled from the low-power shutdown state (tZH(SHDN), tZL(SHDN)) than from the operating mode –—– (tZH, tZL). (The parts are in operating mode if the RE , DE inputs equal a logical 0,1 or 1,1 or 0, 0.) Maxim Integrated 0Hz 5MHz 500kHz/div Figure 13. Driver Output Waveform and FFT Plot of MAX483/ MAX487–MAX489 Transmitting a 150kHz Signal Driver Output Protection Excessive output current and power dissipation caused by faults or by bus contention are prevented by two mechanisms. A foldback current limit on the output stage provides immediate protection against short circuits over the whole common-mode voltage range (see Typical Operating Characteristics). In addition, a thermal shutdown circuit forces the driver outputs into a high-impedance state if the die temperature rises excessively. Propagation Delay Many digital encoding schemes depend on the difference between the driver and receiver propagation delay times. Typical propagation delays are shown in Figures 15–18 using Figure 14’s test circuit. The difference in receiver delay times, | tPLH - tPHL |, is typically under 13ns for the MAX481, MAX485, MAX490, MAX491, and MAX1487 and is typically less than 100ns for the MAX483 and MAX487–MAX489. The driver skew times are typically 5ns (10ns max) for the MAX481, MAX485, MAX490, MAX491, and MAX1487, and are typically 100ns (800ns max) for the MAX483 and MAX487–MAX489. 11 MAX481/MAX483/MAX485/ MAX487–MAX491/MAX1487 Low-Power, Slew-Rate-Limited RS-485/RS-422 Transceivers 100pF Z TTL IN tR, tF < 6ns B R D Y R = 54Ω RECEIVER OUT A 100pF Figure 14. Receiver Propagation Delay Test Circuit A B VCC = 5V TA = +25°C 500mV/div B VCC = 5V TA = +25°C 500mV/div A RO 2V/div 2V/div RO 20ns/div 20ns/div Figure 15. MAX481/MAX485/MAX490/MAX491/MAX1487 Receiver tPHL A B 500mV/div VCC = 5V TA = +25°C B 500mV/div VCC = 5V TA = +25°C A RO 2V/div 2V/div RO 400ns/div Figure 17. MAX483, MAX487–MAX489 Receiver tPHL 12 Figure 16. MAX481/MAX485/MAX490/MAX491/MAX1487 Receiver tPLH 400ns/div Figure 18. MAX483, MAX487–MAX489 Receiver tPLH Maxim Integrated MAX481/MAX483/MAX485/ MAX487–MAX491/MAX1487 Low-Power, Slew-Rate-Limited RS-485/RS-422 Transceivers Line Length vs. Data Rate The RS-485/RS-422 standard covers line lengths up to 4000 feet. For line lengths greater than 4000 feet, see Figure 23. Figures 19 and 20 show the system differential voltage for the parts driving 4000 feet of 26AWG twisted-pair wire at 110kHz into 120Ω loads. Typical Applications The MAX481, MAX483, MAX485, MAX487–MAX491, and MAX1487 transceivers are designed for bidirectional data communications on multipoint bus transmission lines. Figures 21 and 22 show typical network applications circuits. These parts can also be used as line repeaters, with cable lengths longer than 4000 feet, as shown in Figure 23. To minimize reflections, the line should be terminated at both ends in its characteristic impedance, and stub lengths off the main line should be kept as short as possible. The slew-rate-limited MAX483 and MAX487–MAX489 are more tolerant of imperfect termination. 5V DI 5V DI 0V 0V 1V VY-VZ 1V VY-VZ 0V 0V -1V -1V 5V RO 5V RO 0V 0V 2μs/div 2μs/div Figure 19. MAX481/MAX485/MAX490/MAX491/MAX1487 System Differential Voltage at 110kHz Driving 4000ft of Cable Figure 20. MAX483, MAX487–MAX489 System Differential Voltage at 110kHz Driving 4000ft of Cable 120Ω 120Ω DI DE B B D D DI DE RO RE A B A B A A R R RO RE MAX481 MAX483 MAX485 MAX487 MAX1487 R R D D DI DE RO RE DI DE RO RE Figure 21. MAX481/MAX483/MAX485/MAX487/MAX1487 Typical Half-Duplex RS-485 Network Maxim Integrated 13 MAX481/MAX483/MAX485/ MAX487–MAX491/MAX1487 Low-Power, Slew-Rate-Limited RS-485/RS-422 Transceivers A R RO RE Y 120Ω 120Ω D B Z Z B DI DE DE DI 120Ω 120Ω D Y Z Y B A Y Z R A DE RE RO A R D D DI B RE RO R DI MAX488–MAX491 DE RE RO NOTE: RE AND DE ON MAX489/MAX491 ONLY. Figure 22. MAX488–MAX491 Full-Duplex RS-485 Network Isolated RS-485 MAX488–MAX491 For isolated RS-485 applications, see the MAX253 and MAX1480 data sheets. A RO RE DE R 120Ω DATA IN 120Ω DATA OUT B Z DI D Y NOTE: RE AND DE ON MAX489/MAX491 ONLY. Figure 23. Line Repeater for MAX488–MAX491 14 Maxim Integrated MAX481/MAX483/MAX485/ MAX487–MAX491/MAX1487 Low-Power, Slew-Rate-Limited RS-485/RS-422 Transceivers _______________Ordering Information __Ordering Information (continued) PART MAX481CPA TEMP RANGE 0°C to +70°C 8 Plastic DIP MAX481CSA 0°C to +70°C 8 SO MAX481CUA 0°C to +70°C 8 µMAX MAX481C/D 0°C to +70°C Dice* MAX481EPA -40°C to +85°C 8 Plastic DIP MAX481ESA MAX481MJA MAX483CPA -40°C to +85°C -55°C to +125°C 0°C to +70°C 8 SO 8 CERDIP 8 Plastic DIP MAX483CSA 0°C to +70°C MAX483CUA MAX483C/D MAX483EPA MAX483ESA MAX483MJA MAX485CPA MAX485CSA MAX485CUA MAX485C/D MAX485EPA MAX485ESA MAX485MJA MAX487CPA MAX487CSA MAX487CUA MAX487C/D MAX487EPA MAX487ESA MAX487MJA MAX488CPA MAX488CSA MAX488CUA MAX488C/D MAX488EPA MAX488ESA MAX488MJA MAX489CPD MAX489CSD MAX489C/D MAX489EPD MAX489ESD MAX489MJD 0°C to +70°C 0°C to +70°C -40°C to +85°C -40°C to +85°C -55°C to +125°C 0°C to +70°C 0°C to +70°C 0°C to +70°C 0°C to +70°C -40°C to +85°C -40°C to +85°C -55°C to +125°C 0°C to +70°C 0°C to +70°C 0°C to +70°C 0°C to +70°C -40°C to +85°C -40°C to +85°C -55°C to +125°C 0°C to +70°C 0°C to +70°C 0°C to +70°C 0°C to +70°C -40°C to +85°C -40°C to +85°C -55°C to +125°C 0°C to +70°C 0°C to +70°C 0°C to +70°C -40°C to +85°C -40°C to +85°C -55°C to +125°C PART MAX490CPA MAX490CSA MAX490CUA MAX490C/D MAX490EPA MAX490ESA MAX490MJA MAX491CPD MAX491CSD MAX491C/D MAX491EPD MAX491ESD MAX491MJD TEMP RANGE 0°C to +70°C 0°C to +70°C 0°C to +70°C 0°C to +70°C -40°C to +85°C -40°C to +85°C -55°C to +125°C 0°C to +70°C 0°C to +70°C 0°C to +70°C -40°C to +85°C -40°C to +85°C -55°C to +125°C PIN-PACKAGE 8 Plastic DIP 8 SO 8 µMAX Dice* 8 Plastic DIP 8 SO 8 CERDIP 14 Plastic DIP 14 SO Dice* 14 Plastic DIP 14 SO 14 CERDIP MAX491MSD/PR MAX491MSD/PR-T MAX1487CPA MAX1487CSA MAX1487CUA MAX1487C/D MAX1487EPA MAX1487ESA MAX1487MJA -55°C to +125°C -55°C to +125°C 0°C to +70°C 0°C to +70°C 0°C to +70°C 0°C to +70°C -40°C to +85°C -40°C to +85°C -55°C to +125°C 14 CERDIP 14 CERDIP 8 Plastic DIP 8 SO 8 µMAX Dice* 8 Plastic DIP 8 SO 8 CERDIP Maxim Integrated PIN-PACKAGE 8 SO 8 µMAX Dice* 8 Plastic DIP 8 SO 8 CERDIP 8 Plastic DIP 8 SO 8 µMAX Dice* 8 Plastic DIP 8 SO 8 CERDIP 8 Plastic DIP 8 SO 8 µMAX Dice* 8 Plastic DIP 8 SO 8 CERDIP 8 Plastic DIP 8 SO 8 µMAX Dice* 8 Plastic DIP 8 SO 8 CERDIP 14 Plastic DIP 14 SO Dice* 14 Plastic DIP 14 SO 14 CERDIP *Contact factory for dice specifications. 15 MAX481/MAX483/MAX485/ MAX487–MAX491/MAX1487 Low-Power, Slew-Rate-Limited RS-485/RS-422 Transceivers Package Information For the latest package outline information and land patterns, go to www.maximintegrated.com/packages. Note that a “+”, “#”, or “-” in the package code indicates RoHS status only. Package drawings may show a different suffix character, but the drawing pertains to the package regardless of RoHS status. 16 PACKAGE TYPE PACKAGE CODE OUTLINE NO. LAND PATTERN NO. 8 PDIP P8-1 21-0043 — 8 SO S8-2 21-0041 90-0096 8 MAX U8-1 21-0036 90-0092 8 CERDIP J8-2 21-0045 — 14 PDIP P14-3 21-0043 — 14 SO S14-1 21-0041 90-0112 14 CERDIP J14-3 21-0045 — Maxim Integrated MAX481/MAX483/MAX485/ MAX487–MAX491/MAX1487 Low-Power, Slew-Rate-Limited RS-485/RS-422 Transceivers Revision History PAGES CHANGED REVISION NUMBER REVISION DATE 0 1/93 Initial release. — 9 9/09 Changed column name in Selection Table to “Number of Receivers on Bus.” 1 10 9/14 Added MAX491MSD/PR and MAX491MSD/PR-T to data sheet. Updated Absolute Maximum Ratings. DESCRIPTION 2, 15 Maxim Integrated cannot assume responsibility for use of any circuitry other than circuitry entirely embodied in a Maxim Integrated product. No circuit patent licenses are implied. Maxim Integrated reserves the right to change the circuitry and specifications without notice at any time. The parametric values (min and max limits) shown in the Electrical Characteristics table are guaranteed. Other parametric values quoted in this data sheet are provided for guidance. Maxim Integrated 160 Rio Robles, San Jose, CA 95134 USA 1-408-601-1000 © 2014 Maxim Integrated Products, Inc. 17 Maxim Integrated and the Maxim Integrated logo are trademarks of Maxim Integrated Products, Inc.
