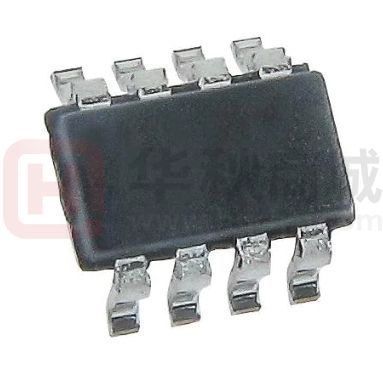

MAX6628MKA+T

Design Resources Tools and Models Support Click here to ask an associate for production status of specific part numbers. MAX6627/MAX6628 Remote ±1°C Accurate Digital Temperature Sensors with SPI-Compatible Serial Interface General Description The MAX6627/MAX6628 precise digital temperature sensors report the temperature of a remote sensor. The remote sensor is a diode-connected transistor, typically a low-cost, easily mounted 2N3904 NPN type that replaces conventional thermistors or thermocouples. The devices can also measure the die temperature of other ICs, such as microprocessors (µPs) or microcontrollers (µCs) that contain an on-chip, diode-connected transistor. Remote accuracy is ±1°C when the temperature of the remote diode is between 0°C and +125°C and the temperature of the devices is +30°C. The temperature is converted to a 12-bit + sign word with 0.0625°C resolution. The architecture of the device is capable of interpreting data as high as +145°C from the remote sensor. The MAX6627/MAX6628 temperature should never exceed +125°C. These sensors are 3-wire serial interface SPI-compatible, allowing the MAX6627/MAX6628 to be readily connected to a variety of µCs. The MAX6627/MAX6628 are readonly devices, simplifying their use in systems where only temperature data is required. Two conversion rates are available, one that continuously converts data every 0.5s (MAX6627), and one that converts data every 8s (MAX6628). The slower version provides minimal power consumption under all operating conditions (30µA, typ). Either device can be read at any time and provide the data from the last conversion. Benefits and Features ● Accuracy • ±1°C (max) from 0°C ≤ TRJ ≤ +125°C, TA = +30°C • ±2.4°C (max) from -55°C ≤ TRJ ≤ +100°C, 0°C ≤ TA ≤ +70°C ● 12-Bit + Sign, 0.0625°C Resolution ● Low Power Consumption • 30μA (typ) (MAX6628) • 200μA (typ) (MAX6627) ● Operating Temperature Range (-55°C to +125°C) ● Measurement Temperature Range, Remote Junction (-55°C to +145°C) ● 0.5s (MAX6627) or 8s (MAX6628) Conversion Rate ● SPI-Compatible Interface ● +3.0V to +5.5V Supply Range ● 8-Pin SOT23 and TDFN Packages ● Lead(Pb)-Free Version Available (TDFN Package) Ordering Information appears at end of data sheet. Typical Operating Circuit + 3V TO + 5.5V 0.1µF Both devices operate with supply voltages between +3.0V and +5.5V, are specified between -55°C and +125°C, and come in space-saving 8-pin SOT23 and lead-free TDFN packages. VCC MAX6627 MAX6628 Applications ● ● ● ● GND SDO Hard Disk Drive Smart Battery Packs Industrial Control Systems Notebooks, PCs DXP 2200pF CS µC DXN SCK 19-2032; Rev 9; 1/21 ©  2021 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners. One Analog Way, Wilmington, MA 01887 U.S.A. | Tel: 781.329.4700 | © 2021 Analog Devices, Inc. All rights reserved. MAX6627/MAX6628 Remote ±1°C Accurate Digital Temperature Sensors with SPI-Compatible Serial Interface Absolute Maximum Ratings (All voltages referenced to GND.) VCC...........................................................................-0.3V to +6V SDO, SCK, DXP, CS................................. -0.3V to (VCC + 0.3V) DXN.......................................................................-0.3V to +0.8V SDO Pin Current Range...................................... -1mA to +50mA Current Into All Other Pins..................................................10mA ESD Protection (Human Body Model).............................±2000V Continuous Power Dissipation (TA = +70°C) SOT23 (derate 9.7mW/°C above +70°C).....................777mW TDFN (derate 18.5mW/°C above +70°C)................1481.5mW Operating Temperature Range.......................... -55°C to +125°C Junction Temperature.......................................................+150°C Storage Temperature Range............................. -65°C to +150°C Lead Temperature (soldering, 10s).................................. +300°C Soldering Temperature (reflow)........................................+260°C Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. Electrical Characteristics (3.0V ≤ VCC ≤ 5.5V, -55°C ≤ TA ≤ +125°C, unless otherwise noted. Typical values are at TA = +25°C, VCC = +3.3V, unless otherwise noted.) PARAMETER SYMBOL CONDITIONS MIN TYP MAX 0°C ≤ TRJ ≤ +125°C, TA = +30°C, VCC = +3.3V -1.0 ±0.5 ±1 -55°C ≤ TRJ ≤ +100°C, 0°C ≤ TA ≤ +70°C, VCC = +3.3V -2.4 +2.4 -55°C ≤ TRJ ≤ +145°C, 0°C ≤ TA ≤ +70°C, VCC = +3.3V -4.5 +4.5 -55°C ≤ TRJ ≤ +125°C, -55°C ≤ TA ≤ +125°C,VCC = +3.3V -5.5 +5.5 UNITS TEMPERATURE Accuracy (Note 1) °C Power-Supply Sensitivity 0.25 Resolution Time Between Conversion Starts Conversion Time 0.7 0.0625 tSAMPLE MAX6627 0.5 MAX6628 8 250 °C/V °C s tCONV 180 320 ms Supply Voltage Range VCC 3.0 5.5 V ISDO Shutdown, VCC = +0.8V 5 Supply Current, SCK Idle IIDLE ADC idle, CS = low 20 ICONV ADC converting 360 600 MAX6627 200 400 MAX6628 30 50 VCC, falling edge 1.6 POWER SUPPLY Average Operating Current Power-On Reset (POR) Threshold Current Sourcing for Diode www.analog.com ICC µA µA V High level 80 100 120 Low level 8 10 12 µA Analog Devices │  2 MAX6627/MAX6628 Remote ±1°C Accurate Digital Temperature Sensors with SPI-Compatible Serial Interface Electrical Characteristics (continued) (3.0V ≤ VCC ≤ 5.5V, -55°C ≤ TA ≤ +125°C, unless otherwise noted. Typical values are at TA = +25°C, VCC = +3.3V, unless otherwise noted.) PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS 0.3 x VCC V LOGIC INPUTS (CS, SCK) Logic Input Low Voltage VIL Logic Input High Voltage VIH Input Leakage Current ILEAK 0.7 x VCC VCS = VSCK = GND or VCC V 1 µA LOGIC OUTPUTS (SDO) Output Low Voltage VOL ISINK = 1.6mA Output High Voltage VOH ISOURCE = 1.6mA 0.4 VCC 0.4 V TIMING CHARACTERISTICS (Note 2, Figure 2) Serial-Clock Frequency fSCL 5 MHz SCK Pulse Width High tCH 100 ns SCK Pulse Width Low tCL 100 ns 80 ns CS Fall to SCK Rise tCSS CLOAD = 10pF CS Fall to Output Enable tDV CLOAD = 10pF 80 ns CS Rise to Output Disable tTR CLOAD = 10pF 50 ns SCK Fall to Output Data Valid tDO CLOAD = 10pF 80 ns Note 1: TRJ is the temperature of the remote junction. Note 2: Serial timing characteristics guaranteed by design. www.analog.com Analog Devices │  3 MAX6627/MAX6628 Remote ±1°C Accurate Digital Temperature Sensors with SPI-Compatible Serial Interface Typical Operating Characteristics (VCC = +3.3V, TA = +25°C, unless otherwise noted.) MAX6627 150 100 MAX6628 50 TA = +25°C 1 MAX6627/8 toc02 TA = +70°C 0 TA = 0°C -1 -2 MAX6627 3.5 4.0 4.5 5.0 5.5 -5 20 45 70 95 2.4 2.2 2.0 1.8 1.6 1.4 1.2 1.0 0.8 0.6 120 145 -55 -30 -5 20 45 70 95 120 145 SUPPLY VOLTAGE (V) TEMPERATURE (°C) TEMPERATURE (°C) TEMPERATURE ERROR vs. POWER-SUPPLY NOISE FREQUENCY RESPONSE TO THERMAL SHOCK TEMPERATURE ERROR vs. DXP/DXN CAPACITANCE 8 6 VIN = 250mVp-p 4 100 75 50 25 2 10 100 1k 10k 100k 1M FREQUENCY (Hz) www.analog.com 10M 100M 0 -2 0 2 4 6 TIME (s) 8 10 12 14 5 MAX6627/8 toc06 125 TEMPERATURE ERROR (°C) VIN = SQUARE WAVE APPLIED TO VCC WITH NO 0.1µF CAPACITOR 10 0 -55 -30 MAX6627/8 toc05 12 3.0 -3 TEMPERATURE (°C) 0 TEMPERATURE ERROR (°C) 2 POWER-ON-RESET THRESHOLD vs. TEMPERATURE 2.6 POWER-ON-RESET THRESHOLD (V) 200 TEMPERATURE ERROR (°C) MAX6627/8 toc01 250 3 MAX6627/8 toc04 AVERAGE OPERATING CURRENT (µA) 300 TEMPERATURE ERROR vs. TEMPERATURE MAX6627/8 toc03 AVERAGE OPERATING CURRENT vs. SUPPLY VOLTAGE 4 3 2 1 0 0 5000 10,000 15,000 20,000 CAPACITANCE (pF) Analog Devices │  4 MAX6627/MAX6628 Remote ±1°C Accurate Digital Temperature Sensors with SPI-Compatible Serial Interface Pin Configurations TOP VIEW GND 1 8 N.C. DXN 2 7 SDO DXP 3 6 CS VCC 4 5 SCK MAX6627 N.C. SDO CS SCK 8 7 6 5 MAX6627 MAX6628 EP + SOT23 1 2 GND DXN 3 4 DXP VCC TDFN Pin Description PIN NAME 1 GND 2 DXN 3 DXP 4 5 VCC SCK 6 CS 7 SDO SPI Data Output 8 N.C. No Connect. Internally not connected. Can be connected to GND for improved thermal conductivity. — EP www.analog.com FUNCTION Ground Combined Current Sink and ADC Negative Input for Remote Diode. DXN is normally biased to a diode voltage above ground. Combined Current Source and ADC Positive Input for Remote Diode. Place a 2200pF capacitor between DXP and DXN for noise filtering. Supply Voltage Input. Bypass with a 0.1µF to GND. SPI Clock Input Chip-Select Input. Pulling CS low initiates an idle state, but the SPI interface is still enabled. A rising-edge of CS initiates the next conversion. Exposed Pad. Internally connected to GND. Connect to a large ground plane to maximize thermal performance. Not intended as an electrical connection point. Analog Devices │  5 MAX6627/MAX6628 Remote ±1°C Accurate Digital Temperature Sensors with SPI-Compatible Serial Interface Detailed Description taking CS low, any conversion in progress is stopped, and the rising-edge of CS always starts a fresh conversion and resets the interface. This permits triggering a con-version at any time so that the power consumption of the MAX6627 can be overcome, if needed. Both devices operate with input voltages between +3.0V and +5.5V and are specified between -55°C and +125°C. The MAX6627/MAX6628 come in space-saving 8-pin SOT23 and TDFN packages. Remote accuracy is ±1°C when the temperature of the remote diode is between 0°C and +125°C and the temperature of the MAX6627/MAX6628 is +30°C. Data is available as a 12-bit + sign word with 0.0625°C resolution. The operating range of the device extends from -55°C to +125°C, although the architecture of the device is capable of interpreting data up to +145°C. The device itself should never exceed +125°C. ADC Conversion Sequence The MAX6627/MAX6628 remote digital thermometers report the temperature of a remote sensor. The remote sensor is a diode-connected transistor—typically, a low-cost, easily mounted 2N3904 NPN type—that replaces conventional thermistors or thermocouples. These devices can also measure the die temperature of other ICs, such as µPs or µCs, that contain an on-chip, diode-connected transistor. The devices are designed to work in conjunction with an external µC or other intelligent device serving as the master in thermostatic, process-control, or monitoring applications. The µC is typically a power management or keyboard controller, generating SPI serial commands by “bit-banging” GPIO pins. Two conversion rates are available; the MAX6627 continuously converts data every 0.5s, and the MAX6628 continuously converts data every 8s. Either device can be read at any time and provide the data from the last conversion. The slower version provides minimal power consumption under all operating conditions. Or, by Idle Mode Pull CS low to enter idle mode. In idle mode, the ADC is not converting. The serial interface is still active and temperature data from the last completed conversion can still be read. Power-On Reset The POR supply voltage of the MAX6627/MAX6628 is typically 1.6V. Below this supply voltage, the interface is inactive and the data register is set to the POR state, 8s SAMPLE RATE 0.5s SAMPLE RATE 0.25s CONVERSION TIME MAX6627 The device powers up as a free-running data converter (Figure 1). The CS pin can be used for conversion control. The rising-edge of CS resets the interface and starts a conversion. The falling-edge of CS stops any conversion in progress, overriding the latency of the part. Temperature data from the previous completed conversion is available for read (Table 1 and Table 2). It is required to maintain CS high for a minimum of 320ms to complete a conversion. ADC CONVERTING ADC IDLE MAX6628 Figure 1. Free-Running Conversion Time and Rate Relationships Table 1. Data Output Format D15 D14 Sign MSB Data www.analog.com D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0 LSB Data Low High-Z High-Z Analog Devices │  6 MAX6627/MAX6628 Remote ±1°C Accurate Digital Temperature Sensors with SPI-Compatible Serial Interface tCSS CS SCK tDV tDO tTR SDO D15 D3 D2 D1 D0 Figure 2. SPI Timing Diagram Table 2. Temperature Data Format (Two’s Complement) TEMPERATURE (°C) in Table 3. The MAX6627/MAX6628 can also directly measure the die temperature of CPUs and other ICs with on-board temperature-sensing diodes. DIGITAL OUTPUT (BINARY) D15–D3 D2 D1, D0 150 0,1001,0110,0000 0 XX 125 0,0111,1101,0000 0 XX 25 0,0001,1001,0000 0 XX 0.0625 0,0000,0000,0001 0 XX 0 0,0000,0000,0000 0 XX -0.0625 1,1111,1111,1111 0 XX -25 1,1110,0111,0000 0 XX -55 1,1100,1001,0000 0 XX 0°C. When power is first applied and VCC rises above 1.6V (typ), the device starts to convert, although temperature reading is not recommended at VCC levels below 3.0V. Serial Interface Figure 2 is the serial interface timing diagram. The data is latched into the shift register on the falling-edge of the CS signal and then clocked out at the SDO pin on the falling-edge of SCK with the most-significant bit (MSB) first. There are 16 edges of data per frame. The last 2 bits, D0 and D1, are always in high-impedance mode. The falling-edge of CS stops any conversion in progress, and the rising-edge of CS always starts a new conversion and resets the interface. It is required to maintain a 320ms minimum pulse width of high CS signal before a conversion starts. Applications Information Remote-Diode Selection Temperature accuracy depends upon having a goodquality, diode-connected, small-signal transistor. Accuracy has been experimentally verified for all of the devices listed www.analog.com The transistor must be a small-signal type with a rela-tively high forward voltage. This ensures that the input voltage is within the A/D input voltage range. The forward voltage must be greater than 0.25V at 10µA at the highest expected temperature. The forward voltage must be less than 0.95V at 100µA at the lowest expected temperature. The base resistance has to be less than 100Ω. Tight specification of forward-current gain (+50 to +150, for example) indicates that the manufacturer has good process control and that the devices have consistent characteristics. ADC Noise Filtering The integrating ADC has inherently good noise rejection, especially of low-frequency signals such as 60Hz/120Hz power-supply hum. Micropower operation places constraints on high-frequency noise rejection. Lay out the PCB carefully with proper external noise filtering for high-accuracy remote measurements in electrically noisy environments. Table 3. SOT23-Type Remote-Sensor Transistor Manufacturers MANUFACTURER MODEL Central Semiconductor (USA) CMPT3904 Motorola (USA) MMBT3904 Rohm Semiconductor (Japan) Siemens (Germany) Zetex (England) SST3904 SMBT3904 FMMT3904CT-ND Note: Transistors must be diode connected (Short the Base to the Collector). Analog Devices │  7 MAX6627/MAX6628 Remote ±1°C Accurate Digital Temperature Sensors with SPI-Compatible Serial Interface Filter high-frequency electromagnetic interference (EMI) at DXP and DXN with an external 2200pF capacitor connected between the two inputs. This capacitor can be increased to about 3300pF (max), including cable capacitance. A capacitance higher than 3300pF introduces errors due to the rise time of the switchedcurrent source. 8) Placing an electrically clean copper ground plane between the DXP/DXN traces and traces carrying high-frequency noise signals helps reduce EMI. PCB Layout Twisted Pair and Shielded Cables 1) Place the MAX6627/MAX6628 as close as practical to the remote diode. In a noisy environment, such as a computer motherboard, this distance can be 4in to 8in, or more, as long as the worst noise sources (such as CRTs, clock generators, memory buses, and ISA/ PCI buses) are avoided. 2) Do not route the DXP/DXN lines next to the deflection coils of a CRT. Also, do not route the traces across a fast memory bus, which can easily introduce +30°C error, even with good filtering. Otherwise, most noise sources are fairly benign. 3) Route the DXP and DXN traces parallel and close to each other, away from any high-voltage traces such as +12VDC. Avoid leakage currents from PCB contamination. A 20MΩ leakage path from DXP to ground causes approximately +1°C error. 4) Connect guard traces to GND on either side of the DXP/DXN traces (Figure 3). With guard traces in place, routing near high-voltage traces is no longer an issue. 5) Route as few vias and crossunders as possible to minimize copper/solder thermocouple effects. 6) When introducing a thermocouple, make sure that both the DXP and the DXN paths have matching thermocouples. In general, PCB-induced thermocouples are not a serious problem. A copper solder thermocouple exhibits 3µV/°C, and it takes approximately 200µV of voltage error at DXP/DXN to cause a +1°C measurement error, so most parasitic thermocouple errors are swamped out. widths and spacings recommended in Figure 3 are not absolutely necessary (as they offer only a minor improvement in leakage and noise), but use them where practical. For remote-sensor distances longer than 8in, or in particularly noisy environments, a twisted pair is recommended. Its practical length is 6ft to 12ft (typ) before noise becomes a problem, as tested in a noisy electronics laboratory. For longer distances, the best solution is a shielded twisted pair like that used for audio microphones. For example, Belden #8451 works well for distances up to 100ft in a noisy environment. Connect the twisted pair to DXP and DXN and the shield to ground, and leave the shield’s remote end unterminated. Excess capacitance at DXN or DXP limits practical remote-sensor distances (see Typical Operating Characteristics). For very long cable runs, the cable’s parasitic capacitance often provides noise filtering, so the recommended 2200pF capacitor can often be removed or reduced in value. Cable resistance also affects remote-sensor accuracy. A 1Ω series resistance introduces about +1/2°C error. GND 10mils 10mils DXP MINIMUM 10mils DXN 10mils GND Figure 3. Recommended DXP/DXN PC Traces 7) Use wide traces. Narrow traces are more inductive and tend to pick up radiated noise. The 10mil www.analog.com Analog Devices │  8 MAX6627/MAX6628 Remote ±1°C Accurate Digital Temperature Sensors with SPI-Compatible Serial Interface Functional Diagram VCC SDO DXP 12-BIT + SIGN ADC DXN PIN-PACKAGE 8 SOT23 8 SOT23 8 TDFN-EP* 8 SOT23 8 TDFN-EP* SCK CS Package Information Ordering Information PART MAX6627MKA#TG16 MAX6627MKA+T MAX6627MTA+T MAX6628MKA+T MAX6628MTA+T SPI INTERFACE TOP MARK AEQD AAEQ AUT AAER AUU Note: All devices are specified over the -55°C to +125°C operating temperature range. #Denotes a RoHS-compliant device that may include lead(Pb) that is exempt under the RoHS requirements. +Denotes a lead-free/RoHS-compliant package. T = Tape and reel. *EP = Exposed pad. For the latest package outline information and land patterns (footprints), go to www.maximintegrated.com/packages. Note that a “+”, “#”, or “-” in the package code indicates RoHS status only. Package drawings may show a different suffix character, but the drawing pertains to the package regardless of RoHS status. PACKAGE TYPE PACKAGE CODE OUTLINE NO. LAND PATTERN NO. 8 SOT23 K8F+4 21-0078 90-0176 8 TDFN-EP T833+2 21-0137 90-0059 Chip Information PROCESS: BiCMOS www.analog.com Analog Devices │  9 MAX6627/MAX6628 Remote ±1°C Accurate Digital Temperature Sensors with SPI-Compatible Serial Interface Revision History REVISION REVISION NUMBER DATE PAGES CHANGED DESCRIPTION 0 4/01 Initial release — 1 7/01 Removed future status from the MAX6628; changed ICONV from 600µA (max) to 650µA (max) in the Electrical Characteristics table; replaced TOC1 in the Typical Operating Characteristics section 2 4/04 Updated the lead temperature information in the Absolute Maximum Ratings section; updated the notes for the Electrical Characteristics table 2, 3 3 4/06 Added the TDFN package; updated Table 3; removed transistor count from the Chip Information section 1, 2, 5, 6, 7, 8, 10 4 8/08 Added missing exposed pad description, updated ordering part numbers, and updated pin name for pin 7 1–4, 6, 8–11 5 6/11 Corrected the top mark information and SOT23 part number in the Ordering Information table; added the soldering information to the Absolute Maximum Ratings section; added the land pattern numbers to the Package Information table 6 4/14 Updated Applications 1 7 3/16 Adding MAX6628MKA+ to Ordering Information table 8 8 6/18 Updated Ordering Information table 9 9 1/21 Updated Package Information table 9 1, 2, 4 1, 2, 8 Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use.Specifications subject to change without notice. No license is granted by implicationor otherwise under any patent or patent rights of Analog Devices. Trademarks andregistered trademarks are the property of their respective owners. w w w . a n a l o g . c o m Analog Devices │  10 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Analog Devices Inc.: MAX6628MTA+T MAX6628MKA+T
