EVALUATION KIT AVAILABLE
Click here to ask an associate for production status of specific part numbers.
MAX77958
Standalone USB Type-C and USB Power
Delivery Controller
General Description
Benefits and Features
The MAX77958 is a robust solution for USB Type-C CC
detection and power delivery (PD) protocol implementation. It detects connected accessories or devices by using Type-C CC detection and USB PD messaging. The
IC protects against overvoltage and overcurrent, and detects moisture and prevents corrosion on the USB TypeC connector. The IC also has a D+/D- USB switch and
BC1.2 detection to support legacy USB standards. It contains VCONN switches for USB PD and an enable pin for
an external VCONN boost or buck converter. When the
USB PD negotiation is complete, the IC configures an alternate mode setting for external multiplexers.
● Supports Autonomous or MCU Based Configuration
• No Firmware Development Needed in Autonomous
Configuration
• Customizable Based on Application Requirements
The IC is compliant with USB Type-C Specification Release 1.3 and PD 3.0. It can be customized easily without
affecting the compliance.
The IC has an I2C master that can read and write to other
devices in the system so that its firmware can configure related devices without the main processor's assistance. For
example, it can configure an external charger based on
BC1.2 detection, CC detection, and PD communication.
The IC has an interrupt output pin to report event detection
and status changes. It also has an I2C interface that the
system can use to read/write and configure internal registers.
The IC has nine configurable GPIOs that can be used for
detection, as interrupts, and as the enable/disable pin for
external devices, or as ADC inputs.

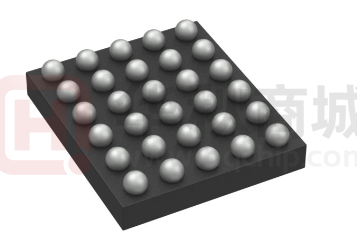

The IC is available in a 3.10mm x 2.65mm, 0.5mm pitch,
wafer-level package (WLP).
Applications
●
●
●
●
●
●
●
●
●
●
●
Smartphones
Tablets
Cameras
Game Players
Power Banks
Industrial Equipment PoE to USB Type-C Adapters
Handheld Devices
Portable Devices
Monitors
Healthcare and Medical Devices
Other USB Type-C Devices
Ordering Information appears at end of data sheet.
● Customizable Firmware
• USB Compliant Default Embedded Firmware
• Supports Customizable Actions on Events
• Firmware Updates for Future Specification
Revisions
● USB Type-C Support and USB-PD Support
• USB Type-C Version 1.3 and PD3.0 Compliant
• Mode Configuration: Sink/Source/Dual Role Port
• Programmable Power Supply (PPS) Sink Support
• Fast Role Swap (FRS) Initial Sink Support
• Alternate Mode Support
• Cable Orientation and Power Role Detection
• Integrated VCONN Switch with OCP
• Support Try.Snk State
• Audio and Debug Accessory Sink/Source Mode
● Supports BC1.2 Legacy/Proprietary Charger Detection
• Supports HVDCP
• Integrated D+/D- Switches
●
●
●
●
●
●
●
Moisture Detection/Corrosion Prevention
High Voltage VBUS (28V)
Short to VBUS Protection on CC Pins (22V)
Dead Battery Support
Dual Supply Inputs from SYS and VBUS
I2C Programmable Configuration
I2C Master to Control External Charger or Direct
Charge IC
● Nine Configurable GPIOs
• SuperSpeed Mux/Detection/IRQ
• Configuration for Alternate Mode
• ENABLE/DISABLE External Switches or Devices
● 30-Bump, 6x5, 0.5mm Pitch WLP
19-100687; Rev 5; 11/22
© 2022 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners.
One Analog Way, Wilmington, MA 01887 U.S.A. | Tel: 781.329.4700 | © 2022 Analog Devices, Inc. All rights reserved.
MAX77958
Standalone USB Type-C and USB Power Delivery
Controller
Simplified Block Diagram
USB TYPE-C CONNECTOR
VBUS
1µF
35V
MAX77958
VBUS
1µF
35V
DN
DP
CC1
CC2
DN
DP
CC1
CC2
GPIO2
VDD1P1
2.2µF
10V
1µF
6.3V
1µF
6.3V
GND_D
VIO1
1µF
6.3V
SCL
SDA
INTB
DN1
DP2
2.2kΩ
VDD1P8
INTB
2.2kΩ
AVL
VIO
SCL_M
SDA_M
GPIO8
200kΩ
VCIN
GPIO0*
GPIO1*
GPIO3*
GPIO4
GPIO5
GPIO6*
GPIO7
1µF
10V
2.2kΩ
1µF
6.3V
2.2kΩ
VCIN
VIO2
27pF
25V
VCIN EN
CHARGER
200kΩ
27pF
25V
VSYS
SYS
VIO
AP
GND_A
(*) THESE PINS ARE CONFIGURED FOR SPECIFIC FUNCTIONS BY DEFAULT. SEE PIN DESCRIPTION FOR DETAILS ON USING AS GPIO
www.analog.com
Analog Devices | 2
MAX77958
Standalone USB Type-C and USB Power Delivery
Controller
TABLE OF CONTENTS
General Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Benefits and Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Simplified Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Package Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
WLP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Electrical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Pin Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
MAX77958 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Pin Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Detailed Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
USB Type-C Interface and Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
CC/USB PD Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
USB Type-C Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
DRP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Detecting Connected DFP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Detecting Connected UFP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Try.SNK Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Audio Accessory Mode Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
DebugAcessory.SRC Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
DebugAcessory.SNK Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Moisture Detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
USB BC1.2 D+/D- Adapter Detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Charger Type Detection Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
VCONN Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
USB Type-C Interface and Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Automatic Accessory Detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Autoconfiguration Details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
USB Power Delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
IC Wakeup events . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Interrupt Output (INTB) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Interconnected Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
System Faults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Undervoltage Lockout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
www.analog.com
Analog Devices | 3
MAX77958
Standalone USB Type-C and USB Power Delivery
Controller
TABLE OF CONTENTS (CONTINUED)
VIO Fault . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Reset Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
WDT Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
I2C Serial Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
System Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Bit Transfer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
START and STOP Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Acknowledge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Slave Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Clock Stretching . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
General Call Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Communication Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Communication Protocols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Writing to a Single Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Writing to Sequential Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Reading from a Single Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Reading from Sequential Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Engaging HS-Mode for Operation up to 3.4MHz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Register Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Register Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Register Details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Applications Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
D+/D- USB 2.0 Switch Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
HVDCP Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Push-Button Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
External Interrupt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
MAX77958 IC Firmware Update with Dongle Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
FW Recovery Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Typical Application Circuits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
2/3-Cell Configurable Charger Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
2/3-Cell Autonomous Charger Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Autonomous DC-DC Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
PD Power Adapter Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
www.analog.com
Analog Devices | 4
MAX77958
Standalone USB Type-C and USB Power Delivery
Controller
LIST OF FIGURES
Figure 1. Standalone System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Figure 2. MCU Based System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Figure 3. SBU Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Figure 4. VCONN Overcurrent Protection Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Figure 5. Interconnected Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Figure 6. Functional Logic Diagram for Communications Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Figure 7. I2C Bit Transfer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Figure 8. I2C Start and Stop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Figure 9. Writing to a Single Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Figure 10. Writing to Sequential Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Figure 11. Reading from a Single Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Figure 12. Reading from Sequential Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Figure 13. Engaging HS-Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Figure 14. I2C Operating Mode State Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Figure 15. Configurable Charger Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Figure 16. Autonomous Charger Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Figure 17. Autonomous DC-DC Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Figure 18. Adapter Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
www.analog.com
Analog Devices | 5
MAX77958
Standalone USB Type-C and USB Power Delivery
Controller
LIST OF TABLES
Table 1. Rp/Rp Charging Current Values for a DTS Source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Table 2. BC1.2 Adapter Detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Table 3. I2C Slave Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Table 4. D+/D- Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
www.analog.com
Analog Devices | 6
MAX77958
Standalone USB Type-C and USB Power Delivery
Controller
Absolute Maximum Ratings
TOP and Interface Logic
SYS to GND ..................................................... -0.3V to +22.0V
VBUS to GND ................................................... -0.3V to +30.0V
AVL to GND ....................................................... -0.3V to +6.0V
VDD1P8 to GND ................................................ -0.3V to +2.2V
VIO1 to GND ...................................................... -0.3V to +6.0V
VIO2 to GND ...................................................... -0.3V to +6.0V
SCL, SDA, INTB to GND ......................... -0.3V to VIO1 + 0.3V
GND_A, GND_D to GND ................................... -0.3V to +0.3V
USB Type-C
VCIN to GND ..................................................... -0.3V to +6.0V
DN, DP, DN1, DP2 to GND................................ -0.3V to +6.0V
CC1, CC2 to GND ............................................ -0.3V to +22.0V
VDD1P1 to GND ................................ -0.3V to VDD1P8 + 0.3V
SCL_M, SDA_M to GND ..........................-0.3V to VIO2 + 0.3V
GPIO0, GPIO1, GPIO2, GPIO3, GPIO8 to GND ......... -0.3V to
VIO2 + 0.3V
GPIO4, GPIO5, GPIO6, GPIO7 to GND ..-0.3V to VIO1 + 0.3V
Thermal Absolute Maximum Rating
Continuous Power Dissipation (Multilayer Board) (TA = +70°C,
derate 24.4mW/°C above +70°C.) ............. 21.0mW to 24.4mW
Operating Temperature Range .........................-40°C to +85°C
Storage Temperature Range...........................-65°C to +150°C
Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the
device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for
extended periods may affect device reliability.
Package Information
WLP
Package Code
W302B3+1
Outline Number
21-0016
Land Pattern Number
Refer to Application Note 1891
Thermal Resistance, Four-Layer Board:
Junction to Ambient (θJA)
41°C/W
Junction to Case (θJC)
N/A
www.analog.com
Analog Devices | 7
MAX77958
Standalone USB Type-C and USB Power Delivery
Controller
E
D
S
S
SIDE VIEW
SD
SE
E
TOP VIEW
D
SE
B
E
SD
D
B
M
S
BOTTOM VIEW
For the latest package outline information and land patterns (footprints), go to www.maximintegrated.com/packages. Note that a “+”, “#”, or “-” in the package code indicates
RoHS status only. Package drawings may show a different suffix character, but the drawing pertains to the package regardless of RoHS status.
Package thermal resistances were obtained using the method described in JEDEC specification JESD51-7, using a four-layer board. For detailed information on package thermal
considerations, refer to www.maximintegrated.com/thermal-tutorial.
www.analog.com
Analog Devices | 8
MAX77958
Standalone USB Type-C and USB Power Delivery
Controller
Electrical Characteristics
(Limits are 100% tested at TA = +25°C. Limits over the operating temperature range and relevant supply voltage range are guaranteed
by design and characterization.)
PARAMETER
SYMBOL
CONDITIONS
MIN
TYP
MAX
UNITS
+20
V
GENERAL ELECTRICAL CHARACTERISTICS
SYS Operating Voltage
AVLUVL
VSYS
OR
AVL UVLO Rising
AVLUVLOR
AVL
2.6
2.7
2.8
V
AVL UVLO Falling
AVLUVLOF
AVL
2.4
2.5
2.6
V
AVLUVLOHYS
AVL
AVL UVLO Hysteresis
AVL Operating Voltage
SYS OV HR Rising
SYS OV HR Falling
SYS OV HR Hysteresis
SYS OV LR Rising
SYS OV LR Falling
SYS OV LR Hysteresis
SYS Factory Ship
Supply Current
SYS Dead Battery
Supply Current
SYS Shutdown Supply
Current
www.analog.com
200
AVLUVL
VAVL
SYS_OV_HR_
R
SYS_OV_HR_
F
SYS_OV_HR_
H
SYS_OV_LR_
R
SYS_OV_LR_
F
SYS_OV_LR_
H
IFSHIP
IDEADBAT
ISHDN
OF
mV
+5.5
V
SYS
4.60
4.87
5.15
V
SYS
4.40
4.71
5.05
V
SYS
160
mV
SYS
3.60
3.87
4.15
V
SYS
3.50
3.75
4.00
V
SYS
VIO1 = VIO2 = 0V,
CCdetEn = 0,
chgDetEn =
0,VBUS = 0V
VIO1 = VIO2 = 0V,
CCdetEn = 0,
chgDetEn =
0,VBUS = 0V
VIO1 = VIO2 = 0V,
CCdetEn = 0,
chgDetEn =
0,VBUS = 0V
VIO1 = VIO2 = 0V,
CCdetEn = 0,
chgDetEn = 0,
VBUS = 0V
115
SYS = 4.2V
7
SYS = 8.4V
14
SYS = 12.6V
19
SYS = 16.8V
25
SYS = 4.2V,
SYS_OV_HR
87
SYS = 8.4V
51
SYS = 12.6V
59
SYS = 16.8V
67
SYS = 4.2V,
SYS_OV_HR
146
SYS = 8.4V
109
SYS = 12.6V
117
SYS = 16.8V
124
mV
μA
μA
μA
Analog Devices | 9
MAX77958
Standalone USB Type-C and USB Power Delivery
Controller
Electrical Characteristics (continued)
(Limits are 100% tested at TA = +25°C. Limits over the operating temperature range and relevant supply voltage range are guaranteed
by design and characterization.)
PARAMETER
SYS Standby Supply
Current
VBUS Operating Voltage
SYMBOL
ISTANDBY
CONDITIONS
Sink mode,
CCdetEn = 1,
chgDetEn = 1,
VIO1 = VIO2 =
1.8V, VBUS = 0V
MIN
TYP
SYS = 4.2V,
SYS_OV_LR
110
SYS = 4.2V,
SYS_OV_HR
158
SYS = 8.4V
120
SYS = 12.6V
128
SYS = 16.8V
135
VBDET_
VBUS
R
MAX
UNITS
μA
+28
V
V
VBUS Detect Rising
VBDET_R
550mV hysteresis
VBUS
3.6
3.8
4.0
VBUS Detect Falling
VBDET_F
550mV hysteresis
VBUS
2.95
3.25
3.55
VBUS Detect Hysteresis
VBDET_H
550mV hysteresis
VBUS
525
150
ISTANDBY
VBUS = 5V, VIO1 =
1.8V, VIO2 = 1.8V,
CCdetEn = 1, sink
only, STOP mode
VSYS = 4.2V
VBUS Supply Current
VSYS = 16.8V
192
V
mV
μA
VBUS Debounce
tVBDeb
9
10
11
ms
VIO Low Voltage
VIO_LV
VIO1, VIO2
1.7
1.8
1.9
V
VIO High Voltage
VIO_HV
VIO1, VIO2
2.4
3.8
5.5
V
VIO_OK_LV_
R
VIO1, VIO2, rising
1.0
1.30
1.65
VIO_OK_LV_
F
VIO1, VIO2, falling
0.8
1.0
1.4
VIO_OK_LV_
H
VIO1, VIO2, hysteresis
VIO_OK_HV_
R
VIO1, VIO2, rising
1.3
1.55
1.80
VIO_OK_HV_
F
VIO1, VIO2, falling
1.25
1.52
1.8
VIO_OK_HV_
H
VIO1, VIO2, hysteresis
25
mV
tVIO_OK_DEB
Debounce
50
μs
VIO_OK
Output Low Voltage
INTB
225
mV
V
ISINK = 1mA
VINTB = 5.5V, TA = +25°C
Output High Leakage
INTB
VDD_OK
V
0.4
-1000
VINTB = 5.5V, TA = +85°C
0
+1000
100
VDD_OK_R
VDD1P8, rising
1.30
1.65
1.70
VDD_OK_F
VDD1P8, falling
1.15
1.55
1.65
VDD_OK_H
VDD1P8, hysteresis
100
V
nA
V
mv
INTERFACE / I2C INTERFACE AND INTERRUPT
SCL, SDA Input Low
Level
www.analog.com
TA = +25°C
0.3 x
VIO1
V
Analog Devices | 10
MAX77958
Standalone USB Type-C and USB Power Delivery
Controller
Electrical Characteristics (continued)
(Limits are 100% tested at TA = +25°C. Limits over the operating temperature range and relevant supply voltage range are guaranteed
by design and characterization.)
PARAMETER
SYMBOL
CONDITIONS
SCL, SDA Input High
Level
TA = +25°C
SCL, SDA Input
Hysteresis
TA = +25°C
SCL, SDA Logic Input
Current
SDA = SCL = 5.5V
SDA Output Low
Voltage
MIN
TYP
MAX
0.7 x
VIO1
UNITS
V
0.05 x
VIO1
-10
V
+10
μA
Sinking 20mA
0.4
V
Output Low Voltage
INTB
ISINK = 1mA
0.4
V
Output High Leakage
INTB
VINTB = 5.5V, TA = +25°C
+1000
nA
1000
kHz
-1000
INTERFACE / I2C-COMPATIBLE INTERFACE TIMING FOR STANDARD, FAST, AND FAST-MODE PLUS
Clock Frequency
Hold Time (Repeated)
START Condition
fSCL
tHD;STA
260
ns
CLK Low Period
tLOW
500
ns
CLK High Period
tHIGH
260
ns
Setup Time Repeated
START Condition
tSU;STA
260
ns
DATA Hold Time
tHD:DAT
0
ns
DATA Valid Time
tVD:DAT
450
ns
DATA Valid
Acknowledge Time
tVD:ACK
450
ns
Rise/Fall Time of SCL
tSCL
120
ns
Rise/Fall Time of SDA
tSDA
120
ns
DATA Setup time
tSU;DAT
50
ns
Setup Time for STOP
Condition
tSU;STO
260
ns
tBUF
500
ns
Bus-Free Time Between
STOP and START
Pulse Width of Spikes
that Must be
Suppressed by the Input
Filter
50
ns
INTERFACE / I2C-COMPATIBLE INTERFACE TIMING FOR HS-MODE (CB = 100pF)
Clock Frequency
fSCL
3.4
MHz
Setup Time Repeated
START Condition
tSU;STA
160
ns
Hold Time (Repeated)
START Condition
tHD;STA
160
ns
CLK Low Period
tLOW
160
ns
CLK High Period
tHIGH
60
ns
www.analog.com
Analog Devices | 11
MAX77958
Standalone USB Type-C and USB Power Delivery
Controller
Electrical Characteristics (continued)
(Limits are 100% tested at TA = +25°C. Limits over the operating temperature range and relevant supply voltage range are guaranteed
by design and characterization.)
PARAMETER
SYMBOL
CONDITIONS
MIN
TYP
MAX
UNITS
DATA Set-Up time
tSU;DAT
10
ns
DATA Hold Time
tHD:DAT
0
ns
Rise/Fall time of SCL
tSCL
10
40
ns
Rise/Fall time of SDA
tSDA
10
80
ns
Set-Up Time for STOP
Condition
tSU;STO
160
Pulse Width of Spikes
that Must be
Suppressed by the Input
Filter
ns
10
ns
INTERFACE / I2C-COMPATIBLE INTERFACE TIMING FOR HS-MODE (CB = 400pF)
Clock Frequency
fSCL
1.7
MHz
Setup Time Repeated
START Condition
tSU;STA
160
ns
Hold Time (Repeated)
START Condition
tHD;STA
160
ns
CLK Low Period
tLOW
320
ns
CLK High Period
tHIGH
120
ns
DATA Set-Up time
tSU;DAT
10
ns
DATA Hold Time
tHD:DAT
0
Rise/Fall Time of SCL
tSCL
20
80
ns
Rise/Fall Time of SDA
tSDA
10
160
ns
Setup Time for STOP
Condition
tSU;STO
160
Pulse Width of Spikes
that Must be
Suppressed by the Input
Filter
ns
ns
10
ns
USB TYPE-C / CHARGER DETECTION
BC1.2 State Timeout
tTMO
180
200
220
ms
Data Contact Detect
Timeout
tDCDtmo
700
800
900
ms
tPDSDWait
27
35
39
ms
Charger Detection
Debounce
tCDDeb
45
50
55
ms
IWEAK Current
IWEAK
10
100
500
nA
Primary to Secondary
Timer
RDM_DWN Resistor
IDP_SRC Current
IDM_SINK Current
14.25
20
24.8
kΩ
IDP_SRC/IDCD
RDM_DWN
Accurate over 0V to 2.5V
-13
-10
-7
μA
IDM_SINK/IDAT
Accurate over 0.15V to 3.6V
50
80
110
μA
1.62
1.7
1.9
V
SINK
VLGC Threshold
VLGC
VLGC Hysteresis
VLGC_H
www.analog.com
DCDCpl = 0b1 (default), DCDCpl = 0b0
0.015
V
Analog Devices | 12
MAX77958
Standalone USB Type-C and USB Power Delivery
Controller
Electrical Characteristics (continued)
(Limits are 100% tested at TA = +25°C. Limits over the operating temperature range and relevant supply voltage range are guaranteed
by design and characterization.)
PARAMETER
SYMBOL
CONDITIONS
MIN
MAX
UNITS
0.32
0.4
V
VDAT_REF Threshold
VDAT_REF
VDAT_REF Hysteresis
VDAT_REF_H
OVDX Comparator
Falling Threshold
VOVDX_THF
Falling DP/DN threshold with respect to
AVL
-40
+80
mV
OVDX Comparator
Rising Threshold
VOVDX_THR
Rising DP/DN threshold with respect to
AVL
0
150
mV
DP/DN Overvoltage
Debounce
tOVDxDeb
DN/DP Load Resistor
VD33 Voltage
VSRC33ILIM Current
Limit
RUSB
0.25
TYP
0.015
Load resistor on DP/DN
VDP/
DM_3p3VSRC/
VSRC33
Tested at zero load and at 200μA load
ILIMVSRC33
Force 1.6V on DP/DN, measure current
VDN_SRC Voltage
VDN_SRC/VSR
VDP_SRC Voltage
VDP_SRC/VSR
C06
C06
V
90
100
110
μs
3
6.1
12
MΩ
2.6
3.0
3.3
V
1.5
3
mA
Accurate over ILOAD = 0 to 200μA
0.5
0.6
0.7
V
Accurate over ILOAD = 0 to 200μA
0.5
0.6
0.7
V
USB TYPE-C / CC DETECTION
CC Pin Voltage, in DFP
1.5A Mode
VCC_PIN
Measured at CC pins with 126kΩ load,
IDFP1.5_CC enable and VAVL ≥ 2.6V
1.85
V
CC Pin Voltage, in DFP
3.0A Mode
VCC_PIN
Measured at CC pins with 126kΩ load,
IDFP3.0_CC enable and AVL ≥ 3.65V
3.1
V
CC Pin Clamp Voltage
VCC_ClAMP
60μA ≤ ICC ≤ 600μA
0.88
1.1
1.32
V
-10%
5.1
+10%
kΩ
CC UFP Pulldown
Resistance
RPD_UFP
CC DFP Low-Power
Mode
VDFPLP_CC
CC DFP Ultra-LowPower Current Source
IDFPULP_CC
CC DFP 0.5A Current
Source
AVL ≥ 2.6V, IDFPULP_CC current source
enabled, 1.1V
1.2
V
Measured at CC = 0.5V
-10%
1
+10%
Measured at CC = 1.0V, TA = +25°C
-10%
1
+10%
Measured at CC = 1.0V
-12%
1
+12%
IDFP0.5_CC
-20%
80
+20%
μA
CC DFP 1.5A Current
Source
IDFP1.5_CC
-8%
180
+8%
μA
CC DFP 3A Current
Source
IDFP3A_CC
-8%
330
+8%
μA
CC RA RD Threshold
VRA_RD0.5
0.15
0.2
0.25
V
CC UFP 0.5A RD
Threshold
VUFP_RD0.5
0.61
0.66
0.7
V
CC UFP 0.5A RD
Hysteresis
VUFP_RD0.5_H
CC UFP 1.5A RD
Threshold
VUFP_RD1.5
www.analog.com
0.015
1.16
1.23
μA
V
1.31
V
Analog Devices | 13
MAX77958
Standalone USB Type-C and USB Power Delivery
Controller
Electrical Characteristics (continued)
(Limits are 100% tested at TA = +25°C. Limits over the operating temperature range and relevant supply voltage range are guaranteed
by design and characterization.)
PARAMETER
SYMBOL
CONDITIONS
MIN
CC UFP 1.5A RD
Hysteresis
VUFP_RD1.5_H
CC DFP VOPEN Detect
Threshold
VDFP_VOPEN
CC DFP VOPEN Detect
Hysteresis
VDFP_VOPEN_
CC DFP VOPEN With
3.0A Detect Threshold
VDFP_VOPEN3
CC DFP VOPEN With
3.0A Detect Hysteresis
VDFP_VOPEN3
VBUS Discharge Value
Threshold
VSAFE0V
VBUS Discharge Value
Hysteresis
VSAFE0V_h
Rising hysteresis
CC Pin Power-Up Time
tClampSwap
Max time allowed from removal of voltage
clamp until a 5.1kΩ resistor attached
CC Detection Debounce
tCCDeb
100
Type-C Debounce
tPDDeb
10
Type-C Quick Debounce
tQDeb
VSAFE0V Debounce
Type-C Error Recovery
Delay
Type-C DRP Toggle
Time
A_H
1.5
1.575
V
1.65
0.030
VAVL ≥ 3.5V
2.45
VAVL ≥ 3.5V
Falling voltage level where a connected
UFP finds the VBUS removed
2.6
0.67
V
V
2.75
0.030
0.6
UNITS
V
V
0.75
40
V
mV
15
ms
119
200
ms
15
20
ms
0.9
1
1.1
ms
tVSAFE0VDeb
9
10
11
ms
tErrorRecovery
25
tDRP
50
Programmable from 35% to 50% in 5%
step, CCDRPPhase = 0b00
DFP Duty Cycle at DRP
Type-C DRP Try
MAX
0.015
H
A
TYP
tDRPtry
DRP Transition Time
tDRPTrans
VCONN Enable Time
tVCONNON
VCONN Disable Time
tVCONNOFF
ms
75
100
35
90
100
ms
%
110
ms
1
ms
2
ms
Time from UFP detached or as directed
by I2C command until VCONN is removed
35
ms
Time for a role swap from DFP to UFP or
the reverse is completed
CC Pin Current Change
Time
ISINKADJ
Time from CC pin changes state in UFP
mode until current drawn from DFP
reaches a new value
60
ms
VBUS On Time
tVBUSON
Time from UFP is attached until VBUS
ON
275
ms
VBUS Off Time
tVBUSOFF
Time from UFP is detached until VBUS
reaches VSAFE0V
650
ms
VBUS Input SelfDischarge Resistance
www.analog.com
RVBUS_SD_US
B
10
kΩ
Analog Devices | 14
MAX77958
Standalone USB Type-C and USB Power Delivery
Controller
Electrical Characteristics (continued)
(Limits are 100% tested at TA = +25°C. Limits over the operating temperature range and relevant supply voltage range are guaranteed
by design and characterization.)
PARAMETER
SYMBOL
CC1/2 Water Comp
Threshold
VCC_Comp
CC1/2 Water Comp
Hysteresis
VCC_Comp_
H
CC_OVP Threshold
CC_OVP
CC_OVP Hysteresis
CC_OVP_H
CONDITIONS
MIN
TYP
MAX
1.0V Comp
-8%
1.00
+8%
0.8V Comp
-8%
0.8
+8%
0.6V Comp
-8%
0.6
+8%
0.4V Comp
-8%
0.4
+8%
0.015
UNITS
V
V
Rising
5.375
5.735
6.325
Falling
5.175
5.670
6.275
85
V
mV
USB TYPE-C / VCONN SWITCH
VCIN_PRES
VCIN_PRES_R
Rising
0.75
1.38
2.45
VCIN_PRES_F
Falling
0.45
0.75
1.75
VCIN_PRES_H
Hysteresis
600
mV
tVCIN_PRES_D
Debounce
50
μs
EB
CC_VCIN_OK_
R
CC_VCIN_OK_
VCIN_OK
F
CC_VCIN_OK_
H
tVCIN_OK_DEB
Rising
2.40
2.75
3.00
Falling
2.35
2.72
3.00
V
Hysteresis
30
mV
Debounce
50
μs
VCONN Source
Requirements
VCONN SW Ron
3.0
RONVCONNS
W
OCP Accuracy
V
VCIN = 5.0V, ICC = 0.5A
VCIN = 5.0V, TA = +25°C
500
V
900
mΩ
-20
%
700
mA
100
mA
From detecting OCP to generating INT
2
ms
From generating INT to turning OFF
VCONN switch
12
ms
OCP_ShortCircuit
Protection
ISCP
OCP Programmable
Step
ISTEP
Programmable range is 200mA to 500mA
OCP Interrupt
Debounce Time T1
tDeb1
Wait Time Before Turn
Off T2
tDeb2
-40
5.5
Startup Time At 90%
Time from VCONN switch enable to CC
settled at 90% of final value with VCIN =
3.0V
0.05
0.2
ms
Turn Off Time At 10%
Time from VCONN switch disable to CC
settled at 10% of final value with VCIN =
3.0V
0.05
0.06
ms
VCIN Leakage Current
VCIN detection disabled, VCIN = 4.4V
+2000
nA
www.analog.com
-2000
Analog Devices | 15
MAX77958
Standalone USB Type-C and USB Power Delivery
Controller
Electrical Characteristics (continued)
(Limits are 100% tested at TA = +25°C. Limits over the operating temperature range and relevant supply voltage range are guaranteed
by design and characterization.)
PARAMETER
SYMBOL
CONDITIONS
MIN
TYP
MAX
UNITS
23
μs
USB TYPE-C / PD CONTROLLER
Time Until BMC Bus
Drive End
tEndDriveBMC
Time to cease driving the line after the
end of the last bit of the frame, Min value
is limited by tHoldLowBMC
Transmit Hold Time
tHoldLowBMC
Time to cease driving the line after the
final high-to-low transition
1
BMC TX Rise Time
tRise
10% to 90% with no load on CC wires
300
410
540
ns
BMC TX Fall Time
tFall
90% to 10% with no load on CC wires
300
410
540
ns
VSWING
Applies to no load and with max load
defined by cable/receiver model for both
Sink and Source
1.05
1.125
1.2
V
zDriver
Source output impedance at the Nyquist
frequency of [USB 2.0] low speed
(750kHz)
42
75
Ω
BMC TX Swing
BMC Driver Output
Impedance
BMC Receiver Noise
Filter
Time To Detect Non-Idle
Bus
tRXFilter
Time constant of noise filter in RX path
tTransitionWind
μs
100
ns
12
ow
20
μs
Receiver Detect Rising
Threshold in SRC Mode
0.63
0.66
0.68
V
Receiver Detect Falling
Threshold in SRC Mode
0.56
0.58
0.61
V
Receiver Detect Rising
Threshold SNK Mode
0.51
0.54
0.56
V
Receiver Detect Falling
Threshold in SNK Mode
0.44
0.46
0.49
V
Hysteresis of BMC RX
RX_Hys
60
mV
USB TYPE-C / VBUS ADC
VBUS ADC Threshold 1
THVBUS_01
ADCIN_SEL = 0
VBADC = 0b00000
3.0
3.5
4.0
V
VBUS ADC Threshold 2
THVBUS_02
ADCIN_SEL = 0
VBADC = 0b00001
4.0
4.5
5.0
V
VBUS ADC Threshold 3
THVBUS_03
ADCIN_SEL = 0
VBADC = 0b00010
5.0
5.5
6.0
V
VBUS ADC Threshold 4
THVBUS_04
ADCIN_SEL = 0
VBADC = 0b00011
6.0
6.5
7.0
V
VBUS ADC Threshold 5
THVBUS_05
ADCIN_SEL = 0
VBADC = 0b00100
7.0
7.5
8.0
V
VBUS ADC Threshold 6
THVBUS_06
ADCIN_SEL = 0
VBADC = 0b00101
8.0
8.5
9.0
V
VBUS ADC Threshold 7
THVBUS_07
ADCIN_SEL = 0
VBADC = 0b00110
9.0
9.5
10.0
V
VBUS ADC Threshold 8
THVBUS_08
ADCIN_SEL = 0
VBADC = 0b00111
10.0
10.5
11.0
V
VBUS ADC Threshold 9
THVBUS_09
ADCIN_SEL = 0
VBADC = 0b01000
11.0
11.5
12.0
V
VBUS ADC Threshold
10
THVBUS_10
ADCIN_SEL = 0
VBADC = 0b01001
12.0
12.5
13.0
V
VBUS ADC Threshold
11
THVBUS_11
ADCIN_SEL = 0
VBADC = 0b01010
13.0
13.5
14.0
V
VBUS ADC Threshold
12
THVBUS_12
ADCIN_SEL = 0
VBADC = 0b01011
14.0
14,5
15.0
V
www.analog.com
Analog Devices | 16
MAX77958
Standalone USB Type-C and USB Power Delivery
Controller
Electrical Characteristics (continued)
(Limits are 100% tested at TA = +25°C. Limits over the operating temperature range and relevant supply voltage range are guaranteed
by design and characterization.)
PARAMETER
SYMBOL
CONDITIONS
MIN
TYP
MAX
UNITS
VBUS ADC Threshold
13
THVBUS_13
ADCIN_SEL = 0
VBADC = 0b01100
15.0
15.5
16.0
V
VBUS ADC Threshold
14
THVBUS_14
ADCIN_SEL = 0
VBADC = 0b01101
16.0
16.5
17.0
V
VBUS ADC Threshold
15
THVBUS_15
ADCIN_SEL = 0
VBADC = 0b01110
17.0
17.5
18.0
V
VBUS ADC Threshold
16
THVBUS_16
ADCIN_SEL = 0
VBADC = 0b01111
18.0
18.5
19.0
V
VBUS ADC Threshold
17
THVBUS_17
ADCIN_SEL = 0
VBADC = 0b10000
19.0
19.5
20.0
V
VBUS ADC Threshold
18
THVBUS_18
ADCIN_SEL = 0
VBADC = 0b10001
20.0
20.5
21.0
V
VBUS ADC Threshold
19
THVBUS_19
ADCIN_SEL = 0
VBADC = 0b10010
21.0
21.5
22.0
V
VBUS ADC Threshold
20
THVBUS_20
ADCIN_SEL = 0
VBADC = 0b10011
22.0
22.5
23.0
V
VBUS ADC Threshold
21
THVBUS_21
ADCIN_SEL = 0
VBADC = 0b10100
23.0
23.5
24.0
V
VBUS ADC Threshold
22
THVBUS_22
ADCIN_SEL = 0
VBADC = 0b10101
24.0
24.5
25.0
V
VBUS ADC Threshold
23
THVBUS_21
ADCIN_SEL = 0
VBADC = 0b10110
25.0
25.5
26.0
V
VBUS ADC Threshold
24
THVBUS_24
ADCIN_SEL = 0
VBADC = 0b10111
26.0
26.5
27.0
V
VBUS ADC Threshold
25
THVBUS_25
ADCIN_SEL = 0
VBADC = 0b11000
27.0
27.5
28.0
V
VBUS ADC Hysteresis
HVBUS
ADCIN_SEL = 0
GPIO ADC Threshold 1
THGPIO_01
ADCIN_SEL = 1
VBADC = 0b00000
0.6
0.7
0.8
V
GPIO ADC Threshold 2
THGPIO_02
ADCIN_SEL = 1
VBADC = 0b00001
0.8
0.9
1.0
V
GPIO ADC Threshold 3
THGPIO_03
ADCIN_SEL = 1
VBADC = 0b00010
1.0
1.1
1.2
V
GPIO ADC Threshold 4
THGPIO_04
ADCIN_SEL = 1
VBADC = 0b00011
1.2
1.3
1.4
V
GPIO ADC Threshold 5
THGPIO_05
ADCIN_SEL = 1
VBADC = 0b00100
1.4
1.5
1.6
V
GPIO ADC Threshold 6
THGPIO_06
ADCIN_SEL = 1
VBADC = 0b00101
1.6
1.7
1.8
V
GPIO ADC Threshold 7
THGPIO_07
ADCIN_SEL = 1
VBADC = 0b00110
1.8
1.9
2.0
V
GPIO ADC Threshold 8
THGPIO_08
ADCIN_SEL = 1
VBADC = 0b00111
2.0
2.1
2.2
V
GPIO ADC Threshold 9
THGPIO_09
ADCIN_SEL = 1
VBADC = 0b01000
2.2
2.3
2.4
V
GPIO ADC Threshold
10
THGPIO_10
ADCIN_SEL = 1
VBADC = 0b01001
2.4
2.5
2.6
V
GPIO ADC Threshold
11
THGPIO_11
ADCIN_SEL = 1
VBADC = 0b01010
2.6
2.7
2.8
V
GPIO ADC Threshold
12
THGPIO_12
ADCIN_SEL = 1
VBADC = 0b01011
2.8
2.9
3.0
V
150
mV
USB TYPE-C / ADCIN ADC
www.analog.com
Analog Devices | 17
MAX77958
Standalone USB Type-C and USB Power Delivery
Controller
Electrical Characteristics (continued)
(Limits are 100% tested at TA = +25°C. Limits over the operating temperature range and relevant supply voltage range are guaranteed
by design and characterization.)
PARAMETER
SYMBOL
CONDITIONS
MIN
TYP
MAX
UNITS
GPIO ADC Threshold
13
THGPIO_13
ADCIN_SEL = 1
VBADC = 0b01100
3.0
3.1
3.2
V
GPIO ADC Threshold
14
THGPIO_14
ADCIN_SEL = 1
VBADC = 0b01101
3.2
3.3
3.4
V
GPIO ADC Threshold
15
THGPIO_15
ADCIN_SEL = 1
VBADC = 0b01110
3.4
3.5
3.6
V
GPIO ADC Threshold
16
THGPIO_16
ADCIN_SEL = 1
VBADC = 0b01111
3.6
3.7
3.8
V
GPIO ADC Threshold
17
THGPIO_17
ADCIN_SEL = 1
VBADC = 0b10000
3.8
3.9
4.0
V
GPIO ADC Threshold
18
THGPIO_18
ADCIN_SEL = 1
VBADC = 0b10001
4.0
4.1
4.2
V
GPIO ADC Threshold
19
THGPIO_19
ADCIN_SEL = 1
VBADC = 0b10010
4.2
4.3
4.4
V
GPIO ADC Threshold
20
THGPIO_20
ADCIN_SEL = 1
VBADC = 0b10011
4.4
4.5
4.6
V
GPIO ADC Threshold
21
THGPIO_21
ADCIN_SEL = 1
VBADC = 0b10100
4.6
4.7
4.8
V
GPIO ADC Threshold
22
THGPIO_22
ADCIN_SEL = 1
VBADC = 0b10101
4.8
4.9
5.0
V
GPIO ADC Threshold
23
THGPIO_23
ADCIN_SEL = 1
VBADC = 0b10110
5.0
5.1
5.2
V
GPIO ADC Threshold
24
THGPIO_24
ADCIN_SEL = 1
VBADC = 0b10111
5.2
5.3
5.4
V
GPIO ADC Threshold
25
THGPIO_25
ADCIN_SEL = 1
VBADC = 0b11000
5.4
5.5
5.6
V
GPIO ADC Hysteresis
HGPIO
ADCIN_SEL= 1
25
mV
USB TYPE-C / CC ADC RANGE 1
CC ADC Threshold 1
THCC_01
ADCIN_SEL = 001
or 011
VBADC = 0b00000
0.312
0.362
0.416
V
CC ADC Threshold 2
THCC_02
ADCIN_SEL = 001
or 011
VBADC = 0b00001
0.416
0.468
0.520
V
CC ADC Threshold 3
THCC_03
ADCIN_SEL = 001
or 011
VBADC = 0b00010
0.520
0.573
0.624
V
CC ADC Threshold 4
THCC_04
ADCIN_SEL = 001
or 011
VBADC = 0b00011
0.624
0.682
0.728
V
CC ADC Threshold 5
THCC_05
ADCIN_SEL = 001
or 011
VBADC = 0b00100
0.728
0.783
0.832
V
CC ADC Threshold 6
THCC_06
ADCIN_SEL = 001
or 011
VBADC = 0b00101
0.832
0.885
0.936
V
CC ADC Threshold 7
THCC_07
ADCIN_SEL = 001
or 011
VBADC = 0b00110
0.936
0.988
1.040
V
CC ADC Threshold 8
THCC_08
ADCIN_SEL = 001
or 011
VBADC = 0b00111
1.040
1.093
1.144
V
www.analog.com
Analog Devices | 18
MAX77958
Standalone USB Type-C and USB Power Delivery
Controller
Electrical Characteristics (continued)
(Limits are 100% tested at TA = +25°C. Limits over the operating temperature range and relevant supply voltage range are guaranteed
by design and characterization.)
PARAMETER
SYMBOL
CONDITIONS
MIN
TYP
MAX
UNITS
CC ADC Threshold 9
THCC_09
ADCIN_SEL = 001
or 011
VBADC = 0b01000
1.144
1.196
1.248
V
CC ADC Threshold 10
THCC_10
ADCIN_SEL = 001
or 011
VBADC = 0b01001
1.248
1.308
1.352
V
CC ADC Threshold 11
THCC_11
ADCIN_SEL = 001
or 011
VBADC = 0b01010
1.352
1.408
1.456
V
CC ADC Threshold 12
THCC_12
ADCIN_SEL = 001
or 011
VBADC = 0b01011
1.456
1.513
1.560
V
CC ADC Threshold 13
THCC_13
ADCIN_SEL = 001
or 011
VBADC = 0b01100
1.560
1.618
1.664
V
CC ADC Threshold 14
THCC_14
ADCIN_SEL = 001
or 011
VBADC = 0b01101
1.664
1.725
1.768
V
CC ADC Threshold 15
THCC_15
ADCIN_SEL = 001
or 011
VBADC = 0b01110
1.768
1.823
1.872
V
CC ADC Threshold 16
THCC_16
ADCIN_SEL = 001
or 011
VBADC = 0b01111
1.872
1.930
1.976
V
CC ADC Threshold 17
THCC_17
ADCIN_SEL = 001
or 011
VBADC = 0b10000
1.976
2.026
2.080
V
CC ADC Threshold 18
THCC_18
ADCIN_SEL = 001
or 011
VBADC = 0b10001
2.080
2.143
2.184
V
CC ADC Threshold 19
THCC_19
ADCIN_SEL = 001
or 011
VBADC = 0b10010
2.184
2.240
2.288
V
CC ADC Threshold 20
THCC_20
ADCIN_SEL = 001
or 011
VBADC = 0b10011
2.288
2.345
2.392
V
CC ADC Threshold 21
THCC_21
ADCIN_SEL = 001
or 011
VBADC = 0b10100
2.392
2.450
2.496
V
CC ADC Threshold 22
THCC_22
ADCIN_SEL = 001
or 011
VBADC = 0b10101
2.496
2.550
2.600
V
CC ADC Threshold 23
THCC_23
ADCIN_SEL = 001
or 011
VBADC = 0b10110
2.600
2.660
2.704
V
CC ADC Threshold 24
THCC_24
ADCIN_SEL = 001
or 011
VBADC = 0b10111
2.704
2.757
2.808
V
CC ADC Threshold 25
THCC_25
ADCIN_SEL = 001
or 011
VBADC = 0b11000
2.808
2.858
2.912
V
CC ADC Hysteresis
HCC
ADCIN_SEL = 001 or 011
15
mV
USB TYPE-C / CC ADC RANGE 2
CC ADC Threshold 1
THCC_01
ADCIN_SEL = 001
or 011
VBADC = 0b00000
0.189
0.220
0.252
V
CC ADC Threshold 2
THCC_02
ADCIN_SEL = 001
or 011
VBADC = 0b00001
0.252
0.284
0.315
V
CC ADC Threshold 3
THCC_03
ADCIN_SEL = 001
or 011
VBADC = 0b00010
0.315
0.347
0.378
V
CC ADC Threshold 4
THCC_04
ADCIN_SEL = 001
or 011
VBADC = 0b00011
0.378
0.413
0.441
V
www.analog.com
Analog Devices | 19
MAX77958
Standalone USB Type-C and USB Power Delivery
Controller
Electrical Characteristics (continued)
(Limits are 100% tested at TA = +25°C. Limits over the operating temperature range and relevant supply voltage range are guaranteed
by design and characterization.)
PARAMETER
SYMBOL
CONDITIONS
MIN
TYP
MAX
UNITS
CC ADC Threshold 5
THCC_05
ADCIN_SEL = 001
or 011
VBADC = 0b00100
0.441
0.475
0.504
V
CC ADC Threshold 6
THCC_06
ADCIN_SEL = 001
or 011
VBADC = 0b00101
0.504
0.536
0.567
V
CC ADC Threshold 7
THCC_07
ADCIN_SEL = 001
or 011
VBADC = 0b00110
0.567
0.599
0.630
V
CC ADC Threshold 8
THCC_08
ADCIN_SEL = 001
or 011
VBADC = 0b00111
0.630
0.662
0.693
V
CC ADC Threshold 9
THCC_09
ADCIN_SEL = 001
or 011
VBADC = 0b01000
0.693
0.724
0.756
V
CC ADC Threshold 10
THCC_10
ADCIN_SEL = 001
or 011
VBADC = 0b01001
0.756
0.792
0.819
V
CC ADC Threshold 11
THCC_11
ADCIN_SEL = 001
or 011
VBADC = 0b01010
0.819
0.853
0.882
V
CC ADC Threshold 12
THCC_12
ADCIN_SEL = 001
or 011
VBADC = 0b01011
0.882
0.917
0.945
V
CC ADC Threshold 13
THCC_13
ADCIN_SEL = 001
or 011
VBADC = 0b01100
0.945
0.980
1.008
V
CC ADC Threshold 14
THCC_14
ADCIN_SEL = 001
or 011
VBADC = 0b01101
1.008
1.045
1.071
V
CC ADC Threshold 15
THCC_15
ADCIN_SEL = 001
or 011
VBADC = 0b01110
1.071
1.104
1.134
V
CC ADC Threshold 16
THCC_16
ADCIN_SEL = 001
or 011
VBADC = 0b01111
1.134
1.166
1.197
V
CC ADC Threshold 17
THCC_17
ADCIN_SEL = 001
or 011
VBADC = 0b10000
1.197
1.227
1.260
V
CC ADC Threshold 18
THCC_18
ADCIN_SEL = 001
or 011
VBADC = 0b10001
1.260
1.293
1.323
V
CC ADC Threshold 19
THCC_19
ADCIN_SEL = 001
or 011
VBADC = 0b10010
1.323
1.357
1.386
V
CC ADC Threshold 20
THCC_20
ADCIN_SEL = 001
or 011
VBADC = 0b10011
1.386
1.421
1.449
V
CC ADC Threshold 21
THCC_21
ADCIN_SEL = 001
or 011
VBADC = 0b10100
1.449
1.484
1.512
V
CC ADC Threshold 22
THCC_22
ADCIN_SEL = 001
or 011
VBADC = 0b10101
1.512
1.545
1.575
V
CC ADC Threshold 23
THCC_23
ADCIN_SEL = 001
or 011
VBADC = 0b10110
1.575
1.612
1.638
V
CC ADC Threshold 24
THCC_24
ADCIN_SEL = 001
or 011
VBADC = 0b10111
1.638
1.671
1.701
V
CC ADC Threshold 25
THCC_25
ADCIN_SEL = 001
or 011
VBADC = 0b11000
1.701
1.731
1.764
V
CC ADC Hysteresis
www.analog.com
HCC
ADCIN_SEL = 001 or 011
15
mV
Analog Devices | 20
MAX77958
Standalone USB Type-C and USB Power Delivery
Controller
Electrical Characteristics (continued)
(Limits are 100% tested at TA = +25°C. Limits over the operating temperature range and relevant supply voltage range are guaranteed
by design and characterization.)
PARAMETER
SYMBOL
CONDITIONS
MIN
TYP
MAX
UNITS
USB TYPE-C / CC ADC RANGE 3
CC ADC Threshold 1
THCC_01
ADCIN_SEL = 001
or 011
VBADC = 0b00000
0.150
0.175
0.200
V
CC ADC Threshold 2
THCC_02
ADCIN_SEL = 001
or 011
VBADC = 0b00001
0.200
0.225
0.250
V
CC ADC Threshold 3
THCC_03
ADCIN_SEL = 001
or 011
VBADC = 0b00010
0.250
0.275
0.300
V
CC ADC Threshold 4
THCC_04
ADCIN_SEL = 001
or 011
VBADC = 0b00011
0.300
0.325
0.350
V
CC ADC Threshold 5
THCC_05
ADCIN_SEL = 001
or 011
VBADC = 0b00100
0.350
0.375
0.400
V
CC ADC Threshold 6
THCC_06
ADCIN_SEL = 001
or 011
VBADC = 0b00101
0.400
0.425
0.450
V
CC ADC Threshold 7
THCC_07
ADCIN_SEL = 001
or 011
VBADC = 0b00110
0.450
0.475
0.500
V
CC ADC Threshold 8
THCC_08
ADCIN_SEL = 001
or 011
VBADC = 0b00111
0.500
0.525
0.550
V
CC ADC Threshold 9
THCC_09
ADCIN_SEL = 001
or 011
VBADC = 0b01000
0.550
0.575
0.600
V
CC ADC Threshold 10
THCC_10
ADCIN_SEL = 001
or 011
VBADC = 0b01001
0.600
0.625
0.650
V
CC ADC Threshold 11
THCC_11
ADCIN_SEL = 001
or 011
VBADC = 0b01010
0.650
0.675
0.700
V
CC ADC Threshold 12
THCC_12
ADCIN_SEL = 001
or 011
VBADC = 0b01011
0.700
0.725
0.750
V
CC ADC Threshold 13
THCC_13
ADCIN_SEL = 001
or 011
VBADC = 0b01100
0.750
0.775
0.800
V
CC ADC Threshold 14
THCC_14
ADCIN_SEL = 001
or 011
VBADC = 0b01101
0.800
0.825
0.850
V
CC ADC Threshold 15
THCC_15
ADCIN_SEL = 001
or 011
VBADC = 0b01110
0.850
0.875
0.900
V
CC ADC Threshold 16
THCC_16
ADCIN_SEL = 001
or 011
VBADC = 0b01111
0.900
0.925
0.950
V
CC ADC Threshold 17
THCC_17
ADCIN_SEL = 001
or 011
VBADC = 0b10000
0.950
0.975
1.000
V
CC ADC Threshold 18
THCC_18
ADCIN_SEL = 001
or 011
VBADC = 0b10001
1.000
1.025
1.050
V
CC ADC Threshold 19
THCC_19
ADCIN_SEL = 001
or 011
VBADC = 0b10010
1.050
1.075
1.100
V
CC ADC Threshold 20
THCC_20
ADCIN_SEL = 001
or 011
VBADC = 0b10011
1.100
1.125
1.150
V
CC ADC Threshold 21
THCC_21
ADCIN_SEL = 001
or 011
VBADC = 0b10100
1.150
1.175
1.200
V
CC ADC Threshold 22
THCC_22
ADCIN_SEL = 001
or 011
VBADC = 0b10101
1.200
1.225
1.250
V
www.analog.com
Analog Devices | 21
MAX77958
Standalone USB Type-C and USB Power Delivery
Controller
Electrical Characteristics (continued)
(Limits are 100% tested at TA = +25°C. Limits over the operating temperature range and relevant supply voltage range are guaranteed
by design and characterization.)
PARAMETER
SYMBOL
CONDITIONS
MIN
TYP
MAX
UNITS
CC ADC Threshold 23
THCC_23
ADCIN_SEL = 001
or 011
VBADC = 0b10110
1.250
1.275
1.300
V
CC ADC Threshold 24
THCC_24
ADCIN_SEL = 001
or 011
VBADC = 0b10111
1.300
1.325
1.350
V
CC ADC Threshold 25
THCC_25
ADCIN_SEL = 001
or 011
VBADC = 0b11000
1.350
1.375
1.400
V
CC ADC Hysteresis
HCC
ADCIN_SEL = 001 or 011
7
mV
USB TYPE-C / USB ANALOG SWITCH (DN1/DP2)
Analog Signal Range
VDN1, VDP2
0
RONUSB
AVL = 3.0V, IDN/IDP = 10mA, VDN/VDP =
0V to 3.0V
On-Resistance Match
Between Channels
ΔRONUSB
AVL = 3.0V, IDN/IDP = 10mA, VDN/VDP =
400mV
On-Resistance Flatness
RFLATUSB
AVL = 3.0V, IDN/IDP = 10mA, VDN/VDP =
0V to 3.0V
Off Leakage Current
ILUSBOFF
AVL = 4.2V; Switch opened; VDN1 or
VDP2 = 0.3V, 2.5V; VDN or VDP = 2.5V,
0.3V
On-Resistance
3
0.1
-360
VAVL
V
6
Ω
0.5
Ω
0.4
Ω
+360
nA
USB TYPE-C / DYNAMIC PERFORMANCE
Analog Switch Turn On
Time
tON
I2C stop to switch on; RL = 50Ω
0.1
0.3
ms
Analog Switch Turn Off
Time
tOFF
I2C stop to switch off; RL = 50Ω
0.1
0.3
ms
0.3 x
VIO2
V
USB TYPE-C / GPIO0, 1, 2, 3, 8
Input Low Voltage
VIL
Input High Voltage
VIH
Input Hysteresis
(Schmitt)
Output Low Voltage
Output High Voltage
Input Leakage Current
0.7 x
VIO2
VIHYS
VOL
V
250
ISINK = 2mA
VOH
ISINK = 2mA
IL
TA = +25°C
mV
0.4
0.7 x
VIO2
V
V
100
nA
Input Pullup Resistor
RPU
100
kΩ
Input Pulldown Resistor
RPD
100
kΩ
USB TYPE-C / GPIO4, 5, 6, 7
Input Low Voltage
VIL
Input High Voltage
VIH
Input Hysteresis
(Schmitt)
www.analog.com
VIHYS
0.3 x
VIO1
0.7 x
VIO1
V
V
250
mV
Analog Devices | 22
MAX77958
Standalone USB Type-C and USB Power Delivery
Controller
Electrical Characteristics (continued)
(Limits are 100% tested at TA = +25°C. Limits over the operating temperature range and relevant supply voltage range are guaranteed
by design and characterization.)
PARAMETER
Output Low Voltage
Output High Voltage
Input Leakage Current
SYMBOL
VOL
CONDITIONS
MIN
TYP
ISINK = 2mA
VOH
ISINK = 2mA
IL
TA = +25°C
MAX
UNITS
0.4
V
0.7 x
VIO1
V
100
μA
Input Pullup Resistor
RPU
100
kΩ
Input Pulldown Resistor
RPD
100
kΩ
USB TYPE-C / I2C MASTER / I2C LOGIC LEVEL
SCL_M, SDA_M Input
Low Level
TA = +25°C
SCL_M, SDA_M Input
High Level
TA = +25°C
SCL_M, SDA_M Input
Hysteresis
TA = +25°C
SCL_M, SDA_M Logic
Input Current
SCL_M = SD_AM = VIO2 = 5.5V
0.7 x
VIO2
V
VIO2
V
0.05 x
VIO2
-1000
SCL_M, SDA_M Input
Capacitance
V
+1000
10
SCL_M, SDA_M Output
Low Voltage
SCL_M, SDA_M Input
Leakage Current
0.3 x
VIO2
Sinking 3mA
ILK
TA = +25°C
pF
VIO = HV
0.4
VIO = LV
0.2 x
VIO
-1000
TA = +85°C
nA
+1000
100
V
nA
USB TYPE-C / I2C MASTER / I2C TIMING FOR STANDARD, FAST, AND FAST-MODE PLUS
Clock Frequency
Hold Time (Repeated)
START Condition
fSCL
tHD;STA
1000
kHz
0.26
μs
CLK Low Period
tLOW
0.5
μs
CLK High Period
tHIGH
0.26
μs
Setup Time Repeated
START Condition
tSU;STA
0.26
μs
DATA Hold Time
tHD:DAT
0
DATA Valid Time
tVD:DAT
0.45
μs
DATA Valid
Acknowledge Time
tVD:ACK
0.45
μs
DATA Setup time
tSU;DAT
50
ns
Setup Time for STOP
Condition
tSU;STO
0.26
μs
tBUF
0.5
μs
Bus-Free Time Between
STOP and START
Pulse Width of Spikes
that Must be
Suppressed by the Input
Filter
www.analog.com
μs
50
ns
Analog Devices | 23
MAX77958
Standalone USB Type-C and USB Power Delivery
Controller
Electrical Characteristics (continued)
(Limits are 100% tested at TA = +25°C. Limits over the operating temperature range and relevant supply voltage range are guaranteed
by design and characterization.)
PARAMETER
SYMBOL
CONDITIONS
MIN
TYP
MAX
UNITS
4.7
5.15
5.5
V
USB TYPE-C / MTP
VCIN Input Supply
VCIN Current
Consumption
MTP Erasing/
Programming Time
VCIN_MTP
Reading, erasing, programming
IVCIN_MTP_E
RASE
Erasing
8
IVCIN_MTP_P
ROG
Programming
16
tMTP_ERASE
Erasing (1 page = 128 x 32-bits word)
100
ms
tMTP_PROG
Programing
500
μs/32-bit
word
mA
MTP Write Capacity
NWrite
VDD1P8 = 2V, VCIN = 5.5V
100
Write
MTP Data Retention
tMTP
VDD1P8 = 2V, VCIN = 5.5V
10
Year
USB TYPE-C / POWER SUPPLY
LDO—Output Voltage
IL = 1mA
LDO—Current Limit
1.05
1.125
1.2
V
-19
-11
-5
mA
5
12
μA
300
μs
LDO—Power Up
Consumption
LDO—Turn On Time
From BMC_PWDN_LDO = 0 to V1P1 =
95% of final value
LDO—Output Pulldown
Current
VDD1P1 = 1.125V and
BMC_LDO_LOAD = 1
330
μA
ESD RATINGS
Human Body Model
(HBM)
All pins
± 4000
V
Charged Device Model
(CDM)
All pins
± 1000
V
CC1 and CC2
± 4000
DP and DN
± 2000
CC1 and CC2
± 14000
DP and DN
± 2000
IEC Contact Discharge
IEC Air Discharge
www.analog.com
V
V
Analog Devices | 24
MAX77958
Standalone USB Type-C and USB Power Delivery
Controller
Pin Configuration
MAX77958
TOP VIEW
(BUMP SIDE DOWN)
MAX77958
INTB
VDD1P1
CC1
CC2
VCIN
VBUS
VIO1
SCL
SDA
GPIO1
VDD1P8
SYS
VIO2
SCL_M
SDA_M
GPIO8
GND_A
AVL
DN
DP
GPIO7
GPIO6
GPIO3
GND_D
DN1
DP2
GPIO5
GPIO4
GPIO2
GPIO0
WLP
(3.1mm X 2.65mm 0.5mm PITCH)
Pin Description
PIN
NAME
B1
VIO1
System IO Voltage Input. Connect a 1μF/6.3V ceramic capacitor to GND.
C1
VIO2
System IO Voltage Input. Connect a 1μF/6.3V ceramic capacitor to GND.
A6
VBUS
VBUS Input. VBUS provides power for internal circuitry when SYS is less than VBUS. Bypass VBUS
to GND with a 1μF (min) ceramic capacitor.
B6
SYS
Power Input. SYS provides power for internal circuitry when VBUS is less than SYS. Bypass SYS
to GND with a 1μF (min) ceramic capacitor.
C6
AVL
Analog Voltage Level. Output of the on-chip LDO is used to power the on-chip and low-noise
circuits. Bypass with a 2.2μF/10V ceramic capacitor to GND. Powering external loads from AVL is
not recommended, other than pullup resistors.
B5
VDD1P8
1.8V Internal LDO Output. Bypass the pin to ground with a 1μF/6.3V ceramic capacitor.
A2
VDD1P1
Digital Supply Voltage of 1.1V. Bypass with a 1μF/6.3V ceramic capacitor.
B3
SDA
I2C Serial Data. Add an external 2.2kΩ pullup resistor to VIO1.
B2
SCL
I2C Serial Clock. Add an external 2.2kΩ pullup resistor to VIO1.
www.analog.com
FUNCTION
Analog Devices | 25
MAX77958
Standalone USB Type-C and USB Power Delivery
Controller
Pin Description (continued)
PIN
NAME
A1
INTB
Interrupt Output. Active-low open-drain output. Add a 200kΩ pullup resistor to VIO1.
E1
DN1
USB Input 1 for D-
E2
DP2
USB Input 2 for D+
D1
DN
Common Negative Output 1. Connect to D- on USB Type-C connector.
D2
DP
Common Positive Output 2. Connect to D+ on USB Type-C connector.
A3
CC1
USB Type‐C CC Pin 1
A4
CC2
USB Type‐C CC Pin 2
A5
VCIN
MTP and VCONN power supply input. Apply 5V power to VCIN. Required for MTP program and to
generate VCONN power supply to unused CC pin if required.
E6
GPIO0
GPIO0—ADC Input 0. Used for Moisture detection functionality as default. If Moisture detection is
disabled, this pin is freed up for use as GPIO.
B4
GPIO1
GPIO1—ADC Input 1. Used for Moisture detection functionality as default. If Moisture detection is
disabled, this pin is freed up for use as GPIO.
E5
GPIO2
GPIO2
D5
GPIO3
GPIO3. Used for Moisture detection functionality as default. If Moisture detection is disabled, this
pin is freed up for use as GPIO.
E4
GPIO4
GPIO4
E3
GPIO5
GPIO5
D4
GPIO6
Used for I2C Slave ID (SID) Selection at Power Up. Tie this pin to GND, pullup, pulldown with an
external 470kΩ ±10% resistor. See Table 3. After power up is complete, this pin can be used for
GPIO.
D3
GPIO7
GPIO7
C4
GPIO8
GPIO8
C5
GND_A
Analog GND
D6
GND_D
Digital GND
C3
SDA_M
Master I2C Serial Data. Add an external 2.2kΩ pullup resistor to VIO2.
C2
SCL_M
Master I2C Serial Clock. Add an external 2.2kΩ pullup resistor to VIO2.
www.analog.com
FUNCTION
Analog Devices | 26
MAX77958
Standalone USB Type-C and USB Power Delivery
Controller
Detailed Description
The MAX77958 is a robust solution for USB Type-C CC detection and power delivery (PD) protocol implementation.
It detects connected accessories or devices by using Type-C CC detection and USB PD messaging. The IC protects
against overvoltage and overcurrent, and detects moisture and prevents corrosion on the USB Type-C connector. The
IC also has a D+/D- USB switch and BC1.2 detection to support legacy USB standards. It contains VCONN switches for
USB PD and an enable pin for an external VCONN boost or buck converter.
The IC can be used in sink mode to determine the source capabilities of the connected device to optimize power into
the sink device. The IC can also be used in source mode to advertise the power capabilities of the source to connected
devices and accessories.
The IC is compliant with USB Type-C Version 1.3 and PD 3.0. It can be further customized without affecting the
compliance. The embedded default firmware in the MAX77958 is able to support operations that are expected in the
Type-C and PD applications.
The default firmware operations are as follows:
● BC1.2, Type-C, and PD adapter detection
● Automatic PD negotiation
● Default sink PDOs: 5V/3A, 9V/3A, and 15V/3A. If there are multiple source PDOs matching to the MAX77958 sink
PDO list, the MAX77958 requests the highest power of PDO.
● Automatic role setting according to port partner's role
In addition to the default operation, operation of the IC can be customized for specific applications. This is accomplished
using the customization script in the evaluation kit (EV kit) GUI to support different Maxim chargers.
The MAX77958 supports both standalone and MCU based systems. In the standalone system (see Figure 1), the
MAX77958 plays a role as system MCU along with the customization script that can be generated through the GUI SW.
The customization script is stored in the MTP. In response to events that are happening in the Type-C connector, the
customization script automatically executes commands specified by the designer. All sequential control operations are
possible without the need for MCU.
USB TYPE-C
PORT
MAX77958
I2C_M
I2C_S
POWER FLOW
COMMUNICATION
MAX77962
SYS
BAT
Figure 1. Standalone System
www.analog.com
Analog Devices | 27
MAX77958
Standalone USB Type-C and USB Power Delivery
Controller
In the MCU based system (see Figure 2), the MCU controls the peripheral ICs. In response to port events, the MAX77958
interrupts the MCU and controls the MAX77958 and MAX77962 according to system needs.
IRQB
USB TYPE-C
PORT
MAX77958
INT
I2C_S
I2C_M
MCU
I2C_S
POWER FLOW
COMMUNICATION
MAX77962
SYS
BAT
Figure 2. MCU Based System
USB Type-C Interface and Control
The MAX77958 is a complete solution for USB port charger detection and High-Power USB charging on a single USB
Type-C connector. It can also be used in any power sink or source application.
The USB Type-C is an internal block that detects connected accessories by using USB Type-C, USB PD messaging
and USB BC1.2 charger detection. The USB Type-C block auto-configures switches for common connected accessories
including USB cables (SDP/CDP/DCP).
CC/USB PD Interface
The MAX77958 works as a Dual Role Port (DRP) compliant to USB Type-C Version 1.3. The USB Type-C functions
are controlled by a logic state machine which follows the USB Type-C requirements. There is support for the optional
Try.Sink function which places priority on the sink role. This creates the appearance of legacy operation when the device
is connected to another DRP. The IC automatically becomes a sink and draws power from the source. The IC firmware
can optionally set an external charger's input current limit based on the current advertised on the CC lines through the
master I2C interface.
USB Type-C Definitions
●
●
●
●
●
UFP—Upstream Facing Port. Typical USB device role for data transfer.
DFP—Down Stream Facing Port. Typical USB host role for data transfer.
DRP—Dual Role Port. USB Type-C port that can operate in either DFP or UFP roles.
Source—Initial power state for a DFP. Power role can be swapped by USB Power Delivery command.
Sink—Initial power state for a UFP. Power role can be swapped by USB Power Delivery command.
DRP
The USB Type-C connector management block supports DRP operation. The port cycles between advertising DFP/
source and UFP/sink operations while waiting for a port to be connected. The internal state machine handles all the
www.analog.com
Analog Devices | 28
MAX77958
Standalone USB Type-C and USB Power Delivery
Controller
tasks of detecting and configuring the CC pins for the correct mode. A manual mode allows forcing either DFP or UFP
operation in cases where the DRP operation is not appropriate
Detecting Connected DFP
When a DFP is detected (either from DRP mode or force UFP mode), the USB Type-C Connection State Machine
detects the active CC line and reports this with an interrupt to the host application processor (AP). The AP then uses this
information to de-mux the SuperSpeed USB lines as required. The USB Type-C Connection State Machine also auto
detects the DFP advertised current (default, 1.5A and 3.0A). Upon detection of a change in the advertised current, an
interrupt is sent to the AP.
Detecting Connected UFP
When a UFP is detected (either from DRP mode or force DFP mode), the USB Type-C State Machine detects the active
CC line. If the Interrupt is enabled, and an AP is present, the IC toggles the INT line to report this to the host AP.
Additionally, if an active cable is connected, the IC detects the presence of RA on the unconnected CC line to determine
if it is necessary to turn on VCONN. The advertised initial supply current is the default USB current (500mA/900mA
depending on if SuperSpeed is active). The advertised current can be changed through an I2C command or automatically
to 1.5A. 3.0A is optionally available but is disabled by default.
Controls
Reported Status and Interrupts
●
●
●
●
●
Connected Device Detection
Active CC Line
VCONN Enabled (RA Present)
Advertised Current in UFP (Source) Mode
Error State
Operation Controls
●
●
●
●
Force Source (DFP) or Sink (UFP) State
Control Swap of Power Role or VCONN Role
Enable/Disable of Audio or Debug Accessories
Set Advertisement of CC Pin Current in Source Role
Try.SNK Support
The MAX77958 operates as a DRP by default. This type of port can act as either a Power Sink/USB Data Peripheral or a
Power Source/USB Data Host. The USB Type-C logic state machine cycles between Source and Sink at a rate typically
around 75ms. This means that when the IC is connected to another device, which is also a DRP (for example, PC with a
C port), the source and sink roles are randomly assigned. The customer prefers that the mobile phone assumes the sink
role if connected to a PC. The IC includes support for Try.SNK, which allows it to be set to strongly prefer the sink role if
connected to a standard DRP. If two devices with Try.SNK enable are connected, the role setting is again random.
Audio Accessory Mode Support
The IC detects an audio accessory device when both the CC1 and CC2 pins are pulled down to ground by an RA resistor
from the connected device.
DebugAcessory.SRC Support
The IC detects a connection to a debug and test system (DTS) when it operates in source power role. A debug accessory
device is detected when the CC1 and CC2 pins are pulled down to ground by an RD resistor from the connected device.
DebugAcessory.SNK Support
The IC detects a connection to a DTS when it operates in sink power role. A debug accessory device is detected when
the CC1 and CC2 pins are pulled up by an Rp resistor from the connected device.
The voltage levels on the CC1 and CC2 pins give the orientation and current capability.
www.analog.com
Analog Devices | 29
MAX77958
Standalone USB Type-C and USB Power Delivery
Controller
Table 1. Rp/Rp Charging Current Values for a DTS Source
MODE OF OPERATION
CC1
CC2
Default USB Power
Rp for 3A
Rp for 1.5A
USB Type-C Current at 1.5A
Rp for 1.5A
Rp for Default
USB Type-C Current at 3A
Rp for 3A
Rp for Default
Moisture Detection
The MAX77958 features Moisture and Dry detection on the USB Type-C receptacle. When the Moisture detection
feature is enabled (enabled as default), the MAX77958 is monitoring CC1/CC2 and SBU1/SBU2 for 1 DRP source cycle
periodically. In case the impedance on these pins are less than Moisture threshold, the MAX77958 runs its unique
algorithm until Dry is detected on the receptacle.
When Moisture and Dry are detected, the MAX77958 reports to the AP by setting CC_STATUS1[1].
To take advantage of the MAX77958 Moisture detection feature, external resistor configuration on the SBU1 and SBU2
are required.
GPIO3
649kΩ
649kΩ
120kΩ
120kΩ
GPIO0
SBU1
GPIO1
SBU2
Figure 3. SBU Configuration
USB BC1.2 D+/D- Adapter Detection
Description
The USB adapter detection is USB BC1.2 compliant with the ability to automatically detect common charger types.
USB adapter detection has the following controls in the I2C register file:
● Charger detection enable (ChgDetEn)
● Charger detection manual—request a new run of charger detection (ChgDetMan)
The Adapter Detection State Machine follows USB BC1.2 requirements and detects SDP, CDP, and DCP types. If the
D+/D- lines are detected as open, the adapter detection state machine indicates SDP as required by BC1.2 requirements.
With a USB BC1.2 compliant state machine, the IC reports that a DCP is detected based on the bias voltage. The IC
default firmware can automatically set an external charger's input current limit based on the BC1.2 adapter type that was
detected.
The IC also reports the operation status of the Adapter Detection State Machine in the ChgTypRun interrupt bit in the I2C
register map.
www.analog.com
Analog Devices | 30
MAX77958
Standalone USB Type-C and USB Power Delivery
Controller
Charger Type Detection Table
Table 2. BC1.2 Adapter Detection
USB BC1.2 DETECTED ADAPTER TYPE
ChgTyp VALUE
CHARGER DETECTED
00
No VBUS
01
SDP
10
CDP
11
DCP
Note: Adapter Detect running state is indicated until the Adapter Detection State Machine is complete.
VCONN Switch
Description
The MAX77958 integrates the VCONN switch which connects VCIN to one of CC1 and CC2. Once CC detection identifies
Ra/Ra on CC1 and CC2, the VCONN switch routes VCIN to the pin that is not connected to the CC line in the cable.
The MAX77958 also provides programmable VCONN switch current limit from 200mA to 500mA in 100mA step. If VCONN
load current exceeds the current limit for 3ms, then an interrupt is generated to the Application Processor (AP). If AP
wants to keep supplying VCONN power, then the AP must configure a higher current limit or no current limit within 12ms.
If not, the VCONN switch is turned OFF in 12ms after an Interrupt is generated.
VCONN(CCx)
NEW VCONN I LIMIT
OLD VCONN I LIMIT
VCONN LOAD
3ms
12ms
VCONN INT
Figure 4. VCONN Overcurrent Protection Operation
www.analog.com
Analog Devices | 31
MAX77958
Standalone USB Type-C and USB Power Delivery
Controller
USB Type-C Interface and Control
Automatic Accessory Detection
Autoconfiguration Details
CCDetEn = 0 or ChgDetEn = 0
1. Nothing happens when VBUS is attached. Nothing occurs when ChgDetMan is set to 1.
CCDetEn = 1 and ChgDetEn = 1
1.
2.
3.
4.
Charger detection runs automatically when VBUS is attached
If VBUS voltage enters the valid range, all switches connected to DP/DN are opened
Charger detection algorithm begins.
When charger detection finishes, DP/DN switch settings are restored.
USBAuto = 0
1. No automatic switch configuration happens
USBAuto = 1
1. Operates only after charger detection completes, SDP or CDP is found, and if no special charger is found (SpChgTyp
= 000 unknown).
2. Set DP/DN connected to DP2/DN1, over-riding any previous switch setting.
3. At any time, the AP is allowed to change these switch settings.
4. If AP has not changed the switch settings when VBUS drops below the valid level, DP/DN sets to Hi-Z.
USB Power Delivery
Description
The IC supports USB Power Delivery Revision 3.0. The power delivery subsystem is separated into 2 parts: Automatic
Power Control and Application Processor Message Passthrough.
Application Processor Message Passthrough
There are many USB PD messages that are unrelated to power control. These messages pass on to the AP to decode
and reply. USB PD messages have time critical components and the IC automatically handles these time critical events.
IC Wakeup events
The IC automatically operates in the lowest possible power state. The IC power consumption depends on the following
conditions:
● Request has been made across the I2C bus
● USB Type-C end-to-end detection is valid
● VBUS is present
The lowest possible power consumption state is no VBUS, CCDetEn = 0, and no I2C traffic requests.
www.analog.com
Analog Devices | 32
MAX77958
Standalone USB Type-C and USB Power Delivery
Controller
Interrupt Output (INTB)
INTB is an open-drain and active-low output. It reports an interrupt event to the main microprocessor. Individual interrupt
sources can be masked. Once the main microprocessor reads the interrupt registers, the INTB pin is cleared.
Interconnected Block Diagram
DN1
DP2
DD+
CC1
16-BIT MAXQ CPU
BC1.2
DIGITAL
BC1.2
ANALOG
USB Type-C
DIGITAL
USB Type-C
ANALOG
CC2
MTP/ROM
DATA RAM
SFR
GATE CP CONTROL
I2C MASTER
VCIN
9 GPIOs
USB PD
DIGITAL
USB PD
ANALOG
Figure 5. Interconnected Block Diagram
System Faults
The IC monitors the system for the following faults:
● Undervoltage lockout
● VIO fault
Undervoltage Lockout
When the VAVL falls below AVLUVLOF (2.6V max) for more than 8ms, the MAX77958 enters into a shutdown state. Once
the VAVL voltage is higher than AVLUVLOR (2.8V max), the MAX77958 exits shutdown state to be functional.
VIO Fault
When VIO1 and VIO2 fall below 1.0V, the IC goes into shutdown state. Once VIO1 and VIO2 voltages rise higher than
1.3V, the IC comes out of shutdown state.
www.analog.com
Analog Devices | 33
MAX77958
Standalone USB Type-C and USB Power Delivery
Controller
Reset Conditions
The IC has different levels of reset as follows:
● Type S: Registers are reset each time when VDD1P8 < VDD_OKF
● Type O: Registers are reset each time when VDD1P8 < VDD_OKF or when the software reset command is
transmitted (SW_RESET = 0x0F)
WDT Reset
1. Firmware restarts a watchdog timer in 1.86s.
2. If the watchdog timer is not kicked in 1.86s, it executes the following actions:
a.) MAX77958 reboots
b.) MAX77958 notifies MA_SYSERROR_BOOT_WDT
I2C Serial Interface
The I2C serial bus consists of a bidirectional serial-data line (SDA) and a serial clock (SCL). I2C is an open-drain
bus. SDA and SCL require pullup resistors (500Ω or greater). Optional 24Ω resistors in series with SDA and SCL help
to protect the device inputs from high voltage spikes on the bus lines. Series resistors also minimize crosstalk and
undershoot on bus lines.
System Configuration
The I2C bus is a multi-master bus. The maximum number of devices that can attach to the bus is only limited by bus
capacitance.
Figure 6 shows an example of a typical I2C system. A device on the I2C bus that sends data to the bus is called a
transmitter. A device that receives data from the bus is called a receiver. The device that initiates a data transfer and
generates SCL clock signals to control the data transfer is a master. Any device that is being addressed by the master is
considered a slave. When the MAX77958 I2C-compatible interface is operating, it is a slave on the I2C bus and it can be
both a transmitter and a receiver.
SDA
SCL
MASTER
TRANSMITTER/
RECEIVER
SLAVE
RECEIVER
SLAVE
TRANSMITTER
SLAVE
TRANSMITTER/
RECEIVER
MASTER
TRANSMITTER /
RECEIVER
Figure 6. Functional Logic Diagram for Communications Controller
www.analog.com
Analog Devices | 34
MAX77958
Standalone USB Type-C and USB Power Delivery
Controller
Bit Transfer
One data bit is transferred for each SCL clock cycle. The data on SDA must remain stable during the high portion of the
SCL clock pulse. Changes in SDA while SCL is high are control signals (START and STOP conditions).
DATA LINE STABLE
DATA VALID
CHANGE OF DATA
ALLOWED
SDA
SCL
Figure 7. I2C Bit Transfer
START and STOP Conditions
When the I2C serial interface is inactive, SDA and SCL idle high. A master device initiates communication by issuing a
START condition. A START condition is a high-to-low transition on SDA with SCL high. A STOP condition is a low-to-high
transition on SDA, while SCL is high.
A START condition from the master signals the beginning of a transmission to the IC. The master terminates transmission
by issuing a NOT ACKNOWLEDGE followed by a STOP condition.
A STOP condition frees the bus. To issue a series of commands to the slave, the master can issue REPEATED START
(Sr) commands instead of a STOP command in order to maintain control of the bus. In general, a REPEATED START
command is functionally equivalent to a regular START command.
When a STOP condition or incorrect address is detected, the IC internally disconnects SCL from the I2C serial interface
until the next START condition, minimizing digital noise and feed-through.
S
Sr
P
SDA
tSU_START
SCL
tHD_START
tHD_START
tSU_STOP
Figure 8. I2C Start and Stop
www.analog.com
Analog Devices | 35
MAX77958
Standalone USB Type-C and USB Power Delivery
Controller
Acknowledge
Both the I2C bus master and the IC (slave) generate acknowledge bits when receiving data. The acknowledge bit is the
last bit of each nine bit data packet. To generate an ACKNOWLEDGE (A), the receiving device must pull SDA low before
the rising edge of the acknowledge-related clock pulse (ninth pulse) and keep it low during the high period of the clock
pulse. To generate a NOT-ACKNOWLEDGE (nA), the receiving device allows SDA to be pulled high before the rising
edge of the acknowledge-related clock pulse and leaves it high during the high period of the clock pulse.
Monitoring the acknowledge bits allows for detection of unsuccessful data transfers. An unsuccessful data transfer occurs
if a receiving device is busy or if a system fault has occurred. In the event of an unsuccessful data transfer, the bus
master should reattempt communication at a later time.
Slave Address
The IC acts as a slave transmitter/receiver. The slave address of the IC is 0x4Ah/0x4Bh,0x4Ch/0x4Dh and 0x4Eh/0x4Fh
depending on configuration of GPIO6.The least significant bit is the read/write indicator (1 for read, 0 for write).
Table 3. I2C Slave Address
GPIO6
SLAVE ADDRESS (7-BIT)
SLAVE ADDRESS (WRITE)
SLAVE ADDRESS (READ)
GND
010 0101
0x4A (0100 1010)
0x4B (0100 1011)
Pullup (470kΩ ±10%) to VIO1
010 0110
0x4C (0100 1100)
0x4D (0100 1101)
Pulldown (470kΩ ±10%) to GND
010 0111
0x4E (0100 1110)
0x4F (0100 1111)
Clock Stretching
In general, the clock signal generation for I2C bus is the responsibility of the master device. I2C specification allows slow
slave devices to alter the clock signal by holding down the clock line. The process in which a slave device holds down
the clock line is typically called clock stretching. The IC does not use any form of clock stretching to hold down the clock
line.
General Call Address
The IC does not implement an I2C specification general call address. If the IC sees general call address (00000000b), it
does not issue an ACKNOWLEDGE (A).
Communication Speed
The IC provides I2C 3.0-compatible (1MHz) serial interface.
● I2C Revision 3 Compatible Serial Communications Channel
• 0Hz to 100kHz (Standard Mode)
• 0Hz to 400kHz (Fast Mode)
• 0Hz to 1MHz (Fast-Mode Plus)
● Does not Support I2C Clock Stretching
Operating in standard mode, fast mode, and fast-mode plus does not require any special protocols. The main
consideration when changing the bus speed through this range is the combination of the bus capacitance and pullup
resistors. Higher time constants created by the bus capacitance and pullup resistance (C x R) slow the bus operation.
Therefore, when increasing bus speeds the pullup resistance must be decreased to maintain a reasonable time constant.
Refer to the “Pullup Resistor Sizing” section of the I2C revision 3.0 specification for detailed guidance on the pullup
resistor selection. In general, for bus capacitance of 200pF, a 100kHz bus needs 5.6kΩ pullup resistors, a 400kHz bus
needs about 1.5kΩ pullup resistors, and a 1MHz bus needs 680Ω pullup resistors. Note that the pullup resistor dissipates
power when the open-drain bus is low. The lower the value of the pullup resistor, the higher the power dissipation (V2/R).
www.analog.com
Analog Devices | 36
MAX77958
Standalone USB Type-C and USB Power Delivery
Controller
Operating in high-speed mode requires some special considerations. For the full list of considerations, see the I2C 3.0
specification. The major considerations with respect to the IC are:
● I2C bus master uses current source pullups to shorten the signal rise times.
● I2C slave must use a different set of input filters on its SDA and SCL lines to accommodate for the higher bus speed.
● The communication protocols need to utilize the high-speed master code.
At power-up and after each STOP condition, the IC input filters are set for standard mode, fast mode, or fast-mode plus
(i.e., 0Hz to 1MHz). To switch the input filters for high-speed mode, use the high-speed master code protocols that are
described in the Communication Protocols section.
Communication Protocols
The IC supports both writing and reading from its registers.
Writing to a Single Register
Figure 9 shows the protocol for the I2C master device to write one byte of data to the IC. This protocol is the same as
SMBus specification’s “Write Byte” protocol.
The “Write Byte” protocol is as follows:
1.
2.
3.
4.
5.
6.
7.
The master sends a START command (S).
The master sends the 7-bit slave address followed by a write bit (R/W = 0).
The addressed slave asserts an ACKNOWLEDGE (A) by pulling SDA low.
The master sends an 8-bit register pointer.
The slave acknowledges the register pointer.
The master sends a data byte.
The slave acknowledges the data byte. At the rising edge of SCL, the data byte is loaded into its target register and
the data becomes active.
8. The master sends a STOP condition (P) or a REPEATED START condition (Sr). Issuing a P ensures that the bus
input filters are set for 1MHz or slower operation. Issuing a REPEATED START (Sr) leaves the bus input filters in
their current state.
LEGEND
MASTER TO
SLAVE
1
7
S
SLAVE ADDRESS
SLAVE TO
MASTER
* P FORCES THE BUS FILTERS TO SWITCH TO THEIR ≤ 1MHz MODE.
Sr LEAVES THE BUS FILTERS IN THEIR CURRENT STATE.
1 1
8
1
8
1
1
0 A
REGISTER POINTER
A
DATA
A
P or Sr *
R/nW
SDA
NUMBER
OF BITS
THE DATA IS LOADED INTO
THE TARGET REGISTER
AND BECOMES ACTIVE
DURING THIS RISING EDGE.
B1
B0
A
ACKNOWLEDGE
SCL
7
8
9
Figure 9. Writing to a Single Register
www.analog.com
Analog Devices | 37
MAX77958
Standalone USB Type-C and USB Power Delivery
Controller
Writing to Sequential Registers
Figure 10 shows the protocol for writing to sequential registers. This protocol is similar to the “Write Byte” protocol, except
the master continues to write after it receives the first byte of data. When the master is done writing, it issues a STOP or
REPEATED START.
The “Writing to Sequential Registers” protocol is as follows:
1.
2.
3.
4.
5.
6.
7.
The master sends a START command (S).
The master sends the 7-bit slave address followed by a write bit (R/W = 0).
The addressed slave asserts an ACKNOWLEDGE (A) by pulling SDA low.
The master sends an 8-bit register pointer.
The slave acknowledges the register pointer.
The master sends a data byte.
The slave acknowledges the data byte. At the rising edge of SCL, the data byte is loaded into its target register and
the data becomes active.
8. Steps 6 to 7 are repeated as many times as the master requires.
9. During the last acknowledge related clock pulse, the slave issues an ACKNOWLEDGE (A).
10. The master sends a STOP condition (P) or a REPEATED START condition (Sr). Issuing a P ensures that the bus
input filters are set for 1MHz or slower operation. Issuing a REPEATED START (Sr) leaves the bus input filters in
their current state.
LEGEND
MASTER TO
SLAVE
1
7
S
SLAVE ADDRESS
SLAVE TO
MASTER
*P FORCES THE BUS FILTERS TO SWITCH TO THEIR ≤1MHz
MODE. Sr LEAVES THE BUS FILTERS IN THEIR CURRENT STATE.
1 1
8
1
8
1
0 A
REGISTER POINTER X
A
DATA 1
A
8
1
8
1
DATA 2
A
DATA 3
A
R/nW
NUMBER
OF BITS
α
NUMBER
OF BITS
REGISTER POINTER = X + 1α REGISTER POINTER = X + 2 α
8
1
8
1
SDA
B1
DATA N-1
A
DATA N
REGISTER POINTER
= X + (N-2)
α
REGISTER POINTER
= X + (N-1)
B0
A
A
NUMBER
OF BITS
1
P or Sr*
β
THE DATA IS LOADED INTO
THE TARGET REGISTER AND
BECOMES ACTIVE DURING
THIS RISING EDGE.
B9
ACKNOWLEDGE
SCL
7
8
9
1
DETAIL: α
THE DATA IS LOADED INTO
THE TARGET REGISTER AND
BECOMES ACTIVE DURING
THIS RISING EDGE.
SDA
B1
B0
A
ACKNOWLEDGE
SCL
7
8
9
DETAIL: β
Figure 10. Writing to Sequential Registers
www.analog.com
Analog Devices | 38
MAX77958
Standalone USB Type-C and USB Power Delivery
Controller
Reading from a Single Register
The I2C master device reads one byte of data to the IC. This protocol is the same as SMBus specification’s “Read Byte”
protocol.
The “Read Byte” protocol is as follows:
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
The master sends a START command (S).
The master sends the 7-bit slave address followed by a write bit (R/W = 0).
The addressed slave asserts an ACKNOWLEDGE (A) by pulling SDA low.
The master sends an 8-bit register pointer.
The slave acknowledges the register pointer.
The master sends a REPEATED START command (Sr).
The master sends the 7-bit slave address followed by a read bit (R/W = 1).
The addressed slave asserts an ACKNOWLEDGE (A) by pulling SDA low.
The addressed slave places 8-bits of data on the bus from the location specified by the register pointer.
The master issues a NOT-ACKNOWLEDGE (nA).
The master sends a STOP condition (P) or a REPEATED START condition (Sr). Issuing a P ensures that the bus
input filters are set for 1MHz or slower operation. Issuing a REPEATED START (Sr) leaves the bus input filters in
their current state.
LEGEND
MASTER TO
SLAVE
1
7
S
SLAVE ADDRESS
SLAVE TO
MASTER
*P FORCES THE BUS FILTERS TO SWITCH TO THEIR ≤1MHz MODE.
Sr LEAVES THE BUS FILTERS IN THEIR CURRENT STATE.
1 1
8
1 1
7
0 A
REGISTER POINTER
A Sr
SLAVE ADDRESS
R/nW
1 1
8
1 A
DATA
1
1
NUMBER
OF BITS
nA P or Sr*
R/nW
Figure 11. Reading from a Single Register
Reading from Sequential Registers
Figure 12 shows the protocol for reading from sequential registers. This protocol is similar to the “Read Byte” protocol
except the master issues an ACKNOWLEDGE (A) to signal the slave that it wants more data—when the master has all
the data it requires, it issues a NOT-ACKNOWLEDGE (nA) and a STOP (P) to end the transmission.
The “Continuous Read from Sequential Registers” protocol is as follows:
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
The master sends a START command (S).
The master sends the 7-bit slave address followed by a write bit (R/W = 0).
The addressed slave asserts an ACKNOWLEDGE (A) by pulling SDA low.
The master sends an 8-bit register pointer.
The slave acknowledges the register pointer.
The master sends a REPEATED START command (Sr).
The master sends the 7-bit slave address followed by a read bit (R/W =1).
The addressed slave asserts an ACKNOWLEDGE (A) by pulling SDA low.
The addressed slave places 8-bits of data on the bus from the location specified by the register pointer.
The master issues an ACKNOWLEDGE (A) signaling the slave that it wishes to receive more data.
Steps 9 to 10 are repeated as many times as the master requires. Following the last byte of data, the master must
issue a NOT-ACKNOWLEDGE (nA) to signal that it wishes to stop receiving data.
12. The master sends a STOP condition (P) or a REPEATED START condition (Sr). Issuing a STOP (P) ensures that
the bus input filters are set for 1MHz or slower operation. Issuing a REPEATED START (Sr) leaves the bus input
filters in their current state.
www.analog.com
Analog Devices | 39
MAX77958
Standalone USB Type-C and USB Power Delivery
Controller
LEGEND
MASTER TO
SLAVE
*P FORCES THE BUS FILTERS TO SWITCH TO THEIR ≤1MHz MODE.
Sr LEAVES THE BUS FILTERS IN THEIR CURRENT STATE.
SLAVE TO
MASTER
1
7
S
SLAVE ADDRESS
1 1
8
1 1
7
0 A
REGISTER POINTER X
A Sr
SLAVE ADDRESS
R/nW
R/nW
8
1
8
DATA 2
A
DATA 3
1 1
8
1
1 A
DATA 1
A
1
8
1
A
DATA 4
A
REGISTER POINTER = X + 1 REGISTER POINTER = X + 2
8
1
8
1
DATA N-2
A
REGISTER POINTER
= X + (N-3)
DATA N-1
A
REGISTER POINTER
= X + (N-2)
REGISTER POINTER = X + 3
8
1
DATA N
NUMBER
OF BITS
NUMBER
OF BITS
1
NUMBER
OF BITS
nA P or Sr*
REGISTER POINTER
= X + (N-1)
Figure 12. Reading from Sequential Registers
Engaging HS-Mode for Operation up to 3.4MHz
Figure 13 shows the protocol for engaging HS-Mode operation. HS-Mode operation allows for a bus operating speed up
to 3.4MHz.
The “Engaging HS-Mode” protocol is as follows:
1.
2.
3.
4.
5.
Begin the protocol while operating at a bus speed of 1MHz or lower.
The master sends a START command (S).
The master sends the 8-bit master code of 0000 1xx0b, where ‘xx’ are don’t care bits.
The addressed slave issues a NOT-ACKNOWLEDGE (nA).
The master may now increase its bus speed up to 3.4MHz and issue any read/write operation.
The master may continue to issue high-speed read/write operations until a STOP (P) is issued. Issuing a STOP (P)
ensures that the bus input filters are set for 1MHz or slower operation.
LEGEND
MASTER TO
SLAVE
SLAVE TO
MASTER
1
8
1 1
S
HS MASTER CODE
nA Sr
FAST MODE
1
ANY READ/WRITE PROTOCOL
FOLLOWED BY Sr
Sr
1
ANY READ/WRITE PROTOCOL
FOLLOWED BY Sr
HS MODE
Sr
1
ANY READ/WRITE PROTOCOL
P
FAST MODE
Figure 13. Engaging HS-Mode
www.analog.com
Analog Devices | 40
MAX77958
Standalone USB Type-C and USB Power Delivery
Controller
The MAX77958 I2C supports the HS mode extension feature. The HS extension feature keeps the high-speed operation
even after a ‘STOP’ condition. This eliminates the need for HS master code issued by the I2C master controller when the
I2C master controller wants to stay in HS mode for multiple read/write cycles.
As shown in Figure 14, the HS extension mode can be enabled by setting HS_EXT bit in I2C_CFG register (ADDR 0x15)
from LS mode only (entering HS extension mode from HS mode is not supported).
HS MASTER CODE
LS MODE
(HS_EXT = 0)
HS MODE
(HS_EXT = 0)
STOP CONDITION
SET HS_EXT = 0
SET HS_EXT = 1
LS MODE
(HS_EXT = 1)
SET HS_EXT = 0
HS MODE
(HS_EXT = 1)
HS MASTER CODE
Figure 14. I2C Operating Mode State Diagram
www.analog.com
Analog Devices | 41
MAX77958
Standalone USB Type-C and USB Power Delivery
Controller
Register Map
Register Map
I2C Slave Address
The MAX77958 has a total of 3 slave addresses. See Table 3 for more information.
Functional Reset Conditions
The IC has different levels of reset as follows:
● Type S: Registers are reset each time when VDD1P8 < VDD_OKF
● Type O: Registers are reset each time when VDD1P8 < VDD_OKF or when the software reset command is
transmitted (SW_RESET = 0x0F)
Functional Register Reset Type Summary
REGISTER
ADDRESS
(HEX)
REGISTER
FUNCTION
REGISTER NAME
RESET TYPE
USBC SID (functional registers)
USBC
0x00
USBC
DEVICE_ID
S
USBC
0x01
USBC
DEVICE_REV
S
USBC
0x02
USBC
FW_REV
S
USBC
0x03
USBC
FW_SUB_VER
S
USBC
0x04
USBC
UIC_INT
O
USBC
0x05
USBC
CC_INT
O
USBC
0x06
USBC
PD_INT
O
USBC
0x07
USBC
ACTION_INT
O
USBC
0x08
USBC
USBC_STATUS1
S
USBC
0x09
USBC
USBC_STATUS2
S
USBC
0x0A
USBC
BC_STATUS
S
USBC
0x0B
USBC
DP_STATUS
S
USBC
0x0C
USBC
CC_STATUS0
S
USBC
0x0D
USBC
CC_STATUS1
S
USBC
0x0E
USBC
PD_STATUS0
S
USBC
0x0F
USBC
PD_STATUS1
S
USBC
0x10
USBC
UIC_INT_M
O
USBC
0x11
USBC
CC_INT_M
O
USBC
0x12
USBC
PD_INT_M
O
USBC
0x13
USBC
ACTION_INT_M
O
USBC
0x21
USBC
AP_DATAOUT0
O
USBC
0x22
USBC
AP_DATAOUT1
O
USBC
0x23
USBC
AP_DATAOUT2
O
USBC
0x24
USBC
AP_DATAOUT3
O
USBC
0x25
USBC
AP_DATAOUT4
O
USBC
0x26
USBC
AP_DATAOUT5
O
USBC
0x27
USBC
AP_DATAOUT6
O
USBC
0x28
USBC
AP_DATAOUT7
O
www.analog.com
Analog Devices | 42
MAX77958
Standalone USB Type-C and USB Power Delivery
Controller
REGISTER
ADDRESS
(HEX)
REGISTER
FUNCTION
REGISTER NAME
RESET TYPE
USBC
0x29
USBC
AP_DATAOUT8
O
USBC
0x2A
USBC
AP_DATAOUT9
O
USBC
0x2B
USBC
AP_DATAOUT10
O
USBC
0x2C
USBC
AP_DATAOUT11
O
USBC
0x2D
USBC
AP_DATAOUT12
O
USBC
0x2E
USBC
AP_DATAOUT13
O
USBC
0x2F
USBC
AP_DATAOUT14
O
USBC
0x30
USBC
AP_DATAOUT15
O
USBC
0x31
USBC
AP_DATAOUT16
O
USBC
0x32
USBC
AP_DATAOUT17
O
USBC
0x33
USBC
AP_DATAOUT18
O
USBC
0x34
USBC
AP_DATAOUT19
O
USBC
0x35
USBC
AP_DATAOUT20
O
USBC
0x36
USBC
AP_DATAOUT21
O
USBC
0x37
USBC
AP_DATAOUT22
O
USBC
0x38
USBC
AP_DATAOUT23
O
USBC
0x39
USBC
AP_DATAOUT24
O
USBC
0x3A
USBC
AP_DATAOUT25
O
USBC
0x3B
USBC
AP_DATAOUT26
O
USBC
0x3C
USBC
AP_DATAOUT27
O
USBC
0x3D
USBC
AP_DATAOUT28
O
USBC
0x3E
USBC
AP_DATAOUT29
O
USBC
0x3F
USBC
AP_DATAOUT30
O
USBC
0x40
USBC
AP_DATAOUT31
O
USBC
0x41
USBC
AP_DATAOUT32
O
USBC
0x51
USBC
AP_DATAIN0
S
USBC
0x52
USBC
AP_DATAIN1
S
USBC
0x53
USBC
AP_DATAIN2
S
USBC
0x54
USBC
AP_DATAIN3
S
USBC
0x55
USBC
AP_DATAIN4
S
USBC
0x56
USBC
AP_DATAIN5
S
USBC
0x57
USBC
AP_DATAIN6
S
USBC
0x58
USBC
AP_DATAIN7
S
USBC
0x59
USBC
AP_DATAIN8
S
USBC
0x5A
USBC
AP_DATAIN9
S
USBC
0x5B
USBC
AP_DATAIN10
S
USBC
0x5C
USBC
AP_DATAIN11
S
USBC
0x5D
USBC
AP_DATAIN12
S
USBC
0x5E
USBC
AP_DATAIN13
S
USBC
0x5F
USBC
AP_DATAIN14
S
USBC
0x60
USBC
AP_DATAIN15
S
www.analog.com
Analog Devices | 43
MAX77958
Standalone USB Type-C and USB Power Delivery
Controller
REGISTER
ADDRESS
(HEX)
REGISTER
FUNCTION
REGISTER NAME
RESET TYPE
USBC
0x61
USBC
AP_DATAIN16
S
USBC
0x62
USBC
AP_DATAIN17
S
USBC
0x63
USBC
AP_DATAIN18
S
USBC
0x64
USBC
AP_DATAIN19
S
USBC
0x65
USBC
AP_DATAIN20
S
USBC
0x66
USBC
AP_DATAIN21
S
USBC
0x67
USBC
AP_DATAIN22
S
USBC
0x68
USBC
AP_DATAIN23
S
USBC
0x69
USBC
AP_DATAIN24
S
USBC
0x6A
USBC
AP_DATAIN25
S
USBC
0x6B
USBC
AP_DATAIN26
S
USBC
0x6C
USBC
AP_DATAIN27
S
USBC
0x6D
USBC
AP_DATAIN28
S
USBC
0x6E
USBC
AP_DATAIN29
S
USBC
0x6F
USBC
AP_DATAIN30
S
USBC
0x70
USBC
AP_DATAIN31
S
USBC
0x71
USBC
AP_DATAIN32
S
USBC
0x80
USBC
SW_RESET
S
ADDRESS
NAME
MSB
LSB
USBC_FUNC
0x00
DEVICE_ID[7:0]
0x01
DEVICE_REV[7:0]
DeviceId[7:0]
0x02
FW_REV[7:0]
0x03
FW_SUB_VER[7:0]
0x04
UIC_INT[7:0]
APCmdR
esI
SYSMsgI
VBUSDe
tI
VbADCI
DCDTmo
I
StopMod
eI
ChgTypI
Attached
HoldI
0x05
CC_INT[7:0]
VCONN
OCPI
VSAFE0
VI
DetAbrtI
WtrI
CCPinSt
atI
CCIStatI
CCVcnSt
atI
CCStatI
0x06
PD_INT[7:0]
PDMsgI
PSRDYI
DataRole
I
RSVD
RSVD
DisplayP
ortI
–
–
0x07
ACTION_INT[7:0]
–
–
–
–
Extende
dActionI
Action2I
Action1I
Action0I
0x08
USBC_STATUS1[7:0]
0x09
USBC_STATUS2[7:0]
0x0A
BC_STATUS[7:0]
DeviceRev[7:0]
FwRev[7:0]
FwSubRev[7:0]
VbADC[4:0]
SYSMsg[7:0]
VBUSDet
DP_Exit
Mode
RSVD
DP_Atte
ntion
0x0B
DP_STATUS[7:0]
0x0C
CC_STATUS0[7:0]
CCPinStat[1:0]
0x0D
CC_STATUS1[7:0]
RSVD[1:0]
0x0E
PD_STATUS0[7:0]
www.analog.com
RSVD[2:0]
PrChgTyp[2:0]
DP_Conf
igure
DP_Stat
us
CCIStat[1:0]
VCONN
OCP
VCONNS
C
DP_Ente
rMode
DCDTmo
DP_Disc
overMod
e
CCVcnSt
at
VSafeOV
ChgTyp[1:0]
DP_Disc
overSVI
D
DP_Disc
overIdent
ity
CCStat[2:0]
DetAbrt
Wtr
RSVD
PDMsg[7:0]
Analog Devices | 44
MAX77958
ADDRESS
Standalone USB Type-C and USB Power Delivery
Controller
NAME
MSB
LSB
0x0F
PD_STATUS1[7:0]
DataRole
PowerRo
le
VCONN
S
PSRDY
–
–
–
–
0x10
UIC_INT_M[7:0]
APCmdR
esM
SYSMsg
M
VBUSDe
tM
VbADCM
DCDTmo
M
StopMod
eM
ChgTyp
M
Attached
HoldM
0x11
CC_INT_M[7:0]
VCONN
OCPM
VSAFE0
VM
DetAbrt
M
WtrM
CCPinSt
atM
CCIStat
M
CCVcnSt
atM
CCStatM
0x12
PD_INT_M[7:0]
PDMsgM
PSRDY
M
DataRole
M
RSVD
RSVD
DisplayP
ortM
–
–
0x13
ACTION_INT_M[7:0]
Extende
dActionM
Action2M
Action1M
Action0M
0x21
AP_DATAOUT0[7:0]
AP_REQUEST_OPCODE[7:0]
0x22
AP_DATAOUT1[7:0]
OPCODE_DATAOUT_01[7:0]
0x23
AP_DATAOUT2[7:0]
OPCODE_DATAOUT_02[7:0]
0x24
AP_DATAOUT3[7:0]
OPCODE_DATAOUT_03[7:0]
0x25
AP_DATAOUT4[7:0]
OPCODE_DATAOUT_04[7:0]
0x26
AP_DATAOUT5[7:0]
OPCODE_DATAOUT_05[7:0]
0x27
AP_DATAOUT6[7:0]
OPCODE_DATAOUT_06[7:0]
0x28
AP_DATAOUT7[7:0]
OPCODE_DATAOUT_07[7:0]
0x29
AP_DATAOUT8[7:0]
OPCODE_DATAOUT_08[7:0]
0x2A
AP_DATAOUT9[7:0]
OPCODE_DATAOUT_09[7:0]
0x2B
AP_DATAOUT10[7:0]
OPCODE_DATAOUT_10[7:0]
0x2C
AP_DATAOUT11[7:0]
OPCODE_DATAOUT_11[7:0]
0x2D
AP_DATAOUT12[7:0]
OPCODE_DATAOUT_12[7:0]
0x2E
AP_DATAOUT13[7:0]
OPCODE_DATAOUT_13[7:0]
0x2F
AP_DATAOUT14[7:0]
OPCODE_DATAOUT_14[7:0]
0x30
AP_DATAOUT15[7:0]
OPCODE_DATAOUT_15[7:0]
0x31
AP_DATAOUT16[7:0]
OPCODE_DATAOUT_16[7:0]
0x32
AP_DATAOUT17[7:0]
OPCODE_DATAOUT_17[7:0]
0x33
AP_DATAOUT18[7:0]
OPCODE_DATAOUT_18[7:0]
0x34
AP_DATAOUT19[7:0]
OPCODE_DATAOUT_19[7:0]
0x35
AP_DATAOUT20[7:0]
OPCODE_DATAOUT_20[7:0]
0x36
AP_DATAOUT21[7:0]
OPCODE_DATAOUT_21[7:0]
0x37
AP_DATAOUT22[7:0]
OPCODE_DATAOUT_22[7:0]
0x38
AP_DATAOUT23[7:0]
OPCODE_DATAOUT_23[7:0]
0x39
AP_DATAOUT24[7:0]
OPCODE_DATAOUT_24[7:0]
0x3A
AP_DATAOUT25[7:0]
OPCODE_DATAOUT_25[7:0]
0x3B
AP_DATAOUT26[7:0]
OPCODE_DATAOUT_26[7:0]
0x3C
AP_DATAOUT27[7:0]
OPCODE_DATAOUT_27[7:0]
0x3D
AP_DATAOUT28[7:0]
OPCODE_DATAOUT_28[7:0]
0x3E
AP_DATAOUT29[7:0]
OPCODE_DATAOUT_29[7:0]
0x3F
AP_DATAOUT30[7:0]
OPCODE_DATAOUT_30[7:0]
0x40
AP_DATAOUT31[7:0]
OPCODE_DATAOUT_31[7:0]
0x41
AP_DATAOUT32[7:0]
0x51
AP_DATAIN0[7:0]
www.analog.com
RSVD[3:0]
OPCODE_DATAOUT_32[7:0]
USBC_RESPONSE_OPCODE[7:0]
Analog Devices | 45
MAX77958
ADDRESS
Standalone USB Type-C and USB Power Delivery
Controller
NAME
MSB
LSB
0x52
AP_DATAIN1[7:0]
OPCODE_DATAIN_01[7:0]
0x53
AP_DATAIN2[7:0]
OPCODE_DATAIN_02[7:0]
0x54
AP_DATAIN3[7:0]
OPCODE_DATAIN_03[7:0]
0x55
AP_DATAIN4[7:0]
OPCODE_DATAIN_04[7:0]
0x56
AP_DATAIN5[7:0]
OPCODE_DATAIN_05[7:0]
0x57
AP_DATAIN6[7:0]
OPCODE_DATAIN_06[7:0]
0x58
AP_DATAIN7[7:0]
OPCODE_DATAIN_07[7:0]
0x59
AP_DATAIN8[7:0]
OPCODE_DATAIN_08[7:0]
0x5A
AP_DATAIN9[7:0]
OPCODE_DATAIN_09[7:0]
0x5B
AP_DATAIN10[7:0]
OPCODE_DATAIN_10[7:0]
0x5C
AP_DATAIN11[7:0]
OPCODE_DATAIN_11[7:0]
0x5D
AP_DATAIN12[7:0]
OPCODE_DATAIN_12[7:0]
0x5E
AP_DATAIN13[7:0]
OPCODE_DATAIN_13[7:0]
0x5F
AP_DATAIN14[7:0]
OPCODE_DATAIN_14[7:0]
0x60
AP_DATAIN15[7:0]
OPCODE_DATAIN_15[7:0]
0x61
AP_DATAIN16[7:0]
OPCODE_DATAIN_16[7:0]
0x62
AP_DATAIN17[7:0]
OPCODE_DATAIN_17[7:0]
0x63
AP_DATAIN18[7:0]
OPCODE_DATAIN_18[7:0]
0x64
AP_DATAIN19[7:0]
OPCODE_DATAIN_19[7:0]
0x65
AP_DATAIN20[7:0]
OPCODE_DATAIN_20[7:0]
0x66
AP_DATAIN21[7:0]
OPCODE_DATAIN_21[7:0]
0x67
AP_DATAIN22[7:0]
OPCODE_DATAIN_22[7:0]
0x68
AP_DATAIN23[7:0]
OPCODE_DATAIN_23[7:0]
0x69
AP_DATAIN24[7:0]
OPCODE_DATAIN_24[7:0]
0x6A
AP_DATAIN25[7:0]
OPCODE_DATAIN_25[7:0]
0x6B
AP_DATAIN26[7:0]
OPCODE_DATAIN_26[7:0]
0x6C
AP_DATAIN27[7:0]
OPCODE_DATAIN_27[7:0]
0x6D
AP_DATAIN28[7:0]
OPCODE_DATAIN_28[7:0]
0x6E
AP_DATAIN29[7:0]
OPCODE_DATAIN_29[7:0]
0x6F
AP_DATAIN30[7:0]
OPCODE_DATAIN_30[7:0]
0x70
AP_DATAIN31[7:0]
OPCODE_DATAIN_31[7:0]
0x71
AP_DATAIN32[7:0]
OPCODE_DATAIN_32[7:0]
0x80
SW_RESET[7:0]
UIC_SWRST[7:0]
I2C_FUNC
0xE0
I2C_CNFG[7:0]
www.analog.com
RSVD
PAIR[2:0]
RSVD[2:0]
HS_EXT
_EN
Analog Devices | 46
MAX77958
Standalone USB Type-C and USB Power Delivery
Controller
Register Details
DEVICE_ID (0x0)
BIT
7
6
5
4
3
Field
DeviceId[7:0]
Reset
0x58
Access
Type
BITFIELD
DeviceId
2
1
0
Read Only
BITS
7:0
DESCRIPTION
DECODE
0x00: Reserved
0x01: Reserved
0x58: MAX77958
Device ID
DEVICE_REV (0x1)
BIT
7
6
5
4
3
Field
DeviceRev[7:0]
Reset
0x02
Access
Type
BITFIELD
DeviceRev
2
1
0
Read Only
BITS
7:0
DESCRIPTION
DECODE
0x01: Initial release
0x02: Second release
FW Revision
FW_REV (0x2)
BIT
7
6
5
4
3
Field
FwRev[7:0]
Reset
0x00
Access
Type
BITFIELD
FwRev
2
1
0
Read Only
BITS
7:0
DESCRIPTION
DECODE
0x00: Initial release
0x01: Second release
FW Revision
FW_SUB_VER (0x3)
BIT
7
6
5
4
3
Field
FwSubRev[7:0]
Reset
0x00
Access
Type
BITFIELD
FwSubRev
www.analog.com
2
1
0
Read Only
BITS
7:0
DESCRIPTION
FW Revision
DECODE
0x00: Initial release
0x01: Second release
Analog Devices | 47
MAX77958
Standalone USB Type-C and USB Power Delivery
Controller
UIC_INT (0x4)
BIT
7
6
5
4
3
2
1
0
Field
APCmdResI
SYSMsgI
VBUSDetI
VbADCI
DCDTmoI
StopModeI
ChgTypI
AttachedHol
dI
Reset
0b0
0b0
0b0
0b0
0b0
0b0
0b0
0b0
Read
Clears All
Read
Clears All
Read
Clears All
Read
Clears All
Read
Clears All
Read
Clears All
Read
Clears All
Read
Clears All
Access
Type
BITFIELD
BITS
DESCRIPTION
DECODE
APCmdResI
7
AP Command Response Interrupt
0b0: No interrupt.
0b1: AP command response pending.
SYSMsgI
6
USBC System Message Interrupt
0b0: No interrupt.
0b1: USBC system message pending.
VBUSDetI
5
VBUS Detection Interrupt
0b0: No interrupt.
0b1: New VBUSDet status interrupt.
VbADCI
4
VBUS Voltage ADC Interrupt
0b0: No interrupt.
0b1: New VbADC status interrupt.
DCDTmoI
3
DCD Timer Interrupt
0b0: No interrupt.
0b1: New DCDTmo status interrupt.
StopModeI
2
Stop Mode Interrupt
0b0: No interrupt.
0b1: New stop mode status interrupt.
ChgTypI
1
Charger Type Interrupt
0b0: No interrupt.
0b1: New ChgTyp status interrupt.
AttachedHold
I
0
Attached Hold Interrupt
0b0: No interrupt.
0b1: New attached hold status interrupt.
CC_INT (0x5)
BIT
7
6
5
4
3
2
1
0
Field
VCONNOC
PI
VSAFE0VI
DetAbrtI
WtrI
CCPinStatI
CCIStatI
CCVcnStatI
CCStatI
Reset
0b0
0b0
0b0
0b0
0b0
0b0
0b0
0b0
Read
Clears All
Read
Clears All
Read
Clears All
Read
Clears All
Read
Clears All
Read
Clears All
Read
Clears All
Read
Clears All
Access
Type
BITFIELD
BITS
DESCRIPTION
DECODE
VCONNOCPI
7
VCONN OCP Interrupt
0b0: No interrupt.
0b1: New VCONNOCP status interrupt.
VSAFE0VI
6
VSAFE0V Interrupt
0b0: No interrupt.
0b1: New VSAFE0V status interrupt.
DetAbrtI
5
CC Detection Abort Interrupt
0b0: No interrupt.
0b1: New CC detection abort interrupt.
WtrI
4
Moisture/Dry Interrupt
0b0: No interrupt.
0b1: New moisture/dry status interrupt.
CCPinStatI
3
CC Pin State Interrupt
0b0: No interrupt.
0b1: New CCPinStat status interrupt.
CCIStatI
2
CCIStat Interrupt
0b0: No interrupt.
0b1: New CCIStat status interrupt.
CCVcnStatI
1
CCVcnStat Interrupt
0b0: No interrupt.
0b1: New CCVcnStat status interrupt.
www.analog.com
Analog Devices | 48
MAX77958
BITFIELD
Standalone USB Type-C and USB Power Delivery
Controller
BITS
CCStatI
0
DESCRIPTION
DECODE
0b0: No interrupt.
0b1: New CCStat status interrupt.
CCStat Interrupt
PD_INT (0x6)
BIT
Field
Reset
Access
Type
BITFIELD
7
6
5
4
3
2
1
0
PDMsgI
PSRDYI
DataRoleI
RSVD
RSVD
DisplayPortI
–
–
0b0
0b0
0x0
–
–
Read Only
Read
Clears All
–
–
0b0
0b0
0b0
Read
Clears All
Read
Clears All
Read
Clears All
BITS
Read Only
DESCRIPTION
DECODE
PDMsgI
7
PD Message Interrupt
0b0: No interrupt.
0b1: New PD message issued.
PSRDYI
6
PSRDY Interrupt
0b0: No interrupt.
0b1: New PSRDY message issued.
DataRoleI
5
Data Role Change Interrupt
0b0: No interrupt.
0b1: DataRole status is changed.
RSVD
4
Spare
RSVD
3
Spare
DisplayPortI
2
Display Port Interrupt
0x0: No interrupt.
0x1: New DisplayPort status update interrupt.
ACTION_INT (0x7)
BIT
7
6
5
4
3
2
1
0
Field
–
–
–
–
ExtendedAc
tionI
Action2I
Action1I
Action0I
Reset
–
–
–
–
0b0
0b0
0b0
0b0
Access
Type
–
–
–
–
Read
Clears All
Read
Clears All
Read
Clears All
Read
Clears All
BITFIELD
BITS
DESCRIPTION
DECODE
ExtendedActi
onI
3
Extended Action Table Interrupt
0b0: No interrupt.
0b1: Extended action table interrupt.
Action2I
2
Action Table Interrupt 2
0b0: No interrupt.
0b1: Action table set interrupt 2.
Action1I
1
Action Table Interrupt 1
0b0: No interrupt
0b1: Action table set interrupt 1.
Action0I
0
Action Table Interrupt 0
0b0: No interrupt.
0b1: Action table set interrupt 0.
USBC_STATUS1 (0x8)
BIT
7
6
5
4
3
2
1
0
Field
VbADC[4:0]
RSVD[2:0]
Reset
0x0
0b111
Read Only
Read Only
Access
Type
www.analog.com
Analog Devices | 49
MAX77958
BITFIELD
Standalone USB Type-C and USB Power Delivery
Controller
BITS
VbADC
7:3
RSVD
2:0
DESCRIPTION
DECODE
0x00: VBUS < 3.5V
0x01: 3.5V ≤ VBUS < 4.5V
0x02: 4.5V ≤ VBUS < 5.5V
0x03: 5.5V ≤ VBUS < 6.5V
0x04: 6.5V ≤ VBUS < 7.5V
0x05: 7.5V ≤ VBUS < 8.5V
0x06: 8.5V ≤ VBUS < 9.5V
0x07: 9.5V ≤ VBUS < 10.5V
0x08: 10.5V ≤ VBUS < 11.5V
0x09: 11.5V ≤ VBUS < 12.5V
0x0A: 12.5V ≤ VBUS < 13.5V
0x0B: 13.5V ≤ VBUS < 14.5V
0x0C: 14.5V ≤ VBUS < 15.5V
0x0D: 15.5V ≤ VBUS < 16.5V
0x0E: 16.5V ≤ VBUS < 17.5V
0x0F: 17.5V ≤ VBUS < 18.5V
0x10: 18.5V ≤ VBUS < 19.5V
0x11: 19.5V ≤ VBUS < 20.5V
0x12: 20.5V ≤ VBUS < 21.5V
0x13: 21.5V ≤ VBUS < 22.5V
0x14: 22.5V ≤ VBUS < 23.5V
0x15: 23.5V ≤ VBUS < 24.5V
0x16: 24.5V ≤ VBUS < 25.5V
0x17: 25.5V ≤ VBUS < 26.5V
0x18: 26.5V ≤ VBUS < 27.5V
0x19: 27.5V ≤ VBUS
0x1A: RSVD
Indicates Value on VBUS Input
USBC_STATUS2 (0x9)
BIT
7
6
5
4
3
Field
SYSMsg[7:0]
Reset
0x00
Access
Type
BITFIELD
SYSMsg
www.analog.com
2
1
0
Read Only
BITS
7:0
DESCRIPTION
SYSMsg
DECODE
0x00: SYSERROR_NONE
0x01: Reserved
0x02: Reserved
0x03: SYSERROR_BOOT_WDT
0x04: SYSERROR_BOOT_SWRSTREQ
0x05: SYSMSG_BOOT_POR
0x10: SYSERROR_HV_NOVBUS
0x11: SYSERROR_HV_FMETHOD_RXPERR
0x12: SYSERROR_HV_FMETHOD_RXBUFOW
0x13: SYSERROR_HV_FMETHOD_RXTFR
0x14: SYSERROR_HV_FMETHOD_MPNACK
0x15: SYSERROR_HV_FMETHOD_RESET_FAIL
0x20: SYSMsg_AFC_Done
0x30: SYSERROR_SYSPOS
0x31: SYSERROR_APCMD_UNKNOWN
0x32: SYSERROR_APCMD_INPROGRESS
0x33: SYSERROR_APCMD_FAIL
Analog Devices | 50
MAX77958
Standalone USB Type-C and USB Power Delivery
Controller
BC_STATUS (0xA)
7
6
Field
BIT
VBUSDet
RSVD
PrChgTyp[2:0]
DCDTmo
ChgTyp[1:0]
Reset
0b0
0b0
0b000
0b0
0b00
Read Only
Read Only
Read Only
Read Only
Read Only
Access
Type
BITFIELD
BITS
5
7
Status of VBUS Detection
RSVD
6
Spare
5:3
DCDTmo
ChgTyp
2
1:0
3
2
DESCRIPTION
VBUSDet
PrChgTyp
4
1
0
DECODE
0b0: VBUS < VBDET
0b1: VBUS > VBDET
Output of Proprietary Charger Detection
0b000: Unknown
0b001: RSVD
0b010: RSVD
0b011: RSVD
0b100: RSVD
0b101: RSVD
0b110: 3A DCP (If enabled AND chgTyp=DCP)
0b111: Nikon TA (If enabled AND chgTyp=SDP)
During Charger Detection, DCD Detection
Timed Out.
Indicates D+/D- are open. BC1.2 detection
continues as required by BC1.2 specification
but SDP most likely is found.
0b0: No timeout or detection has not run.
0b1: DCD timeout occurred.
Output of Charger Detection
0b00: Nothing attached.
0b01: SDP, USB cable attached.
0b10: CDP, Charging Downstream Port: current
depends on USB operating speed.
0b11: DCP, Dedicated Charger: current up to 1.5A.
DP_STATUS (0xB)
BIT
7
6
5
4
3
2
1
0
Field
DP_ExitMo
de
DP_Attentio
n
DP_Configu
re
DP_Status
DP_EnterM
ode
DP_Discove
rMode
DP_Discove
rSVID
DP_Discove
rIdentity
Reset
0b0
0b0
0b0
0b000
0b0
0b0
0b0
0x00
Read Only
Read Only
Read Only
Read Only
Read Only
Read Only
Read Only
Read Only
Access
Type
BITFIELD
BITS
DP_ExitMod
e
7
Display Port Exit Mode
0b0: No interrupt.
0b1: DisplayPort Exit mode message.
DP_Attention
6
Display port Attention Message
0b0: No interrupt.
0b1: DisplayPort Attention message.
DP_Configur
e
5
Display port Configure message
0b0: No interrupt.
0b1: DisplayPort Configure message.
DP_Status
4
Display Port Status message
0b0: No interrupt.
0b1: DisplayPort Status message.
DP_EnterMo
de
3
Display Port Enter Mode
0b0: No interrupt
0b1: DisplayPort Enter mode message.
DP_Discover
Mode
2
Display Port Discover Mode
0b0: No interrupt
0b1: DisplayPort Discover mode message.
www.analog.com
DESCRIPTION
DECODE
Analog Devices | 51
MAX77958
Standalone USB Type-C and USB Power Delivery
Controller
BITFIELD
BITS
DESCRIPTION
DECODE
DP_Discover
SVID
1
Display Port Discover SVID
0b0: No interrupt
0b1: DisplayPort Discover SVID message.
DP_Discover
Identity
0
Display Port Discover Identity
0b0: No interrupt.
0b1: DisplayPort Discovers Identity message.
CC_STATUS0 (0xC)
BIT
7
6
5
4
3
2
1
0
Field
CCPinStat[1:0]
CCIStat[1:0]
CCVcnStat
CCStat[2:0]
Reset
0b00
0b00
0b0
0b000
Read Only
Read Only
Read Only
Read Only
Access
Type
BITFIELD
CCPinStat
CCIStat
CCVcnStat
CCStat
BITS
DESCRIPTION
DECODE
7:6
Output of Active CC Pin
0b00: No determination
0b01: CC1 Active
0b10: CC2 Active
0b11: RFU
5:4
CC Pin Detected and Allows VBUS Current in
UFP Mode
0b00: Not in UFP mode
0b01: 500mA
0b10: 1.5A
0b11: 3.0A
Status of VCONN Output
0b0: VCONN disabled
0b1: VCONN enabled
CC Pin State Machine Detection
0b000: No connection
0b001: SINK
0b010: SOURCE
0b011: Audio accessory
0b100: DebugSrc accessory
0b101: Error
0b110: Disabled
0b111: DebugSnk accessory
3
2:0
CC_STATUS1 (0xD)
BIT
7
6
5
4
3
2
1
0
VCONNSC
VSafeOV
DetAbrt
Wtr
RSVD
Field
RSVD[1:0]
VCONN
OCP
Reset
0b00
0b0
0b0
0b0
0b0
0b0
0b0
Read Only
Read Only
Read Only
Read Only
Read Only
Read Only
Read Only
Access
Type
BITFIELD
RSVD
BITS
7:6
DESCRIPTION
DECODE
Spare
VCONN OCP
5
VCONN Overcurrent Detection
0b0: VCONN current < VCONN_ILIM
0b1: VCONN current > VCONN_ILIM
VCONNSC
4
VCONN Short-Circuit Detection
0b0: VCONN current < VCONN_SC
0b1: VCONN current > VCONN_SC
VSafeOV
3
Status of VBUS Detection. Valid only in
Attached.SRC_CCx, Attached.SNK_CCx
state.
0b0: VBUS < VSAFE0V
0b1: VBUS > VSAFE0V
www.analog.com
Analog Devices | 52
MAX77958
BITFIELD
Standalone USB Type-C and USB Power Delivery
Controller
BITS
DESCRIPTION
DECODE
DetAbrt
2
Charger Detection Abort Status
0b0: Charger detection runs if CHGDetEn = 1 and
VBUS is valid for the debounce time.
0b1: Charger detection is aborted by USB Type-C
State Machine. Charger does not run if CHGDetEn
= 1 and VBUS is valid for the debounce time.
CHGDetMan allows manual run of charger
detection. If charger detection is in progress,
DetAbrt = 1 immediately stops the in progress
detection.
Wtr
1
Moisture/Dry Status
0x0: Dry
0x1: Moisture
RSVD
0
Spare
PD_STATUS0 (0xE)
BIT
7
6
5
4
3
Field
PDMsg[7:0]
Reset
0x00
Access
Type
www.analog.com
2
1
0
Read Only
Analog Devices | 53
MAX77958
BITFIELD
PDMsg
www.analog.com
Standalone USB Type-C and USB Power Delivery
Controller
BITS
7:0
DESCRIPTION
PD Message
DECODE
0x00: Nothing happened
0x01: Sink_PD_PSRdy_Received
0x02: Sink_PD_Error_Recovery
0x03: Sink_PD_SenderResponseTimer_Timeout
0x04: Source_PSRdy_Sent
0x05: Source_PD_Error_Recovery
0x06:
Source_PD_SenderResponseTimer_Timeout
0x07: PD_DR_Swap_Request_Received
0x08: PD_PR_Swap_Request_Received
0x09: PD_VCONN_Swap_Request_Received
0X11: VDM Attention_Message_Received
0x0A: Received PD Message in illegal state
0x0B: Sink_PD_Evaluate_State, SrcCap_Received
0x11: VDM Attention Message Received
0x12: Reject_Received
0x13: Not_Supported_Received
0x14: PD_PR_Swap_SNKTOSRC_Cleanup
0x15: PD_PR_Swap_SRCTOSNK_Cleanup
0x16: HardReset_Received
0x17: PD_PowerSupply_VbusEnable
0x18: PD_PowerSupply_VbusDisable
0x19: HardReset_Sent
0x1A: PD_PR_Swap_SRCTOSWAP
0x1B: PD_PR_Swap_SWAPTOSNK
0x1C: PD_PR_Swap_SNKTOSWAP
0x1D: PD_PR_Swap_SWAPTOSRC
0x20: Sink_PD_Disabled
0x21: Source_PD_Disabled
0x30:
Get_Source_Capabilities_Extended_Received
0x31: Get_Status_Received
0x32: Get_Battery_Cap_Received
0x33: Get_Battery_Status_Received
0x34: Get_Manufacturer_Info_Received
0x35: Source_Capabilities_Extended_Received
0x36: Status_Received
0x37: Battery_Capabilities_Received
0x38: Battery_Status_Received
0x39: Manufacturer_Info_Received
0x3A: Security_Request_Received
0x3B: Security_Response_Received
0x3C: Firmware_Update_Request_Received
0x3D: Firmware_Update_Response_Received
0x3E: Alert_Received
0x40: VDM_NAK_Received
0x41: VDM_BUSY_Received
0x42: VDM_ACK_Received
0x43: VDM_REQ_Received
0x63: DiscoverMode_Received
0x65: PD_Status_Received
Analog Devices | 54
MAX77958
Standalone USB Type-C and USB Power Delivery
Controller
PD_STATUS1 (0xF)
7
6
5
4
3
2
1
0
Field
BIT
DataRole
PowerRole
VCONNS
PSRDY
–
–
–
–
Reset
0b0
0b0
0b0
0b0
–
–
–
–
Read Only
Read Only
Read Only
Read Only
–
–
–
–
Access
Type
BITFIELD
BITS
DESCRIPTION
DECODE
DataRole
7
Current Data Role
0b0: UFP
0b1: DFP
PowerRole
6
Power Role
0b0: Sink
0b1: Source
VCONNS
5
VCONNS
0b0: VCONN Sink
0b1: VCONN Source
PSRDY
4
PSRDY Received as Sink
0b0: Nothing happened
0b1: PSRDY received
UIC_INT_M (0x10)
BIT
7
6
5
4
3
2
1
0
Field
APCmdRes
M
SYSMsgM
VBUSDetM
VbADCM
DCDTmoM
StopModeM
ChgTypM
AttachedHol
dM
Reset
0b1
0b0
0b1
0b1
0b1
0b1
0b1
0b1
Write, Read
Write, Read
Write, Read
Write, Read
Write, Read
Write, Read
Write, Read
Write, Read
Access
Type
BITFIELD
BITS
DESCRIPTION
DECODE
APCmdResM
7
APCmdRes Interrupt Mask
0b0: Unmask
0b1: Mask
SYSMsgM
6
SYSMsg Interrupt Mask
0b0: Unmask
0b1: Mask
VBUSDetM
5
VBUSDet Interrupt Mask
0 = Unmask
1 = Mask
VbADCM
4
VbADC Interrupt Mask
0 = Unmask
1 = Mask
DCDTmoM
3
DCDTmo Interrupt Mask
0 = Unmask
1 = Mask
StopModeM
2
Fake VBUS Interrupt Mask
ChgTypM
1
ChgTyp Interrupt Mask
0 = Unmask
1 = Mask
AttachedHold
M
0
UIDADC Interrupt Mask
0 = Unmask
1 = Mask
www.analog.com
Analog Devices | 55
MAX77958
Standalone USB Type-C and USB Power Delivery
Controller
CC_INT_M (0x11)
BIT
7
6
5
4
2
1
0
CCPinStatM
CCIStatM
CCVcnStat
M
CCStatM
0b1
0b1
0b1
0b1
0b1
Write, Read
Write, Read
Write, Read
Write, Read
Write, Read
Field
VCONNOC
PM
VSAFE0VM
DetAbrtM
WtrM
Reset
0b1
0b1
0b1
Write, Read
Write, Read
Write, Read
Access
Type
3
BITFIELD
BITS
DESCRIPTION
DECODE
VCONNOCP
M
7
VCONNOCP Interrupt Mask
0b0: Unmask
0b1: Mask
VSAFE0VM
6
VSAFE0V Interrupt Mask
0b0: Unmask
0b1: Mask
DetAbrtM
5
DetAbrt Interrupt Mask
0b0: Unmask
0b1: Mask
WtrM
4
Wtr Interrupt Mask
0b0: Unmask
0b1: Mask
CCPinStatM
3
CCPinStat Interrupt Mask
0b0: Unmask
0b1: Mask
CCIStatM
2
CCIStat Interrupt Mask
0b0: Unmask
0b1: Mask
CCVcnStatM
1
CCVcnStat Interrupt Mask
0b0: Unmask
0b1: Mask
CCStatM
0
CCStat Interrupt Mask
0b0: Unmask
0b1: Mask
PD_INT_M (0x12)
BIT
7
6
5
4
3
2
1
0
Field
PDMsgM
PSRDYM
DataRoleM
RSVD
RSVD
DisplayPort
M
–
–
Reset
0b1
0b1
0b1
0b1
0b1
0b1
–
–
Write, Read
Write, Read
Write, Read
Write, Read
Write, Read
Write, Read
–
–
Access
Type
BITFIELD
BITS
DESCRIPTION
DECODE
PDMsgM
7
PDMsg Interrupt Mask
0b0: Unmask
0b1: Mask
PSRDYM
6
PDRDY Interrupt Mask
0b0: Unmask
0b1: Mask
DataRoleM
5
DataRole Interrupt Mask
0b0: Unmask
0b1: Mask
RSVD
4
Spare
0b0: Unmask
0b1: Mask
RSVD
3
Spare
0b0: Unmask
0b1: Mask
DisplayPortM
2
Display Port Interrupt Mask
0b0: Unmask
0b1: Mask
www.analog.com
Analog Devices | 56
MAX77958
Standalone USB Type-C and USB Power Delivery
Controller
ACTION_INT_M (0x13)
BIT
7
6
5
4
3
2
1
0
Action2M
Action1M
Action0M
Field
RSVD[3:0]
ExtendedAc
tionM
Reset
0xF
0b1
0b1
0b1
0b1
Write, Read
Write, Read
Write, Read
Write, Read
Write, Read
Access
Type
BITFIELD
RSVD
BITS
DESCRIPTION
DECODE
7:4
ExtendedActi
onM
3
Extended Action Table Interrupt
Mask
0b0: Unmask
0b1: Mask
Action2M
2
Action Table Interrupt 2 Mask
0b0: Unmask
0b1: Mask
Action1M
1
Action Table Interrupt 1 Mask
0b0: Unmask
0b1: Mask
Action0M
0
Action Table Interrupt 0 Mask
0b0: Unmask
0b1: Mask
AP_DATAOUT0 (0x21)
BIT
7
6
5
4
3
2
Field
AP_REQUEST_OPCODE[7:0]
Reset
0x00
Access
Type
BITFIELD
AP_REQUEST_OPCO
DE
www.analog.com
1
0
Write, Read
BITS
DESCRIPTION
7:0
All configuration and control commands to the USBC are sent and received
as a packet using an opcode to identify the packet.
A. Messages sent to the USBC
• 0x21—Opcode sent to USBC.
• 0x22 to 0x41—Message sent to USBC.
• Message size can be as short as 1 byte (Opcode only) and up to 33 bytes
(Opcode plus 32 bytes). But all messages must write to all bytes even if the
rest of the message is stuffed with 0s.
• Registers 0x21 to 0x41 act as a scratch pad for writing the message to the
USBC. The message is latched in when a value is written to register 0x41.
• All messages are acknowledged by the USBC by sending and generating an
interrupt.
• Data written to 0x21 to 0x41 is not auto cleared—the data remains in the
registers until the application processor overwrites it with a new message.
B. Messages received from USBC
• 0x51—Opcode identifying the message type.
• 0x52 to 0x71—Message sent to application processor.
• Message size can be as short as 1 byte (Opcode only) and up to 33 bytes
(Opcode plus 32 bytes).
• Data written to 0x51 to 0x71 is not auto cleared—the data remains in the
registers until the USBC overwrites them with a new message.
Analog Devices | 57
MAX77958
Standalone USB Type-C and USB Power Delivery
Controller
AP_DATAOUT1 (0x22)
BIT
7
6
5
4
3
2
Field
OPCODE_DATAOUT_01[7:0]
Reset
0x00
Access
Type
1
0
1
0
1
0
1
0
Write, Read
BITFIELD
BITS
OPCODE_DATAOUT_0
1
7:0
DESCRIPTION
AP_DATAOUT2 (0x23)
BIT
7
6
5
4
3
2
Field
OPCODE_DATAOUT_02[7:0]
Reset
0x00
Access
Type
Write, Read
BITFIELD
BITS
OPCODE_DATAOUT_0
2
7:0
DESCRIPTION
AP_DATAOUT3 (0x24)
BIT
7
6
5
4
3
2
Field
OPCODE_DATAOUT_03[7:0]
Reset
0x00
Access
Type
Write, Read
BITFIELD
BITS
OPCODE_DATAOUT_0
3
7:0
DESCRIPTION
AP_DATAOUT4 (0x25)
BIT
7
6
5
4
3
2
Field
OPCODE_DATAOUT_04[7:0]
Reset
0x00
Access
Type
Write, Read
BITFIELD
BITS
OPCODE_DATAOUT_0
4
7:0
www.analog.com
DESCRIPTION
Analog Devices | 58
MAX77958
Standalone USB Type-C and USB Power Delivery
Controller
AP_DATAOUT5 (0x26)
BIT
7
6
5
4
3
2
Field
OPCODE_DATAOUT_05[7:0]
Reset
0x00
Access
Type
1
0
1
0
1
0
1
0
Write, Read
BITFIELD
BITS
OPCODE_DATAOUT_0
5
7:0
DESCRIPTION
AP_DATAOUT6 (0x27)
BIT
7
6
5
4
3
2
Field
OPCODE_DATAOUT_06[7:0]
Reset
0x00
Access
Type
Write, Read
BITFIELD
BITS
OPCODE_DATAOUT_0
6
7:0
DESCRIPTION
AP_DATAOUT7 (0x28)
BIT
7
6
5
4
3
2
Field
OPCODE_DATAOUT_07[7:0]
Reset
0x00
Access
Type
Write, Read
BITFIELD
BITS
OPCODE_DATAOUT_0
7
7:0
DESCRIPTION
AP_DATAOUT8 (0x29)
BIT
7
6
5
4
3
2
Field
OPCODE_DATAOUT_08[7:0]
Reset
0x00
Access
Type
Write, Read
BITFIELD
BITS
OPCODE_DATAOUT_0
8
7:0
www.analog.com
DESCRIPTION
Analog Devices | 59
MAX77958
Standalone USB Type-C and USB Power Delivery
Controller
AP_DATAOUT9 (0x2A)
BIT
7
6
5
4
3
2
Field
OPCODE_DATAOUT_09[7:0]
Reset
0x00
Access
Type
1
0
1
0
1
0
1
0
Write, Read
BITFIELD
BITS
OPCODE_DATAOUT_0
9
7:0
DESCRIPTION
AP_DATAOUT10 (0x2B)
BIT
7
6
5
4
3
2
Field
OPCODE_DATAOUT_10[7:0]
Reset
0x00
Access
Type
Write, Read
BITFIELD
BITS
OPCODE_DATAOUT_1
0
7:0
DESCRIPTION
AP_DATAOUT11 (0x2C)
BIT
7
6
5
4
3
2
Field
OPCODE_DATAOUT_11[7:0]
Reset
0x00
Access
Type
Write, Read
BITFIELD
BITS
OPCODE_DATAOUT_1
1
7:0
DESCRIPTION
AP_DATAOUT12 (0x2D)
BIT
7
6
5
4
3
2
Field
OPCODE_DATAOUT_12[7:0]
Reset
0x00
Access
Type
Write, Read
BITFIELD
BITS
OPCODE_DATAOUT_1
2
7:0
www.analog.com
DESCRIPTION
Analog Devices | 60
MAX77958
Standalone USB Type-C and USB Power Delivery
Controller
AP_DATAOUT13 (0x2E)
BIT
7
6
5
4
3
2
Field
OPCODE_DATAOUT_13[7:0]
Reset
0x00
Access
Type
1
0
1
0
1
0
1
0
Write, Read
BITFIELD
BITS
OPCODE_DATAOUT_1
3
7:0
DESCRIPTION
AP_DATAOUT14 (0x2F)
BIT
7
6
5
4
3
2
Field
OPCODE_DATAOUT_14[7:0]
Reset
0x00
Access
Type
Write, Read
BITFIELD
BITS
OPCODE_DATAOUT_1
4
7:0
DESCRIPTION
AP_DATAOUT15 (0x30)
BIT
7
6
5
4
3
2
Field
OPCODE_DATAOUT_15[7:0]
Reset
0x00
Access
Type
Write, Read
BITFIELD
BITS
OPCODE_DATAOUT_1
5
7:0
DESCRIPTION
AP_DATAOUT16 (0x31)
BIT
7
6
5
4
3
2
Field
OPCODE_DATAOUT_16[7:0]
Reset
0x00
Access
Type
Write, Read
BITFIELD
BITS
OPCODE_DATAOUT_1
6
7:0
www.analog.com
DESCRIPTION
Analog Devices | 61
MAX77958
Standalone USB Type-C and USB Power Delivery
Controller
AP_DATAOUT17 (0x32)
BIT
7
6
5
4
3
2
Field
OPCODE_DATAOUT_17[7:0]
Reset
0x00
Access
Type
1
0
1
0
1
0
1
0
Write, Read
BITFIELD
BITS
OPCODE_DATAOUT_1
7
7:0
DESCRIPTION
AP_DATAOUT18 (0x33)
BIT
7
6
5
4
3
2
Field
OPCODE_DATAOUT_18[7:0]
Reset
0x00
Access
Type
Write, Read
BITFIELD
BITS
OPCODE_DATAOUT_1
8
7:0
DESCRIPTION
AP_DATAOUT19 (0x34)
BIT
7
6
5
4
3
2
Field
OPCODE_DATAOUT_19[7:0]
Reset
0x00
Access
Type
Write, Read
BITFIELD
BITS
OPCODE_DATAOUT_1
9
7:0
DESCRIPTION
AP_DATAOUT20 (0x35)
BIT
7
6
5
4
3
2
Field
OPCODE_DATAOUT_20[7:0]
Reset
0x00
Access
Type
Write, Read
BITFIELD
BITS
OPCODE_DATAOUT_2
0
7:0
www.analog.com
DESCRIPTION
Analog Devices | 62
MAX77958
Standalone USB Type-C and USB Power Delivery
Controller
AP_DATAOUT21 (0x36)
BIT
7
6
5
4
3
2
Field
OPCODE_DATAOUT_21[7:0]
Reset
0x00
Access
Type
1
0
1
0
1
0
1
0
Write, Read
BITFIELD
BITS
OPCODE_DATAOUT_2
1
7:0
DESCRIPTION
AP_DATAOUT22 (0x37)
BIT
7
6
5
4
3
2
Field
OPCODE_DATAOUT_22[7:0]
Reset
0x00
Access
Type
Write, Read
BITFIELD
BITS
OPCODE_DATAOUT_2
2
7:0
DESCRIPTION
AP_DATAOUT23 (0x38)
BIT
7
6
5
4
3
2
Field
OPCODE_DATAOUT_23[7:0]
Reset
0x00
Access
Type
Write, Read
BITFIELD
BITS
OPCODE_DATAOUT_2
3
7:0
DESCRIPTION
AP_DATAOUT24 (0x39)
BIT
7
6
5
4
3
2
Field
OPCODE_DATAOUT_24[7:0]
Reset
0x00
Access
Type
Write, Read
BITFIELD
BITS
OPCODE_DATAOUT_2
4
7:0
www.analog.com
DESCRIPTION
Analog Devices | 63
MAX77958
Standalone USB Type-C and USB Power Delivery
Controller
AP_DATAOUT25 (0x3A)
BIT
7
6
5
4
3
2
Field
OPCODE_DATAOUT_25[7:0]
Reset
0x00
Access
Type
1
0
1
0
1
0
1
0
Write, Read
BITFIELD
BITS
OPCODE_DATAOUT_2
5
7:0
DESCRIPTION
AP_DATAOUT26 (0x3B)
BIT
7
6
5
4
3
2
Field
OPCODE_DATAOUT_26[7:0]
Reset
0x00
Access
Type
Write, Read
BITFIELD
BITS
OPCODE_DATAOUT_2
6
7:0
DESCRIPTION
AP_DATAOUT27 (0x3C)
BIT
7
6
5
4
3
2
Field
OPCODE_DATAOUT_27[7:0]
Reset
0x00
Access
Type
Write, Read
BITFIELD
BITS
OPCODE_DATAOUT_2
7
7:0
DESCRIPTION
AP_DATAOUT28 (0x3D)
BIT
7
6
5
4
3
2
Field
OPCODE_DATAOUT_28[7:0]
Reset
0x00
Access
Type
Write, Read
BITFIELD
BITS
OPCODE_DATAOUT_2
8
7:0
www.analog.com
DESCRIPTION
Analog Devices | 64
MAX77958
Standalone USB Type-C and USB Power Delivery
Controller
AP_DATAOUT29 (0x3E)
BIT
7
6
5
4
3
2
Field
OPCODE_DATAOUT_29[7:0]
Reset
0x00
Access
Type
1
0
1
0
1
0
1
0
Write, Read
BITFIELD
BITS
OPCODE_DATAOUT_2
9
7:0
DESCRIPTION
AP_DATAOUT30 (0x3F)
BIT
7
6
5
4
3
2
Field
OPCODE_DATAOUT_30[7:0]
Reset
0x00
Access
Type
Write, Read
BITFIELD
BITS
OPCODE_DATAOUT_3
0
7:0
DESCRIPTION
AP_DATAOUT31 (0x40)
BIT
7
6
5
4
3
2
Field
OPCODE_DATAOUT_31[7:0]
Reset
0x00
Access
Type
Write, Read
BITFIELD
BITS
OPCODE_DATAOUT_3
1
7:0
DESCRIPTION
AP_DATAOUT32 (0x41)
BIT
7
6
5
4
3
2
Field
OPCODE_DATAOUT_32[7:0]
Reset
0x00
Access
Type
Write, Read
BITFIELD
BITS
OPCODE_DATAOUT_3
2
7:0
www.analog.com
DESCRIPTION
Analog Devices | 65
MAX77958
Standalone USB Type-C and USB Power Delivery
Controller
AP_DATAIN0 (0x51)
BIT
7
6
5
4
3
2
Field
USBC_RESPONSE_OPCODE[7:0]
Reset
0x00
Access
Type
1
0
1
0
1
0
1
0
Read Only
BITFIELD
BITS
USBC_RESPONSE_O
PCODE
DESCRIPTION
7:0
AP_DATAIN1 (0x52)
BIT
7
6
5
4
3
2
Field
OPCODE_DATAIN_01[7:0]
Reset
0x00
Access
Type
Read Only
BITFIELD
BITS
OPCODE_DATAIN_01
DESCRIPTION
7:0
AP_DATAIN2 (0x53)
BIT
7
6
5
4
3
2
Field
OPCODE_DATAIN_02[7:0]
Reset
0x00
Access
Type
Read Only
BITFIELD
BITS
OPCODE_DATAIN_02
DESCRIPTION
7:0
AP_DATAIN3 (0x54)
BIT
7
6
5
4
3
2
Field
OPCODE_DATAIN_03[7:0]
Reset
0x00
Access
Type
BITFIELD
OPCODE_DATAIN_03
www.analog.com
Read Only
BITS
DESCRIPTION
7:0
Analog Devices | 66
MAX77958
Standalone USB Type-C and USB Power Delivery
Controller
AP_DATAIN4 (0x55)
BIT
7
6
5
4
3
2
Field
OPCODE_DATAIN_04[7:0]
Reset
0x00
Access
Type
1
0
1
0
1
0
1
0
Read Only
BITFIELD
BITS
OPCODE_DATAIN_04
DESCRIPTION
7:0
AP_DATAIN5 (0x56)
BIT
7
6
5
4
3
2
Field
OPCODE_DATAIN_05[7:0]
Reset
0x00
Access
Type
Read Only
BITFIELD
BITS
OPCODE_DATAIN_05
DESCRIPTION
7:0
AP_DATAIN6 (0x57)
BIT
7
6
5
4
3
2
Field
OPCODE_DATAIN_06[7:0]
Reset
0x00
Access
Type
Read Only
BITFIELD
BITS
OPCODE_DATAIN_06
DESCRIPTION
7:0
AP_DATAIN7 (0x58)
BIT
7
6
5
4
3
2
Field
OPCODE_DATAIN_07[7:0]
Reset
0x00
Access
Type
BITFIELD
OPCODE_DATAIN_07
www.analog.com
Read Only
BITS
DESCRIPTION
7:0
Analog Devices | 67
MAX77958
Standalone USB Type-C and USB Power Delivery
Controller
AP_DATAIN8 (0x59)
BIT
7
6
5
4
3
2
Field
OPCODE_DATAIN_08[7:0]
Reset
0x00
Access
Type
1
0
1
0
1
0
1
0
Read Only
BITFIELD
BITS
OPCODE_DATAIN_08
DESCRIPTION
7:0
AP_DATAIN9 (0x5A)
BIT
7
6
5
4
3
2
Field
OPCODE_DATAIN_09[7:0]
Reset
0x00
Access
Type
Read Only
BITFIELD
BITS
OPCODE_DATAIN_09
DESCRIPTION
7:0
AP_DATAIN10 (0x5B)
BIT
7
6
5
4
3
2
Field
OPCODE_DATAIN_10[7:0]
Reset
0x00
Access
Type
Read Only
BITFIELD
BITS
OPCODE_DATAIN_10
DESCRIPTION
7:0
AP_DATAIN11 (0x5C)
BIT
7
6
5
4
3
2
Field
OPCODE_DATAIN_11[7:0]
Reset
0x00
Access
Type
BITFIELD
OPCODE_DATAIN_11
www.analog.com
Read Only
BITS
DESCRIPTION
7:0
Analog Devices | 68
MAX77958
Standalone USB Type-C and USB Power Delivery
Controller
AP_DATAIN12 (0x5D)
BIT
7
6
5
4
3
2
Field
OPCODE_DATAIN_12[7:0]
Reset
0x00
Access
Type
1
0
1
0
1
0
1
0
Read Only
BITFIELD
BITS
OPCODE_DATAIN_12
DESCRIPTION
7:0
AP_DATAIN13 (0x5E)
BIT
7
6
5
4
3
2
Field
OPCODE_DATAIN_13[7:0]
Reset
0x00
Access
Type
Read Only
BITFIELD
BITS
OPCODE_DATAIN_13
DESCRIPTION
7:0
AP_DATAIN14 (0x5F)
BIT
7
6
5
4
3
2
Field
OPCODE_DATAIN_14[7:0]
Reset
0x00
Access
Type
Read Only
BITFIELD
BITS
OPCODE_DATAIN_14
DESCRIPTION
7:0
AP_DATAIN15 (0x60)
BIT
7
6
5
4
3
2
Field
OPCODE_DATAIN_15[7:0]
Reset
0x00
Access
Type
BITFIELD
OPCODE_DATAIN_15
www.analog.com
Read Only
BITS
DESCRIPTION
7:0
Analog Devices | 69
MAX77958
Standalone USB Type-C and USB Power Delivery
Controller
AP_DATAIN16 (0x61)
BIT
7
6
5
4
3
2
Field
OPCODE_DATAIN_16[7:0]
Reset
0x00
Access
Type
1
0
1
0
1
0
1
0
Read Only
BITFIELD
BITS
OPCODE_DATAIN_16
DESCRIPTION
7:0
AP_DATAIN17 (0x62)
BIT
7
6
5
4
3
2
Field
OPCODE_DATAIN_17[7:0]
Reset
0x00
Access
Type
Read Only
BITFIELD
BITS
OPCODE_DATAIN_17
DESCRIPTION
7:0
AP_DATAIN18 (0x63)
BIT
7
6
5
4
3
2
Field
OPCODE_DATAIN_18[7:0]
Reset
0x00
Access
Type
Read Only
BITFIELD
BITS
OPCODE_DATAIN_18
DESCRIPTION
7:0
AP_DATAIN19 (0x64)
BIT
7
6
5
4
3
2
Field
OPCODE_DATAIN_19[7:0]
Reset
0x00
Access
Type
BITFIELD
OPCODE_DATAIN_19
www.analog.com
Read Only
BITS
DESCRIPTION
7:0
Analog Devices | 70
MAX77958
Standalone USB Type-C and USB Power Delivery
Controller
AP_DATAIN20 (0x65)
BIT
7
6
5
4
3
2
Field
OPCODE_DATAIN_20[7:0]
Reset
0x00
Access
Type
1
0
1
0
1
0
1
0
Read Only
BITFIELD
BITS
OPCODE_DATAIN_20
DESCRIPTION
7:0
AP_DATAIN21 (0x66)
BIT
7
6
5
4
3
2
Field
OPCODE_DATAIN_21[7:0]
Reset
0x00
Access
Type
Read Only
BITFIELD
BITS
OPCODE_DATAIN_21
DESCRIPTION
7:0
AP_DATAIN22 (0x67)
BIT
7
6
5
4
3
2
Field
OPCODE_DATAIN_22[7:0]
Reset
0x00
Access
Type
Read Only
BITFIELD
BITS
OPCODE_DATAIN_22
DESCRIPTION
7:0
AP_DATAIN23 (0x68)
BIT
7
6
5
4
3
2
Field
OPCODE_DATAIN_23[7:0]
Reset
0x00
Access
Type
BITFIELD
OPCODE_DATAIN_23
www.analog.com
Read Only
BITS
DESCRIPTION
7:0
Analog Devices | 71
MAX77958
Standalone USB Type-C and USB Power Delivery
Controller
AP_DATAIN24 (0x69)
BIT
7
6
5
4
3
2
Field
OPCODE_DATAIN_24[7:0]
Reset
0x00
Access
Type
1
0
1
0
1
0
1
0
Read Only
BITFIELD
BITS
OPCODE_DATAIN_24
DESCRIPTION
7:0
AP_DATAIN25 (0x6A)
BIT
7
6
5
4
3
2
Field
OPCODE_DATAIN_25[7:0]
Reset
0x00
Access
Type
Read Only
BITFIELD
BITS
OPCODE_DATAIN_25
DESCRIPTION
7:0
AP_DATAIN26 (0x6B)
BIT
7
6
5
4
3
2
Field
OPCODE_DATAIN_26[7:0]
Reset
0x00
Access
Type
Read Only
BITFIELD
BITS
OPCODE_DATAIN_26
DESCRIPTION
7:0
AP_DATAIN27 (0x6C)
BIT
7
6
5
4
3
2
Field
OPCODE_DATAIN_27[7:0]
Reset
0x00
Access
Type
BITFIELD
OPCODE_DATAIN_27
www.analog.com
Read Only
BITS
DESCRIPTION
7:0
Analog Devices | 72
MAX77958
Standalone USB Type-C and USB Power Delivery
Controller
AP_DATAIN28 (0x6D)
BIT
7
6
5
4
3
2
Field
OPCODE_DATAIN_28[7:0]
Reset
0x00
Access
Type
1
0
1
0
1
0
1
0
Read Only
BITFIELD
BITS
OPCODE_DATAIN_28
DESCRIPTION
7:0
AP_DATAIN29 (0x6E)
BIT
7
6
5
4
3
2
Field
OPCODE_DATAIN_29[7:0]
Reset
0x00
Access
Type
Read Only
BITFIELD
BITS
OPCODE_DATAIN_29
DESCRIPTION
7:0
AP_DATAIN30 (0x6F)
BIT
7
6
5
4
3
2
Field
OPCODE_DATAIN_30[7:0]
Reset
0x00
Access
Type
Read Only
BITFIELD
BITS
OPCODE_DATAIN_30
DESCRIPTION
7:0
AP_DATAIN31 (0x70)
BIT
7
6
5
4
3
2
Field
OPCODE_DATAIN_31[7:0]
Reset
0x00
Access
Type
BITFIELD
OPCODE_DATAIN_31
www.analog.com
Read Only
BITS
DESCRIPTION
7:0
Analog Devices | 73
MAX77958
Standalone USB Type-C and USB Power Delivery
Controller
AP_DATAIN32 (0x71)
BIT
7
6
5
4
3
2
Field
OPCODE_DATAIN_32[7:0]
Reset
0x00
Access
Type
1
0
1
0
Read Only
BITFIELD
BITS
OPCODE_DATAIN_32
DESCRIPTION
7:0
SW_RESET (0x80)
BIT
7
6
5
4
3
Field
UIC_SWRST[7:0]
Reset
0x00
Access
Type
2
Write, Read
BITFIELD
BITS
UIC_SWRST
7:0
DESCRIPTION
DECODE
When AP writes 0x0F, UIC is reset (registers and
MAXQ).
UIC (and MAXQ) Software Reset
I2C_CNFG (0xE0)
Spare mask register.
BIT
7
6
5
4
3
2
1
0
Field
RSVD
PAIR[2:0]
RSVD[2:0]
HS_EXT_E
N
Reset
0b0
0b000
0b000
0b0
Write, Read
Write, Read
Write, Read
Write, Read
Access
Type
BITFIELD
RSVD
www.analog.com
BITS
7
DESCRIPTION
DECODE
Spare
Analog Devices | 74
MAX77958
BITFIELD
Standalone USB Type-C and USB Power Delivery
Controller
BITS
DESCRIPTION
DECODE
PAIR[2]: Pair address mode of Shared Bus 3
channel: Slave ID 3 Functional
Pair address mode option at burst write operation
on customer registers.
1 = Pair address mode is enabled for the channel.
0 = Pair address mode is disabled and sequential
mode is used.
PAIR
6:4
I2C Pair Address Mode Control
PAIR[1]: Pair address mode of Shared Bus 2
channel: Slave ID 2 Functional
Pair address mode option at burst write operation
on customer registers.
1 = Pair address mode is enabled for the channel.
0 = Pair address mode is disabled and sequential
mode is used.
PAIR[0]: Pair address mode of Shared Bus 1
channel: Slave ID 1 Functional
Pair address mode option at burst write operation
on customer registers.
1 = Pair address mode is enabled for the channel.
0 = Pair address mode is disabled and sequential
mode is used.
RSVD
HS_EXT_EN
www.analog.com
3:1
0
Spare
HS-mode Extension Control
0x0: HS-mode Extension is disabled. (I2C Rev. 4
Compliant)
0x1: HS-mode Extension is enabled. HS-mode is
enabled without HS-mode entrance code and
keeps HS-mode during STOP condition.
Analog Devices | 75
MAX77958
Standalone USB Type-C and USB Power Delivery
Controller
Applications Information
D+/D- USB 2.0 Switch Control
The integrated D+/D- switches in the MAX77958 are automatically configured by BC1.2 detection results.
Table 4. D+/D- Configuration
PART NUMBER
MAX77958
MAX77958C/D
BC1.2 DETECTION RESULTS
SDP and CDP
DCP
D+/D- SWITCH CONFIGURATION
OPEN
SDP and CDP
CLOSED
DCP
OPEN
The configured D+/D- switch based on the BC1.2 detection result can be overridden by the AP through OP-Command
0x05. Refer to the User Guide for more information.
HVDCP Configuration
The MAX77958 supports adjustable high voltage adaptor (HVDCP) configuration, and the device provides D+/D- manual
control. To control D+/D-, OP-Command 0x03 should be set by AP. Refer to the User Guide for more information.
Push-Button Function
The MAX77958C/D supports the Push-Button function with GPIO7. When the Push-Button function is enabled by AP
or MCU, the GPIO7 pin starts the monitoring status. When a Falling Edge or Rising Edge transition is detected, the
MAX77958C/D interrupts AP through ACTION_INT[1]=1. See the Ordering Information table and the OP-Command 0x64
in the User Guide for more information.
External Interrupt
The MAX77958C/D supports an external interrupt function with GPIO8. This is useful when an external device such as
a companion charger needs to interrupt the MAX77958C/D to perform an operation specified by the application. When
the external interrupt function is enabled by AP or MCU, the GPIO8 pin starts the monitoring interrupt request. When the
interrupt request is detected, the MAX77958C/D sets the register ACTION_INT[0]=1. See the Ordering Information table
and the OP-Command 0x64 in the User Guide for more information.
MAX77958 IC Firmware Update with Dongle Board
The MAX77958C/D provides a firmware update capability through the dongle board. To update firmware through the
dongle board, the dongle board and evaluation kit GUI are required. Refer to the User Guide for more information.
FW Recovery Function
The MAX79758D features a FW recovery function. When the FW update fails, the FW version reads as FF.00, and it can
be recovered as ROM FW 58.03.
To retrieve production FW, the AP requires the following:
Case 1: The FW update fails while the AP is updating (battery is a power source in the system)
1) The AP sends an Op command: 0xDF 0xDA 0xA5 0xAD 0xC3 or Plug TA (apply VBUS)
Case 2: The FW update fails due to a dead battery event
1) Insert TA to provide VBUS for the system to power-up
2) The AP sends an Op command: 0xDF 0xDA 0xA5 0xAD 0xC3
The FW recovery Op command is only valid for the FW FF.00 case. Analog Devices provides a sample kernel driver to
achieve the FW recovery.
www.analog.com
Analog Devices | 76
MAX77958
Standalone USB Type-C and USB Power Delivery
Controller
Typical Application Circuits
2/3-Cell Configurable Charger Application
Figure 15 illustrates a configurable charger application diagram using the MAX77958 and buck-boost charger devices.
In this application, the USB Type-C connector is used for SINK as well as SOURCE. The SINK role is automatically
active when the battery is charged using USB Type-C SOURCE that is connected to the USB Type-C connector in Figure
15. Based on the CC detection result, the SOURCE advertises its capability. The IC negotiates power contract with the
SOURCE connected to the USB Type-C connector. AP can choose appropriate SOURCE PDO and configure charging
current in the buck-boost charger accordingly.
The SOURCE role is active when SINK device is attached to the UBS Type-C connector as shown in Figure 15. The
IC becomes a power provider with the SOURCE role and advertises its capability to a device connected to USB Type-C
connector.
In this scenario, AP configures the buck-boost charger as reverse-buck mode to provide OTG voltage to the device
connected to the USB Type-C connector. The communication between the IC.
USB TYPE-C CONNECTOR
3.5V TO 24V
VBUS
CHGIN BST1 LX1
1µF
35V
VBUS
DN
DP
2.2kΩ
VCIN EN
200kΩ
5.0V
SCL_M
I2 C
MASTER SDA_M
USB TYPE-C
27pF
25V
1µF
6.3V
2.2kΩ
CC1
CC2
CC1
CC2
27pF
25V
MAX77958
SYS
1µF
35V
VIO
200kΩ
VSYS
VIO2
AVL
LX2
MAX77960/
MAX77961/
MAX77962
BST2
SYS
VSYS
BATSP PK+
SCL
SDA
INTB
GND
BATSN
+
PK-
PD
GPIO2
VCONN
SW
CONTROL
DN
DP
BC 1.2
VCIN
AVL
VDD1P8
I2 C
SLAVE
SCL
SDA
INTB
DN1
DP2
VIO1
MAXQ
MTP
GPIO6
APPLICATION
PROCESSOR
USB 2.0
VIO
1µF
6.3V
VDD1P1
2.2µF
10V
1µF
6.3V
GPIOs
1µF
6.3V
GND
GPIO
SS TX1/RX1
SS TX/RX
USB 3.1
MUX
SS TX2/RX2
VSYS
VCONN BUCK CONVERTER
SS TX/RX
5.0V VCIN
VCIN EN
Figure 15. Configurable Charger Application
www.analog.com
Analog Devices | 77
MAX77958
Standalone USB Type-C and USB Power Delivery
Controller
Typical Application Circuits (continued)
2/3-Cell Autonomous Charger Application
Figure 16 illustrates an autonomous charger application diagram using the MAX77958 and a buck-boost charger device.
In this application, the USB Type-C connector is used for SINK as well as SOURCE. The SINK role is automatically
active when the battery is charged using the USB Type-C SOURCE that is connected to the USB Type-C connector.
Based on the CC detection result, the SOURCE advertises its capability. The IC negotiates a power contract with the
SOURCE connected to the USB Type-C connector. The IC chooses an appropriate SOURCE PDO, and configures
charging current in the buck-boost charger accordingly through the master I2C interface in the IC.
The SOURCE role is active when a SINK device is attached to the USB Type-C connector as shown in Figure 16. The
IC becomes a power provider with the SOURCE role and advertises its capability to a device connected to USB Type-C
connector. In this scenario, the IC configures the buck-boost charger to reverse-buck mode to provide OTG voltage to
the device connected to the USB Type-C connector.
USB TYPE-C CONNECTOR
3.5V TO 24V
VBUS
CHGIN BST1 LX1
1µF
35V
VBUS
VCIN EN
PD
VCIN
GPIO2
DN
DP
DN
DP
AVL
VDD1P8
2.2kΩ
5.0V
1µF
6.3V
SCL_M
I2 C
MASTER SDA_M
GPIO8
USB TYPE-C
27pF
25V
VIO2
200kΩ
CC1
CC2
CC1
CC2
27pF
25V
MAX77958
SYS
1µF
35V
2.2kΩ
VSYS
I2 C
SLAVE
VCONN
SW
CONTROL
AVL
LX2
MAX77960/
MAX77961/
MAX77962
BST2
SYS
VSYS
BATSP PK+
SCL
SDA
INTB
GND
BATSN
+
PK-
SCL
SDA
VSYS
VCONN BUCK CONVERTER
5.0V VCIN
DN1
BC 1.2
DP2
VIO1
MAXQ
MTP
GPIO6
VCIN EN
VIO
1µF
6.3V
VDD1P1
2.2µF
10V
1µF
6.3V
1µF
6.3V
GPIOs
GND
Figure 16. Autonomous Charger Application
www.analog.com
Analog Devices | 78
MAX77958
Standalone USB Type-C and USB Power Delivery
Controller
Typical Application Circuits (continued)
Autonomous DC-DC Application
Figure 17 illustrates an autonomous DC-DC application diagram using the MAX77958. In this application, the USB TypeC connector is used for SINK. Based on the CC detection result, the SOURCE advertises its capability. The IC negotiates
a power contract with the SOURCE connected to the USB Type-C connector. The IC chooses an appropriate SINK
PDO among PDOs as shown in Figure 17. The IC then sets the Enable on the DC-DC converter to supply power to the
application device.
USB TYPE-C CONNECTOR
VBUS
VIN
1µF
35V
DC/DC CONVERTER
VBUS
CC1
CC2
CC1
CC2
27pF
25V
I2 C
MASTER
USB TYPE-C
PD
DN
DP
AVL
VDD1P8
I2 C
SLAVE
DN1
BC 1.2
DP2
VIO1/2
MAXQ
MTP
VDD1P1
1µF
6.3V
ENABLE
GPIO
GND
VCONN
SW
CONTROL
2.2µF
10V
SYSTEM
MAX77958
27pF
25V
DN
DP
VOUT
1µF
6.3V
GPIOs
VIO
1µF
6.3V
GPIO6
GND
Figure 17. Autonomous DC-DC Application
www.analog.com
Analog Devices | 79
MAX77958
Standalone USB Type-C and USB Power Delivery
Controller
Typical Application Circuits (continued)
PD Power Adapter Application
Figure 18 illustrates an adapter application diagram using the MAX77958 device. In this application, the USB Type-C
connector is only used for SOURCE. The IC negotiates a power contract with the SINK connected to the USB TypeC connector. When SINK is attached, the IC advertises its SOURCE PDO to the SINK. Based on contracts, the IC
controls GPIOs to adjust VBUS that the SINK is requesting. When disconnection happens, the IC also controls GPIOs
to disconnect the power path on the VBUS path and discharges capacitors on the VBUS path to meet the USB Type-C
specification.
USB TYPE-C CONNECTOR
VBUS
100kΩ
10kΩ
10kΩ
MAX77958
VDD
GPIO4
GPIO5
PD
GPIO3
AC/DC
CONTROLLER
GPIO7
VCONN
SW
CONTROL
GPIO8
GPIO6
I2 C
MASTER
VDD
GPIO3
GPIO7
GPIO8
VBUS
LOW
HIGH
LOW
LOW
HIGH
LOW
LOW
5V
9V
HIGH
LOW
15V
HIGH
HIGH
HIGH
20V
VIO1
VIO2
SYS
1µF
6.3V
BC 1.2
VDD1P1
1µF
6.3V
27pF
25V
DP
MAXQ
MTP
VDD1P8
1µF
6.3V
27pF
25V
DN
I2 C
SLAVE
AVL
2.2µF
10V
CC1
CC2
USB
TYPE-C
9 GPIOs
GND
NOTE: RESISTOR VALUE IS SELECTED BASED ON PRIMARY SIDE CONTROLLER DESIGN
Figure 18. Adapter Application
www.analog.com
Analog Devices | 80
MAX77958
Standalone USB Type-C and USB Power Delivery
Controller
Ordering Information
PART NUMBER
TEMP
RANGE
PINPACKAGE
FW
VERSION
DP/DN
SWITCH
SETTING
GPIO7/GPIO8
FUNCTIONALITY
DONGLE
BOARD
FIRMWARE
UPDATE
FW
Recovery
FUNCTIONALITY
MAX77958EWV+T
MAX77958EWV+
MAX77958CEWV+T
MAX77958CEWV+
MAX77958DEWV+T
MAX77958DEWV+
-40°C to
+85°C
6x5 WLP,
0.5mm pitch,
3.1mm x
2.65mm
-40°C to
+85°C
6x5 WLP,
0.5mm pitch,
3.1mm x
2.65mm
-40°C to
+85°C
6x5 WLP,
0.5mm pitch,
3.1mm x
2.65mm
-40°C to
+85°C
-40°C to
+85°C
-40°C to
+85°C
6x5 WLP,
0.5mm pitch,
3.1mm x
2.65mm
6x5 WLP,
0.5mm pitch,
3.1mm x
2.65mm
6x5 WLP,
0.5mm pitch,
3.1mm x
2.65mm
06.2C*
SDP/CDP:
Open
GPO
Disabled
No
GPO
Disabled
No
GPIO8: External
Interrupt
GPIO7: Pushbutton
Enabled
No
Enabled
No
Enabled
Yes
Enabled
Yes
DCP: Open
06.2C*
SDP/CDP:
Open
DCP: Open
SDP/CDP:
Close
06.54*
DCP: Open
SDP/CDP:
Close
06.54*
DCP: Open
SDP/CDP:
Close
58.04**
DCP: Open
SDP/CDP:
Close
58.04**
DCP: Open
(Falling/Rising
Edge)
GPIO8: External
Interrupt
GPIO7: Pushbutton
(Falling/Rising
Edge)
GPIO8: External
Interrupt
GPIO7: Pushbutton
(Falling/Rising
Edge)
GPIO8: External
Interrupt
GPIO7: Pushbutton
(Falling/Rising
Edge)
+Denotes a lead(Pb)-free/RoHS-compliant package.
T = Tape and reel.
*Not compatible with MAX77958DEWV+
**Not compatible with MAX77958EWV+ and MAX77958CEWV+
www.analog.com
Analog Devices | 81
MAX77958
Standalone USB Type-C and USB Power Delivery
Controller
Revision History
REVISION
NUMBER
REVISION
DATE
PAGES
CHANGED
0
12/19
Initial release
1
4/20
Updated data sheet title, updated VCIN_OK and added USB Type-C/MTP section to the
Electrical Characteristics table, updated AVL in the Pin Description section, updated the
Detailed Description and Register Map sections, updated Typical Application Circuits
Figures 11, 12, and 13
1–73
2
1/21
Updated General Description and Benefits and Features sections, Simplified Block
Diagram, Electrical Characteristics tables, Pin Description table, Detailed Description
section, Register Map tables, Detecting Connected DFP section, and Figures 11, 12, 13,
added Moisture Detection section
1, 2, 15, 24,
25, 27, 29, 30,
33, 35, 41, 45,
51, 72–75
3
5/21
Updated General Description and Benefits and Features sections, added USB BC1.2
D+/D- Adapter Detection, VCONN Switch, and Applications Information section, updated
decode in PD_STATUS0 (0xE) table, updated Ordering Information table
1, 30, 31, 42,
54, 75, 76, 80,
81
4
3/22
Updated Benefits and Features, Package Information table outline number, and
Ordering Information table, added HVDCP Configuration section
1, 7, 8, 77, 82
5
11/22
Added FW Recovery Function section, deleted Automatic Power Control section,
updated Table 4, Push-Button Function, External Interrupt, MAX77958 IC Firmware
Update with Dongle Board, and Ordering Information table
DESCRIPTION
—
32, 76, 81
Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is
assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may
result from its use. Specifications subject to change without notice. No license is granted by implication or otherwise
under any patent or patent rights of Analog Devices. Trademarks and registered trademarks are the property of
their respective owners.
w w w . a n a l o g . c o m
Analog Devices | 82
Mouser Electronics
Authorized Distributor
Click to View Pricing, Inventory, Delivery & Lifecycle Information:
MAX77958EWV+ MAX77958EWV+T MAX77958CEWV+T MAX77958DEWV+T
工商网监
湘ICP备2023018690号
