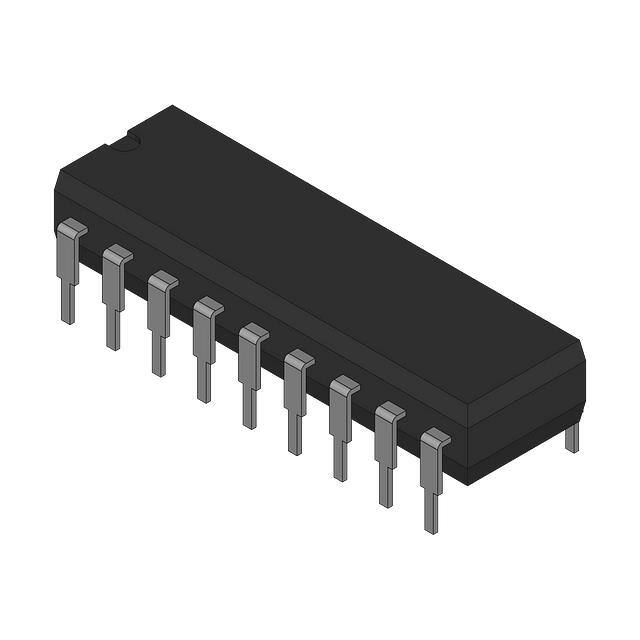

PM7541AFP

Datasheet PM7541A CMOS 12-Bit Monolithic Multiplying CMOS D/A Converter PMl’s PM-7541A is a 12-bit resolution, current output, 4-quadrant multiplying digital-to-analog converter. Manufactured with advanced oxide-isolated, silicon-gate, monolithic CMOS technology, the PM-7541A features circuitry designed to protect data inputs against damage from electrostatic discharges. Laser-trimmed thin-film resistors provide true 12-bit linearity with excellent absolute accuracy. The PM-7541A’s low power dissipation, along with NMOS temperature compensating switches, insures high performance across the full temperature range. Rochester Electronics Manufactured Components Rochester branded components are manufactured using either die/wafers purchased from the original suppliers or Rochester wafers recreated from the original IP. All re-creations are done with the approval of the Original Component Manufacturer (OCM). Parts are tested using original factory test programs or Rochester developed test solutions to guarantee product meets or exceeds the OCM data sheet. Quality Overview • ISO-9001 • AS9120 certification • Qualified Manufacturers List (QML) MIL-PRF-35835 • Class Q Military • Class V Space Level • Qualified Suppliers List of Distributors (QSLD) • Rochester is a critical supplier to DLA and meets all industry and DLA standards. Rochester Electronics, LLC is committed to supplying products that satisfy customer expectations for quality and are equal to those originally supplied by industry manufacturers. The original manufacturer’s datasheet accompanying this document reflects the performance and specifications of the Rochester manufactured version of this device. Rochester Electronics guarantees the performance of its semiconductor products to the original OCM specifications. ‘Typical’ values are for reference purposes only. Certain minimum or maximum ratings may be based on product characterization, design, simulation, or sample testing. FOR REFERENCE ONLY © 2019 Rochester Electronics, LLC. All Rights Reserved 04112019 To learn more, please visit www.rocelec.com lr'IIANALOG CMOS 12-Bit Monolithic Multiplying CMOS D/A Converter PM-7541A I WDEVICES FEATURES • 7541with Improved Accuracy and Ruggedness • ±1/2 LSB Max Nonlinearity Over Full Temp. Range (12-Bit Linearity) • ±1 LSB Max Gain Error- No User Adjustment Required • Less Than 0.03 LSB Max Zero Scale Error (SnA) • Low Gain Tempco .......................................... Sppm/"C Max • All Data Input Pins Designed with ESD Protective Circuitry • Full Four-Quadrant Multiplication • Low Power Consumption • Low Feedthrough Error and Digital Charge Injection • Superior Power Supply Rejection From +5Vto +15V ........................................001%% Max • Direct Replacement for AD7541 and AD7541A • Both DIP Packages Suitable for Auto-Insertion, Surface Mount Packaging Available • Available in Die Form the PM•7541 A permits upgrading existing designs with greater ruggedness and accuracy. Tighter linearity and gain error speci­ fications may permit reduced system parts count by eliminating trimming circuitry. ORDERING INFORMA TION PACKAGE NON· EX"TENDED INDUSTRIAL TEMPERATURE -40'C to +85'C ERROR EARITY MILITARY• TEMPERATURE -55"Cto+125'C ±1 LSB ±2LSB ±2LSB ±2LSB ±2LSB ±1t2LSB ±1i2LSB ±112LSB ±1/2LSB ±1i2LSB PM7541AAX PM7541AEX PM7541ABX PM7541AFX PM7541ABRC/883 PM7541AFP PM7541AFPC PM7541AFS UN- GAIN COMMERCIAL TEMPERATURE 0'C1o+70"C PM7541AGP For devices processed in total compliance to MIL•STD-883, add /883 after part number. Consult factory for 883 data sheot. Burn-in is available on commercial and industrial temperature range parts in CerDIP, plastic DIP, and TO·can packages. APPLICATIONS • • • • • • • plastic and CerDIP packages, the PM-7541A is compatible with automatic insertion equipment. The improved performance of Digital/Synchro Conversion Programmable Amplifiers Ratiometric A/D Conversion Function Generators Digitally-Controlled Attenuators Digitally-Controlled Power Supplies Digitally-Controlled Fillers CROSS REFERENCE GENERAL DESCRIPTION PMl's PM-7541A is a 12-bit resolution. current output, 4quadrant multiplying digital-to-analog converter. Manufactured with advanced oxide-isolated, silicon-gate, monolithic CMOS technology, the PM-7541A features circuitry designed to protect data inputs against damage from electrostatic discharges. Laser-trimmed thin-film resistors provide true 12-bit linearity with excellent absolute accuracy. The PM-7541A's low power dissipation, along with NMOS temperature compensating switches, insures high performance across the full temperature range. TEMPERATURE RANGE PMI ADI PM7541AAX PM7541ABX AD7541ATD AD7541ASD MIL PM7541AEX PM7541AFX AD7541ABQ AD7541AAQ IND PM7541GP PM7541FPC PM7541AFP AD7541AKN AD7541AKP AD7541AJN COM PIN CO NNECTIONS 18-PIN EPOXY DIP (P-Sufflx) 18-PIN HERMETIC DIP (X-Suffix) The PM-7541A is a superior pin-compatible replacement for the industry standard 7541 and the AD7541A. Available in standard 18-PIN SOL (S-Suffix) FUNC TIONAL DIAGRAM 10l
