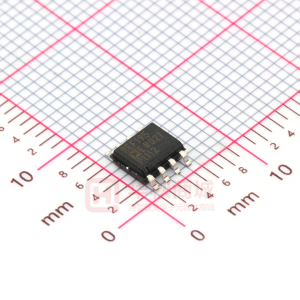

REF195

Precision Micropower, Low Dropout Voltage References REF19x Series FEATURES Initial accuracy: ±2 mV maximum Temperature coefficient: 5 ppm/°C maximum Low supply current: 45 μA maximum Sleep mode: 15 μA maximum Low dropout voltage Load regulation: 4 ppm/mA Line regulation: 4 ppm/V High output current: 30 mA Short-circuit protection TEST PINS Test Pin 1 and Test Pin 5 are reserved for in-package Zener zap. To achieve the highest level of accuracy at the output, the Zener zapping technique is used to trim the output voltage. Since each unit may require a different amount of adjustment, the resistance value at the test pins varies widely from pin to pin and from part to part. The user should leave Pin 1 and Pin 5 unconnected. TP 1 VS 2 SLEEP 3 APPLICATIONS Portable instruments ADCs and DACs Smart sensors Solar-powered applications Loop current-powered instruments REF19x SERIES 8 7 NC NC 6 OUTPUT TOP VIEW GND 4 (Not to Scale) 5 TP GENERAL DESCRIPTION The REF19x series precision band gap voltage references use a patented temperature drift curvature correction circuit and laser trimming of highly stable, thin-film resistors to achieve a very low temperature coefficient and high initial accuracy. The REF19x series is made up of micropower, low dropout voltage (LDV) devices, providing stable output voltage from supplies as low as 100 mV above the output voltage and consuming less than 45 μA of supply current. In sleep mode, which is enabled by applying a low TTL or CMOS level to the SLEEP pin, the output is turned off, and supply current is further reduced to less than 15 μA. The REF19x series references are specified over the extended industrial temperature range (−40°C to +85°C), with typical performance specifications over −40°C to +125°C for applications such as automotive. All electrical grades are available in an 8-lead SOIC_N package; the PDIP and TSSOP packages are available only in the lowest electrical grade. Products are also available in die form. Figure 1. 8-Lead SOIC_N and TSSOP Pin Configuration (S Suffix and RU Suffix) TP 1 VS 2 SLEEP 3 6 OUTPUT TOP VIEW GND 4 (Not to Scale) 5 TP REF19x SERIES 8 7 NC NC Figure 2. 8-Lead PDIP Pin Configuration (P Suffix) Table 1. Nominal Output Voltage Part Number REF191 REF192 REF193 REF194 REF195 REF196 REF198 Nominal Output Voltage (V) 2.048 2.50 3.00 4.50 5.00 3.30 4.096 Rev. I Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Trademarks and registered trademarks are the property of their respective owners. One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. Tel: 781.329.4700 www.analog.com Fax: 781.461.3113 ©2006 Analog Devices, Inc. All rights reserved. 00371-002 NOTES 1. NC = NO CONNECT. 2. TP PINS ARE FACTORY TEST POINTS, NO USER CONNECTION. 00371-001 NOTES 1. NC = NO CONNECT. 2. TP PINS ARE FACTORY TEST POINTS, NO USER CONNECTION. REF19x Series TABLE OF CONTENTS Specifications..................................................................................... 3 Electrical Characteristics—REF191 @ TA = 25°C .................... 3 Electrical Characteristics—REF191 @ −40°C ≤ TA ≤ +85°C .. 4 Electrical Characteristics—REF191 @ −40°C ≤ TA ≤+125°C. 5 Electrical Characteristics—REF192 @ TA = 25°C .................... 5 Electrical Characteristics—REF192 @ −40°C ≤ TA ≤ +85°C.. 6 Electrical Characteristics—REF192 @ −40°C ≤ TA ≤ +125°C 6 Electrical Characteristics—REF193 @ TA = 25°C .................... 7 Electrical Characteristics—REF193 @ −40°C ≤ TA ≤ +85°C.. 7 Electrical Characteristics—REF193 @ TA ≤ −40°C ≤ +125°C 8 Electrical Characteristics—REF194 @ Ta = 25°C..................... 8 Electrical Characteristics—REF194 @ −40°C ≤ TA ≤ +85°C.. 9 Electrical Characteristics—REF194 @ −40°C ≤ TA ≤ +125°C 9 Electrical Characteristics—REF195 @ TA = 25°C .................. 10 Electrical Characteristics—REF195 @ −40°C ≤ TA ≤ +85°C 10 Electrical Characteristics—REF195 @ −40°C ≤ TA ≤ +125°C ....................................................................................................... 11 Electrical Characteristics—REF196 @ TA = 25°C .................. 11 Electrical Characteristics—REF196 @ −40°C ≤ TA ≤ +85°C 12 Electrical Characteristics—REF196 @ −40°C ≤ TA ≤ +125°C ....................................................................................................... 12 Electrical Characteristics—REF198 @ TA = 25°C .................. 13 Electrical Characteristics—REF198 @ −40°C ≤ TA ≤ +85°C 13 Electrical Characteristics—REF198 @ −40°C ≤ TA ≤ +125°C ....................................................................................................... 14 Wafer Test Limits........................................................................ 14 Absolute Maximum Ratings ......................................................... 15 Thermal Resistance .................................................................... 15 ESD Caution................................................................................ 15 Typical Performance Characteristics ........................................... 16 Applications..................................................................................... 19 Output Short-Circuit Behavior ................................................ 19 Device Power Dissipation Considerations.............................. 19 Output Voltage Bypassing ......................................................... 19 Sleep Mode Operation............................................................... 19 Basic Voltage Reference Connections ..................................... 19 Membrane Switch-Controlled Power Supply ......................... 19 Current-Boosted References with Current Limiting............. 20 Negative Precision Reference without Precision Resistors ... 20 Stacking Reference ICs for Arbitrary Outputs ....................... 21 Precision Current Source .......................................................... 21 Switched Output 5 V/3.3 V Reference..................................... 22 Kelvin Connections.................................................................... 22 Fail-Safe 5 V Reference.............................................................. 23 Low Power, Strain Gage Circuit ............................................... 24 Outline Dimensions ....................................................................... 25 Ordering Guide .......................................................................... 26 REVISION HISTORY 9/06—Rev. H to Rev. I Updated Format..................................................................Universal Changes to Table 25 ....................................................................... 15 Changes to Figure 6........................................................................ 16 Changes to Figure 10, Figure 12, Figure 14, and Figure 16....... 17 Changes to Figure 18...................................................................... 18 Changes to Figure 20...................................................................... 19 Changes to Figure 23...................................................................... 20 Changes to Figure 25...................................................................... 21 Updated Outline Dimensions ....................................................... 25 Changes to Ordering Guide .......................................................... 26 6/05—Rev. G to Rev. H Updated Format..................................................................Universal Changes to Caption in Figure 7 .................................................... 16 Updated Outline Dimensions ....................................................... 25 Changes to Ordering Guide .......................................................... 26 7/04—Rev. F to Rev. G Changes to Ordering Guide .............................................................4 3/04—Rev. E to Rev. F Updated Absolute Maximum Rating ..............................................4 Changes to Ordering Guide .......................................................... 14 Updated Outline Dimensions....................................................... 24 1/03—Rev. D to Rev. E Changes to Figure 3 and Figure 4................................................. 15 Changes to Output Short Circuit Behavior................................. 17 Changes to Figure 20...................................................................... 17 Changes to Figure 24...................................................................... 19 Updated Outline Dimensions....................................................... 23 1/96—Revision 0: Initial Version Rev. I | Page 2 of 28 REF19x Series SPECIFICATIONS ELECTRICAL CHARACTERISTICS—REF191 @ TA = 25°C @ VS = 3.3 V, TA = 25°C, unless otherwise noted. Table 2. Parameter INITIAL ACCURACY 1 E Grade F Grade G Grade LINE REGULATION 2 E Grade F and G Grades LOAD REGULATION2 E Grade F and G Grades DROPOUT VOLTAGE Mnemonic VO Condition IOUT = 0 mA Min 2.046 2.043 2.038 Typ 2.048 Max 2.050 2.053 2.058 4 8 10 15 0.95 1.25 1.55 Unit V V V ppm/V ppm/V ppm/mA ppm/mA V V V mV μV p-p ΔVO/ΔVIN 3.0 V ≤ VS ≤ 15 V, IOUT = 0 mA 2 4 4 6 ΔVO/ΔVLOAD V S − VO VS = 5.0 V, 0 mA ≤ IOUT ≤ 30 mA VS = 3.15 V, ILOAD = 2 mA VS = 3.3 V, ILOAD = 10 mA VS = 3.6 V, ILOAD = 30 mA 1000 hours @ 125°C 0.1 Hz to 10 Hz LONG-TERM STABILITY 3 NOISE VOLTAGE 1 2 DVO eN 1.2 20 Initial accuracy includes temperature hysteresis effect. Line and load regulation specifications include the effect of self-heating. 3 Long-term stability specification is noncumulative. The drift in subsequent 1000-hour periods is significantly lower than in the first 1000-hour period. Rev. I | Page 3 of 28 REF19x Series ELECTRICAL CHARACTERISTICS—REF191 @ −40°C ≤ TA ≤ +85°C @ VS = 3.3 V, −40°C ≤ TA ≤ +85°C, unless otherwise noted. Table 3. Parameter TEMPERATURE COEFFICIENT 1, 2 E Grade F Grade G Grade 3 LINE REGULATION 4 E Grade F and G Grades LOAD REGULATION4 E Grade F and G Grades DROPOUT VOLTAGE Mnemonic TCVO/°C Condition IOUT = 0 mA Min Typ 2 5 10 5 10 5 10 Max 5 10 25 10 20 15 20 0.95 1.25 1.55 Unit ppm/°C ppm/°C ppm/°C ppm/V ppm/V ppm/mA ppm/mA V V V V μA V μA μA μA ΔVO/ΔVIN 3.0 V ≤ VS ≤ 15 V, IOUT = 0 mA ΔVO/ΔVLOAD V S − VO VS = 5.0 V, 0 mA ≤ IOUT ≤ 25°C VS = 3.15 V, ILOAD = 2 mA VS = 3.3 V, ILOAD = 10 mA VS = 3.6 V, ILOAD = 25 mA 2.4 SLEEP PIN Logic High Input Voltage Logic High Input Current Logic Low Input Voltage Logic Low Input Current SUPPLY CURRENT Sleep Mode 1 2 VH IH VL IL No load No load −8 0.8 −8 45 15 For proper operation, a 1 μF capacitor is required between the output pin and the GND pin of the device. TCVO is defined as the ratio of output change with temperature variation to the specified temperature range expressed in ppm/°C. TCVO = (VMAX − VMIN)/VO(TMAX − TMIN) 3 Guaranteed by characterization. 4 Line and load regulation specifications include the effect of self-heating. Rev. I | Page 4 of 28 REF19x Series ELECTRICAL CHARACTERISTICS—REF191 @ −40°C ≤ TA ≤+125°C @ VS = 3.3 V, −40°C ≤ TA ≤ +125°C, unless otherwise noted. Table 4. Parameter TEMPERATURE COEFFICIENT 1, 2 E Grade F Grade G Grade 3 LINE REGULATION 4 E Grade F and G Grades LOAD REGULATION4 E Grade F and G Grades DROPOUT VOLTAGE Mnemonic TCVO/°C Condition IOUT = 0 mA Min Typ 2 5 10 10 20 10 20 1.25 1.55 Max Unit ppm/°C ppm/°C ppm/°C ppm/V ppm/V ppm/mA ppm/mA V V ΔVO/ΔVIN 3.0 V ≤ VS ≤ 15 V, IOUT = 0 mA ΔVO/ΔVLOAD V S − VO VS = 5.0 V, 0 mA ≤ IOUT ≤ 20 mA VS = 3.3 V, ILOAD = 10 mA VS = 3.6 V, ILOAD = 20 mA 1 2 For proper operation, a 1 μF capacitor is required between the output pin and the GND pin of the device. TCVO is defined as the ratio of output change with temperature variation to the specified temperature range expressed in ppm/°C. TCVO = (VMAX − VMIN)/VO(TMAX − TMIN) 3 Guaranteed by characterization. 4 Line and load regulation specifications include the effect of self-heating. ELECTRICAL CHARACTERISTICS—REF192 @ TA = 25°C @ VS = 3.3 V, TA = 25°C, unless otherwise noted. Table 5. Parameter INITIAL ACCURACY 1 E Grade F Grade G Grade LINE REGULATION 2 E Grade F and G Grades LOAD REGULATION2 E Grade F and G Grades DROPOUT VOLTAGE LONG-TERM STABILITY 3 NOISE VOLTAGE 1 2 3 Mnemonic VO Condition IOUT = 0 mA Min 2.498 2.495 2.490 Typ 2.500 Max 2.502 2.505 2.510 4 8 10 15 1.00 1.40 Unit V V V ppm/V ppm/V ppm/mA ppm/mA V V mV μV p-p ΔVO/ΔVIN 3.0 V ≤ VS ≤ 15 V, IOUT = 0 mA 2 4 4 6 ΔVO/ΔVLOAD V S − VO DVO eN VS = 5.0 V, 0 mA ≤ IOUT ≤ 30 mA VS = 3.5 V, ILOAD = 10 mA VS = 3.9 V, ILOAD = 30 mA 1000 hours @ 125°C 0.1 Hz to 10 Hz 1.2 25 Initial accuracy includes temperature hysteresis effect. Line and load regulation specifications include the effect of self-heating. Long-term stability specification is noncumulative. The drift in subsequent 1000-hour periods is significantly lower than in the first 1000-hour period. Rev. I | Page 5 of 28 REF19x Series ELECTRICAL CHARACTERISTICS—REF192 @ −40°C ≤ TA ≤ +85°C @ VS = 3.3 V, −40°C ≤ TA ≤ +85°C, unless otherwise noted. Table 6. Parameter TEMPERATURE COEFFICIENT 1, 2 E Grade F Grade G Grade 3 LINE REGULATION 4 E Grade F and G Grades LOAD REGULATION4 E Grade F and G Grades DROPOUT VOLTAGE SLEEP PIN Logic High Input Voltage Logic High Input Current Logic Low Input Voltage Logic Low Input Current SUPPLY CURRENT Sleep Mode 1 2 Mnemonic TCVO/°C Condition IOUT = 0 mA Min Typ 2 5 10 5 10 5 10 Max 5 10 25 10 20 15 20 1.00 1.50 Unit ppm/°C ppm/°C ppm/°C ppm/V ppm/V ppm/mA ppm/mA V V V μA V μA μA μA ΔVO/ΔVIN 3.0 V ≤ VS ≤ 15 V, IOUT = 0 mA ΔVO/ΔVLOAD V S − VO VS = 5.0 V, 0 mA ≤ IOUT ≤ 25 mA VS = 3.5 V, ILOAD = 10 mA VS = 4.0 V, ILOAD = 25 mA 2.4 VH IH VL IL No load No load −8 0.8 −8 45 15 For proper operation, a 1 μF capacitor is required between the output pin and the GND pin of the device. TCVO is defined as the ratio of output change with temperature variation to the specified temperature range expressed in ppm/°C. TCVO = (VMAX − VMIN)/VO(TMAX − TMIN) 3 Guaranteed by characterization. 4 Line and load regulation specifications include the effect of self-heating. ELECTRICAL CHARACTERISTICS—REF192 @ −40°C ≤ TA ≤ +125°C @ VS = 3.3 V, −40°C ≤ TA ≤ +125°C, unless otherwise noted. Table 7. Parameter TEMPERATURE COEFFICIENT 1, 2 E Grade F Grade G Grade 3 LINE REGULATION 4 E Grade F and G Grades LOAD REGULATION4 E Grade F and G Grades DROPOUT VOLTAGE Mnemonic TCVO/°C Condition IOUT = 0 mA Min Typ 2 5 10 10 20 10 20 1.00 1.50 Max Unit ppm/°C ppm/°C ppm/°C ppm/V ppm/V ppm/mA ppm/mA V V ΔVO/ΔVIN 3.0 V ≤ VS ≤ 15 V, IOUT = 0 mA ΔVO/ΔVLOAD V S − VO VS = 5.0 V, 0 mA ≤ IOUT ≤ 20 mA VS = 3.5 V, ILOAD = 10 mA VS = 4.0 V, ILOAD = 20 mA 1 2 For proper operation, a 1 μF capacitor is required between the output pin and the GND pin of the device. TCVO is defined as the ratio of output change with temperature variation to the specified temperature range expressed in ppm/°C. TCVO = (VMAX − VMIN)/VO(TMAX − TMIN) 3 Guaranteed by characterization. 4 Line and load regulation specifications include the effect of self-heating. Rev. I | Page 6 of 28 REF19x Series ELECTRICAL CHARACTERISTICS—REF193 @ TA = 25°C @ VS = 3.3 V, TA = 25°C, unless otherwise noted. Table 8. Parameter INITIAL ACCURACY 1 G Grade LINE REGULATION 2 G Grade LOAD REGULATION2 G Grade DROPOUT VOLTAGE LONG-TERM STABILITY 3 NOISE VOLTAGE 1 2 3 Mnemonic VO ΔVO/ΔVIN ΔVO/ΔVLOAD V S − VO DVO eN Condition IOUT = 0 mA 3.3 V, ≤ VS ≤ 15 V, IOUT = 0 mA VS = 5.0 V, 0 mA ≤ IOUT ≤ 30 mA VS = 3.8 V, ILOAD = 10 mA VS = 4.0 V, ILOAD = 30 mA 1000 hours @ 125°C 0.1 Hz to 10 Hz Min 2.990 Typ 3.0 4 6 Max 3.010 8 15 0.80 1.00 Unit V ppm/V ppm/mA V V mV μV p-p 1.2 30 Initial accuracy includes temperature hysteresis effect. Line and load regulation specifications include the effect of self-heating. Long-term stability specification is noncumulative. The drift in subsequent 1000-hour periods is significantly lower than in the first 1000-hour period. ELECTRICAL CHARACTERISTICS—REF193 @ −40°C ≤ TA ≤ +85°C @ VS = 3.3 V, −40°C ≤ TA ≤ +85°C, unless otherwise noted. Table 9. Parameter TEMPERATURE COEFFICIENT 1, 2 G Grade 3 LINE REGULATION 4 G Grade LOAD REGULATION4 G Grade DROPOUT VOLTAGE SLEEP PIN Logic High Input Voltage Logic High Input Current Logic Low Input Voltage Logic Low Input Current SUPPLY CURRENT Sleep Mode 1 2 Mnemonic TCVO/°C ΔVO/ΔVIN ΔVO/ΔVLOAD V S − VO Condition IOUT = 0 mA 3.3 V ≤ VS ≤ 15 V, IOUT = 0 mA VS = 5.0 V, 0 mA ≤ IOUT ≤ 25 mA VS = 3.8 V, ILOAD = 10 mA VS = 4.1 V, ILOAD = 30 mA Min Typ 10 10 10 Max 25 20 20 0.80 1.10 Unit ppm/°C ppm/V ppm/mA V V V μA V μA μA μA VH IH VL IL No load No load 2.4 −8 0.8 −8 45 15 For proper operation, a 1 μF capacitor is required between the output pin and the GND pin of the device. TCVO is defined as the ratio of output change with temperature variation to the specified temperature range expressed in ppm/°C. TCVO = (VMAX − VMIN)/VO(TMAX − TMIN) 3 4 Guaranteed by characterization. Line and load regulation specifications include the effect of self-heating. Rev. I | Page 7 of 28 REF19x Series ELECTRICAL CHARACTERISTICS—REF193 @ TA ≤ −40°C ≤ +125°C @ VS = 3.3 V, –40°C ≤ TA ≤ +125°C, unless otherwise noted. Table 10. Parameter TEMPERATURE COEFFICIENT 1 , 2 G Grade 3 LINE REGULATION 4 G Grade LOAD REGULATION4 G Grade DROPOUT VOLTAGE Mnemonic TCVO/°C ΔVO/ΔVIN ΔVO/ΔVLOAD V S − VO Condition IOUT = 0 mA 3.3 V ≤ VS ≤ 15 V, IOUT = 0 mA VS = 5.0 V, 0 mA ≤ IOUT ≤ 20 mA VS = 3.8 V, ILOAD = 10 mA VS = 4.1 V, ILOAD = 20 mA Min Typ 10 20 10 0.80 1.10 Max Unit ppm/°C ppm/V ppm/mA V V 1 2 For proper operation, a 1 μF capacitor is required between the output pin and the GND pin of the device. TCVO is defined as the ratio of output change with temperature variation to the specified temperature range expressed in ppm/°C. TCVO = (VMAX − VMIN)/VO(TMAX − TMIN) 3 Guaranteed by characterization. 4 Line and load regulation specifications include the effect of self-heating. ELECTRICAL CHARACTERISTICS—REF194 @ TA = 25°C @ VS = 5.0 V, TA = 25°C, unless otherwise noted. Table 11. Parameter INITIAL ACCURACY 1 E Grade F Grade G Grade LINE REGULATION 2 E Grade F and G Grades LOAD REGULATION2 E Grade F and G Grades DROPOUT VOLTAGE LONG-TERM STABILITY 3 NOISE VOLTAGE 1 2 Mnemonic VO Condition IOUT = 0 mA Min 4.498 4.495 4.490 Typ 4.5 Max 4.502 4.505 4.510 4 8 4 8 0.50 1.30 Unit V V V ppm/V ppm/V ppm/mA ppm/mA V V mV μV p-p ∆VO/∆VIN 4.75 V ≤ VS ≤ 15 V, IOUT = 0 mA 2 4 2 4 ∆VO/∆VLOAD V S − VO DVO eN VS = 5.8 V, 0 mA ≤ IOUT ≤ 30 mA VS = 5.00 V, ILOAD = 10 mA VS = 5.8 V, ILOAD = 30 mA 1000 hours @ 125°C 0.1 Hz to 10 Hz 2 45 Initial accuracy includes temperature hysteresis effect. Line and load regulation specifications include the effect of self-heating. 3 Long-term stability specification is noncumulative. The drift in subsequent 1000-hour periods is significantly lower than in the first 1000-hour period. Rev. I | Page 8 of 28 REF19x Series ELECTRICAL CHARACTERISTICS—REF194 @ −40°C ≤ TA ≤ +85°C @ VS = 5.0 V, −40°C ≤ TA ≤ +85°C, unless otherwise noted. Table 12. Parameter TEMPERATURE COEFFICIENT 1, 2 E Grade F Grade G Grade 3 LINE REGULATION 4 E Grade F and G Grades LOAD REGULATION4 E Grade F and G Grades DROPOUT VOLTAGE SLEEP PIN Logic High Input Voltage Logic High Input Current Logic Low Input Voltage Logic Low Input Current SUPPLY CURRENT Sleep Mode 1 2 Mnemonic TCVO/°C Condition IOUT = 0 mA Min Typ 2 5 10 5 10 5 10 Max 5 10 25 10 20 15 20 0.5 1.30 Unit ppm/°C ppm/°C ppm/°C ppm/V ppm/V ppm/mA ppm/mA V V V μA V μA μA μA ∆VO/∆VIN 4.75 V ≤ VS ≤ 15 V, IOUT = 0 mA ∆VO/∆VLOAD V S − VO VS = 5.80 V, 0 mA ≤ IOUT ≤ 25 mA VS = 5.00 V, ILOAD = 10 mA VS = 5.80 V, ILOAD = 25 mA 2.4 VH IH VL IL No load No load −8 0.8 −8 45 15 For proper operation, a 1 μF capacitor is required between the output pin and the GND pin of the device. TCVO is defined as the ratio of output change with temperature variation to the specified temperature range expressed in ppm/°C. TCVO = (VMAX − VMIN)/VO(TMAX − TMIN) 3 Guaranteed by characterization. 4 Line and load regulation specifications include the effect of self-heating. ELECTRICAL CHARACTERISTICS—REF194 @ −40°C ≤ TA ≤ +125°C @ VS = 5.0 V, −40°C ≤ TA ≤ +125°C, unless otherwise noted. Table 13. Parameter TEMPERATURE COEFFICIENT 1, 2 E Grade F Grade G Grade 3 LINE REGULATION 4 E Grade F and G Grades LOAD REGULATION E Grade F and G Grades DROPOUT VOLTAGE Mnemonic TCVO/°C Condition IOUT = 0 mA Min Typ 2 5 10 5 10 5 10 0.60 1.45 Max Unit ppm/°C ppm/°C ppm/°C ppm/V ppm/V ppm/mA ppm/mA V V ΔVO/ΔVIN 4.75 V ≤ VS ≤ 15 V, IOUT = 0 mA ΔVO/ΔVLOAD V S − VO VS = 5.80 V, 0 mA ≤ IOUT ≤ 20 mA VS = 5.10 V, ILOAD = 10 mA VS = 5.95 V, ILOAD = 20 mA 1 2 For proper operation, a 1 μF capacitor is required between the output pin and the GND pin of the device. TCVO is defined as the ratio of output change with temperature variation to the specified temperature range expressed in ppm/°C. TCVO = (VMAX − VMIN)/VO(TMAX − TMIN) 3 4 Guaranteed by characterization. Line and load regulation specifications include the effect of self-heating. Rev. I | Page 9 of 28 REF19x Series ELECTRICAL CHARACTERISTICS—REF195 @ TA = 25°C @ VS = 5.10 V, TA = 25°C, unless otherwise noted. Table 14. Parameter INITIAL ACCURACY 1 E Grade F Grade G Grade LINE REGULATION 2 E Grade F and G Grades LOAD REGULATION2 E Grade F and G Grades DROPOUT VOLTAGE LONG-TERM STABILITY 3 NOISE VOLTAGE 1 2 3 Mnemonic VO Condition IOUT = 0 mA Min 4.998 4.995 4.990 Typ 5.0 Max 5.002 5.005 5.010 4 8 4 8 0.50 1.30 Unit V V V ppm/V ppm/V ppm/mA ppm/mA V V mV μV p-p ΔVO/ΔVIN 5.10 V ≤ VS ≤ 15 V, IOUT = 0 mA 2 4 2 4 ΔVO/ΔVLOAD V S − VO DVO eN VS = 6.30 V, 0 mA ≤ IOUT ≤ 30 mA VS = 5.50 V, ILOAD = 10 mA VS = 6.30 V, ILOAD = 30 mA 1000 hours @ 125°C 0.1 Hz to 10 Hz 1.2 50 Initial accuracy includes temperature hysteresis effect. Line and load regulation specifications include the effect of self-heating. Long-term stability specification is noncumulative. The drift in subsequent 1000-hour periods is significantly lower than in the first 1000-hour period. ELECTRICAL CHARACTERISTICS—REF195 @ −40°C ≤ TA ≤ +85°C @ VS = 5.15 V, −40°C ≤ TA ≤ +85°C, unless otherwise noted. Table 15. Parameter TEMPERATURE COEFFICIENT 1,2 E Grade F Grade G Grade 3 LINE REGULATION 4 E Grade F and G Grades LOAD REGULATION4 E Grade F and G Grades DROPOUT VOLTAGE SLEEP PIN Logic High Input Voltage Logic High Input Current Logic Low Input Voltage Logic Low Input Current SUPPLY CURRENT Sleep Mode 1 2 Mnemonic TCVO/°C Condition IOUT = 0 mA Min Typ 2 5 10 5 10 5 10 Max 5 10 25 10 20 10 20 0.50 1.30 Unit ppm/°C ppm/°C ppm/°C ppm/V ppm/V ppm/mA ppm/mA V V V μA V μA μA μA ΔVO/ΔVIN 5.15 V ≤ VS ≤ 15 V, IOUT = 0 mA ΔVO/ΔVLOAD V S − VO VS = 6.30 V, 0 mA ≤ IOUT ≤ 25 mA VS = 5.50 V, ILOAD = 10 mA VS = 6.30 V, ILOAD = 25 mA 2.4 VH IH VL IL No load No load −8 0.8 −8 45 15 For proper operation, a 1 μF capacitor is required between the output pin and the GND pin of the device. TCVO is defined as the ratio of output change with temperature variation to the specified temperature range expressed in ppm/°C. TCVO = (VMAX − VMIN)/VO(TMAX − TMIN) 3 4 Guaranteed by characterization. Line and load regulation specifications include the effect of self-heating. Rev. I | Page 10 of 28 REF19x Series ELECTRICAL CHARACTERISTICS—REF195 @ −40°C ≤ TA ≤ +125°C @ VS = 5.20 V, −40°C ≤ TA ≤ +125°C, unless otherwise noted. Table 16. Parameter TEMPERATURE COEFFICIENT 1, 2 E Grade F Grade G Grade 3 LINE REGULATION 4 E Grade F and G Grades LOAD REGULATION4 E Grade F and G Grades DROPOUT VOLTAGE Mnemonic TCVO/°C Condition IOUT = 0 mA Min Typ 2 5 10 5 10 5 10 0.60 1.45 Max Unit ppm/°C ppm/°C ppm/°C ppm/V ppm/V ppm/mA ppm/mA V V ΔVO/ΔVIN 5.20 V ≤ VS ≤ 15 V, IOUT = 0 mA ΔVO/ΔVLOAD VS − VO VS = 6.45 V, 0 mA ≤ IOUT ≤ 20 mA VS = 5.60 V, ILOAD = 10 mA VS = 6.45 V, ILOAD = 20 mA 1 2 For proper operation, a 1 μF capacitor is required between the output pin and the GND pin of the device. TCVO is defined as the ratio of output change with temperature variation to the specified temperature range expressed in ppm/°C. TCVO = (VMAX − VMIN)/VO(TMAX − TMIN) 3 Guaranteed by characterization. 4 Line and load regulation specifications include the effect of self-heating. ELECTRICAL CHARACTERISTICS—REF196 @ TA = 25°C @ VS = 3.5 V, TA = 25°C, unless otherwise noted. Table 17. Parameter INITIAL ACCURACY 1 G Grade LINE REGULATION 2 G Grade LOAD REGULATION2 G Grade DROPOUT VOLTAGE LONG-TERM STABILITY 3 NOISE VOLTAGE 1 2 Mnemonic VO ΔVO/ΔVIN ΔVO/ΔVLOAD V S − VO DVO eN Condition IOUT = 0 mA 3.50 V ≤ VS ≤ 15 V, IOUT = 0 mA VS = 5.0 V, 0 mA ≤ IOUT ≤ 30 mA VS = 4.1 V, ILOAD = 10 mA VS = 4.3 V, ILOAD = 30 mA 1000 hours @ 125°C 0.1 Hz to 10 Hz Min 3.290 Typ 3.3 4 6 Max 3.310 8 15 0.80 1.00 Unit V ppm/V ppm/mA V V mV μV p-p 1.2 33 Initial accuracy includes temperature hysteresis effect. Line and load regulation specifications include the effect of self-heating. 3 Long-term stability specification is noncumulative. The drift in subsequent 1000-hour periods is significantly lower than in the first 1000-hour period. Rev. I | Page 11 of 28 REF19x Series ELECTRICAL CHARACTERISTICS—REF196 @ −40°C ≤ TA ≤ +85°C @ VS = 3.5 V, –40°C ≤ TA ≤ +85°C, unless otherwise noted. Table 18. Parameter TEMPERATURE COEFFICIENT 1, 2 G Grade 3 LINE REGULATION 4 G Grade LOAD REGULATION4 G Grade DROPOUT VOLTAGE SLEEP PIN Logic High Input Voltage Logic High Input Current Logic Low Input Voltage Logic Low Input Current SUPPLY CURRENT Sleep Mode 1 2 Mnemonic TCVO/°C ΔVO/ΔVIN ΔVO/ΔVLOAD V S − VO Condition IOUT = 0 mA 3.5 V ≤ VS ≤ 15 V, IOUT = 0 mA VS = 5.0 V, 0 mA ≤ IOUT ≤ 25 mA VS = 4.1 V, ILOAD = 10 mA VS = 4.3 V, ILOAD = 25 mA Min Typ 10 10 10 Max 25 20 20 0.80 1.00 Unit ppm/°C ppm/V ppm/mA V V V μA V μA μA μA VH IH VL IL No load No load 2.4 −8 0.8 −8 45 15 For proper operation, a 1 μF capacitor is required between the output pin and the GND pin of the device. TCVO is defined as the ratio of output change with temperature variation to the specified temperature range expressed in ppm/°C. TCVO = (VMAX − VMIN)/VO(TMAX − TMIN) 3 Guaranteed by characterization. 4 Line and load regulation specifications include the effect of self-heating. ELECTRICAL CHARACTERISTICS—REF196 @ −40°C ≤ TA ≤ +125°C @ VS = 3.50 V, −40°C ≤ TA ≤ +125°C, unless otherwise noted. Table 19. Parameter TEMPERATURE COEFFICIENT 1, 2 G Grade 3 LINE REGULATION 4 G Grade LOAD REGULATION4 G Grade DROPOUT VOLTAGE Mnemonic TCVO/°C ΔVO/ΔVIN ΔVO/ΔVLOAD V S − VO Condition IOUT = 0 mA 3.50 V ≤ VS ≤ 15 V, IOUT = 0 mA VS = 5.0 V, 0 mA ≤ IOUT ≤ 20 mA VS = 4.1 V, ILOAD = 10 mA VS = 4.4 V, ILOAD = 20 mA Min Typ 10 20 20 0.80 1.10 Max Unit ppm/°C ppm/V ppm/mA V V 1 2 For proper operation, a 1 μF capacitor is required between the output pin and the GND pin of the device. TCVO is defined as the ratio of output change with temperature variation to the specified temperature range expressed in ppm/°C. TCVO = (VMAX − VMIN)/VO(TMAX − TMIN) 3 Guaranteed by characterization. 4 Line and load regulation specifications include the effect of self-heating. Rev. I | Page 12 of 28 REF19x Series ELECTRICAL CHARACTERISTICS—REF198 @ TA = 25°C @ VS = 5.0 V, TA = 25°C, unless otherwise noted. Table 20. Parameter INITIAL ACCURACY 1 E Grade F Grade G Grade LINE REGULATION 2 E Grade F and G Grades LOAD REGULATION2 E Grade F and G Grades DROPOUT VOLTAGE LONG-TERM STABILITY 3 NOISE VOLTAGE 1 2 3 Mnemonic VO Condition IOUT = 0 mA Min 4.094 4.091 4.086 Typ 4.096 Max 4.098 4.101 4.106 4 8 4 8 0.502 1.30 Unit V V V ppm/V ppm/V ppm/mA ppm/mA V V mV μV p-p ΔVO/ΔVIN 4.5 V ≤ VS ≤ 15 V, IOUT = 0 mA 2 4 2 4 ΔVO/ΔVLOAD V S − VO DVO eN VS = 5.4 V, 0 mA ≤ IOUT ≤ 30 mA VS = 4.6 V, ILOAD = 10 mA VS = 5.4 V, ILOAD = 30 mA 1000 hours @ 125°C 0.1 Hz to 10 Hz 1.2 40 Initial accuracy includes temperature hysteresis effect. Line and load regulation specifications include the effect of self-heating. Long-term stability specification is noncumulative. The drift in subsequent 1000-hour periods is significantly lower than in the first 1000-hour period. ELECTRICAL CHARACTERISTICS—REF198 @ −40°C ≤ TA ≤ +85°C @ VS = 5.0 V, −40°C ≤ TA ≤ +85°C, unless otherwise noted. Table 21. Parameter TEMPERATURE COEFFICIENT 1, 2 E Grade F Grade G Grade 3 LINE REGULATION 4 E Grade F and G Grades LOAD REGULATION4 E Grade F and G Grades DROPOUT VOLTAGE SLEEP PIN Logic High Input Voltage Logic High Input Current Logic Low Input Voltage Logic Low Input Current SUPPLY CURRENT Sleep Mode 1 2 Mnemonic TCVO/°C Condition IOUT = 0 mA Min Typ 2 5 10 5 10 5 10 Max 5 10 25 10 20 10 20 0.502 1.30 Unit ppm/°C ppm/°C ppm/°C ppm/V ppm/V ppm/mA ppm/mA V V V μA V μA μA μA ΔVO/ΔVIN 4.5 V ≤ VS ≤ 15 V, IOUT = 0 mA ΔVO/ΔVLOAD V S − VO VS = 5.4 V, 0 mA ≤ IOUT ≤ 25 mA VS = 4.6 V, ILOAD = 10 mA VS = 5.4 V, ILOAD = 25 mA 2.4 VH IH VL IL No load No load −8 0.8 −8 45 15 For proper operation, a 1 μF capacitor is required between the output pin and the GND pin of the device. TCVO is defined as the ratio of output change with temperature variation to the specified temperature range expressed in ppm/°C. TCVO = (VMAX − VMIN)/VO(TMAX − TMIN) 3 Guaranteed by characterization. 4 Line and load regulation specifications include the effect of self-heating. Rev. I | Page 13 of 28 REF19x Series ELECTRICAL CHARACTERISTICS—REF198 @ −40°C ≤ TA ≤ +125°C @ VS = 5.0 V, −40°C ≤ TA ≤ +125°C, unless otherwise noted. Table 22. Parameter TEMPERATURE COEFFICIENT 1, 2 E Grade F Grade G Grade 3 LINE REGULATION 4 E Grade F and G Grades LOAD REGULATION4 E Grade F and G Grades DROPOUT VOLTAGE Mnemonic TCVO/°C Condition IOUT = 0 mA Min Typ 2 5 10 5 10 5 10 0.60 1.50 Max Unit ppm/°C ppm/°C ppm/°C ppm/V ppm/V ppm/mA ppm/mA V V ΔVO/ΔVIN 4.5 V ≤ VS ≤ 15 V, IOUT = 0 mA ΔVO/ΔVLOAD V S − VO VS = 5.6 V, 0 mA ≤ IOUT ≤ 20 mA VS = 4.7 V, ILOAD = 10 mA VS = 5.6 V, ILOAD = 20 mA 1 2 For proper operation, a 1 μF capacitor is required between the output pin and the GND pin of the device. TCVO is defined as the ratio of output change with temperature variation to the specified temperature range expressed in ppm/°C. TCVO = (VMAX − VMIN)/VO(TMAX − TMIN) 3 4 Guaranteed by characterization. Line and load regulation specifications include the effect of self-heating. WAFER TEST LIMITS For proper operation, a 1 μF capacitor is required between the output pins and the GND pin of the REF19x. Electrical tests and wafer probe to the limits are shown in Table 23. Due to variations in assembly methods and normal yield loss, yield after packaging is not guaranteed for standard product dice. Consult factory to negotiate specifications based on dice lot qualifications through sample lot assembly and testing. @ ILOAD = 0 mA, TA = 25°C, unless otherwise noted. Table 23. Parameter INITIAL ACCURACY REF191 REF192 REF193 REF194 REF195 REF196 REF198 LINE REGULATION LOAD REGULATION DROPOUT VOLTAGE SLEEP MODE INPUT Logic Input High Logic Input Low SUPPLY CURRENT Sleep Mode Mnemonic VO Condition Limit 2.043/2.053 2.495/2.505 2.990/3.010 4.495/4.505 4.995/5.005 3.290/3.310 4.091/4.101 15 15 1.25 1.55 2.4 0.8 45 15 Unit V V V V V V V ppm/V ppm/mA V V V V μA μA ΔVO/ΔVIN ΔVO/ΔILOAD VO − V+ ( VO + 0.5 V) < VIN < 15 V, IOUT = 0 mA 0 mA < ILOAD < 30 mA, VIN = ( VO + 1.3 V) ILOAD = 10 mA ILOAD = 30 mA VIH VIL VIN = 15 V No load No load Rev. I | Page 14 of 28 REF19x Series ABSOLUTE MAXIMUM RATINGS Table 24. Parameter 1 Supply Voltage Output to GND Output to GND Short-Circuit Duration Storage Temperature Range PDIP, SOIC_N Package Operating Temperature Range REF19x Junction Temperature Range PDIP, SOIC_N Package Lead Temperature Range (Soldering 60 sec) 1 Rating −0.3 V, +18 V −0.3 V, VS + 0.3 V Indefinite −65°C to +150°C −40°C to +85°C −65°C to +150°C 300°C THERMAL RESISTANCE θJA is specified for the worst-case conditions, that is, a device soldered in a circuit board for surface-mount packages. Table 25. Thermal Resistance Package Type 8-Lead PDIP 8-Lead SOIC_N 1 θJA 1 103 158 θJC 43 43 Unit °C/W °C/W θJA is specified for worst-case conditions; that is, θJA is specified for the device in socket for PDIP and is specified for the device soldered in the circuit board for the SOIC package. Absolute maximum ratings apply to both DICE and packaged parts, unless otherwise noted. ESD CAUTION Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. Rev. I | Page 15 of 28 REF19x Series TYPICAL PERFORMANCE CHARACTERISTICS 5.004 5.003 5.002 PERCENTAGE OF PARTS 00371-003 3 TYPICAL PARTS 5.15V < VIN < 15V 50 BASED ON 600 45 UNITS, 4 RUNS –40°C ≤ TA ≤ +85°C 40 35 30 25 20 15 10 5 OUTPUT VOLTAGE (V) 5.001 5.000 4.999 4.998 4.997 4.996 –50 –25 0 25 50 TEMPERATURE (°C) 75 100 15 10 5 0 5 TC—VOUT (ppm/°C) 10 15 20 Figure 3. REF195 Output Voltage vs. Temperature 32 28 Figure 6. TC—VOUT Distribution 40 35 NORMAL MODE 30 5.15V ≤ VS ≤ 15V LOAD REGULATION (ppm/V) 24 20 16 +25°C 12 8 4 0 +85°C –40°C SUPPLY CURRENT (µA) 25 20 15 10 5 SLEEP MODE 00371-007 00371-008 00371-004 0 5 10 15 ILOAD (mA) 20 25 30 0 –50 –25 0 25 50 TEMPERATURE (°C) 75 100 Figure 4. REF195 Load Regulator vs. ILOAD 20 Figure 7. Supply Current vs. Temperature –6 0mA ≤ IOUT ≤ 25mA +85°C 16 –5 SLEEP PIN CURRENT (µA) LINE REGULATION (ppm/mA) +25°C 12 –40°C 8 –4 –3 –2 VL –1 VH 4 00371-005 0 4 6 8 10 VIN (V) 12 14 16 0 –50 –25 0 25 50 TEMPERATURE (°C) 75 100 Figure 5. REF195 Line Regulator vs. VIN Figure 8. SLEEP Pin Current vs. Temperature Rev. I | Page 16 of 28 00371-006 0 20 REF19x Series REF19x 0 –20 RIPPLE REJECTION (dB) VIN = 15V 2 6 4 1µF 0 –40 –60 –80 –100 –120 00371-009 Figure 13. Load Transient Response Measurement Circuit 2V 100% 90% 10 100 1k 10k FREQUENCY (Hz) 100k 1M Figure 9. Ripple Rejection vs. Frequency 10µF 1mA LOAD 10% 30mA LOAD REF Figure 10. Ripple Rejection vs. Frequency Measurement Circuit 00371-010 10µF 4 1µF 1kΩ 2V 100µs Figure 14. Power-On Response Time VIN = 7V REF19x 2 4 6 200V VG = 2V p-p 1µF Z VS = 4V 2 REF19x 6 1µF 1µF Figure 15. Power-On Response Time Measurement Circuit ZO (Ω) 4 3 2 1 10 100 1k 10k 100k FREQUENCY (Hz) 1M 10M 00371-011 5V ON 100% OFF 90% 0 Figure 11. Output Impedance vs. Frequency VOUT IL = 10mA IL = 1mA 5V OFF 100% ON 90% 10% 0% 00371-016 1V 2ms Figure 16. SLEEP Response Time VIN = 15V REF19x 2 6 3 4 VOUT 00371-017 10% 0% 20mV 100µs 00371-012 1µF Figure 12. Load Transient Response Figure 17. SLEEP Response Time Measurement Circuit Rev. I | Page 17 of 28 00371-015 VIN = 7V 4 00371-014 VIN = 15V 1kΩ REF19x 2 6 10µF OUTPUT 0% 00371-013 10mA REF19x Series 35 5V 100% 90% 30 25 20 15 10 5 200mV 200µs 00371-018 10% 0% LOAD CURRENT (mA) 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 REF195 DROPOUT VOLTAGE (V) 0.8 0.9 Figure 18. Line Transient Response Figure 19. Load Current vs. Dropout Voltage Rev. I | Page 18 of 28 00371-019 0 REF19x Series APPLICATIONS OUTPUT SHORT-CIRCUIT BEHAVIOR The REF19x family of devices is completely protected from damage due to accidental output shorts to GND or to V+. In the event of an accidental short-circuit condition, the reference device shuts down and limits its supply current to 40 mA. V+ SLEEP MODE OPERATION All REF19x devices include a sleep capability that is TTL/CMOS-level compatible. Internally, a pull-up current source to VIN is connected at the SLEEP pin. This permits the SLEEP pin to be driven from an open collector/drain driver. A logic low or a 0 V condition on the SLEEP pin is required to turn off the output stage. During sleep, the output of the references becomes a high impedance state where its potential would then be determined by external circuitry. If the sleep feature is not used, it is recommended that the SLEEP pin be connected to VIN (Pin 2). VOUT SLEEP (SHUTDOWN) BASIC VOLTAGE REFERENCE CONNECTIONS The circuit in Figure 21 illustrates the basic configuration for the REF19x family of references. Note the 10 μF/0.1 μF bypass network on the input and the 1 μF/0.1 μF bypass network on the output. It is recommended that no connections be made to Pin 1, Pin 5, Pin 7, and Pin 8. If the sleep feature is not required, Pin 3 should be connected to VIN. REF19x NC 1 VIN 2 8 7 6 5 GND Figure 20. Simplified Schematic DEVICE POWER DISSIPATION CONSIDERATIONS The REF19x family of references is capable of delivering load currents to 30 mA with an input voltage that ranges from 3.3 V to 5 V. When these devices are used in applications with large input voltages, exercise care to avoid exceeding the maximum internal power dissipation of these devices. Exceeding the published specifications for maximum power dissipation or junction temperature can result in premature device failure. The following formula should be used to calculate a device’s maximum junction temperature or dissipation: 00371-020 NC NC OUTPUT 00371-021 10µF 0.1µF SLEEP 3 4 NC + 1µF TANT 0.1µF NC = NO CONNECT Figure 21. Basic Voltage Reference Configuration MEMBRANE SWITCH-CONTROLLED POWER SUPPLY With output load currents in the tens of mA, the REF19x family of references can operate as a low dropout power supply in hand-held instrument applications. In the circuit shown in Figure 22, a membrane on/off switch is used to control the operation of the reference. During an initial power-on condition, the SLEEP pin is held to GND by the 10 kΩ resistor. Recall that this condition (read: three-state) disables the REF19x output. When the membrane on switch is pressed, the SLEEP pin is momentarily pulled to VIN, enabling the REF19x output. At this point, current through the 10 kΩ resistor is reduced, and the internal current source connected to the SLEEP pin takes control. Pin 3 assumes and remains at the same potential as VIN. When the membrane off switch is pressed, the SLEEP pin is momentarily connected to GND, which once again disables the REF19x output. PD = TJ − TA θ JA In this equation, TJ and TA are the junction and ambient temperatures, respectively; PD is the device power dissipation; and θJA is the device package thermal resistance. OUTPUT VOLTAGE BYPASSING For stable operation, low dropout voltage regulators and references generally require a bypass capacitor connected from their VOUT pins to their GND pins. Although the REF19x family of references is capable of stable operation with capacitive loads exceeding 100 μF, a 1 μF capacitor is sufficient to guarantee rated performance. The addition of a 0.1 μF ceramic capacitor in parallel with the bypass capacitor improves load current transient performance. For best line voltage transient performance, it is recommended that the voltage inputs of these devices be bypassed with a 10 μF electrolytic capacitor in parallel with a 0.1 μF ceramic capacitor. Rev. I | Page 19 of 28 REF19x Series REF19x NC 1 VIN 1kΩ 5% ON 2 3 4 8 7 6 5 NC NC OUTPUT NC +1µF TANT 10kΩ OFF NC = NO CONNECT 00371-022 The requirement for a heat sink on Q1 depends on the maximum input voltage and short-circuit current. With VS = 5 V and a 300 mA current limit, the worst-case dissipation of Q1 is 1.5 W, less than the TO-220 package 2 W limit. However, if smaller TO-39 or TO-5 packaged devices, such as the 2N4033, are used, the current limit should be reduced to keep maximum dissipation below the package rating. This is accomplished by simply raising R4. A tantalum output capacitor is used at C1 for its low equivalent series resistance (ESR), and the higher value is required for stability. Capacitor C2 provides input bypassing and can be an ordinary electrolytic. Shutdown control of the booster stage is an option, and when used, some cautions are needed. Due to the additional active devices in the VS line to U1, a direct drive to Pin 3 does not work as with an unbuffered REF19x device. To enable shutdown control, the connection from U1 to U2 is broken at the X, and Diode D1 then allows a CMOS control source, VC, to drive U1 to U3 for on/off operation. Startup from shutdown is not as clean under heavy load as it is in basic REF19x series, and can require several milliseconds under load. Nevertheless, it is still effective and can fully control 150 mA loads. When shutdown control is used, heavy capacitive loads should be minimized. Figure 22. Membrane Switch-Controlled Power Supply CURRENT-BOOSTED REFERENCES WITH CURRENT LIMITING While the 30 mA rated output current of the REF19x series is higher than is typical of other reference ICs, it can be boosted to higher levels, if desired, with the addition of a simple external PNP transistor, as shown in Figure 23. Full-time current limiting is used to protect the pass transistor against shorts. +VS = 6V TO 9V (SEE TEXT) Q2 2N3906 + 2 R4 2Ω R1 1kΩ Q1 TIP32A (SEE TEXT) OUTPUT TABLE U1 REF192 REF193 REF196 REF194 REF195 VOUT (V) 2.5 3.0 3.3 4.5 5.0 C2 100µF 25V R2 1.5kΩ C3 0.1µF 6 D1 VC 3 1N4148 (SEE TEXT ON SLEEP) (SEE TABLE) 4 REF196 U1 F S +VOUT 3.3V @ 150mA + R1 VOUT COMMON C1 10µF/25V R3 1.82kΩ (TANTALUM) S F NEGATIVE PRECISION REFERENCE WITHOUT PRECISION RESISTORS In many current-output CMOS DAC applications where the output signal voltage must be the same polarity as the reference voltage, it is often necessary to reconfigure a current-switching DAC into a voltage-switching DAC using a 1.25 V reference, an op amp, and a pair of resistors. Using a current-switching DAC directly requires an additional operational amplifier at the output to reinvert the signal. A negative voltage reference is then desirable, because an additional operational amplifier is not required for either reinversion (current-switching mode) or amplification (voltage-switching mode) of the DAC output voltage. In general, any positive voltage reference can be converted into a negative voltage reference using an operational amplifier and a pair of matched resistors in an inverting configuration. The disadvantage to this approach is that the largest single source of error in the circuit is the relative matching of the resistors used. The circuit illustrated in Figure 24 avoids the need for tightly matched resistors by using an active integrator circuit. In this circuit, the output of the voltage reference provides the input drive for the integrator. To maintain circuit equilibrium, the integrator adjusts its output to establish the proper relationship between the reference’s VOUT and GND. Thus, any desired negative output voltage can be selected by substituting for the appropriate reference IC. The sleep feature is maintained in the circuit with the simple addition of a PNP transistor and a 10 kΩ resistor. VS COMMON Figure 23. Boosted 3.3 V Referenced with Current Limiting In this circuit, the power supply current of reference U1 flowing through R1 to R2 develops a base drive for Q1, whose collector provides the bulk of the output current. With a typical gain of 100 in Q1 for 100 mA to 200 mA loads, U1 is never required to furnish more than a few mA, so this factor minimizes temperature-related drift. Short-circuit protection is provided by Q2, which clamps the drive to Q1 at about 300 mA of load current, with values as shown in Figure 23. With this separation of control and power functions, dc stability is optimum, allowing most advantageous use of premium grade REF19x devices for U1. Of course, load management should still be exercised. A short, heavy, low dc resistance (DCR) conductor should be used from U1 to U6 to the VOUT Sense Point S, where the collector of Q1 connects to the load, Point F. Because of the current limiting configuration, the dropout voltage circuit is raised about 1.1 V over that of the REF19x devices, due to the VBE of Q1 and the drop across Current Sense Resistor R4. However, overall dropout is typically still low enough to allow operation of a 5 V to 3.3 V regulator/reference using the REF196 for U1 as noted, with a VS as low as 4.5 V and a load current of 150 mA. Rev. I | Page 20 of 28 00371-023 REF19x Series One caveat to this approach is that although rail-to-rail output amplifiers work best in the application, these operational amplifiers require a finite amount (mV) of headroom when required to provide any load current. The choice for the circuit’s negative supply should take this issue into account. VIN 10kΩ SLEEP TTL/CMOS 2N3906 2 VIN 3 SLEEP VOUT 6 1kΩ +5V 1µF 1µF REF19x GND 4 A1 –5V 100Ω –VREF While this concept is simple, some cautions are needed. Since the lower reference circuit must sink a small bias current from U2 (50 μA to 100 μA), plus the base current from the series PNP output transistor in U2, either the external load of U1 or R1 must provide a path for this current. If the U1 minimum load is not well defined, Resistor R1 should be used, set to a value that conservatively passes 600 μA of current with the applicable VOUT1 across it. Note that the two U1 and U2 reference circuits are locally treated as macrocells, each having its own bypasses at input and output for best stability. Both U1 and U2 in this circuit can source dc currents up to their full rating. The minimum input voltage, VS, is determined by the sum of the outputs, VOUT2, plus the dropout voltage of U2. A related variation on stacking two 3-terminal references is shown in Figure 26, where U1, a REF192, is stacked with a 2-terminal reference diode, such as the AD589. Like the 3-terminal stacked reference above, this circuit provides two outputs, VOUT1 and VOUT2, which are the individual terminal voltages of D1 and U1, respectively. Here this is 1.235 V and 2.5 V, which provides a VOUT2 of 3.735 V. When using 2-terminal reference diodes, such as D1, the rated minimum and maximum device currents must be observed, and the maximum load current from VOUT1 can be no greater than the current setup by R1 and VO (U1). When VO (U1) is equal to 2.5 V, R1 provides a 500 μA bias to D1, so the maximum load current available at VOUT1 is 450 μA or less. +VS VS > VOUT2 + 0.15V 10kΩ 100kΩ 00371-024 A1 = 1/2 OP295, 1/2 OP291 Figure 24. Negative Precision Voltage Reference Uses No Precision Resistors STACKING REFERENCE ICS FOR ARBITRARY OUTPUTS Some applications may require two reference voltage sources that are a combined sum of standard outputs. The circuit shown in Figure 25 shows how this stacked output reference can be implemented. OUTPUT TABLE U1/U2 +VS VS > VOUT2 + 0.15V 2 VOUT1 (V) VOUT2 (V) 5.0 7.0 7.5 REF192/REF192 2.5 REF192/REF194 2.5 REF192/REF195 2.5 U2 C1 0.1µF 3 (SEE TABLE) 4 REF19x 6 +VOUT2 VO (U2) + C2 1µF 2 C1 0.1µF 3 REF192 4 U1 6 VO (U1) + C2 1µF R1 4.99kΩ (SEE TEXT) +VOUT2 3.735V 2 C3 0.1µF VIN COMMON 3 (SEE TABLE) 4 REF19x U1 6 (SEE TEXT) VOUT COMMON 00371-025 VOUT COMMON Figure 26. Stacking Voltage References with the REF192 Figure 25. Stacking Voltage References with the REF19x PRECISION CURRENT SOURCE In low power applications, the need often arises for a precision current source that can operate on low supply voltages. As shown in Figure 27, any one of the devices in the REF19x family of references can be configured as a precision current source. The circuit configuration illustrated is a floating current source with a grounded load. The output voltage of the reference is bootstrapped across RSET, which sets the output current into the load. With this configuration, circuit precision is maintained for load currents in the range from the reference’s supply current (typically 30 μA) to approximately 30 mA. The low dropout voltage of these devices maximizes the current source’s output voltage compliance without excess headroom. Two reference ICs are used, fed from a common unregulated input, VS. The outputs of the individual ICs are connected in series, as shown in Figure 25, which provide two output voltages, VOUT1 and VOUT2. VOUT1 is the terminal voltage of U1, while VOUT2 is the sum of this voltage and the terminal voltage of U2. U1 and U2 are chosen for the two voltages that supply the required outputs (see Output Table in Figure 25). If, for example, both U1 and U2 are REF192s, the two outputs are 2.5 V and 5.0 V. Rev. I | Page 21 of 28 00371-026 VO (U1) + C4 1µF R1 3.9kΩ +VOUT1 VIN COMMON D1 AD589 VO (D1) + C3 1µF +VOUT1 1.235V REF19x Series VIN OUTPUT TABLE U1/U2 VC* VOUT (V) 5.0 3.3 4.5 5.0 2 REF195/ HI REF196 LO +VS = 6V 2 VIN REF19x 3 SLEEP REF194/ HI REF195 LO U1 VREF 6 GND 4 *CMOS LOGIC LEVELS 6 1µF ISY ADJUST R1 RSET P1 IOUT RL VC 1 2 3 4 3 U3A U3B 74HC04 74HC04 (SEE TABLE) 4 REF19x VIN ≥ IOUT × RL (MAX) + VSY (MIN) IOUT = VOUT RSET VOUT RSET + ISY (REF19x) >> ISY +VOUT 2 3 00371-027 E.G., REF195: VOUT = 5V IOUT = 5mA R1 = 953Ω P1 = 100Ω, 10-TURN (SEE TABLE) REF19x 4 U2 6 + C2 1µF C1 0.1µF VIN COMMON Figure 27. A Low Dropout, Precision Current Source VOUT COMMON The governing equations for the circuit are VIN = IOUT × RL ( Max ) + VSY (Min, REF 19x ) I OUT = VOUT + I SY (REF 19x ) RSET Figure 28. Switched Output Reference VOUT 〉〉 I SY (REF 19x ) RSET SWITCHED OUTPUT 5 V/3.3 V REFERENCE Applications often require digital control of reference voltages, selecting between one stable voltage and a second. With the sleep feature inherent to the REF19x series, switched output reference configurations are easily implemented with little additional hardware. The circuit in Figure 28 illustrates the general technique, which takes advantage of the output wire-OR capability of the REF19x device family. When off, a REF19x device is effectively an open circuit at the output node with respect to the power supply. When on, a REF19x device can source current up to its current rating, but sink only a few μA (essentially, just the relatively low current of the internal output scaling divider). Consequently, when two devices are wired together at their common outputs, the output voltage is the same as the output voltage for the on device. The off state device draws a small standby current of 15 μA (max), but otherwise does not interfere with operation of the on device, which can operate to its full current rating. Note that the two devices in the circuit conveniently share both input and output capacitors, and with CMOS logic drive, it is power efficient. Using dissimilar REF19x series devices with this configuration allows logic selection between the U1/U2-specified terminal voltages. For example, with U1 (a REF195) and U2 (a REF196), as noted in the table in Figure 28, changing the CMOScompatible VC logic control voltage from HI to LO selects between a nominal output of 5 V and 3.3 V, and vice versa. Other REF19x family units can also be used for U1/U2, with similar operation in a logic sense, but with outputs as per the individual paired devices (see the table in Figure 28). Of course, the exact output voltage tolerance, drift, and overall quality of the reference voltage is consistent with the grade of individual U1 and U2 devices. Due to the nature of the wire-OR, one application caveat should be understood about this circuit. Since U1 and U2 can only source current effectively, negative going output voltage changes, which require the sinking of current, necessarily takes longer than positive going changes. In practice, this means that the circuit is quite fast when undergoing a transition from 3.3 V to 5 V, but the transition from 5 V to 3.3 V takes longer. Exactly how much longer is a function of the load resistance, RL, seen at the output and the typical 1 μF value of C2. In general, a conservative transition time is approximately several milliseconds for load resistances in the range of 100 Ω to 1 kΩ. Note that for highest accuracy at the new output voltage, several time constants should be allowed (>7.6 time constants for
