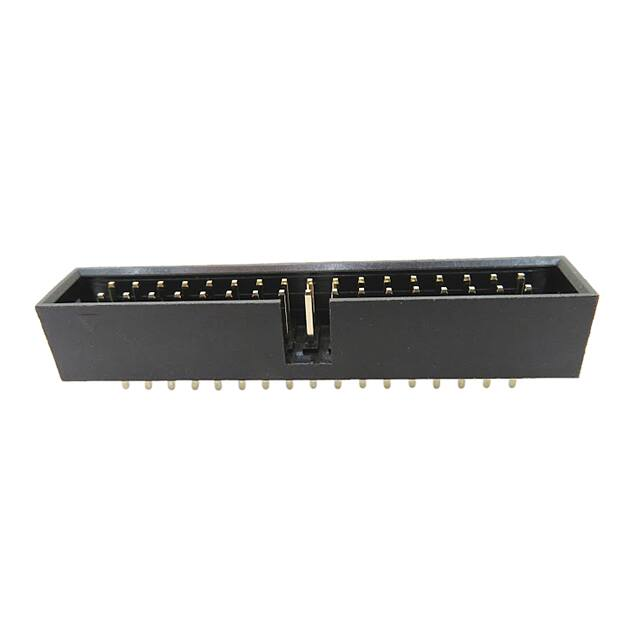

BHR-34-VUA

.100" BOX HEADERS Adam Technologies, Inc. A B C .100" X .100" [2.54 X 2.54] CENTERLINE BHR SERIES BHR STRAIGHT PCB MOUNT .025 [0.64] SQ. .177 [4.50] .346 [8.80] BHR-34-VUA .358 [9.10] .346 [8.80] C .130 [3.30] .100 [2.54] A = .100 [2.54] X No. of Positions /2 + .300 [7.62] B = .100 [2.54] X No. of Positions /2 + .200 [5.08] C = .100 [2.54] X No. of Spaces .100 [2.54] .100 [2.54] ø.040 [1.02] .100 [2.54] A B C BHR RIGHT ANGLE PCB MOUNT .025 [0.64] SQ. .356 [9.05] .346 [8.80] .177 [4.50] .358 [9.10] .346 [8.80] BHR-34-HUA .072 [1.84] C .100 [2.54] .100 [2.54] .100 [2.54] A = .100 [2.54] X No. of Positions /2 + .300 [7.62] B = .100 [2.54] X No. of Positions /2 + .200 [5.08] C = .100 [2.54] X No. of Spaces .134 [3.40] .100 [2.54] ø.040 [1.02] BHR A B C SURFACE MOUNT .025 [0.64] SQ. .177 [4.50] .346 [8.80] BHR-30-VSG-SMT C .413 [10.50] .346 [8.80] .413 [10.50] .100 [2.54] .100 [2.54] A = .100 [2.54] X No. of Positions /2 + .300 [7.62] B = .100 [2.54] X No. of Positions /2 + .200 [5.08] C = .100 [2.54] X No. of Spaces .374 [9.50] .060 [1.50] .039 [1.00] 258 909 Rahway Avenue • Union, New Jersey 07083 • T: 908-687-5000 • F: 908-687-5710 • WWW.ADAM-TECH.COM
