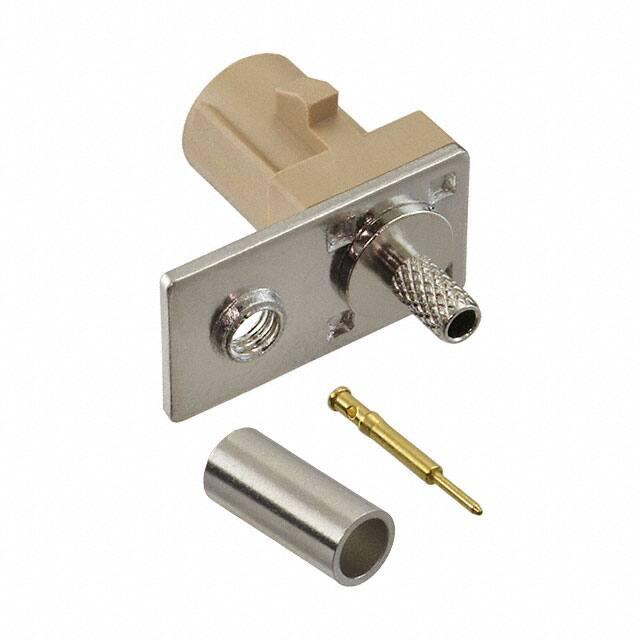

RF55-27I-T-02-50-A-SH

QRG Quick Reference Guide    FAKRA      Jan 2019 Specifications Electrical Data Mechanical Data Environmental Data Frequency Range DC‐4GHz Coupling Method Snap‐On Temperature Range ‐40°C～＋85°C Impedance 50Ω Durability ≧50 Cycles Salt Fog >48H Working Voltage 335V Shell Retention >110N Storage Temperature: ‐10°C～+35°C Storage Conditions Insulation Resistance 1000MΩ Medium Pressure 1000V Center contact Resistance  ≤ 6mΩ Plastic Housing Outer contact Resistance ≤ 1mΩ Insulators Engagement force Relative humidity: No more than 80% ≤ 25N Material Data Female Center Gold Plated Beryllium Copper PA Male Center Gold Plated Brass PTFE Body/Metal Parts Nickel Plated Brass Adam Tech Part Number Code A B C D E F G JACK ADAMTECH P/N RF55‐XXA RF55‐XXB RF55‐XXC RF55‐XXD RF55‐XXE RF55‐XXF RF55‐XXG PLUG ADAMTECH P/N RF55‐XXA RF55‐XXB RF55‐XXC RF55‐XXD RF55‐XXE RF55‐XXF RF55‐XXG Color similar to RAL no. Possible applications Black/9005 Radio without phantom supply White/9001 Radio without phantom supply Blue/5005 GPS Bordeaux/4004 GSM Cellular phone Green/6002 TV1 Brown/8011 TV2 Grey/7031 Remote control keyless entry Code JACK ADAMTECH P/N PLUG ADAMTECH P/N H RF55‐XXH RF55‐XXH I RF55‐XXI RF55‐XXI K RF55‐XXK RF55‐XXK L RF55‐XXL RF55‐XXL M RF55‐XXM RF55‐XXM N RF55‐XXN RF55‐XXN Z RF55‐XXZ RF55‐XXZ Color similar to RAL no. Possible applications Violet/4003 GPS: telematics and navigation Beige/1001 Radio controlled parking heating Curry/1027 Radio with IF Carmine Red/3002 Not defined Pastel Orange/2003 Not defined Pastel Green/6019 Not defined Waterblue/5021 Neutral coding
