PDB-C145

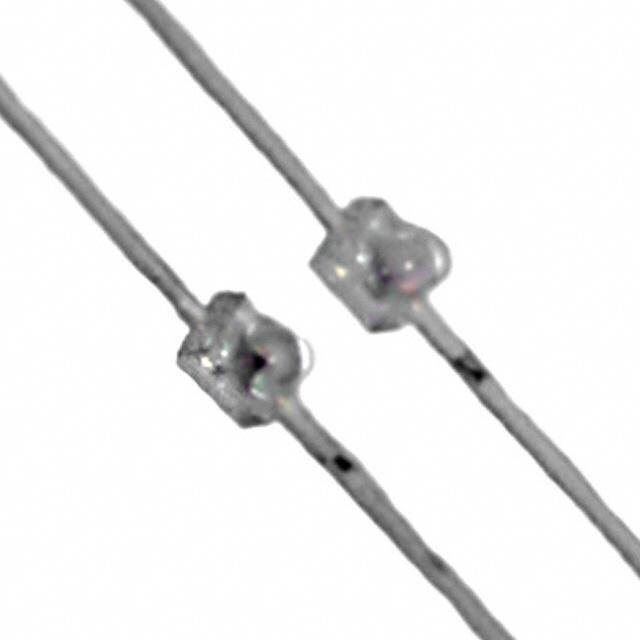

Plastic Photodiode Packages with Leads PDB-C145 PACKAGE DIMENSIONS INCH [mm] PACKAGE DIMENSIONS INCH [mm] .098 [2.49] ANODE MARK .043 [1.09] 2X .354 [9.0] MIN .020 [0.51] .016 [0.41] Ø.067 [1.70] 48° VIEWING ANGLE R.034 [0.40] CATHODE .008 [0.20] 2X .006 [0.15] .055 [1.40] .096 [2.45] CHIP DIMENSIONS INCH [mm] CHIP DIMENSIONS INCH [mm] .024 [0.61] SQUARE .026 [0.67] .079 [2.00] LENSED MICRO PLASTIC PACKAGE .017 [0.43] SQUARE ACTIVE AREA LENSED MICRO PLASTIC PACKAGE FEATURES • • • • Micro package Photoconductive Low cost High speed DESCRIPTION The PDB-C145 is a blue enhanced PIN silicon photodiode in a photoconductive mode packaged in a water clear lensed micro plastic package. APPLICATIONS • Smoke detectors • Data links • Scanners ABSOLUTE MAXIMUM RATING (TA)= 23°C UNLESS OTHERWISE NOTED Responsivity (A/W) SPECTRAL RESPONSE 0.60 0.50 0.40 0.30 0.20 0.10 0.00 250 300 350 400 450 500 550 600 650 700 750 800 850 900 950 1000 1050 1100 Wavelength (nm) 1150 SYMBOL VBR TSTG TO TS PARAMETER Reverse Voltage Storage Temperature Operating Temperature Soldering Temperature* MIN -40 -40 MAX 50 +100 +80 +260 UNITS V °C °C °C * 1/16 inch from case for 3 seconds max. ELECTRO-OPTICAL CHARACTERISTICS RATING (TA)= 23°C UNLESS OTHERWISE NOTED SYMBOL ISC ID RSH CJ lrange VBR NEP tr CHARACTERISTIC Short Circuit Current Dark Current Shunt Resistance Junction Capacitance Spectral Application Range Breakdown Voltage Noise Equivalent Power Response Time TEST CONDITIONS H = 100 fc, 2850 K VR = 10 V VR = 10 mV VR = 10 V, f = 1 MHz Spot Scan I = 10 μA VR = 10V @ l=Peak RL = 1KΩ,VR = 10 V MIN 8 100 400 30 TYP 10 2 500 5 100 4x10-15 6 MAX 30 15 1100 UNITS μA nA MW pF nm V W/ √ Hz nS 10 **Response time of 10% to 90% is specified at 660nm wavelength light. Information in this technical datasheet is believed to be correct and reliable. However, no responsibility is assumed for possible inaccuracies or omission. Specifications are subject to change without notice. Advanced Photonix Inc. 1240 Avenida Acaso, Camarillo CA 93012 • Phone (805) 987-0146 • Fax (805) 484-9935 • www.advancedphotonix.com
