LED Driver and PMIC for DLP/LCOS Pico Projectors
Rev V2
Features
Applications
• Three programmable 1.2A common anode LED/laser drivers with
integrated buck-boost converter and PWM current control
• Portable video projector systems
• 1.8 V and 1.0/1.1/1.2/1.8 V Buck converters capable of 300 mA current
loads
• 2.5 V (30 mA) and 3.3 V (150 mA) LDO regulators
• Accurate DMD supply generators (+16 V/8.5 V and -10 V)
• Monitor and fault protection features
• I2C interface
The M09000 is a highly integrated, high efficiency driver and power management IC designed for embedded DLP
pico projectors. It provides three programmable LED/laser drivers with integrated buck-boost converter, power
management functionalities, including high voltage generators for DMD. All of these functions are supported while
operating from a single Li-Ion cell.
Block Diagram
(opt)
(opt)
LBOOSTP V18
L2
Vxbuck1
Lbuck1
1.0/1.1/1.2V
Buck
control
VHIGH
(16V)
VMID
(8.5V)
8.5V
HV
LDO
1.5k
(opt)
16V
HV
LDO
LBOOSTN
C=1μF
D1
L3
C=1μF
D2
VNEG
(-10V)
L1
LI
Buck-boost
control
SIMO
control
L4
LO
PVOUT
Temp
sensor
PVDD1
Lbuck2
PVDD
1.8V
Buck
control
M09000
10bit
A/D
POR
Vxbuck2
VLDO2
3.3V LDO
VLDO1
2.5V LDO
References
Internal
oscillator
PVDD2
I2C
Control
registers
EMU_RST
PWM/I2_ON
SEL0/I0_ON
LED
Alarm
LED
driver
OUT2
IOUT2[9:0]
LED
driver
OUT1
IOUT1[9:0]
LED
driver
OUT0
SEL1/I1_ON
IOUT0[9:0]
MP_EN
FAIL
SDA SCL
1
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit www.macom.com for additional data sheets and product information.
For further information and support please visit:
http://www.macom.com/support
M09000-14
LED Driver and PMIC for DLP/LCOS Pico Projectors
Rev V2
Ordering Information
Part Number
Package
Case Operating Temperature
M09000-14

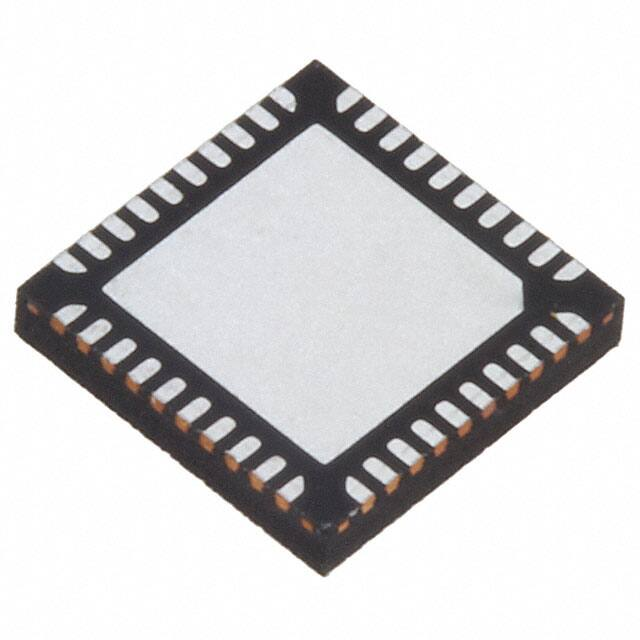

5x5 mm 40-pin QFN

-40 °C to +85 °C
* The letter “G” designator after the part number indicates that the device is RoHS compliant.
Revision History
Revision
Level
Date
V2
Release
July 2015
D (V1)
Release
December 2012
Description
Updated registers.
Silicon updated to version -14.
Changed typical LED Driver current accuracy in Table 1-3.
Changed typical Undervoltage Lockout in Table 1-4.
Changed ADC Offset Error, Slope Error and Full Scale in Table 1-5.
Changed LDO operating voltage in Table 1-7 and Table 1-8.
Changed Vih specification in Table 1-11.
C (V1P)
Preliminary
July 2012
B (V2A)
Advance
March 2012
Updated register section.
Changed the Operating Voltage from a minimum of 3.15 to 2.6 and a maximum of 4.3 to
5.25. This change is reflected in Table 1-2, Table 1-7, Table 1-8 and Table 1-9.
Changed Pin 11 from GND to PVDDM (VDD Supply). This is reflected in Figure 2-1 and
Table 2-1.
A (V1A)
Advance
February 2012
Initial release.
2
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit www.macom.com for additional data sheets and product information.
For further information and support please visit:
http://www.macom.com/support
M09000-14
LED Driver and PMIC for DLP/LCOS Pico Projectors
Rev V2
Application Drawing
3
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit www.macom.com for additional data sheets and product information.
For further information and support please visit:
http://www.macom.com/support
M09000-14
LED Driver and PMIC for DLP/LCOS Pico Projectors
Rev V2
Table of Contents
Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Revision History. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.0
Electrical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.1
Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
1.2
Operating Conditions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
1.3
LED Driver Characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
1.4
Buck-Boost DC-DC Converter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
1.5
Monitor ADC Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
1.6
DMD Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
1.7
3.3 V LDO Regulator (VLDO2). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
1.8
2.5 V LDO Regulator (VLDO1). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
1.9
Buck Regulators (VXBUCK1/2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
1.10 Internal Temperature Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
1.11 CMOS Pin Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
1.12 I2C Timing Specifications1,2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
2.0
3.0
Pin Descriptions and Package Outline Drawings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
2.1
Pin Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
2.2
Package Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Functional Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
3.1
User Configurable Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
3.2
LED Drivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
3.3
Buck-boost Converter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
3.4
PMIC Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
3.5
DMD Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
3.6
3.5.1
LCOS Applications - Other Uses for the DMD Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Low Dropout Regulators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
3.7
Buck Regulators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
3.8
Monitor ADC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
3.9
FAIL Pin. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
4
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit www.macom.com for additional data sheets and product information.
For further information and support please visit:
http://www.macom.com/support
M09000-14
LED Driver and PMIC for DLP/LCOS Pico Projectors
Rev V2
3.10 Overtemperature and Thermal Shutdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
3.11 Programmable Serial Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
3.12 OTP Programming. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
3.13 State Diagram and Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
3.14 Component Selection and PCB Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
4.0
Control Registers Map and Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
4.1
User Configurable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
4.2
Status / Readback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50
5
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit www.macom.com for additional data sheets and product information.
For further information and support please visit:
http://www.macom.com/support
M09000-14
LED Driver and PMIC for DLP/LCOS Pico Projectors
Rev V2
1.0 Electrical Characteristics
1.1
Absolute Maximum Ratings
Table 1-1.
Absolute Maximum Ratings
Symbol
Parameter
Notes
Minimum
Typical
Maximum
Units
PVDDX
3.7 V supplies
—
-0.4
—
+5.5
V
PVOUT
Buck-boost DC-DC converter output
—
-0.4
—
+5.5
V
Output pins for driving LED
—
-0.4
—
+5.5
V
LI, LO
External inductor pins for DC-DC converter
—
-0.4
—
+5.5
V
TJCTN
Junction Temperature
1
- 40
—
+125
°C
TSTG
Storage Temperature
—
- 65
—
+150
°C
V18, VHIGH, VMID
Positive DMD outputs
—
-0.4
—
+19.8
V
VNEG
Negative DMD output
—
-12.0
—
+0.4
V
LBOOSTP
Positive side of inductor for DMD
—
-0.4
—
+19.8
V
LBOOSTN
Negative side of inductor for DMD
—
-12
—
+5.5
V
Inductor pins for buck converters 1 & 2
—
-0.4
—
+5.5
V
VXBUCK1
Output of buck converter 1
—
-0.4
—
+5.5
V
VXBUCK2
Output of buck converter 2
—
-0.4
—
+2.0
V
VLDO1, VLDO2
LDO regulator output 1 & 2
—
-0.4
—
+5.5
V
2
I C interface
—
-0.4
—
+5.0
V
Fault signal output and EMU reset pins
—
-0.4
—
+5.5
V
Strobe input and PWM input pins
—
-0.4
—
+5.5
V
Enable pin
—
-0.4
—
+5.5
V
IOUT0, IOUT1, IOUT2
LBUCK1, LBUCK2
SCL, SDA
FAIL, EMU_RST
PWM, SEL0, SEL1
MP_EN
NOTES:
1.
θJC = 16.4 °C/W.
6
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit www.macom.com for additional data sheets and product information.
For further information and support please visit:
http://www.macom.com/support
M09000-14
LED Driver and PMIC for DLP/LCOS Pico Projectors
1.2
Rev V2
Operating Conditions
Typical values: Ta=25 °C, PVDDX=3.7 V.
Table 1-2.
Operating Conditions
Parameter
Notes
Minimum
Typical
Maximum
Units
PVDDD, PVDD1, PVDDM
1
2.7
3.7
5.25
V
Disable current (EN=L)
—
—
1
25
µA
Active current (EN=H)
2
—
2
—
mA
NOTES:
1.
All features will be functional down to 3.15 V.
2.
No current drawn by high voltage supplies, buck regulators, LDOs or LEDs. Exclude power dissipation of I2C.
1.3
LED Driver Characteristics
Typical values: Ta=25 °C, PVDDX=3.7 V.
Min and Max values: TCASE = -40 °C to +85 °C, PVDDX = 2.7 V to 5.25 V.
Table 1-3.
LED Driver Characteristics
Parameter
Notes
Minimum
Typical
Maximum
Units
Output current
1
—
—
1.2
A
Current accuracy
2
—
+/-3.6
—
%
Current step
3
—
1073
—
µA
Current turn-on time
4
—
30
40
µs
Current ripple
—
-2
—
2
%
Current overshoot
—
—
—
10
%
Driver impedance
5
—
100
—
mΩ
PWM input frequency
—
4.5
12.5
20
kHz
PWM resolution
—
—
—
8
bits
PWM time out
6
140
200
540
µs
NOTES:
1.
At PVDDD=3.3 V. 1A for PVDDD=3.15 V. Limited by buck boost converter.
2.
Part to part variation measured at room temperature @ 300 mA.
3.
Scale DAC set to maximum scale (3Fh).
4.
PVOUT transitioning from 2.5 V to 3.5 V, IOUT=1A, 10-90%. Limited by DC-DC converter slewing.
5.
Iout=500 mA. Impedance can be lowered at the expense of accuracy.
6.
Time out is 2Tck+40 µs.
7
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit www.macom.com for additional data sheets and product information.
For further information and support please visit:
http://www.macom.com/support
M09000-14
LED Driver and PMIC for DLP/LCOS Pico Projectors
1.4
Rev V2
Buck-Boost DC-DC Converter
Typical values: Ta=25 °C, PVDDX=3.7 V.
Min and Max values: TCASE = -40 °C to +85 °C, PVDDX = 2.7 V to 5.25 V.
Table 1-4.
Buck-Boost DC-DC Converter
Parameter
Notes
Minimum
Typical
Maximum
Units
Output voltage
1
2
—
4.6
V
Overvoltage protection
2
—
5.2
—
V
Input under voltage lock-out
—
—
3.14
—
V
Current limiter range
3
0.2
—
6.4
A
Current limiter accuracy
4
-25
—
+25
%
Soft start time
—
—
1
—
msec
Notes
Minimum
Typical
Maximum
Units
Resolution
—
—
—
10
bits
Full scale input
—
4.9
5.27
5.6
V
Step size
—
—
5.17
—
mV
Offset error
—
—
29
—
mV
Conversion rate
1
—
4
—
ksps
NOTES:
1.
PVDDD=3.15 V, Iout=1.2A. Output under voltage alarm set at 1.5 V.
2.
Programmable 4.6 V, 4.8 V, 5.0 V (default), 5.2 V.
3.
Programmable.
4.
Valid in the range of 1 A to 6.4 A.
1.5
Monitor ADC Specifications
Typical values: Ta=25 °C, PVDDX=3.7 V.
Min and Max values: TCASE = -40 °C to +85 °C, PVDDX = 2.7 V to 5.25 V.
Table 1-5.
Monitor ADC Specifications
Parameter
NOTES:
1.
ADC is interleaved between temp sensor, VBAT and PVOUT in this order conversion initiated by SELX change: will require 750 μsec to complete all 3
conversion
8
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit www.macom.com for additional data sheets and product information.
For further information and support please visit:
http://www.macom.com/support
M09000-14
LED Driver and PMIC for DLP/LCOS Pico Projectors
1.6
Rev V2
DMD Power
Typical values: Ta=25 °C, PVDDX=3.7 V.
Min and Max values: TCASE = -40 °C to +85 °C, PVDDX = 2.7 V to 5.25 V.
Table 1-6.
DMD Power
Symbol
Parameter
Notes
Minimum
Typical
Maximum
Units
VHIGH
DMD VHIGH voltage (pin 37)
—
15.68
16
16.32
V
IHIGH
Allowable output current to maintain VHIGH regulation and ripple
—
—
—
4
mA
VMID
DMD VMID voltage (pin 36), register 09h[3] = 0b
—
8.33
8.5
8.67
V
DMD VMID voltage (pin 36), register 09h[3] = 1b
1
IMID
Allowable output current to maintain VMID regulation and ripple
—
—
—
3
mA
VNEG
DMD VNEG voltage (pin 39)
—
-10.2
-10
-9.8
V
INEG
Allowable output current to maintain VNEG regulation and ripple
—
—
—
4
mA
IBAT
Typical current draw from battery
2
—
9.5
—
mA
T1
EN=H → EMU_RST=H
3
100
120
240
msec
T2
VMID=H → VHIGH,VNEG start
3
3.2
8
11
msec
T3
VHIGH,VNEG start turn-off → VMID start turn-off
3
8
10
12
msec
T4
VMID start turn-off → EMU_RST=L
3
150
180
300
msec
VHIGH, VMID, VNEG IOUT=4 mA,PVDD=3.7, COUT=1 µF
—
—
—
200
mV
Line regulation
VHIGH, VMID, VNEG
—
—
—
20
mV/V
Load regulation
VHIGH, VMID, VNEG IOUT=0 → 4 mA,PVDD=3.7, COUT=1 µF
—
—
—
15
V/A
Ripple
5
NOTES:
1.
VHIGH and VNEG disabled at register 2Eh[0] =1b and 2Eh[2] =1b.
2.
Current draw for a given load depends on external component selected (inductor ESR and diode leakage).
3.
Programmable through registers 0x0Bh and 0x0Ch.
9
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit www.macom.com for additional data sheets and product information.
For further information and support please visit:
http://www.macom.com/support
M09000-14
LED Driver and PMIC for DLP/LCOS Pico Projectors
1.7
Rev V2
3.3 V LDO Regulator (VLDO2)
Typical values: Ta=25 °C, PVDDX=3.7 V.
Min and Max values: TCASE = -40 °C to +85 °C, PVDDX = 3.7 V to 5.25 V.
Table 1-7.
3.3 V LDO Regulator (VLDO2)
Parameter
Notes
Minimum
Operating voltage
—
3.7
Turn-on time
—
—
LDO mode minimum operating voltage
1
Regulated voltage in LDO mode
Typical
Maximum
Units
5.25
V
—
5
msec
—
3.4
3.6
V
1
3.25
3.3
3.36
V
High side switch resistance PVDD2 < 3.4 V
1
—
—
1
Ω
Current load
—
—
150
mA
Load regulation
—
—
10
30
mV
Line regulation
1
—
—
0.8
%
Notes
Minimum
Typical
Maximum
Units
Operating voltage
—
2.8
3.7
5.25
V
Turn-on time
—
—
—
5
msec
Output voltage
—
2.38
2.5
2.62
V
Current load
—
—
30
mA
Load regulation
—
—
10
30
mV
Line regulation
—
—
—
0.8
%
NOTES:
1.
The maximum VLDO2 voltage will be limited by the battery voltage and the switch resistance.
1.8
2.5 V LDO Regulator (VLDO1)
Typical values: Ta=25 °C, PVDDX=3.7 V.
Min and Max values: TCASE = -40 °C to +85 °C, PVDDX = 2.8 V to 5.25 V.
Table 1-8.
2.5 V LDO Regulator (VLDO1)
Parameter
10
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit www.macom.com for additional data sheets and product information.
For further information and support please visit:
http://www.macom.com/support
M09000-14
LED Driver and PMIC for DLP/LCOS Pico Projectors
1.9
Rev V2
Buck Regulators (VXBUCK1/2)
Typical values: Ta=25 °C, PVDDX=3.7 V.
Min and Max values: TCASE = -40 °C to +85 °C, PVDDX = 2.7 V to 5.25 V.
Table 1-9.
Buck regulators (VXBUCK1/2)
Parameter
Notes
Minimum
Typical
Maximum
Units
Operating voltage
—
2.7
3.7
5.25
V
Turn-on time
—
—
—
5
msec
Output voltage ripple (1.2/1.8 V regulator)
—
—
2
—
%
Output voltage (1.2 V regulator)
—
1.14
1.2
1.26
V
Current load (1.2 V regulator)
—
—
300
mA
Output voltage (1.8 V regulator)
—
1.71
1.89
V
1
—
—
300
mA
Current load (1.8 V regulator)
1.10
1.8
Internal Temperature Sensor
Typical values: Ta=25 °C, PVDDX=3.7 V.
Min and Max values: TCASE = -40 °C to +85 °C, PVDDX = 2.7 V to 5.25 V.
Table 1-10.
Internal Temperature Sensor
Parameter
Notes
Minimum
Typical
Maximum
Units
Range
—
—
-40 to 155
—
°C
Overtemperature alarm with default setting (register programmable at 0x18)
—
113
120
128
°C
Temperature step
—
—
0.45
—
°C
Absolute accuracy
1
—
+/-8
—
°C
NOTES:
1.
After system calibration at room temperature (one point calibration).
11
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit www.macom.com for additional data sheets and product information.
For further information and support please visit:
http://www.macom.com/support
M09000-14
LED Driver and PMIC for DLP/LCOS Pico Projectors
1.11
Rev V2
CMOS Pin Characteristics
Typical values: Ta=25 °C, PVDDX=3.7 V.
Min and Max values: TCASE = -40 °C to +85 °C, PVDDX = 2.7 V to 5.25 V.
Table 1-11.
CMOS Pins Characteristics
Symbol
Notes
Minimum
Typical
Maximum
Units
1
1.65
—
3.63
V
1,2
1.83
—
High level input voltage, for input pins other than SDA and SCL and for
PVDDX < 4.3V
1
1.5
—
High level input voltage, for input pins other than SDA and SCL and for
4.3V < PVDDX < 5.25V
1,2
1.61
—
VIL
Low level input voltage
—
0
—
0.4
V
V0L
Low level output voltage
3
0
—
0.4
V
V0H
High level output voltage
4
—
—
3.63
V
VIH
Parameter
High level input voltage, pins SDA and SCL for PVDDX < 4.3V
High level input voltage, pins SDA and SCL for
4.3V < PVDDX < 5.25V
NOTES:
1.
Digital pins are 3.3 V (+/-10%) tolerant if battery voltage is higher than 3.15 V.
2.
See Figure 1-1 for recommended pull-up configuration for PVDDX >4.3V.
3.
SDA/FAULT, Iout=3 mA
4.
Open drain output.
Figure 1-1.
I2C Pull-up for PVDDX from 4.3V to 5.25V
Host Controller operating
from a 1.8V Supply
M09000
4.3V to 5.25V
Supply
PVDDX (PVDD1 pin 3, PVDD2
pin 7, PVDDD pins 31 and 32)
2.5V (VLDO1 pin 8)
1.8V pin
(optional)
1.8V (VXBUCK1 pin 1)
10kΩ
10kΩ
10kΩ
10kΩ
SCL pin
SCL (pin 18)
SDA pin
SDA (pin 19)
12
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit www.macom.com for additional data sheets and product information.
For further information and support please visit:
http://www.macom.com/support
M09000-14
LED Driver and PMIC for DLP/LCOS Pico Projectors
1.12
Rev V2
I2C Timing Specifications1,2
Typical values: Ta=25 °C, PVDDX=3.7 V.
Min and Max values: TCASE = -40 °C to +85 °C, PVDDX = 2.7 V to 5.25 V.
Table 1-12.
I2C Timing Specifications
Symbol
Minimum
Typical
Maximum
Units
Clock Frequency, SCL_M
—
—
400
kHz
tLOW
Clock Pulse Width Low
160
—
—
ns
tHIGH
Clock Pulse Width High
60
—
—
ns
Clock Low to Data Out Valid
0
—
70
ns
fSCL_MASTER
tAA
Parameter
Notes
tHD,STA
Start Hold Time
160
—
—
ns
tSU,STA
Start Set-up Time
160
—
—
ns
tHD,DAT
Data In Hold Time
0
—
—
ns
tSU,DAT
Data In Set-up Time
10
—
—
ns
—
250
—
kΩ
160
—
—
ns
5
—
—
ns
RPULL-UP
tSU,STO
tDH
Outputs (SDA,FAULT) internal pull-up resistor value to PVDD2
2
Stop Set-up Time
Data Out Hold Time
NOTES:
1.
Guaranteed by design and characterization.
2.
4.7 kΩ should be added externally to the proper termination voltage for PVDDX < 4.3V. See Figure 1-2 for PVDDX > 4.3V.
Figure 1-2.
I2C Timing Diagram
tHIGH
tF
tLOW
SCL
tSU, STA
tR
tLOW
tHD, STA
tHD, DAT
t SU, DAT
tSU, STO
SDA IN
tAA
t DH
t BUF
SDA OUT
13
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit www.macom.com for additional data sheets and product information.
For further information and support please visit:
http://www.macom.com/support
M09000-14
LED Driver and PMIC for DLP/LCOS Pico Projectors
Rev V2
2.0 Pin Descriptions and Package Outline
Drawings
LBOOSTN
VNEG
V18
VHIGH
VMD
LBOOSTP
EMU_RST
PVDD3
PVDDD
PVDDD
40
39
38
37
36
35
34
33
32
31
M09000 Pinout Diagram
VXBUCK1
1
30
LI
LBUCK1
2
29
LI
PVDD1
3
28
LO
LBUCK2
4
27
LO
VXBUCK2
5
26
PVOUT
VLDO2
6
25
PVOUT
PVDD2
7
24
PWM
VLDO1
8
23
SEL0
NC
9
22
SEL1
NC
10
21
MP_EN
11
12
13
14
15
16
17
18
19
20
NC
NC
IOUT2
IOUT1
IOUT0
N/C
SCL
SDA
FAIL
GND
PVDDM
Figure 2-1.
14
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit www.macom.com for additional data sheets and product information.
For further information and support please visit:
http://www.macom.com/support
M09000-14
LED Driver and PMIC for DLP/LCOS Pico Projectors
2.1
Rev V2
Pin Descriptions
Table 2-1.
Pin Descriptions
Pin#
Name
Comment
Type
Description
1
VXBUCK1
A
VX buck converter 1 (1.0/1.1/1.2/1.8 V)
2
LBUCK1
A
Inductor for buck converter 1
3
PVDD1
P
Buck converters VDD
4
LBUCK2
A
Inductor for buck converter 2
5
VXBUCK2
A
VX buck converter 2 (1.8 V)
6
VLDO2
P
LDO regulator output 2 (3.3 V)
7
PVDD2
P
Analog VDD
8
VLDO1
P
LDO regulator output 1 (2.5 V)
9
NC
—
No connect
10
NC
—
No connect
11
PVDDM
P
Auxiliary supply
12
NC
—
No connect
13
NC
—
No connect
14
IOUT2
A
LED Current output 2. Add 100 kΩ to ground at this pin.
15
IOUT1
A
LED Current output 1. Add 100 kΩ to ground at this pin.
16
IOUT0
A
LED Current output 0. Add 100 kΩ to ground at this pin.
17
NC
I
Not connected
18
SCL
CMOS
I
I2C clock
19
SDA
CMOS (PU)/Open collector
I/O
I2C data
20
FAIL
Open collector (PU)
O
Fault signal (active low)
21
MP_EN
CMOS (PD)
I
Enable
22
SEL1
CMOS (PD)
I
Strobe input
23
SEL0
CMOS (PD)
I
Strobe input
24
PWM
CMOS (PD)
I
PWM input (for DLP systems)
25
PVOUT
P
DC-DC converter output (LEDs anode)
26
PVOUT
P
DC-DC converter output (LEDs anode)
27
LO
A
Inductor output (LED driver)
28
LO
A
Inductor output (LED driver)
29
LI
A
Inductor input (LED driver)
30
LI
A
Inductor input (LED driver)
31
PVDDD
P
Driver VDD (3.2-4.2 V)
15
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit www.macom.com for additional data sheets and product information.
For further information and support please visit:
http://www.macom.com/support
M09000-14
LED Driver and PMIC for DLP/LCOS Pico Projectors
Table 2-1.
Rev V2
Pin Descriptions
Pin#
Name
Comment
32
PVDDD
P
Driver VDD (3.2-4.2 V)
33
PVDD3
P
Digital VDD
34
EMU_RST
O
EMU Reset (VHIGH,VMID,VNEG ready)
35
LBOOSTP
A
Positive side of inductor
36
VMID
A
+8.5 V output regulated voltage
37
VHIGH
A
+16 V output regulated voltage
38
V18
A
+18 V intermediate output voltage (from boost)
39
VNEG
A
-10 V output regulated voltage
40
LBOOSTN
A
Negative side of inductor
Open collector
Type
Description
16
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit www.macom.com for additional data sheets and product information.
For further information and support please visit:
http://www.macom.com/support
M09000-14
LED Driver and PMIC for DLP/LCOS Pico Projectors
2.2
Rev V2
Package Information
The M09000 is packaged in a 5x5 mm 40pin QFN package with 0.4 mm pin pitch.
Figure 2-2.
Package Information
17
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit www.macom.com for additional data sheets and product information.
For further information and support please visit:
http://www.macom.com/support
M09000-14
LED Driver and PMIC for DLP/LCOS Pico Projectors
Rev V2
3.0 Functional Description
The M09000 is a highly integrated LED/laser driver and PMIC for projection display applications.
The driver portion consists of three 10-bit LED drivers and a buck-boost converter to generate the voltage
necessary to bias the common anode voltage for the LEDs. The DC-DC converter can operate from a Li-Ion
battery (2.7-4.3 V).
The part is capable of generating the DMD power supplies and includes 2 buck converters: 1.0/1.1/1.2/1.8 V
programmable and 1.8 V, and 2 LDO regulators: 2.5 V and 3.3 V.
Monitor functionality and safety features are integrated as well.
The M09000 can be controlled via the I2C interface.
3.1
User Configurable Registers
The M09000 is controlled by 49 user configurable registers in address locations 0x00 through 0x2E and registers
0x3A and 0x3B. The registers are described in the last section of this data sheet.
At power-up all registers will be set to their default value and the M09000 outputs will be disabled. To make the
M09000 outputs active the MP_EN pin must be pulled high and the registers in Chapter 3 below must have the
appropriate values written to them through the I2C port on the M09000.
Each time the MP_EN pin goes low the registers will be cleared and reset to their default value. When MP_EN is
returned to a high state these registers must be rewritten before the M09000 will be reactivated.
It is not necessary to write all 48 registers. If the default setting of a register is acceptable then it does not need to
be written.
Below is a basic register configuration to enable all the outputs.
Table 3-1.
First Step Basic Register Configuration (all other registers may be left at their default value)
Name
Address
Recommended
Setting
Description
SOFT_RESET
0X30h
00h
After power up and MP_EN=HI, then write AAh (self resetting)
INPUT_CNTL
0x0E
27h
Configure inputs and assign LED outputs
OUTPUT_CNTLx
0x10, 0x11, 0x12
34h
Recommended LED driver configuration.
IOUTx_LSB
0x13[5:0]
IOUTx_MSB
0x14, 0x15, 0x16
00xxxxxxb
xxh
Two least significant bits of output current setting
Eight most significant bits of output current setting.
18
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit www.macom.com for additional data sheets and product information.
For further information and support please visit:
http://www.macom.com/support
M09000-14
LED Driver and PMIC for DLP/LCOS Pico Projectors
Table 3-1.
Rev V2
First Step Basic Register Configuration (all other registers may be left at their default value)
Name
Recommended
Setting
Address
0110b
1001b
1011b
Description
HEADROOM_0,
HEADROOM_1
0x19[3:0], 0x19[7:4], 0x1A[3:0]
BUCKBOOST_USR0
0x1B
3Ah
Buck-Boost disabled. Positive current limit set to 6.0A
BUCKBOOST_USR1
0x1C
98h
Recommended Buck-Boost converter configuration. Negative current limit
set to 6.0A
BUCKBOOST_USR2
0x1D
5Fh
Recommended Buck-Boost converter configuration.
BUCKBOOST_USR3
0x1E
30h
Recommended Buck-Boost converter configuration.
BUCKBOOST_USR4
0x1F
F0h
Recommended Buck-Boost converter configuration.
HEADROOM_CTRL0
0x27h
10h
Recommended Buck-Boost converter control configuration.
HEADROOM_CTRL1
0x28h
17h
Recommended Buck-Boost converter control configuration.
TEMPSENS_CTRL0
0x29h
FFh
Recommended temperature sensor configuration.
DRV_CTRL
0x2Bh
C0h
Recommended Buck-Boost driver configuration
BUCKBOOST_STRT
0x2Ch
14h
Recommended Buck-Boost start-up configuration
BUCKBOOST_SPUP
0x2Dh
65h
Recommended Buck-Boost speed-up configuration
Output headroom for 0 to 0.4A
Output headroom for 0.4A to 0.8A
Output headroom for 0.8A to 1.2A
In LCOS applications the DMD supply may be used to generate 5V or some other voltage. In this case see
Section 3.5.1 for the configuration of registers 06h, 09h and 2Eh.
After the basic configuration is complete the Buck-Boost supply and DMD supply may be enabled.
Table 3-2.
Second Step Basic Register Configuration (all other registers may be left unchanged)
Name
Address
Recommended
Setting
Description
DMD_RISE
0x0B
25h
Enable DMD Supply
BUCKBOOST_USR0
0x1B
3Bh
Enable Buck-Boost Supply
FAIL_CTRL
0x21
88h
Clear alarm status
3.2
LED Drivers
The current is provided to the RGB LED through three 1.2 A high accuracy 10-bit common anode drivers controlled
by pin.SEL0 and pin.SEL1 according to the following table:
19
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit www.macom.com for additional data sheets and product information.
For further information and support please visit:
http://www.macom.com/support
M09000-14
LED Driver and PMIC for DLP/LCOS Pico Projectors
Table 3-3.
Rev V2
RGB LED Current Settings
[SEL1,SEL0]
Status
[1,1]
Blue ON
[1,0]
Green ON
[0,1]
Red ON
[0,0]
OFF
The channel associated with each color can be controlled by register.INPUT_CONT[5:0]. If any of INPUT_CONT
pairs of bit [1:0], [3:2] or [5:4] is 11b there is no decoding of the input signal and pin SEL0, SEL1 and PWM control
respectively channel IOUT0, IOUT1 and IOUT2. In this mode of operation the PWM function is disabled. Please
note that the PWM engine can also be shut down to save power by setting INPUT_CONT[7]=1b.
The current is controlled by programming registers.IOUTx.bit[9:0]. Each current step corresponds to 1.17 mA.
It is possible to store preferred value of current into the M09000 in case a particular part is mated with an optical
engine. The default value of the bits setting the output current (register 0x13h through 0x16h) can be programmed
in the internal OTP memory so the white balance point of an engine mated with the M09000 can be stores into the
device. Please refer to the paragraph regarding the OTP memory in Section 3.12 for details on THE programming
procedure.
The M09000 features a PWM to current amplitude modulation converter. The current at the output can scale
proportionally to the duty cycle of the signal applied to pin.PWM. For example, if the duty cycle at the PWM input is
25% the current at the output will be reduced to 25% of the value programmed in the M09000.
The change in the amplitude of the output current as a response to a change in duty cycle of the PWM input is not
instantaneous; the current during the subsequent sub-frame will be adjusted provided that the change in PWM duty
cycles happens 2 clock cycles plus 40 µs before the change of sub-frame (toggling on pin.SEL0/pin.SEL1). This is
defined as the time-out period.
The resolution of the PWM function is 8-bits: the M09000 is capable of resolving variations of 1/255 in the duty
cycle of the PWM signal of frequency in the range of 5 kHz to 20 kHz. If PWM input is low continuously the output
current will be forced to 1/255 of the full scale value.
To optimize power dissipation the headroom of each driver can be programmed using bits HEADROOM_x. To
achieve the specified accuracy the drivers require 10 mV of headroom for each 100 mA of current delivered to the
LED down to a minimum of 50 mV. This corresponds to a driver impedance of 100 mΩ.
For example, if the maximum current required in the system is 700 mA the headroom that must be programmed is
70 mV (0110 binary code). If the maximum current required in the system is 350 mA the headroom that can be
programmed is 40 mV (0011 binary code) but to achieve the specified accuracy 50 mV (0011 binary code) should
be used.
Because of the driver architecture, the current overshoot in the M09000 is maintained well below 10%.
The driver will issue an alarm at the pin.FAIL in case of open or shorted LED and in case the LED cathode is
shorted to ground.
20
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit www.macom.com for additional data sheets and product information.
For further information and support please visit:
http://www.macom.com/support
M09000-14
LED Driver and PMIC for DLP/LCOS Pico Projectors
3.3
Rev V2
Buck-boost Converter
The M09000 buck-boost converter controls the common anode voltage of the LED sub-assembly to guarantee
optimal system efficiency.
The M09000 automatically adjusts the anode voltage of the LED to guarantee enough headroom for the LED and
the driver to operate.
The typical current turn-on, limited by the DC-DC converter slewing is 30 µs with a transition of the LED anode
voltage from 2.5 V to 3.5 V. This is very well representative of a red to green LED transition which is usually the
slowest transition since the voltage difference between red and green LED is the highest.
The buck-boost converter is capable of delivering 1.2 A with a minimum battery voltage of 3.15 V (1 A at 2.7 V).
The maximum buck-boost output voltage is 4.6 V.
The M09000 has a programmable undervoltage lockout at register.ALARM_CTRL0.bit[7:6] and overvoltage
protection.
Moreover, a programmable current limiter (both positive and negative) allows the user to select the most
appropriate inductor characteristic for the specific application by trading off inductor area with series resistance.
The
current
limiters
can
be
register.BUCKBOOST_USR1.bit[4:0].
programmed
through
register.BUCKBOOST_USR0.bit[5:1]
21
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit www.macom.com for additional data sheets and product information.
For further information and support please visit:
http://www.macom.com/support
and
M09000-14
LED Driver and PMIC for DLP/LCOS Pico Projectors
3.4
Rev V2
PMIC Functions
The M09000 generates all the necessary supplies from a single battery.
The power management portion includes DMD power generators, two buck converters which can generate 1.8 V
and 1.0/1.1/1.2/1.8 V (programmable through BUCKV10_USR2[1:0]) and 2 LDO generators delivering 2.5 V and
3.3 V.
The following timing diagram details the power up sequence:
Figure 3-1.
Power Up Sequence
10ms typ.
T1
T2
Buck -boost soft start
100ms min. 10ms max.
100μs typ.
T3
T4
10ms typ.
12ms max. 150ms min.
5ms typ.
MP_EN
Supply turn -off
3.15 V.
3.7
Buck Regulators
Two high efficiency step-down DC-DC converters are also available. These provide accurate voltage by regulating
the battery voltage down to the desired level.
Output voltage ripple is maintained within 2% of output voltage and typical turn-on time (soft start) of 5 msec.
25
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit www.macom.com for additional data sheets and product information.
For further information and support please visit:
http://www.macom.com/support
M09000-14
LED Driver and PMIC for DLP/LCOS Pico Projectors
3.8
Rev V2
Monitor ADC
The M09000 features a 10-bit 4 ksps monitor ADC which is interleaved between the internal temperature sensor,
the battery input relative to the buck-boost converter (pin.PVDDD) and the buck-boost converter output
(pin.PVOUT).
For each of the sub-frames (as defined by the status of SEL0 or SEL1, or SEL0, SEL1 and PWM, in case any of
INPUT_CONT pairs of bit [1:0], [3:2] or [5:4] is 11b) the ADC first converts the internal temperature sensor input
(junction temperature of M09000) then pin.PVDDD and finally pin.PVOUT and stores these values in the
corresponding registers at address 0x49h through 0x52h. The start conversion strobe is a change in the status of
the input pins (SEL0/1, PWM) and pin.PVOUT is converted last to allow time for it to settle. Since the slewing of the
DC-DC converter for a red to green translation is typically < 40 µs and the conversion rate of the ADC is 4 ksps, the
conversion of the PVOUT will start only 500 µs after the sub-frame starts guaranteeing that the PVOUT voltage is
in fact settled.
The PVDDD and PVOUT voltage data is stored in a separate register for each subframe (REG/GREEN/
BLUE_VLED/VBAT[9:0]), while the temperature information is stored in (TEMP[9:0]).
Since the conversion rate is 4 ksps the user should wait at least 750 µs after the subframe change before reading
back the digitized values for that subframe; alternatively the microcontroller can monitor the status bits to
determine if the conversion is completed.
The ADC can be setup in such a way that it continuously cycles between the three signals to be converted
regardless of the input pin (register.ADC_CONT.bit[1]=1). In that case the PVDDD and PVOUT conversion are
always stored in the registers corresponding to the red subframe.
The voltage accuracy of the ADC for the PVDDD and PVOUT is determined by the slope error (+/-5%) since the
offset error (+/-8 mV) will be insignificant for the voltages measured (>2 V). It should be noticed that the M09000
will measure internal PVDDD and PVOUT voltages: these may be up to 100 mV different (lower in the case of
PVDDD, higher in the case of PVOUT) than the external ones due to the IR drops on the pins and bondwires of the
M09000 itself.
Absolute accuracy of the temperature sensor is ±8 °C after calibration at room temperature.
The ambient temperature of the system can be calculated from the part junction temperature, the part power
dissipation and the package thermal resistance (θJA). This is highly dependent on the system characteristics. For
example, area and material of the board, number of routing versus ground layers, presence of heat sinks and other
mechanical factors, but a typical value for the M09000 is around 39 °C/W.
3.9
FAIL Pin
The FAIL is an active low open collector pin which will issue an alarm when abnormal operating conditions are
detected. The pin can function as a status pin or in interrupt mode. In status mode pin.FAIL will go low for the
duration of the internal alarm time which can be very short, while in interrupt mode the pin will generate a pulse of
programmable length. The mode and pulse duration can be set through register.FAIL_CTRL.bit[3:0].
In interrupt mode the pin will return high after the programmed duration even if the alarm is still present. In interrupt
mode pin.FAIL will toggle every time the status of one of the alarm pins changes. The mode and pulse duration can
be set through register.FAIL_CTRL.bit[3:0].
26
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit www.macom.com for additional data sheets and product information.
For further information and support please visit:
http://www.macom.com/support
M09000-14
LED Driver and PMIC for DLP/LCOS Pico Projectors
Rev V2
The external microcontroller can read back the content of registers 0x70h and 0x71h (ALARM0 and ALARM1) to
understand the cause of the alarm once pin.FAIL has triggered. The bits corresponding to the alarm in registers
0x70h and 0x71h remain high once an alarm is captured until the user clears the alarm registers via
register.FAIL_CONT.bit[7].
Any alarm bit can be masked by setting the corresponding bit in registers register.ALARM0_MASK.bit[7:0] and
register.ALARM1_MASK.bit[7:0].
The following abnormal situation can be detected by the M09000 and signaled through pin.FAIL and
register.ALARM0/register.ALARM1.
1. Any of the on board regulators not ready (register.ALARM0.bit[3:0]): the regulator is enabled but its output
voltage is lower then 90% of its programmed value. This generally is associated with a shorted output
condition. All of the on-board regulators are monitored:
- 2.5 V and 3.3 V LDOs
- 1.8 V and 1.0 V Buck converters
2. DMD supplies not ready register.ALARM0.bit[4]. At the enable of the LEDs (LED_ON=H), if the PRJ_ON=H,
the M09000 will monitor the status of the DMD supplies (V18, VHIGH, VMID, VNEG). If any of the supply
voltages is lower then 90% of the final value, an alarm will be issued.
3. Buck-boost current limit (register.ALARM0.bits[6:5]): These alarms signal a current limit situation in the buckboost converter.
4. Overtemperature (register.ALARM0.bit[7]): this alarm signals when the junction temperature of the part is
109 °C.
5. Undervoltage at any of following battery inputs (register.ALARM1.bit[0]):
- PVDD1
- PVDD2
- PVDDD
- PVDDM
Undervoltage alarm is generated when the input battery voltage is below a certain threshold. Programmed in
register.ALARM_CTRL0.bit[7:6]. If the battery voltage goes below 2.55 V the part will automatically reset.
6. Undervoltage at pin.PVOUT (register.ALARM1.bit[1]): since over-current condition may also happen in
situations other than the output voltage shorted to ground (for example current limiter set lower to prevent
saturation in the external inductor during transients) a separate undervoltage alarm is provided
(register.ALARM1.bit[0]). Please note that this alarm may also indicate a shorted LED. The threshold for this
alarm is set at 1.5 V
7. Overvoltage at pin.PVOUT (register.ALARM1.bit[4]): the M09000 monitors the output voltage in real-time and
issues an alarm if the output voltage exceeds 5.2 V.
8. LED alarm for 3 conditions:
- LED shorted: as previously described this is detected by the pin.PVOUT undervoltage alarm.
- LED open or LED cathode shorted to ground (register.ALARM1.bit[7:5]): this is detected when, while the
driver is ON, the voltage on the driver falls below 30 mV. The threshold can be programmed with
27
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit www.macom.com for additional data sheets and product information.
For further information and support please visit:
http://www.macom.com/support
M09000-14
LED Driver and PMIC for DLP/LCOS Pico Projectors
Rev V2
register.ALARM_CTRL0.bit[1:0]. With this circuitry the user can identify which LED is creating the issue by
reading register.ALARM1.bit[7:5]. Please note that the overvoltage alarm also may signal a LED open
condition.
It should be noticed that pin.FAIL may chatter during the start-up of the buck converter (6 ms) following
pin.MP_EN.
Also during thermal shutdown and undervoltage lockout pin.FAIL will be high: however, the part will signal an
overtemperature and undervoltage alarm before the thresholds of the RESET state.
3.10
Overtemperature and Thermal Shutdown
The overtemperature alarm makes use of the ADC to determine if the temperature of the part is at the maximum
operating limit. The threshold is set to 120 °C+/-8 °C. Please notice that the overtemperature alarm is functional
only when the LED_ON=H.
A thermal shutdown block is also present. This block will force the M09000 into disable mode if the internal junction
temperature reaches the thermal shutdown threshold (135 °C). This is to avoid permanent damage to the part. A
hysteresis of ~30 °C allows for the part to be enabled again when the temperature drops below ~105 °C. The part
registers must be re-written by the host after a thermal shutdown.
3.11
Programmable Serial Interface
The M09000 can be configured through an I2C interface (pins SDA/SCL). The maximum SCL supported is
400 kHz.
The 7-bit slave ID is 011 0110 (36h) resulting in 6Ch (for a write) and 6Dh (for a read).
4.7 kΩ pull up resistors should be used on the I2C pins.
3.12
OTP Programming
The M09000 internal OTP memory can be programmed by writing sequentially in the following registers: 0x31h,
0x32h and 0x33h the values AFh, FAh and 55h respectively. This will store in the OTP memory of the device the
content of register 0x13h through 0x16h. These values are now the default values for those registers therefore
when the M09000 powers up the current settings programmed will be loaded as defaults. This effectively allows to
store predefined current values in the part and can be used for storing white balance control information
During programming the I2C is disabled. After finishing programming the OTP memory, user can issue a soft_reset
by writing AAh to address 0x30 (or power cycle the device) to go back to the normal operating mode.
3.13
State Diagram and Description
The DMD supply and LED outputs are independent states that the user can independently enable or disable. This
facilitates system testing and debug.
28
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit www.macom.com for additional data sheets and product information.
For further information and support please visit:
http://www.macom.com/support
M09000-14
LED Driver and PMIC for DLP/LCOS Pico Projectors
Rev V2
In a DLP system it is expected that the DMD power is functional and the proper DMD voltages are available when
LED_ON=H. For this reason the part will issue an alarm if PRJ_ON=H, LED_ON=H but the outputs of the DMD are
not at the proper level. As any other alarm of the M09000, this alarm can be masked.
In any of these states, if the battery voltage drops below 2.55 V or the junction temperature reaches 135 °C, the
part will be reset. All registers are reset to the default state, the buck converters, LDOs, DMD power, and buckboost converter are disabled. The part will not be in the disabled state as long as MP_EN=H because the internal
voltage references, thermal shutdown and under voltage monitor are still enabled. If the supply rises above 2.65 V
the part will go back to the enabled state and the registers will need to be rewritten.
Figure 3-4.
State Diagram and Description
OFF
Battery
connected
Any state
MP_EN=L
Disabled
MP_EN=H
PMIC
Enabled
Tj2.65V
Thermal shutdown
or
UV lockout
Any state
except Disabled
Any state
except Disabled
and Reset
PRJ_ON=L
(0x0B[0]=0b)
PRJ_ON=H
(0x0B[0]=1b)
DMD power
enabled
Reset
Any state
except Disabled
and Reset
LED _ON=L
(0x1B[0]=0b)
LED_ON=H
(0x1B[0]=1b)
LED enabled
OFF
No power is connected to the part.
29
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit www.macom.com for additional data sheets and product information.
For further information and support please visit:
http://www.macom.com/support
M09000-14
LED Driver and PMIC for DLP/LCOS Pico Projectors
Rev V2
Disabled
Battery is connected to the part.
In case pin.MP_EN is also connected to the battery, supply ramp time must be > 500 µs; this can be
guaranteed using appropriately sized decoupling caps.
The part will return in this state in case of thermal shutdown. The part needs to be reset by lowering
pin.MP_EN.
In this mode of operation the part will consume typically < 5 µA.
RESET
The M09000 enters this mode of operation if the supply drops below 2.55 V or the junction temperature
reaches 135 °C. To exit from this mode, the battery voltage needs to be above 2.65 V and the internal junction
temperature must be below 102 °C.
In this mode of operation the part is in reset, the buck converters and LDOs are disabled. The only blocks
enabled are the references, the overtemperature protection and the undervoltage protection. During thermal
shutdown the undervoltage monitor (POR) will also be powered down.
Since the 1.8 V buck regulator generating the supply for the internal digital block is disabled, all the registers
content is lost and I2C communication is not possible.
PMIC Enabled
When pin.MP_EN=H all the buck converters and the LDOs are enabled generating the required voltages.
I2C communication with the part is possible after start-up period.
All the supplies will be available within 6 ms of the MP_EN=H signal assuming 4.7 µF capacitor is used for
decoupling for each one of them. Following start-up I2C communication is possible and the external
microcontroller can program the registers according to the user settings
Power dissipation in this state depends on the load on each of the generated supplies and on the battery
voltage. With no load on any of the supplies, the power dissipation in this state is typically 2.5 mA.
In this state the SEL1/SEL0/PWM pins activity will be disregarded.
DMD Power Enabled
In DLP applications, 0x0B(0)=1b (PRJ_ON=H) shouild be set high. The digital engine waits a minimum of
100 ms before generating a EMU_RST=H signal. The V18 boost generator will be enabled to generate +18 V
(V18) and the corresponding LDO generates VMID. Once VMID is ready the M09000 waits 10 msec before
generating VHIGH (using the associated LDO) and VNEG.
When 0x0B(0)=0b (PRJ_ON=L) or an alarm condition is issued. VHIGH and VNEG are discharged first and
within 12 msec the VMID is also discharged. The boost converter generating V18 is shut down last.
LED Enabled
When 0x1B(0)=1b (LED_ON=H), the M09000 enables the buck-boost converter. The LED common anode
voltage is kept at 3.7 V. Soft start for the buck-boost is
