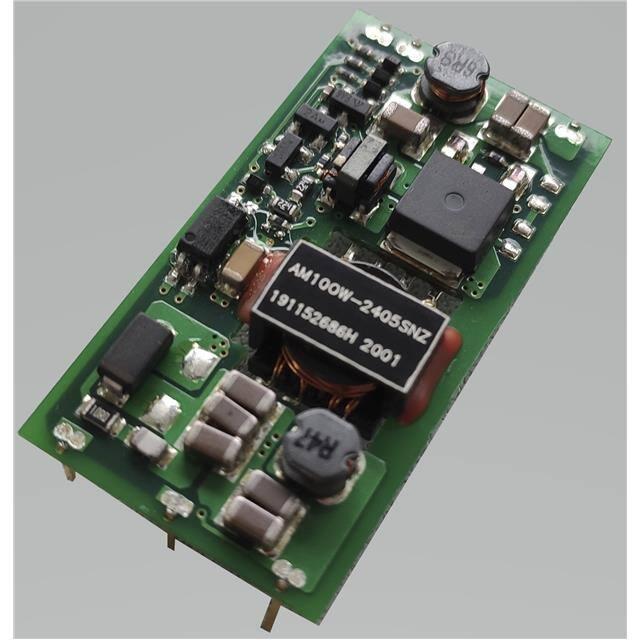

AM10OW-NZ DC-DC Converter DC-DC Converter Click to ORDER AM10OW-NZ samples The AM10OW-NZ series is designed to offer an ultra-thin solution to customers with designs that have challenging height considerations. The AM10OW-NZ series is available in both SIP and DIP packages with open frame and metal case options. The total height of 0.24iches (6.1mm) for the Dual inline Package offers significant space optimization when compared to typical 10W DIP products with approximately twice the height (~0.4inches). In addition, the AM10OW-NZ offers an impressive 500VAC/1500VDC isolation with a 4:1 input voltage range of 9-36VDC. It is also designed with input under-voltage protection, output over-voltage, over-current, short circuit protection, which enable the AM10OW-NZ series to be used in a variety of application related to industrial control, instrumentation and communication equipment. Open Frame Features • • • • • • • Summary Wide 4:1 Input Range: 9VDC – 36VDC Operating Temp: -40 °C to +85 °C Low ripple & noise, up to 100mV(p-p) max Efficiency up to 88% Adjustable output voltage Output short circuit, over current protection, over voltage protection Regulated Output AM10OW-NZ 1500 6000 48 60 125 85 85 70 15 36 5 9 3 1.2 500 10 1.5 Input voltage Output voltage (VDC) (V) Isolation (VAC) Power (W) -40 -40 Temp. range (℃) Derating (℃) Applications Training Press Release Coming Soon! Power Grid Product Training Video (click to open) F 052e R4 Industrial Telecom Instrumentation Application Notes www.Aimtec.com 1 AM10OW-NZ DC-DC Converter DC-DC Converter Models & Specifications Single Output Model Input Voltage (VDC) Input Current Max (mA) No Load Full Load Output Voltage (VDC) Output Current Max (mA) Maximum Capacitive Load (µF) Efficiency (%) Full Load AM10OW-2405SNZ AM10OW-2412SNZ AM10OW-2415SNZ 24 (9 ~ 36) 5 40 508 2000 2200 84 24 (9 ~ 36) 12 12 490 833 680 87 24 (9 ~ 36) 15 15 485 667 470 88 The standard part number is for DIP and open-frame package; With adding suffix “-M” for DIP package with metal case (E g. AM10OW-1205SNZ-M is for 5V model with DIP pin type and metal case); With adding suffix “-L” for SMD and open-frame package (E g. AM10OW-1205SNZ-L is for 5V model with SMD pin type and open frame); With adding suffix “-LM” for SMD package with metal case (E g. AM10OW-1205SNZ-LM is for 5V model with SMD pin type and metal case). Input Specification Parameters Conditions Voltage range Filter Absolute maximum rating Reflected ripple current Start-up voltage Input under voltage lockout Typical Maximum See models table Units VDC Pi filter 1 sec. max 50 40 Nominal 12V input models 9 Nominal 12V input models 6.5 ON – 0 to 0.3Vdc, pulled low to GND; OFF – 2.4~12Vdc, pulled high or open, idle current 6mA typ. On/Off Control * VDC mA pk-pk VDC VDC * The Ctrl pin voltage is referenced to input GND. Isolation Specification Parameters Tested I/O voltage Tested case to I/O voltage Resistance Capacitance F 052e R4 Conditions Typical 60 sec, 5mA max 60 sec, 1mA max 60 sec, 5mA max, for metal case models 60 sec, 1mA max, for metal case models 500Vdc I/O capacitance at 100KHz/0.1V 500 1500 500 1500 ≧100 1000 www.Aimtec.com Maximum Units VAC VDC VAC VDC MΩ pF 2 AM10OW-NZ DC-DC Converter DC-DC Converter Output Specification Parameters Voltage accuracy Line regulation Load regulation Over voltage protection Over current protection Short circuit protection Temperature coefficient Ripple & Noise* Transient recovery time Transient response deviation Conditions Typical Maximum Units 0 ~ 100% load Full load ±1 ± 0.2 ±3 ± 0.5 % % 5 ~ 100% load ± 0.5 140 Continuous, Auto recovery ±1 % 160 200 % Vout % Iout Full load ± 0.03 %/ oC 20MHz bandwidth, 5 ~ 100% load 50 100 mV pk-pk 25% load step change 300 500 µS 25% load step change ±3 ±5 % * Ripple and Noise are measured at 20MHz bandwidth by using a 1μF (M/C) and 10μF (E/C) parallel capacitor and typical input with full load General Specifications Parameters Switching frequency Operating temperature Storage temperature Reflow soldering temperature Soldering temperature Cooling Humidity Case material Vibration Weight Dimensions (L x W x H) MTBF Conditions Typical 100% load See derating graph 350 Maximum Units KHz oC -40 to +85 oC -55 to +125 Peak temp ≦245℃, 60 sec max at 217℃, please refer to IPC/JEDEC J-STD-020D.1. oC 1.5mm from case 10 sec max 300 Free air convection (20 LFM) Non-condensing 95 % RH Aluminum alloy 10-150Hz, 5G, 90min. along X, Y and Z Open-frame models 5.7 g Metal case models 6.7 Standard DIP and open-frame package 1.54 x 0.82 x 0.24 inches, 39.20 x 20.80 x 6.10mm Optional SMD and open-frame package 1.63 x 0.82 x 0.25 inches, 41.40 x 20.80 x 6.30mm Optional DIP package with metal case 1.58 x 0.87 x 0.27 inches, 40.20 x 22.00 x 6.80mm Optional SMD package with metal case 1.63 x 0.87 x 0.28 inches, 41.40 x 22.00 x 7.00mm > 1 000 000 hrs (MIL-HDBK -217F, t=+25oC) / Full Load Safety Specifications Parameters Designed to meet UL/IEC/EN 62368 EN55032, CLASS A EN55032, CLASS B with recommended circuit Electrostatic Discharge Immunity IEC 61000-4-2, Criteria B Standards RF, Electromagnetic Field Immunity IEC 61000-4-3, Criteria A Electrical Fast Transient/Burst Immunity IEC 61000-4-4, Criteria B with recommended circuit Surge Immunity IEC 61000-4-5, Criteria B with recommended circuit RF, Conducted Disturbance Immunity IEC 61000-4-6, Criteria A Note: The case grounding connection to the ground is strongly suggested for the EMC consideration (For the models with optional “-M” only) EMC - Conducted and radiated emission F 052e R4 www.Aimtec.com 3 AM10OW-NZ DC-DC Converter DC-DC Converter Derating 5V output model Free air Convection Others Free air Convection 100 Output Power (%) Output Power (%) 100 80 60 Safe Operating Area 40 60 Safe Operating Area 40 20 20 0 - 40 80 68 - 20 0 20 40 60 85 80 0 100 - 40 70 - 20 0 20 40 60 85 80 100 Ambient Temperature º C Ambient Temperature º C Typical Application Circuit +V input +V input Cin 100uF +V output DC-DC Converter -V input -V input Cout 10uF Load -V output EMC Recommended Circuit CY1 1000pF/2000VDC FUSE LCM 3.3mH +V input C1 680uF 100V C2 4.7uF 50V +V input C3 4.7uF 50V C4 4.7uF 50V +V output C5 470uF 100V C6 10uF 25V Load DC-DC Converter -V input -V input -V output CY2 1000pF/2000VDC Fuse : Choose according to actual input current. Note: The package with case model, the case should be connected to input pin GND when testing EMC performance. F 052e R4 www.Aimtec.com 4 AM10OW-NZ DC-DC Converter DC-DC Converter Dimensions Stardard DIP and open-frame package models Front View 3.60 (0.14) 6.10 (0.24) Right View 0.30 (0.01) 0.60 (0.02) 38.10 (1.50) Bottom View 3 20.80 (0.82) 7.62 (0.30) 2 Notes: All dimensions are typical in millimeters (inches). Pin section tolerance : ±0.1 (±0.004) Stand-off tolerance ±0.50 (±0.02) 7.62 (0.30) 12.70 (0.50) 2.54 (0.10) 39.20 (1.54) 1 Ø 1.10 [Ø 0.043] 6 1 5 Pin Out Specifications Pin Single 1 +V Input 2 Ctrl 3 -V Input 4 -V Output 5 Trim 6 +V Output 2 3 4 Note : Grid 2.54*2.54 mm F 052e R4 www.Aimtec.com 5 AM10OW-NZ DC-DC Converter DC-DC Converter Optional DIP package with metal case models Front View 3.60 (0.14) 6.80 (0.27) Right View 0.30 (0.01) 17.78 (0.70) 1.00 (0.04) 0.20 (0.01) 20.32 (0.80) 3.06 (0.12) 0.60 (0.02) 38.10 (1.50) Bottom View 3 22.00 (0.87) 7.62 (0.30) 2 Notes: All dimensions are typical in millimeters (inches). Pin section tolerance : ±0.1 (±0.004) Stand-off tolerance ±0.50 (±0.02) 7.62 (0.30) 12.70 (0.50) 2.54 (0.10) 40.20 (1.58) 1 Ø 1.10 [Ø 0.043] 6 1 5 2 Pin Out Specifications Pin Single 1 -V Input 2 Trim 3 NC 4 +V Output 5 -V Output 6 +V Input Ø 1.50 [Ø 0.06] 3 4 Note : Grid 2.54*2.54 mm F 052e R4 www.Aimtec.com 6 AM10OW-NZ DC-DC Converter DC-DC Converter Optional SMD and open-frame package models Front View 6.30 (0.25) Right View 0.60 (0.02) 41.40 (1.63) Bottom View 0.30 (0.01) 3 2 7.62 (0.30) 2.54 (0.10) 39.20 (1.54) 7.62 (0.30) 12.70 (0.50) 20.80 (0.82) 0~10° 1.80 (0.07) Notes: All dimensions are typical in millimeters (inches). Pin section tolerance : ±0.1 (±0.004) Stand-off tolerance ±0.50 (±0.02) 1 43.00 (1.69) 6 1 1.40 (0.06) 5 2 3 Pin Out Specifications Pin Single 1 +V Input 2 Ctrl 3 -V Input 4 -V Output 5 Trim 6 +V Output 4 3.20 (0.13) Note : Grid 2.54*2.54 mm F 052e R4 www.Aimtec.com 7 AM10OW-NZ DC-DC Converter DC-DC Converter Optional SMD package with metal case models Front View 0.70 (0.03) 1.00 (0.04) 41.40 (1.63) 0.60 (0.02) 3.16 (0.12) 1.00 (0.04) 7.00 (0.28) Right View Bottom View 0.30 (0.01) 3 2 7.62 (0.30) 2.54 (0.10) 40.20 (1.58) 7.62 (0.30) 12.70 (0.50) 22.00 (0.87) 0~10° 1.80 (0.07) Notes: All dimensions are typical in millimeters (inches). Pin section tolerance : ±0.1 (±0.004) Stand-off tolerance ±0.50 (±0.02) 1 43.00 (1.69) 6 1 1.40 (0.06) 5 2 3 Pin Out Specifications Pin Single 1 +V Input 2 Ctrl 3 -V Input 4 -V Output 5 Trim 6 +V Output 4 3.20 (0.13) 1.90 (0.08) 2.00 (0.08) Note : Grid 2.54*2.54 mm F 052e R4 www.Aimtec.com 8 AM10OW-NZ DC-DC Converter DC-DC Converter Trimming Output voltage can be externally trimmed by utilizing the methods as shown below Fixed Resistor Variable Potentiometer Leave open if not used. AM10OW-2405SNZ(-M/-L/-LM) Trim down % 1 2 3 4 5 6 7 8 9 10 Vout (VDC) 4.950 4.900 4.850 4.800 4.750 4.700 4.650 4.647 4.744 4.642 Rt down (KΩ) 49.906 28.833 17.748 10.910 6.272 2.918 0.380 0.248 5.813 0.031 Trim up % 1 2 3 4 5 6 7 8 9 10 Vout (VDC) 5.062 5.100 5.150 5.200 5.250 5.300 5.350 5.400 5.450 5.500 67.562 37.868 23.884 15.750 10.430 6.680 3.893 1.742 Rt up (KΩ) 7160.000 173.344 AM10OW-2412SNZ(-M/-L/-LM) Trim down % 1 2 3 4 5 6 7 8 9 10 Vout (VDC) 11.880 11.760 11.640 11.520 11.400 11.280 11.160 11.040 10.920 10.800 Rt down (KΩ) 478.092 283.452 194.527 143.585 110.573 87.442 70.332 57.164 46.716 38.223 Trim up % 1 2 3 4 5 6 7 8 9 10 Vout (VDC) 12.120 12.240 12.360 12.480 12.600 12.720 12.840 12.865 12.890 12.915 Rt up (KΩ) 688.435 140.920 65.879 36.075 20.077 10.095 3.274 2.116 1.030 0.009 F 052e R4 www.Aimtec.com 9 AM10OW-NZ DC-DC Converter DC-DC Converter AM10OW-2415SNZ(-M/-L/-LM) Trim down % 1 2 3 4 5 6 7 8 9 10 Vout (VDC) 14.850 14.700 14.550 14.400 14.250 14.100 13.950 13.800 13.650 13.500 Rt down (KΩ) 623.045 395.763 285.907 221.156 178.462 148.196 125.620 108.134 94.191 82.813 Trim up % 1 2 3 4 5 6 7 8 9 10 Vout (VDC) 15.150 15.300 15.450 15.600 15.750 15.900 16.050 16.200 16.350 16.500 1859.550 199.069 98.516 62.236 43.530 32.118 24.431 18.899 14.729 11.473 Rt up (KΩ) NOTE: 1. Datasheets are updated as needed and as such, specifications are subject to change without notice. Once printed or downloaded, datasheets are no longer controlled by Aimtec; refer to www.aimtec.com for the most current product specifications. 2. Product labels shown, including safety agency certifications on labels, may vary based on the date manufactured. 3. Mechanical drawings and specifications are for reference only. 4. All specifications are measured at an ambient temperature of 25°C, humidity
