AM20CW-2412SZ

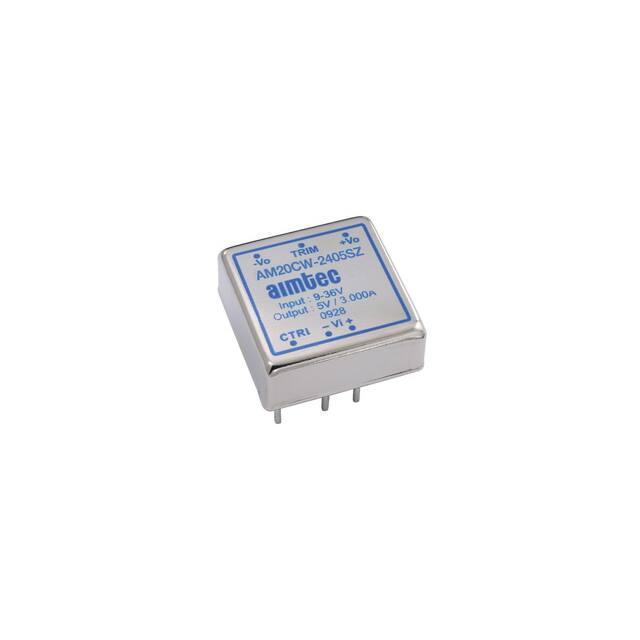

Click on Series name for product info on aimtec.com Series AM20CW-Z 20 Watt | DC-DC Converter FEATURES: • Ultra-compact footprint 1”x1” • Ultra - Wide Input Range 4:1 • 1600 VDC Isolation • Remote ON/OFF Function • No Minimum Load Required • • • • • Adjustable Output Voltage Operating Temperature -40ºC to +75ºC Over Current and Over Voltage Protection Efficiency up to 90% RoHS Compliant Models: Single output Model Input Voltage (V) AM20CW-2403SZ AM20CW-2405SZ AM20CW-2412SZ AM20CW-2415SZ AM20CW-4803SZ AM20CW-4805SZ AM20CW-4812SZ AM20CW-4815SZ 9-36 9-36 9-36 9-36 18-75 18-75 18-75 18-75 Output Voltage (V) 3.3 5 12 15 3.3 5 12 15 Output Current max (A) Isolation (VDC) Max Capacitive Load (uF) Efficiency (%) 1600 1600 1600 1600 1600 1600 1600 1600 10000 5000 850 700 10000 5000 850 700 88 89 89 89 88 89 89 89 Isolation (VDC) Max Capacitive Load (uF) Efficiency (%) 4.5 4 1.67 1.33 4.5 4 1.67 1.33 Models: Dual output Input Voltage (V) Model Output Voltage (V) Output Current max (A) AM20CW-2412DZ 9-36 ±12 ±0.833 1600 ±470 89 AM20CW-2415DZ 9-36 ±15 ±0.667 1600 ±330 89 AM20CW-4812DZ 18-75 ±12 ±0.833 1600 ±470 89 AM20CW-4815DZ 18-75 ±15 ±0.667 1600 ±330 89 NOTE: All specifications in this datasheet are measured at an ambient temperature of 25°C, humidity1000 1500 Tel: +1 514 620 2722 1 of 4 Rated Units 1600 VDC VDC VDC MOhm pF Toll free: + 1 888 9 AIMTEC (924 6832) North America only Series AM20CW-Z 20 Watt | DC-DC Converter Output Specifications Parameters Conditions Typical Maximum Units ±1 % Voltage accuracy 25% load on one output - 100% load on Cross Regulation (Dual Output Models) ±5 second load Over voltage protection Zener Diode Clamp 120 Over current protection Full Load 150 Short Circuit protection Continuous Short circuit restart Auto-Recovery Line voltage regulation HL-LL Load voltage regulation (Single) 0% to 100% load Load voltage regulation (Dual) 0% to 100% balanced load Temperature coefficient ±0.02 Ripple & Noise* 20MHz Bandwidth Ripple & Noise (3.3V/5V Output models)* 20MHz Bandwidth Voltage adjustment range Trim - Single output models only * Measured with a 1.0μF ceramic capacitor and 10μF tantalum capacitor. % % % ±0.5 ±0.5 ±1 100 75 ±10 % % % %/oC mV p-p mV p-p % Maximum Units General Specifications Parameters Switching frequency Operating temperature Storage temperature Maximum case temperature Derating Cooling Humidity Case material Weight Dimensions (L x W x H) MTBF Maximum soldering temperature Transient recovery time Transient recovery deviation Conditions Typical 100% load With derating above +55°C 330 -40 to +75 -55 to +125 105 2.33 Free air convection (30-65LFM) 95 Nickel-coated copper 19 1.00 x 1.00 x 0.41 inches 25.40 x 25.40 x 10.40 mm > 560,000 hrs (MIL-HDBK -217F, Ground Benign, t=+25oC) 1.5mm from case for 10 sec 260 Load step change 75% to 50% to 25% 250 Load step change 75% to 50% to 25% ±3 KHz oC oC oC %/ oC % RH g o C µS % Safety Specifications Parameters Agency Approval CE , UL UL60950-1, UL62368-1 EN55032, Class A IEC61000-4-2 Perf. Criteria A IEC61000-4-3 Perf. Criteria A IEC61000-4-4 Perf. Criteria A (external 220uF/100V cap required) IEC61000-4-5 Perf. Criteria A (external 220uF/100V cap required) IEC61000-4-6 Perf. Criteria A IEC61000-4-8 Perf. Criteria A Standards Pin Out Specifications Pin 1 2 3 4 5 6 Single + V input - V input On/Off Control + V output Trim - V output www.aimtec.com F 051e R12.G Rev: 12/20/A Dual + V input - V input On/Off Control + V output Common - V output Tel: +1 514 620 2722 2 of 4 Toll free: + 1 888 9 AIMTEC (924 6832) North America only Series AM20CW-Z 20 Watt | DC-DC Converter Dimensions Bottom View 2.54 (0.10) Top View 25.40 (1.00) 10.16 2.54 (0.40) (0.10) 10.16 (0.40) 4 5 6 4 - Stand-off 15.24 (0.60) 20.32 (0.80) 25.40 (1.00) +V Output Trim -V Output -V +V Input Input 2.54 (0.10) 1 10.40 (0.41) 6.00 (0.24) Printed Face 2.54 (0.10) Stand-off 0.5 (0.02) Side View 1.00 (0.39) 10.16 (0.40) 2 3 CTRL 5.08 7.62 (0.20) (0.30) All dimensions are typical in millimeters (inches) Pin Diameter: 1.00 ± 0.05 (0.04 ± 0.002) Pin Pitch And Length Tolerance: ± 0.35 (±0.014) Case Tolerance: ± 0.5 (±0.02) Stand-off tolerance: ± 0.1 (±0.004) Derating Trimming Free Air Convection 55º C Output Power (%) 100 80 Safe Operating Area 60 50 40 20 0 - 40 - 20 0 20 40 60 75 80 100 Ambient Temperature º C www.aimtec.com F 051e R12.G Rev: 12/20/A Tel: +1 514 620 2722 3 of 4 Toll free: + 1 888 9 AIMTEC (924 6832) North America only Series AM20CW-Z 20 Watt | DC-DC Converter Typical Application Circuit +Vin +Vin C3 + -Vin +Vo AM20CW-Z -Vin Load -Vo C3 = 220µf, 100V NOTE: 1. Datasheets are updated as needed and as such, specifications are subject to change without notice. Once printed or downloaded, datasheets are no longer controlled by Aimtec; refer to www.aimtec.com for the most current product specifications. 2. Product labels shown, including safety agency certifications on labels, may vary based on the date manufactured. 3. Mechanical drawings and specifications are for reference only. 4. All specifications are measured at an ambient temperature of 25°C, humidity
