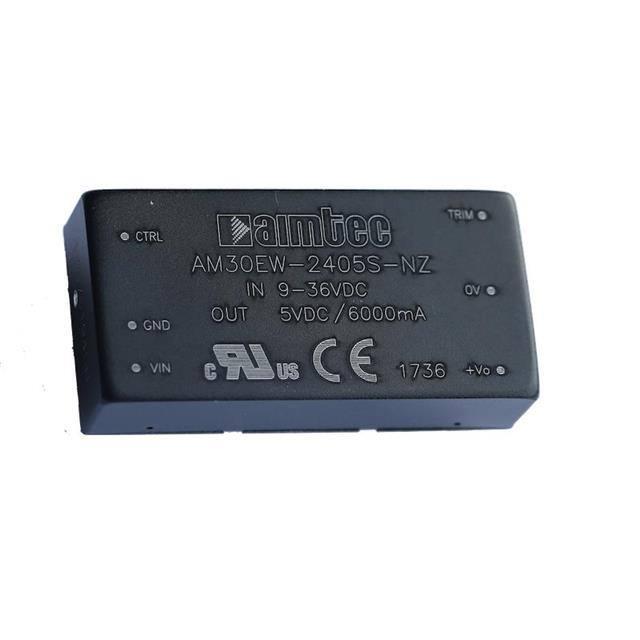

Series AM30EW-NZ
30 Watt | DC-DC Converter
FEATURES:
•
•
•
•
•
Efficiency up to 90%
Ultra-wide 4:1 Input range
No-load consumption ≤0.14W
Operating Temperature: -40oC to +75oC
Input under voltage lockout
•
•
•
•
•
On/Off Remote Control
Over Voltage Protection
I/Output Isolation 1500VDC
Over Current protection
Continuous Short Circuit protection
Models
Single output
Model
AM30EW-2403S-NZ
AM30EW-2405S-NZ
AM30EW-2409S-NZ
AM30EW-2412S-NZ
AM30EW-2415S-NZ
AM30EW-2424S-NZ
AM30EW-4803S-NZ
AM30EW-4805S-NZ
AM30EW-4812S-NZ
AM30EW-4815S-NZ
AM30EW-4824S-NZ
Input
Voltage
(VDC)
Max Input
current
Full/No load
(mA)
Output
Voltage
(VDC)
Output
Current
max (mA)
Isolation
(VDC)
Max
Capacitive
Load(uF)
Efficiency
(%)
9-36‡
9-36‡
9-36‡
9-36‡
9-36‡
9-36‡
18-75
18-75
18-75
18-75
18-75
993/100
1453/100
1488/12
1488/12
1488/12
1488/12
485/30
726/35
744/10
744/10
744/10
3.3
5
9
12
15
24
3.3
5
12
15
24
6000
6000
3333
2500
2000
1250
6000
6000
2500
2000
1250
1500
1500
1500
1500
1500
1500
1500
1500
1500
1500
1500
10000
10000
4700
2700
1680
680
10000
10000
2700
1680
680
85
88
88
90
90
90
87
88
89
89
89
Input
Voltage
(VDC)
Max Input
current
Full/No load
(mA)
Output
Voltage
(VDC)
Output
Current
max (mA)
Isolation
(VDC)
Max
Capacitive
Load(uF)
Efficiency
(%)
Dual output
Model
AM30EW-2405D-NZ
9-36‡
1453/100
±5
±3000
1500
2000
86
AM30EW-2412D-NZ
9-36‡
1488/12
±12
±1250
1500
1250
89
AM30EW-2415D-NZ
9-36‡
1488/12
±15
±1000
1500
680
89
AM30EW-2424D-NZ
9-36‡
1488/12
±24
±625
1500
470
89
AM30EW-4805D-NZ
18-75
726/35
±5
±3000
1500
2000
86
AM30EW-4812D-NZ
18-75
744/10
±12
±1250
1500
1250
88
AM30EW-4815D-NZ
18-75
744/10
±15
±1000
1500
680
88
‡ At Input range 9-18VDC output power will be rated at 80%.
*Add suffix “-ST” for optional screw terminal bottom plate or “-STD” for optional DIN Rail screw terminal bottom plate.
**Add suffix “-K” for optional heatsink, “-K-ST” for optional heatsink and screw terminal bottom plate or “-K-STD” for optional
heatsink and DIN Rail screw terminal bottom plate.
NOTE: All specifications in this datasheet are measured at an ambient temperature of 25°C, humidity1000
2000
Maximum
Units
VDC
MOhm
pF
Output Specifications
Parameters
Voltage accuracy
Over voltage protection
Over current protection
Short Circuit protection
Short circuit restart
Line voltage regulation
Load voltage regulation
Conditions
Typical
Maximum
Units
±3
160
190
%
%
% of Io
±1
Zener Diode Clamp
110
110
Continuous, hiccup
Auto-Recovery
Positive output
±0.2
Full load, LL-HL
Negative output
±0.5
Positive output
±0.5
0% to 100% load
Negative output
±0.5
±0.5
±1
±1
±1.5
±0.03
100
150
±10
500
±8
±5
Temperature coefficient
Single output
Dual output
20MHz Bandwidth,
100% load
Ripple & Noise
Voltage adjustment range
Transient recovery time
Transient recovery deviation
50
50
25% load step change
25% load step change: 3.3, 5, ±5Vout
25% load step change: others
300
±5
±3
% of Vin
%
%/oC
mV p-p
%
µS
%
General Specifications
Parameters
Switching frequency
Operating temperature
Storage temperature
Maximum case temperature
Cooling
Humidity
Case material
Weight
Dimensions (L x W x H)
MTBF
Maximum soldering temperature
Conditions
Typical
100% load
See derating curve
300
Maximum
Units
100
KHz
oC
oC
oC
-40 to +80
-55 to +125
Free air convection
95
% RH
Aluminum Alloy
Pin mountable
26
With optional -ST mounting plate:
48
With optional -STD mounting plate:
68
g
With optional -K Pin mountable
34
With optional -ST-K mounting plate:
56
With optional -STD-K mounting plate:
76
Pin mountable
2.00 x 1.00 x 0.46 inches 50.80 x 25.40 x 11.80 mm
With optional -ST mounting plate:
2.99 x 1.24 x 0.84 inches 76.00 x 31.50 x 21.20 mm
With optional -STD mounting plate:
2.99 x 1.24 x 1.00 inches 76.00 x 31.50 x 25.30 mm
With optional -K Pin mountable
2.02 x 1.03 x 0.65 inches 51.40 x 26.20 x 16.50 mm
With optional -ST-K mounting plate:
2.99 x 1.24 x 1.02 inches 76.00 x 31.50 x 25.80 mm
With optional -STD-K mounting plate:
2.99 x 1.24 x 1.18 inches 76.00 x 31.50 x 29.90 mm
o
>1,000,000 hours (MIL-HDBK -217F, Ground Benign, t=+25 C)
oC
1.5mm from case for 10 sec
300
Environment Specification
Test
Vibration
www.aimtec.com
F 051e R13.C
REV:05/21/A
Parameters
Test mode
Acceleration
Conditions
10-55Hz
10g, 30min, every axis tested
Tel: +1 514 620 2722
2 of 10
Toll free: + 1 888 9 AIMTEC (924 6832)
North America only
Series AM30EW-NZ
30 Watt | DC-DC Converter
Safety Specifications
Parameters
Approval
Standards
EN62368-1 , UL60950-1 with exception of the dual output models
CISPR32/EN 55032, Class A(Bare component), Class B, with EMC recommended circuit
Electrostatic Discharge Immunity
IEC 61000-4-2, Contact ±4KV, Criteria B
RF, Electromagnetic Field Immunity
IEC 61000-4-3, 10V/m, Criteria A
IEC 61000-4-4, ±2KV, Criteria B, with external filter
Electrical Fast Transient / Single output
Burst Immunity
Dual output
IEC 61000-4-4, ±2KV, Criteria B, with external filter
Single output
IEC 61000-4-5, ±2KV, Criteria B, with external filter
Surge Immunity
Dual output
IEC 61000-4-5, ±2KV, Criteria B, with external filter
IEC 61000-4-6, 3Vrms, Criteria A
RF, Conducted Disturbance Single output
Immunity
Dual output
IEC 61000-4-6, 10Vrms, Criteria A
Pin Out Specifications
50.80
(2.00)
2
5
7.62
(0.30)
2.54
(0.10)
25.40
(1.00)
6
3
Top View
1
4
45.72
(1.80)
2.54 10.16
(0.10) (0.40)
5.08
(0.20)
Bottom View
10.16 2.54
(0.40) (0.10)
Dimensions
Pin
1
2
3
4
5
6
Single
On/Off Control
-Vin
+Vin
Trim
-Vout
+Vout
Dual
On/Off Control
-Vin
+Vin
-Vout
Common
+Vout
11.80
(0.47)
Printed Face
Note:
Unit: mm (inch)
General tolerances: ±0.50 (±0.02)
Side View
4.10
(0.16)
1.00
(0.04)
Heatsink Option: AM30EW-NZ-K
Top View
51.40
(2.02)
6
10.16
(0.40)
3
2
5
10.16
(0.40)
7.62
(0.30)
26.20
(1.03)
2.54
(0.10)
5.08
(0.20)
Bottom View
1
4
16.50
(0.65)
45.72
(1.80)
Note:
Unit: mm (inch)
General tolerances: ±0.50 (±0.02)
1.00
(0.04)
www.aimtec.com
F 051e R13.C
REV:05/21/A
4.10
(0.16)
Side View
Tel: +1 514 620 2722
3 of 10
Toll free: + 1 888 9 AIMTEC (924 6832)
North America only
Series AM30EW-NZ
30 Watt | DC-DC Converter
Screw Terminal Option: AM30EW-NZ-ST
76.00
(2.99)
61.60
(2.43)
23.00
(0.91)
Ø3.30
31.50
(1.24)
Pin Out Specifications
1
2
3
4
5
6
Top View
Pin
Single
Dual
1
2
3
4
5
6
On/Off Control
-Vin
+Vin
Trim
- Vout
+ Vout
On/Off Control
-Vin
+Vin
- Vout
Common
+ Vout
Side View
8.80
(0.35)
21.20
(0.84)
Ø3.30
Note:
Unit: mm (inch)
Wire range: 24-12 AWG
Tightening torque: Max 0.4 N*m
General tolerances: ±0.50 (±0.02)
Screw Terminal with Heatsink Option: AM30EW-NZ-K-ST
Top View
76.00
(2.99)
61.60
(2.43)
23.00
(0.91)
31.50
(1.24)
Ø3.30
1
2
3
4
5
6
www.aimtec.com
F 051e R13.C
REV:05/21/A
Side View
8.80
(0.35)
25.30
(1.00)
21.20
(0.84)
Ø3.30
Tel: +1 514 620 2722
4 of 10
Note:
Unit: mm (inch)
Wire range: 24-12 AWG
Tightening torque: Max 0.4 N*m
General tolerances: ±0.50 (±0.02)
Toll free: + 1 888 9 AIMTEC (924 6832)
North America only
Series AM30EW-NZ
30 Watt | DC-DC Converter
DIN-RAIL Option: AM30EW-NZ-K-STD
76.00
(2.99)
61.60
(2.43)
23.00
(0.91)
Ø3.30
31.50
(1.24)
Pin Out Specifications
1
2
3
4
5
6
Top View
Pin
Single
Dual
1
2
3
4
5
6
On/Off Control
-Vin
+Vin
Trim
- Vout
+ Vout
On/Off Control
-Vin
+Vin
- Vout
Common
+ Vout
Side View
9.80
(0.39)
22.20
(0.87)
25.80
(1.00)
Ø3.30
Note:
Unit: mm (inch)
Mounting rail: TS35
Wire range: 24-12 AWG
Tightening torque: Max 0.4 N*m
General tolerances: ±0.50 (±0.02)
DIN-RAIL with heatsink Option: AM30EW-NZ-K-STD
Top View
76.00
(2.99)
61.60
(2.43)
23.00
(0.91)
31.50
(1.24)
Ø3.30
1
2
3
4
5
6
www.aimtec.com
F 051e R13.C
REV:05/21/A
Side View
9.80
(0.39)
25.80
(1.00)
25.80
(1.00)
22.20
(0.87)
Ø3.30
Tel: +1 514 620 2722
5 of 10
Note:
Unit: mm (inch)
Mounting rail: TS35
Wire range: 24-12 AWG
Tightening torque: Max 0.4 N*m
General tolerances: ±0.50 (±0.02)
Toll free: + 1 888 9 AIMTEC (924 6832)
North America only
Series AM30EW-NZ
30 Watt | DC-DC Converter
Derating
Single output: 3.3V/5VDC output
Single output: 9V/12V/15V/24VDC output
Free Air Convection
Free Air Convection
Without heatsink
Without heatsink
100
With heatsink
Output Power (%)
Output Power (%)
100
With heatsink
80
Safe Operating Area
60
40
Safe Operating Area
60
40
20
20
0
0
- 40
80
- 20
0
20
40
50 55
60
80
- 40
100
- 20
0
20
40
50
60
80
100
Ambient Temperature º C
Ambient Temperature º C
Dual output:
Free Air Convection
Without heatsink
Output Power (%)
100
With heatsink
80
Safe Operating Area
60
40
20
0
- 40
- 20
0
20
40
50 55
60
80
100
Ambient Temperature º C
NOTE: With operations at 12V nominal input (9-18VDC) the output power will be rated at 80% only.
Typical application circuit
Single output models
+
Vin
+ Vin
C1
100uF
Vin
www.aimtec.com
F 051e R13.C
REV:05/21/A
+
DC
+Vout
+ Vout
+
DC
C2
- Vin
- Vout
Tel: +1 514 620 2722
6 of 10
- Vout
Toll free: + 1 888 9 AIMTEC (924 6832)
North America only
Series AM30EW-NZ
30 Watt | DC-DC Converter
Dual output models
+ Vin
C1
100uF
C2, C3
+
C2
+
DC
DC
Common
+
- Vin
- Vin
Model
+Vout
+ Vout
+ Vin
C3
- Vout
Single output models
3.3V/5V/9V Vout
12V/15V/24V Vout
220µF
100µF
- Vout
Dual output models
±5V/±12V/±15V Vout
±24V Vout
220µF
100µF
EMC recommended external filter
Single output models
CY1
1nF/2KV
LCM
1mH
FUSE
+ Vin
+
+
MOV
C1
+Vout
+ Vout
+ Vin
C2
DC
DC
C3
- Vin
- Vin
- Vout
C4
- Vout
CY2
1nF/2KV
Model
FUSE
MOV
C1
C2
C3
C4
www.aimtec.com
F 051e R13.C
REV:05/21/A
24V Vin
48V Vin
Choose based on actual input current
S20K30
S14K60
680µF/50V
330µF/100V
4.7µF/50V
2.2µF/100V
330µF/50V
330µF/100V
Refer to the C2 in typical application circuit
Tel: +1 514 620 2722
7 of 10
Toll free: + 1 888 9 AIMTEC (924 6832)
North America only
Series AM30EW-NZ
30 Watt | DC-DC Converter
Dual output models
CY1
2.2nF/400VAC
FUSE
+ Vin
+
MOV
C1
+
C5
+
C2 LDM
3.3uH
C3
DC
DC
C4
Common
+
- Vin
- Vin
+Vout
+ Vout
+ Vin
- Vout
C6
- Vout
CY2
2.2nF/400VAC
Model
FUSE
MOV
C1
C2, C3
C4
C5
24V Vin
48V Vin
Choose based on actual input current
S20K30
S14K60
680µF/50V
330µF/100V
2.2µF/50V
2.2µF/100V
330µF/50V
330µF/100V
Refer to the C2 in typical application circuit
Trimming
Output voltage can be externally trimmed by utilizing the methods as shown below
Fixed Resistor
Variable Potentiometer
Leave open if not used.
www.aimtec.com
F 051e R13.C
REV:05/21/A
Tel: +1 514 620 2722
8 of 10
Toll free: + 1 888 9 AIMTEC (924 6832)
North America only
Series AM30EW-NZ
30 Watt | DC-DC Converter
AM30EW-xx03S-NZ
Trim down %
1
2
Vout (VDC)
3.267
3.234
Rt down (KΩ)
193.344 106.818
Trim up %
1
2
Vout (VDC)
3.333
3.366
Rt up (KΩ)
305.949 102.749
3
3.201
70.696
3
3.399
57.886
4
3.168
50.870
4
3.432
38.180
5
3.135
38.341
5
3.465
27.104
6
3.102
29.708
6
3.498
20.007
7
3.069
23.397
7
3.531
15.072
8
3.036
18.583
8
3.564
11.442
9
3.003
14.790
9
3.597
8.658
10
2.97
11.724
10
3.63
6.457
AM30EW-xx05S-NZ
Trim down %
1
Vout (VDC)
4.95
Rt down (KΩ)
105.181
Trim up %
1
Vout (VDC)
5.05
Rt up (KΩ)
176.356
3
4.85
31.997
3
5.15
41.974
4
4.8
21.378
4
5.2
28.200
5
4.75
14.823
5
5.25
20.198
6
4.7
10.373
6
5.3
14.967
7
4.65
7.155
7
5.35
11.281
8
4.6
4.719
8
5.4
8.544
9
4.55
2.811
9
5.45
6.430
10
4.5
1.277
10
5.5
4.749
2
3
4
8.82
8.73
8.64
207.430 139.157 102.145
2
3
4
9.18
9.27
9.36
112.639
64.148
42.357
5
8.55
78.924
5
9.45
29.975
6
8.46
62.997
6
9.54
21.990
7
8.37
51.393
7
9.63
16.412
8
8.28
42.562
8
9.72
12.297
9
8.19
35.617
9
9.81
9.134
10
8.1
30.011
10
9.9
6.629
5
11.4
128.573
5
12.6
38.077
6
11.28
105.442
6
12.72
28.095
7
11.16
88.332
7
12.84
21.274
8
11.04
75.164
8
12.96
16.317
9
10.92
64.716
9
13.08
12.552
10
10.8
56.223
10
13.2
9.595
7
8
13.95
13.8
126.187 108.569
7
8
16.05
16.2
24.191
18.721
9
13.65
94.532
9
16.35
14.590
10
13.5
83.087
10
16.5
11.361
AM30EW-xx09S-NZ
Trim down %
1
Vout (VDC)
8.91
Rt down (KΩ)
375.533
Trim up %
1
Vout (VDC)
9.09
Rt up (KΩ)
314.532
2
4.9
52.154
2
5.1
71.279
AM30EW-xx12S-NZ
Trim down %
1
2
Vout (VDC)
11.88
11.76
Rt down (KΩ)
496.092 301.452
Trim up %
1
2
Vout (VDC)
12.12
12.24
Rt up (KΩ)
706.435 158.920
AM30EW-xx15S-NZ
Trim down %
1
Vout (VDC)
14.85
Rt down (KΩ)
634.883
Trim up %
1
Vout (VDC)
15.15
Rt up (KΩ)
1460.099
www.aimtec.com
F 051e R13.C
REV:05/21/A
3
11.64
212.527
3
12.36
83.879
4
11.52
161.585
4
12.48
54.075
2
3
4
14.7
14.55
14.4
400.637 288.514 222.759
2
3
4
15.3
15.45
15.6
192.574
96.642
61.354
5
6
14.25
14.1
179.537 148.960
5
6
15.75
15.9
43.016
31.781
Tel: +1 514 620 2722
9 of 10
Toll free: + 1 888 9 AIMTEC (924 6832)
North America only
Series AM30EW-NZ
30 Watt | DC-DC Converter
AM30EW-xx24S-NZ, xx=24 or 48
Trim down %
1
2
3
4
Vout (VDC)
23.76
23.52
23.28
23.04
Rt down (KΩ) 1286.200 792.123 565.867 436.104
Trim up %
1
2
3
4
Vout (VDC)
24.24
24.48
24.72
24.96
Rt up (KΩ)
816.889 179.914
94.338
60.464
5
6
22.8
22.56
351.954 292.963
5
6
25.2
25.44
42.307
30.988
7
8
9
22.32
22.08
21.84
249.315 215.714 189.047
7
8
9
25.68
25.92
26.16
23.257
17.640
13.376
10
21.6
167.370
10
26.4
10.027
NOTE: 1. Datasheets are updated as needed and as such, specifications are subject to change without notice. Once printed or downloaded, datasheets are no longer controlled
by Aimtec; refer to www.aimtec.com for the most current product specifications. 2. Product labels shown, including safety agency certifications on labels, may vary based on the
date manufactured. 3. Mechanical drawings and specifications are for reference only. 4. All specifications are measured at an ambient temperature of 25°C, humidity
