AK4332
Low-Power Advanced 32-bit Mono DAC with HP
1. General Description
The AK4332 is an advanced 32-bit high sound quality mono audio DAC with a built-in ground-referenced
headphone amplifier. It has four types of 32-bit digital filters for better sound quality, achieving low
distortion characteristics and wide dynamic range and operating ultra low power consumption. The
AK4332 accepts PCM Data, PDM Data and DSD Data. It is available in a 30-pin CSP package, utilizing
less board space than competitive offerings.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
2. Features
High Sound Quality Low Power Advanced 32-bit Mono DAC
- 4 types of Digital Filter for Sound Color Selection in PCM Mode
- Short Delay Sharp Roll-off, GD = 5.5 / fs
- Short Delay Slow Roll-off, GD = 4.5 / fs
- Sharp Roll-off
- Slow Roll-off
Ground-referenced Class-G Stereo Headphone Amplifier
- Output Power: 88 mW @ 8Ω
- THD+N: 101 dB
- S/N: 109 dB
- Output Noise Level: 114 dBV (Analog Volume = 10 dB)
- Analog Volume: +4 to 10 dB, 2 dB Step
- Ground Loop Noise Cancellation
Low Power Consumption:2.8 mW
Digital Audio interface
- PCM Interface Format: 32/24/16-bit I2S/MSB justified
Master / Slave Mode
Sampling Frequency:
8 k, 11.025 k, 12 k, 16 k, 22.05 k, 24 k, 32 k, 44.1 k, 48 k, 64 k, 88.2 k, 96 k, 128 k,
176.4 k, 192 kHz
- PDM 1-bit Input Support
- DSD64 Input Support
Power Management
PLL
μP Interface: I2C-bus (400 kHz)
Operation Temperature Range: Ta = 40 to +85 C
Power Supply:
• AVDD (DAC, PLL):
1.7 to 1.9 V
• CVDD (Headphone Amplifier, Charge Pump):
1.7 to 1.9 V
• LVDD (Digital Interface & LDO2 for Digital Core): 1.7 to 1.9 V (built-in LDO)
Pacage: 30-pin CSP (2.371 mm × 1.971 mm, 0.4 mm pitch)
019003761-E-00
2019/04
-1-
[AK4332]
3. Table of Contents
1. General Description ................................................................................................................................. 1
2. Features................................................................................................................................................... 1
3. Table of Contents..................................................................................................................................... 2
4. Block Diagram and Functions ................................................................................................................. 3
5. Pin Configurations and Functions ........................................................................................................... 4
5-1. Pin Configurations ............................................................................................................................ 4
5-2. Pin Functions .................................................................................................................................... 5
5-3. Handing of Unused Pins................................................................................................................... 7
6. Absolute Maximum Ratings..................................................................................................................... 8
7. Recommended Operating Conditions ..................................................................................................... 8
8. Electrical Characteristics ......................................................................................................................... 9
8-1. DAC Analog Characteristics (PCM Mode) ..................................................................................... 9
8-2. DAC Analog Characteristics (PDM 1-bit / DSD Mode) ................................................................. 11
8-3. PLL Characteristice ........................................................................................................................ 12
8-4. Charge Pump & LDO Circuit Power-Up Time ................................................................................ 12
8-5. Power Supply Current .................................................................................................................... 13
8-6. Current Consumptions for Each Operation Mode .......................................................................... 13
8-7. DAC Sharp Roll-Off Filter Characteristics ...................................................................................... 14
8-8. DAC Slow Roll-Off Filter Characteristics ........................................................................................ 16
8-9. DAC Short Delay Sharp Roll-Off Filter Characteristics .................................................................. 18
8-10. DAC Short Delay Slow Roll-Off Filter Characteristics.................................................................. 20
8-11. PDM Filter Characteristics............................................................................................................ 22
8-12. DC Characteristics ....................................................................................................................... 23
8-13. Switching Characteristics ............................................................................................................. 24
8-14. Timing Diagram (System Clock) .................................................................................................. 28
8-15. Timing Diagram (Serial Audio Interface) ...................................................................................... 29
8-16. Timing Diagram (I2C-bus Interface) ............................................................................................. 32
8-17. Timing Diagram (Reset) ............................................................................................................... 32
9. Functional Description ........................................................................................................................... 33
9-1. Digital Data Input (PCM Mode, PDM 1-bit Mode / DSD Mode) ..................................................... 33
9-2. System Clock.................................................................................................................................. 34
9-3. Master Counter Synchronization Control ....................................................................................... 39
9-4. PLL ................................................................................................................................................. 40
9-5. DAC Digital Filter ............................................................................................................................ 45
9-6. Digital Volume ................................................................................................................................ 46
9-7. Headphone Amplifier Output (HPOUT pin) .................................................................................... 47
9-8. Charge Pump & LDO Circuit .......................................................................................................... 52
9-9. Serial Audio Interface ..................................................................................................................... 53
9-10. PDM&DSD Signal Full Scale (FS) Detection ............................................................................... 57
9-11. Serial Control Interface (I2C-bus) ................................................................................................. 58
9-12. Control Sequence ......................................................................................................................... 62
9-13. Register Map ................................................................................................................................ 68
9-14. Register Definitions ...................................................................................................................... 69
10. Recommended External Circuits......................................................................................................... 77
11. Package ............................................................................................................................................... 79
11-1. Outline Dimensions ...................................................................................................................... 79
11-2. Material and Lead Finish .............................................................................................................. 79
11-3. Marking ......................................................................................................................................... 80
12. Ordering Guide .................................................................................................................................... 80
13. Revision History .................................................................................................................................. 81
IMPORTANT NOTICE ........................................................................................................................... 81
019003761-E-00
2019/04
-2-
[AK4332]
LDO2
SCL
I2 C
SDA
Interface
VCOM
CVDD
VSS2
VSS1
AVDD
LVDD
VDD12
4. Block Diagram and Functions
TESTI1
for Digital Logic
TESTI2
Control
Register
TESTO
PCM
Data
Interface
SDTI/PDMDI
DVOL
LRCK
BCLK/DSDCLK
MIX
Headphone
Amplifier
Digital
Filter
ΔΣ
Modulator
SCF
HPOUT
HPGND
PDM
Data
Interface
PDM
Filter
PDN
DSD
Data
Interface
for DAC
for Headphone Amplifier
(Class-G)
Charge Pump1
Charge
& LDO1P/N
Pump2
BCLK
PLL
VEE2
VCC2
CP2B
CN2B
CP2A
CN2A
RVEE
RAVDD
VEE1
CP1
CN1
MCKI/
PDMCLK
DACMCLK
Figure 1. AK4332 Block Diagram
019003761-E-00
2019/04
-3-
[AK4332]
5. Pin Configurations and Functions
5-1. Pin Configurations

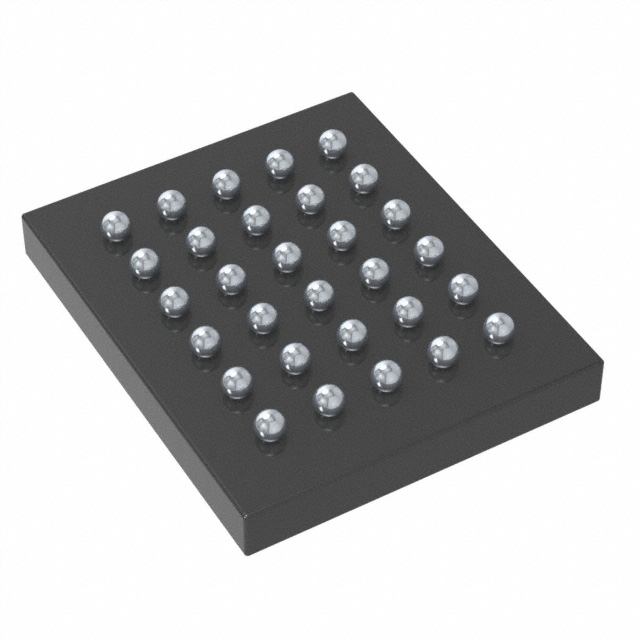

30-pin CSP
6
5
4
Top View
3
2
1
A
B
C
D
E
6
VDD12
CN1
CP1
CVDD
CN2B
5
VSS2
VEE1
BCLK/
DSDCLK
CP2B
CN2A
4
LVDD
LRCK
TESTI1
CP2A
VEE2
SDA
TESTI2
VCC2
HPOUT
SCL
PDN
VSS1
HPGND
TESTO
RVEE
RAVDD
AVDD
VCOM
A
B
C
D
E
3
2
1
MCKI/
PDMCLK
SDTI/
PDMDI
Top View
019003761-E-00
2019/04
-4-
[AK4332]
5-2. Pin Functions
No.
Pin Name
Power Supply
D1 AVDD
D2 VSS1
I/O
Protection
Diode
Function
Power
Domain
-
Analog Power Supply Pin
AVDD
Ground1 Pin
Headphone Amplifier / Charge Pump
D6 CVDD
CVDD
Power Supply Pin
A5
VSS2
Ground2 Pin
A4
LVDD
Digital Interface & LDO2 Power Supply Pin
LVDD
Common Voltage Output Pin
AVDD/
E1
VCOM
O
Connect a 2.2 μF 50% capacitor between this
VSS1
pin and the VSS1 pin. (Note 2)
LDO2 (1.2 V) Output Power Supply Pin (Note 1)
LVDD/
A6
VDD12
Connect a capacitor between this pin and the
LVDD
VSS2
VSS2 pin. (Note 2)
Note 1. Capacitor value connected to the VDD12 pin should be selected from 2.2 µF ±50% to 4.7µF
±50%.
Note 2. Do not connect a load to the VCOM pin and the VDD12 pin.
019003761-E-00
2019/04
-5-
[AK4332]
No.
Pin Name
I/O
Protection
Diode
Function
Power
Domain
Charge Pump & LDO
Charge Pump Circuit Positive Voltage
(CVDD or 1/2 × CVDD) Output Pin
CVDD/
D3 VCC2
O
CVDD
Connect a 2.2 μF ±50% capacitor between this pin VSS2
and the VSS2 pin. (Note 3)
Positive Charge Pump Capacitor Terminal 2A Pin
CVDD/
D4 CP2A
O
Connect a 2.2 μF ±50% capacitor between this pin
CVDD
VSS2
and the CN2A pin.
Negative Charge Pump Capacitor Terminal 2A Pin
E5
CN2A
I
Connect a 2.2 μF ±50% capacitor between this pin CVDD
CVDD
and the CP2A pin.
Positive Charge Pump Capacitor Terminal 2B Pin
CVDD/
D5 CP2B
O
Connect a 2.2 μF ±50% capacitor between this pin
CVDD
VSS2
and the CN2B pin.
Negative Charge Pump Capacitor Terminal 2B Pin
E6
CN2B
I
Connect a 2.2 μF ±50% capacitor between this pin CVDD
CVDD
and the CP2B pin.
Charge Pump Circuit Negative Voltage
CVDD/
(CVDD or 1/2 × CVDD) Output 2 Pin
E4
VEE2
O
Connect a 2.2 μF ±50% capacitor between this pin VSS2
and the VSS2 pin. (Note 3)
Positive Charge Pump Capacitor Terminal 1 Pin
CVDD/
CVDD
C6 CP1
O
Connect a 2.2 μF ±50% capacitor between this pin
VSS2
and the CN1 pin.
Negative Charge Pump Capacitor Terminal 1 Pin
B6
CN1
I
Connect a 2.2 μF ±50% capacitor between this pin CVDD
CVDD
and the CP1 pin.
Charge Pump Circuit Negative Voltage (CVDD)
CVDD/
Output 1 Pin
B5
VEE1
O
Connect a 2.2 μF ±50% capacitor between this pin VSS2
and the VSS2 pin. (Note 3)
LDO1P (1.5 V) Output Pin (Note 3)
AVDD/
C1 RAVDD
O
Connect capacitor between this pin and the VSS1
VSS1
pin. (Note 4)
LDO1N (1.5 V) Output Pin (Note 3)
AVDD/
B1
RVEE
O
Connect capacitor between this pin and the VSS1
VSS1
pin. (Note 4)
Note 3. Do not connect a load to the VEE1 pin, VCC2 pin, VEE2 pin, RAVDD pin and the RVEE pin.
Note 4. Capacitor value connected to the RAVDD pin and the RVEE pin should be selected from 1.0 µF
±50% to 4.7 µF ±50%.
019003761-E-00
2019/04
-6-
[AK4332]
No.
Pin Name
I/O
Protection
Diode
Function
Power
Domain
Control Interface
B2
SCL
I
B3
SDA
I/O
LVDD/
VSS2
LVDD/
VSS2
I2C Serial Data Clock Pin
I2C Serial Data Input/Output Pin
LVDD
LVDD
Audio Interface
MCKI
I
PDMCLK
I
A3
BCLK
I/O
C5
DSDCLK
B4
I
LRCK
I/O
SDTI
I
A2
PDMDI
I
External Master Clock Input Pin in PCM Mode
(PDM bit = “0”)
PDM Clock Pin in PDM Mode
(PDM bit = “1” & PDMMODE bit = “0”)
Audio Serial Data Clock Pin in PCM Mode
(PDM bit = “0”)
DSD Clock Pin in DSD Mode
(PDM bit = “1” & PDMMODE bit = “1”)
LVDD/
VSS2
LVDD
LVDD/
VSS2
LVDD
Frame Sync Clock Pin in PCM Mode
LVDD/
VSS2
LVDD
Audio Serial Data Input Pin in PCM Mode
(PDM bit = “0”)
PDM Data Input Pin in PDM Mode and
DSD Mode
(PDM bit = “1”)
LVDD/
VSS2
LVDD
Analog Output
E3
HPOUT
O
Headphone Amplifier Output Pin
CVDD/
VEE2
CVDD/
VEE2
E2
HPGND
I
Headphone Amplifier Ground Loop Noise
Cancellation Pin
CVDD
-
Others
LVDD/
LVDD
VSS2
LVDD
C4 TESTI1
I
LVDD
VSS2
LVDD/
C3 TESTI2
I
LVDD
VSS2
AVDD/
A1
TESTO
O TEST Output Pin
AVDD
VSS1
Note 5. The SCL pin, SDA pin, MCKI/PDMCLK pin, BCLK/DSDCLK pin, LRCK pin,
SDTI/PDMDI pin, HPGND pin, PDN pin, TESTI1 pin, and the TESTI2 pin must not be allowed to
float.
C2
PDN
I
Power down Pin
“L”: Power-down, “H”: Power-Up
TEST Input 1 Pin
It must be tied “L”.
TEST Input 2 Pin
It must be tied “L”.
5-3. Handing of Unused Pins
Unused I/O pins must be connected appropriately.
Classification Pin Name
MCKI/PDMCLK, BICK/DSDCLK,
LRCK, TESTI1, TESTI2
Digital
TESTO
Setting
Connect to VSS2
Open
019003761-E-00
2019/04
-7-
[AK4332]
6. Absolute Maximum Ratings
(VSS1 = VSS2 = 0 V; Note 6, Note 8)
Parameter
Symbol
Min.
Max.
Unit
Power
Analog
AVDD
4.3
V
0.3
Supplies:
Headphone Amplifier
CVDD
4.3
V
0.3
(Note 7)
/Charge Pump
Digital Interface
LVDD
4.3
V
0.3
& LDO2 for Digital Core
Input Current, Any Pin Except Supplies
IIN
mA
10
Digital Input Voltage (Note 9)
VIND
LVDD+0.3 or 4.3
V
0.3
Ambient Temperature (powered applied)
Ta
+85
40
C
Storage Temperature
Tstg
+150
65
C
Note 6. All voltages with respect to ground.
Note 7. Charge pump 1 & 2 are not in operation. In the case that charge pump 1 & 2 are in operation,
the maximum values of AVDD and CVDD become 2.15 V.
Note 8. VSS1 and VSS2 must be connected to the same analog plane.
Note 9. MCKI/PDMCLK, BCLK/DSDCLK, LRCK/FRCK, SDTI/PDMDI, SCL, SDA, PDN, TESTI1, TESTI2
pins
The maximum value of input voltage is lower value between (LVDD+0.3) V and 4.3 V.
WARNING: Operation at or beyond these limits may result in permanent damage to the device.
Normal Operation is not guaranteed at these extremes.
7. Recommended Operating Conditions
(VSS1 = VSS2 = 0 V; Note 10)
Parameter
Symbol
Min.
Typ.
Max.
Unit
Power
Analog
AVDD
1.7
1.8
1.9
V
Supplies:
Headphone Amplifier /
CVDD
1.7
1.8
1.9
V
(Note 11)
Charge Pump
Digital Interface
LVDD
1.7
1.8
1.9
V
& LDO2 for Digital Core
Note 10. All voltages with respect to ground.
Note 11. Each power up/down sequence is shown below.
1. PDN pin = “L”
2. LVDD, AVDD and CVDD are powered up.
3. (AVDD must be powered up before or at the same time of CVDD. The power-up sequence of
LVDD is not critical.)
4. The PDN pin is allowed to be “H” after all power supplies are applied and settled.
1. PDN pin = “L”
2. AVDD, CVDD and LVDD are powered down.
(CVDD must be powered down before or at the same time of AVDD. The power-down
sequence of LVDD is not critical.)
019003761-E-00
2019/04
-8-
[AK4332]
8. Electrical Characteristics
8-1. DAC Analog Characteristics (PCM Mode)
(Ta = +25C; AVDD = CVDD = LVDD = 1.8 V; VSS1 = VSS2 = HPGND = 0 V; Signal Frequency = 1 kHz;
24-bit Data; fs = 48 kHz, BCLK = 64fs; Measurement Bandwidth = 20 Hz to 20 kHz, OVC = 0 dB,
RL = 32Ω; unless otherwise specified)
Parameter
Min.
Typ.
Max.
Unit
DAC Characteristics:
Resolution
32
Bits
Headphone-Amp Characteristics: DAC (Mono) HPOUT pins
Output Power
0 dBFS, RL = 32Ω, HPG = 0 dB
24
mW
50
mW
RL = 16Ω, HPG = +2 dB, THD+N < 60 dB
88
mW
RL = 8Ω, HPG = +2 dB, THD+N < 20 dB
0.51
0.55
0.60
Vrms
Output Level (0 dBFS, RL = 32Ω, HPG = 4 dB) (Note 12)
THD+N
fs = 48 kHz
0 dBFS, RL = 32Ω, HPG = 0 dB
dB
101
BW = 20 kHz
fs = 48 kHz
0 dBFS, RL = 32Ω, HPG = 4 dB
dB
100
90
BW = 20 kHz
fs = 96 kHz
dB
97
BW = 40 kHz
fs = 192 kHz
dB
97
BW = 40 kHz
60 dBFS, RL = 32Ω, HPG = 4 dB fs = 48 kHz
dB
44
BW = 20 kHz
fs = 96 kHz
dB
40
BW = 40 kHz
fs = 192 kHz
dB
40
BW = 40 kHz
Note 12. Output level is proportional to AVDD. Typ. 0.55 Vrms × AVDD / 1.8 V @headphone amplifier
gain = 4 dB.
Headphone Amplifier
0.1 μF
AK4332
RL
15Ω
Figure 2. External Circuit for Headphone Amplifier
019003761-E-00
2019/04
-9-
[AK4332]
Parameter
Min.
Typ.
Max.
Unit
Dynamic Range
107
dB
(60 dBFS, A-weighted, HPG = 4 dB)
S/N (A-weighted)
Po = 25 mW, HPG = 0 dB (Data = 0 dBFS/ “0” Data)
109
dB
99
107
dB
Po = 10 mW, HPG = 4 dB (Data = 0 dBFS/ “0” Data)
Output Noise Level
dBV
114
106
(A-weighted, HPG = 10 dB)
Load Resistance
7.2
32
Ω
Load Capacitance
500
pF
Load Inductance
0.375
µH
PSRR (HPG = 4 dB) (Note 13)
217 Hz
85
dB
1 kHz
85
dB
DC-offset (Note 14)
HPG = 0 dB
0
+0.15
mV
0.15
HPG = All gain
0
+0.2
mV
0.2
Headphone Output Volume Characteristics:
Gain Setting
+4
dB
10
Step Width
1
2
3
dB
Gain: +4 to 10 dB
Note 13. PSRR is applied to all power supplies with 100 mVpp sine wave.
Note 14. When there is no gain change and temperature drift after headphone amplifier is powered up.
019003761-E-00
2019/04
- 10 -
[AK4332]
8-2. DAC Analog Characteristics (PDM 1-bit / DSD Mode)
(Ta = +25C; AVDD = CVDD = LVDD = 1.8 V; VSS1 = VSS2 = HPGND = 0 V; Signal Frequency = 1 kHz;
Input Signal Level = 0.5 × 0dBFS = 0dBr; Measurement bandwidth = 20 Hz to 20 kHz; RL = 32Ω;
unless otherwise specified.)
Parameter
Min.
Typ.
Max.
Unit
Dynamic Characteristics (Note 15)
Patameter
THD+N
0dBr Input
98
dB
(Note 16)
(HPG = 4 dB)
104
dB
Digital “0”
HPG = 4 dB
S/N (A-weighted)
(Note 17)
HPG = +4 dB
107
dB
1.01
Vrms
HPG = +4dB
0dBr Input
0.64
Vrms
HPG = 0 dB
(Note 16)
0.40
Vrms
HPG = 4 dB
Input signal should be in a range of 25 % to 75 % duty.
This spec is defined in case that the signal source is a sine wave with 75 % duty for positive
peak level and 25 % duty for negative peak level.
Digital “0” is a digital zero code pattern (“01101001”).
Output Level
Note 15.
Note 16.
Note 17.
019003761-E-00
2019/04
- 11 -
[AK4332]
8-3. PLL Characteristice
(Ta=40 to +85C; AVDD = CVDD = LVDD = 1.7V to 1.9V, VSS1 = VSS2 = HPGND = 0V;
unless otherwise specified)
Parameter
Min.
Typ.
Max.
PLL Characteristics
Reference Clock (Figure 16)
76.8
768
PLLCLK Frequency (Figure 16)
44.1 kHz × 256fs × 2
22.5792
48.0 kHz × 256fs × 2
24.576
Lock Time
2
Unit
kHz
MHz
MHz
msec
8-4. Charge Pump & LDO Circuit Power-Up Time
(Ta=40 to +85C; AVDD = CVDD = LVDD = 1.7V to 1.9V, VSS1 = VSS2 = HPGND = 0V;
unless otherwise specified)
Parameter
Capacitor
Min.
Typ.
Max.
Unit
Block Power-Up Time
CP1 (Note 18)
6.5
msec
CP2 (Class-G) (Note 18, Note 19) 4.5
msec
LDO1P (Note 20)
1 μF @RAVDD
0.5
msec
LDO1N (Note 20)
1 μF @RVEE
0.5
msec
LDO2 (Note 18)
1
msec
Note 18. Power-up time is a fixed value that is not affected by a capacitor.
Note 19. Power-up time is a value to 1/2 × CVDD, since CP2 starts with 1/2VDD Mode as part of
Class-G operation.
Note 20. Power-up time is proportional to a capacitor value. For instance, if a 2.2 μF capacitor is
connected to the RAVDD pin, LDO1P power-up time is 1.1 msec at maximum.
019003761-E-00
2019/04
- 12 -
[AK4332]
8-5. Power Supply Current
(Ta = +25C; AVDD = CVDD = LVDD = 1.8 V; VSS1 = VSS2 = HPGND = 0 V; unless otherwise specified)
Parameter
Min.
Typ.
Max.
Unit
Power Supply Current:
Power Up (PDN pin = “H”, All Circuits Power-Up) (Note 21)
AVDD + CVDD + LVDD
1.9
2.8
mA
Power Down (PDN pin = “L”) (Note 22)
AVDD + CVDD + LVDD
0
10
μA
Note 21. fs = 48 kHz, MCKI = 256fs, BCLK = 64fs; No data input, DAC, Headphone Amplifier, PLL
Power-Up; PLL Slave Mode, RL = 32Ω,
Note 22. All Digital input pins are fixed to LVDD or VSS2.
8-6. Current Consumptions for Each Operation Mode
(Ta = +25C; AVDD = CVDD = LVDD = 1.8 V; VSS1 = VSS2 = HPGND = 0 V;
MCKI = 256fs@fs = 44.1kHz & 96kHz, 128fs@fs=192kHz, BCLK = 64fs, Signal Frequency = 1kHz,
HPG[2:0] bits = “011”,CPMODE[1:0] bits = “00”, LVDSEL[1:0] bits = “01”, External Slave Mode, RL = 32Ω)
Table 1. Current Consumption (Typ.) for Each Operation Mode
AVDD
CVDD
LVDD
PCM Mode
[mA]
[mA]
[mA]
DAC HP (fs = 48 kHz), Digital “0” data Input
0.50
0.86
0.21
DAC HP (fs = 96 kHz), Digital “0” data Input
0.50
0.86
0.30
DAC HP (fs = 192 kHz), Digital “0” data Input
0.50
0.86
0.34
DAC HP (fs = 48 kHz), Output Power = 0.1mW
0.50
1.64
0.32
DAC HP (fs = 48 kHz), Output Power = 1mW
0.52
3.42
0.32
AVDD
[mA]
0.50
0.50
0.52
PDM 1-bit Mode / DSD Mode
DAC HP Digital “0” data Input
DAC HP Output Power = 0.1mW
DAC HP Output Power = 1mW
019003761-E-00
CVDD
[mA]
0.86
1.59
3.37
LVDD
[mA]
0.17
0.17
0.17
Total Power
[mW]
2.8
3.0
3.1
4.4
7.7
Total Power
[mW]
2.8
4.1
7.3
2019/04
- 13 -
[AK4332]
8-7. DAC Sharp Roll-Off Filter Characteristics
8-7-1. DAC Sharp Roll-Off Filter (fs = 48 kHz)
(Ta = 40 to +85C; AVDD = CVDD = LVDD = 1.7 to 1.9 V; VSS1 = VSS2 = HPGND = 0 V; fs = 48 kHz;
DASD bit = “0”, DASL bit = “0”)
Parameter
Symbol
Min.
Typ.
Max.
Unit
DAC Digital Filter (LPF):
PB
Passband
0
22.42
kHz
0.006 dB to +0.230 dB
(Note 23)
24.02
kHz
6.0 dB
Stopband (Note 23)
SB
26.2
kHz
PR
Passband Ripple
+0.230
dB
0.006
Stopband Attenuation (Note 24)
SA
69.8
dB
Group Delay (Note 25)
GD
25.8
1/fs
DAC Digital Filter (LPF) + DACANA (Headphone-Amp):
Frequency Response: 0 to 20.0 kHz
FR
+0.1
dB
0.12
Note 23. The passband and stopband frequencies scale with fs (system sampling rate).
PB = 0.467 × fs (@0.006/+0.230 dB), SB = 0.5465 × fs. Each frequency response refers to
that of 1 kHz.
Note 24. The bandwidth of the stopband attenuation value is from stopband to fs (system sampling rate).
Note 25. The calculated delay time is resulting from digital filtering. This is the time from the input of MSB
for L channel of SDTI to the output of an analog signal. The error of the delay at audio interface
is within +1 [1/fs].
8-7-2. DAC Sharp Roll-Off Filter (fs = 96 kHz)
(Ta = 40 to +85C; AVDD = CVDD = LVDD = 1.7 to 1.9 V; VSS1 = VSS2 = HPGND = 0 V; fs = 96 kHz;
DASD bit = “0”, DASL bit = “0”)
Parameter
Symbol
Min.
Typ.
Max.
Unit
DAC Digital Filter (LPF):
PB
Passband
0
44.85
kHz
0.003 dB to +0.240 dB
(Note 26)
48.04
kHz
6.0 dB
Stopband (Note 26)
SB
52.5
kHz
PR
Passband Ripple
+0.240
dB
0.003
Stopband Attenuation (Note 27)
SA
69.8
dB
Group Delay (Note 28)
GD
25.8
1/fs
DAC Digital Filter (LPF) + DACANA (Headphone-Amp):
Frequency Response: 0 to 40.0 kHz
FR
+0.11
dB
1.69
Note 26. The passband and stopband frequencies scale with fs (system sampling rate).
PB = 0.4672 × fs (@0.003/+0.240 dB), SB = 0.547 × fs. Each frequency response refers to
that of 1 kHz.
Note 27. The bandwidth of the stopband attenuation value is from stopband to fs (system sampling rate).
Note 28. The calculated delay time is resulting from digital filtering. This is the time from the input of MSB
for L channel of SDTI to the output of an analog signal. The error of the delay at audio interface
is within +1 [1/fs].
019003761-E-00
2019/04
- 14 -
[AK4332]
8-7-3. DAC Sharp Roll-Off Filter (fs = 192 kHz)
(Ta = 40 to +85C; AVDD = CVDD = LVDD = 1.7 to 1.9 V; VSS1 = VSS2 = HPGND = 0 V; fs = 192 kHz;
DASD bit = “0”, DASL bit = “0”)
Parameter
Symbol
Min.
Typ.
Max.
Unit
DAC Digital Filter (LPF):
PB
Passband
0
89.74
kHz
0.002 dB to +0.240 dB
(Note 29)
96.08
kHz
6.0 dB
Stopband (Note 29)
SB
104.9
kHz
PR
Passband Ripple
+0.240
dB
0.002
Stopband Attenuation (Note 30)
SA
69.8
dB
Group Delay (Note 31)
GD
25.8
1/fs
DAC Digital Filter (LPF) + DACANA (Headphone-Amp):
Frequency Response: 0 to 80.0 kHz
FR
+0.35
dB
8.23
Note 29. The passband and stopband frequencies scale with fs (system sampling rate).
PB = 0.4674 × fs (@0.002/+0.240 dB), SB = 0.5465 × fs. Each frequency response refers to
that of 1 kHz.
Note 30. The bandwidth of the stopband attenuation value is from stopband to fs (system sampling rate).
Note 31. The calculated delay time is resulting from digital filtering. This is the time from the input of MSB
for L channel of SDTI to the output of an analog signal. The error of the delay at audio interface
is within +1 [1/fs].
019003761-E-00
2019/04
- 15 -
[AK4332]
8-8. DAC Slow Roll-Off Filter Characteristics
8-8-1. DAC Slow Roll-Off Filter (fs = 48 kHz)
(Ta = 40 to +85C; AVDD = CVDD = LVDD = 1.7 to 1.9 V; VSS1 = VSS2 = HPGND = 0 V; fs = 48 kHz;
DASD bit = “0”, DASL bit = “1”)
Parameter
Symbol
Min.
Typ.
Max.
Unit
DAC Digital Filter (LPF):
PB
Passband
0
8.49
kHz
0.07 dB to +0.005 dB
(Note 32)
20.15
kHz
3.0 dB
Stopband (Note 32)
SB
42.59
kHz
PR
Passband Ripple
+0.005
dB
0.07
Stopband Attenuation (Note 33)
SA
72.8
dB
Group Delay (Note 34)
GD
25.8
1/fs
DAC Digital Filter (LPF) + DACANA (Headphone-Amp):
Frequency Response: 0 to 20.0 kHz
FR
+0.03
dB
3.21
Note 32. The passband and stopband frequencies scale with fs (system sampling rate).
PB = 0.1769 × fs (@0.07/+0.005 dB), SB = 0.887 × fs. Each frequency response refers to that
of 1 kHz.
Note 33. The bandwidth of the stopband attenuation value is from stopband to fs (system sampling rate).
Note 34. The calculated delay time is resulting from digital filtering. This is the time from the input of MSB
for L channel of SDTI to the output of an analog signal. The error of the delay at audio interface
is within +1 [1/fs].
8-8-2. DAC Slow Roll-Off Filter (fs = 96 kHz)
(Ta = 40 to +85C; AVDD = CVDD = LVDD = 1.7 to 1.9 V; VSS1 = VSS2 = HPGND = 0 V; fs = 96 kHz;
DASD bit = “0”, DASL bit = “1”)
Parameter
Symbol
Min.
Typ.
Max.
Unit
DAC Digital Filter (LPF):
PB
Passband
0
17.02
kHz
0.07 dB to +0.006 dB
(Note 35)
40.3
kHz
3.0 dB
Stopband (Note 35)
SB
85.15
kHz
Passband Ripple
PR
+0.006
dB
0.07
Stopband Attenuation (Note 36)
SA
72.8
dB
Group Delay (Note 37)
GD
25.8
1/fs
DAC Digital Filter (LPF) + DACANA (Headphone-Amp):
Frequency Response: 0 to 40.0 kHz
FR
+0.1
dB
4.84
Note 35. The passband and stopband frequencies scale with fs (system sampling rate).
PB = 0.1773 × fs (@0.07/+0.006 dB), SB = 0.887 × fs. Each frequency response refers to that
of 1 kHz.
Note 36. The bandwidth of the stopband attenuation value is from stopband to fs (system sampling rate).
Note 37. The calculated delay time is resulting from digital filtering. This is the time from the input of MSB
for L channel of SDTI to the output of an analog signal. The error of the delay at audio interface
is within +1 [1/fs].
019003761-E-00
2019/04
- 16 -
[AK4332]
8-8-3. DAC Slow Roll-Off Filter (fs = 192 kHz)
(Ta = 40 to +85C; AVDD = CVDD = LVDD = 1.7 to 1.9 V; VSS1 = VSS2 = HPGND = 0 V; fs = 192 kHz;
DASD bit = “0”, DASL bit = “1”)
Parameter
Symbol
Min.
Typ.
Max.
Unit
DAC Digital Filter (LPF):
PB
Passband 0.07 dB to +0.006 dB
0
34.17
kHz
(Note 38) 3.0 dB
80.65
kHz
Stopband (Note 38)
SB
170.3
kHz
PR
Passband Ripple
+0.006
dB
0.07
Stopband Attenuation (Note 39)
SA
72.8
dB
Group Delay (Note 40)
GD
25.8
1/fs
DAC Digital Filter (LPF) + DACANA (Headphone-Amp):
Frequency Response: 0 to 80.0 kHz
FR
+0.35
dB
11.38
Note 38. The passband and stopband frequencies scale with fs (system sampling rate).
PB = 0.178 × fs (@0.07/+0.006 dB), SB = 0.887 × fs. Each frequency response refers to that
of 1 kHz.
Note 39. The bandwidth of the stopband attenuation value is from stopband to fs (system sampling rate).
Note 40. The calculated delay time is resulting from digital filtering. This is the time from the input of MSB
for L channel of SDTI to the output of an analog signal. The error of the delay at audio interface
is within +1 [1/fs].
019003761-E-00
2019/04
- 17 -
[AK4332]
8-9. DAC Short Delay Sharp Roll-Off Filter Characteristics
8-9-1. DAC Short Delay Sharp Roll-Off Filter (fs = 48 kHz)
(Ta = 40 to +85C; AVDD = CVDD = LVDD = 1.7 to 1.9 V; VSS1 = VSS2 = HPGND = 0 V; fs = 48 kHz;
DASD bit = “1”, DASL bit = “0”)
Parameter
Symbol
Min.
Typ.
Max.
Unit
DAC Digital Filter (LPF):
PB
Passband 0.009 dB to +0.232 dB
0
22.41
kHz
(Note 41) 6.0 dB
24.15
kHz
Stopband (Note 41)
SB
26.23
kHz
PR
Passband Ripple
+0.232
dB
0.009
Stopband Attenuation (Note 42)
SA
69.8
dB
Group Delay (Note 43)
GD
5.5
1/fs
DAC Digital Filter (LPF) + DACANA (Headphone-Amp):
Frequency Response: 0 to 20.0 kHz
FR
+0.10
dB
0.12
Note 41. The passband and stopband frequencies scale with fs (system sampling rate).
PB = 0.4669 × fs (@0.009/+0.232 dB), SB = 0.5465 × fs. Each frequency response refers to
that of 1 kHz.
Note 42. The bandwidth of the stopband attenuation value is from stopband to fs (system sampling rate).
Note 43. The calculated delay time is resulting from digital filtering. This is the time from the input of MSB
for L channel of SDTI to the output of an analog signal. The error of the delay at audio interface
is within +1 [1/fs].
8-9-2. DAC Short Delay Sharp Roll-Off Filter (fs = 96 kHz)
(Ta = 40 to +85C; AVDD = CVDD = LVDD = 1.7 to 1.9 V; VSS1 = VSS2 = HPGND = 0 V; fs = 96 kHz;
DASD bit = “1”, DASL bit = “0”)
Parameter
Symbol
Min.
Typ.
Max.
Unit
DAC Digital Filter (LPF):
PB
Passband 0.004 dB to +0.238 dB
0
44.82
kHz
(Note 44) 6.0 dB
48.32
kHz
Stopband (Note 44)
SB
52.5
kHz
PR
Passband Ripple
+0.238
dB
0.004
Stopband Attenuation (Note 45)
SA
69.8
dB
Group Delay (Note 46)
GD
5.5
1/fs
DAC Digital Filter (LPF) + DACANA (Headphone-Amp):
Frequency Response: 0 to 40.0 kHz
FR
+0.11
dB
1.69
Note 44. The passband and stopband frequencies scale with fs (system sampling rate).
PB = 0.4669 × fs (@0.004/+0.238 dB), SB = 0.5465 × fs. Each frequency response refers to
that of 1 kHz.
Note 45. The bandwidth of the stopband attenuation value is from stopband to fs (system sampling rate).
Note 46. The calculated delay time is resulting from digital filtering. This is the time from the input of MSB
for L channel of SDTI to the output of an analog signal. The error of the delay at audio interface
is within +1 [1/fs].
019003761-E-00
2019/04
- 18 -
[AK4332]
8-9-3. DAC Short Delay Sharp Roll-Off Filter (fs = 192 kHz)
(Ta = 40 to +85C; AVDD = CVDD = LVDD = 1.7 to 1.9 V; VSS1 = VSS2 = HPGND = 0 V;
fs = 192 kHz; DASD bit = “1”, DASL bit = “0”)
Parameter
Symbol
Min.
Typ.
Max.
Unit
DAC Digital Filter (LPF):
PB
Passband 0.002 dB to +0.247 dB
0
89.68
kHz
(Note 47) 6.0 dB
96.64
kHz
Stopband (Note 47)
SB
104.9
kHz
PR
Passband Ripple
+0.247
dB
0.002
Stopband Attenuation (Note 48)
SA
69.8
dB
Group Delay (Note 49)
GD
5.5
1/fs
DAC Digital Filter (LPF) + DACANA (Headphone-Amp):
Frequency Response: 0 to 80.0 kHz
FR
+0.36
dB
8.23
Note 47 The passband and stopband frequencies scale with fs (system sampling rate).
PB = 0.4671 × fs (@0.002/+0.247 dB), SB = 0.5465 × fs. Each frequency response refers to
that of 1 kHz.
Note 48. The bandwidth of the stopband attenuation value is from stopband to fs (system sampling rate).
Note 49. The calculated delay time is resulting from digital filtering. This is the time from the input of MSB
for L channel of SDTI to the output of an analog signal. The error of the delay at audio interface
is within +1 [1/fs].
019003761-E-00
2019/04
- 19 -
[AK4332]
8-10. DAC Short Delay Slow Roll-Off Filter Characteristics
8-10-1. DAC Short Delay Slow Roll-Off Filter (fs = 48 kHz)
(Ta = 40 to +85C; AVDD = CVDD = LVDD = 1.7 to 1.9 V; VSS1 = VSS2 = HPGND = 0 V; fs = 48 kHz;
DASD bit = “1”, DASL bit = “1”)
Parameter
Symbol
Min.
Typ.
Max.
Unit
DAC Digital Filter (LPF):
PB
Passband 0.07 dB to +0.025 dB
0
9.82
kHz
(Note 50) 3.0 dB
20.57
kHz
Stopband (Note 50)
SB
42.98
kHz
PR
Passband Ripple
+0.025
dB
0.07
Stopband Attenuation (Note 51)
SA
75.1
dB
Group Delay (Note 52)
GD
4.5
1/fs
DAC Digital Filter (LPF) + DACANA (Headphone-Amp):
Frequency Response: 0 to 20.0 kHz
FR
+0.04
dB
2.96
Note 50. The passband and stopband frequencies scale with fs (system sampling rate).
PB = 0.2045 × fs (@0.07/+0.025 dB), SB = 0.8955 × fs. Each frequency response refers to
that of 1 kHz.
Note 51. The bandwidth of the stopband attenuation value is from stopband to fs (system sampling rate).
Note 52. The calculated delay time is resulting from digital filtering. This is the time from the input of MSB
for L channel of SDTI to the output of an analog signal. The error of the delay at audio interface
is within +1 [1/fs].
8-10-2. DAC Short Delay Slow Roll-Off Filter (fs = 96 kHz)
(Ta = 40 to +85C; AVDD = CVDD = LVDD = 1.7 to 1.9 V; VSS1 = VSS2 = HPGND = 0 V; fs = 96 kHz;
DASD bit = “1”, DASL bit = “1”)
Parameter
Symbol
Min.
Typ.
Max.
Unit
DAC Digital Filter (LPF):
PB
Passband 0.07 dB to +0.027 dB
0
19.7
kHz
(Note 53) 3.0 dB
41.16
kHz
Stopband (Note 53)
SB
85.97
kHz
PR
Passband Ripple
+0.027
dB
0.07
Stopband Attenuation (Note 54)
SA
75.1
dB
Group Delay (Note 55)
GD
4.5
1/fs
DAC Digital Filter (LPF) + DACANA (Headphone-Amp):
Frequency Response: 0 to 40.0 kHz
FR
+0.10
dB
4.59
Note 53. The passband and stopband frequencies scale with fs (system sampling rate).
PB = 0.2052 × fs (@0.07/+0.027 dB), SB = 0.8955 × fs. Each frequency response refers to
that of 1 kHz.
Note 54. The bandwidth of the stopband attenuation value is from stopband to fs (system sampling rate).
Note 55. The calculated delay time is resulting from digital filtering. This is the time from the input of MSB
for L channel of SDTI to the output of an analog signal. The error of the delay at audio interface
is within +1 [1/fs].
019003761-E-00
2019/04
- 20 -
[AK4332]
8-10-3. DAC Short Delay Slow Roll-Off Filter (fs = 192 kHz)
(Ta = 40 to +85C; AVDD = CVDD = LVDD = 1.7 to 1.9 V; VSS1 = VSS2 = HPGND = 0 V; fs = 192 kHz;
DASD bit = “1”, DASL bit = “1”)
Parameter
Symbol
Min.
Typ.
Max.
Unit
DAC Digital Filter (LPF):
PB
Passband 0.07 dB to +0.028 dB
0
39.54
kHz
(Note 56) 3.0 dB
82.37
kHz
Stopband (Note 56)
SB
172
kHz
PR
Passband Ripple
+0.028
dB
0.07
Stopband Attenuation (Note 57)
SA
75.1
dB
Group Delay (Note 58)
GD
4.5
1/fs
DAC Digital Filter (LPF) + DACANA (Headphone-Amp):
Frequency Response: 0 to 80.0 kHz
FR
+0.35
dB
11.13
Note 56. The passband and stopband frequencies scale with fs (system sampling rate)
PB = 0.2059 × fs (@0.07/+0.028 dB), SB = 0.8958 × fs. Each frequency response refers to
that of 1 kHz.
Note 57. The bandwidth of the stopband attenuation value is from stopband to fs (system sampling rate).
Note 58. The calculated delay time is resulting from digital filtering. This is the time from the input of MSB
for L channel of SDTI to the output of an analog signal. The error of the delay at audio interface
is within +1 [1/fs].
019003761-E-00
2019/04
- 21 -
[AK4332]
8-11. PDM Filter Characteristics
(Ta = 40 to +85C; AVDD = CVDD = LVDD = 1.7 to 1.9 V; VSS1 = VSS2 = HPGND = 0 V;
CM[1:0] bits = “00“, FS[4:0] bits = “01010”, PDM bit = “1”)
PDM 1-bit Mode / DSD Mode
Parameter
Unit
Min.
Typ.
Max.
Digital Filter Response (Note 59)
20 kHz
0.63
dB
40 kHz
2.64
dB
80 kHz
14.37
dB
Group Delay (Note 60)
GD
12.5
µsec
Digital Filter + DACANA (Headphone Amplifier):
20 kHz
dB
0.83
Note 59. Input signal should be in a range of 25 % to 75 % duty.
Note 60. The calculated delay time is resulting from PDM Filter. This is the time from the point of data
change at the PDMDI pin to the output of an analog signal.
In DSD Mode, this specification is 12.8 µsec.
019003761-E-00
2019/04
- 22 -
[AK4332]
8-12. DC Characteristics
(Ta = 40 to +85C; AVDD = CVDD = LVDD = 1.7 to 1.9 V; VSS1 = VSS2 = HPGND = 0 V)
Parameter
Symbol
Min.
Typ.
Max.
I/O Pins (Note 61)
High-Level Input Voltage
VIH
70 %LVDD
Low-Level Input Voltage
VIL
30 %LVDD
High-Level Output Voltage
VOH
LVDD 0.2
Low-Level Output Voltage
Except for SDA pin (Iout = 200 μA)
VOL1
0.2
SDA pin (Iout = 2 mA)
VOL2
20 %LVDD
Input Leakage Current
Iin
5
+5
Note 61. MCKI/PDMCLK, BCLK/DSDCLK, LRCK, SDTI/PDMDI, SCL, SDA, PDN, TESTI1,
TESTI2, TESTO pins.
019003761-E-00
Unit
V
V
V
V
V
μA
2019/04
- 23 -
[AK4332]
8-13. Switching Characteristics
(Ta = 40 to +85C; AVDD = CVDD = LVDD = 1.7 to 1.9 V; VSS1 = VSS2
unless otherwise specified)
Parameter
Symbol
Min.
MCKI
Input Frequency
fMCK
0.256
Pulse Width Low
tMCKL
0.4/fMCK
Pulse Width High
tMCKH
0.4/fMCK
PLL
Output Frequency (PLLCLK) (Figure 16)
44.1kHz × 256fs × 2
fPLL
48.0kHz × 256fs × 2
fPLL
Reference Clock
(Figure 16)
rPLL
76.8
Lock Time
PLT
PCM Audio Interface Timing
Master Mode
LRCK Output Timing
Frequency (Note 62)
fs
Duty
LRDuty
BCLK Output Timing
Period (BCKO bit = “0”)
tBCK
(BCKO bit = “1”)
tBCK
Duty
BCKDuty
BCLK “↓” to LRCK Edge
tBLR
20
SDTI Setup Time
tBDS
10
SDTI Hold Time
tBDH
10
019003761-E-00
= HPGND = 0 V; CL = 80 pF;
Typ.
Max.
Unit
-
24.576
-
MHz
nsec
nsec
22.5792
24.5760
-
768
2
MHz
MHz
kHz
msec
8
11.025
12
16
22.05
24
32
44.1
48
64
88.2
96
128
176.4
192
50
-
kHz
kHz
kHz
kHz
kHz
kHz
kHz
kHz
kHz
kHz
kHz
kHz
kHz
kHz
kHz
%
1/(64fs)
1/(32fs)
50
-
20
-
nsec
nsec
%
nsec
nsec
nsec
2019/04
- 24 -
[AK4332]
Parameter
PCM Audio Interface Timing
Slave Mode
LRCK Input Timing
Frequency (Note 62)
Duty
BCLK Input Timing
Frequency (Note 63)
Symbol
Min.
Typ.
Max.
Unit
fs
45
8
11.025
12
16
22.05
24
32
44.1
48
64
88.2
96
128
176.4
192
50
55
kHz
kHz
kHz
kHz
kHz
kHz
kHz
kHz
kHz
kHz
kHz
kHz
kHz
kHz
kHz
%
LRDuty
12.288 or
MHz
512fs
Pulse Width Low
tBCKL
0.4/fBCK
nsec
Pulse Width High
tBCKH
0.4/fBCK
nsec
BCLK “↑” to LRCK Edge
tBLR
20
nsec
LRCK Edge to BCLK “↑”
tLRB
20
nsec
SDTI Setup Time
tBDS
10
nsec
SDTI Hold Time
tBDH
10
nsec
Note 62. Supported sampling rate are 8 k, 11.025 k, 12 k, 16 k, 22.05 k, 24 k, 32 k, 44.1 k, 48 k, 64 k,
88.2 k, 96 k, 128 k, 176.4 k and 192 kHz.
Note 63. The maximum value is lower frequency between “12.288 MHz” and “512fs”.
fBCK
019003761-E-00
0.256
-
2019/04
- 25 -
[AK4332]
Parameter
PDM Interface Timing
Sampling Frequency
PDMCLK Input Timing
Period
Pulse Width Low
Pulse Width High
PDM 1-bit mode
PDMDI Setup Time
PDMDI Hold Time
Parameter
Symbol
Min.
Typ.
Max.
Unit
PDMfs
-
-
3.072
MHz
tPDMCLK
tPDMCLKL
tPDMCLKH
0.4×tPDMCLK
0.4×tPDMCLK
1/(4PDMfs)
-
-
nsec
nsec
nsec
tPDMS
tPDMH
20
20
-
-
nsec
nsec
Symbol
Min.
Typ.
Max.
Unit
DSD64 Interface Timing (64fs mode)
Sampling Frequency
fs
48
kHz
DSDCLK Input Timing
Period
tDSCK
1/64fs
nsec
Pulse Width Low
tDSCKL
nsec
0.4×tDSCK
Pulse Width High
tDSCKH
nsec
0.4×tDSCK
DSD Data I/F Timing
DSDCLK Edge to PDMDI Edge
tDDD
-20
20
nsec
(Note 64)
Note 64. DSD data transmitting device must meet this time.
When DCKB bit = “0” (default), “tDDD” is defined from DSDCLK “↓” until PDMDI edge and
from PDMDI edge until DSDCLK “↑” edge.
When DCKB bit = “1”, “tDDD” is defined from DSDCLK “↑” until PDMDI edge and from PDMDI
edge until DSDCLK “↓” edge.
019003761-E-00
2019/04
- 26 -
[AK4332]
Parameter
Symbol
Min.
Typ.
Max.
Unit
2
Control Interface Timing (I C-bus mode): (Note 65)
SCL Clock Frequency
fSCL
400
kHz
Bus Free Time Between Transmissions
tBUF
1.3
μsec
Start Condition Hold Time (prior to first clock pulse)
tHD:STA
0.6
μsec
Clock Low Time
tLOW
1.3
μsec
Clock High Time
tHIGH
0.6
μsec
Setup Time for Repeated Start Condition
tSU:STA
0.6
μsec
SDA Hold Time from SCL Falling (Note 66)
tHD:DAT
0
μsec
SDA Setup Time from SCL Rising
tSU:DAT
0.1
μsec
Rise Time of Both SDA and SCL Lines
tR
0.3
μsec
Fall Time of Both SDA and SCL Lines
tF
0.3
μsec
Setup Time for Stop Condition
tSU:STO
0.6
μsec
Capacitive Load on Bus
Cb
400
pF
Pulse Width of Spike Noise Suppressed by Input Filter
tSP
0
50
nsec
Power-down & Reset Timing
PDN accept pulse width (Note 67)
tPDN
1
msec
PDN Reject Pulse Width (Note 67)
tRPD
50
nsec
Note 65. I2C-bus is a registered trademark of NXP B.V.
Note 66. Data must be held long enough to bridge the 300 nsec-transition time of SCL.
Note 67. The AK4332 will be reset by bringing the PDN pin = “L”. The PDN pin must held “L” for longer
period than or equal to tPDN (Min.). The AK4332 will not be reset by the “L” pulse shorter than
or equal to tRPD (Max.).
019003761-E-00
2019/04
- 27 -
[AK4332]
8-14. Timing Diagram (System Clock)
1/fMCK
1/fMCK
VIH
MCKI
VIL
tMCKH
tMCKL
1/fs
1/fs
VIH
LRCK
VIL
tLRCKH
tLRCKL
LRDuty = tLRCKH x fs x 100
1/fBCK
1/fBCK
VIH
BCLK
VIL
tBCKH
tBCKL
Figure 3. System Clock (Slave Mode)
1/fs
50 %LVDD
LRCK
tLRCKH
tLRCKL
LRDuty = tLRCKH x fs x 100
tBCK
50 %LVDD
BCLK
tBCKH
tBCKL
BCKDuty = tBCKH / tBCK x 100
Figure 4. System Clock (Master Mode)
019003761-E-00
2019/04
- 28 -
[AK4332]
8-15. Timing Diagram (Serial Audio Interface)
VIH
VIL
LRCK
tBLR
tLRB
VIH
VIL
BCLK
tBDS
tBDH
VIH
VIL
SDTI
Figure 5. Serial Data Interface (Slave Mode)
LRCK
50 %LVDD
tBLR
50 %LVDD
BCLK
tBDS
tBDH
VIH
VIL
SDTI
Figure 6. Serial Data Interface (Master Mode)
019003761-E-00
2019/04
- 29 -
[AK4332]
tPDMCLK
tPDMCLK
VIH
PDMCLK
VIL
tPDMCLKH
tPDMCLKL
VIH
PDMCLK
VIL
tPDMS
VIH
PDMDI
VIL
tPDMH
VIH
PDMDI
VIL
(other timing)
Figure 7. PDM 1-bit Interface Timing (PDMCKR bit = “0”)
VIH
PDMCLK
VIL
tPDMS
VIH
PDMDI
VIL
tPDMH
VIH
PDMDI
VIL
(other timing)
Figure 8. PDM 1-bit Interface Timing (PDMCKR bit = “1”)
019003761-E-00
2019/04
- 30 -
[AK4332]
tDSCK
tDSCK
tDCKL
tDCKH
VIH
DSDCLK
VIL
tDDD
VIH
PDMDI
VIL
tDDD
VIH
PDMDI (Other Timing)
VIL
Figure 9. DSD Interface Timing (DCKB bit = “0”)
tDSCK
tDSCK
tDCKH
tDCKL
VIH
DSDCLK
VIL
tDDD
VIH
PDMDI
VIL
tDDD
VIH
PDMDI (Other Timing)
VIL
Figure 10. DSD Interface Timing (DCKB bit = “1”)
019003761-E-00
2019/04
- 31 -
[AK4332]
8-16. Timing Diagram (I2C-bus Interface)
VIH
SDA
VIL
tBUF
tLOW
tR
tHIGH
tF
tSP
VIH
SCL
VIL
tHD:STA
Stop
tHD:DAT
tSU:DAT tSU:STA
tSU:STO
Start
Stop
Start
Figure 11.
I2C-bus
Mode Timing
8-17. Timing Diagram (Reset)
tRPD
tPDN
VIH
tRPD
PDN
VIL
VIL
Figure 12. Power Down and Standby
019003761-E-00
2019/04
- 32 -
[AK4332]
9. Functional Description
9-1. Digital Data Input (PCM Mode, PDM 1-bit Mode / DSD Mode)
The AK4332 can perform D/A conversion for PCM data, PDM data and DSD data.
In PCM Mode, PCM data can be input to the BCLK, LRCK and SDTI pins. In PDM 1-bit Mode, PDM data
can be input to the PDMCLK and PDMDI pins. In DSD Mode, DSD data can be input to the DSDCLK and
PDMDI pins.
PCM Mode and PDM 1-bit Mode / DSD Mode can be selected by setting PDM bit (Table 2).
All power management bits (PMCP1, PMCP2, PMLDO1P, PMLDO1N, PMDA and PMHP bits) except for
PMPLL bit must be “0” when setting PDM bit.
Table 2. Audio Interface Selection
PDM bit
Audio Interface
0
PCM Mode
1
PDM 1-bit Mode / DSD Mode
(default)
Table 3. Setting of Clock Selection (x: Do not Care)
PDM PDMMODE
bit
bit
Mode
PCM Mode
PMPLL
bit
PLS
bit
MS
bit
1
0
x
0
0
0
2
0
x
0
0
1
3
0
x
1
0
0
4
0
x
1
0
1
5
0
x
1
1
0
1
“0”
0
0
0
1
1
“1”
0
0
0
2
1
“1”
1
1
0
PDM 1-bit Mode
DSD Mode
MCKI /
PDMCLK
pins
BCLK /
DSDCLK
pins
LRCK
pins
MCKI
Input
MCLK
Input
MCKI
Input
MCLK
Input
BCLK
Input
BCLK
Output
BCLK
Input
BCLK
Output
BCLK
Input
LRCK
Input
LRCK
Output
LRCK
Input
LRCK
Output
LRCK
Input
VSS2
VSS2
PDMCLK
Input
MCKI
Input
VSS2
PLL Clock
Source
DAC
CLK
(PLL Disable)
MCKI
(PLL Disable)
MCKI
MCKI
PLLCLK
MCKI
PLLCLK
BCLK
PLLCLK
VSS2
(PLL Disable)
PDMCLK
DSDCLK
VSS2
(PLL Disable)
MCKI
DSDCLK
VSS2
DSDCLK
PLLCLK
Note 68. Inhibit to setting except of clock combinations shown in Table 3.
019003761-E-00
2019/04
- 33 -
[AK4332]
9-2. System Clock
9-2-1 PCM Mode
The DAC, Headphone Amplifier and Audio Interface blocks are operated by a clock generated by PLL or
an external MCKI. Clock source can be selected by DACCKS bit. The sampling frequency and master
clock frequency are set by CM[1:0] bits and FS[4:0] bits.
Table 4. DAC Master Clock Setting
DACCKS bit
DAC Master Clock
0
MCKI
1
PLLCLK
(default)
The AK4332 can be operated in both master and slave modes in PCM Mode. Clock mode of the LRCK pin
and the BLCK pin can be selected by MS bit. When using master mode, the LRCK pin and the BCLK pin
should be pulled down or pulled up with an external resistor (about 100 kΩ) because both pins are floating
state until MS bit becomes “1”.
Table 5. Master / Slave Mode Selection
MS bit
LRCK (pin), BCLK (pin)
0
Slave Mode
1
Master Mode
(default)
Master / slave mode switching is not allowed while the AK4332 is in normal operation. The DAC and
headphone amplifier must be powered down and PMTIM bit must be “0” before master / slave mode is
switched. Furthermore, PLL and charge pump must also be powered down in case that sampling
frequency is changed or DACCLK is stopped.
< MS bit Setting Sequence Example >
1. DAC, Headphone Amplifier (PLL, Charge Pump) Power-Down
2. Clock Mode of ACPU Setting (In case clock mode of ACPU is master, switch to slave.)
3. MS bit Selection
4. Clock Mode of ACPU Setting (In case clock mode of ACPU is slave, switch to master.)
5. DAC, Headphone Amplifier (PLL, Charge Pump) Power-Up
019003761-E-00
2019/04
- 34 -
[AK4332]
32bit
SDTI
MIX
Audio
Interface
BCLK
Digital
Filter
DATT
LRCK
Mono
DAC
HP
(w/ Vol)
HPOUT
HPGND
PLL: PLS bit (MCKI pin or BCLK pin)
PLD[15:0], PLM[15:0], MDIV[7:0]
BCLK
PLL
DACMCLK
MCKI
DACMCLK: DACCKS bit (PLL or MCKI)
CM[1:0], FS[4:0] bits
Figure 13. Internal configure diagram of AK4332
019003761-E-00
2019/04
- 35 -
[AK4332]
< Salve Mode: MS bit = “0” >
MS bit = “0”, PMPLL bit = “0”, DACCKS bit = “0”
32bit
SDTI
MIX
Audio
Interface
BCLK
Digital
Filter
DATT
LRCK
Mono
DAC
HP
(w/ Vol)
HPOUT
HPGND
PLL: PLS bit (MCKI pin or BCLK pin)
PLD[15:0], PLM[15:0], MDIV[7:0]
BCLK
PLL
DACMCLK
MCKI
DACMCLK: DACCKS bit (PLL or MCKI)
CM[1:0], FS[4:0] bits
Figure 14. Example of Clock and Data Flow (Slave Mode, Not using PLL)
< Master Mode: MS bit = “1” >
MS bit = “1”, PMPLL bit = “1”, DACCKS bit = “0”
32bit
Audio
Interface
BCLK
SDTI
Digital
Filter
DATT
MIX
LRCK
Mono
DAC
HP
(w/ Vol)
HPOUT
HPGND
PLL: PLS bit (MCKI pin or BCLK pin)
PLD[15:0], PLM[15:0], MDIV[7:0]
BCLK
PLL
DACMCLK
MCKI
DACMCLK: DACCKS bit (PLL or MCKI)
CM[1:0], FS[4:0] bits
Figure 15. Example of Clock and Data Flow (Master Mode, Using PLL)
019003761-E-00
2019/04
- 36 -
[AK4332]
< Master Clock Frequency and Sampling Frequency Setting >
CM1 bit
0
0
1
1
Table 6. Setting of Master Clock Frequency
Master Clock
Sampling Frequency
CM0 bit
Frequency
Range
0
256fs
8 to 96 kHz
1
512fs
8 to 48 kHz
0
1024fs
8 to 24 kHz
1
128fs
128 to 192 kHz
(default)
Table 7. Setting of Sampling Frequency (N/A: Not available)
FS3 bit
FS2 bit
FS1 bit
FS0 bit
Sampling Frequency
0
0
0
0
8 kHz
(default)
0
0
0
1
11.025 kHz
0
0
1
0
12 kHz
0
1
0
0
16 kHz
0
1
0
1
22.05 kHz
0
1
1
0
24 kHz
1
0
0
0
32 kHz
1
0
0
1
44.1 kHz
1
0
1
0
48 kHz
1
1
0
0
64 kHz
1
1
0
1
88.2 kHz
1
1
1
0
96 kHz
0
0
0
0
128 kHz
0
0
0
1
176.4 kHz
0
0
1
0
192 kHz
Others
N/A
* Depending on setting of PLL’s divider, the sampling frequency may differ.
Please set PLD[15:0] and PLM[15:0] bits precisely.
FS4 bit
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
019003761-E-00
2019/04
- 37 -
[AK4332]
9-2-2 PDM Mode
PDM 1-bit Mode and DSD Mode can be selected by setting PDM bit = “1” (Table 2).
PDM 1-bit Mode and DSD Mode can be selected by setting PDMMODE bit (Table 8).
In PDM 1-bit Mode or DSD Mode, CM[1:0] bits should be set to “00” (256fs), FS[4:0] bits should be set to
“01001” (44.1 kHz) or “01010” (48 kHz) and MS bit should be set to “0” (Slave Mode).
All power management bits (PMCP1, PMCP2, PMLDO1P, PMLDO1N, PMDA and PMHP bits) except for
PMPLL bit must be “0” when setting PDMMODE bit.
PDM bit
1
Table 8. PDM Mode Selection
PDMMODE bit
Mode
0
PDM 1-bit Mode
1
DSD Mode
019003761-E-00
(default)
2019/04
- 38 -
[AK4332]
9-3. Master Counter Synchronization Control
Internal master counter starts when setting PMTIM bit = “1”. Phase difference can be controlled within
4/64fs by asserting PMTIM bit when using multiple AK4332’s. In case of using PLL output (PLLO) as
system clock, set PMTIM bit to "1" in 2 msec or more after setting PMPLL bit to “1”. In case of using
external clock as system clock, supply a stable clock and set PMTIM bit to "1". All power management bits
(PMCP1, PMCP2, PMLDO1P, PMLDO1N, PMDA and PMHP bits) except for PMPLL bit must be “0” when
PMTIM bit = “0”.
Table 9. Master Counter Power Control
PMTIM bit
Master Counter Status
0
Disable
(default)
1
Enable
019003761-E-00
2019/04
- 39 -
[AK4332]
9-4. PLL
The PLL generates PLLCLK which can be used the operation clock for DAC (DACMCLK). The oscillation
frequency of PLLCLK should be set to 22.5792 or 24.5760 MHz (Table 10 shows setting of 48 kHz, 44.1
kHz and 32 kHz base rates). Refer to Table 17 and Table 18 for PLL setting examples. Reference clock of
PLL (REFCLK) should be set in a range from 76.8 kHz to 768 kHz.
1
------------(PLD+1)
MCKI/
BCLK
76.8 kHz to
768 kHz
PLL ANA
PLLCLK
PLLCLK
REFCLK
Feedback
1
------------(MDIV+1)
DACMCLK
Table 10. PLLCLK Setting
48 kHz base rate /
44.1 kHz base rate
32kHz base rate
24.5760 MHz
22.5792 MHz
PLS bit
1
------------(PLM+1)
REFCLK = PLL Source / (PLD+1)
PLLCLK = REFCLK x (PLM+1)
DACMCLK = PLLCLK / (MDIV+1)
Figure 16. PLL Block Diagram
9-4-1. Power Management (PMPLL)
PLL can be powered down by a control register setting.
Table 11. PLL Power Control
PMPLL bit
PLL Status
0
Power-Down
1
Power-Up
(default)
9-4-2. Input Clock Select Function
The PLL has a function that selects the input clock. The clock source pin is selected by PLS bit. PLS bit
must be set at PMTIM bit = “0”.
Table 12. PLL Clock Source Selection
PLS bit
Clock Source
0
MCKI pin
(default)
1
BCLK pin
019003761-E-00
2019/04
- 40 -
[AK4332]
9-4-3. PLL Reference Clock Divider
The PLL can set the dividing number of the reference clock in 16-bit. The input clock is used as PLL
reference clock by dividing by (PLD + 1). PLD[15:0] bits must be set at PMTIM bit = “0”.
Table 13. PLL Reference Clock Divider
PLD[15:0] bits
Dividing Number
0x0000
1
(default)
0x0001-0xFFFF
1/(PLD+1)
Note 69. The reference clock divided by PLD should be set in the range from 76.8 kHz to 768 kHz.
9-4-4. PLL Feedback Clock Divider
The dividing number of feedback clock can be set freely in 16-bit. PLLCLK is divided by (PLM +1) and used
as PLL feedback clock. PLM[15:0] bits must be set at PMTIM bit = “0”.
Table 14. PLL Feedback Clock Divider
PLM[15:0] bits
Dividing Number
0x0000
Clock Stop
(default)
0x0001-0xFFFF
1/(PLM+1)
9-4-5. PLL Internal Mode Setting
PLLMD bit controls PLL internal mode. Set PLLMD bit by referring to Table 17 and Table 18. PLLMD bit
must be set at PMPLL bit = “0”.
Table 15. PLL Internal Mode Setting
PLLMD bit
Reference Clock
0
≥ 256 kHz
1
< 256 kHz
019003761-E-00
(default)
2019/04
- 41 -
[AK4332]
9-4-7. PLLCLK Divider Setting
MDIV[3:0] bits control PLLCLK divider.
MDIV[3:0] bits must be set at PMTIM bit = “0”.
Table 16. PLLCLK Divider Setting
MDIV[3:0] bits
Divide By
0H
1
(default)
1H ~ FH
1/(MDIV+1)
Note 70. When set each registers as following, divider value is set to 1.5 at MDIV[3:0] bits = 0H.
・CM[1:0]=”10” , FS[4:0]=”00100”
・CM[1:0]=”01”, FS[4:0]=”01000”
・CM[1:0]=”00” , FS[4:0]=”01100”
・CM[1:0]=”11” , FS[4:0]=”10000”
(1024fs, fs=16kHz)
(512fs, fs=32kHz)
(256fs, fs=64kHz)
(128fs, fs=128kHz)
019003761-E-00
2019/04
- 42 -
[AK4332]
9-4-7. PLL Setting Examples
Table 17. PLL Setting Example (PLL reference source: MCKI)
PLL condition
CLKIN
Source Frequency PLD+1 REFCLK PLM+1 PLLMD
PLLCLK
MDIV+1
[kHz]
[kHz]
bit
[MHz]
(Note 71)
MCKI
9,600
25
384
64
0
24.5760
0
19,200
25
768
32
0
24.5760
0
12,288
16
768
32
0
24.5760
0
24,576
32
768
32
0
24.5760
0
12,000
125
96
256
1
24.5760
0
24,000
125
192
128
1
24.5760
0
9,600
125
76.8
294
1
22.5792
0
19,200
125
153.6
147
1
22.5792
0
11,289.6
16
705.6
32
0
22.5792
0
22,579.2
32
705.6
32
0
22.5792
0
Note 71. At the case of CM[1:0] bits i set to “01” (512fs).
019003761-E-00
Sampling
Frequency
[kHz]
48
48
48
48
48
48
44.1
44.1
44.1
44.1
2019/04
- 43 -
[AK4332]
Table 18. PLL Setting Example (PLL reference source: BCLK)
CLKIN
PLL condition
Frequency PLD+1 REFCLK
Source
[kHz]
[kHz]
256
1
256
352.8
1
352.8
512
1
512
BCLK
705.6
1
705.6
(32fs)
768
1
768
1,024
2
512
1,411.2
2
705.6
1,536
2
768
384
1
384
529.2
3
176.4
768
1
768
1,058.4
3
352.8
BCLK
(48fs)
1,152
3
384
1,536
2
768
2,116.8
3
705.6
2,304
3
768
512
1
512
705.6
1
705.6
1,024
2
512
1,411.2
2
705.6
BCLK
(64fs)
1,536
2
768
2,048
4
512
2,822.4
4
705.6
3,072
4
768
PLM+1 PLLMD
bit
96
0
64
0
48
0
32
0
32
0
48
0
32
0
32
0
64
0
128
1
32
0
64
0
64
0
32
0
32
0
32
0
48
0
32
0
48
0
32
0
32
0
48
0
32
0
32
0
019003761-E-00
PLLCLK
[MHz]
24.5760
22.5792
24.5760
22.5792
24.5760
24.5760
22.5792
24.5760
24.5760
22.5792
24.5760
22.5792
24.5760
24.5760
22.5792
24.5760
24.5760
22.5792
24.5760
22.5792
24.5760
24.5760
22.5792
24.5760
MDIV+1
(Note 71)
5
3
2
1
1
0
0
0
5
3
2
1
1
0
0
0
5
3
2
1
1
0
0
0
Sampling
Frequency
[kHz]
8
11.025
16
22.05
24
32
44.1
48
8
11.025
16
22.05
24
32
44.1
48
8
11.025
16
22.050
24
32
44.1
48
2019/04
- 44 -
[AK4332]
9-5. DAC Digital Filter
AK4332 has four types of DAC digital filter in PCM Mode. The filter mode can be selected by DASD and
DASL bits. The default setting is DASL = DASD bits = “0” (Sharp Roll-Off Filter). DASD bit and DASL bit
must be set at PMDA bit = “0”.
DASD bit
0
0
1
1
Table 19. DAC Digital Filter Setting
DASL bit
DAC Filter Mode Setting
0
Sharp Roll-Off Filter
1
Slow Roll-Off Filter
0
Short Delay Sharp Roll-Off Filter
1
Short Delay Slow Roll-Off Filter
019003761-E-00
(default)
2019/04
- 45 -
[AK4332]
9-6. Digital Volume
The AK4332 has a 32-level digital volume control in the input stage of DAC. The volume control level
ranges +3.0 dB to 12.0 dB in 0.5 dB step including Mute. The volume change is executed immediately
by setting registers.
OVC [4:0] bits must be set when PMDA bit = “0”.
Table 20. Digital Volume Setting
OVC [4:0] bits
Volume (dB)
1FH
+3.0
1EH
+2.5
1DH
+2.0
1CH
+1.5
1BH
+1.0
1AH
+0.5
19H
0.0
(default)
18H
0.5
17H
1.0
16H
1.5
15H
2.0
14H
2.5
13H
3.0
12H
3.5
11H
4.0
10H
4.5
0FH
5.0
0EH
5.5
0DH
6.0
0CH
6.5
0BH
7.0
0AH
7.5
09H
8.0
08H
8.5
07H
9.0
06H
9.5
05H
10.0
04H
10.5
03H
11.0
02H
11.5
01H
12.0
00H
MUTE
019003761-E-00
2019/04
- 46 -
[AK4332]
9-7. Headphone Amplifier Output (HPOUT pin)
Headphone amplifiers are operated by positive and negative power that is supplied from internal charge
pump circuit. The VEE2 pin output the negative voltage generated by the internal charge pump circuit
from CVDD. This charge pump circuit is switched between VDD mode and 1/2VDD mode by the output
level of the headphone amplifiers. The headphone amplifier output is single-ended and centered on
HPGND (0 V). Therefore, a capacitor for AC-coupling is not necessary. The minimum load resistance is
7.2Ω. Ground loop noise cancelling function for headphone amplifier is available by connecting the
HPGND pin to the ground of the jack.
PMDA bit
MDAC bit
LDAC bit
RDAC bit
PCM
Data
MIX
PMHP bit
INV bit
Invert
PDM 1bit
Data
DSD
Data
OVC[4:0] bits
Volume
Digital
Filter
HPG[2:0] bits
PDM bit
DAC
PDM
Filter
HPOUT pin
HPGND pin
PDMMODE bit
Figure 17. DAC & Headphone Amplifier Block Diagram
019003761-E-00
2019/04
- 47 -
[AK4332]
Charge Pump Mode can be selected by CPMODE[1:0]bits. Headphone amplifier operates Class-G
Operation Mode when CPMODE[1:0] bits = “00”.
Table 21. Charge Pump Mode Setting (N/A: Not available)
CPMODE1 bit CPMODE0 bit
Mode
Operation Voltage
0
0
Class-G Operation Mode
Automatic Switching (default)
0
1
VDD Operation Mode
± VDD
1
0
1/2 VDD Operation Mode
±1/2 VDD
1
1
N/A
N/A
Note 72. Class-G Operation Mode is supported in PCM Mode, PDM 1-bit Mode and DSD Mode.
< Class-G Mode Switching Level >
In PCM Mode, Class-G switching level of VDD and 1/2VDD modes can be set by LVDSEL[1:0] bits.
All power management bits (PMCP1, PMCP2, PMLDO1P, PMLDO1N, PMDA and PMHP bits) except for
PMPLL bit must be “0” when setting LVDSEL[1:0] bits .
Table 22. Class-G Switching Level Setting (PCM Mode)
Class-G
LVDSEL[1:0] bits
Switching Level
00
1.05 mW @ 16Ω
(default)
01
1.05 mW @ 32Ω
10
1.05 mW @ 11Ω
11
1.05 mW @ 8Ω
In PDM Mode and DSD Mode, Class-G switching level of VDD and 1/2VDD modes can be set by
LVDSEL[1:0] bits and HPG[2:0] bits.
All power management bits (PMCP1, PMCP2, PMLDO1P, PMLDO1N, PMDA and PMHP bits) except for
PMPLL bit must be “0” when setting LVDSEL[1:0] bits and HPG[2:0] bits .
Table 23. Class-G Switching Level Setting (PDM 1-bit Mode / DSD Mode)
Class-G
LVDSEL[1:0] bits
Switching Level
00
1.61 mW @ 16Ω
(default)
01
1.41 mW @ 32Ω
10
1.65 mW @ 11Ω
11
1.86 mW @ 8Ω
Note 73. This specification is defined in case that HPG[2:0] bits is set to 4dB.
< Class-G Mode Switching Period >
When the charge pump operation mode is changed to VDD mode from 1/2VDD mode, an internal counter
for holding VDD mode starts (Table 24).The charge pump changes to 1/2VDD mode if the output signal
level is lower than the switching level and 1/2VDD mode detection time that is set by LVDTM[2:0] bits is
passed after VDD mode hold time is finished.
019003761-E-00
2019/04
- 48 -
[AK4332]
Table 24. VDD Mode Holding Period Setting (x: Do not Care)
VDD Mode Holding Period
VDDTM[3:0]
bits
8 kHz
48 kHz
96 kHz
192 kHz
0000
1024/fs
128 msec
21.3 msec
10.7 msec
5.3 msec
(default)
0001
2048/fs
256 msec
42.7 msec
21.3 msec
10.7 msec
0010
4096/fs
512 msec
85.3 msec
42.7 msec
21.3 msec
0011
8192/fs
1024 msec
170.7 msec
85.3 msec
42.7 msec
0100
16384/fs
2048 msec
341.3 msec
170.7 msec
85.3 msec
0101
32768/fs
4096 msec
682.7 msec
341.3 msec
170.7 msec
0110
65536/fs
8192 msec 1365.3 msec 682.7 msec
341.3 msec
0111
131072/fs 16384 msec 2730.7 msec 1365.3 msec 682.7 msec
1xxx
262144/fs 32768 msec 5461.3 msec 2730.7 msec 1365.3 msec
When the output voltage becomes less than Class-G mode switching level, the internal detection counter
for 1/2VDD mode which is set by LVDTM[2:0] bits starts. This counter is reset when the output voltage
exceeds Class-G mode switching level. The charge pump operation mode is changed to 1/2VDD from
VDD if the detection counter of 1/2VDD mode is finished and also the VDD mode hold period is passed.
Under 1/2VDD Level
Class-G Mode Switching Level
Class-G Mode Switching Level
Detection Time (LVTDM[2:0]bits)
1) Detection Time < 1/2VDD Level
Class-G Mode
VDD
1/2VDD
VDD (Start)
2) Detection Time > 1/2VDD Level
VDD
Class-G Mode
.
Figure 18. Transition to 1/2VDD Mode from VDD Mode
Table 25. 1/2VDD Detection Period (Minimum frequency that is not detected)
1/2VDD Mode Detection Time/
LVDTM[2:0]
Minimum Frequency that is Not Detected
bits
8 kHz
48 kHz
96 kHz
192 kHz
8 msec
1.3 msec
0.67 msec 0.33 msec
000
64/fs
(default)
62.5 Hz
375 Hz
750 Hz
1500 Hz
16 msec
2.7 msec
1.3 msec
0.67 msec
001
128/fs
31.3 Hz
187.5 Hz
375 Hz
750 Hz
32 msec
5.3 msec
2.7 msec
1.3 msec
010
256/fs
15.6 Hz
93.8 Hz
187.5 Hz
375 Hz
64 msec
10.7 msec
5.3 msec
2.7 msec
011
512/fs
7.8 Hz
46.9 Hz
93.8 Hz
187.5 Hz
128 msec
21.3 msec 10.7 msec
5.3 msec
100
1024/fs
3.9 Hz
23.4 Hz
46.9 Hz
93.8 Hz
256 msec
42.7 msec 21.3 msec 10.7 msec
101
2048/fs
2.0 Hz
11.7 Hz
23.4 Hz
46.9 Hz
512 msec
85.3 msec 42.7 msec 21.3 msec
110
4096/fs
1.0 Hz
5.9 Hz
11.7 Hz
23.4 Hz
1024 msec 170.7 msec 85.3 msec 42.7 msec
111
8192/fs
0.5 Hz
2.8 Hz
5.9 Hz
11.7 Hz
019003761-E-00
2019/04
- 49 -
[AK4332]
< Headphone Amplifier Volume Circuit >
The output level of the headphone amplifier can be controlled by HPG[2:0] bits. The volume setting is
ranges from +4 dB to 10 dB in 2 dB step (Table 26). When the volume is changed, zero cross detection
is executed. Zero cross timeout period is set by HPTM[2:0] bits (Table 27).
The headphone amplifier volume should be changed with an interval of zero cross timeout period after
setting HPG[2:0] bits once. If the volume is changed continuously without the interval, the gain setting at
the next zero crossing point will be applied.
Table 26. Headphone Amplifier Volume Setting
HPG[2:0] bits
Volume (dB)
111
+4
110
+2
101
0
(default)
100
2
011
4
010
6
001
8
000
10
Table 27. Headphone Volume Zero Cross Timeout Setting (x: Do not care)
Zero Crossing Timeout Period
HPTM[2:0]
bits
8 kHz
48 kHz
96 kHz
192 kHz
000
128/fs
16 msec
2.7 msec
1.3 msec
0.67 msec
001
256/fs
32 msec
5.3 msec
2.7 msec
1.3 msec
010
512/fs
64 msec
10.7 msec
5.3 msec
2.7 msec
011
1024/fs
128 msec
21.4 msec
10.7 msec
5.3 msec
(default)
1xx
2048/fs
256 msec
42.7 msec
21.4 msec
10.7 msec
Note 74. Zero cross detection is not enabled in PDM 1-bit Mode and DSD Mode.
< Headphone Amplifier External Circuit >
It is necessary to put an oscillation prevention circuit (0.1 µF ±20% capacitor and 15Ω ±20% resistor)
because there is a possibility that the headphone amplifier oscillates.
Headphone Amplifier
Headphone
AK4332
0.1 μF
32Ω
15Ω
Figure 19. Example of Headphone Amplifier Oscillation Prevention Circuit
019003761-E-00
2019/04
- 50 -
[AK4332]
< Power-Up/Down Sequence of Headphone Amplifier >
After releasing DAC power-down state by PMDA bit, the headphone amplifier should be powered up by
PMHP bit. A wait time from DAC power-up to headphone power-up is not necessary.
PMDA bit releases a power-down of the digital block of DAC, PMHP bit powers up the analog block of the
DAC and the headphone amplifier. Then, initialization cycle of the headphone amplifier is executed. The
gain setting (HPG[2:0] bits) should be done before PMHP bit is set to “1”. Do not change the gain setting
(HPG[2:0] bits) during the headphone initialization cycle. The gain setting can be changed after the
headphone initialization cycle is finished. A wait time from the gain setting to PMHP bit = “1” is not
necessary.
When the AK4332 is powered down, the headphone amplifier should be powered down first. The DAC
should be powered down next. A wait time from a headphone power-down to a DAC power-down is not
necessary.
When the headphone amplifier is powered down, the HPOUT pin is pulled down to HPGND via the
internal pull-down register. The pulled-down resistor is 4Ω (Typ.) @ HPOHZ bit = “0”.
The HPOUT pin is also pulled down to HPGND via 95 kΩ (Typ.) if HPOHZ bit is set to “1”.
Table 28. Headphone Output Status (x: Do not Care)
PMHP bit HPOHZ bit
HP-Amp Status
0
0
Pull-down by 4Ω (Typ.)
0
1
Pull-down by 95 kΩ (Typ.)
1
x
Normal Operation
To avoid pop noise, HPG[2:0] bits setting should not be changed at power-up and power-down of the
headphone amplifier.
The power-up time of headphone amplifier is shown in Table 29. The HPOUT pin outputs 0V (HPGND)
after powered up the headphone amplifier. The power-down is executed immediately
Table 29. Headphone Power-Up Time
Sampling Frequency [kHz]
Power-Up Time (Max)
8/12/16/24/32/48/64/96/128/192
23.9 msec
11.025/22.05/44.1/88.2/176.4
25.9 msec
< Over Current Protection Circuit >
If the headphone amplifier is in an overcurrent state, such as when output pin is shorted, the headphone
amplifier limits the operation current. The headphone amplifier returns to a normal operation state if all
causes are cleared.
019003761-E-00
2019/04
- 51 -
[AK4332]
9-8. Charge Pump & LDO Circuit
The charge pump circuits are operated by CVDD power supply voltage. CVDD is used to generate
positive and negative voltage. The power-up/down sequence of charge pump and LDO circuits are as
follows. CP1 should be powered up before LDO1P/N are powered up. CP2 should be powered up after
LDO1P/N are powered up.
Power-Up Sequence: CP1 LDO1P, LDO1N CP2
Power-Down Sequence: CP2 LDO1P, LDO1N CP1
LDO1P and LDO1N have an overcurrent protection circuit. When overcurrent flows in a normal operation,
the LDO1P and LDO1N circuits limit the operation current. If the overcurrent state is cleared, the
overcurrent protection will be off and the LDO1P and LDO1N circuits will return to normal operation.
LDO2 has an overvoltage protection circuit. This overvoltage protection circuit powers the LDO2 down
when the power supply becomes unstable by an instantaneous power failure, etc. during operation. The
LDO2 circuit will not return to a normal operation until being reset by the PDN pin (“L” → “H”) after
removing the problems.
The charge pump and the LDO1 circuits, except for the LDO2, can be powered up again while they are in
power-down state.
Table 30. Input/Output Voltage and Operation Block of the Charge Pump
Charge Pump Power Management bit Input Voltage Output Voltage (Typ.)
CP1
PMCP1
CVDD
1.8 V
PMCP2
CVDD
CP2 (Class-G)
1.8 V / 0.9 V
Table 31. Input/Output Voltage and Operation Block of the LDO
Power
Output Voltage
LDO
Power Supply
Management bit
(Typ.)
LDO1P
PMLDO1P
AVDD / VSS1
1.5 V
VSS1 /
LDO1N
PMLDO1N
1.5 V
CP1 Output
LDO2
LVDD / VSS2
1.2 V
019003761-E-00
2019/04
- 52 -
[AK4332]
9-9. Serial Audio Interface
9-9-1. PCM Mode
The serial audio interface format is set by DIF bit and its data length is controlled by DL[1:0] bits. In case
that the input data length is less than the value which set by DL[1:0] bits, unused lower bits are filled with
“0”. When using master mode, DL[1:0] bits is set in accordance with the setting of BCKO bit. DIF bit and
DL[1:0] bits must be set at PMTIM bit = “0”.
Table 32. Digital I/F Format Setting
DIF bit
Digital I/F Format
0
I2S Compatible
(default)
1
MSB justified
Table 33. Data Length Setting (x: Do not Care, N/A: Not available)
BCLK Frequency
DL1 bit DL0 bit
Data Length
Slave Mode
Master Mode
0
0
24 bit linear
N/A
48fs
32fs
0
1
16 bit linear
32fs
(BCKO bit = “1”)
64fs
1
x
32 bit linear
64fs
(BCKO bit = “0”)
(default)
LRCK
BCLK
SDTI
Do Not Care
Lch Data (MSB First)
Do Not Care
Rch Data (MSB First)
Do Not Care
Next Lch Data
Figure 20. I2S Compatible Format (DIF bit = “0”)
LRCK
BCLK
SDTI
Do Not Care
Lch Data (MSB First)
Do Not Care
Rch Data (MSB First)
Do Not Care
Next Lch Data
Figure 21. MSB justified format (DIF bit= “1”)
019003761-E-00
2019/04
- 53 -
[AK4332]
9-9-2. Digital Mixing
The AK4332 has digital mixing circuit and signal polarity inversion function for “Lch Data” and “Rch Data”
that are input to the SDTI pin in PCM Mode. The inverted data by this polarity inversion is calculated in 2’s
complement format.
MDAC, RDAC, LDAC and INV bits must be set at PMDA bit = “0”.
MDAC bit
0
0
0
0
1
1
1
1
Table 34. DAC Input Signal Selection
RDAC bit
LDAC bit
DAC Input Data
0
0
MUTE
0
1
Lch Data
1
0
Rch Data
1
1
Lch Data + Rch Data
0
0
MUTE
0
1
Lch Data /2
1
0
Rch Data /2
1
1
(Lch Data + Rch Data)/2
(default)
Table 35. DAC Input Signal Polarity Selection
INV bit
Output Data
0
1
Normal
Inverting
019003761-E-00
(default)
2019/04
- 54 -
[AK4332]
9-9-3. PDM 1-bit Mode
In PDM 1-bit Mode, PDM data must be input to the PDMDI pin in synchronization with PDMCLK.
In this case, DIF bit and DL[1:0] bit settings are invalid.
Polarity of PDMCLK can be inverted by PDMCKR bit.
PDMCLK
(PDMCKR bit="0")
PDMCLK
(PDMCKR bit="1")
PDMDI
D[n-1]
D[n]
D[n+1]
Figure 22. PDM 1-bit Format (PDMMODE bit = “0”)
019003761-E-00
2019/04
- 55 -
[AK4332]
9-9-4. DSD Mode
In DSD Mode, DSD data must must be input to the PDMDI pin in synchronization with DSDCLK.
In this case, DIF bit and DL[1:0] bit setting are invalid.
Polarity of DSDCLK can be inverted by DCKB bit.
DSDCLK
(DCKB bit = "1")
DSDCLK
(DCKB bit = "0")
PDMDI
D[n-1]
D[n]
D[n+1]
Figure 23. DSD Format (PDMMODE bit = “1”)
019003761-E-00
2019/04
- 56 -
[AK4332]
9-10. PDM&DSD Signal Full Scale (FS) Detection
The AK4332 has full scale detection function for PDM 1-bit signal and DSD signal. If the data is “0” (FS)
or “1” (+FS) in PDM 1-bit Mode or DSD Mode for 2048 bits (256 word: in case of 1byte = 8bit) times
continuously, data full scale is detected and a corresponding FSDET bit becomes “1”. FSDET bit can be
read out at the 17H register address (D4).
When the AK4332 detects full scale signal while PDMMUTEEN bit = “0”, the analog output is muted. (Pop
noise may occur on a switching timing to the mute state.)
When setting PDMMUTEEN bit = “1”, full scale detection function is available but the analog output will
not be muted.
019003761-E-00
2019/04
- 57 -
[AK4332]
9-11. Serial Control Interface (I2C-bus)
The AK4332 supports the fast-mode I2C-bus (Max: 400 kHz). Pull-up resistors at the SDA and SCL pins
must be connected to (LVDD + 0.3) V or less voltage.
1. WRITE Operation
Figure 24 shows the data transfer sequence for the I2C-bus mode. All commands are preceded by a
START condition. A HIGH to LOW transition on the SDA line while SCL is HIGH indicates a START
condition (Figure 30). After the START condition, a slave address is sent. This address is 7 bits long
followed by the eighth bit that is a data direction bit (R/W). The most significant seven bits of the slave
address are fixed as “0010000”. (Figure 25).If the slave address matches that of the AK4332, the
AK4332 generates an acknowledge and the operation is executed. The master must generate the
acknowledge-related clock pulse and release the SDA line (HIGH) during the acknowledge clock pulse
(Figure 31). A R/W bit value of “1” indicates that the read operation is to be executed, and “0” indicates
that the write operation is to be executed.
The second byte consists of the control register address of the AK4332. The format is MSB first 8 bits
(Figure 26)。The data after the second byte contains control data. The format is MSB first, 8 bits (Figure
27). The AK4332 generates an acknowledge after each byte is received. Data transfer is always
terminated by a STOP condition generated by the master. A LOW to HIGH transition on the SDA line
while SCL is HIGH defines a STOP condition (Figure 30).
The AK4332 can perform more than one byte write operation per sequence at address from 00H to 17H.
After receipt of the third byte the AK4332 generates an acknowledge and awaits the next data. The
master can transmit more than one byte instead of terminating the write cycle after the first data byte is
transferred. After receiving each data packet the internal address counter is incremented by one, and the
next data is automatically taken into the next address. If the address exceeds 17H prior to generating a
stop condition, the address counter will “roll over” to 00H and the previous data will be overwritten. For the
address 26H and 27H, the internal address counter is not incremented automatically.
The data on the SDA line must remain stable during the HIGH period of the clock. HIGH or LOW state of
the data line can only be changed when the clock signal on the SCL line is LOW (Figure 32) except for the
START and STOP conditions.
S
T
A
R
T
SDA
S
T
O
P
R/W="0"
Slav e
S Address
Sub
Address(n)
A
C
K
Data(n)
A
C
K
Data(n+1)
A
C
K
Data(n+x)
A
C
K
A
C
K
P
A
C
K
Figure 24. Data Transfer Sequence in I2C-bus Mode
019003761-E-00
2019/04
- 58 -
[AK4332]
0
0
1
0
0
0
0
R/W
A2
A1
A0
D1
D0
Figure 25. The First Byte
A7
A6
A5
A4
A3
Figure 26. The Second Byte
D7
D6
D5
D4
D3
D2
Figure 27. The Third Byte
2. READ Operation
Set the R/W bit = “1” for the READ operation of the AK4332. After transmission of data, the master can
read the next address’s data by generating an acknowledge instead of terminating the write cycle after
the receipt of the first data word. After receiving each data packet the internal address counter is
incremented by one, and the next data is automatically taken into the next address. If the address
exceeds 17H prior to generating stop condition, the address counter will “roll over” to 00H and the data of
00H will be read out. For the address 26H and 27H, the internal address counter is not incremented
automatically.
The AK4332 supports two basic read operations: Current Address READ and Random Address READ.
2-1. Current Address READ
The AK4332 has an internal address counter that maintains the address of the last accessed word
incremented by one. Therefore, if the last access (either a read or write) were to address “n”, the next
Current READ operation would access data from the address “n+1”. After receipt of the slave address
with R/W bit “1”, the AK4332 generates an acknowledge, transmits 1-byte of data to the address set by
the internal address counter and increments the internal address counter by 1. If the master does not
generate an acknowledge but generates a stop condition instead, the AK4332 ceases the transmission.
S
T
A
R
T
SDA
S
T
O
P
R/W="1"
Slave
S Address
Data(n)
A
C
K
Data(n+1)
MA
AC
SK
T
E
R
Data(n+2)
MA
AC
SK
T
E
R
Data(n+x)
MA
AC
SK
T
E
R
MA
AC
SK
T
E
R
P
MN
AA
SC
T
EK
R
Figure 28. Data Transfer Sequence in I2C-bus Mode
019003761-E-00
2019/04
- 59 -
[AK4332]
2-2. Random Address READ
The random read operation allows the master to access any memory location at random. Prior to issuing
the slave address with the R/W bit “1”, the master must first perform a “dummy” write operation. The
master issues a start request, a slave address (R/W bit = “0”) and then the register address to read. After
the register address is acknowledged, the master immediately reissues the start request and the slave
address with the R/W bit “1”. The AK4332 then generates an acknowledge, 1 byte of data and increments
the internal address counter by 1. If the master does not generate an acknowledge but generates a stop
condition instead, the AK4332 ceases the transmission.
S
T
A
R
T
SDA
S
T
A
R
T
R/W="0"
Slave
S Address
Sub
Address(n)
A
C
K
Slave
S Address
A
C
K
S
T
O
P
R/W="1"
Data(n)
Data(n+1)
MA
AC
S K
T
E
R
A
C
K
Data(n+x)
MA
AC
S
T K
E
R
MA
AC
S
T K
E
R
P
MN
A A
S
T C
E K
R
Figure 29. Random Address READ
SDA
SCL
S
P
start condition
stop condition
Figure 30. Start Condition and Stop Condition
DATA
OUTPUT BY
TRANSMITTER
not acknowledge
DATA
OUTPUT BY
RECEIVER
acknowledge
SCL FROM
MASTER
1
2
8
9
S
clock pulse for
acknowledgement
START
CONDITION
Figure 31. Acknowledge (I2C-bus)
019003761-E-00
2019/04
- 60 -
[AK4332]
SDA
SCL
data line
stable;
data valid
change
of data
allowed
Figure 32. Bit Transfer (I2C-bus)
019003761-E-00
2019/04
- 61 -
[AK4332]
9-12. Control Sequence
Figure 33 and Figure 34 show power-up sequence of DAC and headphone amplifier.
Figure 35 shows power-down sequence of headphone amplifier and DAC.
019003761-E-00
2019/04
- 62 -
[AK4332]
< Power-up Seaquence in PCM Mode>
Pow er Supply
(2)
MCKI, BCLK, LRCK
(1) ≥ 1 m sec
PDN pin
(3) ≥ 2 m sec
Analog Circuit Pow er
DAC Initial Setting
(3) ≥ 1 m sec
Addr.26H = 6CH
Addr.27H = 40H
(Addr.26H) = 02H
(Addr.27H) = C0H
(4)
FS[4:0] bits
(Addr:05H, D4 - D0)
"00000"
(5)
"01001"
CM[1:0] bits
(Addr:05H, D6-D5)
"00"
(5)
"00"
LDAC bit
RDAC bit
(Addr:07H, D5, D0)
HPG[2:0] bits
(5)
"101"
(6)
"011"
(Addr:0DH, D2-D0)
PMPLL bit
(Addr:00H, D0)
PMTIM bit
(7)
≥ 2 m sec
(8)
(Addr:00H, D1)
PMCP1 bit
(Addr:01H, D0)
(9)
≥ 6.5 m sec
PMLDO1P bit
PMLDO1N bit
(Addr:01H, D5, D4)
(10)
≥ 0.5 m sec
(11)
PMDA bit
(Addr:02H, D0)
PMCP2 bit
(12)
(Addr:01H, D1)
≥ 4.5 m sec
PMHP bit
(13)
(Addr:03H,D0)
23.9 m sec
Norm al Operation
HPOUT pin
Figure 33. Power-Up Sequence Example of DAC and Headphone Amplifier in PCM Mode
019003761-E-00
2019/04
- 63 -
[AK4332]
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
(11)
(12)
(13)
Set the PDN pin from “L” to “H” after turning on all power supplies. In this case, 1 msec or more “L”
time is needed for a certain reset.
After all power supplies are On, MCKI, BCLK and LRCK should be input before powering up PLL or
CP1.
Refer to Table 3 for Input Clock Setting.
Set the PDN pin = “H” to release the power-down. Register access will be valid in 1 msec at
maximum. However, a wait time of 2 msec is needed to access PMTIM bit and power management
bits of the analog circuit (PMCP1 bit, PMCP2 bit, PMLDO1P bit, PMLDO1N bit, PMDA bit and PMHP
bit) until the analog circuit is powered up.
Set DAC initial settings. (Write 02H data into Address 26H and write C0H data into Address 27H)
Set sampling frequency (FS[4:0] bits) and the input signal path of the DAC.
(LDAC bit or RDAC bit = “0” → “1”)
Set headphone amplifier volume by HPG[2:0] bits.
In case of using PLL, power-up PLL (PMPLL bit = “0” → “1”) and wait 2 msec for PLL output
stabilization.
Start internal master counter. (PMTIM bit = “0” → “1”)
PMCP1 bit, PMCP2 bit, PMLDO1P bit, PMLDO1N bit, PMDA bit and PMHP bit must be powered up
after PMTIM bit = “1”.
Power-up CP1 (PMCP1 bit = “0” → “1”) and wait 6.5 msec (Note 75) for CP1 output voltage
stabilization.
Power-up LDO1P and LDO1N (PMLDO1P bit = PMLDO1N bit = “0” → “1”) and wait 0.5 msec
(Note 75) for each LDO output voltage stabilization.
Power-up DAC (PMDA bit = “0” → “1”)
Power-up CP2 (PMCP2 bit = “0” → “1”) and wait 4.5 msec (Note 75) for CP2 output voltage
stabilization.
Power-up headphone amplifier (PMHP bit = “0” → “1”)
The power-up time of headphone amplifier is 23.9 msec (@ fs = 48 kHz). The HPOUT pin outputs 0
V until the headphone amplifier is powered up.
Note 75. Refer to “8-4. Charge Pump & LDO Circuit Power-Up Time”
019003761-E-00
2019/04
- 64 -
[AK4332]
< Power-up Seaquence in PDM 1-bit Mode and DSD Mode >
Power Supply
(2)
PDMCLK,DSDCLK
(1) ≥ 1 msec
PDN pin
(3) ≥ 2 msec
Analog Circuit Power
DAC Initial Setting
(3) ≥ 1 msec
Addr.26H = 6CH
Addr.27H = 40H
(Addr.26H) = 02H
(Addr.27H) = C0H
(4)
FS[4:0] bits
(Addr:05H, D4 - D0)
"00000"
(5)
"01001"
CM[1:0] bits
(Addr:05H, D6-D5)
"00"
(5)
"00"
(6)
PDM bit
(Addr:08H, D0)
PDMMODE bit
"0"
(7)
"101"
(8)
"0"
(Addr:08H, D2)
HPG[2:0] bits
"011"
(Addr:0DH, D2-D0)
PMTIM bit
(9)
(Addr:00H, D1)
PMCP1 bit
(Addr:01H, D0)
PMLDO1P bit
PMLDO1N bit
(Addr:01H, D5, D4)
(10)
≥ 6.5 msec
(11)
≥ 0.5
(12)
PMDA bit
(Addr:02H, D0)
(13)
PMCP2 bit
(Addr:01H, D1)
≥ 4.5
PMHP bit
(14)
(Addr:03H,D0)
23.9 msec
Normal Operation
HPOUT pin
Figure 34. Power-Up Sequence Example of DAC and Headphone Amplifier
in PCM 1-bit Mode and DSD Mode
019003761-E-00
2019/04
- 65 -
[AK4332]
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
(11)
(12)
(13)
(14)
Set the PDN pin from “L” to “H” after turning on all power supplies. In this case, 1 msec or more “L”
time is needed for a certain reset.
After all power supplies are On, PDMCLK and DSDCLK should be input before powering up
PLL or CP1.
Refer to Table 3 for Input Clock Setting.
Set the PDN pin = “H” to release the power-down. Register access will be valid in 1 msec at
maximum. However, a wait time of 2 msec is needed to access PMTIM bit and power management
bits of the analog circuit (PMCP1 bit, PMCP2 bit, PMLDO1P bit, PMLDO1N bit, PMDA bit and PMHP
bit) until the analog circuit is powered up.
Set DAC initial settings. (Write 02H data into Address 26H and write C0H data into Address 27H
Set sampling frequency (FS[4:0] bits) and the input signal path of the DAC.
In PDM Mode and DSD Mode, CM[1:0] bits should be set to “00” (256fs) and FS[4:0] bits should be
set to “01001” (44.1 kHz) or “01010” (48 kHz).
Set PDM bit to PDM 1-bit Mode or DSD Mode.(PDM bit = “0” → “1”)
Select the PDM 1-bit Mode or DSD Mode by PDMMODE bit.
Set headphone amplifier volume by HPG[2:0] bits.
Start internal master counter. (PMTIM bit = “0” → “1”)
PMCP1 bit, PMCP2 bit, PMLDO1P bit, PMLDO1N bit, PMDA bit and PMHP bit must be powered up
after PMTIM bit = “1”.
Power-up CP1 (PMCP1 bit = “0” → “1”) and wait 6.5 msec (Note 75) for CP1 output voltage
stabilization.
Power-up LDO1P and LDO1N (PMLDO1P bit = PMLDO1N bit = “0” → “1”) and wait 0.5 msec
(Note 75) for each LDO output voltage stabilization.
Power-up DAC (PMDA bit = “0” → “1”)
Power-up CP2 (PMCP2 bit = “0” → “1”) and wait 4.5 msec (Note 75) for CP2 output voltage
stabilization.
Power-up headphone amplifier (PMHP bit = “0” → “1”)
The power-up time of headphone amplifier is 23.9 msec (@ fs = 48 kHz). The HPOUT pin outputs 0
V until the headphone amplifier is powered up.
019003761-E-00
2019/04
- 66 -
[AK4332]
< Power-Down Sequence Example >
PMHP bit
(Addr:03H, D0)
HPOUT pin
(1)
Norm al
Operation
PMCP2 bit
(Addr:01H, D1)
(2)
PMDA bit
(Addr:02H, D0)
(3)
PMLDO1P bit
PMLDO1N bit
(Addr:01H, D5, D4)
(4)
PMCP1 bit
(Addr:01H, D0)
(5)
PMTIM bit
(Addr:00H, D1)
(6)
PMPLL bit
(Addr:00H, D0)
(7)
(8)
MCKI, BCLK, LRCK
PDMCLK, DSDCLK
(9)
PDN pin
(10)
Pow er Supply
Figure 35. Power-Down Sequence Example of Headphone Amplifier and DAC
Power-down headphone amplifier (PMHP bit = “1” → “0”)
When the headphone amplifier is powered down, the HPOUT pin is pulled down to HPGND via the
internal pull-down register.
(2) Power-down CP2 (PMCP2 bit = “1” → “0”)
(3) Power-down DAC (PMDA bit = “1” → “0”)
(4) Power-down LDO1P, LDO1N (PMLDO1P bit = PMLDO1N bit = “1” → “0”)
(5) Power-down CP1 (PMCP1 bit = “1” → “0”)
(6) Stop internal master counter. (PMTIM bit = “1” → “0”)
PMCP1 bit, PMCP2 bit, PMLDO1P bit, PMLDO1N bit, PMDA bit and PMHP bit must be powered off
before PMTIM bit = “0”.
(7) In case of using PLL, power-down PLL. (PMPLL bit = “1” → “0”)
(8) Stop MCKI, BCLK, LRCK, PCMCLK and DSDCLK before turning off each of power supplies.
(9) Set the PDN pin from “H” to “L”.
(10) Turn off each of power supplies.
(1)
019003761-E-00
2019/04
- 67 -
[AK4332]
9-13. Register Map
Addr Register Name
00H Power Management 1
01H Power Management 2
02H
03H
04H
05H
06H
07H
Power Management 3
Power Management 4
Output Mode Setting
Clock Mode Selection
Digital Filter Selection
DAC Mono Mixing
08H PDM I/F Control
09H
0AH
0BH
0CH
0DH
0EH
0FH
10H
11H
12H
13H
14H
15H
16H
17H
26H
27H
Reserved
Reserved
DAC Output Volume
Reserved
HP Volume Control
PLL CLK Source Selection
PLL Ref CLK Divider 1
PLL Ref CLK Divider 2
PLL FB CLK Divider 1
PLL FB CLK Divider 2
DAC CLK Source
DAC CLK Divider
Audio I/F Format
Reserved
PDMERR
DAC Adjustment 1
DAC Adjustment 2
D7
0
D6
0
D5
D4
D3
D2
D1
D0
0
0
0
0
PMTIM
PMPLL
PMLDO1
0
0
PMLDO1P
0
0
PMCP2
PMCP1
N
0
0
0
0
0
0
0
PMDA
0
LVDTM[2:0]
CPMODE[1:0]
0
PMHP
LVDSEL[1:0]
VDDTM[3:0]
0
HPOHZ
0
CM[1:0]
FS[4:0]
DASD
DASL
0
0
0
0
0
0
0
0
0
0
INV
MDAC
RDAC
LDAC
PDM
PDM
0
PDMCKR DCKB
0
0
PDM
MUTEN
MODE
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
OVC[4:0]
0
0
0
0
0
0
0
0
HPTM[2:0]
0
0
HPG[2:0]
0
0
0
PLLMD
0
0
0
PLS
PLD[15:8]
PLD[7:0]
PLM[15:8]
PLM[7:0]
0
0
0
0
0
0
0
DACCKS
0
0
0
0
MDIV[3:0]
DEVICEID[2:0]
MS
BCKO
DIF
DL[1:0]
0
0
0
0
0
0
0
0
0
0
0
FSDET
0
0
0
0
T8
T7
T6
T5
T4
T3
T2
T1
T16
T15
T14
T13
T12
T11
T10
T9
Note 76. PDN pin = “L” resets the registers to their default values.
Note 77. The bits defined as “0” must contain a “0” value.
Note 78. Writing access to 18H to 25H, 28H to FFH is prohibited.
019003761-E-00
2019/04
- 68 -
[AK4332]
9-14. Register Definitions
Addr
00H
Register Name
Power Management 1
R/W
Default
D7
0
R/W
0
D6
0
R/W
0
D5
0
R/W
0
D4
0
R/W
0
D3
0
R/W
0
D2
0
R/W
0
D1
PMTIM
R/W
0
D0
PMPLL
R/W
0
D3
0
R/W
0
D2
0
R/W
0
D1
PMCP2
R/W
0
D0
PMCP1
R/W
0
PMPLL: PLL Power Management
0: Power-Down (default)
1: Power-Up
PMTIM: Synchronization Control Power Management
0: Disable (default)
1: Enable
Addr
01H
Register Name
Power Management 2
R/W
Default
D7
0
R/W
0
D6
0
R/W
0
D5
D4
PMLDO1N
PMLDO1P
R/W
0
R/W
0
PMCP1: Charge Pump 1 Power Management
0: Power-Down (default)
1: Power-Up
PMCP2: Charge Pump 2 Power Management
0: Power-Down (default)
1: Power-Up
PMLDO1P: LDO1P Power Management
0: Power-Down (default)
1: Power-Up
PMLDO1N: LDO1N Power Management
0: Power-Down (default)
1: Power-Up
019003761-E-00
2019/04
- 69 -
[AK4332]
Addr
02H
Register Name
Power Management 3
R/W
Default
D7
0
R/W
0
D6
0
R/W
0
D5
0
R/W
0
D4
0
R/W
0
D6
D5
LVDTM[2:0]
R/W
000
D4
D3
0
R/W
0
D2
0
R/W
0
D1
0
R/W
0
D0
PMDA
R/W
0
D3
D2
CPMODE[1:0]
R/W
00
D1
0
R/W
0
D0
PMHP
R/W
0
PMDA: DAC Power Management
0: Power-Down (default)
1: Power-Up
Addr
03H
Register Name
Power Management 4
R/W
Default
D7
0
R/W
0
PMHP: Headphone Amplifier Power Management
0: Power-Down (default)
1: Power-Up
CPMODE[1:0]: Charge Pump Mode Control (Table 21)
Default: “00” (Automatic Switching Mode)
LVDTM[2:0]: Class-G 1/2VDD Mode Detection Time Setting (Table 25)
Default: “000” (64/fs)
019003761-E-00
2019/04
- 70 -
[AK4332]
Addr
04H
Register Name
Output Mode Setting
R/W
Default
D7
D6
LVDSEL[1:0]
R/W
00
D5
D4
D3
VDDTM[3:0]
R/W
0000
D2
D1
0
R/W
0
D0
HPOHZ
R/W
0
HPOHZ: GND Switch Setting for Headphone Amplifier Output
0: Pull-Down by 4 (Typ.) (default)
1: Pull-Down by 95k (Typ.)
VDDTM[3-0]: Class-G VDD Hold Time Setting (Table 24)
Default: “0000” (1024/fs)
LVDSEL[1:0]: Switching Threshold between VDD Mode and 1/2VDD Mode of CP2 (Table 22)
Default: “00” (Load Resistance = 16Ω)
Addr
05H
Register Name
Clock Mode Selection
R/W
Default
D7
0
R/W
0
D6
D5
CM[1:0]
R/W
00
D4
D3
D2
FS[4:0]
R/W
00000
D1
D0
FS[4:0]: Sampling Frequency Setting (Table 7)
Default: “00000” (fs=8kHz)
CM[1:0]: Master Clock Frequency Setting (Table 6)
Default: “00” (256fs)
019003761-E-00
2019/04
- 71 -
[AK4332]
Addr
06H
Register Name
Digital Filter Selection
R/W
Default
D7
DASD
R/W
0
D6
DASL
R/W
0
D5
0
R/W
0
D4
0
R/W
0
D3
0
R/W
0
D2
0
R/W
0
D1
0
R/W
0
D0
0
R/W
0
D4
0
R/W
0
D3
INV
R/W
0
D2
MDAC
R/W
0
D1
RDAC
R/W
0
D0
LDAC
R/W
0
D2
PDM
MODE
R/W
0
D1
D0
0
PDM
R/W
0
R/W
0
DASD, DASL: DAC Digital Filter Mode Setting (Table 19)
Default: “0”, “0” (Sharp Roll-Off Filter)
Addr
07H
Register Name
DAC Mono Mixing
R/W
Default
D7
0
R/W
0
D6
0
R/W
0
D5
0
R/W
0
MDAC, RDAC, LDAC: DAC Channel Input Signal Selection (Table 34)
Default: “000” (MUTE)
INV: DAC Input Signal Polarity Selection
0: Normal (default)
1: Inverting
Addr
Register Name
D7
D6
D5
08H
PDM I/F Control
0
PDMCKR
DCKB
R/W
0
R/W
0
R/W
0
R/W
Default
D4
PDM
MUTEN
R/W
0
D3
0
R/W
0
PDM: Audio Interface Selection (Table 2)
0: PCM Mode (default)
1: PDM 1-bit Mode or DSD Mode
PDMMODE: PDM Mode Selection (Table 8)
0: PDM 1-bit Mode (default)
1: DSD Mode
PDMMUTEN: PDM Data / DSD Data Output Mute Function
0: Enable (default)
1: Disable
DCKB: Polarity of DSDCLK
0: DSD Data is output on a DSDCLK falling edge. (default)
1: DSD Data is output on a DSDCLK rising edge.
PDMCKR: Polarity of PDMCLK
0: PDM Data is output on a PDMCLK rising edge. (default)
1: PDM Data is output on a PDMCLK falling edge.
019003761-E-00
2019/04
- 72 -
[AK4332]
Addr
09H
0AH
Addr
0BH
Register Name
D7
D6
D5
D4
D3
D2
D1
D0
0
0
0
0
0
0
0
0
R/W
Default
R/W
0
R/W
0
R/W
0
R/W
0
R/W
0
R/W
0
R/W
0
R/W
0
Register Name
Output Volume
R/W
Default
D7
0
R/W
0
D4
D3
D2
OVC[4:0]
R/W
11001
D1
D0
Reserved
D6
0
R/W
0
D5
0
R/W
0
OVC[4:0]: DAC Digital Volume Control; +3 dB to 12 dB & Mute, 0.5 dB step (Table 20)
Default: 19H (0dB)
Addr
0CH
Register Name
Reserved
R/W
Default
D7
0
R/W
0
Addr
0DH
Register Name
HP Volume Control
R/W
Default
D7
D6
0
R/W
0
D6
HPTM[2:0]
R/W
011
D5
0
R/W
0
D4
0
R/W
0
D3
0
R/W
0
D2
0
R/W
0
D1
0
R/W
0
D0
0
R/W
0
D5
D4
0
R/W
0
D3
0
R/W
0
D2
D1
HPG[2:0]
R/W
101
D0
HPG[2:0]: Headphone Amplifier Analog Volume Control; +4 dB to 10 dB, 2 dB step (Table 26)
Default: “101” (0dB)
HPTM[2:0]: Zero Cross Time Output Period Setting for Analog Volume of Headphone Amplifier
(Table 27)
Default: “011” (1024/fs)
019003761-E-00
2019/04
- 73 -
[AK4332]
Addr
0EH
Register Name
PLL CLK Source Selection
R/W
Default
D7
0
R/W
0
D6
0
R/W
0
D5
0
R/W
0
D4
PLLMD
R/W
0
D3
0
R/W
0
D2
0
R/W
0
D1
0
R/W
0
D0
PLS
R/W
0
D4
D3
PLD[15:8]
PLD[7:0]
R/W
0000H
D2
D1
D0
D4
D3
PLM[15:8]
PLM[7:0]
R/W
0000H
D2
D1
D0
D5
0
R/W
0
D4
0
R/W
0
D3
0
R/W
0
D2
0
R/W
0
D1
0
R/W
0
D0
DACCKS
R/W
0
D5
0
R/W
0
D4
0
R/W
0
D3
PLS: PLL Clock Source Selection (Table 12)
Default: “0” (MCKI)
PLLMD: PLL Mode Setting
Default: “0”
Addr
0FH
10H
Register Name
PLL Ref CLK Divider 1
PLL Ref CLK Divider 2
R/W
Default
D7
D6
D5
PLD[15:0]: PLL Reference Clock Divider Setting (Table 13)
Default: 0000H
Addr
11H
12H
Register Name
PLL FB CLK Divider 1
PLL FB CLK Divider 2
R/W
Default
D7
D6
D5
PLM[15:0]: PLL Feedback Clock Divider Setting (Table 14)
Default: 0000H
Addr
13H
Register Name
DAC CLK Source
R/W
Default
D7
0
R/W
0
D6
0
R/W
0
DACCKS: DAC Clock Source Selection (Table 4)
Default: “0” (MCKI)
Addr
14H
Register Name
DAC CLK Divider
R/W
Default
D7
0
R/W
0
D6
0
R/W
0
D2
D1
MDIV[3:0]
R/W
0000
D0
MDIV[7:0]: MCKI Divider Setting (Table 16)
Default: “0000” (Divided by 1)
019003761-E-00
2019/04
- 74 -
[AK4332]
Addr
15H
Register Name
CODEC I/F Format
R/W
Default
D7
D6
DEVICEID[2:0]
R
000
D5
D4
MS
R/W
0
D3
BCKO
R/W
0
D2
DIF
R/W
0
D1
D0
DL[1:0]
R/W
00
DL[1:0]: Data Length Setting (Table 33)
Default: “00” (24 bit linear)
DIF: Digital I/F Format Setting (Table 32)
Default: “0” (I2S Compatible)
BCKO: BCLK Output Frequency
0: 64fs (Default)
1: 32fs
MS: Master / Slave Mode Setting (Table 2)
Default: “0” (Slave Mode)
DEVICEID[2:0]: Device ID
Default: “000”
Addr
16H
Register Name
Reserved
R/W
Default
D7
0
R/W
0
D6
0
R/W
0
D5
0
R/W
0
D4
0
R/W
0
D3
0
R/W
0
D2
0
R/W
0
D1
0
R/W
0
D0
0
R/W
0
Addr
17H
Register Name
PDMERR
R/W
Default
D7
0
R/W
0
D6
0
R/W
0
D5
0
R/W
0
D4
FSDET
R
0
D3
0
R/W
0
D2
0
R/W
0
D1
0
R/W
0
D0
0
R/W
0
FSDET: PDM Data or DSD Data Full Scale Detect
0: Not Full Scale Data (Default)
1: Full Scale Data
019003761-E-00
2019/04
- 75 -
[AK4332]
Addr Register Name
26H DAC Adjustment 1
R/W
Default
D7
T8
R/W
0
D6
T7
R/W
1
D5
T6
R/W
1
D4
T5
R/W
0
D3
T4
R/W
1
D2
T3
R/W
1
D1
T2
R/W
0
D0
T1
R/W
0
* 02H data must be written to DAC Adjustment 1 (Addr. 26H) before analog blocks (CP1, CP2, LDO1,
DAC, headphone amplifier and PLL) are powered up.
Addr Register Name
27H DAC Adjustment 2
R/W
Default
D7
T16
R/W
0
D6
T15
R/W
1
D5
T14
R/W
0
D4
T13
R/W
0
D3
T12
R/W
0
D2
T11
R/W
0
D1
T10
R/W
0
D0
T9
R/W
0
* C0H data must be written to DAC Adjustment 2 (Addr. 27H) before analog blocks (CP1, CP2, LDO1,
DAC, headphone amplifier and PLL) are powered up.
019003761-E-00
2019/04
- 76 -
[AK4332]
10. Recommended External Circuits
1.7 ~1.9 V Power Supply
10 μ
0.1 μ
AVDD
LVDD
VSS1
VDD
0.1 μ
VSS2
VCOM
2.2 μ
VSS1
VDD12
2.2 μ
RVEE
1.0 μ
VSS2
RAVDD
1.0 μ
CVDD
0.1 μ
VSS2
VSS2
CP1
2.2 μ
CN1
VEE1
2.2 μ
2.2 μ
SCL
VCC2
SDA
VEE2
BT SoC
2.2 μ
2.2 μ
2.2 μ
CP2A
MCKI/PDMCLK
CN2A
BCLK/DSDCLK
CP2B
LRCK
CN2B
SDTI/PDMDI
PDN
Headphone
TESTI1
100 k(*1)
100 k(*1)
HPOUT
0.1 μ
TESTI2
VSS2
15
TESTO
VSS
VSS1
VSS2
VSS
HPGND
VSS
Figure 36. System Connection Diagram
*1: When the AK4332 is in master mode, a pull-down resistor (e.g. 100 kΩ) is needed.
019003761-E-00
2019/04
- 77 -
[AK4332]
1. Grounding and Power Supply Decoupling
The AK4332 requires careful attention to power supply and grounding arrangements. The PDN pin
should be held “L” when power supplies are tuning on. AVDD should be powered up before or at the same
time of CVDD. Power-up sequence of LVDD is not critical. The PDN pin is allowed to be “H” after all
power supplies are applied and settled. To power down the AK4332, set the PDN pin to “L” and power
down CVDD before or at the same time of AVDD. Power-down sequence of LVDD is not critical.
To avoid pop noise on analog output when power-up/down, the AK4332 should be operated along the
following recommended power-up/down sequence.
1) Power-up
- The PDN pin should be held “L” when power supplies are turning on. The AK4332 can be reset by
keeping the PDN pin “L” for 1 msec or longer after all power supplies are applied and settled. Then
release the reset by setting the PDN pin to “H”.
2) Power-down
- Each of power supplies can be powered OFF after the PDN pin is set to “L”.
VSS1 and VSS2 of the AK4332 should be connected to the analog ground plane. System analog ground
and digital ground should be connected together near where the supplies are brought onto the printed
circuit board. Decoupling capacitors should be as close the power supply pins as possible. Especially, the
small value ceramic capacitor is to be closest.
2. Voltage Reference
VCOM is a signal ground of this chip. A 2.2 μF ceramic capacitor attached between the VCOM pin
eliminates the effects of high frequency noise. No load current is allowed to be drawn from the VCOM pin.
All signals, especially clocks, should be kept away from the VCOM pin in order to avoid unwanted
coupling into the AK4332.
3. Charge Pump and LDO Circuits
Capacitors for CP1 block (connected between the CP1 pin and the CN1 pin, between the VEE1 pin and
the VSS2 pin) and for CP2 block (connected between the CP2A pin and the CN2A pin, between the CP2B
pin and the CN2B pin, between the VCC2 pin and the VSS2 pin, between the VEE2 pin and the VSS2 pin)
should be low ESR 2.2 μF ±50%.
Capacitors for LDO1P block (connected between the RAVDD pin and the VSS1 pin) and for LDO1N block
(connected between the RVEE pin and the VSS1 pin) should be low ESR from 1.0 μF ±50% to 4.7 μF
±50%.
These capacitors must be connected as close as possible to the pins. No load current may be drawn from
the Positive / Negative Power Output pin (VEE1, RAVDD, RVEE, VCC2 and VEE2 pins).
4. Analog Outputs
Headphone outputs are single-ended and centered at HPGND (0 V). They should be directly connected
to a headphone without AC coupling.
019003761-E-00
2019/04
- 78 -
[AK4332]
11. Package
11-1. Outline Dimensions
30-pin CSP (Unit: mm)
Top View
Bottom View
(0.025 ± 0.003)
1.971 ± 0.025
A
0.4
B
6
2.371 ± 0.025
0.4
5
4
0.2
3
2
1
1
A
C
0.03
D
C
B
A
30 x (0.204 ~ 0.264)
0.519 0.045
0.357 0.012
0.107 ~ 0.167
E
0.015 M C A B
C
11-2. Material and Lead Finish
Package molding compound: Epoxy Resign, Halogen Free
Solder ball material:
SnAgCu
019003761-E-00
2019/04
- 79 -
[AK4332]
11-3. Marking
4332
XXXX
1
A
XXXX: Date code (4 digits)
Pin #A1 indication
12. Ordering Guide
AK4332ECB
AKD4332
40 to +85C
30-pin CSP (0.4 mm pitch)
Evaluation board for AK4332
019003761-E-00
2019/04
- 80 -
[AK4332]
13. Revision History
Date (Y/M/D)
19/04/10
Revision
00
Reason
First Edition
Page
Contents
IMPORTANT NOTICE
0. Asahi Kasei Microdevices Corporation (“AKM”) reserves the right to make changes to the information
contained in this document without notice. When you consider any use or application of AKM product
stipulated in this document (“Product”), please make inquiries the sales office of AKM or authorized
distributors as to current status of the Products.
1. All information included in this document are provided only to illustrate the operation and application
examples of AKM Products. AKM neither makes warranties or representations with respect to the
accuracy or completeness of the information contained in this document nor grants any license to any
intellectual property rights or any other rights of AKM or any third party with respect to the information
in this document. You are fully responsible for use of such information contained in this document in
your product design or applications. AKM ASSUMES NO LIABILITY FOR ANY LOSSES INCURRED
BY YOU OR THIRD PARTIES ARISING FROM THE USE OF SUCH INFORMATION IN YOUR
PRODUCT DESIGN OR APPLICATIONS.
2. The Product is neither intended nor warranted for use in equipment or systems that require
extraordinarily high levels of quality and/or reliability and/or a malfunction or failure of which may
cause loss of human life, bodily injury, serious property damage or serious public impact, including but
not limited to, equipment used in nuclear facilities, equipment used in the aerospace industry, medical
equipment, equipment used for automobiles, trains, ships and other transportation, traffic signaling
equipment, equipment used to control combustions or explosions, safety devices, elevators and
escalators, devices related to electric power, and equipment used in finance-related fields. Do not use
Product for the above use unless specifically agreed by AKM in writing.
3. Though AKM works continually to improve the Product’s quality and reliability, you are responsible for
complying with safety standards and for providing adequate designs and safeguards for your
hardware, software and systems which minimize risk and avoid situations in which a malfunction or
failure of the Product could cause loss of human life, bodily injury or damage to property, including
data loss or corruption.
4. Do not use or otherwise make available the Product or related technology or any information
contained in this document for any military purposes, including without limitation, for the design,
development, use, stockpiling or manufacturing of nuclear, chemical, or biological weapons or missile
technology products (mass destruction weapons). When exporting the Products or related technology
or any information contained in this document, you should comply with the applicable export control
laws and regulations and follow the procedures required by such laws and regulations. The Products
and related technology may not be used for or incorporated into any products or systems whose
manufacture, use, or sale is prohibited under any applicable domestic or foreign laws or regulations.
5. Please contact AKM sales representative for details as to environmental matters such as the RoHS
compatibility of the Product. Please use the Product in compliance with all applicable laws and
regulations that regulate the inclusion or use of controlled substances, including without limitation, the
EU RoHS Directive. AKM assumes no liability for damages or losses occurring as a result of
noncompliance with applicable laws and regulations.
6. Resale of the Product with provisions different from the statement and/or technical features set forth in
this document shall immediately void any warranty granted by AKM for the Product and shall not
create or extend in any manner whatsoever, any liability of AKM.
7. This document may not be reproduced or duplicated, in any form, in whole or in part, without prior
written consent of AKM.
Rev.1
019003761-E-00
2019/04
- 81 -
工商网监
湘ICP备2023018690号
