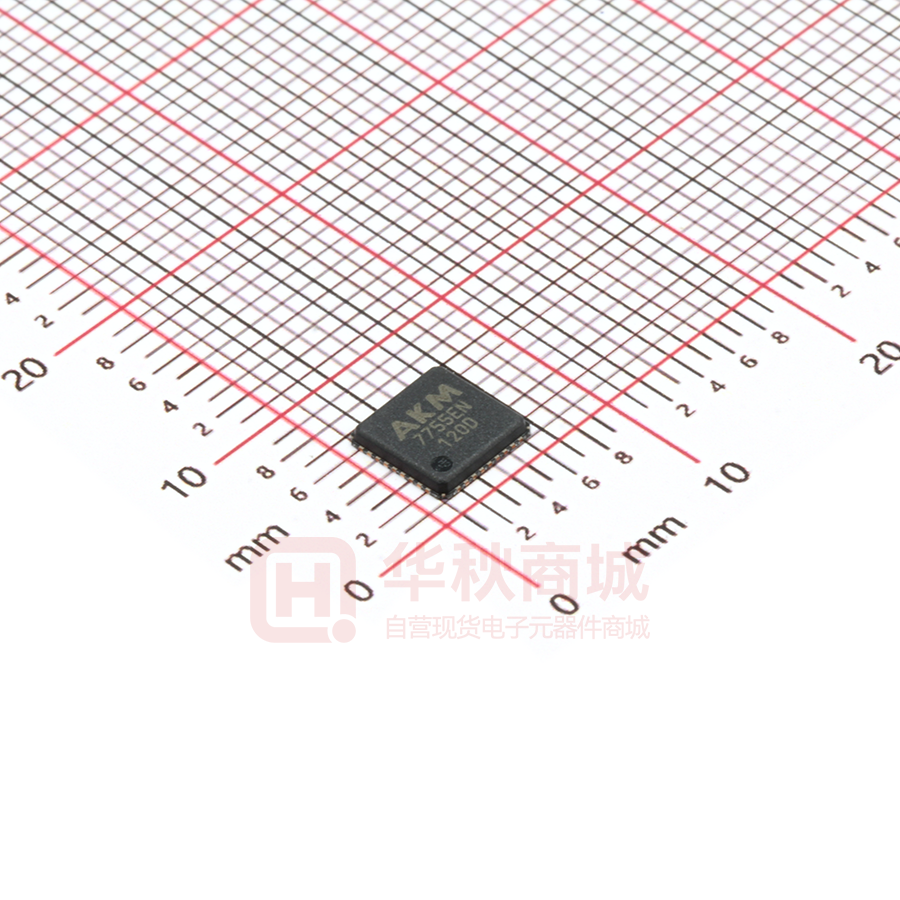

AK7755EN

AK7755EN

  • 厂商:

    AKM(旭化成)

  • 封装:

    QFN36_6X6MM_EP

  • 描述:

    带单声道ADC立体声编解码器的DSP+麦克风/线路放大器 QFN36X6MM_EP

  • 数据手册
  • 价格&库存
AK7755EN 数据手册
[AK7755] AK7755 DSP with Mono ADC Stereo CODEC + Mic/Lineout Amp 1. General Description The AK7755 is a highly integrated digital signal processor, including a mono ADC, a stereo audio CODEC, a MIC pre-amplifier, a line-out amplifier and digital audio I/F. The audio DSP has 2560step at fs = 48kHz parallel processing power. As the AK7755 is a RAM based DSP, it is programmable for user requirements such as high performance hands free function and acoustic effects. The AK7755 is available in a space saving small 36-pin QFN package. 2. Features  DSP - Word length: 24-bit (Data RAM 24-bit floating point) - Instruction cycle: 8.1ns (2560fs at fs=48kHz) - Multiplier 24 x 24 → 48-bit (double precision available) - Divider 20 / 20 → 20-bit (with floating point normalization function) - ALU: 52-bit arithmetic operation (with overflow margin 4-bit) - Program RAM: 4096 × 36-bit - Coefficient RAM: 2048 × 24-bit - Data RAM: 2048 × 24-bit (24-bit floating point) - Offset Register: 32 × 13-bit - Delay RAM: 8192 × 24-bit - Accelerator Coefficient RAM: 2048 × 20-bit - Accelerator Data RAM: 2048 × 16-bit - JX pins (Interrupt) - Master/Slave Operation - Master Clock: 2560fs (Internally Generated by PLL from 32, 48, 64, 128, 256 and 384fs clock)  Two Digital Interfaces (I/F1, I/F2) - Digital Signal Input Port (4ch): MSB justified 24-bit, LSB justified 24/20/16-bit, I2S - Digital Signal Output Port (6ch): MSB justified 24-bit, LSB justified 24/20/16-bit, I2S - Short / Long Frame - 24-bit linear, 8-bit A-law, 8-bit μ-law - TDM 256fs (8ch) MSB justified and I2S formats  Stereo 24-bit ADC: - Sampling Frequency: fs=8kHz ~ 96kHz - ADC Characteristics S/(N+D): 91dB, DR, S/N: 102dB - Two-Channel Analog Input Selector (Differential, Single-ended Input) - Channel Independent Mic Analog Gain Amplifier (0~18dB (2dB Step), 18~36dB (3dB Step)) - Analog DRC (Dynamic Range Control) - Channel Independent Digital Volume (24~-103dB, 0.5dB Step Mute) - Digital HPF for DC Offset Cancelling  Mono 24-bit ADC - Sampling Frequency: 8kHz ~ 96kHz - ADC Characteristics S/(N+D): 90dB; DR, S/N: 100dB - Line Amplifier: 21dB ~ -21dB, 3dB Step - Digital Volume (24dB ~ -103dB, 0.5dB step, Mute) - Digital HPF for DC Offset Cancelling 014006643-E-01 2018/08 -1- [AK7755]  Stereo 24-bit DAC - Sampling Frequency: fs=8kHz ~ 96kHz - Digital Volume (12dB ~ -115dB, 0.5step, Mute) - Digital De-emphasis Filter (tc=50/15us, fs=32kHz, 44.1kHz, 48kHz)  Line Output - Single-ended Output - S/(N+D): 91dB, DR, S/N: 106dB - Stereo Analog Volume (+0dB ~ -28dB, 2.0dB step, Mute)  Analog Mixer  Digital Mixer  4ch Digital Microphone Interface  I2C Bootloader - EEPROM Mat Selectable  μP Interface: SPI, I2C-bus (400kHz Fast Mode)  Power supply Analog (AVDD): 3.0V ~ 3.6V (typ. 3.3V) Digital1 (DVDD): 1.14V ~ 1.3V (typ. 1.2V) (External Power Supply or Internal Regulator is selectable) I/F (TVDD): 1.7V ~ 3.6V (typ. 3.3V)  Operating Temperature Range: -40C ~ 85C  Package: 36-pin QFN (0.5mm pitch) 014006643-E-01 2018/08 -2- [AK7755] 3. Table of Contents 1. General Description ................................................................................................................................................1 2. Features ...................................................................................................................................................................1 3. Table of Contents ....................................................................................................................................................3 4. Block Diagram and Functions ................................................................................................................................4 ■ Block Diagram................................................................................................................................................. 4 ■ DSP Block Diagram ........................................................................................................................................ 5 5. Pin Configurations and Functions ..........................................................................................................................6 ■ Ordering Guide ................................................................................................................................................ 6 ■ Pin Layout ....................................................................................................................................................... 6 ■ Pin Functions ................................................................................................................................................... 9 ■ Handling of Unused Pin ................................................................................................................................ 10 6. Absolute Maximum Ratings ................................................................................................................................. 11 7. Recommended Operating Conditions ................................................................................................................... 11 8. Electrical Characteristics ......................................................................................................................................12 ■ Analog Characteristics................................................................................................................................... 12 ■ DC Characteristics ......................................................................................................................................... 17 ■ Power Consumptions ..................................................................................................................................... 17 ■ Digital Filter Characteritics ........................................................................................................................... 18 ■ Switching Characteristics .............................................................................................................................. 19 9. Functional Description..........................................................................................................................................26 ■ System Clock ................................................................................................................................................. 26 ■ Control Register Settings ............................................................................................................................... 30 ■ Power-up Sequence ....................................................................................................................................... 53 ■ LDO (Internal Circuit Drive Regulator) ........................................................................................................ 56 ■ Power-down Sequence .................................................................................................................................. 56 ■ Power-down and Reset .................................................................................................................................. 57 ■ RAM Clear .................................................................................................................................................... 60 ■ Serial Data Interface ...................................................................................................................................... 60 ■ μP Interface Setting and Pin Status ............................................................................................................... 67 ■ SPI Interface (I2CSEL pin = “L”) ................................................................................................................. 67 ■ I2C Bus Interface (I2CSEL pin= “H”) ........................................................................................................... 80 ■ Analog Input Block ....................................................................................................................................... 85 ■ ADC Block .................................................................................................................................................... 88 ■ DAC Blocks .................................................................................................................................................. 91 ■ Analog Output Block..................................................................................................................................... 93 ■ Simple Write Error Check ............................................................................................................................. 95 ■ EEPROM Interface ........................................................................................................................................ 96 ■ Digital Microphone Interface ...................................................................................................................... 100 ■ Digital Mixer ............................................................................................................................................... 101 10. Recommended External Circuits ......................................................................................................................102 ■ Connection Diagram.................................................................................................................................... 102 ■ Peripheral Circuit......................................................................................................................................... 106 11. Package .............................................................................................................................................................108 ■ Outline Dimensions ..................................................................................................................................... 108 ■ Package & Lead frame material .................................................................................................................. 108 ■ Marking ....................................................................................................................................................... 109 12. Revision History ............................................................................................................................................... 110 IMPORTANT NOTICE ....................................................................................................................................... 112 014006643-E-01 2018/08 -3- [AK7755] 4. Block Diagram and Functions ■ Block Diagram Figure 1. Block Diagram 014006643-E-01 2018/08 -4- [AK7755] ■ DSP Block Diagram CP0, CP1 Pointer DP0, DP1 Coefficient RAM Data RAM 2048w x 24-Bit(20.4f) 2048w×24-Bit OFREG 32w x 13-Bit DLP0, DLP1 Delay RAM 8192w x 24-Bit(20.4f) CBUS(24-Bit) DBUS(28-Bit) MPX24 Micon I/F MPX24 X Serial I/F Control PRAM DEC Y 4096w×36-Bit Multiply 24 ×24 → 48-Bit PC Stack : 5level(max) 28-Bit 48-Bit TMP 12×24-Bit PTMP(LIFO) 6×24-Bit MUL DBUS 2×16/20/24-Bit DIN4 2×16/20/24-Bit DIN3 2×16/20/24-Bit DIN2 2×16/20/24-Bit DIN1 ALU 2×16/20/24-Bit DOUT4 52-Bit 2×16/20/24-Bit DOUT3 2×16/20/24-Bit DOUT2 2×16/20/24-Bit DOUT1 SHIFT 52-Bit 48-Bit A B Overflow Margin: 4-Bit 52-Bit DR0  3 Accelerator 52-Bit Coefficient RAM (ACCRAM) 2048w x 20-Bit Over Flow Data Generator Division 2020→20 Data RAM (ACDRAM) 2048w x 16-Bit Peak Detector Figure 2. DSP Block Diagram 014006643-E-01 2018/08 -5- [AK7755] 5. Pin Configurations and Functions ■ Ordering Guide -40  +85C 36-pin QFN (0.5mm pitch) Evaluation Board for AK7755 AK7755EN/VN AKD7755 OUT3 OUT2 DVSS DVDD/AVDRV LDOE PDN AVDD CSN/CAD/MATSEL SI/EXTEEP 27 26 25 24 23 22 21 20 19 ■ Pin Layout OUT1 28 18 SCLK/SCL AVDD 29 17 SO/SDA AVSS 30 16 SDOUT1/EEST IN4/INN2/DMCLK2 31 15 SDOUT2/JX3/MAT0 IN3/INP2/DMDAT2 32 14 SDOUT3/JX2/MAT1 IN2/INN1/DMCLK1 33 13 DVSS IN1/INP1/DMDAT1 34 12 TVDD LIN 35 11 XTI AVDD 36 10 XTO 36pin QFN 1 2 3 4 5 6 7 8 9 VCOM AVSS I2CSEL SDIN2/JX1 SDIN1/JX0 STO/RDY LRCK BICK CLKO (TOP VIEW) PIN Input Output I/O Power Figure 3. Pin Layout 014006643-E-01 2018/08 -6- [AK7755] PDN AVDD CSN SI 21 20 19 LDOE 23 22 DVSS DVDD/AVDRV 24 OUT2 26 25 OUT3 27 I2CSEL pin = “L” OUT1 28 18 SCLK AVDD 29 17 SO AVSS 30 16 SDOUT1/EEST IN4/INN2/DMCLK2 31 15 SDOUT2/JX3 IN3/INP2/DMDAT2 32 14 SDOUT3/JX2 IN2/INN1/DMCLK1 33 13 DVSS IN1/INP1/DMDAT1 34 12 TVDD LIN 35 11 XTI AVDD 36 10 XTO 36pin QFN 5 6 7 8 9 STO/RDY LRCK BICK CLKO 4 SDIN2/JX1 SDIN1/JX0 2 3 AVSS I2CSEL=“L” 1 VCOM (TOP VIEW) PIN Input Output I/O Power OUT3 OUT2 DVSS DVDD/AVDRV LDOE PDN AVDD CAD EXTEEP=“L” 27 26 25 24 23 22 21 20 19 I2CSEL pin = “H”, EXTEEP pin = “L” OUT1 28 18 SCL AVDD 29 17 SDA AVSS 30 16 SDOUT1/EEST IN4/INN2/DMCLK2 31 15 SDOUT2/JX3 IN3/INP2/DMDAT2 32 14 SDOUT3/JX2 IN2/INN1/DMCLK1 33 13 DVSS IN1/INP1/DMDAT1 34 12 TVDD LIN 35 11 XTI AVDD 36 10 XTO 36pin QFN 1 2 3 4 5 6 7 8 9 VCOM AVSS I2CSEL=“H” SDIN2/JX1 SDIN1/JX0 STO/RDY LRCK BICK CLKO (TOP VIEW) 014006643-E-01 PIN Input Output I/O Power 2018/08 -7- [AK7755] OUT3 OUT2 DVSS DVDD/AVDRV LDOE PDN AVDD MATSEL=“L” EXTEEP=“H” 27 26 25 24 23 22 21 20 19 I2CSEL pin = “H”, EXTEEP pin = “H”, MATSEL pin = “L” OUT1 28 18 SCL AVDD 29 17 SDA AVSS 30 16 SDOUT1/EEST IN4/INN2/DMCLK2 31 15 SDOUT2/JX3 IN3/INP2/DMDAT2 32 14 SDOUT3/JX2 IN2/INN1/DMCLK1 33 13 DVSS IN1/INP1/DMDAT1 34 12 TVDD LIN 35 11 XTI AVDD 36 10 XTO 36pin QFN 1 2 3 4 5 6 7 8 9 VCOM AVSS I2CSEL=“H” SDIN2/JX1 SDIN1/JX0 STO/RDY LRCK BICK CLKO (TOP VIEW) PIN Input Output I/O Power OUT3 OUT2 DVSS DVDD/AVDRV LDOE PDN AVDD MATSEL=“H” EXTEEP=“H” 27 26 25 24 23 22 21 20 19 I2CSEL pin = “H”, EXTEEP pin = “H”, MATSEL pin = “H” OUT1 28 18 SCL AVDD 29 17 SDA AVSS 30 16 SDOUT1/EEST IN4/INN2/DMCLK2 31 15 MAT0 IN3/INP2/DMDAT2 32 14 MAT1 IN2/INN1/DMCLK1 33 13 DVSS IN1/INP1/DMDAT1 34 12 TVDD LIN 35 11 XTI AVDD 36 10 XTO 36pin QFN 1 2 3 4 5 6 7 8 9 VCOM AVSS I2CSEL=“H” SDIN2/JX1 SDIN1/JX0 STO/RDY LRCK BICK CLKO (TOP VIEW) 014006643-E-01 PIN Input Output I/O Power 2018/08 -8- [AK7755] ■ Pin Functions No. Pin Name 1 VCOM 2 AVSS 3 I2CSEL 4 5 6 7 8 9 SDIN2 JX1 SDIN1 JX0 STO RDY LRCK BICK CLKO 10 XTO 11 XTI 12 TVDD 13 DVSS SDOUT3 JX2 14 MAT1 15 SDOUT2 JX3 MAT0 SDOUT1 EEST SO 17 SDA 16 SCLK 18 SCL 19 SI EXTEEP I/O Function Common Voltage Output Pin of Analog Block O ▪ Connect a 2.2μF capacitor between AVSS. ▪ Do not connect to an external circuit. - Analog Ground Pin 0V I2C-BUS Select Pin ▪ I2CSEL pin = “L”: SPI Interface I ▪ I2CSEL pin = “H”: I2C-bus Interface The I2CSEL pin must be fixed to “L” (DVSS) or “H” (TVDD). I Serial Data Input2 Pin I External Conditional Jump1 Pin (JX1E bit = “1”) I Serial Data Input1 Pin I External Conditional Jump0 Pin (JX0E bit = “1”) O Status Output Pin O RDY Pin I/O LR Channel Select Pin (Internal pull-down) I/O Serial Bit Clock Output Pin (Internal pull-down) O Clock Output Pin Crystal oscillator output pin O ▪ When a crystal oscillator is used, connect it between XTI and XTO. ▪ When a crystal oscillator is not used, leave this pin as open. Crystal oscillator input pin ▪ When a crystal oscillator is used, connect it between XTI and XTO. I ▪ When a crystal oscillator is not used, connect this pin to the external clock or leave open. - Digital IO Power Supply Pin: 1.7~3.6V (typ. 3.3V) I Ground Pin 0V O Serial Data Output3 Pin I External Conditional Jump2 Pin (JX2E bit = “1”) I2CSEL pin = EXTEEP pin = MATSEL pin = “H” I EEPROM Download Mat Select Address1 O Serial Data Output2 Pin I External Conditional Jump3 Pin (JX3E bit = “1”) I2CSEL pin = EXTEEP pin = MATSEL pin = “H” I EEPROM Download Mat Select Address0 O Serial Data Output1 Pin O EEPROM Interface Status O SO Pin (I2CSEL pin = “L”) I/O I2CBUS Interface (I2CSEL pin = “H”) Serial Data Clock Pin for SPI Interface (I2CSEL pin = “L”) I ▪ Set this pin to “H” when there is no clock input. I2CBUS Interface Pin (I2CSEL pin = “H”) I/O EEPROM Download This becomes an output pin when EXTEEP pin = “H”. Serial Data Input Pin for SPI Interface (I2CSEL pin = “L”) I ▪ Set this pin to “L” when not used. I EEPROM Download Control Pin (I2CSEL pin = “H”) 014006643-E-01 2018/08 -9- [AK7755] ChipSelectN Pin for SPI Interface (I2CSEL pin = “L”) I CSN ▪ Set this pin to “H” when the AK7755 is in power-down mode or when the microprocessor I/F is not used. 20 I I2CBUS Address Pin (I2CSEL pin = “H”) CAD I EEPROM Mat Select Pin (I2CSEL pin = EXTEEP pin = “H”) MATSEL 21 AVDD - Analog Power Supply Pin: (typ. 3.3V) Power-down N Pin 22 PDN I ▪ The AK7755 can be powered-down by this pin. ▪ Set this pin to “L” upon power-up the AK7755. LDO Select Pin LDOE pin = “L”: 24 pin External 1.2V Power Supply 23 LDOE I LDOE pin = “H”: 24 pin LDO Output (LDO Drive) The LDOE pin must be fixed to “L(DVSS)” or “H(TVDD)”. I Power Supply Pin for Digital Core: (typ. 1.2V) DVDD LDO Output (LDOE pin = “H”) 24 O AVDRV Connect a 1uF capacitor between this pin and DVSS. This pin must not be connected to an external circuit. 25 DVSS - Ground Pin 0V 26 OUT2 O Line Output 2 Pin 27 OUT3 O Line Output 3 Pin 28 OUT1 O Line Output 1 Pin 29 AVDD - Analog Power Supply Pin: 3.3V (typ) 30 AVSS - Analog Ground Pin 0V I ADC Input Pin (AINE bit = “1”) IN4/INN2 31 DMCLK2 O Digital MIC Clock Output 2 Pin (DMIC2 bit = “1”) I ADC Input Pin (AINE bit = “1”) IN3/INP2 32 DMDAT2 I Digital MIC Clock Input 2 Pin (DMIC2 bit = “1”) I ADC Input Pin (AINE bit = “1”) IN2/INN1 33 DMCLK1 O Digital MIC Clock Output 1 Pin (DMIC1 bit = “1”) I ADC Input Pin (AINE bit = “1”) IN1/INP1 34 DMDAT1 I Digital MIC Clock Input 1 Pin (DMIC1 bit = “1”) 35 LIN I Mono ADC Input Pin 36 AVDD - Analog Power Supply Pin: 3.3V (typ) Note 1. All digital input pins must not be allowed to float. If analog input pins are not used, leave them open. The I2CSEL pin, LDOE pin and CAD/MATSEL pin should be fixed to “L” (DVSS) or “H” (TVDD). ■ Handling of Unused Pin The unused I/O pins must be processed appropriately as below. Classification Pin Name LIN, IN1/INP1/DMDAT1, IN2/INN1/DMCLK1, Analog IN3/INP2/DMDAT2, IN4/INN2/DMCLK2, OUT1, OUT2, OUT3 STO/RDY, CLKO, XTI, XTO, SDOUT3/ JX2/MAT1, SDOUT2/JX3/MAT0, SDOUT1/EEST, SO/SDA, LRCK, BICK Digital I2CSEL, SDIN2/JX1, SDIN1/JX0, SCLK/SCL, SI/EXTEEP, CSN/CAD/MATSEL, LDOE 014006643-E-01 Setting These pins must be open. These pins must be open. These pins must be connected to DVSS. 2018/08 - 10 - [AK7755] 6. Absolute Maximum Ratings (AVSS=DVSS=0V; Note 2) Parameter Symbol min max Power Supplies Analog AVDD -0.3 4.3 Digital1(I/F) TVDD -0.3 4.3 Digital2(Core) ΔTVDD -0.3 1.6 DVSS-AVSS (Note 2) ΔGND -0.3 0.3 Input Current, Any Pin Except Supplies IIN − ±10 Analog Input Voltage (Note 3) VINA -0.3 (AVDD+0.3)≤4.3 Digital Input Voltage (Note 4) VIND -0.3 (TVDD+0.3)≤4.3 Ambient Temperature Ta -40 85 Storage Temperature Tstg -65 150 Note 2. All voltages with respect to ground. AVSS and DVSS must be the same voltage. Note 3. The maximum analog input voltage is smaller value between (AVDD+0.3)V and 4.3V. Note 4. The maximum digital input voltage is smaller value between (DVDD+0.3)V and 4.3V. Unit V V V V mA V V C C WARNING: Operation at or beyond these limits may result in permanent damage to the device. Normal operation is not guaranteed at these extremes. 7. Recommended Operating Conditions (AVSS=DVSS=0V; Note 2) Parameter Symbol min typ max Unit Power Supplies Analog AVDD 3.0 3.3 3.6 V Digital1(I/F) TVDD 1.7 3.3 3.6 V Digital2(Core) DVDD 1.14 1.2 1.3 V Note 5. AVDD and TVDD must be powered up first before DVDD when DVDD is supplied externally (LDOE pin = “L”). In this case, the power-up sequence between AVDD and TVDD is not critical. When using the internal regulator (LDOE pin = “H”), the power-up sequence between AVDD and TVDD is not critical. But all power supplies must be ON before starting operation of the AK7755 by PDN pin = “H”. Note 6. Do not turn off the power supply of the AK7755 with the power supply of the surrounding device turned on. Pull-up of SDA and SCL pins must not exceed TVDD. * AKM assumes no responsibility for the usage beyond the conditions in this datasheet. 014006643-E-01 2018/08 - 11 - [AK7755] 8. Electrical Characteristics ■ Analog Characteristics 1. MIC Amplifier Gain (Ta= 25C; AVDD=TVDD=3.3V; DVDD=1.2V; AVSS=DVSS=0V) Parameter min Input Impedance 14 MGNL[3:0]bits=0h, MGNR[3:0]bits=0h MGNL[3:0]bits=1h, MGNR[3:0]bits=1h MGNL[3:0]bits=2h, MGNR[3:0]bits=2h MGNL[3:0]bits=3h, MGNR[3:0]bits=3h MGNL[3:0]bits=4h, MGNR[3:0]bits=4h MGNL[3:0]bits=5h, MGNR[3:0]bits=5h MGNL[3:0]bits=6h, MGNR[3:0]bits=6h MIC MGNL[3:0]bits=7h, MGNR[3:0]bits=7h AMP Gain MGNL[3:0]bits=8h, MGNR[3:0]bits=8h MGNL[3:0]bits=9h, MGNR[3:0]bits=9h MGNL[3:0]bits=Ah, MGNR[3:0]bits=Ah MGNL[3:0]bits=Bh, MGNR[3:0]bits=Bh MGNL[3:0]bits=Ch, MGNR[3:0]bits=Ch MGNL[3:0]bits=Dh, MGNR[3:0]bits=Dh MGNL[3:0]bits=Eh, MGNR[3:0]bits=Eh MGNL[3:0]bits=Fh, MGNR[3:0]bits=Fh typ 20 0 2 4 6 8 10 12 14 16 18 21 24 27 30 33 36 max Unit kΩ dB dB dB dB dB dB dB dB dB dB dB dB dB dB dB dB 2. Line-in Amplifier Gain (Ta= 25C; AVDD=TVDD=3.3V; DVDD=1.2V; AVSS=DVSS=0V) Parameter min typ max Unit Input Impedance 14 20 kΩ LIGN[3:0]bits=0h 0 dB LIGN[3:0]bits=1h -3 dB LIGN[3:0]bits=2h -6 dB LIGN[3:0]bits=3h -9 dB LIGN[3:0]bits=4h -12 dB LIGN[3:0]bits=5h -15 dB LIGN[3:0]bits=6h -18 dB Line-in LIGN[3:0]bits=7h -21 dB Gain AMP (Note 7) LIGN[3:0]bits=8h N/A dB LIGN[3:0]bits=9h +3 dB LIGN[3:0]bits=Ah +6 dB LIGN[3:0]bits=Bh +9 dB LIGN[3:0]bits=Ch +12 dB LIGN[3:0]bits=Dh +15 dB LIGN[3:0]bits=Eh +18 dB LIGN[3:0]bits=Fh +21 dB Note 7. If the output signal of line-in amplifier is input to the analog mixer, +18dB gain is added to the signal at the mixer. 014006643-E-01 2018/08 - 12 - [AK7755] 3. MIC Amp + ADC Ta= 25C; AVDD=TVDD=3.3V; DVDD=1.2V; AVSS=DVSS=0V; Signal Frequency 1kHz; Sampling Rate fs=48kHz; Measurement Frequency =20Hz to 20kHz Sampling Rate fs=96kHz; Measurement Frequency =20Hz to 40kHz CKM mode0(CKM[2:0]= “000”); BITFS[1:0]= “00” (64fs); DSM bit = “0”; Differential Input Mode Parameter min typ max Unit Resolution 24 Bit Dynamic Characteristics (Differential Input mode) Fs=48kHz (Note 12) 80 91 S/(N+D) Fs=48kHz (Note 13) 88 (-1dBFS) dB Fs=96kHz (Note 12) 89 (Note 14) Fs=96kHz (Note 13) 85 Fs=48kHz (A-weighted) (Note 12) 94 102 Dynamic Fs=48kHz (A-weighted) (Note 13) 93 Range dB Fs=96kHz (Note 12) 95 (Note 8) Fs=96kHz (Note 13) 89 Fs=48kHz (A-weighted) (Note 12) 94 102 MIC Amp Fs=48kHz (A-weighted) (Note 13) 93 + ADC S/N dB Fs=96kHz (Note 12) 95 Fs=96kHz (Note 13) 89 Inter-Channel Isolation (Note 9) 90 105 dB DC accuracy (Differential Input) Channel Gain Mismatch 0.0 0.3 dB Analog Input (Note 12) ±2.00 ±2.20 ±2.40 Input Voltage Vp-p (Differential Input) (Note 10) (Note 13) ±0.277 (Note 12) 2.00 2.20 2.40 Input Voltage Vp-p (Single-ended Input) (Note 11) (Note 13) 0.277 Note 8. S/(N+D) when -60dB FS signal is applied. Note 9. Indicates inter-channel isolation between Lch and Rch when –1dBFS signal is input. Note 10. INP1/INN1 and INP2/INN2 pins. Note 11. IN1, IN2, IN3 and IN4 pins. Note 12. MGNL/R[3:0] bits = 0h (0dB) Note 13. MGNL/R[3:0] bits = 9h (18dB) Note 14. When setting DSM bit = “1”, S/(N+D) performance of the ADC degrades if an ADC and a DAC are simultaneously operated by the sampling frequency with fs = 8k, 12k, or 24kHz. However, this deterioration does not occur if ADC and DAC are not operated simultaneously. When DSM bit is set to “0” (default), S/(N+D) performance of the ADC is not deterioraded even if the ADC and DAC are operated simultaneously. 014006643-E-01 2018/08 - 13 - [AK7755] 4. Line-in Amp + ADC Ta=25C; AVDD=TVDD=3.3V; DVDD=1.2V; AVSS=DVSS=0V; Signal Frequency 1kHz; Sampling Rate fs=48kHz; Measurement Frequency =20Hz to 20kHz Sampling Rate fs=96kHz; Measurement Frequency =20Hz to 40kHz CKM mode0(CKM[2:0]= “000”); BITFS[1:0]= “00” (64fs); Parameter Resolution Dynamic Characteristics Fs=48kHz (Note 17) Fs=48kHz (Note 18) S/(N+D) (-1dBFS) Fs=96kHz (Note 17) Fs=96kHz (Note 18) Fs=48kHz (A-weighted) (Note 17) Dynamic Fs=48kHz (A-weighted) (Note 18) Line-in Amp Range Fs=96kHz (Note 17) (Note 15) + ADC Fs=96kHz (Note 18) Fs=48kHz (A-weighted) (Note 17) Fs=48kHz (A-weighted) (Note 18) S/N Fs=96kHz (Note 17) Fs=96kHz (Note 18) Analog Input (Note 17) Input Voltage (Note 16) (Note 18) Note 15. S/(N+D) when -60dB FS signal is applied. Note 16. The Lin pin. Note 17. LIGN[3:0] bits = 0h (0dB) Note 18. LIGN[3:0] bits = Eh (+18 dB) 014006643-E-01 min typ 77 90 86 88 85 100 90 95 86 100 90 95 86 92 92 2.00 2.20 0.277 max 24 Unit Bit dB dB dB 2.40 Vp-p 2018/08 - 14 - [AK7755] 5. Line-out AMP Gain Ta= 25C; AVDD=TVDD=3.3V; DVDD=1.2V; AVSS=DVSS=0V Parameter LOVOL1[3:0]bits=0h, LOVOL2[3:0]bits=0h, LOVOL3[3:0]bits=0h LOVOL1[3:0]bits=1h, LOVOL2[3:0]bits=1h, LOVOL3[3:0]bits=1h LOVOL1[3:0]bits=2h, LOVOL2[3:0]bits=2h, LOVOL3[3:0]bits=2h LOVOL1[3:0]bits=3h, LOVOL2[3:0]bits=3h, LOVOL3[3:0]bits=3h LOVOL1[3:0]bits=4h, LOVOL2[3:0]bits=4h, LOVOL3[3:0]bits=4h LOVOL1[3:0]bits=5h, LOVOL2[3:0]bits=5h, LOVOL3[3:0]bits=5h LOVOL1[3:0]bits=6h, LOVOL2[3:0]bits=6h, LOVOL3[3:0]bits=6h LOVOL1[3:0]bits=7h, LOVOL2[3:0]bits=7h, LOVOL3[3:0]bits=7h Line-out Gain AMP LOVOL1[3:0]bits=8h, LOVOL2[3:0]bits=8h, LOVOL3[3:0]bits=8h LOVOL1[3:0]bits=9h, LOVOL2[3:0]bits=9h, LOVOL3[3:0]bits=9h LOVOL1[3:0]bits=Ah, LOVOL2[3:0]bits=Ah, LOVOL3[3:0]bits=Ah LOVOL1[3:0]bits=Bh, LOVOL2[3:0]bits=Bh, LOVOL3[3:0]bits=Bh LOVOL1[3:0]bits=Ch, LOVOL2[3:0]bits=Ch, LOVOL3[3:0]bits=Ch LOVOL1[3:0]bits=Dh, LOVOL2[3:0]bits=Dh, LOVOL3[3:0]bits=Dh LOVOL1[3:0]bits=Eh, LOVOL2[3:0]bits=Eh, LOVOL3[3:0]bits=Eh LOVOL1[3:0]bits=Fh, LOVOL2[3:0]bits=Fh, LOVOL3[3:0]bits=Fh 014006643-E-01 min typ max Unit mute dB -28 dB -26 dB -24 dB -22 dB -20 dB -18 dB -16 dB -14 dB -12 dB -10 dB -8 dB -6 dB -4 dB -2 dB 0 dB 2018/08 - 15 - [AK7755] 6. DAC+Line-out Amp Ta= 25C; AVDD=TVDD=3.3V; DVDD=1.2V; AVSS=DVSS=0V; Signal Frequency 1kHz; Sampling Rate fs=48kHz; Measurement Frequency =20Hz to 20kHz Sampling Rate fs=96kHz; Measurement Frequency =20Hz to 40kHz CKM mode0(CKM[2:0]=000); BITFS[1:0] bits = “00”; LOVOL1/2/3[3:0] bits = Fh(0dB); Parameter min typ max Resolution 24 Dynamic Characteristics 1 (OUT1, OUT2, OUT3) fs=48kHz 80 91 S/(N+D) (0 dBFS) fs=96kHz 89 fs=48kHz (A-weighted) 100 106 Dynamic Range (Note 19) fs=96kHz 101 fs=48kHz (A-weighted) 100 106 S/N fs=96kHz 101 DAC Inter-Channel Isolation (f=1kHz) (Note 20) 90 110 DC accuracy Channel Gain Mismatch 0.0 0.5 Analog Output Output Voltage (Note 21) 2.28 2.51 2.74 Load Resistance 10 Load Capacitance 30 Note 19. S/(N+D) when -60dB FS signal is applied. Note 20. Indicates inter-channel isolation between Lch and Rch of DAC when –1dBFS signal is input. Note 21. Full-scale output voltage. The output voltage is proportional to AVDD (AVDD x 0.76). 014006643-E-01 Unit Bit dB dB dB dB dB Vp-p kΩ pF 2018/08 - 16 - [AK7755] ■ DC Characteristics (Ta= -40 to 85C, AVDD=3.3V, DVDD=1.2V, TVDD=1.7 to 3.6V, AVSS=DVSS=0V) Parameter Symbol min typ max High Level Input Voltage VIH 80%TVDD Low Level Input Voltage VIL 20%TVDD SCL, SDA High Level Input Voltage VIH 70%TVDD SCL, SDA Low Level Input Voltage VIL 30%TVDD DMDAT1, DMDAT2 High Level Input Voltage VIH2 65%AVDD (DMIC1, DMIC2 bit = “1”) DMDAT1, DMDAT2 Low Level Input Voltage VIL2 35%AVDD (DMIC1, DMIC2 bit = “1”) TVDD-0.3 VOH High Level Output Voltage Iout= -100A (Note 22) 0.3 VOL Low Level Output Voltage Iout=100A (Note 23) TVDD≥2.0V VOL 0.4 SDA Low Level Output Voltage Iout=3mA TVDD
AK7755EN 价格&库存

很抱歉,暂时无法提供与“AK7755EN”相匹配的价格&库存,您可以联系我们找货

免费人工找货
AK7755EN
    •  国内价格 香港价格
    • 1+61.495521+7.38407
    • 10+41.9620210+5.03859
    • 25+36.8956525+4.43025
    • 100+31.22784100+3.74968
    • 250+28.47760250+3.41945
    • 500+26.80183500+3.21823

    库存:3283

    AK7755EN
      •  国内价格 香港价格
      • 1000+24.296941000+2.91746

      库存:3283

      AK7755EN
      •  国内价格
      • 1+17.39070
      • 10+16.74660
      • 100+14.81430
      • 500+14.42784

      库存:40
