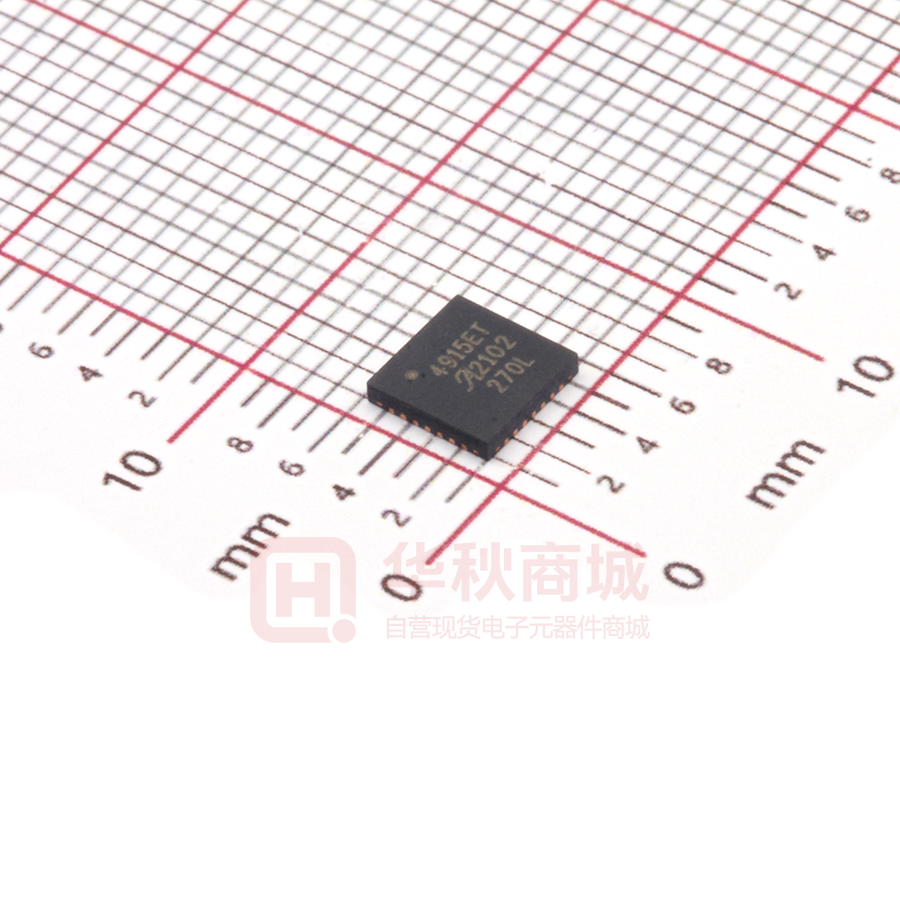

A4915METTR-T

A4915 3-Phase MOSFET Driver DESCRIPTION FEATURES AND BENEFITS • 5 to 50 V supply voltage • Latched TSD with fault output • Drives six N-channel high current MOSFETs • Internally controlled synchronous rectification • Speed voltage input enables internal PWM duty cycle control of full bridge • Center aligned PWM • Internal UVLO and crossover current protection • Hall switch inputs • Adjustable dead time protection • Low power sleep mode for battery-powered applications The A4915 is designed for pulse width modulated (PWM) current control of 3-phase brushless DC motors. The A4915 is capable of high current gate drive for 6 all N-channel power MOSFETs. An internal charge pump ensures gate drive down to 7 V supply and provides limited gate drive down to 5 V. A bootstrap capacitor is used to generate a supply voltage greater than the source voltage of the high side MOSFET, required for N-channel MOSFETs. Internal synchronous rectification control circuitry is provided to improve power dissipation in the external MOSFETs during PWM operation. Internal circuit protection includes latched thermal shutdown, dead time protection, and undervoltage lockout. Special power up sequencing is not required. PACKAGES: 28-pin TSSOP with exposed thermal pad (LP package) 28-contact QFN 5 mm × 5 mm × 0.90 mm (ET package) The A4915 is supplied in a 28-pin TSSOP with an exposed thermal pad (suffix LP) and a 28-contact 5 × 5 mm QFN with an exposed thermal pad (suffix ET). These packages are lead (Pb) free, with 100% matte-tin leadframe plating. Not to scale VDD Comm Logic HA HB 0.47 µF CP1 CP2 Functional Block Diagram Charge Pump Regulator A4915 VBB CREG VREG 47 V TVS CVBB1 CVBB2 HC VIN VDD VDD TDEAD High Side Driver BRAKEn Rdead Phase A Bootstrap Monitor CVDD1 GHA GHB GHC DIR Control Logic ENABLE Voltage to Duty R3 HA HB HC CBOOTA See Note 1 RGATE SB SC GLA GLB OSC SPEED R2 SA VREG VDD CA CB CC R1 Low Side Driver VRESET FAULT GLC RGATE To Phase B To Phase C One of three phases shown LSS GND Note 1: Allegro-recommended Hall latches: APS13290 and APS13291. A4915-DS, Rev. 7 MCO-0000484 September 22, 2021 A4915 3-Phase MOSFET Driver SELECTION GUIDE Part Number Package Packing* A4915METTR-T 28-contact QFN with exposed thermal pad 1500 pieces per 7-in. reel A4915MLPTR-T 28-pin TSSOP with exposed thermal pad 4000 pieces per 13-in. reel ABSOLUTE MAXIMUM RATINGS Characteristic Load Supply Voltage Symbol Notes VBB Rating Unit –0.3 to 50 V Logic Supply Voltage VDD –0.3 to 6 V VREG Pin VREG –0.3 to 16 V CP1 Pin VCP1 –0.3 to 16 V VCP2 VCP1 – 0.3 to VREG + 0.3 V CP2 Pin Logic Inputs VI –0.3 to 6 V VHx –0.3 to 6 V Logic Outputs VO –0.3 to 6 V SPEED Input VSPEED –0.3 to 6 V CA, CB, and CC Pins VCx –0.3 to VREG + 50 V GHA, GHB, and GHC Pins VGHx VCx – 16 to VCX + 0.3 V SA, SB, and SC Pins VSx VCx – 16 to VCx + 0.3 V GLA, GLB, GLC Pins VGLx VREG – 16 to 18 V LSS Pin VLSS VREG – 16 to 18 V TJ(max) 150 °C Storage Temperature Range Tstg –55 to 150 °C Operating Ambient Temperature Range TA –20 to 105 °C Hall Inputs Maximum Continuous Junction Temperature THERMAL CHARACTERISTICS: May require derating at maximum conditions; see application information Characteristic Package Thermal Resistance Symbol RθJA Test Conditions* Value Unit Package ET, on 4-layer PCB based on JEDEC standard 32 °C/W Package LP, on 4-layer PCB based on JEDEC standard 28 °C/W *Additional thermal information available on the Allegro website. Allegro MicroSystems 955 Perimeter Road Manchester, NH 03103-3353 U.S.A. www.allegromicro.com 2 A4915 3-Phase MOSFET Driver 22 GHA 23 SA 24 CA 25 VREG 26 CP2 27 CP1 28 GND PINOUT DIAGRAMS AND TERMINAL LIST LSS 1 28 HC GLC 2 27 HB GHC 3 26 HA VBB 1 21 GLA SC 4 25 BRAKEn SPEED 2 20 CB CC 5 24 DIR TDEAD 3 19 SB GLB 6 VDD 4 18 GHB GHB 7 17 GLB SB 8 21 VDD CB 9 20 TDEAD GLA 10 19 SPEED GHA 11 18 VBB SA 12 17 GND CA 13 16 CP1 VREG 14 15 CP2 FAULT PAD 5 GHC 14 GLC 13 LSS 12 BRAKEn HC 11 15 SC HB 10 16 CC 7 8 6 DIR HA 9 ENABLE ET Package PAD 23 ENABLE 22 FAULT LP Package Terminal List Table Name VBB Function Number ET LP Name Function Number ET LP Supply voltage 1 18 SC High-side source connection 15 4 SPEED Reference voltage input 2 19 CC Bootstrap output phase C 16 5 TDEAD Terminal for dead time setting 3 20 GLB Low-side gate drive 17 6 Logic supply input 4 21 GHB High-side gate drive 18 7 Fault output 5 22 SB High-side source connection 19 8 Logic input, PWM control 6 23 CB Bootstrap output phase B 20 9 Logic input, motor direction 7 24 GLA Low-side gate drive 21 10 VDD FAULT ENABLE DIR BRAKEn Logic input, motor brake (active low) 8 25 GHA High-side gate drive 22 11 HA Hall input phase A 9 26 SA High-side source connection 23 12 HB Hall input phase B 10 27 CA Bootstrap output phase a 24 13 HC Hall input phase C 11 28 VREG Gate drive supply output 25 14 LSS Sense input 12 1 CP2 Charge pump capacitor terminal 26 15 GLC Low-side gate drive 13 2 CP1 Charge pump capacitor terminal 27 16 GHC High-side gate drive 14 3 GND Ground 28 17 PAD Exposed pad for enhanced thermal dissipation – – Allegro MicroSystems 955 Perimeter Road Manchester, NH 03103-3353 U.S.A. www.allegromicro.com 3 A4915 3-Phase MOSFET Driver ELECTRICAL CHARACTERISTICS: Valid at TA = 25°C, VBB = 24 V, unless otherwise specified Characteristic Symbol Test Conditions Min. Typ. Max. Unit 5.0 – 50 V fENB = 30 kHz, CLOAD = 10 nF – 10 20 mA fPWM ≈ 20 kHz, CLOAD = 10 nF – 12 24 mA VREG = 13 V, outputs disabled – 3 3.5 mA Sleep mode – – 1 µA ID = 10 mA 0.4 0.7 1.0 V SUPPLY AND REFERENCE Operating Voltage Range Motor Supply Current VBB IBB Bootstrap Diode Forward Voltage VfBOOT Bootstrap Diode Current Limit VDBOOT VDD Input Voltage VDD Input Current Operating, outputs active ID = 100 mA VDD 2.2 2.8 V 500 750 mA 3 – 5.5 V IDDQ ENABLE = high, outputs disabled – 6 10 mA IDDS Sleep mode – – 10 µA ENABLE = low for longer than tSLEEP, SPEED = high – – 1 µA ENABLE = high, SPEED = low for longer than tSLEEP – – 1 µA – – 1 µA – – 1 µA ENABLE Input Current Sleep Mode IENB(SLP) SPEED Input Current Sleep Mode ISPEED(SLP) BRAKEn Input Current Sleep Mode IBRAKE(SLP) ENABLE = low for longer than tSLEEP DIR Input Current Sleep Mode 1.5 250 IDIR(SLP) ENABLE = low for longer than tSLEEP ENABLE Input Frequency Range fENB VSPEED = VDD 1 – 100 kHz Internal PWM Frequency fPWM VENABLE = VDD 14 20 26 kHz 0 – VDD V VSPEED(D) Measured as VSPEED / VDD , duty cycle = 0% 10 15 20 % SPEED Enable Voltage* VSPEED(E) Measured as VSPEED / VDD , duty cycle = 100% SPEED Bias Current ISPEED(bias) VSPEED = VDD= 5 V SPEED Input Voltage Range SPEED Disable Voltage VREG Output Voltage VSPEED VREG 79 82 86 % –25 0 25 µA VBB = 9 V 11.8 13 13.75 V VBB = 7.5 V 11.5 13 13.75 V 2 × VBB – 3.5 V – – V VBB = 5.5 V 8.0 9.5 – V FAULT rising 155 170 185 °C VBB = 6 V PROTECTION Thermal Shutdown Temperature VREG Undervoltage VREG Undervoltage Hysteresis TTSD VREGON VREG rising 7.0 7.8 8.6 V VREGOFF VREG falling 6.39 7.1 7.81 V – 700 – mV VREGhys Continued on the next page… Allegro MicroSystems 955 Perimeter Road Manchester, NH 03103-3353 U.S.A. www.allegromicro.com 4 A4915 3-Phase MOSFET Driver ELECTRICAL CHARACTERISTICS (continued): Valid at TA = 25°C, VBB = 24 V, unless otherwise specified Characteristic Symbol Test Conditions Min. Typ. Max. Unit PROTECTION (continued) Bootstrap Undervoltage Bootstrap Undervoltage Hysteresis VDD Undervoltage VDD Undervoltage Hysteresis Sleep Wake-up Delay Measured as a percentage of VREG 55 – 65 % VBOOTUVhys Measured as a percentage of VREG VBOOTUV – 20 – % VDD rising – 2.75 2.95 V VDD falling VDDUV 2.45 2.6 – V VDDUVhys 50 100 150 mV tWAKE – – 3 ms VCx – 0.2 – – V – – VSx + 0.3 V GATE DRIVE High-Side Gate Drive Output VGHx Low-Side Gate Drive Output VGLx Gate Drive Pull-Up Resistance RGHx(ON)UP CBOOTx fully charged, CLOAD = 10 nF IGHx < 10 µA VREG = 13 V, CLOAD = 10 nF VREG – 0.2 – – V IGLx < 10 µA – – 0.3 V TJ = 25°C, IGHx = –150 mA 6 9 12 Ω TJ = 125°C, IGHx = –150 mA – 17 – Ω TJ = 25°C, IGLx = –150 mA 2.4 3.5 4.6 Ω Gate Drive Pull-Down Resistance RGLx(ON)DN TJ = 125°C, IGLx = –150 mA – 5 – Ω GHx Passive Pull-Down RGHx(PPD) VGHx – VSx < 0.3 V – 5000 – Ω GLx Passive Pull-Down RGLx(PPD) Output Switching Time VGLx – VLSS < 0.3 V – 5000 – Ω trGx 20% to 80%, CLOAD = 10 nF – 200 – ns tfGx 80% to 20%, CLOAD = 10 nF – 150 – ns 10 – – ns RTDEAD = 12 kΩ – 150 – ns RTDEAD = 64 kΩ 800 925 1050 ns RTDEAD = 220 kΩ – 2.9 – µs 0.7 × VDD – – V TDEAD tied to GND Dead Time tDEAD Time delay measured from turn-off to turn-on LOGIC I/O Logic Input Voltage Logic Input Current VIN(H) VIN(L) BRAKEn, DIR, ENABLE, HA, HB, and HC pins – – 0.3 × VDD V IIN(H) VIN = high – 10 – µA IIN(L) VIN = low, ENABLE = low –1 0 1 µA No fault present, ISINK = 1mA – – 0.2 V ENABLE = low, SPEED = high 1 2 3 ms ENABLE = high, SPEED = low 1 2 3 ms FAULT Output Voltage VFAUlT ENABLE and SPEED Sleep Timer tSLEEP Continued on the next page… Allegro MicroSystems 955 Perimeter Road Manchester, NH 03103-3353 U.S.A. www.allegromicro.com 5 A4915 3-Phase MOSFET Driver ELECTRICAL CHARACTERISTICS (continued): Valid at TA = 25°C, VBB = 24 V, unless otherwise specified Characteristic Symbol Test Conditions Min. Typ. Max. Unit mV LOGIC I/O (continued) SPEED Sleep Threshold Fault Latch Reset Voltage Fault Latch Reset Pulse Time Hall Input Pull-Up Resistor Hall Input Current VSPEEDSLPth SPEED = low for longer than tSLEEP – – 295 VRESET Fault is present, outputs latched – – 0.8 V tFAULT Fault is present, outputs latched 12 – – µs RHx(PU) Hx pins, VIN = 0 V – 100 – kΩ IHALL Hx pins, VIN = 5 V – 0 1 µA Logic Input Pull-Down Resistor RIN(PD) ENABLE, DIR, BRAKEn, VIN = 5 V – 50 – kΩ Login Input Current Sleep Mode IIN(SLP) ENABLE, DIR, BRAKEn – – 1 µA tpd(on) DIR or BRAKEn input to output change, CLOAD = 0 nF – – 1200 ns ENABLE input to output change, CLOAD = 0 nF – – 900 ns tpd(off) DIR or BRAKEn input to output change, CLOAD = 0 nF – – 1200 ns ENABLE input to output change, CLOAD = 0 nF – – 900 ns ENABLE – – 900 ns DIR, BRAKEn – – 1000 ns Propagation Delay Input Pin Glitch Reject tglitch *Output duty cycle limited by tDEAD . Allegro MicroSystems 955 Perimeter Road Manchester, NH 03103-3353 U.S.A. www.allegromicro.com 6 A4915 3-Phase MOSFET Driver FUNCTIONAL DESCRIPTION from the supply. When coming out of sleep allow 3 ms for the charge pump regulator to stabilize. Basic Operation The A4915 is a 3-phase MOSFET driver intended to drive high current MOSFETs. It is designed for use in battery operated equipment where low-voltage operation is critical. The A4915 also features a low current sleep mode which disables the device and draws minimum supply current. The A4915 is capable of driving 6 N-channel MOSFETs. Commutation logic includes Enable, Direction, and Brake modes for external PWM control. SPEED. The duty cycle of the internally generated carrier fre- A Speed input is provided which allows an external source to PWM the bridge at 30 kHz typical. The PWM duty cycle is controlled by applying an analog voltage to the SPEED pin from 0 V to VDD . Pin Descriptions DIR. The Direction pin is used to change the commutation direction of the 3 bridges. Refer to Table 1 for phase commutation information. ENABLE. The ENABLE input terminal allows external PWM control. Setting ENABLE high turns on the selected sink-source pair, and setting it low switches off the appropriate drivers and the load current decays. If external PWM is used, the SPEED pin must be tied to VDD. When the ENABLE input is held low for longer than tSLEEP the A4915 turns off all internal circuitry and draws minimum current quency is controlled by applying a DC voltage on the SPEED input. A plot showing the relationship of Speed to duty cycle is shown in Figure 1. When SPEED is pulled directly to VDD the internal carrier is disabled and the Enable input can be used to PWM the bridge. When VSPEED < VSPEED(D) the output is guaranteed to be 0%. When VSPEED > VSPEED(E) the output is guaranteed to be 100%. BRAKEn. Brake mode turns all three sink drivers on and effec- tively shorts out the motor generated BEMF. The BRAKEn input overrides the ENABLE and SPEED inputs except when in Sleep mode. Refer to Table 2 for the logic truth table. In order to comply with Failure Mode Effects and Analysis (FMEA), the brake function is normally active (logic low). If the BRAKEn pin on the device is open due to some failure of solder joint or microprocessor failure, the device will automatically implement Brake mode, preventing the motor from turning or pumping up the supply. Applying logic high to the BRAKEn terminal deactivates Brake mode and allows normal operation. Care must be taken when applying the Brake command because large currents can be generated. The user must ensure that the maximum ratings of the MOSFETs are not exceeded under worst Table 1: Commutation Table HA HB HC DIR GLA GLB GLC GHA GHB GHC SA SB SC 1 1 0 1 1 0 0 1 1 0 0 2 1 0 0 1 0 0 1 0 1 0 High – Low – High Low 3 1 1 0 1 1 0 0 0 1 4 0 1 0 1 1 0 0 0 0 0 Low High – 1 Low – High 5 0 1 1 1 0 1 0 0 0 1 – Low High 6 0 0 1 1 0 1 0 1 1 0 1 0 1 0 0 1 0 0 High Low – 0 0 1 Low – High 2 1 0 0 0 0 1 3 1 1 0 0 0 1 0 0 0 1 – Low High 0 1 0 0 High Low – 4 0 1 0 0 0 5 0 1 1 0 0 0 1 1 0 0 High – Low 0 1 0 1 0 – High Low 6 0 0 1 0 1 0 0 0 1 0 Low High – Hall Fault 1 1 1 X 0 0 0 0 0 0 – – – Hall Fault 0 0 0 X 0 0 0 0 0 0 – – – Allegro MicroSystems 955 Perimeter Road Manchester, NH 03103-3353 U.S.A. www.allegromicro.com 7 A4915 3-Phase MOSFET Driver case braking conditions. Maximum motor current during Brake mode can be approximated by: 100 90 IBRAKEn = VBEMF / RL 80 where VBEMF is the voltage generated by the motor and RL is the resistance of the phase winding. FAULT. The Fault output is active high. Under normal operation the open drain output pulls the Fault output to ground. When a fault occurs the open drain output is released, and the Fault output is then pulled to a logic high through a connected external passive pullup resistor. Fault conditions are shown in Table 3. The presence of an invalid Hall combination is referred to as a Hall Fault. Invalid Hall combinations are documented in Table 1. When a Hall Fault is present, the outputs are disabled. Invalid Hall Faults are not latched, and do not affect the state of the FAULT pin. Latched faults that result in disabled outputs can be reset in a number of ways: (%) low‑side gate drivers and to charge the bootstrap capacitors. 60 Ton / T VREG. A regulated voltage output that is used to supply the 70 50 40 30 20 10 10 0 20 30 40 50 60 70 80 90 100 VSPEED/VDD (%) Figure 1: Speed in Relation to Duty Cycle • A UVLO on VDD will serve as a reset Table 3: Fault Conditions • If the device is put into sleep mode, the latch is reset • A microprocessor can create a reset on the FAULT pin directly by forcing VRESET on the FAULT pin when a fault is active for longer than tFAULT (that is, when the outputs are latched) LSS. The LSS terminal is the low-side drain connection for the MOSFET. If an external PWM current control loop is used, a low Event Fault Pin Outputs Latched TSD High Disabled Yes SLEEP High Disabled No UVLO VREG/VDD High Disabled No Invalid Hall Low Disabled No Table 2: Input Logic Truth Table Inputs Mode of Operation ENABLE SPEED BRAKEn Low High High PWM chop slow decay synchronous rectification (center aligned) Low High Low Brake mode – All low-side gates on High High High Selected drivers on [b] High High Low Brake mode – All low-side gates on High VDD × VSPEED(E) to VDD × VSPEED(D) High PWM chop slow decay synchronous rectification (center aligned) [c] High > VDD × VSPEED(E) High Selected drivers on [b] High < VDD × VSPEED(D) High PWM chop slow decay synchronous rectification (center aligned) Low longer than tSLEEP High X [a] Sleep mode – coast High Low longer than tSLEEP X [a] Sleep mode – coast [a] X = don’t care. and minium duty cycle limited by boot capacitor charge management. [c] Internal PWM active. [b] Maximum Allegro MicroSystems 955 Perimeter Road Manchester, NH 03103-3353 U.S.A. www.allegromicro.com 8 A4915 3-Phase MOSFET Driver value sense resistor can be placed from LSS to ground for current sensing purposes. The resistor should be chosen so that the DC voltage across the sense resistor is between 200 mV and 500 mV. If a sense resistor is not used, then LSS should be connected directly to power ground. CA, CB, CC. High-side connections for the bootstrap capacitors (CBOOTx) and positive supply for high-side gate drive. event. The dead time for all three phases is set by a single dead time resistor (RDEAD) between the TDEAD pin and ground. For RDEAD values between 12 and 220 kΩ, at 25°C the nominal value of tDEAD in ns can be approximated by: tDEAD = 40 + (1.28 × 10–2 × RDEAD) Current, IDEAD, can be calculated by: IDEAD = 1.2 / RDEAD GHA, GHB, GHC. High-side gate drive outputs for N-channel MOSFETs. SA, SB, SC. Motor phase connections, serve as the negative sup- plies for the high-side gate drive. GLA, GLB, GLC. Low-side gate drive outputs for N-channel MOSFETs. CP1, CP2. Connections for the charge pump switching capacitor. Typical capacitance should be 0.47 µF. HA, HB, HC. Hall input connections from Hall switches at As values for R increase, current offsets and resistor mismatch cause the error terms to increase. Figure 2 shows the typical expected error for a given RDEAD value. Sleep Mode The A4915 has a low-current Sleep mode to limit current draw on the battery. When in low-current Sleep mode (when ENABLE = low for longer than tSLEEP and SPEED = high), current into VBB and VDD is less than 1 μA. When ENABLE is held low for longer than tSLEEP and the SPEED input is held high, the pull-up resistors on the Hall inputs and the pull-down resistor on the BRAKEn pin are open-circuited to minimize current draw into logic input terminals. Only the condition where SPEED = high and ENABLE = low for longer than tSLEEP results in low current on logic input terminals. the motor. Allegro recommends Hall latches: APS13290 and APS13291. Thermal Shutdown If the die temperature exceeds TTSD , the FAULT output is turned off and the outputs are disabled. Thermal shutdown is a latched fault. Dead Time To prevent cross-conduction (shoot through) in any phase of the bridge, it is necessary to have a dead time, tDEAD , between a high- or low-side turn-off and the next complementary turn-on Center Aligned PWM The A4915 features center aligned PWM, which improves power dissipation and helps reduce EMI. During an off-time triggered by either an internal PWM or by an external Enable chop command, current recirculation will be in either the highside FETs or the low-side FETs, depending on the state of an 4000 3500 Maximum Dead Time (ns) 3000 Typical 2500 Minimum 2000 1500 1000 500 0 10 30 50 70 90 110 130 150 170 190 210 230 250 RDEAD (kΩ) Figure 2: RDEAD versus Dead Time Error Allegro MicroSystems 955 Perimeter Road Manchester, NH 03103-3353 U.S.A. www.allegromicro.com 9 A4915 internal latch. On each bridge Enable command, the latch is reset, and the current recirculation shifts from high-side recirculation to low‑side recirculation. This method of recirculation shifts 50% of the power to the high‑side drivers during the off-time, reducing the power dissipation in the sink drivers. Reducing the overall temperature of the output drivers by sharing power between the 6 FETs improves system efficiency and battery life. Internal/External PWM The A4915 can be pulse width modulated (PWM) to control current. There are two methods by which PWM can be applied to the device. • External PWM. This method requires a PWM signal be applied to the ENABLE pin. When the SPEED pin is tied directly to VDD, the ENABLE pin can be chopped from 0 to 100%. If the ENABLE input is held low for more than sleep timer, tSLEEP , the device enters low current sleep mode. • Internal PWM. This method uses the internally generated PWM, which is controlled by applying a DC voltage to the SPEED pin. When the ENABLE pin is tied directly to VDD, the speed can be controlled from 0 to 100%. See the SPEED pin description for further information. For complete description of all operating conditions, see Table 2. Synchronous Rectification When a PWM off-time cycle is triggered by an ENABLE chop command or by an internal PWM off-time, load current recirculates. The A4915 synchronous rectification feature will turn on the appropriate MOSFETs during the off-time and effectively short out the body diodes with the low RSD(on) driver. This will lower power dissipation significantly and eliminates the need for external Schottky diodes. Charge Pump Regulator The gate drives for the low-side MOSFETs and the bootstrap charge for the high-side drivers is accomplished by the charge pump regulator. For VBB above 16 V, the regulator acts as a linear regulator. Below 16 V, the regulated supply is maintained by a charge pump boost converter that requires a pump capacitor between CP1 and CP2. 3-Phase MOSFET Driver The regulated voltage VREG is decoupled on the VREG terminal. The decoupling capacitance is based on the bootstrap capacitor which is dependent on the MOSFET selection. Refer to the Application Information section for details on correct sizing of VREG and bootstrap capacitors. Gate Drive and RGATE The gate drive for the external MOSFETs is capable of providing the large current transients needed to quickly charge and discharge the gate capacitance to maintain fast switching speeds and minimal power dissipation. The low-side driver current is sourced by the capacitor on the VREG terminal. The high-side gate drive current is supplied by the respective bootstrap capacitance connected between the Cx and Sx terminals. The charge and discharge of the gate can be controlled by using an external resistor (RGATE) in series with the gate. Bootstrap Charge Management In order to protect the external MOSFETs from insufficient gate drive, it is important that the bootstrap capacitor voltage be monitored. Before a high-side switch is allowed to turn on, it must have sufficient charge on the bootstrap capacitor. If the voltage on the bootstrap capacitor is below the turn-on voltage limit, the A4915 will attempt to charge the bootstrap capacitor by turning on the associated low-side driver. The bootstrap monitor stays active during the duration of the switch on-time. If the voltage falls out of compliance at any time when the high-side driver is enabled, the driver is disabled, and the low-side switch is activated to charge the bootstrap capacitor. During normal operation and in conditions where the PWM duty cycle creates short off-times, the low-side switch may be activated more often to keep sufficient charge on the bootstrap capacitor. Proper sizing of the bootstrap and VREG capacitors is critical to being able to maintain effective gate drive. Refer to the Application Information section for details on correct sizing of VREG and bootstrap capacitors. Allegro MicroSystems 955 Perimeter Road Manchester, NH 03103-3353 U.S.A. www.allegromicro.com 10 A4915 3-Phase MOSFET Driver APPLICATION INFORMATION Bootstrap Capacitor Selection In order to properly size the capacitor CBOOT, the total gate charge must be known. Too large a bootstrap capacitor and the charge time will be long, resulting in maximum duty cycle limitation. Too small a capacitor and the voltage ripple will be large when charging the gate. Size the CBOOT capacitor such that the charge, QBOOT, is 20 times larger than the required charge for the gate of the MOSFET, QGATE: CBOOT = (QGATE × 20) / VBOOT where VBOOT is the voltage across the bootstrap capacitor. The voltage drop across the bootstrap capacitor as the MOSFET gate is being charged, ΔV, can be approximated by: ΔV = QGATE / CBOOT For the bootstrap capacitor, a ceramic type rated at 16 V or larger should be used. VREG Capacitor Selection VREG is responsible for providing all the gate charge for the low side MOSFETs and for providing all the charge current for the three bootstrap capacitors. For these purposes, the VREG capacitor, CREG , should be 20 times the value of CBOOT: CREG = 20 × CBOOT Layout Recommendations Careful consideration must be given to PCB layout when designing high frequency, fast-switching, high-current circuits (refer to Figures 3 and 4): • The A4915 ground, GND, and the high-current return of the external MOSFETs should return separately to the negative side of the motor supply filtering capacitor. This minimizes the effect of switching noise on the A4915. • The exposed thermal pad should be connected to GND. • Minimize stray inductance by using short, wide copper traces at the drain and source terminals of all power MOSFETs. This includes motor lead connections, the input power bus, and the common source of the low-side power MOSFETs. This minimizes voltages induced by fast switching of large load currents. • Consider the use of small (100 nF) ceramic decoupling capacitors across the source and drain of the power MOSFETs, to limit fast transient voltage spikes caused by inductance in the traces. • Keep the gate discharge return connections Sx and LSS as short as possible. Any inductance on these traces causes negative transitions on the corresponding A4915 terminals, which may exceed the Absolute Maximum Ratings. If this is likely, consider the use of clamping diodes to limit the negative excursion on these terminals with respect to GND. • Supply decoupling for VBB, VREG, and VDD should be connected independently, close to the GND terminal. The decoupling capacitors should also be connected as close as possible to the relevant supply terminal. • Gate charge drive paths and gate discharge return paths may carry large transient current pulses. Therefore, the traces from GHx, GLx, Sx (x = A, B, or C) and LSS should be as short as possible to reduce the inductance of the trace. • Provide an independent connection from LSS to the common point of the power bridge. This can be the negative side of the motor supply filtering capacitor or one end of a sense resistor. It is not recommended to connect LSS directly to the GND terminal, as this may increase the noise at the digital inputs. Allegro MicroSystems 955 Perimeter Road Manchester, NH 03103-3353 U.S.A. www.allegromicro.com 11 A4915 3-Phase MOSFET Driver VBB GND R1 R7 C2 Q1 PHASE A R4 R10 C4 C7 C6 Q4 C8 GND VBB GND R24 C5 R2 C9 R15 R8 Q2 C10 PHASE B R5 R11 C1 Q5 VBB R3 R9 Q3 GND D1 PHASE C R6 R12 Q6 LSS VDD ET Package Typical PCB Layout C8 Solder C6 Thermal (2 oz.) SPEED TDEAD Thermal Vias R7 Q1 C2 R4 R10 GLA Q4 A4915 OUTA CB R24 PAD ET Package Schematic Corresponding to Typical PCB Layout CA SA GHA VREG CP2 VBB C4 Ground (1 oz.) CP1 Signal (1 oz.) C9 SB GHB VDD R2 C5 R11 GLB FAULT R8 Q2 VBB R5 Q5 R15 ENABLE DIR BRAKEn HA HB HC LSS GLC GHC PCB R1 Trace (2 oz.) GND A4915 OUTB CC SC C10 R3 R9 Q3 C1 R6 R12 Q6 OUTC VDD Figure 3: Typical Application Information for ET Package Allegro MicroSystems 955 Perimeter Road Manchester, NH 03103-3353 U.S.A. www.allegromicro.com 12 A4915 3-Phase MOSFET Driver VDD LSS Q6 R12 R6 Q3 R9 Q5 R11 R5 PHASE C D1 GND C1 R3 PHASE B C10 Q2 R8 R15 C5 C9 R2 C4 C8 GND VBB R24 GND C7 C6 Q4 R10 R4 Q1 R7 PHASE A R1 GND C2 LP Package Typical PCB Layout VDD OUTC LSS GLC Q6 R12 HC HB HA BRAKEn DIR ENABLE R6 C1 Q3 R9 R3 C10 GHC SC CC OUTB A4915 A4915 Solder Q5 Trace (2 oz.) R5 PAD VBB Signal (1 oz.) PCB R11 Q2 Ground (1 oz.) R8 R2 Thermal (2 oz.) VDD C5 R24 GHB SB TDEAD CB SPEED C9 OUTA R15 FAULT GLB VBB Thermal Vias C4 GLA Q4 LP Package Schematic Corresponding to Typical PCB Layout Q1 C2 R7 R10 R4 R1 GHA SA GND CA CP1 VREG CP2 C8 C6 Figure 4: Typical application information for LP package Allegro MicroSystems 955 Perimeter Road Manchester, NH 03103-3353 U.S.A. www.allegromicro.com 13 A4915 3-Phase MOSFET Driver INPUT / OUTPUT STRUCTURES VBB VDD VREG FAULT CP1 6V 18V 6V 50 kΩ 18V 14V Figure 5: Supplies 2 kΩ BRAKE DIR ENABLE 18V 18V VDD CP2 Figure 6: Fault Output 6V Figure 7: Charge Pump 6V Figure 8: Logic Inputs with Pull-down: BRAKEn, DIR, ENABLE Cx 18V VDD VDD 50 kΩ HA HB HC 18V GHx 14V Sx 5 kΩ SPEED 2 kΩ 6V VDD 18V VREG 6V 6V 6V 18V 18V GLx LSS Figure 9: Hall inputs with pull-up: HA, HB, HC Figure 10: Gate Drive Outputs Figure 11: Speed Input Allegro MicroSystems 955 Perimeter Road Manchester, NH 03103-3353 U.S.A. www.allegromicro.com 14 A4915 3-Phase MOSFET Driver Package ET, 28-Pin QFN with Exposed Thermal Pad 0.30 5.00 BSC 1.15 28 1 A 0.15 C 2× 1 2 5.00 BSC 3.15 0.15 C 2× 29× 0.50 28 4.80 3.15 D C 0.08 C SEATING PLANE 0.90 ±0.10 +0.05 0.25 –0.07 4.80 C PCB Layout Reference View 0.50 0.55 B 3.15 2 1 28 3.15 XXXX Date Code Lot Number E Standard Branding Reference View 1 Line 1: Part Number Line 2: Logo A, 4-Digit Date Code Line 3: Characters 5, 6, 7, 8 of Assembly Lot Number For Reference Only; not for tooling use (reference DWG-0000378, Rev. 3) Dimensions in millimeters Exact case and lead configuration at supplier discretion within limits shown A Terminal #1 mark area B Exposed thermal pad (reference only, terminal #1 identifier appearance at supplier discretion) C Reference land pattern layout (reference IPC7351 QFN50P500X500X100-29V1M); All pads a minimum of 0.20 mm from all adjacent pads; adjust as necessary to meet application process requirements and PCB layout tolerances; when mounting on a multilayer PCB, thermal vias at the exposed thermal pad land can improve thermal dissipation (reference EIA/JEDEC Standard JESD51-5) D Coplanarity includes exposed thermal pad and terminals E Branding scale and appearance at supplier discretion Allegro MicroSystems 955 Perimeter Road Manchester, NH 03103-3353 U.S.A. www.allegromicro.com 15 A4915 3-Phase MOSFET Driver Package LP, 28-Pin TSSOP with Exposed Thermal Pad 0.45 9.70±0.10 8º 0º 28 0.65 28 0.20 0.09 1.65 B 3 NOM 4.40±0.10 3.00 6.40±0.20 6.10 0.60 ±0.15 A 1 2 1.00 REF 5.08 NOM 0.25 BSC Branded Face 28X SEATING PLANE 0.10 C 0.30 0.19 0.65 BSC SEATING PLANE GAUGE PLANE C 1 2 5.00 C PCB Layout Reference View For Reference Only; not for tooling use (reference MO-153 AET) Dimensions in millimeters Dimensions exclusive of mold flash, gate burrs, and dambar protrusions Exact case and lead configuration at supplier discretion within limits shown 1.20 MAX 0.15 0.00 A Terminal #1 mark area B Exposed thermal pad (bottom surface) C Reference land pattern layout (reference IPC7351 SOP65P640X120-29CM); All pads a minimum of 0.20 mm from all adjacent pads; adjust as necessary to meet application process requirements and PCB layout tolerances; when mounting on a multilayer PCB, thermal vias at the exposed thermal pad land can improve thermal dissipation (reference EIA/JEDEC Standard JESD51-5) Allegro MicroSystems 955 Perimeter Road Manchester, NH 03103-3353 U.S.A. www.allegromicro.com 16 A4915 3-Phase MOSFET Driver REVISION HISTORY Number Date Description 1 April 1, 2013 2 March 6, 2014 Update Absolute Maximum Ratings table and content on page 9 3 April 25, 2014 Revised Schematics on pp. 12 and 13 4 March 10, 2015 5 July 27, 2018 6 August 14, 2019 7 September 22, 2021 Update EC table parameters Changed Dead Time equation on page 9. Added recommended Hall latches (page 1 and 9); minor editorial updates. Minor editorial updates Updated ET-28 package drawing (page 15) Copyright 2021, Allegro MicroSystems. Allegro MicroSystems reserves the right to make, from time to time, such departures from the detail specifications as may be required to permit improvements in the performance, reliability, or manufacturability of its products. Before placing an order, the user is cautioned to verify that the information being relied upon is current. Allegro’s products are not to be used in any devices or systems, including but not limited to life support devices or systems, in which a failure of Allegro’s product can reasonably be expected to cause bodily harm. The information included herein is believed to be accurate and reliable. However, Allegro MicroSystems assumes no responsibility for its use; nor for any infringement of patents or other rights of third parties which may result from its use. Copies of this document are considered uncontrolled documents. For the latest version of this document, visit our website: www.allegromicro.com Allegro MicroSystems 955 Perimeter Road Manchester, NH 03103-3353 U.S.A. www.allegromicro.com 17
