ACS758xCB
Thermally Enhanced, Fully Integrated, Hall-Effect-Based
Linear Current Sensor IC with 100 µΩ Current Conductor
Not for New Design
These parts are in production but have been determined to be
NOT FOR NEW DESIGN. This classification indicates that sale of
this device is currently restricted to existing customer applications.
The device should not be purchased for new design applications
because obsolescence in the near future is probable. Samples are no
longer available.
Date of status change: June 5, 2017
Recommended Substitutions:
For existing customer transition, and for new customers or new applications, use ACS770xCB or ACS772xCB.
NOTE: For detailed information on purchasing options, contact your
local Allegro field applications engineer or sales representative.
Allegro MicroSystems reserves the right to make, from time to time, revisions to the anticipated product life cycle plan for a
product to accommodate changes in production capabilities, alternative product availabilities, or market demand. The information included herein is believed to be accurate and reliable. However, Allegro MicroSystems assumes no responsibility for
its use; nor for any infringements of patents or other rights of third parties which may result from its use.
ACS758xCB
Thermally Enhanced, Fully Integrated, Hall-Effect-Based
Linear Current Sensor IC with 100 µΩ Current Conductor
FEATURES AND BENEFITS
• Industry-leading noise performance through proprietary
amplifier and filter design techniques
• Integrated shield greatly reduces capacitive coupling
from current conductor to die due to high dV/dt signals,
and prevents offset drift in high-side, high-voltage
applications
• Total output error improvement through gain and offset
trim over temperature
• Small package size, with easy mounting capability
• Monolithic Hall IC for high reliability
• Ultralow power loss: 100 µΩ internal conductor
resistance
• Galvanic isolation allows use in economical, high-side
current sensing in high-voltage systems
• AEC-Q100 qualified
Continued on the next page…
TÜV America
Certificate Number:
U8V 15 05 54214 037
UL Certified File
No.: US-29755-UL
DESCRIPTION
The Allegro™ ACS758 family of current sensor ICs provides
economical and precise solutions for AC or DC current sensing.
Typical applications include motor control, load detection and
management, power supply and DC-to-DC converter control,
inverter control, and overcurrent fault detection.
The device consists of a precision, low-offset linear Hall
circuit with a copper conduction path located near the die.
Applied current flowing through this copper conduction path
generates a magnetic field which the Hall IC converts into a
proportional voltage. Device accuracy is optimized through the
close proximity of the magnetic signal to the Hall transducer.
A precise, proportional output voltage is provided by the
low-offset, chopper-stabilized BiCMOS Hall IC, which is
programmed for accuracy at the factory.
High-level immunity to current conductor dV/dt and stray
electric fields, offered by Allegro proprietary integrated shield
technology, provides low output voltage ripple and low offset
drift in high-side, high-voltage applications.
The output of the device has a positive slope (>VCC / 2) when an
increasing current flows through the primary copper conduction
path (from terminal 4 to terminal 5), which is the path used
for current sampling. The internal resistance of this conductive
path is 100 µΩ typical, providing low power loss.
PACKAGE: 5-Pin CB Package
The thickness of the copper conductor allows survival of the
device at high overcurrent conditions. The terminals of the
conductive path are electrically isolated from the signal leads
PFF
Leadform
PSF
Leadform
PSS
Leadform
Continued on the next page…
+3.3 or 5 V
4
VCC
IP+
ACS758
IP
GND
5
1
CBYP
0.1 µF
2
CF
IP–
VIOUT
3
RF
VOUT
Application 1: The ACS758 outputs an analog signal, VOUT ,
that varies linearly with the uni- or bi-directional AC or DC
primary sampled current, IP , within the range specified. CF is
for optimal noise management, with values that depend on
the application.
Typical Application
ACS758-DS, Rev. 14
MCO-0000203
May 31, 2019
Thermally Enhanced, Fully Integrated, Hall-Effect-Based
Linear Current Sensor IC with 100 µΩ Current Conductor
ACS758xCB
FEATURES AND BENEFITS (CONTINUED)
•
•
•
•
•
•
•
3.0 to 5.5 V, single supply operation
120 kHz typical bandwidth
3 µs output rise time in response to step input current
Output voltage proportional to AC or DC currents
Factory-trimmed for accuracy
Extremely stable output offset voltage
Nearly zero magnetic hysteresis
DESCRIPTION (CONTINUED)
(pins 1 through 3). This allows the ACS758 family of sensor ICs
to be used in applications requiring electrical isolation without the
use of opto-isolators or other costly isolation techniques.
The device is fully calibrated prior to shipment from the factory.
The ACS758 family is lead (Pb) free. All leads are plated with 100%
matte tin, and there is no Pb inside the package. The heavy gauge
leadframe is made of oxygen-free copper.
Selection Guide
Package
Sensitivity
Sens (Typ.)
(mV/A)
Current
Directionality
40.
Bidirectional
Terminals
Signal Pins
Primary Sampled
Current, IP
(A)

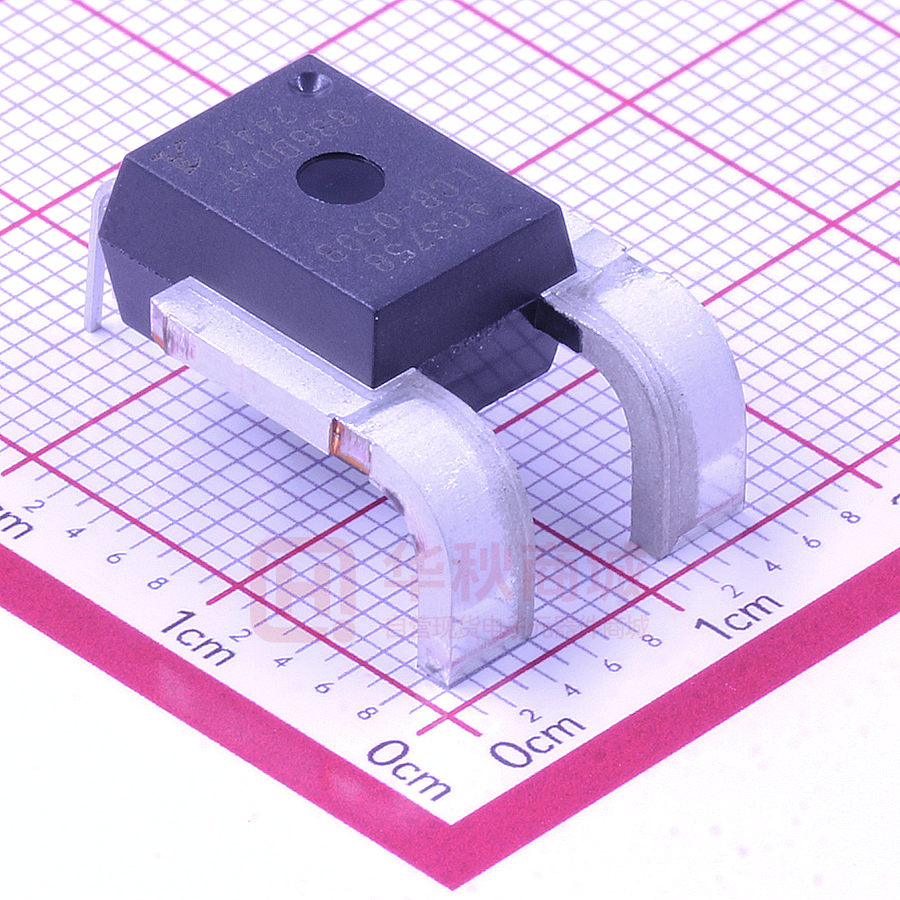

ACS758LCB-050B-PFF-T
Formed
Formed
±50
ACS758LCB-050U-PFF-T
Formed
Formed
50
60.
Unidirectional
ACS758LCB-100B-PFF-T
Formed
Formed
±100
20.
Bidirectional
ACS758LCB-100B-PSF-T
Straight
Formed
±100
20.
Bidirectional
Part Number [1]
ACS758LCB-100U-PFF-T
Formed
Formed
100
40.
Unidirectional
ACS758KCB-150B-PFF-T
Formed
Formed
±150
13.3
Bidirectional
ACS758KCB-150U-PSF-T
Straight
Formed
150
26.7
Unidirectional
ACS758KCB-150B-PSS-T
Straight
Straight
±150
13.3
Bidirectional
ACS758KCB-150U-PFF-T
Formed
Formed
150
26.7
Unidirectional
ACS758ECB-200B-PFF-T
Formed
Formed
±200
10.
Bidirectional
ACS758ECB-200B-PSF-T
Straight
Formed
±200
10.
Bidirectional
ACS758ECB-200U-PSF-T
Straight
Formed
200
20
Unidirectional
ACS758ECB-200B-PSS-T
Straight
Straight
±200
10.
Bidirectional
ACS758ECB-200U-PFF-T
Formed
Formed
200
20.
Unidirectional
1 Additional
TOP
(°C)
Packing [2]
–40 to 150
–40 to 125
34 pieces
per tube
–40 to 85
leadform options available for qualified volumes.
for additional packing options.
2 Contact Allegro
Allegro MicroSystems
955 Perimeter Road
Manchester, NH 03103-3353 U.S.A.
www.allegromicro.com
2
ACS758xCB
Thermally Enhanced, Fully Integrated, Hall-Effect-Based
Linear Current Sensor IC with 100 µΩ Current Conductor
SPECIFICATIONS
ABSOLUTE MAXIMUM RATINGS
Characteristic
Rating
Units
VCC
8
V
Reverse Supply Voltage
VRCC
–0.5
V
Forward Output Voltage
VIOUT
28
V
Forward Supply Voltage
Symbol
Notes
Reverse Output Voltage
VRIOUT
Output Source Current
IOUT(Source)
VIOUT to GND
IOUT(Sink)
VCC to VIOUT
Output Sink Current
Maximum Junction
Storage Temperature
TOP
V
3
mA
1
mA
–40 to 85
°C
Range K
–40 to 125
°C
Range L
–40 to 150
°C
Range E
Nominal Operating Ambient Temperature
–0.5
TJ(max)
165
°C
Tstg
–65 to 165
°C
Rating
Unit
4800
VAC
ISOLATION CHARACTERISTICS
Characteristic
Symbol
Notes
Dielectric Strength Test Voltage [1]
VISO
Agency type-tested for 60 seconds per
UL standard 60950-1, 2nd Edition
Working Voltage for Basic Isolation
VWFSI
For basic (single) isolation per UL standard 60950-1, 2nd
Edition
990
VDC or Vpk
700
Vrms
Working Voltage for Reinforced Isolation
VWFRI
For reinforced (double) isolation per UL standard 60950-1,
2nd Edition
636
VDC or Vpk
450
Vrms
1 Allegro
does not conduct 60-second testing. It is done only during the UL certification process.
Allegro MicroSystems
955 Perimeter Road
Manchester, NH 03103-3353 U.S.A.
www.allegromicro.com
3
ACS758xCB
Thermally Enhanced, Fully Integrated, Hall-Effect-Based
Linear Current Sensor IC with 100 µΩ Current Conductor
THERMAL CHARACTERISTICS: May require derating at maximum conditions
Characteristic
Symbol
Test Conditions [1]
Value
Unit
Mounted on the Allegro evaluation board with
(1400 mm2 on component side and 1400 mm2 on
opposite side) of 4 oz. copper connected to the primary
leadframe and with thermal vias connecting the copper
layers. Performance is based on current flowing through
the primary leadframe and includes the power consumed
by the PCB.
7
°C/W
Notes
Rating
Units
2800 mm2
Package Thermal Resistance
1 Additional
RθJA
thermal information available on the Allegro website
TYPICAL OVERCURRENT CAPABILITIES [2][3]
Characteristic
Overcurrent
Symbol
IPOC
TA = 25°C, 1 second duration, 1% duty cycle
1200
A
TA = 85°C, 1 second duration, 1% duty cycle
900
A
TA = 150°C, 1 second duration, 1% duty cycle
600
A
2 Test
3 For
was done with Allegro evaluation board. The maximum allowed current is limited by TJ(max) only.
more overcurrent profiles, please see FAQ on the Allegro website, www.allegromicro.com.
Allegro MicroSystems
955 Perimeter Road
Manchester, NH 03103-3353 U.S.A.
www.allegromicro.com
4
Thermally Enhanced, Fully Integrated, Hall-Effect-Based
Linear Current Sensor IC with 100 µΩ Current Conductor
ACS758xCB
+3.3 to 5 V
VCC
IP+
Gain
Filter
Dynamic Offset
Cancellation
To all subcircuits
Amp
VIOUT
Out
0.1 µF
Gain
Temperature
Coefficient
Offset
Offset
Temperature
Coefficient
Trim Control
GND
IP–
Functional Block Diagram
Terminal List Table
IP+
IP–
4
5
3
VIOUT
2
GND
1
VCC
Pinout Diagram
Number
Name
1
VCC
Description
Device power supply terminal
2
GND
3
VIOUT
Signal ground terminal
4
IP+
Terminal for current being sampled
5
IP–
Terminal for current being sampled
Analog output signal
Allegro MicroSystems
955 Perimeter Road
Manchester, NH 03103-3353 U.S.A.
www.allegromicro.com
5
Thermally Enhanced, Fully Integrated, Hall-Effect-Based
Linear Current Sensor IC with 100 µΩ Current Conductor
ACS758xCB
COMMON OPERATING CHARACTERISTICS [1]: Valid at TOP = –40°C to 150°C and VCC = 5 V, unless otherwise specified
Characteristic
Symbol
Test Conditions
Typ.
Max.
Units
3
5.0
5.5
V
ICC
Output open
–
10
13.5
mA
Power-On Delay
tPOD
TA = 25°C
–
10
–
µs
IP step = 60% of IP+, 10% to 90% rise time, TA = 25°C,
COUT = 0.47 nF
–
3
–
µs
Supply
Rise Time [3]
Propagation Delay Time [3]
Response Time
Internal Bandwidth [4]
VCC
Min.
Supply Current
Voltage [2]
tr
TA = 25°C, COUT = 0.47 nF
–
1
–
µs
tRESPONSE
tPROP
Measured as sum of tPROP and tr
–
4
–
µs
BWi
–3 dB; TA = 25°C, COUT = 0.47 nF
–
120
–
kHz
4.7
–
–
kΩ
Output Load Resistance
RLOAD(MIN)
VIOUT to GND
Output Load Capacitance
CLOAD(MAX)
VIOUT to GND
–
–
10
nF
TA = 25°C
–
100
–
µΩ
Primary Conductor Resistance
Symmetry [3]
Quiescent Output Voltage [5]
Ratiometry [3]
RPRIMARY
Over half-scale of IP
99
100
101
%
VIOUT(QBI)
ESYM
Bidirectional variant, IP = 0 A, TA = 25°C
–
VCC/2
–
V
VIOUT(QUNI)
Unidirectional variant, IP = 0 A, TA = 25°C, VIOUT(QUNI) is
ratiometric to VCC
–
0.6
–
V
VCC = 4.5 to 5.5 V
–
100
–
%
VRAT
1 Device
is factory-trimmed at 5 V, for optimal accuracy.
are programmed for maximum accuracy at 5.0 V VCC levels. The device contains ratiometry circuits that accurately alter the 0 A Output Voltage and Sensitivity
level of the device in proportion to the applied VCC level. However, as a result of minor nonlinearities in the ratiometry circuit additional output error will result when VCC
varies from the 5 V VCC level. Customers that plan to operate the device from a 3.3 V regulated supply should contact their local Allegro sales representative regarding
expected device accuracy levels under these bias conditions.
3 See Characteristic Definitions section of this datasheet.
4 Calculated using the formula BW = 0.35 / t .
i
r
5V
IOUT(Q) may drift over the lifetime of the device by as much as ±25 mV.
2 Devices
Allegro MicroSystems
955 Perimeter Road
Manchester, NH 03103-3353 U.S.A.
www.allegromicro.com
6
Thermally Enhanced, Fully Integrated, Hall-Effect-Based
Linear Current Sensor IC with 100 µΩ Current Conductor
ACS758xCB
X050B PERFORMANCE CHARACTERISTICS [1]: TOP = –40°C to 150°C, VCC = 5 V, unless otherwise specified
Characteristic
Primary Sampled Current
Symbol
SensTA
Sensitivity
Sens(TOP)
HT
Sens(TOP)
LT
Noise [2]
Nonlinearity
VNOISE
ELIN
VOE(TA)
Electrical Offset Voltage [3]
Magnetic Offset Error
Total Output Error [4]
Test Conditions
Min.
Typ.
Max.
Units
–50
–
50
A
Full scale of IP applied for 5 ms, TA = 25°C
–
40
–
mV/A
Full scale of IP applied for 5 ms, TOP = 25°C to 150°C
–
39.4
–
mV/A
Full scale of IP applied for 5 ms,TOP = –40°C to 25°C
–
41
–
mV/A
TA= 25°C, 10 nF on VIOUT pin to GND
–
10
–
mV
Up to full scale of IP , IP applied for 5 ms
–1
–
1
%
IP
IP = 0 A, TA = 25°C
–
±5
–
mV
VOE(TOP)HT
IP = 0 A, TOP = 25°C to 150°C
–
±15
–
mV
VOE(TOP)LT
IP = 0 A, TOP = –40°C to 25°C
–
±35
–
mV
IERROM
IP = 0 A, TA = 25°C, after excursion of 50 A
–
100
–
mA
ETOT(HT)
Over full scale of IP , IP applied for 5 ms, TOP = 25°C to 150°C
–
–1.2
–
%
ETOT(LT)
Over full scale of IP , IP applied for 5 ms, TOP = –40°C to 25°C
–
2
–
%
Typ.
Max.
Units
1 See
Characteristic Performance Data page for parameter distributions over temperature range.
sigma noise voltage.
OE(TOP) drift is referred to ideal VIOUT(Q) = 2.5 V.
4 Percentage of I . Output filtered.
P
2 ±3
3V
X050U PERFORMANCE CHARACTERISTICS [1]: TOP = –40°C to 150°C, VCC = 5 V, unless otherwise specified
Characteristic
Primary Sampled Current
Symbol
0
–
50
A
–
60
–
mV/A
Full scale of IP applied for 5 ms, TOP = 25°C to 150°C
–
59
–
mV/A
Full scale of IP applied for 5 ms,TOP = –40°C to 25°C
–
61
–
mV/A
TA= 25°C, 10 nF on VIOUT pin to GND
–
15
–
mV
Up to full scale of IP , IP applied for 5 ms
–1
–
1
%
IP = 0 A, TA = 25°C
–
±5
–
mV
VOE(TOP)HT
IP = 0 A, TOP = 25°C to 150°C
–
±20
–
mV
VOE(TOP)LT
IP = 0 A, TOP = –40°C to 25°C
–
±40
–
mV
Sens(TOP)
HT
Sens(TOP)
LT
Noise [2]
Nonlinearity
VNOISE
ELIN
VOE(TA)
Electrical Offset Voltage [3]
Magnetic Offset Error
Total Output Error [4]
Min.
Full scale of IP applied for 5 ms, TA = 25°C
IP
SensTA
Sensitivity
Test Conditions
IERROM
IP = 0 A, TA = 25°C, after excursion of 50 A
–
100
–
mA
ETOT(HT)
Over full scale of IP , IP applied for 5 ms, TOP = 25°C to 150°C
–
–1.2
–
%
ETOT(LT)
Over full scale of IP , IP applied for 5 ms, TOP = –40°C to 25°C
–
2
–
%
1 See
Characteristic Performance Data page for parameter distributions over temperature range.
sigma noise voltage.
3V
OE(TOP) drift is referred to ideal VIOUT(Q) = 0.6 V.
4 Percentage of I . Output filtered.
P
2 ±3
Allegro MicroSystems
955 Perimeter Road
Manchester, NH 03103-3353 U.S.A.
www.allegromicro.com
7
Thermally Enhanced, Fully Integrated, Hall-Effect-Based
Linear Current Sensor IC with 100 µΩ Current Conductor
ACS758xCB
X100B PERFORMANCE CHARACTERISTICS [1]: TOP = –40°C to 150°C, VCC = 5 V, unless otherwise specified
Characteristic
Primary Sampled Current
Symbol
Noise [2]
Nonlinearity
Magnetic Offset Error
Total Output Error [4]
Max.
Units
–
100
A
20
–
mV/A
–
19.75
–
mV/A
Sens(TOP)LT Full scale of IP applied for 5 ms, TOP = –40°C to 25°C
–
20.5
–
mV/A
–
6
–
mV
TA= 25°C, 10 nF on VIOUT pin to GND
–1.25
–
1.25
%
IP = 0 A, TA = 25°C
–
±5
–
mV
VOE(TOP)HT
IP = 0 A, TOP = 25°C to 150°C
–
±20
–
mV
VOE(TOP)LT
ELIN
VOE(TA)
Electrical Offset Voltage [3]
Typ.
–
VNOISE
Full scale of IP applied for 5 ms, TA = 25°C
Min.
–100
Sens(TOP)HT Full scale of IP applied for 5 ms, TOP = 25°C to 150°C
SensTA
Sensitivity
Test Conditions
IP
Up to full scale of IP , IP applied for 5 ms
IP = 0 A, TOP = –40°C to 25°C
–
±20
–
mV
IERROM
IP = 0 A, TA = 25°C, after excursion of 100 A
–
150
–
mA
ETOT(HT)
Over full scale of IP , IP applied for 5 ms, TOP = 25°C to 150°C
–
–1.3
–
%
ETOT(LT)
Over full scale of IP , IP applied for 5 ms, TOP = –40°C to 25°C
–
2.4
–
%
Typ.
Max.
Units
1 See
Characteristic Performance Data page for parameter distributions over temperature range.
sigma noise voltage.
3V
OE(TOP) drift is referred to ideal VIOUT(Q) = 2.5 V.
4 Percentage of I . Output filtered.
P
2 ±3
X100U PERFORMANCE CHARACTERISTICS [1]: TOP = –40°C to 150°C, VCC = 5 V, unless otherwise specified
Characteristic
Primary Sampled Current
Symbol
Noise [2]
Nonlinearity
0
–
100
A
40
–
mV/A
Sens(TOP)HT Full scale of IP applied for 5 ms, TOP = 25°C to 150°C
–
39.5
–
mV/A
Sens(TOP)LT Full scale of IP applied for 5 ms, TOP = –40°C to 25°C
–
41
–
mV/A
–
12
–
mV
–1.25
–
1.25
%
VNOISE
ELIN
VOE(TA)
Electrical Offset Voltage [3]
Magnetic Offset Error
Total Output Error [4]
Min.
–
IP
SensTA
Sensitivity
Test Conditions
Full scale of IP applied for 5 ms, TA = 25°C
TA= 25°C, 10 nF on VIOUT pin to GND
Up to full scale of IP , IP applied for 5 ms
IP = 0 A, TA = 25°C
–
±5
–
mV
VOE(TOP)HT
IP = 0 A, TOP = 25°C to 150°C
–
±20
–
mV
VOE(TOP)LT
IP = 0 A, TOP = –40°C to 25°C
–
±20
–
mV
IERROM
IP = 0 A, TA = 25°C, after excursion of 100 A
–
150
–
mA
ETOT(HT)
Over full scale of IP , IP applied for 5 ms, TOP = 25°C to 150°C
–
–1.3
–
%
ETOT(LT)
Over full scale of IP , IP applied for 5 ms, TOP = –40°C to 25°C
–
2.4
–
%
1 See
Characteristic Performance Data page for parameter distributions over temperature range.
sigma noise voltage.
3V
OE(TOP) drift is referred to ideal VIOUT(Q) = 0.6 V.
4 Percentage of I . Output filtered.
P
2 ±3
Allegro MicroSystems
955 Perimeter Road
Manchester, NH 03103-3353 U.S.A.
www.allegromicro.com
8
Thermally Enhanced, Fully Integrated, Hall-Effect-Based
Linear Current Sensor IC with 100 µΩ Current Conductor
ACS758xCB
X150B PERFORMANCE CHARACTERISTICS [1]: TOP = –40°C to 125°C, VCC = 5 V, unless otherwise specified
Characteristic
Primary Sampled Current
Symbol
Noise [2]
Nonlinearity
Magnetic Offset Error
Total Output Error [4]
Max.
Units
–
150
A
13.3
–
mV/A
–
13.1
–
mV/A
Sens(TOP)LT Full scale of IP applied for 5 ms, TOP = –40°C to 25°C
–
13.5
–
mV/A
–
4
–
mV
TA= 25°C, 10 nF on VIOUT pin to GND
–1
–
1
%
IP = 0 A, TA = 25°C
–
±5
–
mV
VOE(TOP)HT
IP = 0 A, TOP = 25°C to 125°C
–
±14
–
mV
VOE(TOP)LT
IP = 0 A, TOP = –40°C to 25°C
–
±24
–
mV
ELIN
VOE(TA)
Electrical Offset Voltage [3]
Typ.
–
VNOISE
Full scale of IP applied for 5 ms, TA = 25°C
Min.
–150
Sens(TOP)HT Full scale of IP applied for 5 ms, TOP = 25°C to 125°C
SensTA
Sensitivity
Test Conditions
IP
Up to full scale of IP , IP applied for 5 ms
IERROM
IP = 0 A, TA = 25°C, after excursion of 150 A
–
205
–
mA
ETOT(HT)
Over full scale of IP , IP applied for 5 ms, TOP = 25°C to 125°C
–
–1.8
–
%
ETOT(LT)
Over full scale of IP , IP applied for 5 ms, TOP = –40°C to 25°C
–
1.6
–
%
Typ.
Max.
Units
0
–
150
A
–
26.6
–
mV/A
1 See
Characteristic Performance Data page for parameter distributions over temperature range.
sigma noise voltage.
3V
OE(TOP) drift is referred to ideal VIOUT(Q) = 2.5 V.
4 Percentage of I . Output filtered.
P
2 ±3
X150U PERFORMANCE CHARACTERISTICS [1]: TOP = –40°C to 125°C, VCC = 5 V, unless otherwise specified
Characteristic
Primary Sampled Current
Symbol
IP
SensTA
Sensitivity
Noise [2]
Nonlinearity
Magnetic Offset Error
Total Output Error [4]
Full scale of IP applied for 5 ms, TA = 25°C
Min.
Sens(TOP)HT Full scale of IP applied for 5 ms, TOP = 25°C to 125°C
–
26.6
–
mV/A
Sens(TOP)LT Full scale of IP applied for 5 ms, TOP = –40°C to 25°C
–
27.4
–
mV/A
VNOISE
ELIN
VOE(TA)
Electrical Offset Voltage [3]
Test Conditions
TA= 25°C, 10 nF on VIOUT pin to GND
Up to full scale of IP , IP applied for 5 ms
–
8
–
mV
–1
–
1
%
IP = 0 A, TA = 25°C
–
±5
–
mV
VOE(TOP)HT
IP = 0 A, TOP = 25°C to 125°C
–
±14
–
mV
VOE(TOP)LT
IP = 0 A, TOP = –40°C to 25°C
–
±24
–
mV
IERROM
IP = 0 A, TA = 25°C, after excursion of 150 A
–
205
–
mA
ETOT(HT)
Over full scale of IP , IP applied for 5 ms, TOP = 25°C to 125°C
–
–1.8
–
%
ETOT(LT)
Over full scale of IP , IP applied for 5 ms, TOP = –40°C to 25°C
–
1.6
–
%
1 See
Characteristic Performance Data page for parameter distributions over temperature range.
sigma noise voltage.
3V
OE(TOP) drift is referred to ideal VIOUT(Q) = 0.6 V.
4 Percentage of I . Output filtered.
P
2 ±3
Allegro MicroSystems
955 Perimeter Road
Manchester, NH 03103-3353 U.S.A.
www.allegromicro.com
9
Thermally Enhanced, Fully Integrated, Hall-Effect-Based
Linear Current Sensor IC with 100 µΩ Current Conductor
ACS758xCB
X200B PERFORMANCE CHARACTERISTICS [1]: TOP = –40°C to 85°C, VCC = 5 V, unless otherwise specified
Characteristic
Primary Sampled Current
Symbol
Noise [2]
Nonlinearity
Magnetic Offset Error
Total Output Error [4]
Max.
Units
–
200
A
10
–
mV/A
–
9.88
–
mV/A
Sens(TOP)LT Full scale of IP applied for 5 ms, TOP = –40°C to 25°C
–
10.13
–
mV/A
–
3
–
mV
TA= 25°C, 10 nF on VIOUT pin to GND
–1
–
1
%
IP = 0 A, TA = 25°C
–
±5
–
mV
VOE(TOP)HT
IP = 0 A, TOP = 25°C to 85°C
–
±15
–
mV
VOE(TOP)LT
IP = 0 A, TOP = –40°C to 25°C
–
±25
–
mV
ELIN
VOE(TA)
Electrical Offset Voltage [3][
Typ.
–
VNOISE
Full scale of IP applied for 5 ms, TA = 25°C
Min.
–200
Sens(TOP)HT Full scale of IP applied for 5 ms, TOP = 25°C to 85°C
SensTA
Sensitivity
Test Conditions
IP
Up to full scale of IP , IP applied for 5 ms
IERROM
IP = 0 A, TA = 25°C, after excursion of 200 A
–
230
–
mA
ETOT(HT)
Over full scale of IP , IP applied for 5 ms, TOP = 25°C to 85°C
–
–1.2
–
%
ETOT(LT)
Over full scale of IP , IP applied for 5 ms, TOP = –40°C to 25°C
–
1.2
–
%
Typ.
Max.
Units
1 See
Characteristic Performance Data page for parameter distributions over temperature range.
sigma noise voltage.
3V
OE(TOP) drift is referred to ideal VIOUT(Q) = 2.5 V .
4 Percentage of I . Output filtered.
P
2 ±3
X200U PERFORMANCE CHARACTERISTICS [1]: TOP = –40°C to 85°C, VCC = 5 V, unless otherwise specified
Characteristic
Primary Sampled Current
Symbol
Sens(TOP)
HT
Sens(TOP)
LT
Noise [2]
Nonlinearity
VNOISE
Magnetic Offset Error
Total Output Error [4]
0
–
200
A
–
20
–
mV/A
Full scale of IP applied for 5 ms, TOP = 25°C to 85°C
–
19.7
–
mV/A
Full scale of IP applied for 5 ms, TOP = –40°C to 25°C
–
20.3
–
mV/A
TA= 25°C, 10 nF on VIOUT pin to GND
–
6
–
mV
–1
–
1
%
IP = 0 A, TA = 25°C
–
±5
–
mV
VOE(TOP)HT
IP = 0 A, TOP = 25°C to 85°C
–
±20
–
mV
VOE(TOP)LT
IP = 0 A, TOP = –40°C to 25°C
–
±35
–
mV
ELIN
VOE(TA)
Electrical Offset Voltage [3]
Min.
Full scale of IP applied for 5 ms, TA = 25°C
IP
SensTA
Sensitivity
Test Conditions
Up to full scale of IP , IP applied for 5 ms
IERROM
IP = 0 A, TA = 25°C, after excursion of 200 A
–
230
–
mA
ETOT(HT)
Over full scale of IP , IP applied for 5 ms, TOP = 25°C to 85°C
–
–1.2
–
%
ETOT(LT)
Over full scale of IP , IP applied for 5 ms, TOP = –40°C to 25°C
–
1.2
–
%
1 See
Characteristic Performance Data page for parameter distributions over temperature range.
sigma noise voltage.
3V
OE(TOP) drift is referred to ideal VIOUT(Q) = 0.6 V .
4 Percentage of I . Output filtered.
P
2 ±3
Allegro MicroSystems
955 Perimeter Road
Manchester, NH 03103-3353 U.S.A.
www.allegromicro.com
10
Thermally Enhanced, Fully Integrated, Hall-Effect-Based
Linear Current Sensor IC with 100 µΩ Current Conductor
ACS758xCB
CHARACTERISTIC PERFORMANCE DATA
Data taken using the ACS758LCB-050B
Accuracy Data
Electrical Offset Voltage versus Ambient Temperature
30
42.0
20
42.5
Sens (mV/A)
10
VOE (mV)
Sensitivity versus Ambient Temperature
0
-10
-20
41.0
40.5
40.0
39.5
-30
39.0
-40
-50
–50
-25
0
25
50
75
100
125
38.5
–50
150
-25
0
25
TA (°C)
75
100
125
150
Symmetry versus Ambient Temperature
0.45
100.40
0.40
100.35
0.35
100.30
0.30
100.25
ESYM (%)
ELIN (%)
Nonlinearity versus Ambient Temperature
100.20
0.25
100.15
0.20
0.15
100.10
0.10
100.05
0.05
100.00
0
–50
-25
0
25
50
75
100
125
99.95
–50
150
-25
0
25
Magnetic Offset Error versus Ambient Temperature
75
100
125
150
Total Output Error versus Ambient Temperature
6
140
5
120
4
100
3
ETOT (%)
80
60
40
2
1
0
-1
-2
20
0
–50
50
TA (°C)
TA (°C)
IERROM (mA)
50
TA (°C)
-3
-25
0
25
50
75
100
125
-4
–50
150
-25
0
25
50
75
100
125
150
TA (°C)
TA (°C)
Typical Maximum Limit
Mean
Typical Minimum Limit
Allegro MicroSystems
955 Perimeter Road
Manchester, NH 03103-3353 U.S.A.
www.allegromicro.com
11
Thermally Enhanced, Fully Integrated, Hall-Effect-Based
Linear Current Sensor IC with 100 µΩ Current Conductor
ACS758xCB
CHARACTERISTIC PERFORMANCE DATA
Data taken using the ACS758LCB-100B
Accuracy Data
Electrical Offset Voltage versus Ambient Temperature
21.2
20
21.0
15
20.8
Sens (mV/A)
25
10
VOE (mV)
Sensitivity versus Ambient Temperature
5
0
-5
20.6
20.4
20.2
20.0
-10
19.8
-15
19.6
-20
19.4
-25
–50
-25
0
25
50
75
100
125
19.2
–50
150
-25
0
25
TA (°C)
100
125
150
Symmetry versus Ambient Temperature
0.40
100.6
0.35
100.5
0.30
100.4
ESYM (%)
ELIN (%)
75
TA (°C)
Nonlinearity versus Ambient Temperature
0.25
0.20
0.15
100.3
100.2
100.1
100.0
0.10
99.9
0.05
99.8
0
–50
-25
0
25
50
75
100
125
99.7
–50
150
-25
0
25
Magnetic Offset Error versus Ambient Temperature
190
180
170
ETOT (%)
160
150
130
120
110
-25
0
25
50
75
100
125
150
Total Output Error versus Ambient Temperature
200
100
–50
50
TA (°C)
TA (°C)
IERROM (mA)
50
75
100
125
150
6
5
4
3
2
1
0
-1
-2
-3
-4
-5
–50
-25
0
25
50
75
100
125
150
TA (°C)
TA (°C)
Typical Maximum Limit
Mean
Typical Minimum Limit
Allegro MicroSystems
955 Perimeter Road
Manchester, NH 03103-3353 U.S.A.
www.allegromicro.com
12
Thermally Enhanced, Fully Integrated, Hall-Effect-Based
Linear Current Sensor IC with 100 µΩ Current Conductor
ACS758xCB
CHARACTERISTIC PERFORMANCE DATA
Data taken using the ACS758KCB-150B
Accuracy Data
Electrical Offset Voltage versus Ambient Temperature
Sensitivity versus Ambient Temperature
20
14.0
15
13.8
Sens (mV/A)
10
VOE (mV)
5
0
-5
-10
-15
13.6
13.4
13.2
13.0
-20
12.8
-25
-30
–60
–40
–20
0
20
40
60
80
100
120
12.6
–60
140
–40
–20
0
20
TA (°C)
Nonlinearity versus Ambient Temperature
80
100
120
140
Symmetry versus Ambient Temperature
100.6
0.25
100.5
02.0
ESYM (%)
ELIN (%)
60
100.7
0.30
0.15
100.4
100.3
100.2
100.1
0.10
100.0
0.05
99.9
0
–60
–40
–20
0
20
40
60
80
100
120
99.8
–60
140
–40
–20
0
20
Magnetic Offset Error versus Ambient Temperature
250
ETOT (%)
200
150
100
50
0
–40
–20
0
20
40
60
80
100
120
140
Total Output Error versus Ambient Temperature
300
–60
40
TA (°C)
TA (°C)
IERROM (mA)
40
TA (°C)
60
80
100
120
140
5
4
3
2
1
0
-1
-2
-3
-4
-5
-6
–60
–40
–20
0
20
40
60
80
100
120
140
TA (°C)
TA (°C)
Typical Maximum Limit
Mean
Typical Minimum Limit
Allegro MicroSystems
955 Perimeter Road
Manchester, NH 03103-3353 U.S.A.
www.allegromicro.com
13
Thermally Enhanced, Fully Integrated, Hall-Effect-Based
Linear Current Sensor IC with 100 µΩ Current Conductor
ACS758xCB
CHARACTERISTIC PERFORMANCE DATA
Data taken using the ACS758ECB-200B
Accuracy Data
25
20
15
10
5
0
-5
-10
-15
-20
-25
-30
–60
Sensitivity versus Ambient Temperature
10.4
10.3
Sens (mV/A)
VOE (mV)
Electrical Offset Voltage versus Ambient Temperature
10.2
10.1
10.0
9.9
9.8
9.7
9.6
–40
–20
0
20
40
60
80
100
120
9.5
–60
140
–40
–20
0
20
TA (°C)
100
120
140
100.6
100.4
100.2
100.0
99.8
99.6
–40
–20
0
20
40
60
80
100
120
140
–60
–40
–20
0
20
40
60
80
100
120
140
TA (°C)
Magnetic Offset Error versus Ambient Temperature
Total Output Error versus Ambient Temperature
4
350
3
300
2
250
1
200
ETOT (%)
IERROM (mA)
80
Symmetry versus Ambient Temperature
TA (°C)
150
100
0
-1
-2
-3
-4
50
0
–60
60
100.8
ESYM (%)
ELIN (%)
Nonlinearity versus Ambient Temperature
0.16
0.14
0.12
0.10
0.08
0.06
0.04
0.02
0
-0.02
-0.04
-0.06
–60
40
TA (°C)
-5
–40
–20
0
20
40
60
80
100
120
-6
–60
140
–40
–20
0
20
40
60
80
100
120
140
TA (°C)
TA (°C)
Typical Maximum Limit
Mean
Typical Minimum Limit
Allegro MicroSystems
955 Perimeter Road
Manchester, NH 03103-3353 U.S.A.
www.allegromicro.com
14
Thermally Enhanced, Fully Integrated, Hall-Effect-Based
Linear Current Sensor IC with 100 µΩ Current Conductor
ACS758xCB
CHARACTERISTIC PERFORMANCE DATA
Data taken using the ACS758LCB-100B
Timing Data
Rise Time
Propagation Delay Time
IP (20 A/div.)
IP (20 A/div.)
VIOUT (0.5 V/div.)
VIOUT (0.5 V/div.)
997 ns
2.988 µs
t (2 µs/div.)
t (2 µs/div.)
Response Time
Power-on Delay
VCC
IP (20 A/div.)
VIOUT (0.5 V/div.)
9.034 µs
VIOUT (1 V/div.)
(IP = 60 A DC)
3.960 µs
t (2 µs/div.)
t (2 µs/div.)
Allegro MicroSystems
955 Perimeter Road
Manchester, NH 03103-3353 U.S.A.
www.allegromicro.com
15
Thermally Enhanced, Fully Integrated, Hall-Effect-Based
Linear Current Sensor IC with 100 µΩ Current Conductor
ACS758xCB
CHARACTERISTIC DEFINITIONS
Definitions of Accuracy Characteristics
Sensitivity (Sens). The change in device output in response to a
1 A change through the primary conductor. The sensitivity is the
product of the magnetic circuit sensitivity (G / A) and the linear
IC amplifier gain (mV/G). The linear IC amplifier gain is programmed at the factory to optimize the sensitivity (mV/A) for the
half-scale current of the device.
Noise (VNOISE). The noise floor is derived from the thermal and
shot noise observed in Hall elements. Dividing the noise (mV)
by the sensitivity (mV/A) provides the smallest current that the
device is able to resolve.
Nonlinearity (ELIN). The degree to which the voltage output
from the IC varies in direct proportion to the primary current
through its half-scale amplitude. Nonlinearity in the output can be
attributed to the saturation of the flux concentrator approaching
the half-scale current. The following equation is used to derive
the linearity:
{ [
100 1–
∆ gain × % sat ( VIOUT_half-scale amperes –VIOUT(Q) )
2 (VIOUT_quarter-scale amperes – VIOUT(Q) )
[{
where
∆ gain = the gain variation as a function of temperature changes
from 25°C,
% sat = the percentage of saturation of the flux concentrator, which becomes significant as the current being sampled
approaches half-scale ±IP , and
VIOUT_half-scale amperes = the output voltage (V) when the sampled
current approximates half-scale ±IP .
Symmetry (ESYM). The degree to which the absolute voltage
output from the IC varies in proportion to either a positive or
negative half-scale primary current. The following equation is
used to derive symmetry:
100
VIOUT_+ half-scale amperes – VIOUT(Q)
VIOUT(Q) – VIOUT_–half-scale amperes
Ratiometry. The device features a ratiometric output. This
means that the quiescent voltage output, VIOUTQ, and the magnetic sensitivity, Sens, are proportional to the supply voltage, VCC.
The ratiometric change (%) in the quiescent voltage output is
defined as:
∆VIOUTQ(∆V) =
VIOUTQ(VCC) VIOUTQ(5V)
VCC
5V
× 100%
and the ratiometric change (%) in sensitivity is defined as:
∆Sens(∆V) =
Sens(VCC)
VCC
Sens(5V)
5V
× 100%
Quiescent output voltage (VIOUT(Q)). Quiescent output voltage
(VIOUT(Q) ). The output of the device when the primary current is
zero. For bidirectional devices, it nominally remains at VCC ⁄ 2.
Thus, VCC = 5 V translates into VIOUT(QBI) = 2.5 V. For unidirectional devices, it nominally remains at 0.12 × VCC . Thus, VCC
= 5 V translates into VIOUT(QUNI) = 0.6 V. Variation in VIOUT(Q)
can be attributed to the resolution of the Allegro linear IC quiescent voltage trim, magnetic hysteresis, and thermal drift.
Electrical offset voltage (VOE). The deviation of the device output from its ideal quiescent value of VCC ⁄ 2 for bidirectional and
0.1 × VCC for unidirectional devices, due to nonmagnetic causes.
Magnetic offset error (IERROM). The magnetic offset is due to
the residual magnetism (remnant field) of the core material. The
magnetic offset error is highest when the magnetic circuit has
been saturated, usually when the device has been subjected to a
full-scale or high-current overload condition. The magnetic offset
is largely dependent on the material used as a flux concentrator.
The larger magnetic offsets are observed at the lower operating
temperatures.
Total Output Error (ETOT). The maximum deviation of the
actual output from its ideal value, also referred to as accuracy,
illustrated graphically in the output voltage versus current chart
on the following page.
ETOT is divided into four areas:
• 0 A at 25°C. Accuracy at the zero current flow at 25°C,
without the effects of temperature.
• 0 A over Δ temperature. Accuracy at the zero current flow
including temperature effects.
• Half-scale current at 25°C. Accuracy at the the half-scale
current at 25°C, without the effects of temperature.
• Half-scale current over Δ temperature. Accuracy at the halfscale current flow including temperature effects.
Allegro MicroSystems
955 Perimeter Road
Manchester, NH 03103-3353 U.S.A.
www.allegromicro.com
16
Thermally Enhanced, Fully Integrated, Hall-Effect-Based
Linear Current Sensor IC with 100 µΩ Current Conductor
ACS758xCB
Definitions of Dynamic Response Characteristics
Power-On Time (tPO). When the supply is ramped to its operating voltage, the device requires a finite time to power its internal
components before responding to an input magnetic field.
Power-On Time, tPO , is defined as the time it takes for the output
voltage to settle within ±10% of its steady state value under an
applied magnetic field, after the power supply has reached its
minimum specified operating voltage, VCC(min), as shown in the
chart at right.
Rise time (tr). The time interval between a) when the device
reaches 10% of its full scale value, and b) when it reaches 90%
of its full scale value. The rise time to a step response is used to
derive the bandwidth of the device, in which ƒ(–3 dB) = 0.35 / tr.
Both tr and tRESPONSE are detrimentally affected by eddy current
losses observed in the conductive IC ground plane.
I (%)
Output Voltage versus Sampled Current
Total Output Error at 0 A and at Half-Scale Current
90
Accuracy
25°C Only
Bidirectional
Average
VIOUT
Transducer Output
10
0
Rise Time, tr
Accuracy
Over ∆Temp erature
Increasing VIOUT(V)
Primary Current
Accuracy
Over ∆Temp erature
t
Propagation delay (tPROP). The time required for the device
output to reflect a change in the primary current signal. Propagation delay is attributed to inductive loading within the linear IC
package, as well as in the inductive loop formed by the primary
conductor geometry. Propagation delay can be considered as a
fixed time offset and may be compensated.
Accuracy
25°C Only
IP(min)
–IP (A)
+IP (A)
Half Scale
IP(max)
0A
Decreasing VIOUT(V)
I (%)
Primary Current
Accuracy
25°C Only
90
Accuracy
Over ∆Temp erature
Transducer Output
Accuracy
Over ∆Temp erature
Increasing VIOUT(V)
0
Propagation Time, tPROP
t
Accuracy
25°C Only
Unidirectional
Average
VIOUT
Accuracy
Over ∆Temp erature
Accuracy
25°C Only
–IP (A)
+IP (A)
0A
Full Scale
IP(max)
Decreasing VIOUT(V)
Allegro MicroSystems
955 Perimeter Road
Manchester, NH 03103-3353 U.S.A.
www.allegromicro.com
17
Thermally Enhanced, Fully Integrated, Hall-Effect-Based
Linear Current Sensor IC with 100 µΩ Current Conductor
ACS758xCB
Chopper Stabilization Technique
Chopper Stabilization is an innovative circuit technique that is
used to minimize the offset voltage of a Hall element and an associated on-chip amplifier. The technique nearly eliminates Hall IC
output drift induced by temperature or package stress effects.
This offset reduction technique is based on a signal modulationdemodulation process. Modulation is used to separate the undesired DC offset signal from the magnetically induced signal in the
frequency domain. Then, using a low-pass filter, the modulated
DC offset is suppressed while the magnetically induced signal
passes through the filter. The anti-aliasing filter prevents aliasing
from happening in applications with high frequency signal com-
ponents which are beyond the user’s frequency range of interest.
As a result of this chopper stabilization approach, the output
voltage from the Hall IC is desensitized to the effects of temperature and mechanical stress. This technique produces devices that
have an extremely stable Electrical Offset Voltage, are immune to
thermal stress, and have precise recoverability after temperature
cycling.
This technique is made possible through the use of a BiCMOS
process that allows the use of low-offset and low-noise amplifiers
in combination with high-density logic integration and sample
and hold circuits.
Regulator
Clock/Logic
Sample and
Hold
Amp
Anti-aliasing
Filter
Hall Element
Low-Pass
Filter
Concept of Chopper Stabilization Technique
Allegro MicroSystems
955 Perimeter Road
Manchester, NH 03103-3353 U.S.A.
www.allegromicro.com
18
Thermally Enhanced, Fully Integrated, Hall-Effect-Based
Linear Current Sensor IC with 100 µΩ Current Conductor
ACS758xCB
PACKAGE OUTLINE DRAWINGS
For Reference Only – Not for Tooling Use
(Reference DWG-9111 & DWG-9110)
Dimensions in millimeters – NOT TO SCALE
Dimensions exclusive of mold flash, gate burs, and dambar protrusions
Exact case and lead configuration at supplier discretion within limits shown
14.0 ±0.2
3.5 ±0.2
4.0 ±0.2
3.0 ±0.2
1º±2°
1.50 ±0.10
5
0.5
R 1.0
R 2.05
R 3.0
4
A
Ø 0.5 B
3
17.5 ±0.2
4
21.4
13.00 ±0.10
Branded
Face
4.40 ±0.10
Ø 0.8
1.9 ±0.2
1
2
Ø 1.5
2.9 ±0.2
0.51 ±0.10
3
0.381
10.00 ±0.10
+0.060
–0.030
1.91
5º±5°
B
3.5 ±0.2
PCB Layout Reference View
NNNNNNN
TTT-AAA
7.00 ±0.10
LLLLLLL
A Dambar removal intrusion
YYWW
B Perimeter through-holes recommended
C Branding scale and appearance at supplier discretion
1
C
Standard Branding Reference View
N
T
A
L
Y
= Device part number
= Temperature code
= Amperage range
= Lot number
= Last two digits of year of
manufacture
W = Week of manufacture
= Supplier emblem
Creepage distance, current terminals to signal pins: 7.25 mm
Clearance distance, current terminals to signal pins: 7.25 mm
Package mass: 4.63 g typical
Package CB, 5-pin Package, Leadform PFF
Allegro MicroSystems
955 Perimeter Road
Manchester, NH 03103-3353 U.S.A.
www.allegromicro.com
19
Thermally Enhanced, Fully Integrated, Hall-Effect-Based
Linear Current Sensor IC with 100 µΩ Current Conductor
ACS758xCB
For Reference Only – Not for Tooling Use
(Reference DWG-9111, DWG-9110)
Dimensions in millimeters – NOT TO SCALE
Dimensions exclusive of mold flash, gate burs, and dambar protrusions
Exact case and lead configuration at supplier discretion within limits shown
14.0 ±0.2
4.0 ±0.2
3.0 ±0.2
∅ 0.8
5
4
∅ 1.5
1.50 ±0.10
1.91
B
2.75 ±0.10
A
PCB Layout Reference View
23.50 ±0.5
NNNNNNN
TTT-AAA
13.00 ±0.10
4.40 ±0.10
Branded
Face
LLLLLLL
YYWW
1.9 ±0.2
2.9 ±0.2
1
0.51 ±0.10
1
2
B
3
0.381
+0.060
–0.030
5º±5°
3.5 ±0.2
10.00 ±0.10
Standard Branding Reference View
N
T
A
L
Y
= Device part number
= Temperature code
= Amperage range
= Lot number
= Last two digits of year of
manufacture
W = Week of manufacture
= Supplier emblem
7.00 ±0.10
A Dambar removal intrusion
B Branding scale and appearance at supplier discretion
Package CB, 5-pin Package, Leadform PSF
Allegro MicroSystems
955 Perimeter Road
Manchester, NH 03103-3353 U.S.A.
www.allegromicro.com
20
Thermally Enhanced, Fully Integrated, Hall-Effect-Based
Linear Current Sensor IC with 100 µΩ Current Conductor
ACS758xCB
For Reference Only – Not for Tooling Use
(Reference DWG-9111, DWG-9110)
Dimensions in millimeters – NOT TO SCALE
Dimensions exclusive of mold flash, gate burs, and dambar protrusions
Exact case and lead configuration at supplier discretion within limits shown
14.0 ±0.2
4.0 ±0.2
3.0 ±0.2
5
4
1.50 ±0.10
A
2.75 ±0.10
NNNNNNN
TTT-AAA
23.50 ±0.5
LLLLLLL
13.00 ±0.10
YYWW
4.40 ±0.10
1
Branded
Face
1
2
B
3
N
T
A
L
Y
= Device part number
= Temperature code
= Amperage range
= Lot number
= Last two digits of year of
manufacture
W = Week of manufacture
= Supplier emblem
3.18 ±0.10
1.9 ±0.2
11.0 ±0.05
0.51 ±0.10
Standard Branding Reference View
+0.060
0.381
–0.030
10.00 ±0.10
7.00 ±0.10
A Dambar removal intrusion
B Branding scale and appearance at supplier discretion
Creepage distance, current terminals to signal pins: 7.25 mm
Clearance distance, current terminals to signal pins: 7.25 mm
Package mass: 4.63 g typical
Package CB, 5-pin Package, Leadform PSS
Allegro MicroSystems
955 Perimeter Road
Manchester, NH 03103-3353 U.S.A.
www.allegromicro.com
21
Thermally Enhanced, Fully Integrated, Hall-Effect-Based
Linear Current Sensor IC with 100 µΩ Current Conductor
ACS758xCB
Revision History
Number
Date
Description
8
January 17, 2014
9
April 7, 2015
10
November 17, 2016
11
June 5, 2017
Updated product status
12
June 1, 2018
Updated recommended substitutions
13
December 5, 2018
Updated TUV/UL Certification
14
May 31, 2019
Updated TUV certificate mark
Update features list and product offering
Updated TUV certification and reformatted document
Updated PCB Layout Reference View in Package Outline Drawing on page 19
The products described herein are protected by U.S. patents: 6,781,359, 7,265,531, and 8,080,994.
Copyright 2019, Allegro MicroSystems.
Allegro MicroSystems reserves the right to make, from time to time, such departures from the detail specifications as may be required to permit
improvements in the performance, reliability, or manufacturability of its products. Before placing an order, the user is cautioned to verify that the
information being relied upon is current.
Allegro’s products are not to be used in any devices or systems, including but not limited to life support devices or systems, in which a failure of
Allegro’s product can reasonably be expected to cause bodily harm.
The information included herein is believed to be accurate and reliable. However, Allegro MicroSystems assumes no responsibility for its use; nor
for any infringement of patents or other rights of third parties which may result from its use.
Copies of this document are considered uncontrolled documents.
For the latest version of this document, visit our website:
www.allegromicro.com
Allegro MicroSystems
955 Perimeter Road
Manchester, NH 03103-3353 U.S.A.
www.allegromicro.com
22
