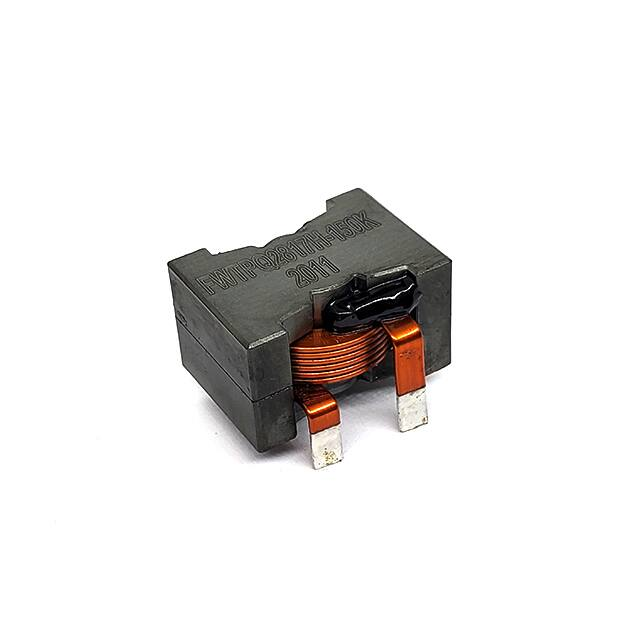

FWPQ2817H-150K

RoHS Flat Wire Through Hole Power Inductor FWTPQ2817H Dimensions: inch FWTPQ2817H-150K YYWW .118±.008 (3.0±0.2) Epoxy .264±.020 (6.7±0.5) 1.102 Max (28.0) .150±.008 (3.8±0.2) .157±.008 (4.0±0.2) Epoxy .669 Max (17.0) Allied Part Number .906 Max (23.0) .760 Max (19.3) (mm) Inductance Test (µH) Frequency ±10% KHz, 0.1V DCR (mΩ) Irms (A) Typ. Isat (A) Typ 20°C 40°C 10% 20% 30% SRF (MHz) Typ. FWTPQ2817H-3R3K 3.3 500 2.82 20.0 28.0 91.0 92.5 93.6 40.0 FWTPQ2817H-4R7K 4.7 500 2.82 20.0 28.0 59.0 61.2 62.4 30.0 FWTPQ2817H-6R8K 6.8 500 2.82 20.0 28.0 42.0 45.0 45.9 25.0 FWTPQ2817H-100K 10 500 2.82 20.0 28.0 28.0 31.2 32.1 20.0 FWTPQ2817H-150K 15 500 2.82 20.0 28.0 18.0 21.2 21.9 16.0 FWTPQ2817H-220K 22 500 2.82 20.0 28.0 12.0 14.0 15.0 15.0 FWTPQ2817H-330K 33 500 2.82 20.0 28.0 7.0 8.7 9.6 10.0 All specifications subject to change without notice. SCHEMATIC RECOMMENDED PAD LAYOUT • Low DCR • High Saturation Current Electrical Inductance Range: 3.3µH to 33µH Tolerance: ±10% Test Frequency: 500KHz, 0.1V Isat: Current at which the inductance will drop by 10%, 20%, and 30% from its original inductance without current. Irms: The actual value of DC current Physical .480±.020 (12.2±0.5) .055±.008 (1.4±0.2) 949-356-1780 • Low Magnetic Loss Operating Temp: -40ºC to +85 ºC (including self temp rise). 1 2 Features • Flat Wire Through Hole Power Choke. Packaging: 35 per Tray, 560pcs per Carton .236 (6.0) .181±.008 (4.6±0.2) ALLIED COMPONENTS INTERNATIONAL 01/20/2020 www.alliedcomponents.com RoHS Flat Wire Through Hole Power Inductor Temp Rise vs. DC Current Response Current Rating Response 120 90 110 80 100 70 90 60 80 50 70 60 40 50 30 40 20 30 20 10 0 0 10 20 30 40 50 DC Current (A) 0 60 Inductance vs. Freq Response 330 5 3 220 3 100 6R8 10¹ 4R7 5 3R3 3 10-2 3 5 10-1 3 5 10 3 5 10¹ Frequency (MHz) 3 5 10² -20 0 20 40 60 80 100 120 140 150 10¹ 100 6R8 5 4R7 3 10 3 5 10³ 330 220 3R3 10-3 3 5 10-2 3 5 10-1 3 5 10 DC Current (A) 3 5 10¹ 3 5 10² Reflow Solder Profile ESR vs. Freq Response 330 220 150 100 6R8 4R7 3R3 2000 -40 10² 5 150 Irms Inductance vs. DC Superposition Reponse Inductance (µH) Inductance (µH) Isat 10 10² 10 FWTPQ2817H 1750 Preheating Soldering 60-180S 60-150S Natural Cooling 1500 1250 1000 217 200 750 500 250 150 330 220 150 4R7 6R8 3R3 100 0 10-2 480S Max 3 949-356-1780 5 10-1 3 5 10 3 5 10¹ Frequency (MHz) 3 25 5 10² Time (Sec) ALLIED COMPONENTS INTERNATIONAL 1/20/2020 www.alliedcomponents.com
