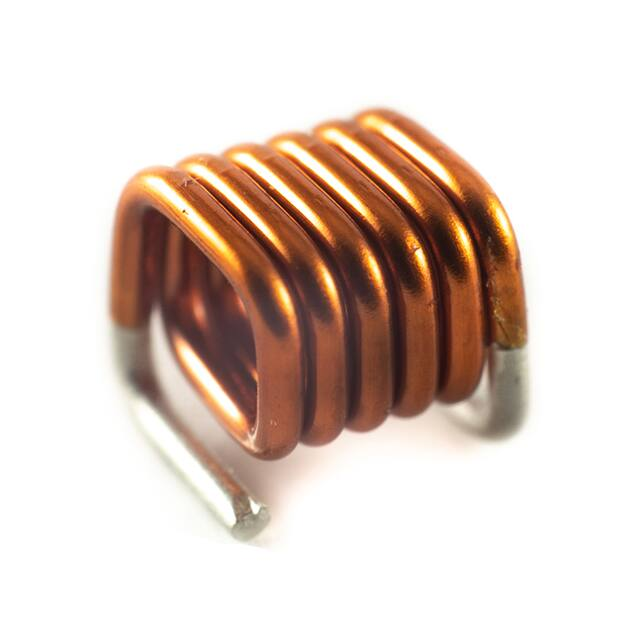

SQAC1515-82NJ-RC

RoHS SMD Square Air Core Inductors SQAC1515 MAX MIN Recommended PCB Layout Dimensions Unit: mm Features Allied Part Number* M1 M2 M3 M4 M5 M6 SQAC1515-47N_-RC SQAC1515-68N_-RC SQAC1515-82N_-RC 4.06±0.254 5.33±0.254 5.84±0.254 3.56±0.178 3.56±0.178 3.56±0.178 3.73±0.178 3.73±0.178 3.73±0.178 3.56 4.83 5.33 4.45 4.45 4.45 1.78 1.78 1.78 Allied Part Number* SQAC1515-47N_-RC SQAC1515-68N_-RC SQAC1515-82N_-RC Inductance Tolerance (nH) 47 68 82 G, J G, J G, J Q (Min) Test SRF Freq. Min. (MHz) (GHz) 230 230 230 400 400 400 1.87 2.13 1.79 • • • • • • Excellent for high Q applications High SRF’s for high frequency applications High current capability Flat top cap for pick and place assembly RoHS & Halogen Free MSL Level 1 Electrical DCR Max (mΩ) Irms (A) 6.35 8.60 9.40 4.9 5.5 5.6 Impedance range: 47nH to 82nH Tolerance: available in 2% and 5% Test Frequency: 400MHz Operating Temp: -40ºC to +125ºC Test Equipment *To complete part number, insert tolerance designator: G = ±2%, J = ±5% All specifications are subject to change without notice. (L/Q): HP4291B with HP16193 (SRF): HP8753E or HP8720D Physical RECOMMENDED REFLOW SOLDERING PROFILE REFLOW PRE-HEATING TEMPERATURE (°C) Time within 5°C of Peak Temperature (30 Sec) Ramp-Up 3°C/Sec Max 217 Packaging: 2000 per 7” Reel Marking: None COOLING 255 - 260°C Peak Temperature Ramp-Down 6°C/Sec Max 200 150 60-120s Time Above 217°C 60-150s TIME (sec) 949-376-1780 ALLIED COMPONENTS INTERNATIONAL REVISED 09/11/2017 www.alliedcomponents.com
