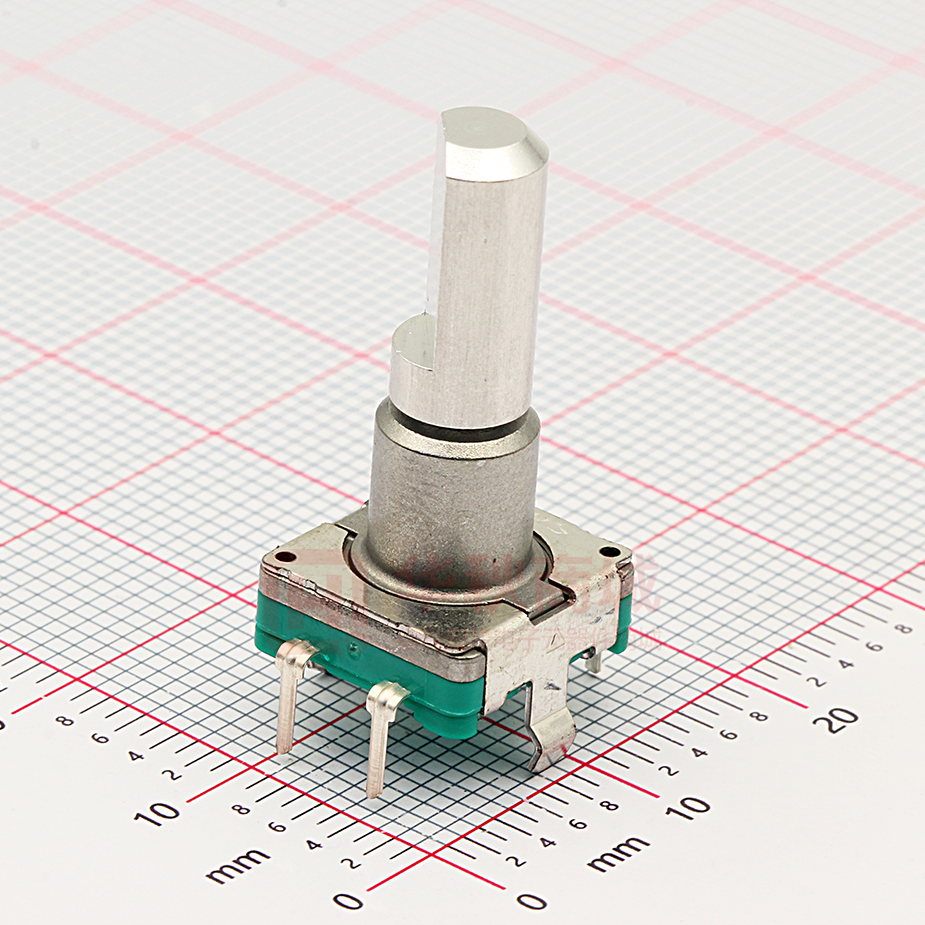

EC11E18244AU

2018/3/21 EC11 Series - Basic information 11mm Size Metal Shaft Type EC11 Series Structure Vertical Actuator configuration Flat Actuator length 20mm Number of detent 36 Number of pulse 18 Push-on switch With Travel of push-on switch 0.5mm Operating life 15,000 cycles Operating temperature range -40℃ to +85℃ Electrical performance Ratings 10mA 5V DC Output signal Two phase A and B Max./min. operating 10mA/1mA current(Resistive load) Insulation resistance 100MΩ min. 250V DC Mechanical performance Push-on switch specifications Voltage proof 300V AC for 1 minute or 360V AC for 2s Detent torque 10±7mN·m Push-pull strength 100N Contact arrangement Single pole single throw (Push-on) Travel 0.5±0.3mm Operating force 6(+2.5, -2)N Rating 0.1A 5V DC (500μA 5V DC min. ratings) http://www.alps.com/prod/info/E/HTML/Encoder/Incremental/EC11/EC11E18244AU.html 1/5 2018/3/21 EC11 Series - Basic information Contact resistance (Initial performance/After lifetime) 100mΩ max./200mΩ max. Operating life 20,000 times Minimum order unit Japan (pcs.) Export 1,200 2,400 Dimensions Mounting Hole Dimensions http://www.alps.com/prod/info/E/HTML/Encoder/Incremental/EC11/EC11E18244AU.html 2/5 2018/3/21 EC11 Series - Basic information Viewed from mounting side. Output Wave Sliding Noise http://www.alps.com/prod/info/E/HTML/Encoder/Incremental/EC11/EC11E18244AU.html 3/5 2018/3/21 EC11 Series - Basic information At R=5kΩ Chattering: 3ms max. Bounce: 2ms max. Packing Specifications Tray Number of packages 1 case / Japan 1,200 (pcs.) 1 case / export 2,400 packing Export package measurements (mm) 540×360×250 Soldering Conditions Reference for Dip Soldering Preheating Dip soldering Soldering surfacetemperature 100℃ max. Heating time 2 min. max. Soldering temperature 260±5℃ Soldering time 5±1s No. of solders 2 time max. Reference for Hand Soldering Tip temperature 350℃ max. Soldering time 3s max. No. of solders 1 time Product Varieties Single-shaft Type 1) Knurled Type Unit : mm Style (Shaft diameter : φ6) http://www.alps.com/prod/info/E/HTML/Encoder/Incremental/EC11/EC11E18244AU.html 4/5 2018/3/21 EC11 Series - Basic information 2) Flat Type Unit : mm Style (Shaft diameter : φ6) Values in parentheses apply to products without push-on switch. 3) Slotted Type Unit : mm Style (Shaft diameter : φ6) Notes are common to this series/models. 1. This site catalog shows only outline specifications. When using the products, please obtain formal specifications for supply. 2. Please place purchase orders per minimum order unit (integer). 3. Products other than those listed in the above chart are also available. Please contact us for details. 4. This products can be used in vehicles. Although these products are designed to perform over a wide operating temperature range, please ensure that you receive and read the formal delivery specifications before use. http://www.alps.com/prod/info/E/HTML/Encoder/Incremental/EC11/EC11E18244AU.html 5/5
