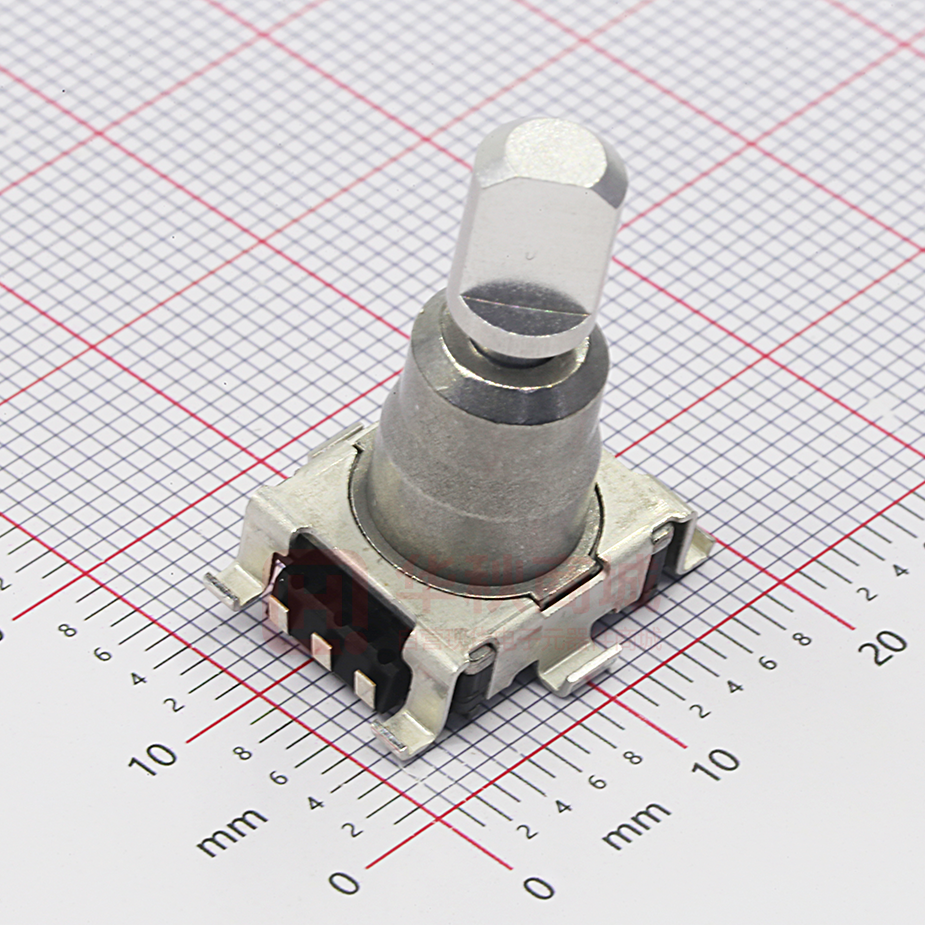

EC11J1525402

2018/3/30 EC11 Series - Basic information 11mm Size Metal Shaft Type EC11 Series Structure Reflow Actuator configuration Flat Actuator length 20mm Number of detent 30 Number of pulse 15 Push-on switch With Travel of push-on switch 1.5mm Operating life 100,000 cycles Operating temperature range -40℃ to +85℃ Electrical performance Ratings 10mA 5V DC Output signal Two phase A and B Max./min. operating 10mA/1mA current(Resistive load) Insulation resistance 100MΩ min. 250V DC Mechanical Voltage proof 300V AC for 1 minute or 360V AC for 1s Detent torque 12±5mN·m (Initial) performance 10±4mN·m (After reflow) Push-pull strength 100N Push-on switch Contact Single pole single throw (Push-on) specifications arrangement Travel 1.5±0.5mm Operating force 4±2N Rating 0.1A 5V DC (1mA 5V DC min. ratings) Contact resistance 100mΩ max./200mΩ max. (Initial http://www.alps.com/prod/info/E/HTML/Encoder/Incremental/EC11/EC11J1525402.html 1/5 2018/3/30 EC11 Series - Basic information performance/After lifetime) Operating life Minimum order unit Japan (pcs.) Export 100,000 times 600 600 Dimensions Mounting Hole Dimensions http://www.alps.com/prod/info/E/HTML/Encoder/Incremental/EC11/EC11J1525402.html 2/5 2018/3/30 EC11 Series - Basic information Output Wave Sliding Noise At R=5kΩ Chattering: 3ms max. Bounce: 2ms max. http://www.alps.com/prod/info/E/HTML/Encoder/Incremental/EC11/EC11J1525402.html 3/5 2018/3/30 EC11 Series - Basic information Packing Specifications Tray Number of packages 1 case / Japan 300 (pcs.) 1 case / export 600 packing Export package measurements (mm) 369×283×263 Soldering Conditions Example of Reflow Soldering Condition 1. Heating method Double heating method with infrared heater. 2. Temperature measurement Thermocouple 0.1 to 0.2 Φ CA (K) or CC (T) at soldering portion (copper foil surface). A heat resisting tape should be used for fixed measurement. 3. Temperature profile A B C D E F G H No. of reflows 260℃ 230℃ 180℃ 150℃ 2 min.max. 3s 40s 4 min.max. 2 time max. (1)When using an infrared reflow oven, solder may sometimes not be applied. Be sure to use a hot air reflow oven or a type that uses infrared rays in combination with hot air. (2)The temperatures given above are the maximum temperatures at the terminals of the potentiometer when employing a hot air reflow method. The temperature of the PC board and the surface temperature of the potentiometer may vary greatly depending on the PC board material, its size and thickness. Ensure that the surface temperature of the potentiometer does not rise to 250°C or greater. (3)Conditions vary to some extent depending on the type of reflow bath used. Be sure to give due consideration to this prior to use. http://www.alps.com/prod/info/E/HTML/Encoder/Incremental/EC11/EC11J1525402.html 4/5 2018/3/30 EC11 Series - Basic information Reference for Hand Soldering Tip temperature 350±10℃ max. Soldering time 3(+1, 0)s No. of solders 2 time Product Varieties Single-shaft Type 1) Knurled Type Unit : mm Style (Shaft diameter : φ5.975) 2) Flat Type Unit : mm Style (Shaft diameter : φ5.975) 3) Slotted Type Unit : mm Style (Shaft diameter : φ5.975) Notes are common to this series/models. 1. This site catalog shows only outline specifications. When using the products, please obtain formal specifications for supply. 2. Please place purchase orders per minimum order unit (integer). 3. Products other than those listed in the above chart are also available. Please contact us for details. 4. This products can be used in vehicles. Although these products are designed to perform over a wide operating temperature range, please ensure that you receive and read the formal delivery specifications before use. http://www.alps.com/prod/info/E/HTML/Encoder/Incremental/EC11/EC11J1525402.html 5/5
