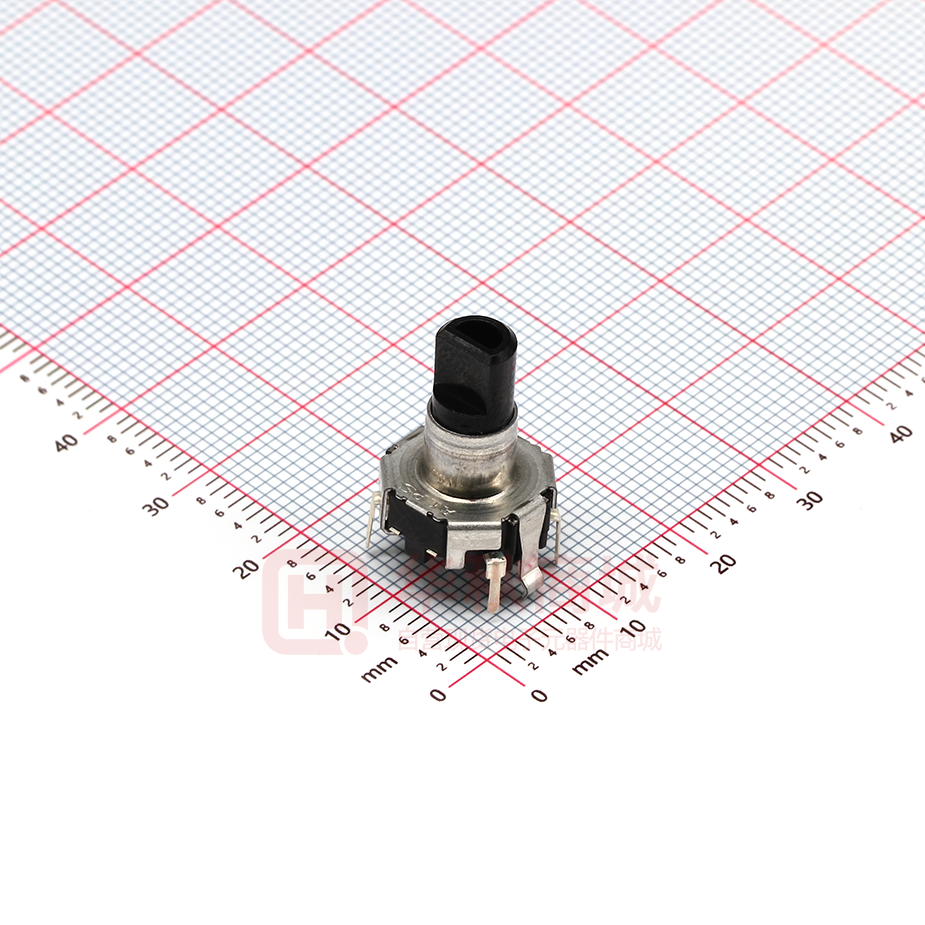

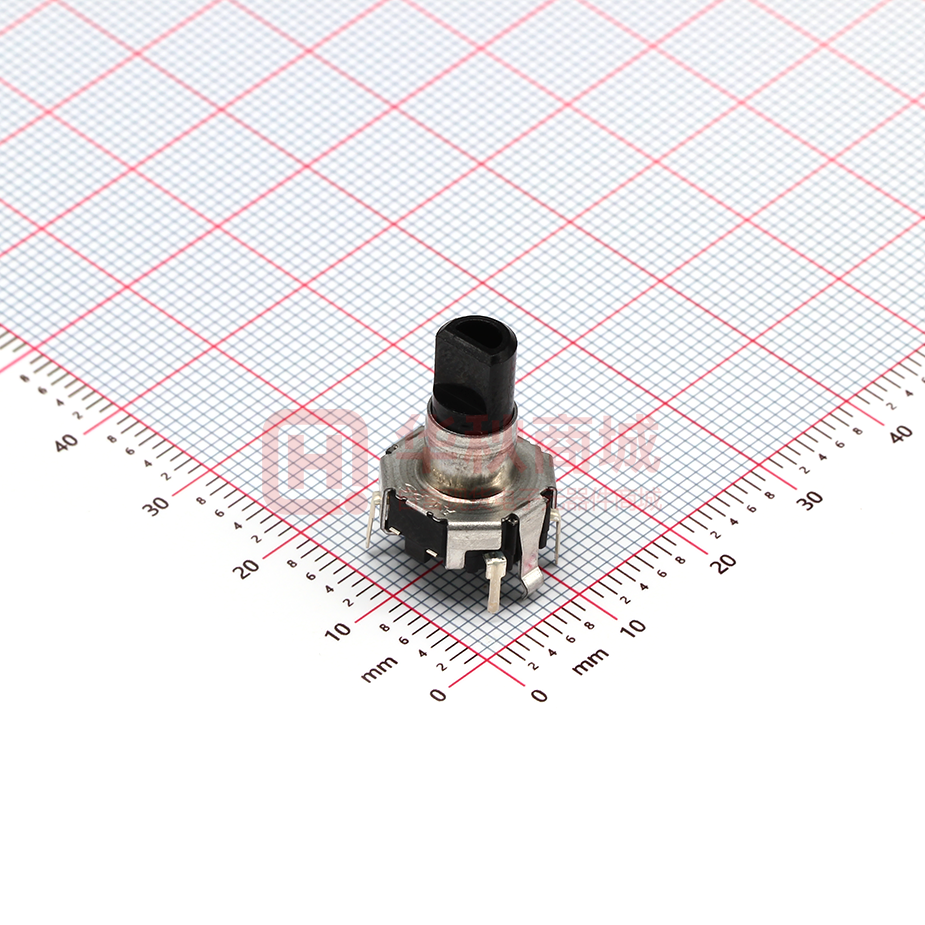

EC12D1564404

EC12E 12mm Size Insulated Shaft Type EC12D Insulated shaft type with a wide variety of applications ■ Typical Specifications Items Specifications Each lead 0.5mA 5V DC Common lead 1mA 5V DC Encoders Rating Heavy:15,000 cycles, Standard: 30,000 cycles Without detent Operating life With detent 30,000 cycles EC12E:−10℃ to ＋70℃ EC12D:−40℃ to ＋85℃ Operating temperature range Metal Shaft Product Line Standard Type Insulated Shaft Length of the shaft LM1 (mm) Torque （mN・m） Number of detent Number of pulse Minimum order unit（pcs.） Japan Export 15 20 Through Shaft Type 25 2,400 Standard 3 to 20 8.5 （Through shaft） Ring Type 8.5 （Through shaft） 12 12 Lightest（jog） 3±2 3,000 3,000 2,400 2,400 3,000 17.5 2,400 Standard 3 to 20 25 8.5 （Through shaft） 20 24 Lightest（jog） 3±2 3,000 2,400 3,000 3,000 2,400 2,400 1 EC12E1220301 EC12E1240405 3 1 EC12E1240301 3 EC12E24204A2 2 EC12E24204A7 1 EC12E2420301 EC12E24404A8 3 1 EC12E24404A6 3,000 3,000 Standard 10 max. Heavy 25±15 EC12E1220406 EC12E24204A9 20 25 2 EC12E24204A8 24 8.5 （Through shaft） EC12E1220407 EC12E1240406 15 20 Drawing No. EC12E1220405 20 25 2,400 Product No. EC12E2440301 3 EC12E24104A6 Without 2,400 2,400 25 EC12E2430404 1 EC12E2430401 With Bushing Type Length of the shaft LM1 (mm) Torque （mN・m） 25 20 25 Standard 3 to 20 Number of detent Number of pulse 12 12 25 30 Export Product No. Drawing No. EC12E1220813 24 EC12E2420801 24 Heavy 25±15 Japan EC12E2420802 30 20 Minimum order unit（pcs.） 1,900 1,900 EC12E2420803 4 EC12E2430804 Without Heavy 40±15 EC12E2430803 EC12E2460802 Nuts and washers are not included. If required, please contact us. 254 Refer to P.257 for product varieties. Refer to P.275 for soldering conditions. EC12E / EC12D ／12mm Size Insulated Shaft Type Product Line With Switch Type Detent torque （mN・m） Number of detent Travel of push- Minimum order unit（ pcs.） Operating force of switch（N） on switch（mm） Japan Export Number of pulse 5±3 EC12D1524403 3 10±5 17.5 30 5±3 15 0.5 1,280 2,560 EC12D1564402 5 EC12D1524406 6 10±5 Drawing No. Product No. Encoders Length of the shaft LM1 (mm) EC12D1564404 Metal Shaft Notes EC12D is suitable for automotive use. Packing Specifications Tray Number of packages（pcs.） EC12E □□□ 03 3,000 3,000 EC12E □□□ 04 2,400 2,400 EC12E □□□ 08 1,900 1,900 EC12D 1,280 2,560 Export package measurements （mm） 525×369×204 540×360×290 Dimensions Photo Style 14 12.4 (8.2) ℓ1 ø6.8 Mounting surface 3.5 Short shaft type 3.5 2 13.2 ℓ1 5 7 12 LM1 17.5 20 25 A C B 15 ACB 5 3-ø1 hole 14 7 5 13.2 2 2.1 LM1 7.5 5 (5) (0.8) 2 3.5 (10.2) High collar type 1 PC board mounting hole dimensions （Viewed from mounting side） 4.5 ø6 No. Unit:mm Ring Type 1 case /export packing Through Shaft Type 1 case /Japan Insulated Shaft Product No. 12.4 13.2 (8.2) (0.8) 2 2 2.1 (0.6) Mounting surface 3.5 7.5 4.5 ø6 ø6.6 13.2 (10.2) 2 2 ACB 5 A C B Through shaft type 3-ø1 hole 14 12.4 ø6.6 (0.8) 3.5 Mounting surface 13.2 2 2.1 2 7.5 ø6 3 2 (8.2) ø3.1 (0.6) 2.65 13.2 8.5 2.1 5 5.2 1.2 (10.2) 3.5 ACB A C B 5 3-ø1 hole Refer to P.257 for switch specifications. Refer to P.275 for soldering conditions. 255 EC12E 12mm Size Insulated Shaft Type EC12D Dimensions No. Unit:mm Photo PC board mounting hole dimensions （Viewed from mounting side） Style Encoders With bushing type M9x0.75 LM1 3.5 ℓ1 5.5 7 14 12.4 (8.2) Unthreaded area 2 2.1 8 2 1 Mounting surface A C B 7.5 3.5 Locating lug detail Y X X Insulated Shaft Y 3 2.5 ℓ1 7 12 12 A 5 5 17.5 Switch travel 14.1 13.3 5 2.05 6.85 ø5.975 E A B E 8.3 11.7 2.15 ø6.8 3.5 5-ø1.05hole Mounting surface Output Wave EC12E D t ON Detent stability position （When the switch is provided） CW direction ※Detent position cannot be specified for B signal. 256 OFF ON R B signal OFF V1 Terminal B ON V2 Encoder Detent stability position CW direction t R 5V A signal Terminal A OFF 5.95 EC12E Output waveform 5V DC B signal D Sliding Noise Test circuit ON C E EC12D OFF B A D C C0.5 A signal 2.05 2 Ring Type 4.475 (6) 11.1 12.5 0.5 5 5 3-ø1 hole 3.45 Through Shaft Type With push-on switch type ACB LM1 20 25 30 7 0.4 Metal Shaft 4 13.2 13.2 (10.2) 2 4.5 ø6 ø8 A Terminal C Measurement condition：Rotation speed 360˚/s ON OFF ON Sliding direction t : Masking time to avoid chattering V1 ＝ V2 ＝ 1.5V max. At R = 10k Ω Chattering : 3ms max. Bounce : 2ms max. EC12D V1 ＝ V2 ＝ 2.5V max. At R = 5k Ω Chattering : 3ms max. Bounce : 2ms max. 12mm Size Insulated Shaft Type / Product Varieties Shaft Dimensions Flat Type: EC12E Unit:mm Detailed dimensions LM1 5 4.5 ø6 ※ ※ Mounting surface 5 20 7 22.5 7 25 12 30 12 ※ Not available for types without detents M9x0.75 Detailed dimensions LM1 ℓ1 5.5 No thread area ℓ1 LM1 A 20 — 7 25 — 12 30 5 12 35 5 12 Insulated Shaft 4.5 ø6 A ø8 7 17.5 Metal Shaft With bushing type ℓ1 LM1 ℓ1 Encoders High collar type Excluding the 12 detent type 1 Mounting surface 2 Ring Type 12mm Size Insulated Shaft Type / Switch Specifications Through Shaft Type 3.5 3.5 Switch type Momentary push switch Contact arrangement Single pole and single throw（Push-on） Travel（mm） 0.5±0.3 Operating force ＋ 2.5 3 ＋ 1.5 − 1 N, 6 − 2 N Operating life 30,000 times Electrical performance Rating 1mA 5V DC (10mA 5V DC max. ratings） Contact resistance 100mΩ max. for initial period,　200mΩ max. after operating life. Insulation resistance 100MΩ min. 250V DC Voltage proof 300V AC for 1 minute or 360V AC for 1 second 257 Encoders List of Varieties Metal shaft Type Insulated shaft 11mm size Series 12mm size EM11B 18mm size EC12E EC18A EC12D Photo Encoders Output Incremental（Two phase A and B ） Absolute type Shaft types Single-shaft Control part orientation Vertical Metal Shaft Insulated Shaft Number of pulse / Number of detent 16/16 12/12 24/24 24/without 15/30 12 positions 15 positions 16 positions Features Magnetic type — With push-on switch Water resisting performance （IPX7） 10.8 12.4 12.5 18.8 D 11 13.2 H 7.5 W Dimensions （mm） 11.7 18 5 8.75 −30℃ to +85℃ −10℃ to ＋70℃ Operating life 1,000,000 cycles 15,000 cycles 30,000 cycles Automotive use ● — ● — Rating 10mA 5V±5% DC 0.5mA 5V DC 1mA 5V DC 1mA 10V DC Max./min. operating current（Resistive load） 15mA / － 5mA / 0.5mA 10mA /1mA — Insulation resistance 100MΩ min.100V DC 10MΩ min. 50V DC 100MΩ min. 250V DC 10MΩ min. 250V DC Voltage proof 250V AC for 1 minute or 300V AC for 2s 50V AC for 1 minute 300V AC for 1 minute or 360V AC for 1s 50V AC for 1 minute or 60V AC for 2s Rotational torque （Without detent） — 10mN･m max. 25±15mN･m 40±15mN･m — — Detent torque 10±5mN･m 3±2mN･m 3 to 20mN･m 5±3mN・m 10±5mN・m 60±20mN・m Push-pull strength 100N 80N 100N Push 100N / Pull 50N Flat Flat, Through shaft Through Shaft Type Operating temperature range −40℃ to ＋85℃ −20℃ to ＋60℃ 30,000 cycles Life cycle (availability) Ring Type Electrical performance Mechanical performance Shaft configuration Terminal type Insertion Switch type Push-on switch — Push-on switch — Contact  arrangement Single pole and single throw（Push-on） — Single pole and single throw（Push-on） — — 0.5±0.3 — Travel（mm） Switch Specifications Flat 0.5 ＋ 0.3 − 0.2 Operating force （N） 5.5±3 — Rating 5mA 5V DC （50mA 12V DC max. ratings） — 1mA 5V DC （10mA 5V DC max. ratings） — — 100m Ω max. for initial period; 200m Ω max. after operating life. — 1,000,000 times — 30,000 times — 252 254 255 258 Contact resistance Operating life Page 500mΩ max. for initial period,　 5mΩ max. after operating life. ＋ 2.5 3 ＋ 1.5 − 1 6 − 2 — Encoders Soldering Conditions ・ ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ Encoders Cautions・ ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ Notes ●Indicates applicability to all products in the series. 240 275 276 Encoders / Soldering Conditions Reference for Manual Soldering Tip temperature Soldering time No. of solders 350℃ max. 3s max. 1 time Encoders Series EC05E, EC09E, EC10E, EC111, EC11E, EC11M, EC11N, EC12D, EC12E, EC18A, EC21A, EC28A, EC35A, EC35AH, EC40A, EC50A, EM11B, EC21C, EC28C, EC35CH Preheating Series Dip soldering No. of solders Heating time Soldering temperature Soldering time EC09E, EC111, EC11E, EC11M, EC11N, EC18A, EC21A, EC28A, EC35A, EC35AH, EC50A 100℃ max. 2 min. max. 260±5℃ 5±1s 2 times max. EM11B 100℃ max. 1 min. max. 260℃ max. 3s max. 2 times max. EC10E, EC12D, EC12E 100℃ max. 1 min. max. 260±5℃ 3±1s 2 times max. EC40A 110℃ max. 1 min. max. 260℃ max. 10s max. 1 time Insulated Shaft Soldering surfacetemperature Metal Shaft Reference for Dip Soldering Through Shaft Type Ring Type Example of Reflow Soldering Condition Temperature profile Temperature (˚C ) 300 A B 200 C D 100 Room temperature Time (s) Pre-heating E max. F max. G max. H max. Series A B C D E F G H No. of reflows EC05E 250℃ min. 230℃ min. 180℃ 150℃ 60s to 120s ー 30s to 40s ー 2 times max. EC21C 230℃ to 245℃ 220℃ 200℃ 150℃ 60s to 120s ー 25s to 60s 300s max. 1 time max. 260℃ 230℃ 180℃ 150℃ 2 min. min. 3s 40s 230s max. 1 time max. EC28C, EC35CH Notes 1. When using an infrared reflow oven, solder may sometimes not be applied. Be sure to use a hot air reflow oven or a 　 type that uses infrared rays in combination with hot air. 2. The temperatures given above are the maximum temperatures at the terminals of the encoder when employing a hot air reflow method. The temperature of the PC board and the surface temperature of the 　 encoder may vary greatly depending on the PC board material, its size and thickness. Ensure that the surface 　 temperature of the encoder does not rise to 250℃ or greater. 3. Conditions vary to some extent depending on the type of reflow bath used. Be sure to give due consideration to this 　 prior to use. 275 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Alps Alpine: EC12E1220301 EC12E1240405 EC12E1240406 EC12E1240301 EC12E24404A8 EC12E24404A6 EC12E2440301 EC12E2430404 EC12E2430401 EC12E2430804 EC12E2430803 EC12E24204A7 EC12E24104A6 EC12E1220813 EC12E2420803 EC12E2460802 EC12D1564402 EC12D1524403 EC12E2420801HARD EC12E2420301 EC12E1220405 EC12E1220407 EC12E1220406 EC12D1564404 EC12E24204A8 EC12E24204A9 EC12D1524406 EC12E2420802 EC12E24204A2 EC12E2420801
