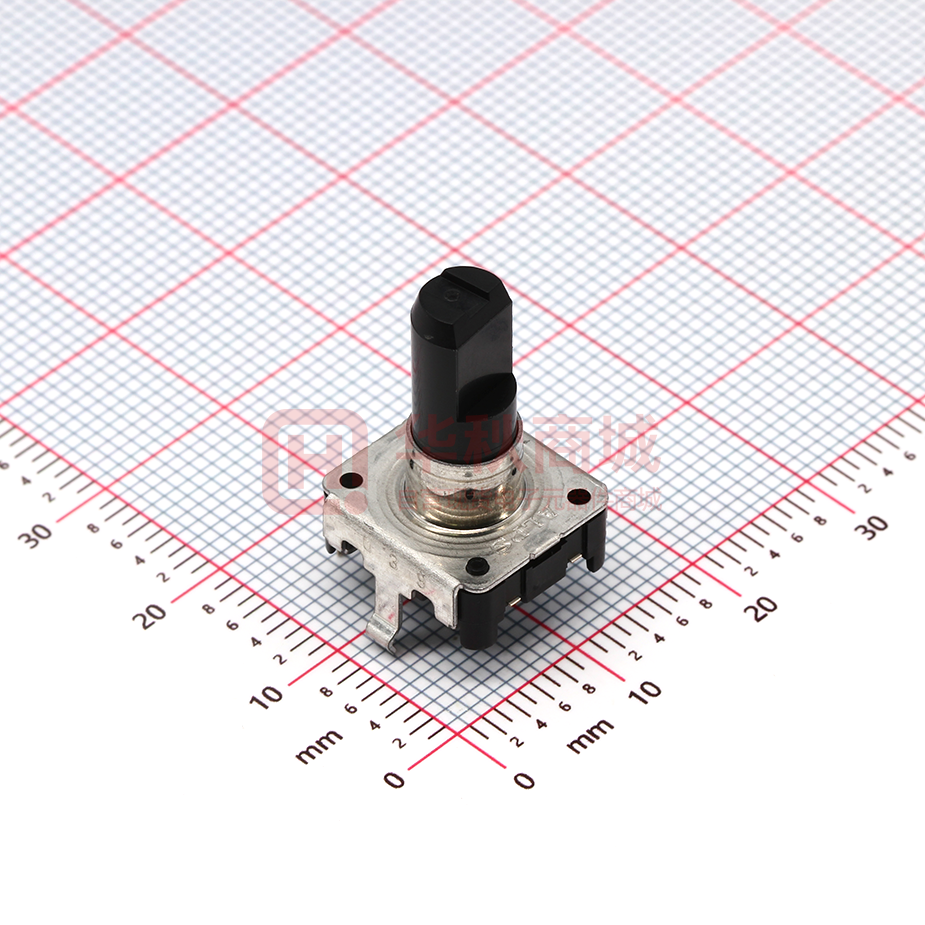

EC12E24104A6

2018/12/20 EC12 Series - Basic information 12mm Size Insulated Shaft Type EC12 Series Standard Type Actuator length 20mm Torque Lightest (jog) 10mN･m max Number of detent Without Number of pulse 24 Operating direction Vertical Operating temperature range -10℃ to +70℃ Electrical performance Ratings 0.5mA 5V DC Output signal Two phase A and B Max./min. operating 5mA/0.5mA current(Resistive load) Insulation resistance 10MΩ min. 50V DC Mechanical performance Durability Voltage proof 50V AC for 1 minute Rotational torque 10mN·m max. Push-pull strength 80N Operating life 30,000 cycles Minimum order unit Japan (pcs.) Export 2,400 2,400 Dimensions https://www.alps.com/prod/info/E/HTML/Encoder/Incremental/EC12E/EC12E24104A6.html 1/4 2018/12/20 EC12 Series - Basic information Mounting Hole Dimensions Output Wave https://www.alps.com/prod/info/E/HTML/Encoder/Incremental/EC12E/EC12E24104A6.html 2/4 2018/12/20 EC12 Series - Basic information Sliding Noise V1＝V2＝1.5V max. At R=10kΩ Chattering: 3ms max. Bounce: 2ms max. Packing Specifications Tray Number of packages 1 case / Japan 2,400 (pcs.) 1 case / export packing Export package measurements (mm) 2,400 525×369×204 Soldering Conditions Reference for Dip Soldering Preheating Dip soldering Soldering surfacetemperature 100℃ max. Heating time 1 min. max. Soldering temperature 260±5℃ Soldering time 3±1s https://www.alps.com/prod/info/E/HTML/Encoder/Incremental/EC12E/EC12E24104A6.html 3/4 2018/12/20 EC12 Series - Basic information No. of solders 2 time max. Reference for Hand Soldering Tip temperature 350℃ max. Soldering time 3s max. No. of solders 1 time Product Varieties Flat Type Unit : mm With high collar type ※Excluding the non detent type. Notes are common to this series/models. 1. This site catalog shows only outline specifications. When using the products, please obtain formal specifications for supply. 2. Please place purchase orders per minimum order unit (integer). 3. Products other than those listed in the above chart are also available. Please contact us for details. 4. Nuts and washers are not included. If required, please contact us. 5. This products can be used in vehicles. (EC12D only) Although these products are designed to perform over a wide operating temperature range, please ensure that you receive and read the formal delivery specifications before use. https://www.alps.com/prod/info/E/HTML/Encoder/Incremental/EC12E/EC12E24104A6.html 4/4
