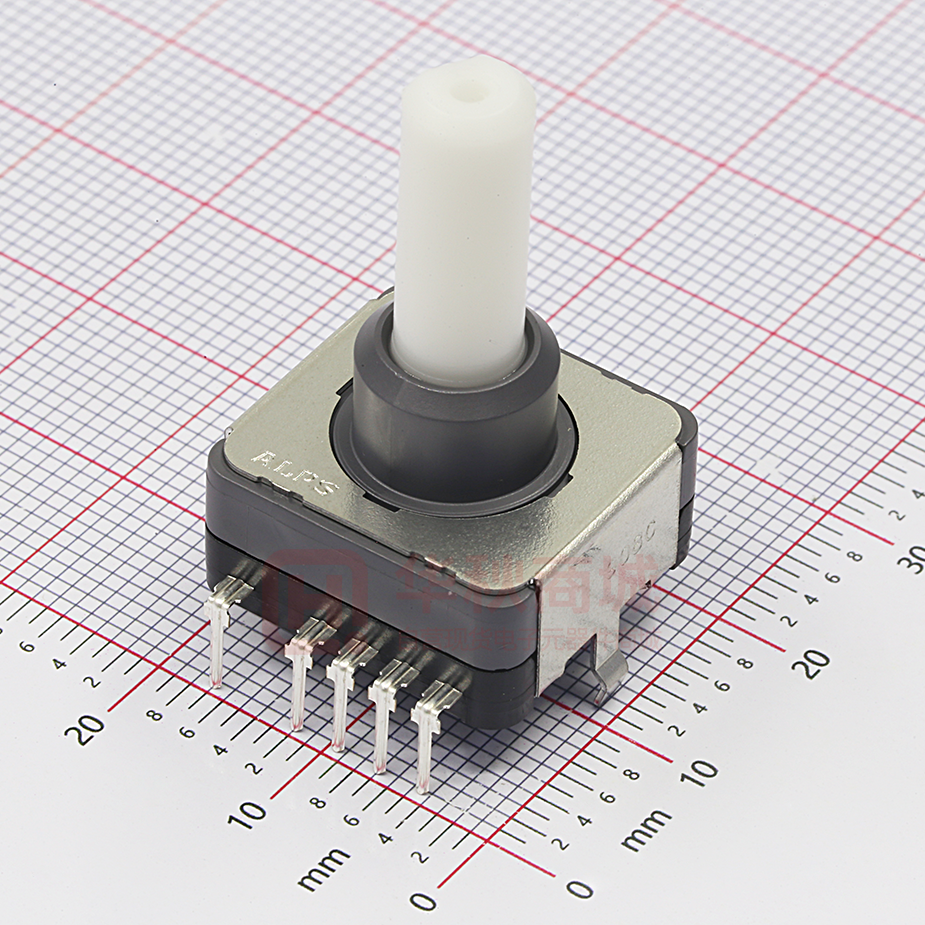

EC18AGA20402

2017/5/3 EC18A Series - Basic information 18mm Size Insulated Shaft Type EC18A Series Part number EC18AGA20402 Actuator configuration Flat Actuator length 21.97mm Detent torque 60±20mN·m Operating direction Vertical Positions 12 Operating temperature range -20℃ to +60℃ Electrical performance 1mA 10V DC Rating Insulation resistance 10MΩ min. 250V DC Voltage proof 50V AC for 1 minute or 60V AC for 2s Mechanical performance Push-pull strength Push 100N / Pull 50N Durability Operating life 30,000 cycles Waterproof Property Immersion of encoder, not in operation, in water at depth of 1m at normal temperature for 30 minutes. Minimum order unit Japan (pcs.) 450 Export 900 Photo http://www.alps.com/prod/info/E/HTML/Encoder/Absolute/EC18A/EC18AGA20402.html 1/4 2017/5/3 EC18A Series - Basic information Dimensions Mounting Hole Dimensions http://www.alps.com/prod/info/E/HTML/Encoder/Absolute/EC18A/EC18AGA20402.html 2/4 2017/5/3 EC18A Series - Basic information Standard Codes Packing Specifications Tray Number of packages 1 case / Japan 450 (pcs.) 1 case / export 900 packing Export package measurements (mm) 540×360×270 Soldering Conditions Reference for Dip Soldering Preheating Dip soldering Soldering surfacetemperature 100℃ max. Heating time 2 min. max. Soldering temperature 260±5℃ Soldering time 5±1s No. of solders http://www.alps.com/prod/info/E/HTML/Encoder/Absolute/EC18A/EC18AGA20402.html 2 time max. 3/4 2017/5/3 EC18A Series - Basic information Reference for Hand Soldering Tip temperature 350℃ max. Soldering time 3s max. No. of solders 1 time Notes are common to this series/models. 1. This site catalog shows only outline specifications. When using the products, please obtain formal specifications for supply. 2. Please place purchase orders per minimum order unit (integer). 3. Products other than those listed in the above chart are also available. Please contact us for details. http://www.alps.com/prod/info/E/HTML/Encoder/Absolute/EC18A/EC18AGA20402.html 4/4
