Multi Control Devices
8-directional Stick Switch (with Center-push Function)
RKJXS Series

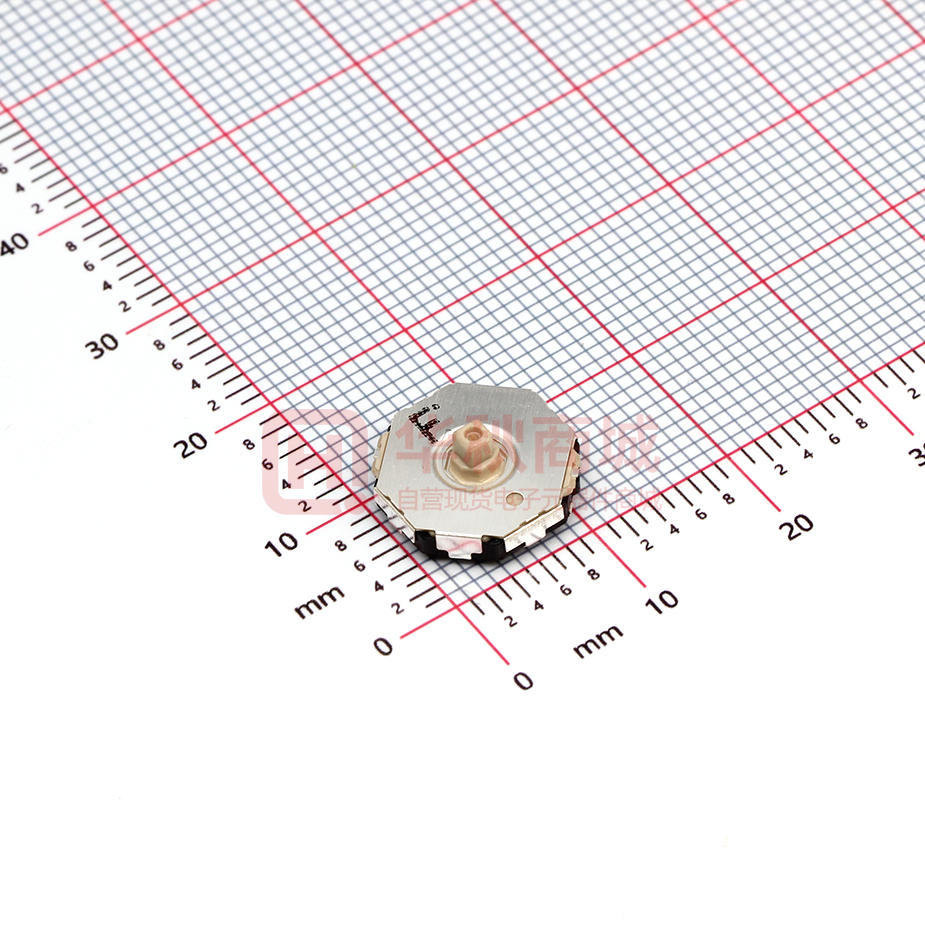

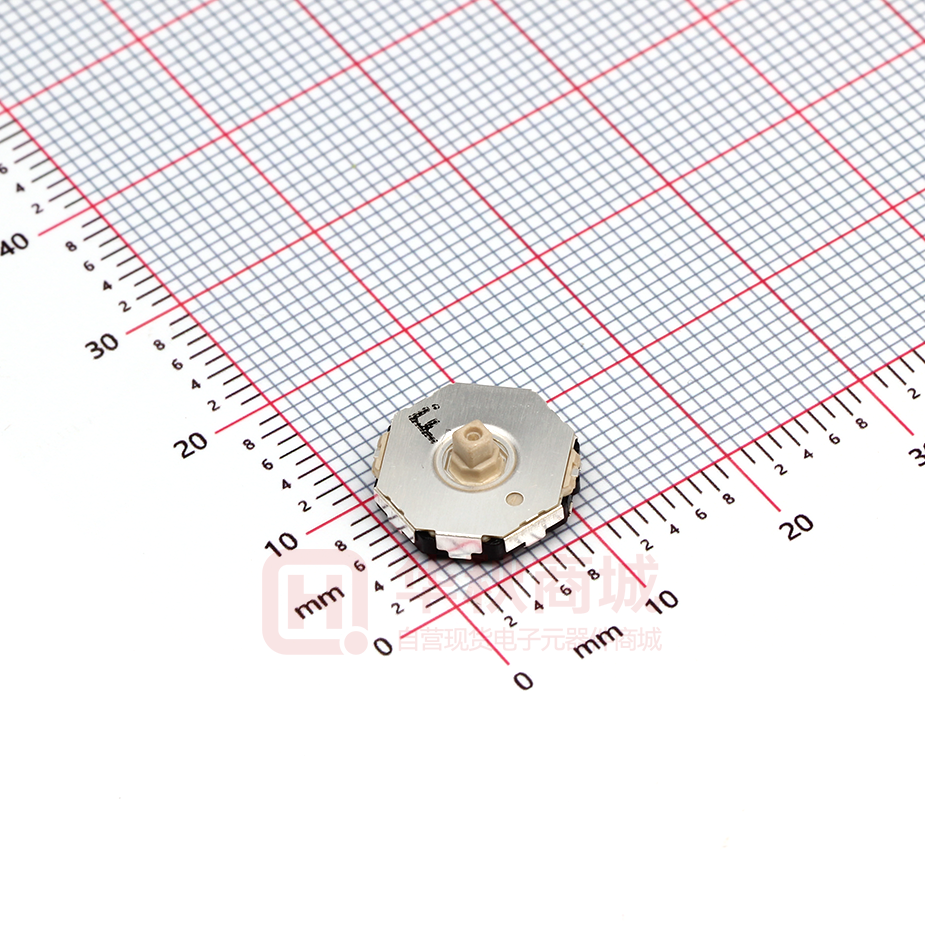

8-direction center push type switch in 2.3mm low-profile design.
Typical Specifications
Items Swich ON position Operating force Push operating force Travel(Push operation) Push strength Rating max.) Resistive load) ( ( Operating life Insulation resistance Voltage proof Specifications
7˚ max. 0.8±0.5N 2.5±1.5N 0.3±0.2mm 30N 10mA 5V DC Each direction 500,000cycles 50MΩ min. 50V DC 50V AC for 1minute
Multi Control Devices
Product Line
Maximum resolution
8-direction
Operating force ( Direction N)
0.8±0.5
( Center-push N)
2.5±1.5
Minimum order unit (pcs.)
950
Product No.
RKJXS1004001
Taping Specification (Taping Packaging)
Reel Size
ø13 hole ø21
Unit:mm
Number of packages pcs.) ( 1 reel
ø370~380
Variable Resistor Type Tape width (mm) Switch Type
1 case /Japan
1 case /export packing
950
1.6 25.5
3,800
3,800
24
Note
Please place purchase orders for taping products per minimum order unit (1 reel or 1 case).
Dimensions
Style
Unit:mm
11.7 2
ON position of terminal P and C 4.45 2.9 2.3 0.8 ø1.2 Term.E Term.2 Term.1 Term.P
. ax m .3 .1 12 12
5.
95
5.
85
Term.4
C
14˚ max.
2.8 2
11.7
ø1 .2 ho le
ø0.8
C O .4
0.3
Push switch travel
0. 2
Guide bosses Term.E Term.C Term.3
479
Multi Control Devices
List of Varieties
Series Items Multi Control Devices Photo RKJXT1F RKJXM Switch type RKJXL RKJXS SKRV SKRH
SKRHAA, SKRHAB SKRHAC, SKRHAD
Function Dimensions W 17 20.5 13 (typical value) D (mm) 10.5 5.45 6.4 H Single-shaft Single-shaft/Dual-shaft Number of operating shafts Metal Shaft material 4-direction 8-direction Directional resolution Directional operating feeling With Without (tactle feelimg) With Lever return mechanism Center-push With switch Without/With With Encoder Operating temperature range – 40℃ to +85℃ – 30℃ to +70℃ – 30℃ to +80℃ 10mA 5V DC Rating max.)Resistive load) (( Outlined specifica-tions Electrical performance Output voltage Directional resolution Insulation resistance Voltage proof Directional operating force Push operating force Encoder detent torque Terminal strength Pushing direction Operating direction Vibration Operating life without load Operating life with load (at rated load) Cold Dry heat Damp heat Manual soldering Dip soldering Reflow soldering Page
475 476 478 479 – 40±2℃ for 500h 85±2℃ for 500h 60±2℃, 90 to 95%RH for 500h 350±5℃ 3s max. 260±5℃, 5±1s 260℃ max. 6s max. Please see P.492 480 481 –40±2℃ for 96h 85±2℃ for 96h –30±2℃ for 96h 80±2℃ for 96h 4-direction 8-direction 50MΩ min. 50V DC 50V AC for 1min. 11.7 12.3 2.3 Single-shaft Resin 4-direction With 6.45 6.4 4 7.35/7.45 7.5 5
Without –20℃ to +70℃
+ 5V
5KΩ Measuring terminal
–30℃ to +85℃ 50mA 12V DC
Measuring circuit
1V max. at 1mA 5V DC (Resistive load) 4-direction 100MΩ min. 100V DC 100V AC for 1min. 1.23 1.2 ±0.69N ±0.69N 2.35±0.69N 100MΩ min. 250V DC 300V AC for 1min. or 360V AC for 2s Direction A、 、 、 BCD 30±20mN・m DirectionAB、 、 、 BC CD DA 25±20mN・m 3±1.5N 12±8mN m ・
Variable Resistor Type Switch Type
40±25mN m ・
10±7mN m ・
0.8±0.5N
1.2±0.6N
5±2N 15±8mN m ・ 5N for 1min.
4.5±1N
2.5±1.5N
2.4±0.69N
● Switch Type Multi Control Devices Soldering Conditions ………………………………………………………………492 ● Switch Type Multi Control Devices Cautions ………………………………………………………………………………493
Mechanical performance Endurance Environmental Soldering performance
Actuatorstrength
100N 0.4N m ・ 0.3N m ・ 0.15N m ・
30N 20N 10 to 55 to 10Hz/min., the amplitude is 1.5mm for all the frequencies, in the 3 direction of X, Y and Z for 2 hours respectively
8.3±1 to 200±4 to 8.3±1Hz, 4.4G fixed for 15 min./1 cycle) angles each 2 hours ( ,3
60±2℃,90 to 95%RH for 96h
350±10℃ 3 +1 s 0 350℃ max. 3s max.
470
Switch Type Multi Control Devices
Soldering Conditions
Example of Reflow Soldering Condition
1. Heating method:
Multi Control Devices
Double heating method with infrared heater. should be used to fix thermocouple.
2. Temperature measurement: Thermocouple 0.1 to 0.2φ CA K) CC T) solder joints copper foil surface) A heat resistive tape ( or ( at . 3. Temperature profile
300 Temperature (˚C )
A max. B
200
D E
100 Time (s) Pre-heating F max. C
Room temperature
Series Reflow type) ( RKJXS SLLB, SLLB5 Variable Resistor Type Switch Type SKRV/SKRH/SKQUBA,DB/SSAF/SRBE
A (℃) 3s max.
260 240 260
B (℃)
C s) (
40
D (℃)
150
E (℃)
( F s)
230
20 40 180
150
120
Notes
1. The above temperature shall be measured on the mounting surface of a PC board. There are cases where the PC board's temperature greatly differs from that of the switch, depending on the material, size thickness of PC boards and others. The above-stated conditions shall also apply to switch surface temperatures. 2. Soldering conditions differ depending on reflow soldering machines. Prior verification of soldering condition is highly recommended.
492
