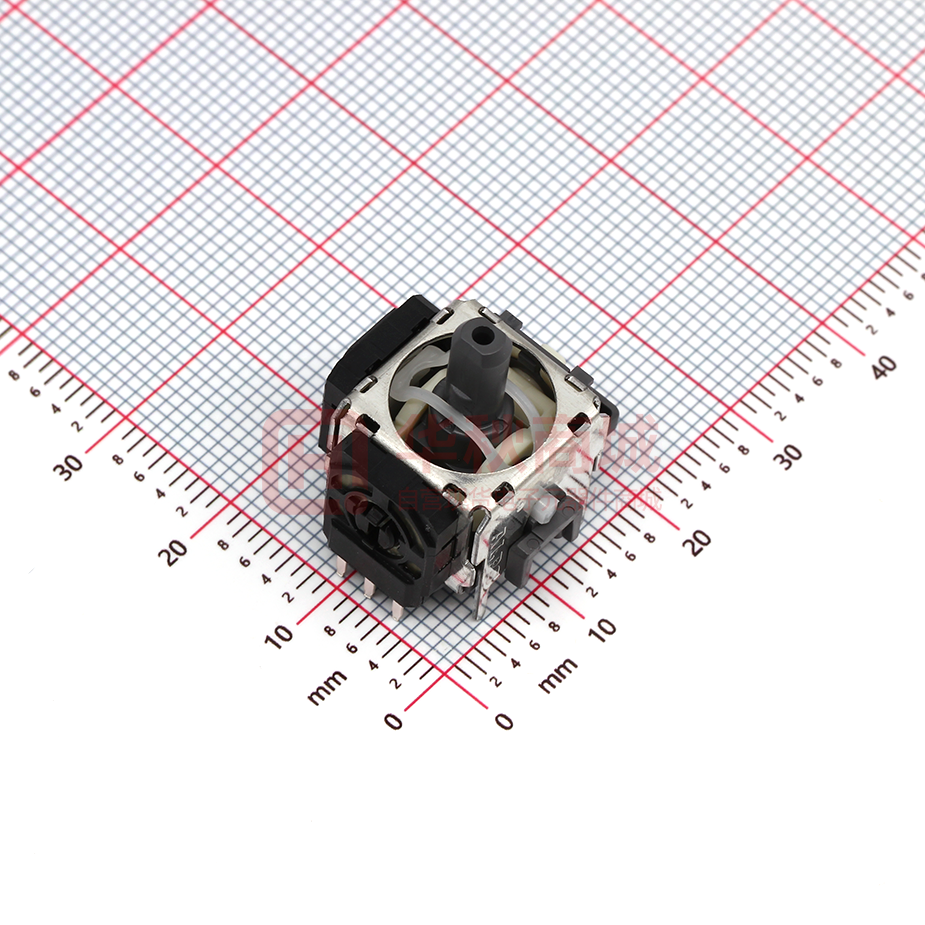

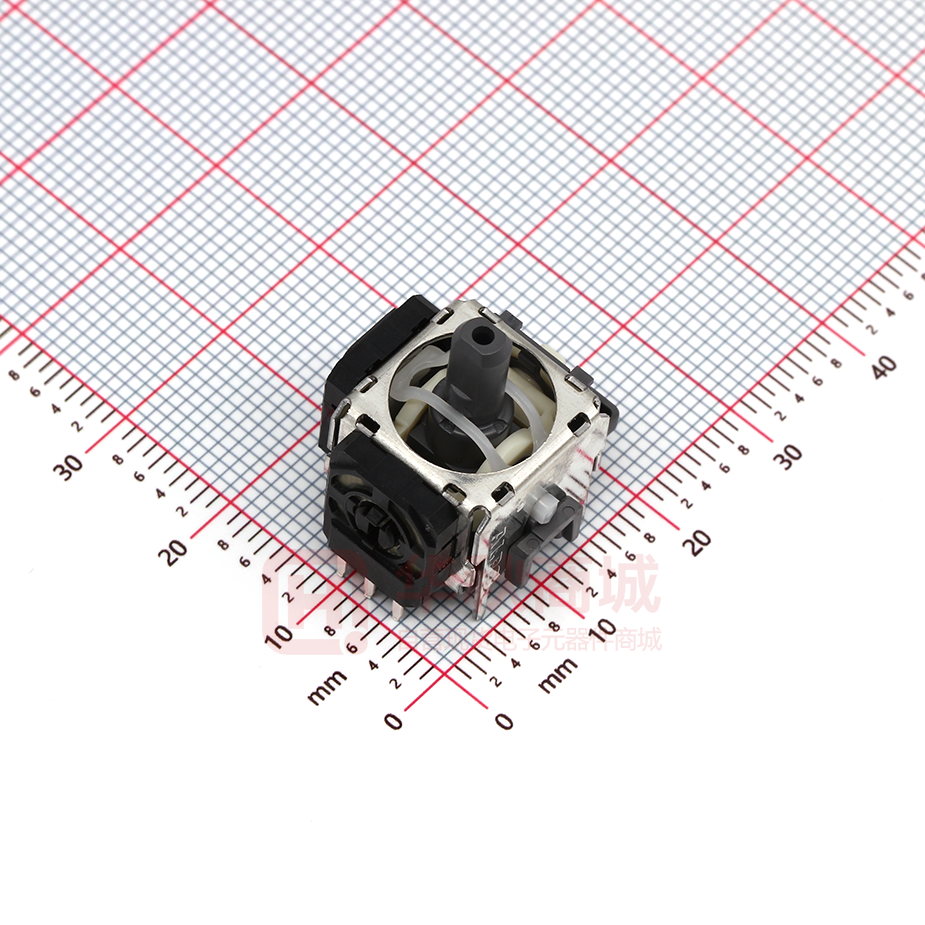

*It is data as of April 2021 RKJXK RKJXV ThumbPointerTM（Stick Controller） RKJX2 Compact size, standard type. Also available with lever return mechanism ■ Typical Specifications（Potentiometer） Items RKJXK RKJXV Rated power 0.0125W Maximum operating voltage NEW RKJX2 50V AC, 5V DC 5V DC Operating angle 60°±6° 23°max. in each direction※ Operating force 8mN・m max. （Not lever return type） 6±4mN・m （Lever return type） 14±10mN・m Operating life 100,000 cycles 23°max. in each direction 7 ＋5 −3 mN・m 2,000,000 cycles Note Multi Control Devices ※ If the lever is tilted more than 23°from the vertical position, operating feel irregularities or return mechanism errors may occur. Therefore, please do not tilt more than 23°. ■ Typical Specifications（Center-push） Items RKJXK Ratings（max.） RKJXV 50mA 12V DC 5.2±2.6N 7.4±3N ＋0.5 ＋0.5 0.5　　　mm −0.4 0.4　　　mm −0.3 100,000 cycles 6.0±2.5N ＋0.5 0.35 −0.25 mm Switch Type Operating life 5V DC 1mA 500,000 cycles Product Line Product No. Lever return mechanism Center-push Total resistance　 Resistance （kΩ） taper Minimum order unit（pcs.） Drawing No. Japan Export 1 With RKJXK122400Y Variable Resistor Type Operating force Travel RKJX2 With 500 RKJXK122000D 1,000 Without RKJXK1210002 2 10 Without B （0B） With RKJXV122400R 3 1,420 RKJXV1220001 With Without 4 With RKJX21224001 1,420 5 1,484 1,484 5 Packing Specifications Tray Product No. Number of packages（pcs.） 1 case / Japan 1 case / export packing RKJXK 500 1,000 RKJXV 1,420 1,420 RKJX2 1,484 1,484 Export package measurements（mm） 540×373×225 544×364×178 *Products marked with a are not recommended for new designs Refer to P.397 for soldering conditions. 393 RKJXK RKJXV ThumbPointerTM（Stick Controller） RKJX2 *Products marked with a are not recommended for new designs Dimensions No. Unit:mm Photo PC board mounting hole dimensions （Viewed from mounting side） Style RKJXK1224 25.4 .9 ø7 16 a b 7.7 3.1 4-1.35 1 Square hole d 12.9 Prohibited wiring area 3.7 2.5 7.3 13.3 c 4.5 le ho 19.3 Multi Control Devices .5 ø1 4- 6 8.25 Return position ø2 5 2.6 5-ø All directions 60˚ 1 2 3 1 ③ ② ① hole 6-ø1 VR1 2 9 d c SW1 15.5 9 5 20.7 VR2 ① ② ③ 16 b a 1 2 3 .9 ø7 2 6-ø1 3.1 .6 4-ø2 Return position ø2 ③ ② ① hole 9 All directions ole .5 h 4-ø1 Prohibited wiring area 3.7 2.5 7.3 12.9 19.3 Switch Type VR1 60˚ 2 9 5 13.3 VR2 16 20.7 ① ② ③ Variable Resistor Type 15.5 5 22.7 16 1 2 3 RKJXK1210 RKJXK1220 1 2 3 RKJXV1224 18.2 13.15 6- φ 4-φ 3 VR1 2 1 2- φ 1 +00.1 ho 12.65 7 5 le 1.5 + 0.1 0 1.6 ho le ho ③ ② ① φ le c a b 3 d SW1 2 2.6 c b d 6 φ ho le 4- 46° max. a 4.5 2.9 4-1 Any direction 1 8 18.95 12.45 Dimension of VR 10.8 2. 3 Lever return position 4 5 7 10 13.15 21.7 VR2 8.73 ③ ②① +0 0 .1 3 4- φ 1. 2 2 1 2.2 6.5 7 8.6 φ3 .5 8.73 Height of boss Height to top frame 11.2 394 0.75±0.1 2.5 Prohibited wiring area RKJXK/RKJXV/RKJX2／ThumbPointerTM（Stick Controller） Dimensions No. Unit:mm Photo PC board mounting hole dimensions （Viewed from mounting side） Style RKJXV1220 17.8 13.15 6-φ 1h 12.65 7 5 ho le ③ ② ① ho le Ø4 3 2 1 8 4 8.73 2-φ 1.6 ole 7 21.3 13.15 VR1 φ1 .5 10 VR2 5 ③ ② ① 18.95 12.45 （10.8） 2.9 4φ 2. 6 2.6 Multi Control Devices Lever return position Any direction 2.2 φ3 .5 46° max. 7 3 2 1 8.6 8.73 Prohibited wiring area Height of boss 11.2 Variable Resistor Type 0.75 RKJX21224 13.7 ax. 33.45 3 8.45 22.15 18.4 14.6 Output Min 0.3 ax. Ø3 Sha.8 ft tip diam eter 23°m VR1 Output Max 5 15.6 7.8 3.8 1.5 Operation angle of knob 23°m .55 Switch Type 2-Ø1 4.4 Mounting surface SW out VR2 out A GND Vdd VR1 out VR2 Output Min Output Max DETAIL A 395 Multi Control Devices List of Varieties *Products marked with a are not recommended for new designs Potentiometer type Type RKJXK Series RKJXV RKJX2 RKJXU NEW Photo W 20.7 17.8 13.7 18.6 D 25.4 21.3 14.6 24.3 H 12.9 11.2 7.8 5.2 Shaft material Metal Dimensions （typical value） （mm） Resin Directional resolution Continuous Directional operating feeling （tactile feeling） Without Multi Control Devices Lever return mechanism With / Without With With / Without Center-push switch Without −10℃ to +50℃ −10℃ to ＋70℃ Without Encoder −10℃ to ＋70℃ Operating temperature range Operating life With Variable Resistor Type Directional operation 100,000 cycles 2,000,000 cycles 2,000,000 cycles 2,000,000 cycles Center-push 100,000 cycles 500,000 cycles 500,000 cycles ー ー ー ー ー Automotive use Life cycle (availability) 100MΩ min. 250V DC Insulation resistance Switch Type Electrical performance Mechanical performance ー 300mV p-p max. by JIS method 300mV p-p max. 300mV p-p max. by JIS method Directional operating force 8mN・m max. Without Lever return mechanism 6±4mN・m With Lever return mechanism 14±10mN･m 7 −3 　 mN・m 0.75±0.3N Push operating force 5.2±2.6N 7.4±3N 6±2.5N ー Lever return precision Actuator strength Environmental performance 250V AC for 1 minute Voltage proof Slider noise ー Push / pull directions Operating direction ＋5 ±5° ±0.1mm 50N min.（Push/Pull） 98N min.（Push） , 50N min.（Pull） 100N min.（Push）,30N min.（Pull） 0.3N･m ー 50N Cold −30℃ 96h Dry heat 80℃ 96h Damp heat 60℃, 90 to 95％RH 96h Page 393 396 Variable Resistor Type Multi Control Devices Soldering Conditions・ ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 397 Variable Resistor Type Multi Control Devices Cautions・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 397 390 Potentiometer Type Multi Control Devices / Soldering Conditions Reference for Manual Soldering Series Tip temperature Soldering time No. of solders 350℃max. 3s max. 1 time RKJXK, RKJXV Reference for Dip Soldering Series Preheating Heating time Soldering surface temperature Dip soldering Soldering temperature Soldering time No. of solders RKJXK 90 to 100℃ 45s max. 255 to 260℃ 2 to 3s 1 time RKJXV 90 to 120℃ 60s max. 260℃ 5s 1 time Potentiometer Type Multi Control Devices / Cautions 〔Circuit Used for Analog Stick Controller〕 3 Fig.A.Voltage divider type We recommend you use the potentiometer type in a voltage divider type as shown in Fig. A. 3 2 V 2 Multi Control Devices V 〔Impedance on the Output Side〕 [Fig.1] [Fig.2] 3 3 2 A/D 3 2 2 A/D 1 1 A/D 1 〔Dew Condensation〕 〔Soldering〕 Terminal Solder Solder Switch Type Avoid using the product when condensation or drops of water might occur inside the product. Otherwise, insulation deterioration or shorting may occur. Do not employ wiring designs and soldering methods as illustrated in the schematic drawing. Molten solder flowing over the upper surface of PC board can cause imperfect contacts. Solder all metal inserted fixing including terminals & metal lugs into a substrate. A/D Variable Resistor Type Since this pot is designed to use with its output is 3 connected directly to A /D port. lmpedance is considered to be mega ohm level. Then contact resistance in the pot 2 is higher. Please refer to「Fig. 1」. So when you use it in the 1 circuit like「Fig. 2」 .Please make sure that impedance should be over than 1M-ohm. 1 PC board 〔Stress Being Applied to the Terminals〕 Always be careful not to apply excessive stress on the terminals. Design appropriate soldering conditions. 〔Handling of Variable Resistors Equipped with Switches〕 Exercise care when packing or storing. Packaging or storing while load is applied to the shaft may cause a malfunction in performance. 〔Storage〕 ① Store the products as delivered, at a normal temperature and humidity, without direct sunshine and corrosive gas ambient. Use them at an earliest possible timing, not later than six months upon receipt. ② After breaking the seal, keep the products in a plastic bag to shut out ambient air, store them in the same environment as above, and use them up as soon as possible. ③ Do not stack too many switches. The above operation notes are quoted from the “Precaution and Guideline of Potentiometer for Electrical Devices”, a technical report issued by the Japan Electronics and Information Technology Industries Association EIAJ RCR-2191A（in March 2002）. For details, refer to the original technical report. 397 1
