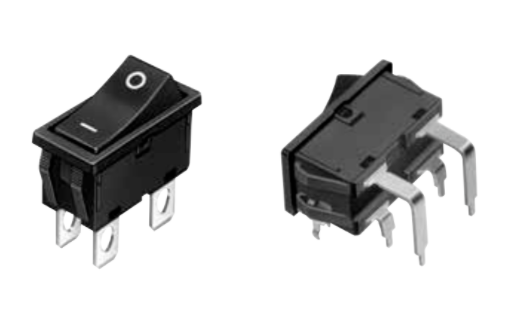

SDDJF1A100

2018/9/5 SDDJF1A Series - Basic information Slim Type Single Pole Rocker Type SDDJF1A Series Type Rocker Circuit arrangement SPST Travel 4.6mm Operating force 3±2N Mounting method Snap-in Terminal type For Lead Marking (knob) Without SEMKO (ENEC) 10(6)/250~, 8A/128A 250V~ Operating temperature range -10℃ to +55℃ Rating 8A/128A 250V~, 10(6)/250~ Electrical performance Mechanical performance Contact resistance 100mΩ max. Insulation resistance 500MΩ min. 500V DC Voltage proof 2,000V AC for 1 minute Terminal strength 50N for 1 minute Actuator strength Operating direction 25N Perpendicular direction 25N Durability Operating life 10,000 cycles 10A 250V AC Environmental performance Cold -20℃ 96h Dry heat 85℃ 96h Damp heat 40℃, 90 to 95%RH 96h Minimum order unit (pcs.) Japan 150 Export 750 https://www.alps.com/prod/info/E/HTML/Switch/Power/SDDJF1A/SDDJF1A100.html 1/3 2018/9/5 SDDJF1A Series - Basic information Dimensions Circuit Diagram Packing Specifications Tray Number of packages 1 case / Japan (pcs.) 1 case / export packing Export package measurements (mm) 150 750 400×270×290 https://www.alps.com/prod/info/E/HTML/Switch/Power/SDDJF1A/SDDJF1A100.html 2/3 2018/9/5 SDDJF1A Series - Basic information Soldering Conditions Reference for Hand Soldering Soldering temperature 350±10℃ Soldering time 3+1/0s Notes are common to this series/models. 1. This site catalog shows only outline specifications. When using the products, please obtain formal specifications for supply. 2. Please place purchase orders per minimum order unit (integer). https://www.alps.com/prod/info/E/HTML/Switch/Power/SDDJF1A/SDDJF1A100.html 3/3
