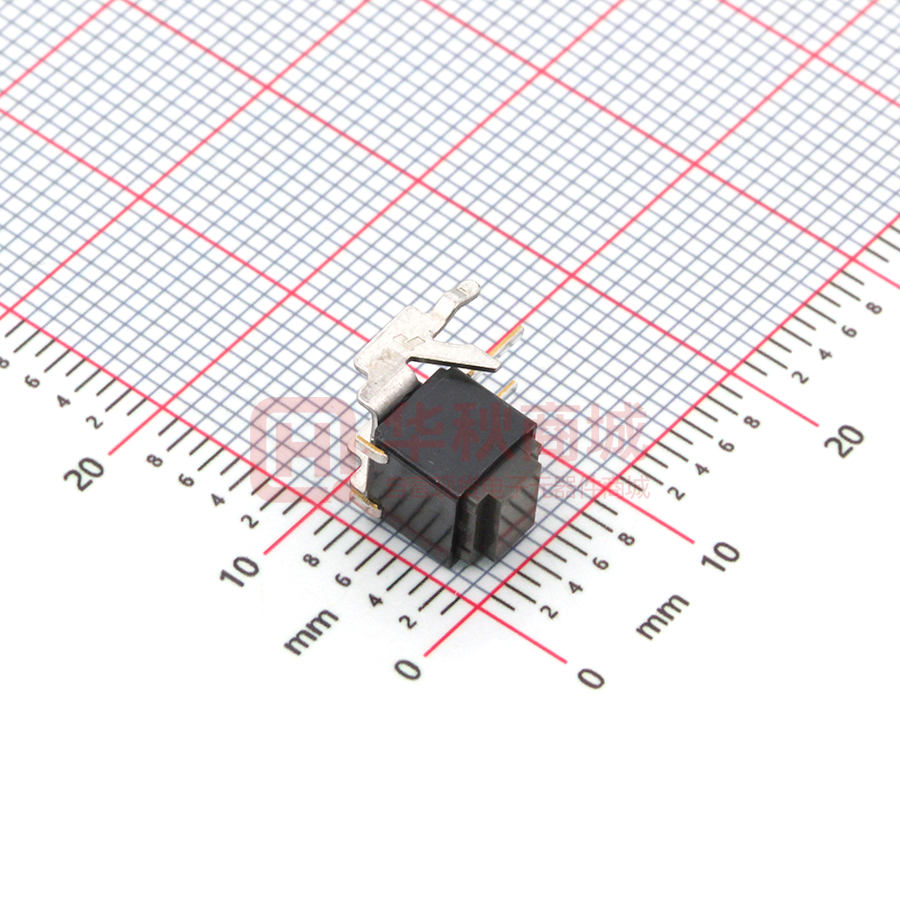

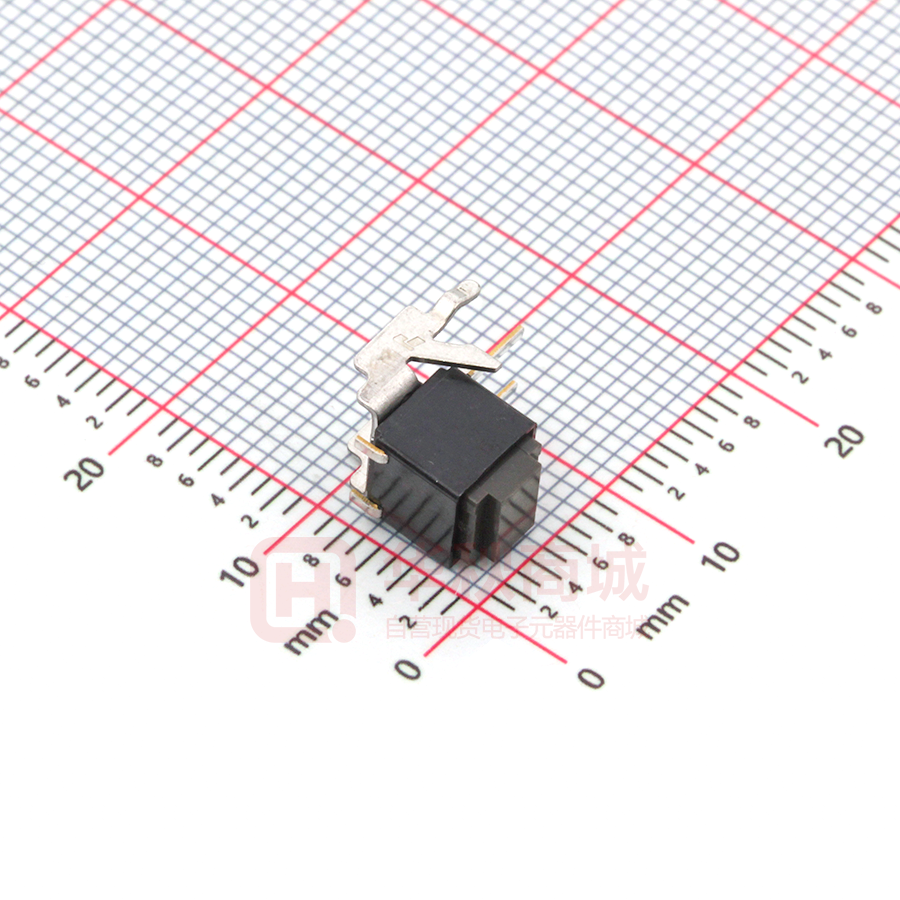

SKEGLBA010

SKEG 6mm Square (Snap-in Type) TM 検　Switch 出 TACT Switch with soft operating feel available also as joint stem and sidepush types ■ Typical Specifications Items Specifications Rating（max.） 5mA 12V DC Rating（min.） 10μA 1V DC Sharp Feeling Initial contact resistance 1kΩ max. Travel（mm） 1 Soft Feeling ■ Product Line Top push type Operating life （1mA 5V DC） SKEGACA010 0.78N Ivory SKEGAEA010 1.96N Dark gray SKEGADA010 0.78N SKEGAFA010 1.96N Operating direction Top push 100,000 cycles Stem color Stem Minimum order unit（pcs.） Drawing No. Japan Export Joint stem 1 1,000 Ivory 1,000 Flat stem Dark gray 2 Surface Mount Type Operating force Snap-in Type Product No. Side push type Operating force SKEGLAA010 0.78N SKEGLBA010 1.96N Operating direction Operating life （1mA 5V DC） Side push 50,000 cycles Stem color Black Dark gray Minimum order unit（pcs.） Drawing No. Japan Export 1,000 1,000 Radial Type Product No. 3 Packing Specifications Bulk Number of packages（pcs.） 1 case / Japan 1 case / export packing Export package measurements （mm） 10,000 30,000 353×764×309 Dimensions No. Unit:mm Photo PC board mounting hole dimensions （Viewed from switch mounting face） Style Joint stem type 4 4.4 1 H5 H6 1 2.1 0.7 Stem 1 2-ø1.25 hole 3.5 5.5 7 9 5.5 1 5.5 2 1 Refer to P.259 for soldering conditions. 251 SKEG 6mm Square (Snap-in Type) TACT SwitchTM Dimensions No. Unit:mm Photo PC board mounting hole dimensions （Viewed from switch mounting face） Style Flat stem type H6 Sharp Feeling 3 0.8 2 2-ø1.25 hole Stem H5 7 3.5 5.5 Soft Feeling 5.5 Snap-in Type 1 5.5 2 1 Side push type Surface Mount Type 2-ø1.3 hole Radial Type 2.57 Stem 3 4.5 2-ø1 hole 7 1 2 Note Circuit Diagram Please use 1.6mm thick PC boards.（For horizontal type, 1.0mm） 2 1 Product Line of Knobs Applicable model Unit:mm Variety Dimensions Color Label dimensions Model H6 Keytop+Cap 4RO .5 4 Red Blue Ivory Black Yellow Notes 1. The knob will be delivered together with the switch but packed separately. 2. The label is not included. 252 SK2AA00540 Keytop Key top Applicable to joint stem type Clear Cap 3 SKEG H7.4 H6 Cap SK2AA00310 SK2AA00320 SK2AA00330 SK2AA00340 SK2AA00350 SK2AA00360 SK2AA00370 SK2AA00380 SK2AA00390 SK2AA00400 Thickness 0.1 TACT SwitchTM List of Varieties TACT SwitchTM Soft Feeling Type Type Snap–in Series Surface Mount Radial SKEG SKEG SKPF SKPM SKPG SKPR SKPL SKPD Features — — High operation force Long travel Low contact resistance — Water-proof — — — — — — — — Dust-proof — — — — — — — — IP standard — — — — — — — — Top push ● — ● ● ● ● ● ● Side push — ● — — — — — — 7.5 8 5.9 6.6 7.5 9.9 9 6 6.3 7.8 V6.45 □7.8 7.3 10 5 See the relevant pages for respective product descriptions Photo Sharp Feeling Soft Feeling Operating direction Snap-in Type W Dimensions （mm） □6 D See the relevant pages for respective product descriptions H Surface Mount Type Contact Carbon 5 High operation force Round terminal Low contact resistance Low contact resistance 6.5 Silver Carbon Silver — Carbon to 1N 1N to 2N Operation force coverage 2N to 3N 3N to 4N Radial Type 4N to 5N Travel（mm） Ground terminal Operating temperature range Automotive use See the relevant pages for respective product descriptions 1 — — — 1.3 — — −20℃ to ＋70℃ — 1 1.3 See the relevant pages for respective product descriptions — — — ● ● −40℃ to ＋90℃ — ● ● ● 50mA 16V DC 5mA 12V DC ● Life Cycle Rating（max.） （Resistive load） 5mA 12V DC Rating（min.） Electrical （Resistive load） performance Insulation resistance 5mA 12V DC 10μA 1V DC 100MΩ min. 100V DC 1min. 50MΩ min. 100V DC 1min. SKPDAF: 100MΩ min.  100V DC 1min. 250V AC 1min. 100V AC 1min. SKPDAF: 250V DC 1min. Voltage proof Vibration 10 to 55 to 10Hz/min., the amplitude is 1.5mm for all the frequencies, in the 3 direction of X, Y and Z for 2 hours respectively Lifetime Shall be in accordance with individual specifications. Durability Environmental performance 50mA 16V DC Cold −30℃ 96h −40℃ 96h −40℃ 1,000h −40℃ 96h −40℃ 1,000h −40℃ 96h Dry heat 80℃ 96h 90℃ 96h 90℃ 1,000h 90℃ 96h 90℃ 1,000h 90℃ 96h 60℃, 90 to 95%RH 1,000h 60℃, 90 to 95%RH 96h 60℃, 90 to 95%RH 1,000h 60℃, 90 to 95%RH 96h 254 255 Damp heat Page 60℃, 90 to 95%RH 96h 251 253 256 257 258 W：Width. The most outer dimension excluding terminal portion. D ：Depth. The most outer dimension excluding terminal portion. H ：Height. The minimum dimension if there are variances. TACT SwitchTM Soldering Conditions・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 259 TACT SwitchTM Cautions・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 260 Notes 1. The automotive operating temperature range to be individually discussed upon request. 2. ● Indicates applicability to all products in the series, while ○ indicates applicability to some products in the series. 192 TACT SwitchTM Soldering Conditions TM 検　Switch 出 TACT Condition for Reflow Available for Surface Mount Type. 1. Temperature measurement: Thermocouple φ 0.1 to 0.2 CA（K）or CC（T）at solder joints 　（copper foil surface） . A heat resistive tape should be used to fix thermocouple. 2. Temperature profile Temperature (˚C ) 260˚C max. 3 sec max. Sharp Feeling 230˚C 180 150 Time Soft Feeling 120 sec max. （pre-heating） 40s max. 3 to 4min. Time inside soldering equipment Manual Soldering Condition Flux built-up Mounting surface should not be exposed to flux Preheating temperature Ambient temperature of the soldered surface of PC board. 100℃ max. Items Condition Soldering temperature 350℃ max. Duration of soldering 3s max. Capacity of soldering iron 60W max. Preheating time 60s　max. Soldering temperature 260℃ max. Duration of immersion 5s max. Items Condition 2times max. Soldering temperature 360℃ max. Number of soldering SKHH, SKPD Series Radial Type Items Surface Mount Type Conditions for Auto-dip Available for Snap-in Type and Radial Type. Snap-in Type Notes 1. The above temperature shall be measured of the top of switch. There are cases where the PC board's temperature greatly differs from that of the switch, depending on the material, size, thickness of PC boards and others. 　 The above-stated conditions shall also apply to switch surface temperatures. 2. Soldering conditions differ depending on reflow soldering machines. Prior verification of soldering condition is highly recommended. SKHH, SKHW, SKRG, SKPD Series Duration of soldering 3s max. Capacity of soldering iron 60W max. Items Condition Flux built-up Mounting surface should not be exposed to flux Preheating temperature Ambient temperature of the soldered surface of PC board. 110℃ max. Items Condition Preheating time 60s　max. Soldering temperature 350℃ max. Soldering temperature 260℃ max. Duration of soldering 3s max. Duration of immersion 5s max. Capacity of soldering iron 20W max. Number of soldering 2times max. SKTD, SKTG, SKQJ, SKQK, SKEG Series SKQJ, SKQK, SKEG Series Items Condition Flux built-up Mounting surface should not be exposed to flux Preheating temperature Ambient temperature of the soldered surface of PC board. 100℃ max. Preheating time 45s　max. Soldering temperature 255℃ max. Duration of immersion 5s max. Number of soldering 2times max. Notes 1. Prevent flux penetration from the top side of the TACT SwitchTM. 2. Switch terminals and a PC board should not be coated with flux prior to soldering. 3. The second soldering should be done after the switch is stable with normal temperature. 4. Use the flux with a specific gravity of min 0.81. （EC-19S-8 by TAMURA Corporation, or equivalents.） 259
