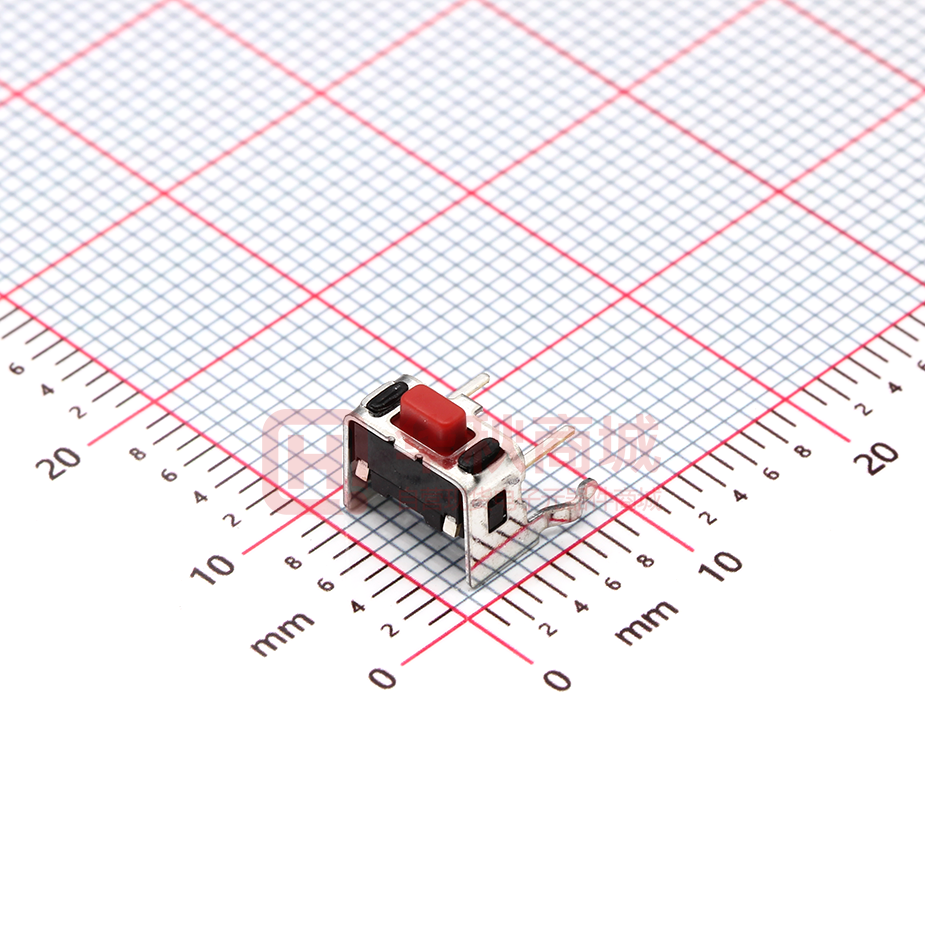

SKHL 6×3.5mm Compact (Snap-in Type) TACT SwitchTM Switch contributing to high-density mounting, available with top or side push operation ■ Typical Specifications Items Specifications 50mA 12V DC Rating（min.） 10μA 1V DC Initial contact resistance 500mΩ max. Travel（mm） Sharp Feeling Rating（max.） 0.25 Soft Feeling ■ Product Line Top push type Operating force SKHLAAA010 0.98N Operating direction Operating life （5mA 5V DC） Stem color Height Minimum order unit（pcs.） Export Drawing No. 1,000 1,000 1 Black 50,000 cycles SKHLACA010 1.57N SKHLAJA010 2.55N Dark gray 30,000 cycles h=4.3mm Red Top push SKHLABA010 0.98N SKHLADA010 1.57N SKHLAKA010 2.55N Black Surface Mount Type Japan Snap-in Type Product No. 50,000 cycles 30,000 cycles Red Operating life （5mA 5V DC） Stem color h=5mm Radial Type Dark gray Side push type Product No. Operating force SKHLLAA010 0.98N Operating direction 1.57N SKHLLFA010 2.55N SKHLLCA010 0.98N Dark gray Side push 30,000 cycles Japan Export Drawing No. 1,000 1,000 2 Black 1.57N ℓ=3.5mm （PC board t : 1.6） Red 50,000 cycles SKHLLDA010 Minimum order unit（pcs.） Black 50,000 cycles SKHLLBA010 Terminal length Dark gray ℓ=2.5mm （PC board t : 1.0） ■ Packing Specifications Bulk Number of packages（pcs.） 1 case / Japan 1 case / export packing Export package measurements（mm） 10,000 30,000 309×476×347 Refer to P.235 for soldering conditions. 173 SKHL 6×3.5mm Compact (Snap-in Type) TACT SwitchTM ■ Dimensions No. Unit:mm Photo PC board mounting hole dimensions （Viewed from switch mounting face） Style Top push h Sharp Feeling 4.3 6 3.5 5 Soft Feeling 1 2 Stem 2-ø1.25 hole 1.5 3 1 3.5 h Snap-in Type 3.5 6.5 Surface Mount Type 1 6.5 Radial Type Side push ℓ PWB 2.5 t 1.0 3.5 t 1.6 7.3 3 Stem 5 7 R 4.3 2.5 1.6 2 2.5 2-ø1.3 hole 0.5 1 ■ Circuit Diagram 1 174 2 0.5 5 7 2 0.3 3.72 1 2.5 2-ø1 hole TACT SwitchTM List of Varieties TACT SwitchTM Sharp Feeling Type Type Snap–in SKHL SKHH SKHW SKQJ SKQB SKQE SKHC Features — — — — — Long-life — Water-proof — — — — ● — — Dustproof — — ● ● ● ● — IP standard — — — — — — — Top push ● ● ● ● ● ● ● Side push — — — — — — — W 6 D 3.5 □6.6 □10 □12 H 4.3/5 4.3/5 5 5/13/23.2 See the relevant pages for respective product descriptions 0.3 0.25 — — Series Photo Sharp Feeling Soft Feeling Operating direction Snap-in Type Dimensions （mm） □6 See the relevant pages for respective product descriptions Surface Mount Type 1N max. 1N to 2N Operation force coverage 2N to 3N 3N to 4N 4N to 5N Radial Type Travel（mm） Ground terminal 0.25 — Operating temperature range Automotive use ○ −40℃ to ＋90℃ ● ● 0.3 — −20℃ to ＋70℃ — — −40℃ to ＋90℃ — ● — — −40℃ to ＋85℃ — Life Cycle Electrical performance Rating（max.） （Resistive load） 50mA 12V DC Rating（min.） （Resistive load） 10μA 1V DC Insulation resistance 100MΩ min. 100V DC 1min. Voltage proof 250V AC 1min. Vibration 10 to 55 to 10Hz/min., the amplitude is 1.5mm for all the frequencies, in the 3 direction of X, Y and Z for 2 hours respectively Lifetime Shall be in accordance with individual specifications. Durability Environmental performance Cold −40℃ 96h −30℃ 96h −40℃ 96h Dry heat 90℃ 96h 80℃ 96h 90℃ 96h Damp heat Page 60℃, 90 to 95%RH 1,000h 60℃, 90 to 95%RH 96h 173 175 179 180 182 60℃, 90 to 95%RH 96h 184 186 W：Width. The most outer dimension excluding terminal portion. D ：Depth. The most outer dimension excluding terminal portion. H ：Height. The minimum dimension if there are variances. TACT SwitchTM Soldering Conditions・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 235 TACT SwitchTM Cautions・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 236 Notes 1. The automotive operating temperature range to be individually discussed upon request. 2. ● Indicates applicability to all products in the series, while ○ indicates applicability to some products in the series. 166 Snap–in Radial SKHL SKHH SKQJ SKQB SKRC Features — — — — Round terminal type Water-proof — — — ● ● Dustproof — — ● ● ● IP standard — — — — — Top push — — — — ● Side push ● ● ● ● — W 7.3 7.5 7.5 11.5 D 7.22 7.85 7.85 11.9 H 4.3 7.4 7.3 11.3 13 0.3 0.25 — — — −20℃ to +70℃ −40℃ to +95℃ −30℃ to ＋85℃ — ● — Series TACT SwitchTM Sharp Feeling Type Type Photo Surface Mount Type 1N max. 1N to 2N Operation force coverage Snap-in Type φ9 Soft Feeling Dimensions （mm） Sharp Feeling Operating direction 2N to 3N 3N to 4N 4N to 5N Ground terminal 0.25 ● Operating temperature range Automotive use ● −40℃ to ＋90℃ ● ● Radial Type Travel（mm） Life Cycle Electrical performance Rating（max.） （Resistive load） 50mA 12V DC Rating（min.） （Resistive load） 10μA 1V DC Insulation resistance 100MΩ min. 100V DC 1min. Voltage proof 250V AC 1min. Vibration 10 to 55 to 10Hz/min., the amplitude is 1.5mm for all the frequencies, in the 3 direction of X, Y and Z for 2 hours respectively Lifetime Shall be in accordance with individual specifications. Durability Environmental performance Cold −40℃ 96h −30℃ 96h −40℃ 96h Dry heat 90℃ 96h 80℃ 96h 90℃ 96h Damp heat Page 60℃, 90 to 95%RH 96h 173 175 60℃, 90 to 95%RH 1,000h 180 182 228 W：Width. The most outer dimension excluding terminal portion. D ：Depth. The most outer dimension excluding terminal portion. H ：Height. The minimum dimension if there are variances. TACT SwitchTM Soldering Conditions・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 235 TACT SwitchTM Cautions・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 236 Notes 1. The automotive operating temperature range to be individually discussed upon request. 2. ● Indicates applicability to all products in the series. 167 TACT SwitchTM / Soldering Conditions TACT SwitchTM ■ Condition for Reflow Available for Surface Mount Type. Temperature profile Temperature (˚C ) 260˚C max. 3s max. Sharp Feeling 230˚C 180 150 Soft Feeling Time 120s max. （pre-heating） 40s max. 3 to 4min. Snap-in Type Time inside soldering equipment Notes 1. Please confirm the specifications of our product for the detailed condition. 2. Soldering conditions differ depending on reflow soldering machines. Prior verification of soldering condition is highly recommended. Surface Mount Type ■ Conditions for Auto-dip ■ Manual Soldering Available for Snap-in Type and Radial Type. Condition Flux built-up Mounting surface should not be exposed to flux Preheating temperature Ambient temperature of the soldered surface of PC board. 100℃ max. Items Condition Soldering temperature 350℃ max. Duration of soldering 3s max. Capacity of soldering iron 60W max. Preheating time 60s　max. Soldering temperature 260℃ max. Duration of immersion 5s max. Items Condition 2times max. Soldering temperature 360℃ max. Number of soldering SKHH Series Radial Type Items SKHH, SKHW Series Duration of soldering 3s max. Capacity of soldering iron 60W max. Items Condition Flux built-up Mounting surface should not be exposed to flux Preheating temperature Ambient temperature of the soldered surface of PC board. 110℃ max. Items Condition Preheating time 60s　max. Soldering temperature 350℃ max. Soldering temperature 260℃ max. Duration of soldering 3s max. Duration of immersion 5s max. Capacity of soldering iron 20W max. Number of soldering 2times max. SKTD, SKTG, SKQJ, SKSN Series SKHLTop Push Type, SKQJ Series Items Condition Flux built-up Mounting surface should not be exposed to flux Preheating temperature Ambient temperature of the soldered surface of PC board. 100℃ max. Preheating time 45s　max. Soldering temperature 255℃ max. Duration of immersion 5s max. Number of soldering 2times max. Notes 1. Prevent flux penetration from the top side of the TACT SwitchTM. 2. Switch terminals and a PC board should not be coated with flux prior to soldering. 3. The second soldering should be done after the switch is stable with normal temperature. 4. Use the flux with a specific gravity of min 0.81. （EC-19S-8 by TAMURA CORPORATION, or equivalents.） 235
