SKHU
6.2 × 6.3mm (Surface Mount Type)
TACT SwitchTM
A wide variety of products including dust-proof type
■ Typical Specifications
Items
Specifications
Sharp
Feeling
Rating(max.)
50mA 12V DC
Rating(min.)
10μA 1V DC
Initial contact resistance
100mΩ max.
Travel(mm)
0.25
Soft
Feeling
■ Product Line
Top push type
Snap-in
Type
Surface
Mount Type
Product No.
Operating force

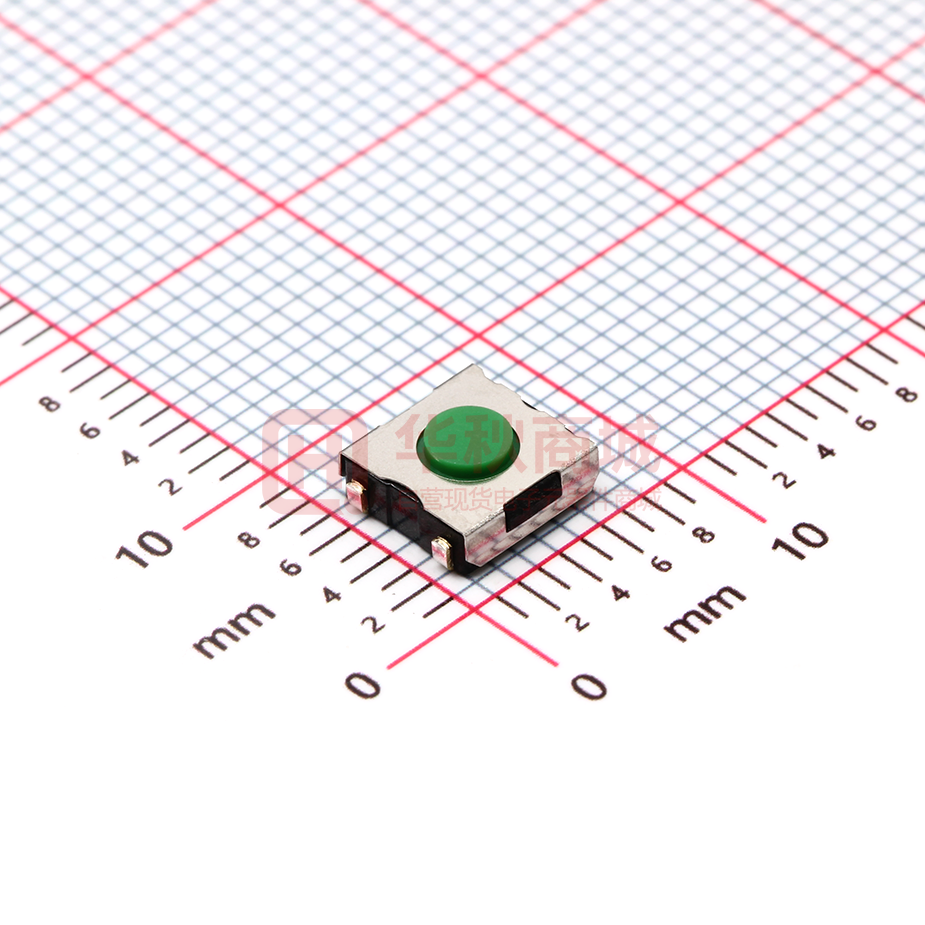

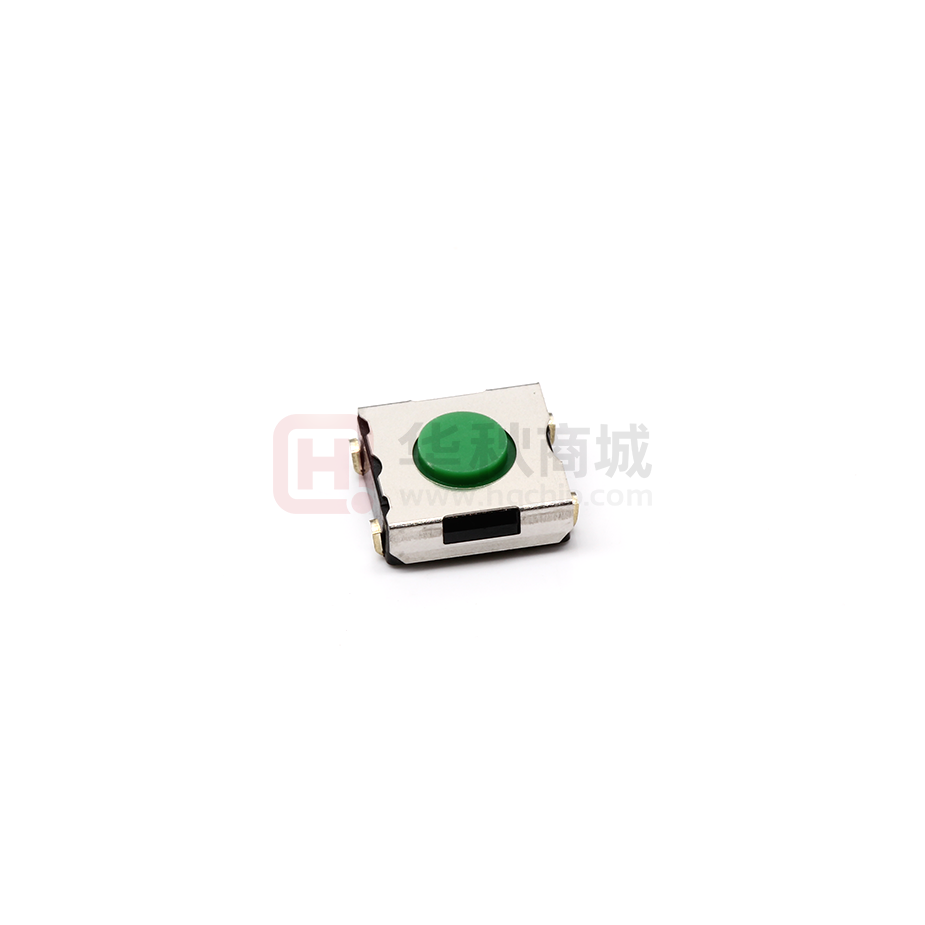

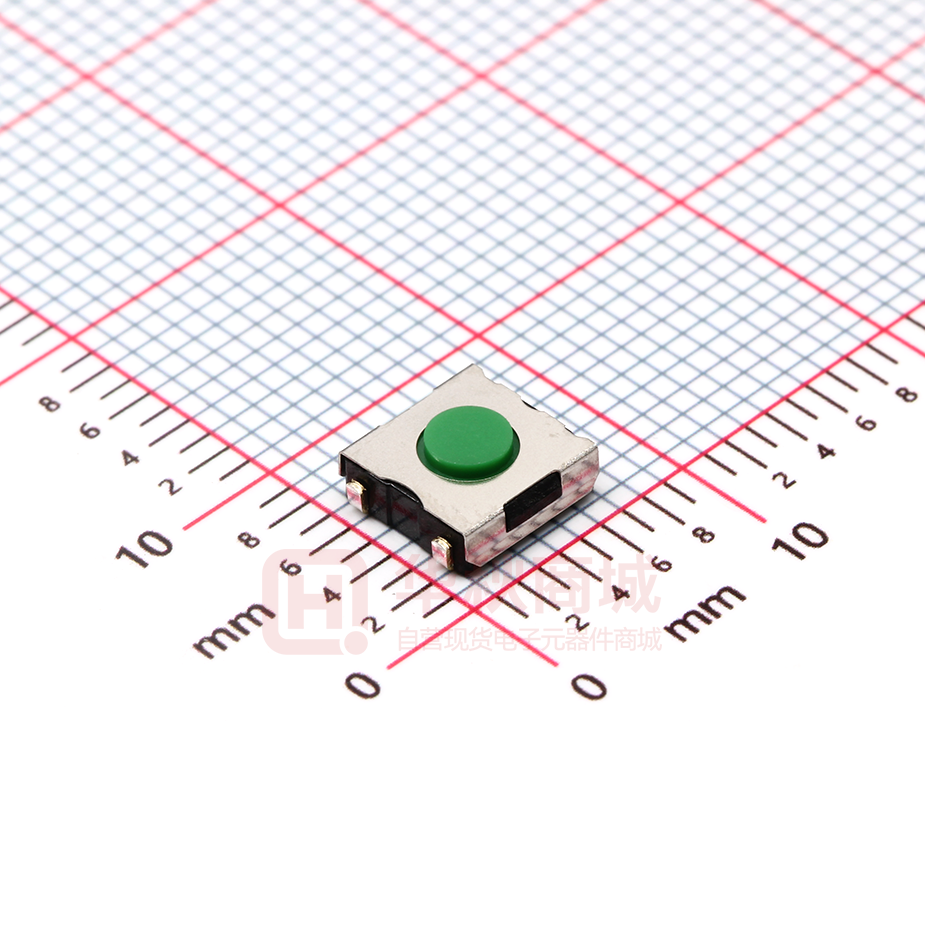

SKHUAKE010
0.98N
SKHUALE010
1.57N
SKHUAME010
2.55N
Operating
direction
Operating life
(5mA 5V DC)
Stem color
Stem height
Minimum order unit(pcs.)
Japan
Export
Drawing
No.
3,000
3,000
1
Green
300,000 cycles
Top push
Black
Radial
Type
100,000 cycles
Red
Operating life
(5mA 5V DC)
Stem color
2.5mm
With ground terminal type
Product No.
Operating force
SKHUPKE010
0.98N
SKHUPLE010
1.57N
SKHUPME010
2.55N
Operating
direction
Stem height
Minimum order unit(pcs.)
Japan
Export
Drawing
No.
3,000
3,000
2
Green
300,000 cycles
Black
Top push
100,000 cycles
Red
2.5mm
Dust-proof type
Product No.
Operating force
Operating
direction
Operating life
(5mA 5V DC)
Stem color
Stem height
SKHUBHE010
1.57N
Top push
50,000 cycles
Brown
3.1mm
Operating
direction
Operating life
(5mA 5V DC)
Stem color
Stem height
Top push
50,000 cycles
Minimum order unit(pcs.)
Japan
Export
Drawing
No
3,000
3,000
3
Dust-proof and with ground terminal type
Product No.
Operating force
SKHUQHE010
1.57N
SKHUQGE010
2.55N
Minimum order unit(pcs.)
Japan
Export
Drawing
No
3,000
3,000
4
Brown
3.1mm
Red
■ Packing Specifications
Taping
Unit:mm
Number of packages(pcs.)
1 reel
3,000
1 case / Japan 1 case / export packing
30,000
30,000
Tape width
(mm)
Export package
measurements(mm)
12
395×395×205
Reel size
Note
For reels of 330mm diameter, please inquire.
Refer to P.265 for soldering conditions.
242
SKHU/6.2 × 6.3mm (Surface Mount Type)
No.
Unit:mm
PC board land dimensions
(Viewed from switch mounting face)
Style
TM
検 Switch
出
TACT
■ Dimensions
Top push type
2
1
Sharp
Feeling
2.6
1
3
5.4
9.5
4
4
Soft
Feeling
Stem
Snap-in
Type
With ground terminal type
2
2.6
5
3
4
Ground terminal land
3.1
Stem
Surface
Mount Type
2
1.4
9.5
4
5.4
1
Radial
Type
Dust–proof type
2
1
2.6
3
3
Stem
5.4
9.5
4
4
Dust–proof and with
ground terminal type
5
3
Stem
4
Ground terminal land
5.4
4
2.6
9.5
4
1.4
2
1
3.1
■ Circuit Diagram
Top push type
With ground terminal type
1
2
3
4
1
2
3
4
5
243
Surface Mount
SKHU
SKTD
SKSN
SKSC
SKRT
SKRH
Features
—
Low–profile
Mid-mount
Low–profile
—
4–direction
switch
+push switch
Water-proof
○
●
—
●
—
—
—
—
Dust-proof
○
●
—
●
—
—
—
—
IP standard
—
67 equivalency
—
67 equivalency
—
—
—
—
Top push
●
—
—
—
—
—
—
●
Side push
—
●
●
●
●
●
●
●
W
6.2
3.9
6.2
5.2
4.5
3.5
4.5
7.35
D
6.3
2.9
3
3.5
2.6
3.55
3.4
7.5
H
2.5/3.1
1.55
3.5
1.55
2.2
1.25
3.3
5
Series
SKTG
SKSL
TM
検 Switch
出
TACT
Sharp Feeling Type
Type
2N to 3N
3N to 4N
4N to 5N
0.25
0.15
0.2
Ground terminal
●
●
●
Operating temperature range
−40℃ to +85℃
−30℃ to +85℃
−40℃ to +85℃
Automotive use
○
—
—
0.15
See the relevant pages for
respective product
description
0.2
●
●
○
−30℃ to +85℃
—
—
●
●
−40℃ to +90℃
−40℃ to +85℃
—
—
250V AC 1min.
100V AC
1min.
—
Radial
Type
Travel(mm)
Surface
Mount Type
See the relevant
pages for
respective
product
description
1N to 2N
Operation
force
coverage
Snap-in
Type
1N max.
Soft
Feeling
Dimensions
(mm)
Sharp
Feeling
Operating
direction
Half-mount
Life Cycle
Electrical
performance
Rating(max.)
(Resistive load)
50mA 12V DC
Rating(min.)
(Resistive load)
10μA 1V DC
Insulation resistance
100MΩ min. 100V DC 1min.
Voltage proof
250V AC 1min.
250V AC 1min.
100V AC 1min.
Vibration
10 to 55 to 10Hz/min., the amplitude is 1.5mm for all the frequencies,
in the 3 direction of X, Y and Z for 2 hours respectively
Lifetime
Shall be in accordance with individual specifications.
Cold
−40℃ 96h
Durability
Environmental
performance
100V AC 1min.
Dry heat
90℃ 96h
85℃ 96h
90℃ 96h
Damp heat
Page
85℃ 96h
90℃ 96h
60℃, 90 to 95%RH 96h
242
244
245
246
247
248
250
465
W:Width. The most outer dimension excluding terminal portion.
D :Depth. The most outer dimension excluding terminal portion.
H :Height. The minimum dimension if there are variances.
TACT SwitchTM Soldering Conditions・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 265
TACT SwitchTM Cautions・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 266
Notes
1. The automotive operating temperature range to be individually discussed upon request.
2. ● Indicates applicability to all products in the series, while ○ indicates applicability to some products in the series.
193
TACT SwitchTM Soldering Conditions
TM
検 Switch
出
TACT
■ Condition for Reflow
Available for Surface Mount Type.
1. Temperature measurement: Thermocouple φ 0.1 to 0.2 CA(K)or CC(T)at solder joints
(copper foil surface).
A heat resistive tape should be used to fix thermocouple.
2. Temperature profile
Temperature (˚C )
260˚C max. 3 sec max.
Sharp
Feeling
230˚C
180
150
Time
Soft
Feeling
120 sec max.
(pre-heating)
40s max.
3 to 4min.
Time inside soldering equipment
■ Manual Soldering
Available for Snap-in Type and Radial Type.
Condition
Flux built-up
Mounting surface should not be exposed to flux
Preheating temperature Ambient temperature of the soldered surface of PC board. 100℃ max.
Items
Condition
Soldering temperature
350℃ max.
Duration of soldering
3s max.
Capacity of soldering iron
60W max.
Preheating time
60s max.
Soldering temperature
260℃ max.
Duration of immersion
5s max.
Items
Condition
Number of soldering
2times max.
Soldering temperature
360℃ max.
Duration of soldering
3s max.
Capacity of soldering iron
60W max.
SKHH, SKPD Series
Radial
Type
Items
Surface
Mount Type
■ Conditions for Auto-dip
Snap-in
Type
Notes
1. The above temperature shall be measured of the top of switch. There are cases where the PC board's temperature greatly
differs from that of the switch, depending on the material, size, thickness of PC boards and others.
The above-stated conditions shall also apply to switch surface temperatures.
2. Soldering conditions differ depending on reflow soldering machines.
Prior verification of soldering condition is highly recommended.
SKHH, SKHW, SKRG, SKPD Series
Items
Condition
Flux built-up
Mounting surface should not be exposed to flux
Preheating temperature
Ambient temperature of the soldered surface of PC board. 110℃ max.
Items
Condition
Preheating time
60s max.
Soldering temperature
350℃ max.
Soldering temperature
260℃ max.
Duration of soldering
3s max.
Duration of immersion
5s max.
Capacity of soldering iron
20W max.
Number of soldering
2times max.
SKTD, SKTG, SKQJ, SKQK, SKEG Series
SKQJ, SKQK, SKEG Series
Items
Condition
Flux built-up
Mounting surface should not be exposed to flux
Preheating temperature
Ambient temperature of the soldered surface of PC board. 100℃ max.
Preheating time
45s max.
Soldering temperature
255℃ max.
Duration of immersion
5s max.
Number of soldering
2times max.
Notes
1. Prevent flux penetration from the top side of the TACT SwitchTM.
2. Switch terminals and a PC board should not be coated with flux prior to soldering.
3. The second soldering should be done after the switch is stable with normal temperature.
4. Use the flux with a specific gravity of min 0.81.
(EC-19S-8 by TAMURA Corporation, or equivalents.)
265
