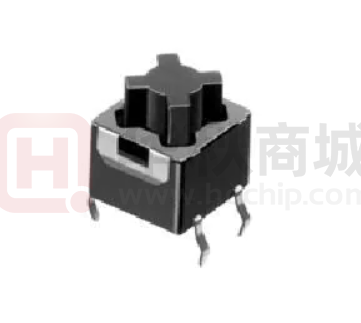

TACT SwitchTM Long-travel with High Operation Force (Snap-in Type) SKPF Series 8G9mm size. Combination of long travel and high operation force prevent malfunction. Detector Push Slide Rotary Encoders Power Dual-in-line Package Type TACT SwitchTM CustomProducts Product Line Product No. SKPFAAA010 SKPFACA010 Operating Operating Travel Rating Rating Operating life Initial contact direction （mm） （max.） （min.） （5mA 5V DC） force resistance 3.92N Vertical 1.96N 1.75 5mA 12V DC 10BA 1V DC 100,000cycles 1kΩ max. Minimum order unit（pcs.） 1,000 Sharp Feeling Soft Feeling Snap-in Type Surface Mount Type Radial Type Dimensions Style 8 1 ø4 Unit:mm PC board mounting hole dimensions （Viewed from switch mounting face） 2 8 9 4 3 8.7 10 6.8 4-ø1 holes 3.5 8.7 0.7 4.5 0.7 Circuit Diagram 1 3 2 4 Note Using a 1.6mm thick PC board is recommended. Refer to P.306 for soldering conditions. 300 4.5 TACT SwitchTM List of Varieties Soft Feeling Type Series SKEG SKPE SKEG SKEY SKPF SKPM SKPN SKPG SKPL SKPD Detector Push Type Features Operating direction Electrical performance Durability Environmental performance Vertical Horizontal W Dimensions （mm） □6 ● ― 6.6 6.3 7 5 ― ● Snap–in Horizontal type ― ● 7.5 □7.8 9.9 7.3 Carbon 5 9 10 6 5 Silver 6.7 7 Carbon 6.3 5 Silver Carbon 8 5.9 ― ● High operation force and long stroke ● Surface mount Low contact resistance ● ● ― ― ● Radial Round terminal and low contact resistance ● Photo Slide ― Rotary ● Encoders Power 6 6.6 V6.45 □7.8 D H Dual-in-line Package Type TACT SwitchTM Contact 1N Operation force coverage 5N Ground terminal Operating temperature range Insulation resistance Voltage proof Vibration Lifetime Cold Dry heat Damp heat Page 296 298 CustomProducts ― ｰ20℃ to ＋70℃ SKEG ｰ40℃ to ＋90℃ 100MΩ min. 100V DC SKEY/PD：50MΩ min. 100V DC 250V AC for 1min. SKPN : 200V AC for 1min. SKEY/PD : 100V AC for 1min. 10 to 55 to 10Hz/min., the amplitude is 1.5mm for all the frequencies, in the 3 direction of X, Y and Z for 2hours respectively Shall be in accordance with individual specifications. ｰ30±2℃ for 96h 80±2℃ for 96h 60±2℃, 90 to 95%RH for 96h 296 299 300 301 302 303 304 305 Sharp Feeling Soft Feeling Snap-in Type Surface Mount Type Radial Type W：Width. The most outer dimension excluding terminal portion. D ：Depth. The most outer dimension excluding terminal portion. H ：Height. The minimum dimension if there are variances. ● TACT SwitchTM Soldering Conditions ………………………………………………………………………………………306 ● TACT SwitchTM Cautions ………………………………………………………………………………………………………307 ● Product Line of Knob for TACT SwitchTM ……………………………………………………………………………………308 251 TACT SwitchTM Soldering Conditions Condition for Reflow Available for Surface Mount Type. 1. Heating method: Double heating method with infrared heater. 2. Temperature measurement: Thermocouple 0.1 to 0.2φ CA K） CC T） solder joints copper foil surface） A heat resistive tape （ or （ at （ . Detector Push Slide Rotary Encoders Power should be used to fix thermocouple. 3. Temperature profile Temperature (˚C ) 260˚C max. 3 sec max. 180 150 Time 230˚C Dual-in-line Package Type TACT SwitchTM 120 sec max. pre-heating ） （ 3 to 4min. 40s max. CustomProducts Time inside soldering equipment Note 1. The above temperature shall be measured on the mounting surface of a PC board. There are cases where the PC board's temperature greatly differs from that of the switch, depending on the material, size, thickness of PC boards and others. The above-stated conditions shall also apply to switch surface temperatures. 2. Soldering conditions differ depending on reflow soldering machines. Prior verification of soldering condition is highly recommended. Sharp Feeling Soft Feeling Snap-in Type Surface Mount Type Radial Type Conditions for Auto-dip Available for Snap-in Type and Radial Type （Except SKHJ, SKHL, SKQJ, SKQK, SKEG series） Items Flux built-up Condition Mounting surface should not be exposed to fluk Ambient temperature of the soldered surface of PC board. 100℃ max. 60s max. 260℃ max. 5s max. 2times max. Manual Soldering（Except SKRT Series） Items Soldering temperature Duration of soldering Capacity of soldering iron Condition 350℃max. 3s max. 60W max. Preheating temperature Preheating time Soldering temperature Duration of immersion Number of soldering Notes 1. 2. 3. 4. 5. Consult with us for availability of TACT SwitchTM washing. Prevent flux penetration from the top side of the TACT SwitchTM. Switch terminals and a PC board should not be coated with flux prior to soldering. The second soldering should be done after the switch is stable with normal temperature. Use the flux with a specific gravity of min 0.81. （EC-19S-8 by TAMURA Corporation, or equivalents.） 306
