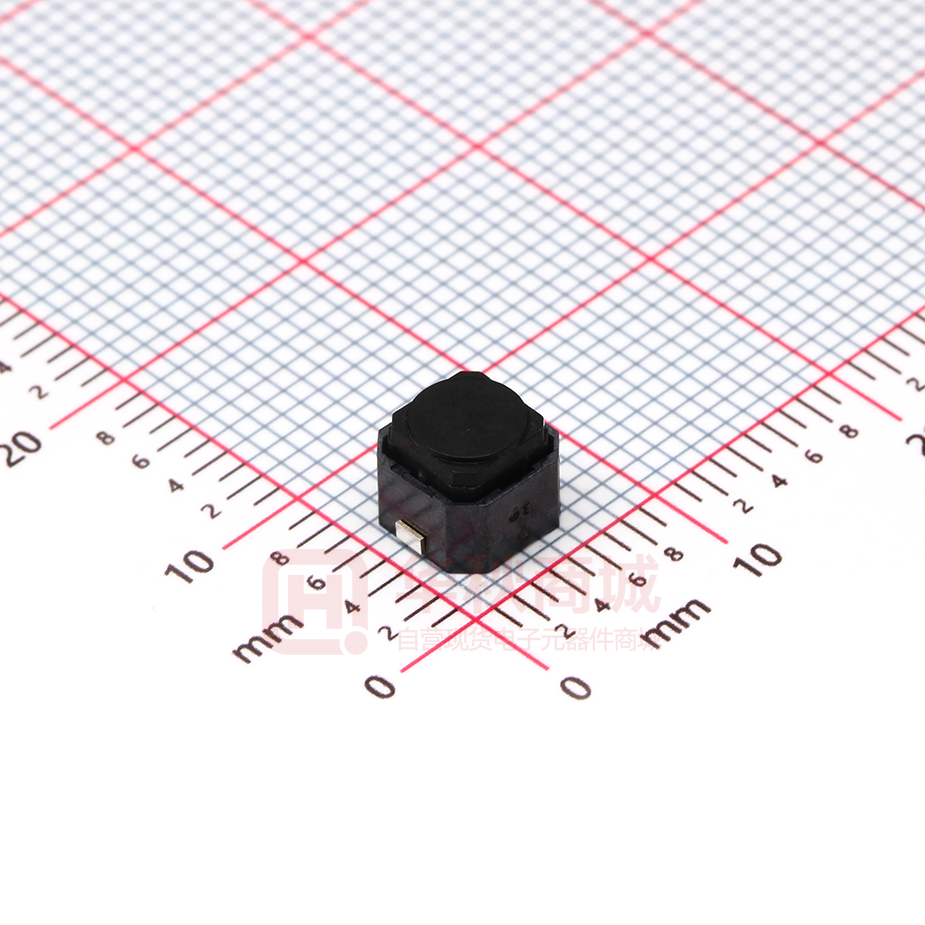

TACT SwitchTM Low Contact Resistance (Surface Mount Type) SKPM Series Soft feeling with metal contact provide low contact resistance. Detector Push Slide Rotary Encoders Power Product Line Product No. Operating Operating force direction Travel （mm） Rating （max.） 50mA 16V DC Rating （min.） 10BA 1V DC Operating life （5mA 5V DC） Initial contact resistance Minimum order unit （pcs.） Dual-in-line Package Type TACT SwitchTM SKPMAME010 1.57N SKPMANE010 1.96N SKPMAPE010 2.45N SKPMBHE010 3N Vertical 1.3 100,000cycles 100mΩ max. 2,000 CustomProducts Specification of Embossed Taping Package (Taping Packaging for Auto-insertion) Reel Size Plastic Reel 1 reel Unit:mm Number of packages pcs.） （ 1 case /Japan 1 case /export packing Tape width （mm） Sharp Feeling 2,000 ¿380 13.5 20,000 20,000 12 Soft Feeling Snap-in Type Dimensions Style Unit:mm PC board land dimensions （Viewed from switch mounting face） Surface Mount Type Radial Type 1 6.6 5.9 5 .6 ø4 2 4.9 1.4 8 4 6 Stem 5 Circuit Diagram 1 2 3.5 Notes 1. For φ330mm diameter reel requirements, please contact us. 2. Please place purchase orders for taping products per minimum order unit (1 reel or a case). Refer to P.306 for soldering conditions. 2 301 TACT SwitchTM List of Varieties Soft Feeling Type Series SKEG SKPE SKEG SKEY SKPF SKPM SKPN SKPG SKPL SKPD Detector Push Type Features Operating direction Electrical performance Durability Environmental performance Vertical Horizontal W Dimensions （mm） □6 ● ― 6.6 6.3 7 5 ― ● Snap–in Horizontal type ― ● 7.5 □7.8 9.9 7.3 Carbon 5 9 10 6 5 Silver 6.7 7 Carbon 6.3 5 Silver Carbon 8 5.9 ― ● High operation force and long stroke ● Surface mount Low contact resistance ● ● ― ― ● Radial Round terminal and low contact resistance ● Photo Slide ― Rotary ● Encoders Power 6 6.6 V6.45 □7.8 D H Dual-in-line Package Type TACT SwitchTM Contact 1N Operation force coverage 5N Ground terminal Operating temperature range Insulation resistance Voltage proof Vibration Lifetime Cold Dry heat Damp heat Page 296 298 CustomProducts ― ｰ20℃ to ＋70℃ SKEG ｰ40℃ to ＋90℃ 100MΩ min. 100V DC SKEY/PD：50MΩ min. 100V DC 250V AC for 1min. SKPN : 200V AC for 1min. SKEY/PD : 100V AC for 1min. 10 to 55 to 10Hz/min., the amplitude is 1.5mm for all the frequencies, in the 3 direction of X, Y and Z for 2hours respectively Shall be in accordance with individual specifications. ｰ30±2℃ for 96h 80±2℃ for 96h 60±2℃, 90 to 95%RH for 96h 296 299 300 301 302 303 304 305 Sharp Feeling Soft Feeling Snap-in Type Surface Mount Type Radial Type W：Width. The most outer dimension excluding terminal portion. D ：Depth. The most outer dimension excluding terminal portion. H ：Height. The minimum dimension if there are variances. ● TACT SwitchTM Soldering Conditions ………………………………………………………………………………………306 ● TACT SwitchTM Cautions ………………………………………………………………………………………………………307 ● Product Line of Knob for TACT SwitchTM ……………………………………………………………………………………308 251 TACT SwitchTM Soldering Conditions Condition for Reflow Available for Surface Mount Type. 1. Heating method: Double heating method with infrared heater. 2. Temperature measurement: Thermocouple 0.1 to 0.2φ CA K） CC T） solder joints copper foil surface） A heat resistive tape （ or （ at （ . Detector Push Slide Rotary Encoders Power should be used to fix thermocouple. 3. Temperature profile Temperature (˚C ) 260˚C max. 3 sec max. 180 150 Time 230˚C Dual-in-line Package Type TACT SwitchTM 120 sec max. pre-heating ） （ 3 to 4min. 40s max. CustomProducts Time inside soldering equipment Note 1. The above temperature shall be measured on the mounting surface of a PC board. There are cases where the PC board's temperature greatly differs from that of the switch, depending on the material, size, thickness of PC boards and others. The above-stated conditions shall also apply to switch surface temperatures. 2. Soldering conditions differ depending on reflow soldering machines. Prior verification of soldering condition is highly recommended. Sharp Feeling Soft Feeling Snap-in Type Surface Mount Type Radial Type Conditions for Auto-dip Available for Snap-in Type and Radial Type （Except SKHJ, SKHL, SKQJ, SKQK, SKEG series） Items Flux built-up Condition Mounting surface should not be exposed to fluk Ambient temperature of the soldered surface of PC board. 100℃ max. 60s max. 260℃ max. 5s max. 2times max. Manual Soldering（Except SKRT Series） Items Soldering temperature Duration of soldering Capacity of soldering iron Condition 350℃max. 3s max. 60W max. Preheating temperature Preheating time Soldering temperature Duration of immersion Number of soldering Notes 1. 2. 3. 4. 5. Consult with us for availability of TACT SwitchTM washing. Prevent flux penetration from the top side of the TACT SwitchTM. Switch terminals and a PC board should not be coated with flux prior to soldering. The second soldering should be done after the switch is stable with normal temperature. Use the flux with a specific gravity of min 0.81. （EC-19S-8 by TAMURA Corporation, or equivalents.） 306
