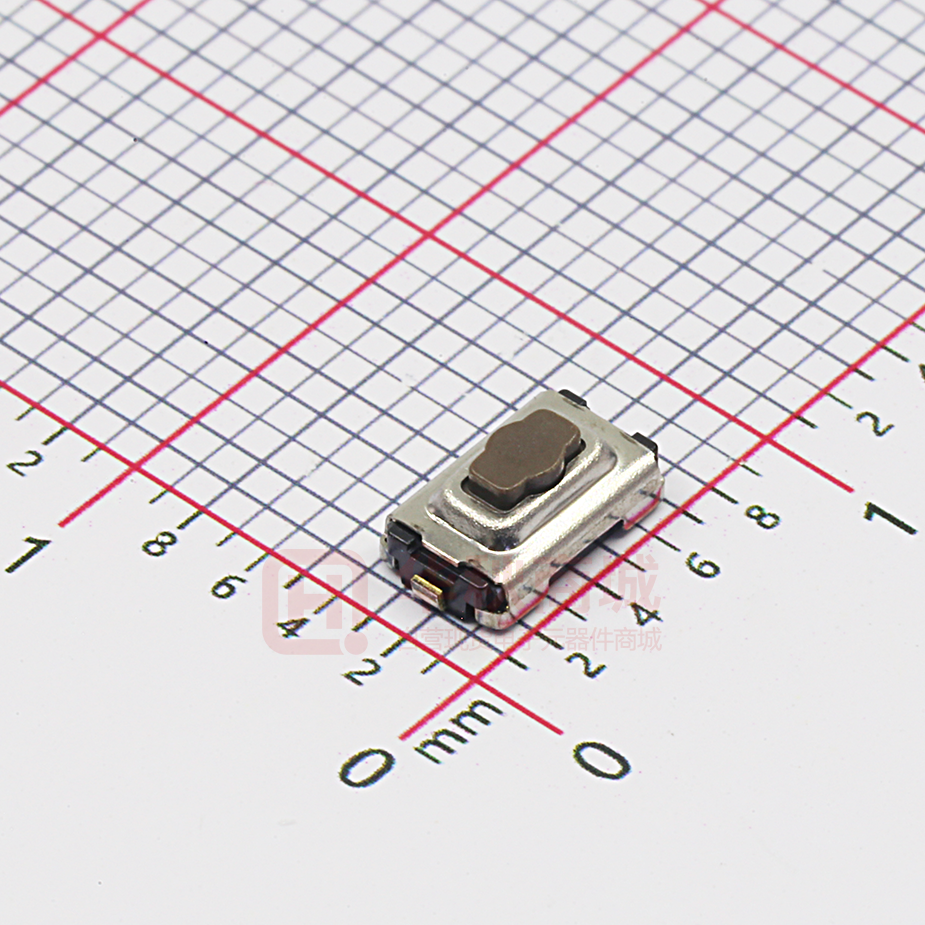

SKQYABE010

TACT SwitchTM 6.1×3.7mm Compact High-speed Mounting(Surface Mount Type) SKQY Series Compact switch with contact sealing structure, also available with ground terminal. Detector Push Slide Rotary Encoders Power Dual-in-line Package Type TACT SwitchTM CustomProducts Product Line Vertical Type Product No. SKQYACE010 SKQYAAE010 SKQYABE010 SKQYAFE010 Operating Operating Travel Rating Rating Operating life force direction （mm） （max.） （min.） （5mA 5V DC） 0.98N 1.57N 2.55N 3.14N Vertical 0.25 50mA 12V DC 10BA 1V DC 50,000cycles 500mΩ max. 3,000 Initial contact resistance Minimum order unit （pcs.） With Ground Terminal Type Product No. SKQYPCE010 SKQYPAE010 SKQYPBE010 SKQYPDE010 Operating Operating Travel Rating Rating Operating life force direction （mm） （max.） （min.） （5mA 5V DC） 0.98N 1.57N 2.55N 3.14N Vertical 0.25 50mA 12V DC 10BA 1V DC 50,000cycles 500mΩ max. 3,000 Initial contact resistance Minimum order unit （pcs.） Sharp Feeling Soft Feeling Snap-in Type Surface Mount Type Radial Type Specification of Embossed Taping Package (Taping Packaging for Auto-insertion) Reel Size Plastic Reel 1 reel Unit:mm Number of packages pcs.） （ 1 case /Japan 1 case /export packing Tape width （mm） 3,000 ¿380 13.5 30,000 30,000 12 Dimensions Style 6.8 6.1 2.6 Unit:mm PC board land dimensions （Viewed from switch mounting face） 8 4 1 2 Ground terminal land 2.9 0.8 1.2 3.7 5.3 3 ø1.8 Stem Ground terminal land 2.7 4.7 2.5 0.5 1 .85 3 ※Ground terminal land exists only on types with ground terminal. Circuit Diagram 1 3 2 Note 1. Please place purchase orders for taping products per minimum order unit (1 reel or a case). 2. For φ330mm diameter reel requirements, please contact us. Refer to P.306 for soldering conditions. 284 1 TACT SwitchTM List of Varieties Sharp Feeling Type Series SKSD SKRN SKSE SPEE SKRK SKRP SKQM SKQY SKRA SKHM SKHU Detector Push Type Features Operating direction Vertical Horizontal W Dimensions （mm） D H 1N Operation force coverage 5N Ground terminal Operating temperature range Electrical performance Durability Insulation resistance Voltage proof Vibration Lifetime Cold Dry heat Damp heat Page ｰ30±2℃ for 96h 80±2℃ for 96h 60±2℃, 90 to 95%RH for 96h 278 279 280 ● ● ● ― ● ― ● ● See the relevant pages for respective product descriptions 4.1 □6 3.9 0.6 0.9 2.87 3 5 1.22 2.9 1.5 3.2 2.5 3.5 4.3 3.7 2.5 3.4 3.1 Double action ● ― ● ● 5.9 Horizontal type Double action ― ● 4 3.9 4.2 6 Surface mount Compact size High operation force Low-profile Compact size ● ● Compact size ● ● ― Middle stroke ● ― ● Dust–proof type is available Photo Slide Rotary ● Encoders Power 6.1 □6.2 6.5 2.5 6.2 Dual-in-line Package Type TACT SwitchTM CustomProducts ｰ30℃ to ＋85℃ ｰ10℃ to ＋60℃ 10MΩ min. 100V DC ｰ30℃ to ＋85℃ Sharp Feeling Soft Feeling 100MΩ min. 100V DC 100MΩ min. 100V DC 250V AC for 1min. 250V AC for 1min. 100V AC for SKSD/SE : 100V AC for 1min. 1min. Snap-in Type Surface Mount Type Radial Type 10 to 55 to 10Hz/min., the amplitude is 1.5mm for all the frequencies, in the 3 direction of X, Y and Z for 2hours respectively Shall be in accordance with individual specifications. ｰ40±2℃ for 96h 85±2℃ for 96h 40±2℃, 90 to 95%RH for 96h 84 281 282 ｰ30±2℃ for 96h 80±2℃ for 96h 60±2℃, 90 to 95%RH for 96h 283 284 285 286 287 ● TACT SwitchTM Soldering Conditions ………………………………………………………………………………………306 ● TACT SwitchTM Cautions ………………………………………………………………………………………………………307 ● Product Line of Knob for TACT SwitchTM ……………………………………………………………………………………308 Note The automotive operating temperature range to be individually discussed upon request. Environmental performance W：Width. The most outer dimension excluding terminal portion. D ：Depth. The most outer dimension excluding terminal portion. H ：Height. The minimum dimension if there are variances. 249 TACT SwitchTM Soldering Conditions Condition for Reflow Available for Surface Mount Type. 1. Heating method: Double heating method with infrared heater. 2. Temperature measurement: Thermocouple 0.1 to 0.2φ CA K） CC T） solder joints copper foil surface） A heat resistive tape （ or （ at （ . Detector Push Slide Rotary Encoders Power should be used to fix thermocouple. 3. Temperature profile Temperature (˚C ) 260˚C max. 3 sec max. 180 150 Time 230˚C Dual-in-line Package Type TACT SwitchTM 120 sec max. pre-heating ） （ 3 to 4min. 40s max. CustomProducts Time inside soldering equipment Note 1. The above temperature shall be measured on the mounting surface of a PC board. There are cases where the PC board's temperature greatly differs from that of the switch, depending on the material, size, thickness of PC boards and others. The above-stated conditions shall also apply to switch surface temperatures. 2. Soldering conditions differ depending on reflow soldering machines. Prior verification of soldering condition is highly recommended. Sharp Feeling Soft Feeling Snap-in Type Surface Mount Type Radial Type Conditions for Auto-dip Available for Snap-in Type and Radial Type （Except SKHJ, SKHL, SKQJ, SKQK, SKEG series） Items Flux built-up Condition Mounting surface should not be exposed to fluk Ambient temperature of the soldered surface of PC board. 100℃ max. 60s max. 260℃ max. 5s max. 2times max. Manual Soldering（Except SKRT Series） Items Soldering temperature Duration of soldering Capacity of soldering iron Condition 350℃max. 3s max. 60W max. Preheating temperature Preheating time Soldering temperature Duration of immersion Number of soldering Notes 1. 2. 3. 4. 5. Consult with us for availability of TACT SwitchTM washing. Prevent flux penetration from the top side of the TACT SwitchTM. Switch terminals and a PC board should not be coated with flux prior to soldering. The second soldering should be done after the switch is stable with normal temperature. Use the flux with a specific gravity of min 0.81. （EC-19S-8 by TAMURA Corporation, or equivalents.） 306
