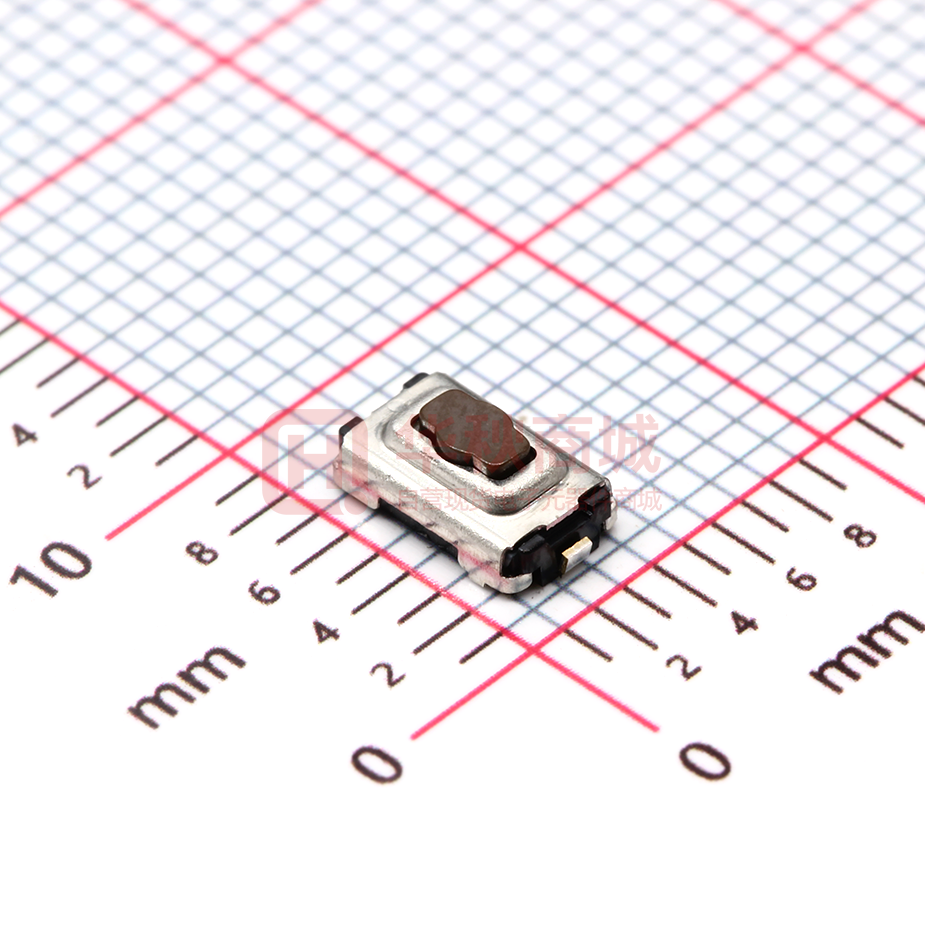

SKQY 6.1 × 3.7mm (Surface Mount Type) TACT SwitchTM Lineup includes products with a ground terminal ■ Typical Specifications Items Specifications 50mA 12V DC Rating（min.） 10μA 1V DC Initial contact resistance 500mΩ max. Travel（mm） Sharp Feeling Rating（max.） 0.25 Soft Feeling ■ Product Line Top push type SKQYACE010 0.98N SKQYAAE010 1.57N SKQYABE010 2.55N SKQYAFE010 3.14N Minimum order unit（pcs.） Operating direction Operating life （5mA 5V DC） Japan Export Top push 50,000 cycles 3,000 3,000 Operating direction Operating life （5mA 5V DC） Japan Export Top push 50,000 cycles 3,000 3,000 Surface Mount Type Operating force Snap-in Type Product No. Radial Type With ground terminal type Product No. Operating force SKQYPCE010 0.98N SKQYPAE010 1.57N SKQYPBE010 2.55N SKQYPDE010 3.14N Minimum order unit（pcs.） ■ Packing Specifications Taping Unit:mm Number of packages（pcs.） 1 reel 3,000 1 case / Japan 1 case / export packing 30,000 30,000 Tape width （mm） Export package measurements（mm） 12 395×395×205 Reel size Note For reels of 330mm diameter, please inquire. Refer to P.235 for soldering conditions. 211 SKQY 6.1 × 3.7mm (Surface Mount Type) Unit:mm Style 6.8 6.1 2.6 2 Ground terminal land Stem 1 ø1.8 8 4 5.3（※） 3（※） 1.2 0.8 Sharp Feeling 2.9 1 Soft Feeling Snap-in Type Surface Mount Type Radial Type 212 PC board land dimensions （Viewed from switch mounting face） 3.7 TACT SwitchTM ■ Dimensions 2.5 Ground terminal land 2.7（※） 4.7（※） 0.5（※） 1.85 （※） 3 Parts indicated by ※ apply only to products with a ground terminal. ■ Circuit Diagram 1 3 2 Parts indicated by ③ apply only to products with a ground terminal. Parts indicated by ※ apply only to products with a ground terminal. TACT SwitchTM List of Varieties TACT SwitchTM Sharp Feeling Type Type Surface Mount SKRK Series SKTH SKRP SKQM SKQY SKTQ SKTR SKSU NEW Photo Compact size Low-profile Compact size High operation force Compact size Water-proof — — — — — — — ● Dustproof — ● — — — — — ● IP standard — — — — — — — 67 equivalent Top push ● ● ● ● ● ● ● ● Side push — — — — — — — — W 3.9 3.5 D 2.9 H 1.5／2 1.8/2.5 2.5 Travel（mm） 0.13 0.12 0.2 Ground terminal — — — Operating temperature range −40℃ to ＋85℃ Automotive use — Sharp Feeling Features Soft Feeling Operating direction Snap-in Type Dimensions （mm） 4.2 3.2 Compact size Middle travel Surface Mount Type 6 6.1 5.3 3.5 3.7 5.4 4.3/5 2.5 4.25 4.1 3.85/4.34 0.71 0.72 0.7/0.9 — — — ● ● ● □6.1 5.3 5.4 1N max. 1N to 2N Operation force coverage 2N to 3N 3N to 4N 4N to 5N Radial Type 0.25 — ○ −40℃ to ＋90℃ ● ● ● ● Life Cycle Rating（max.） （Resistive load） Electrical performance 50mA 12V DC 25mA 16V DC 50mA 16V DC Rating（min.） （Resistive load） 10μA 1V DC Insulation resistance 100MΩ min. 100V DC 1min. Voltage proof 250V AC 1min. 100V AC 1min. 50mA 16V DC 250V AC 1min. Vibration 10 to 55 to 10Hz/min., the amplitude is 1.5mm for all the frequencies, in the 3 direction of X, Y and Z for 2 hours respectively Lifetime Shall be in accordance with individual specifications. Durability Environmental performance 50mA 12V DC Cold −40℃ 96h −40℃ 1,000h −40℃ 96h −40℃ 1,000h Dry heat 90℃ 96h 90℃ 1,000h 90℃ 96h 90℃ 1,000h Damp heat 60℃, 90 to 95%RH 96h 60℃, 90 to 95%RH 1,000h 60℃, 90 to 95%RH 96h 60℃, 90 to 95%RH 1,000h Page 204 206 208 210 211 213 214 215 W：Width. The most outer dimension excluding terminal portion. D ：Depth. The most outer dimension excluding terminal portion. H ：Height. The minimum dimension if there are variances. TACT SwitchTM Soldering Conditions・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 235 TACT SwitchTM Cautions・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 236 Notes 1. The automotive operating temperature range to be individually discussed upon request. 2. ● Indicates applicability to all products in the series, while ○ indicates applicability to some products in the series. 170 TACT SwitchTM / Soldering Conditions TACT SwitchTM ■ Condition for Reflow Available for Surface Mount Type. Temperature profile Temperature (˚C ) 260˚C max. 3s max. Sharp Feeling 230˚C 180 150 Soft Feeling Time 120s max. （pre-heating） 40s max. 3 to 4min. Snap-in Type Time inside soldering equipment Notes 1. Please confirm the specifications of our product for the detailed condition. 2. Soldering conditions differ depending on reflow soldering machines. Prior verification of soldering condition is highly recommended. Surface Mount Type ■ Conditions for Auto-dip ■ Manual Soldering Available for Snap-in Type and Radial Type. Condition Flux built-up Mounting surface should not be exposed to flux Preheating temperature Ambient temperature of the soldered surface of PC board. 100℃ max. Items Condition Soldering temperature 350℃ max. Duration of soldering 3s max. Capacity of soldering iron 60W max. Preheating time 60s　max. Soldering temperature 260℃ max. Duration of immersion 5s max. Items Condition 2times max. Soldering temperature 360℃ max. Number of soldering SKHH Series Radial Type Items SKHH, SKHW Series Duration of soldering 3s max. Capacity of soldering iron 60W max. Items Condition Flux built-up Mounting surface should not be exposed to flux Preheating temperature Ambient temperature of the soldered surface of PC board. 110℃ max. Items Condition Preheating time 60s　max. Soldering temperature 350℃ max. Soldering temperature 260℃ max. Duration of soldering 3s max. Duration of immersion 5s max. Capacity of soldering iron 20W max. Number of soldering 2times max. SKTD, SKTG, SKQJ, SKSN Series SKHLTop Push Type, SKQJ Series Items Condition Flux built-up Mounting surface should not be exposed to flux Preheating temperature Ambient temperature of the soldered surface of PC board. 100℃ max. Preheating time 45s　max. Soldering temperature 255℃ max. Duration of immersion 5s max. Number of soldering 2times max. Notes 1. Prevent flux penetration from the top side of the TACT SwitchTM. 2. Switch terminals and a PC board should not be coated with flux prior to soldering. 3. The second soldering should be done after the switch is stable with normal temperature. 4. Use the flux with a specific gravity of min 0.81. （EC-19S-8 by TAMURA CORPORATION, or equivalents.） 235
