SKSDPBE010

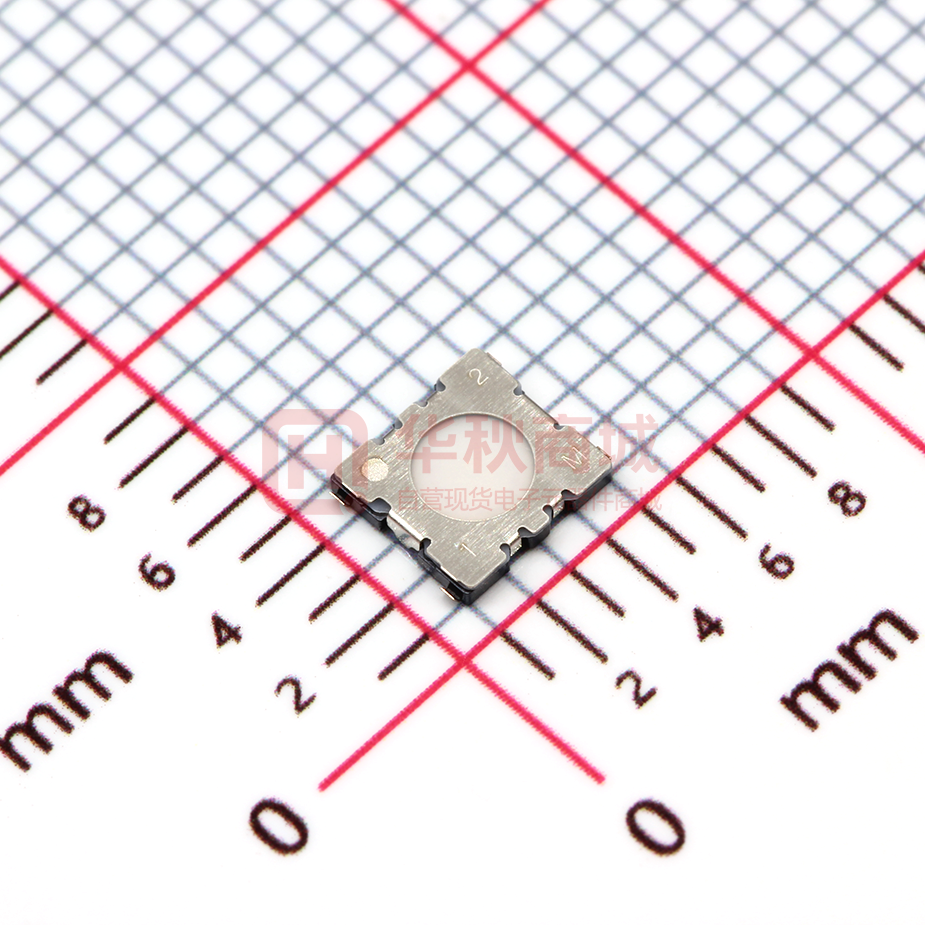

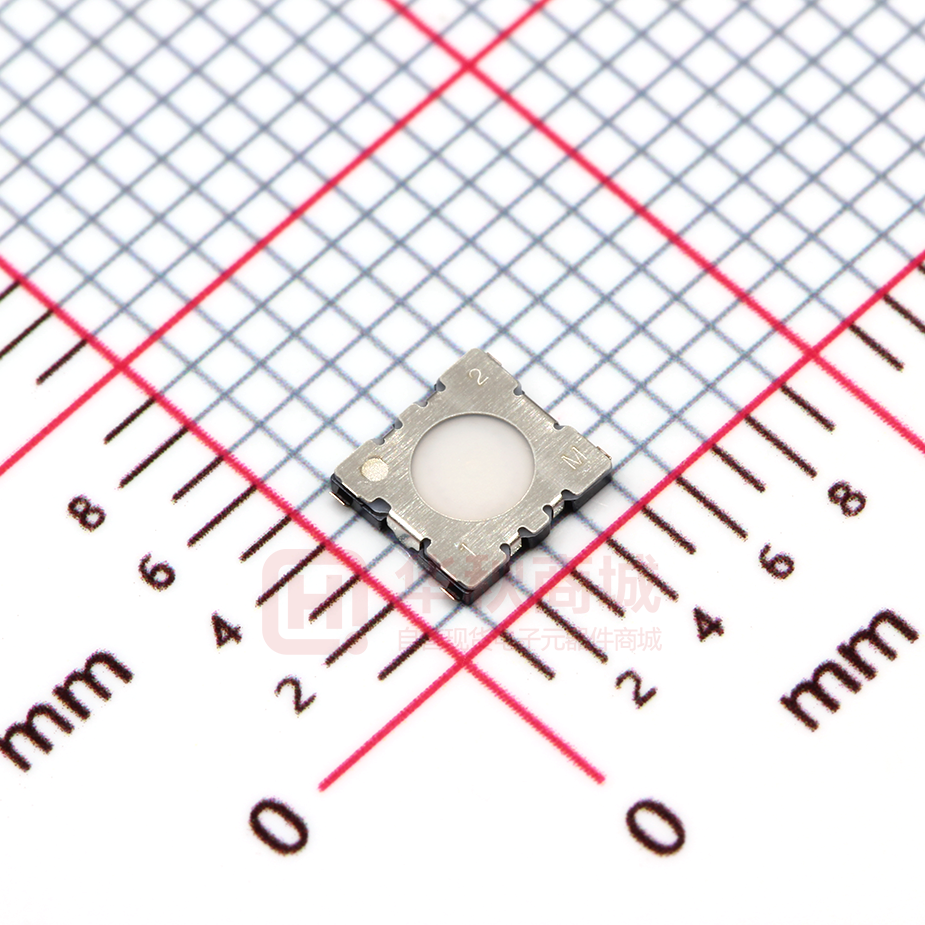

4.1×3.9mm Low-profile Double Action (Surface Mount Type) SKSD 0.6mm low-profile, double action type. ■ Typical Specifications Items Specifications Detector Rating（max.） 50mA 12V DC Push Rating（min.） 10BA 1V DC Slide Initial contact resistance 200mΩ max. Rotary Travel（mm） Encoders 1st 0.15 All 0.25 Product Line Power Product No. Operating force Operating direction Dual-in-line Package Type SKSDPBE010 SKSDPCE010 Toppush TM 1st 0.8N 2nd 1.6N 1st 0.8N 2nd 1.9N TACT Switch Packing Specifications Taping Unit:mm Operating life （5mA 5V DC） 100,000cycles 50,000cycles Number of packages（pcs.） Reel size 1 reel 1 case / Japan 1 case / export packing 10,000 100,000 100,000 Minimum order unit（pcs.） Japan Export 10,000 10,000 Tape width （mm） Export package measurements （mm） 12 401× 401× 214 Sharp Feeling Soft Feeling Snap-in Type Surface Mount Type Note For reels of 330mm diameter, please inquire. Dimensions Unit:mm PC board land dimensions （Viewed from switch mounting face） Style Radial Type 1 2 6 5 3 4 Circuit Arrangement 〔1st action〕 Switch circuit configuration 1 3 254 5 6 2 1 4 3 5 6 〔2nd action〕 2 1 4 3 2 5 6 4 Refer to P.288 for soldering conditions. ■ List of Varieties Sharp Feeling Type Type Snap–in Series SKQJ SKQB Surface Mount SKSH SKRW SKRM SKRB SKRR SKQG SKTC SKSK SKSD Photo Push Low–profile and long life Low– profile — — — ● — — Rotary ○ ○ ○ ○ ● — — Encoders ● ● ● ● ● ● ● ● Power — — — — — — — — Dual-in-line Package Type □3.7 □4.5 □4.8 3.4 3.5 4.1 2.2 3.2 3.9 0.4 0.55 Features — — Water-proof — ● — ○ — Dust-proof ● ● ○ ○ Toppush — — ● Sidepush ● ● — Operating direction Dimensions （mm） Detector Low–profile W 7.5 11.5 3.3 D 7.85 11.9 2.9 7.3 11.3 H 0.35 7.5 □5.2 7 0.6 0.8 Double action 0.62 Slide TACT SwitchTM 0.6 ～1N Operation force coverage 1N～2N ※ 2N～3N 3N～4N 4N～5N Travel （mm） 0.25 0.3 Ground terminal — — Operating temperature range ｰ20℃ to+70℃ ｰ40℃ to+90℃ Automotive use — ● 0.15 — 0.15/0.2 — — 0.25 — ※ — — — ｰ30℃ to ＋85℃ — — — ● ● ● — — ○ — Soft Feeling — — Rating （max.） （Resistive load） 50mA 12V DC Rating （min.） （Resistive load） 10μA 1V DC Durability Insulation resistance Voltage proof Environmental performance Radial Type 100MΩ min. 100V DC for 1min. 250V AC for 1min. 100V AC for 1min. 250V AC for 1min. 100V AC for 1min. 250V AC for 1min. 100V AC for 1min. Vibration 10 to 55 to 10Hz/min., the amplitude is 1.5mm for all the frequencies, in the 3 direction of X, Y and Z for 2hours respectively Lifetime Shall be in accordance with individual specifications. Cold Dry heat Damp heat Page Snap-in Type Surface Mount Type Life Cycle Electrical performance Sharp Feeling ｰ 30 ± 2℃ ｰ 40 ± 2℃ for 96h for 96h ｰ30±2℃ for 96h 80 ± 2℃ for 96h 80±2℃ for 96h 90 ± 2℃ for 96h 60 ± 2℃ , 60 ± 2℃ , 90 to 95%RH 90 to 95%RH for 96h for 1000h 237 239 60±2℃, 90 to 95%RH for 96h 245 246 247 248 249 250 252 253 254 W：Width. The most outer dimension excluding terminal portion. D：Depth. The most outer dimension excluding terminal portion. H：Height. The minimum dimension if there are variances. ● TACT SwitchTM Soldering Conditions ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 288 ● TACT SwitchTM Cautions ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 289 Notes 1. The automotive operating temperature range to be individually discussed upon request. 2. ● indicates applicability to all products in the series, while ○ indicates applicability to some products in the series. 3. ※ See the relevant pages for respective product descriptions 225 TACT SwitchTM Soldering Conditions Condition for Reflow Available for Surface Mount Type. 1. Heating method: Double heating method with infrared heater. 2. Temperature measurement: Thermocouple 0.1 to 0.2 φ CA（K）or CC（T）at solder joints（copper foil surface）. 3. Temperature profile A heat resistive tape should be used to fix thermocouple. Temperature (˚C ) Detector Push 260˚C max. 3 sec max. 230˚C 180 Slide 150 Rotary Encoders 120 sec max. （pre-heating） Power TACT Switch Time inside soldering equipment Notes 1. The above temperature shall be measured of the top of switch. There are cases where the PC board's temperature greatly differs from that of the switch, depending on the material, size, thickness of PC boards and others. The above-stated conditions shall also apply to switch surface temperatures. 2. Soldering conditions differ depending on reflow soldering machines. Prior verification of soldering condition is highly recommended. Conditions for Auto-dip Available for Snap-in Type and Radial Type Sharp Feeling Soft Feeling Snap-in Type Surface Mount Type Radial Type 40s max. 3 to 4min. Dual-in-line Package Type TM Time Manual Soldering（Except SKRT Series） Items Condition Items Condition Flux built-up Soldering temperature Mounting surface should not be exposed to fluk 350℃ max. Duration of soldering 3s max. Capacity of soldering iron 60W max. Preheating temperature Ambient temperature of the soldered surface of PC board. 100℃ max. Preheating time 60s　max. Soldering temperature 260℃ max. Duration of immersion 5s max. Number of soldering 2times max. SKHH、SKPD Series Items Condition Flux built-up Mounting surface should not be exposed to fluk Preheating temperature Ambient temperature of the soldered surface of PC board. 110℃ max. Preheating time 60s　max. Soldering temperature 260℃ max. Duration of immersion 5s max. Number of soldering 2times max. SKHH、SKHW、SKRG、SKPD Series Items Condition Soldering temperature 360℃ max. Duration of soldering 3s max. Capacity of soldering iron 60W max. SKQJ、SKQK、SKEG Series Items Condition Soldering temperature 350℃ max. Duration of soldering 3s max. Capacity of soldering iron 20W max. SKQJ、SKQK、SKEG Series Items Condition Flux built-up Mounting surface should not be exposed to fluk Preheating temperature Ambient temperature of the soldered surface of PC board. 100℃ max. Preheating time 45s　max. Soldering temperature 255℃ max. Duration of immersion 5s max. Number of soldering 2times max. Notes 1. Consult with us for availability of TACT SwitchTM washing. 2. Prevent flux penetration from the top side of the TACT SwitchTM. 3. Switch terminals and a PC board should not be coated with flux prior to soldering. 4. The second soldering should be done after the switch is stable with normal temperature. 5. Use the flux with a specific gravity of min 0.81. （EC-19S-8 by TAMURA Corporation, or equivalents.） 288
