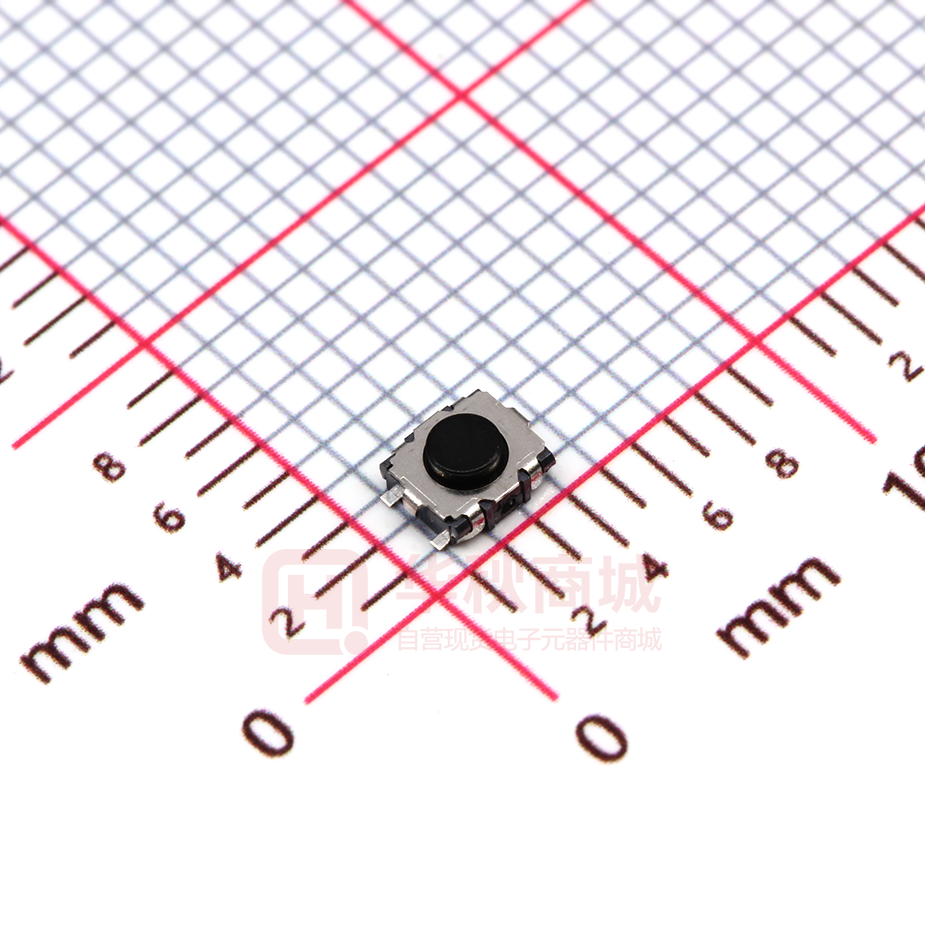

SKSG 3 × 2.7mm Compact High Operating Force (Surface Mount Type) TACT SwitchTM Heavy-operational and equipped with a 1.4mm tall stem and grounding, meeting in-car needs ■ Typical Specifications Items Specifications Sharp Feeling Rating（max.） 50mA 12V DC Rating（min.） 10μA 1V DC Initial contact resistance 100mΩ max. Travel（mm） 0.12 Soft Feeling ■ Product Line Top push type Snap-in Type Product No. Operating force SKSGACE010 1.6N SKSGAAE010 4N Operating direction Operating life （5mA 5V DC） Top push 200,000 cycles Stem color Minimum order unit（pcs.） Japan Export 12,000 12,000 Natural Black Surface Mount Type With ground terminal type Radial Type Product No. Operating force SKSGPCE010 1.6N SKSGPAE010 4N Operating direction Operating life （5mA 5V DC） Top push 200,000 cycles Stem color Minimum order unit（pcs.） Japan Export Natural 12,000 12,000 Black ■ Packing Specifications Taping Unit:mm Number of packages（pcs.） 1 reel 12,000 1 case / Japan 1 case / export packing 120,000 120,000 Tape width （mm） Export package measurements（mm） 12 395×395×205 Reel size Note For reels of 330mm diameter, please inquire. Refer to P.265 for soldering conditions. 228 SKSG／3 × 2.7mm Compact High Operating Force (Surface Mount Type) Unit:mm PC board land dimensions （Viewed from switch mounting face） Style ø1 .7 3.5 3 Stem 4 6 2.5 3.75 0.7 Ground terminal land 2.5 3.75 3.52（※） Parts indicated by ⑤ , ⑥ and ※ apply only to products with a ground terminal. Surface Mount Type ■ Circuit Diagram ※ Ground terminal land pattern is applicable to Ground terminal type only. Ground terminal land Snap-in Type 3.52（※） 2.25 1.1 6 1.4 1 1.4 1 4 3.75 3.1 Soft Feeling 2 Stem 2.25 1.1 5 2 Ground3.75 terminal3.1 land Sharp Feeling 5 Ground terminal land 0.7 3 0.4 1 3 1.32 2 2.7 0.4 ø1 .7 3.5 3 1.32 2 2.7 1 TM 検　Switch 出 TACT ■ Dimensions Radial Type Parts indicated by ⑤ and ⑥ apply only to products with a ground terminal. 229 Surface Mount SKSD Series SKRN SKTA SKSV SKSW SKSF SKSM NEW SKTK SKSG TM 検　Switch 出 TACT Sharp Feeling Type Type NEW Photo Features Compact size Low-profile Double action — — ● ● Dust-proof — — ● — ● ● — ● ● — ● ● — — 67 equivalency 67 equivalency — 67 equivalency 67 equivalency Top push ● ● ● ● ● ● ● ● ● Side push — — — — — — — — — W 4.1 2.6 2.8 3 2.8 3.4 5.9 3 D 3.9 1.6 1.9 2 2.4 2.9 4 2.7 H 0.6 0.53 0.55 0.6 0.65 0.7 0.78 1.4 0.11 0.12 0.13 0.25 0.12 — — — — — ○ — — ● Dimensions （mm） □6 0.9 Surface Mount Type — 1N max. 1N to 2N Operation force coverage 2N to 3N 3N to 4N Snap-in Type — Soft Feeling ● 67 equivalency 68 equivalent in some cases IP standard Operating direction High operation force Compact size Sharp Feeling Water-proof Long life See the relevant pages for respective product descriptions 4N to 5N Ground terminal Operating temperature range Automotive use See the relevant pages for respective product descriptions ● ● −40℃ to ＋90℃ — 0.1 — Radial Type Travel（mm） −30℃ to ＋85℃ — — — — — Life Cycle Electrical performance Rating（max.） （Resistive load） 50mA 12V DC Rating（min.） （Resistive load） 10μA 1V DC Insulation resistance Voltage proof 100V AC 1min. 250V AC 1min. 10 to 55 to 10Hz/min., the amplitude is 1.5mm for all the frequencies, in the 3 direction of X, Y and Z for 2 hours respectively Lifetime Shall be in accordance with individual specifications. Cold −40℃ 96h Dry heat 90℃ 96h Damp heat 60℃, 90 to 95%RH 96h Page 219 220 100MΩ min.  100V DC 1min. 100V AC 1min. Vibration Durability Environmental performance 50MΩ min.  100V DC 1min. 100MΩ min. 100V DC 1min. 221 222 223 225 226 227 228 W：Width. The most outer dimension excluding terminal portion. D ：Depth. The most outer dimension excluding terminal portion. H ：Height. The minimum dimension if there are variances. TACT SwitchTM Soldering Conditions・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 265 TACT SwitchTM Cautions・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 266 Notes 1. The automotive operating temperature range to be individually discussed upon request. 2. ● Indicates applicability to all products in the series, while ○ indicates applicability to some products in the series. 191 TACT SwitchTM Soldering Conditions TM 検　Switch 出 TACT ■ Condition for Reflow Available for Surface Mount Type. 1. Temperature measurement: Thermocouple φ 0.1 to 0.2 CA（K）or CC（T）at solder joints 　（copper foil surface）. A heat resistive tape should be used to fix thermocouple. 2. Temperature profile Temperature (˚C ) 260˚C max. 3 sec max. Sharp Feeling 230˚C 180 150 Time Soft Feeling 120 sec max. （pre-heating） 40s max. 3 to 4min. Time inside soldering equipment ■ Manual Soldering Available for Snap-in Type and Radial Type. Condition Flux built-up Mounting surface should not be exposed to flux Preheating temperature Ambient temperature of the soldered surface of PC board. 100℃ max. Items Condition Soldering temperature 350℃ max. Duration of soldering 3s max. Capacity of soldering iron 60W max. Preheating time 60s　max. Soldering temperature 260℃ max. Duration of immersion 5s max. Items Condition Number of soldering 2times max. Soldering temperature 360℃ max. Duration of soldering 3s max. Capacity of soldering iron 60W max. SKHH, SKPD Series Radial Type Items Surface Mount Type ■ Conditions for Auto-dip Snap-in Type Notes 1. The above temperature shall be measured of the top of switch. There are cases where the PC board's temperature greatly differs from that of the switch, depending on the material, size, thickness of PC boards and others. 　 The above-stated conditions shall also apply to switch surface temperatures. 2. Soldering conditions differ depending on reflow soldering machines. Prior verification of soldering condition is highly recommended. SKHH, SKHW, SKRG, SKPD Series Items Condition Flux built-up Mounting surface should not be exposed to flux Preheating temperature Ambient temperature of the soldered surface of PC board. 110℃ max. Items Condition Preheating time 60s　max. Soldering temperature 350℃ max. Soldering temperature 260℃ max. Duration of soldering 3s max. Duration of immersion 5s max. Capacity of soldering iron 20W max. Number of soldering 2times max. SKTD, SKTG, SKQJ, SKQK, SKEG Series SKQJ, SKQK, SKEG Series Items Condition Flux built-up Mounting surface should not be exposed to flux Preheating temperature Ambient temperature of the soldered surface of PC board. 100℃ max. Preheating time 45s　max. Soldering temperature 255℃ max. Duration of immersion 5s max. Number of soldering 2times max. Notes 1. Prevent flux penetration from the top side of the TACT SwitchTM. 2. Switch terminals and a PC board should not be coated with flux prior to soldering. 3. The second soldering should be done after the switch is stable with normal temperature. 4. Use the flux with a specific gravity of min 0.81. （EC-19S-8 by TAMURA Corporation, or equivalents.） 265
