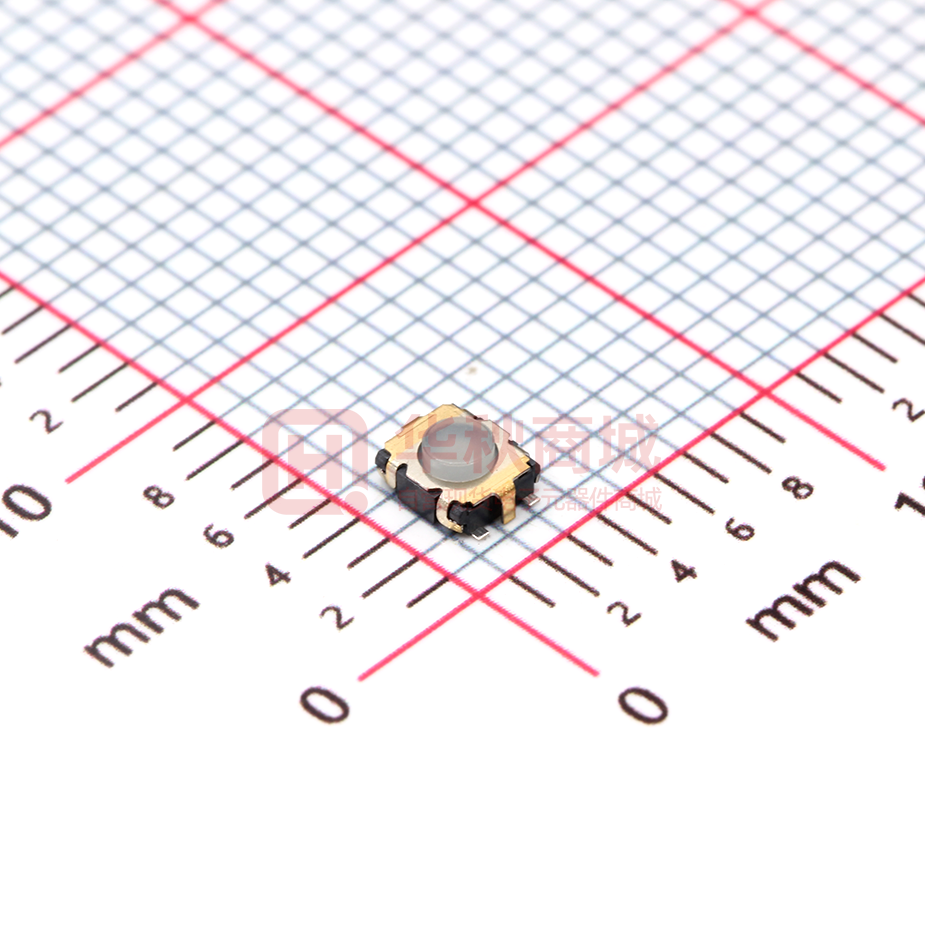

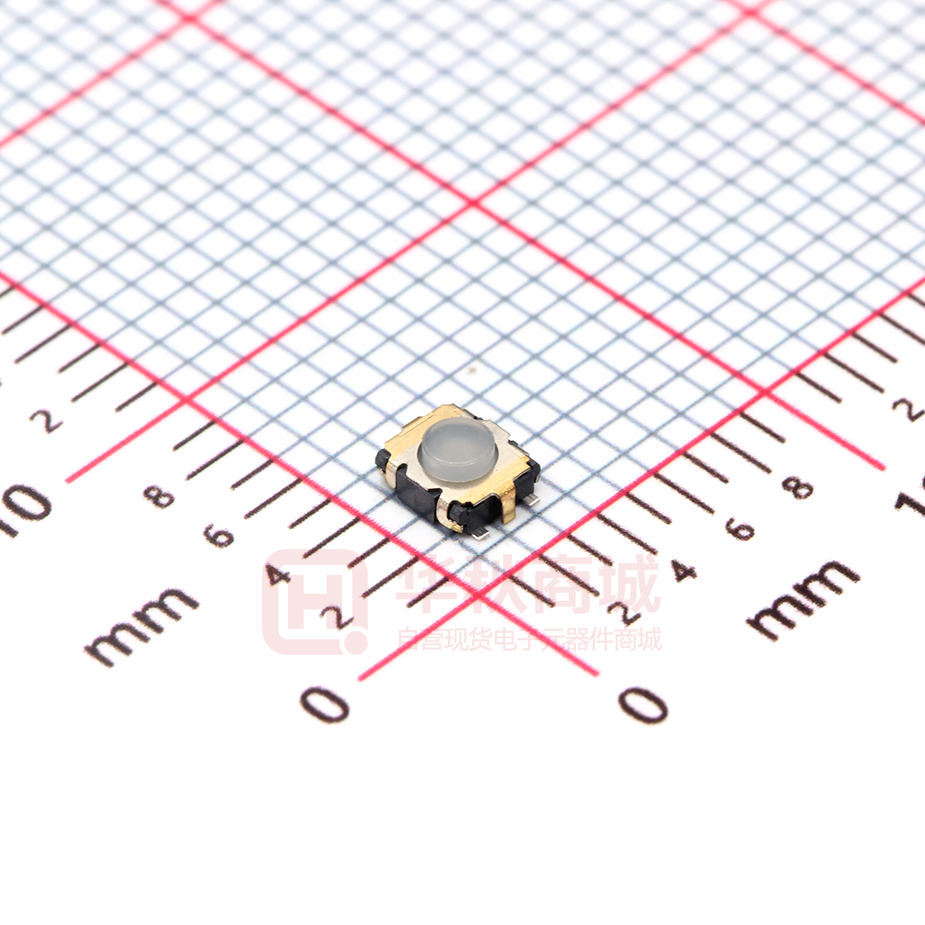

SKSG 3 × 2.7mm Compact High Operating Force (Surface Mount Type) TACT SwitchTM High operating force type for automotive needs with 1.4mm height ■ Typical Specifications Items Specifications Sharp Feeling Rating（max.） 50mA 12V DC Rating（min.） 10μA 1V DC Initial contact resistance 100mΩ max. Travel（mm） 0.12 Soft Feeling ■ Product Line Top push type Snap-in Type Product No. Operating force SKSGACE010 1.6N SKSGAFE010 2.8N Operating direction Operating life （5mA 5V DC） Stem color Minimum order unit（pcs.） Japan Export 12,000 12,000 Natural Top push 200,000 cycles Surface Mount Type Black 4N SKSGAAE010 With ground terminal type Radial Type Product No. Operating force SKSGPCE010 1.6N SKSGPGE010 2.8N Operating direction Operating life （5mA 5V DC） Stem color Minimum order unit（pcs.） Japan Export Natural Top push 200,000 cycles 12,000 12,000 Black 4N SKSGPAE010 ■ Packing Specifications Taping Unit:mm Number of packages（pcs.） 1 reel 12,000 1 case / Japan 1 case / export packing 120,000 120,000 Tape width （mm） Export package measurements（mm） 12 395×395×205 Reel size Note For reels of 330mm diameter, please inquire. Refer to P.235 for soldering conditions. 202 SKSG／3 × 2.7mm Compact High Operating Force (Surface Mount Type) TACT SwitchTM ■ Dimensions Unit:mm PC board land dimensions （Viewed from switch mounting face） .7 6 Stem 4 6 2.5 3.75 1.4 1 1.4 1 4 3.75 3.52（※） Parts indicated by ⑤ , ⑥ and ※ apply only to products with a ground terminal. Surface Mount Type ■ Circuit Diagram Parts indicated by a ※ apply only to products with a ground terminal. Ground terminal land Snap-in Type 3.52（※） Ground terminal land 2.5 Soft Feeling 2 Stem 0.7（※） 3.75（※） 3.1（※） 2.25 1.1 5 2 Ground 3.75（※） terminal land 3.1（※） 2.25 1.1 5 Ground terminal land 0.7（※） 3 0.4（※） 3 1.32 2 2.7 1 Sharp Feeling 1 3.5 3 ø1 ø1 3.5 3 1.32 2 2.7 0.4（※） .7 Style Radial Type Parts indicated by ⑤ and ⑥ apply only to products with a ground terminal. 203 Surface Mount SKSD Series SKRN SKTA SKSV SKSW SKTK SKSG Long life High operation force Compact size TACT SwitchTM Sharp Feeling Type Type Photo Compact size Low-profile Double action ● ● ● ● — Dustproof — — ● ● ● ● — IP standard — — 67 equivalent 67 equivalent 67 equivalent 68 equivalent in some cases 67 equivalent — Top push ● ● ● ● ● ● ● Side push — — — — — — — 2.6 2.8 3 5.9 3 1.6 1.9 2 4 2.7 0.53 0.5 0.6 0.78 1.4 0.11 0.12 See the relevant pages for respective product descriptions 0.25 0.12 — — — — ○ Operating direction Dimensions （mm） W 4.1 D 3.9 H 0.6 □6 0.9 Surface Mount Type — 1N max. 1N to 2N Operation force coverage 2N to 3N 3N to 4N See the relevant pages for respective product descriptions Ground terminal Operating temperature range Automotive use See the relevant pages for respective product descriptions ● ● −40℃ to ＋90℃ — — −30℃ to ＋85℃ — — — Radial Type 4N to 5N Travel（mm） Snap-in Type — Soft Feeling Water-proof Sharp Feeling Features −40℃ to ＋85℃ — ● Life Cycle Electrical performance Rating（max.） （Resistive load） 50mA 12V DC Rating（min.） （Resistive load） 10μA 1V DC Insulation resistance 100MΩ min. 100V DC 1min. Voltage proof 100V AC 1min. 100V AC 1min. Vibration 10 to 55 to 10Hz/min., the amplitude is 1.5mm for all the frequencies, in the 3 direction of X, Y and Z for 2 hours respectively Lifetime Shall be in accordance with individual specifications. Cold −40℃ 96h Dry heat 90℃ 96h Damp heat 60℃, 90 to 95%RH 96h Durability Environmental performance 250V AC 1min. Page 195 196 197 198 199 201 202 W：Width. The most outer dimension excluding terminal portion. D ：Depth. The most outer dimension excluding terminal portion. H ：Height. The minimum dimension if there are variances. TACT SwitchTM Soldering Conditions・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 235 TACT SwitchTM Cautions・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 236 Notes 1. The automotive operating temperature range to be individually discussed upon request. 2. ● Indicates applicability to all products in the series, while ○ indicates applicability to some products in the series. 169 TACT SwitchTM / Soldering Conditions TACT SwitchTM ■ Condition for Reflow Available for Surface Mount Type. Temperature profile Temperature (˚C ) 260˚C max. 3s max. Sharp Feeling 230˚C 180 150 Soft Feeling Time 120s max. （pre-heating） 40s max. 3 to 4min. Snap-in Type Time inside soldering equipment Notes 1. Please confirm the specifications of our product for the detailed condition. 2. Soldering conditions differ depending on reflow soldering machines. Prior verification of soldering condition is highly recommended. Surface Mount Type ■ Conditions for Auto-dip ■ Manual Soldering Available for Snap-in Type and Radial Type. Condition Flux built-up Mounting surface should not be exposed to flux Preheating temperature Ambient temperature of the soldered surface of PC board. 100℃ max. Items Condition Soldering temperature 350℃ max. Duration of soldering 3s max. Capacity of soldering iron 60W max. Preheating time 60s　max. Soldering temperature 260℃ max. Duration of immersion 5s max. Items Condition 2times max. Soldering temperature 360℃ max. Number of soldering SKHH Series Radial Type Items SKHH, SKHW Series Duration of soldering 3s max. Capacity of soldering iron 60W max. Items Condition Flux built-up Mounting surface should not be exposed to flux Preheating temperature Ambient temperature of the soldered surface of PC board. 110℃ max. Items Condition Preheating time 60s　max. Soldering temperature 350℃ max. Soldering temperature 260℃ max. Duration of soldering 3s max. Duration of immersion 5s max. Capacity of soldering iron 20W max. Number of soldering 2times max. SKTD, SKTG, SKQJ, SKSN Series SKHLTop Push Type, SKQJ Series Items Condition Flux built-up Mounting surface should not be exposed to flux Preheating temperature Ambient temperature of the soldered surface of PC board. 100℃ max. Preheating time 45s　max. Soldering temperature 255℃ max. Duration of immersion 5s max. Number of soldering 2times max. Notes 1. Prevent flux penetration from the top side of the TACT SwitchTM. 2. Switch terminals and a PC board should not be coated with flux prior to soldering. 3. The second soldering should be done after the switch is stable with normal temperature. 4. Use the flux with a specific gravity of min 0.81. （EC-19S-8 by TAMURA CORPORATION, or equivalents.） 235
