SKSNLAE010

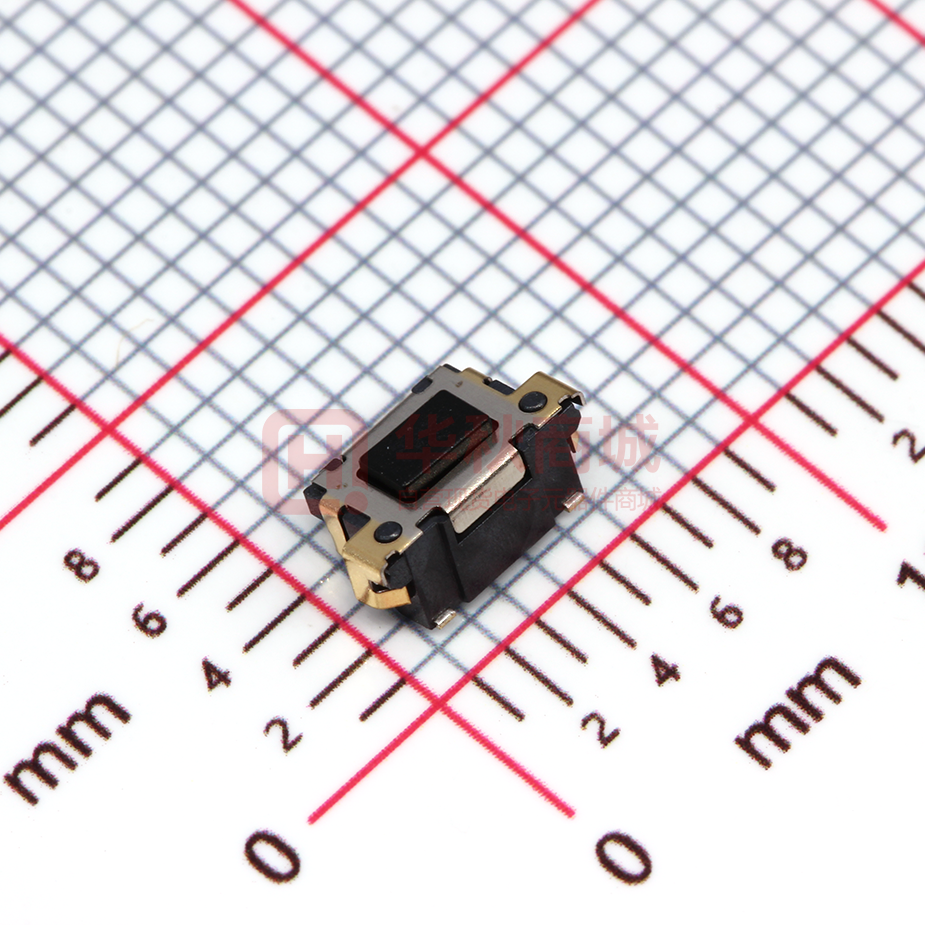

SKSN 6.2×3mm Side Push Mid-mount Type (Surface Mount Type) TACT SwitchTM Mid-mount type with height of 1.35mm above the PC board when installed （※1） (※1) Except SKSNLAE010 ■ Typical Specifications Items Specifications Sharp Feeling Rating（max.） 50mA 16V DC (SKSNLAE: 50mA 12V DC) Rating（min.） 10μA 1V DC Initial contact resistance 100mΩ Max Travel（mm） 0.2 Soft Feeling ■ Product Line Snap-in Type Product No. Operating force SKSNLAE010 2.4N SKSNLKE010 4.5N Minimum order unit（pcs.） Operating life （5mA 5V DC） Operating direction Japan Export 2,500 2,500 500,000 cycles Side push 100,000 cycles 5N SKSNLHE010 Surface Mount Type ■ Packing Specifications Taping Unit:mm Number of packages（pcs.） Radial Type 1 reel 1 case / Japan 1 case / export packing 2,500 25,000 Tape width （mm） Export package measurements（mm） 12 395×395×205 25,000 Reel size Note For reels of 330mm diameter, please inquire. ø380 13.5 ■ Dimensions Unit:mm PC board mounting hole and land dimensions （Viewed from switch mounting face） Style 6.2 2.55 2.55 3 2.1 .5 0.05 0.3 5.1 5.8 7 R0 2.05 3.1 .5 R0 0.3 0.1 0.4 1.35 2.05 3.1 0.3 0.1 6 3.1 1.65 1.25 0.45 2.6 4.8 3 2.1 1.35 1.65 1.25 0.45 2.6 4.8 0.4 1.35 3.5 1.6 6 3.1 1.35 1.6 3.5 6.2 0.05 0.3 5.1 5.8 7 5.9 2 1 5.9 1 2 ■ Circuit Diagram 1 2 Refer to P.235 for soldering conditions. 222 Surface Mount SKST Series SKRA SKHM SKHU SKTD SKSN — — Low–profile Mid-mount SKTG SKSL TACT SwitchTM Sharp Feeling Type Type Photo Middle travel Half-mount — ○ ● — ● — Dustproof — ○ — ○ ● — ● — IP standard — 67 equivalent — — 67 equivalent — 67 equivalent — Top push ● ● ● ● — — — — Side push — — — — ● ● ● ● □8.5 □6.2 6.2 6.2 3.9 6.2 5.2 4.5 6.5 6.3 2.9 3 3.5 2.6 3.95 3.5/5.2 3.1 2.5/3.1 1.55 3.5 1.55 2.2 0.15 0.2 ● ● −30℃ to ＋85℃ −40℃ to ＋85℃ — ○ Operating direction W Dimensions （mm） D H Surface Mount Type ○ 1N max. 1N to 2N Operation force coverage 2N to 3N Snap-in Type — Soft Feeling Water-proof Sharp Feeling Features 4N to 10N 3N to 4N 4N to 5N 0.9 See the relevant pages for respective product description Ground terminal — — Operating temperature range Automotive use ● −40℃ to ＋90℃ ● 0.25 ○ ● −40℃ to ＋85℃ — ● 0.15 ● ● Radial Type Travel（mm） −30℃ to ＋85℃ — ○ Life Cycle Rating（max.） （Resistive load） Electrical performance 50mA 16V DC 50mA 12V DC Rating（min.） （Resistive load） 10μA 1V DC Insulation resistance 100MΩ min. 100V DC 1min. Voltage proof 250V AC 1min. 250V AC 1min. Vibration 10 to 55 to 10Hz/min., the amplitude is 1.5mm for all the frequencies, in the 3 direction of X, Y and Z for 2 hours respectively Lifetime Shall be in accordance with individual specifications. Durability Environmental performance 100V AC 1min. Cold −40℃ 1,000h Dry heat 90℃ 1,000h Damp heat 60℃, 90 to 95%RH 1,000h Page 216 217 100V AC 1min. −40℃ 96h 90℃ 96h 85℃ 96h 90℃ 96h 85℃ 96h 90℃ 96h 223 224 60℃, 90 to 95%RH 96h 218 219 221 222 W：Width. The most outer dimension excluding terminal portion. D ：Depth. The most outer dimension excluding terminal portion. H ：Height. The minimum dimension if there are variances. TACT SwitchTM Soldering Conditions・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 235 TACT SwitchTM Cautions・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 236 Notes 1. The automotive operating temperature range to be individually discussed upon request. 2. ● Indicates applicability to all products in the series, while ○ indicates applicability to some products in the series. 171 TACT SwitchTM / Soldering Conditions TACT SwitchTM ■ Condition for Reflow Available for Surface Mount Type. Temperature profile Temperature (˚C ) 260˚C max. 3s max. Sharp Feeling 230˚C 180 150 Soft Feeling Time 120s max. （pre-heating） 40s max. 3 to 4min. Snap-in Type Time inside soldering equipment Notes 1. Please confirm the specifications of our product for the detailed condition. 2. Soldering conditions differ depending on reflow soldering machines. Prior verification of soldering condition is highly recommended. Surface Mount Type ■ Conditions for Auto-dip ■ Manual Soldering Available for Snap-in Type and Radial Type. Condition Flux built-up Mounting surface should not be exposed to flux Preheating temperature Ambient temperature of the soldered surface of PC board. 100℃ max. Items Condition Soldering temperature 350℃ max. Duration of soldering 3s max. Capacity of soldering iron 60W max. Preheating time 60s　max. Soldering temperature 260℃ max. Duration of immersion 5s max. Items Condition 2times max. Soldering temperature 360℃ max. Number of soldering SKHH Series Radial Type Items SKHH, SKHW Series Duration of soldering 3s max. Capacity of soldering iron 60W max. Items Condition Flux built-up Mounting surface should not be exposed to flux Preheating temperature Ambient temperature of the soldered surface of PC board. 110℃ max. Items Condition Preheating time 60s　max. Soldering temperature 350℃ max. Soldering temperature 260℃ max. Duration of soldering 3s max. Duration of immersion 5s max. Capacity of soldering iron 20W max. Number of soldering 2times max. SKTD, SKTG, SKQJ, SKSN Series SKHLTop Push Type, SKQJ Series Items Condition Flux built-up Mounting surface should not be exposed to flux Preheating temperature Ambient temperature of the soldered surface of PC board. 100℃ max. Preheating time 45s　max. Soldering temperature 255℃ max. Duration of immersion 5s max. Number of soldering 2times max. Notes 1. Prevent flux penetration from the top side of the TACT SwitchTM. 2. Switch terminals and a PC board should not be coated with flux prior to soldering. 3. The second soldering should be done after the switch is stable with normal temperature. 4. Use the flux with a specific gravity of min 0.81. （EC-19S-8 by TAMURA CORPORATION, or equivalents.） 235
